mp-14969/BaErCuS3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-14969.tar.gz

Harmonic properties

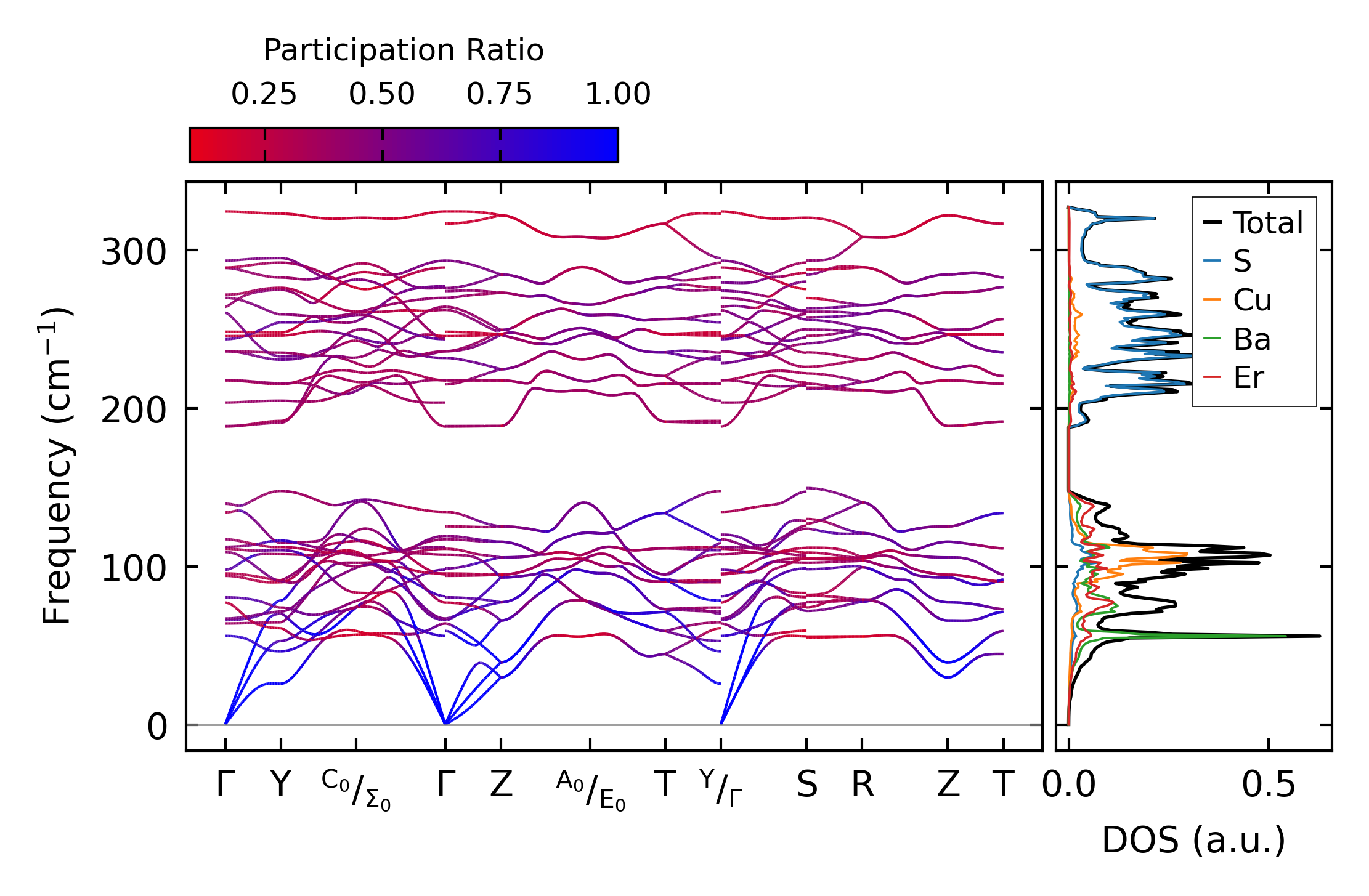

../../_images/fig_bandos_pr14560.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14560.png — (b) Thermodynamic properties

Grüneisen parameters

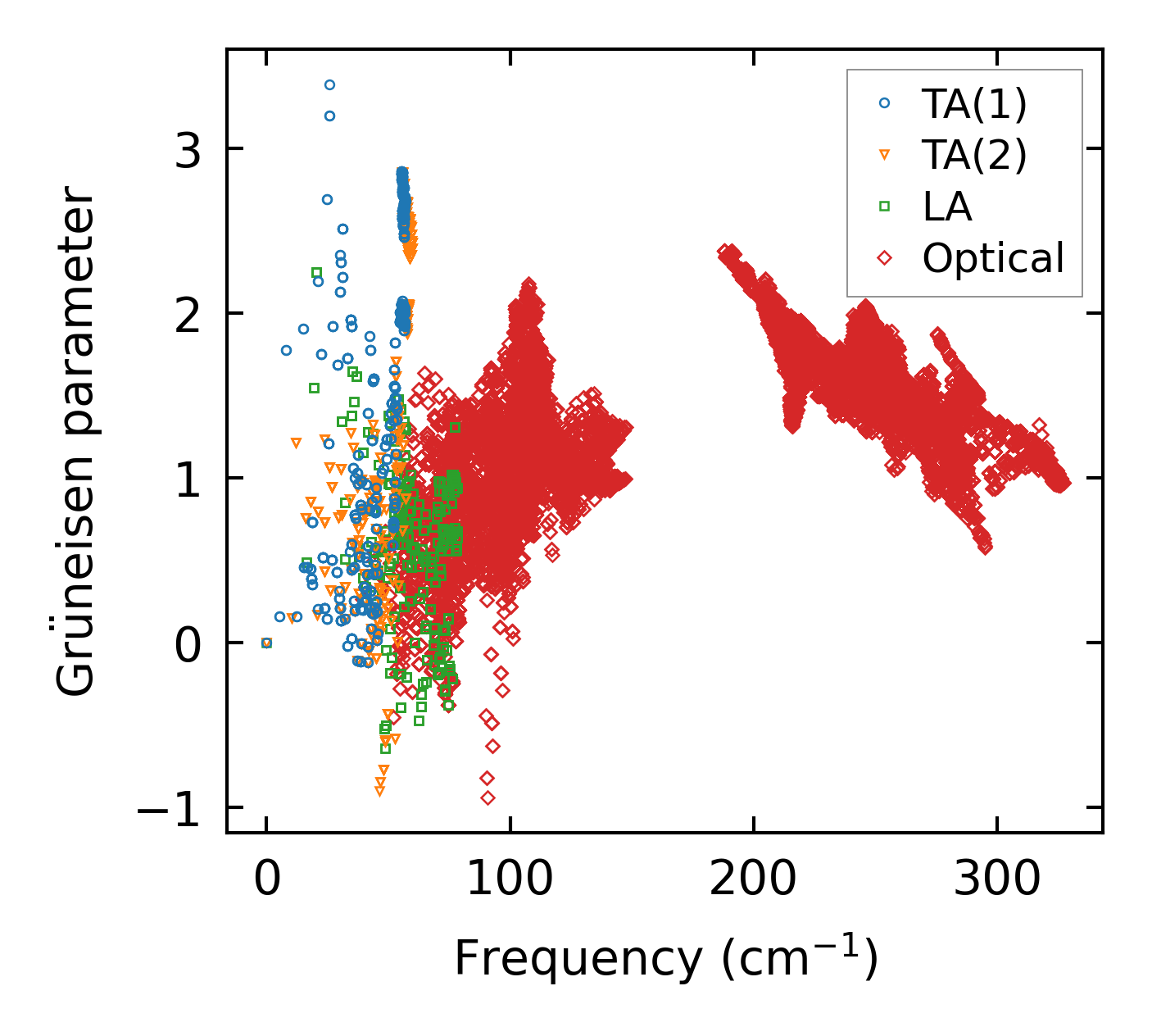

../../_images/fig_gru_all6233.png — (a) Grüneisen parameters

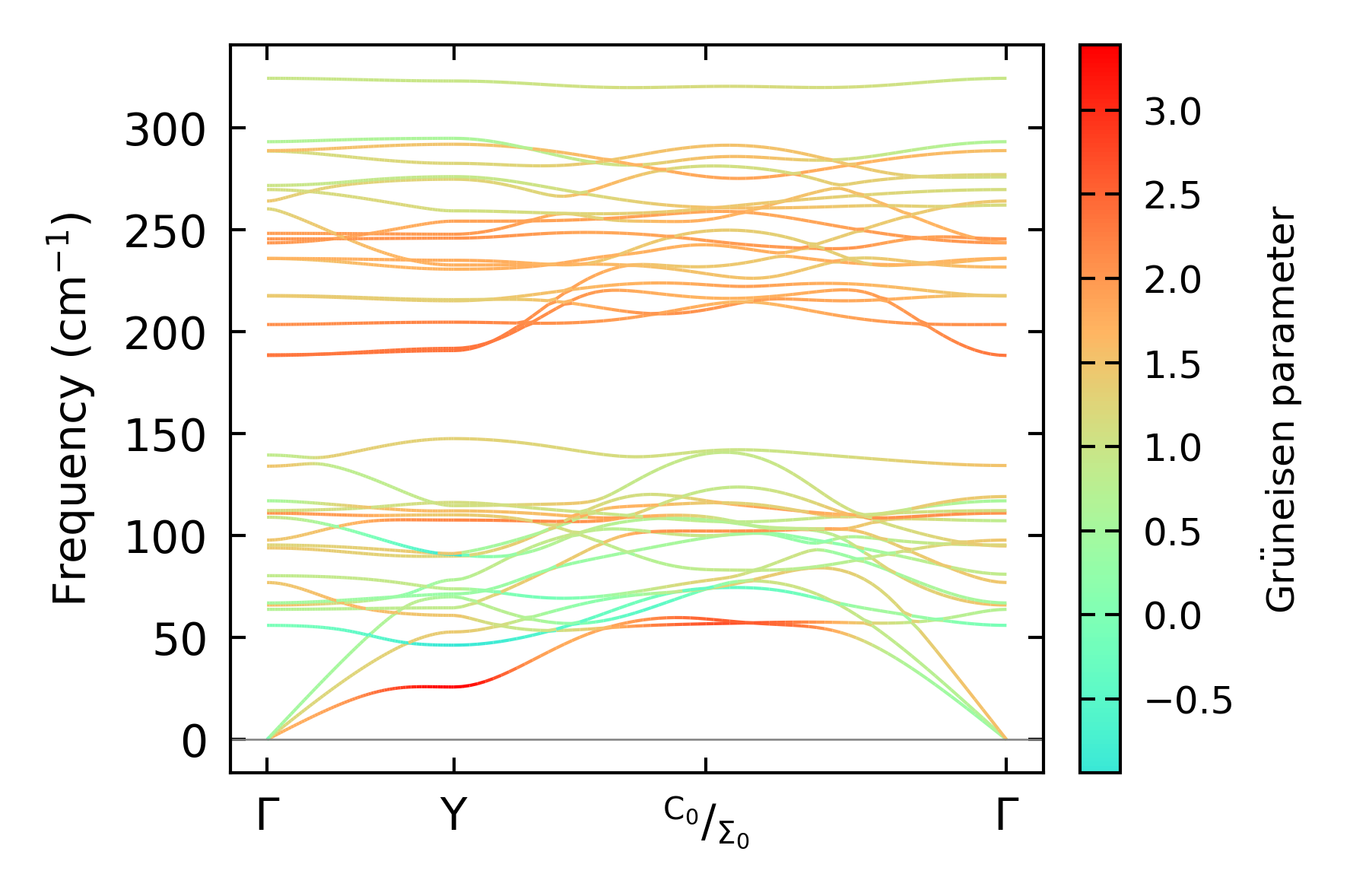

../../_images/fig_gruneisen6233.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x8, supercell: 3x1x2

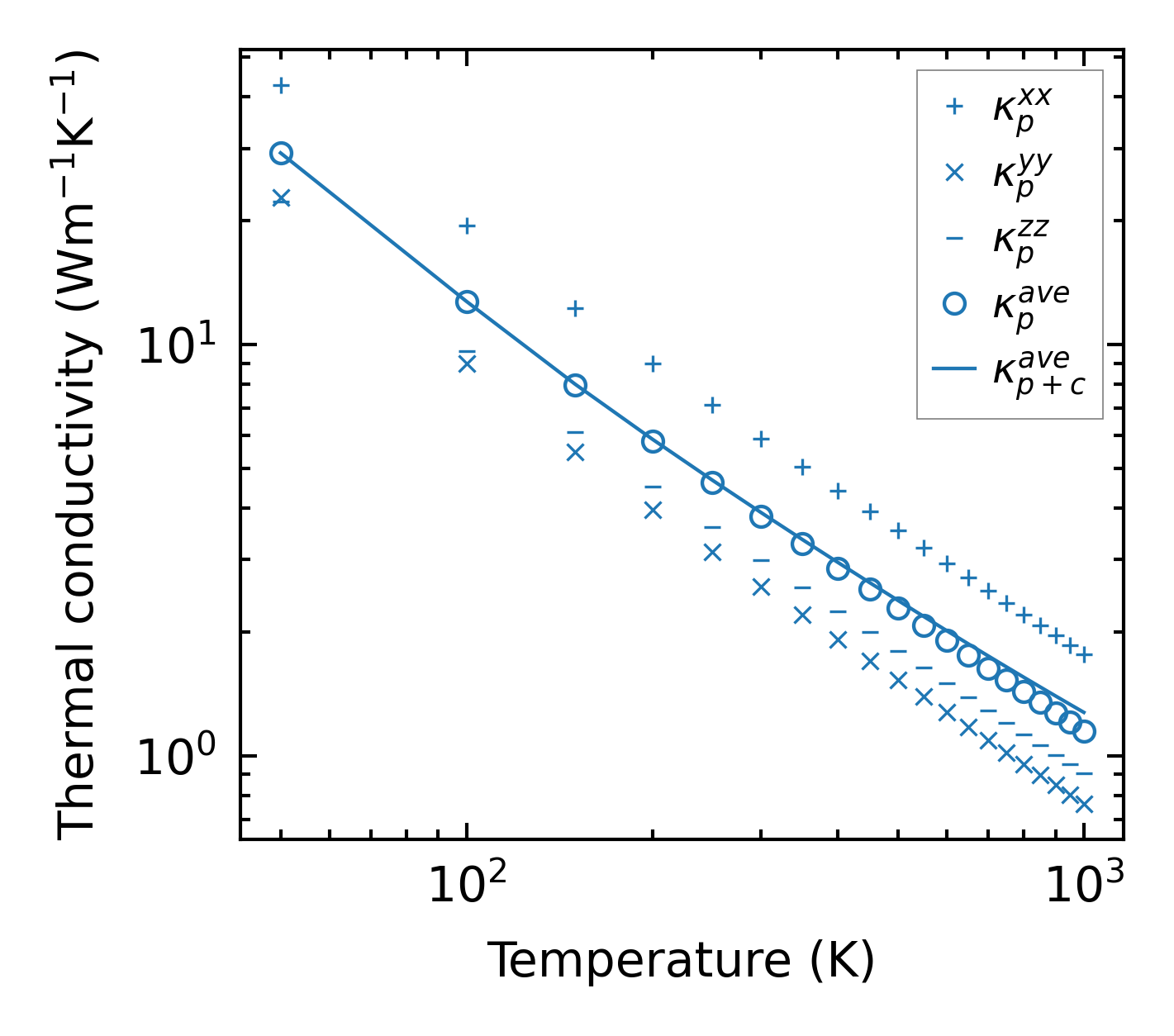

../../_images/fig_kappa11726.png — (a) Temperature-dependent lattice thermal conductivity

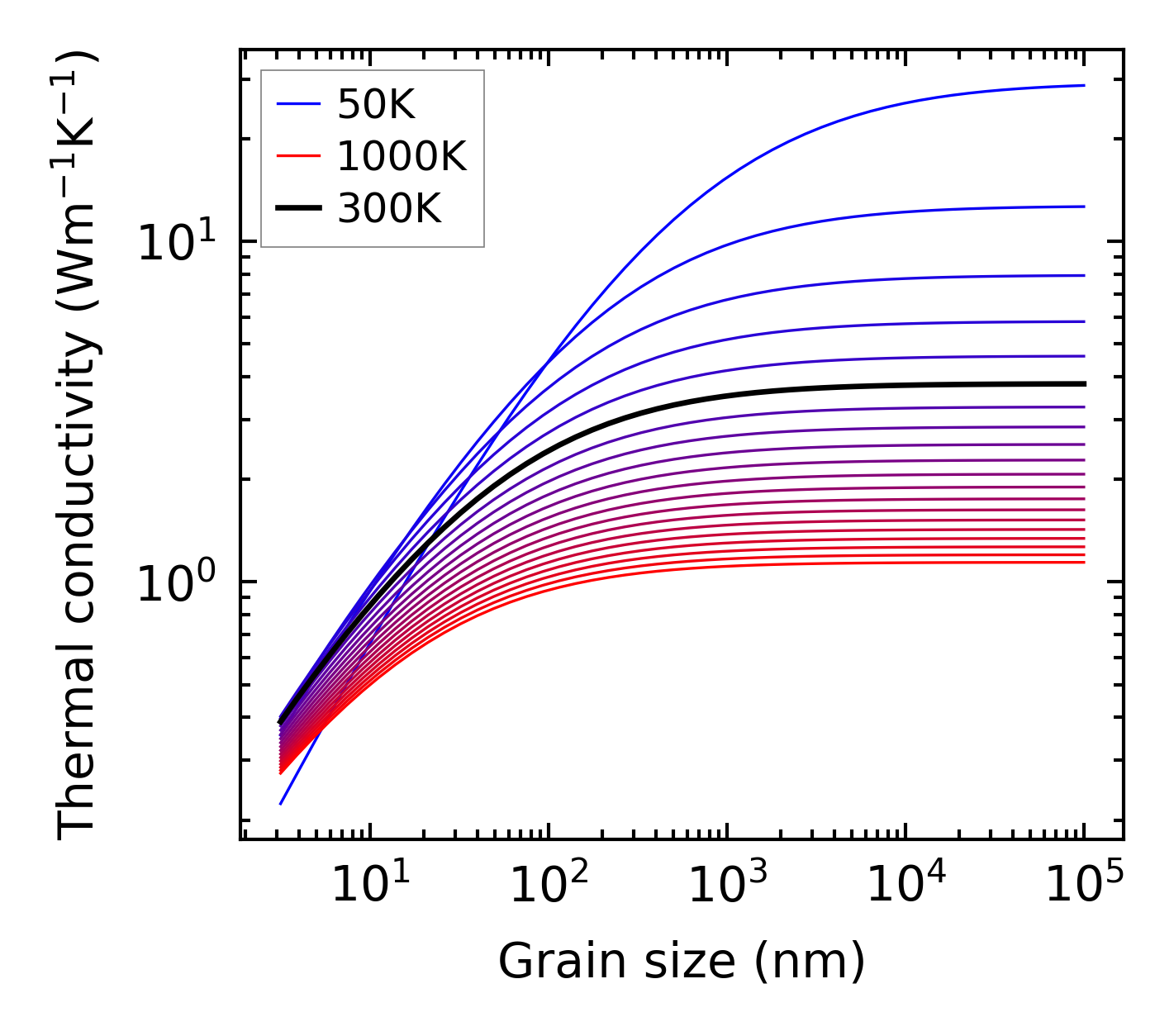

../../_images/fig_kappa_vs_grain_size6310.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

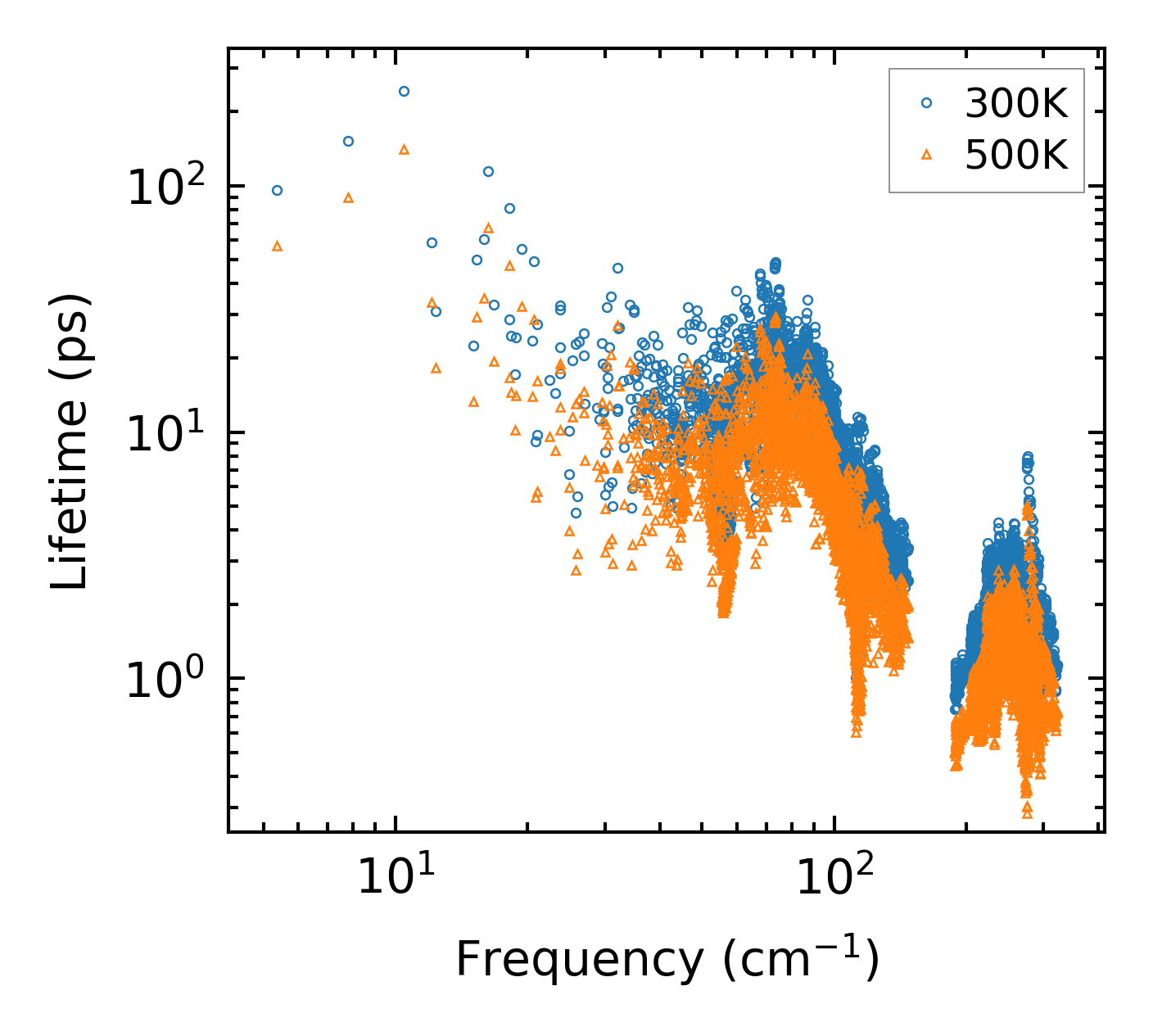

../../_images/fig_lifetime6171.png — (a) Phonon lifetime due to phonon-phonon scattering

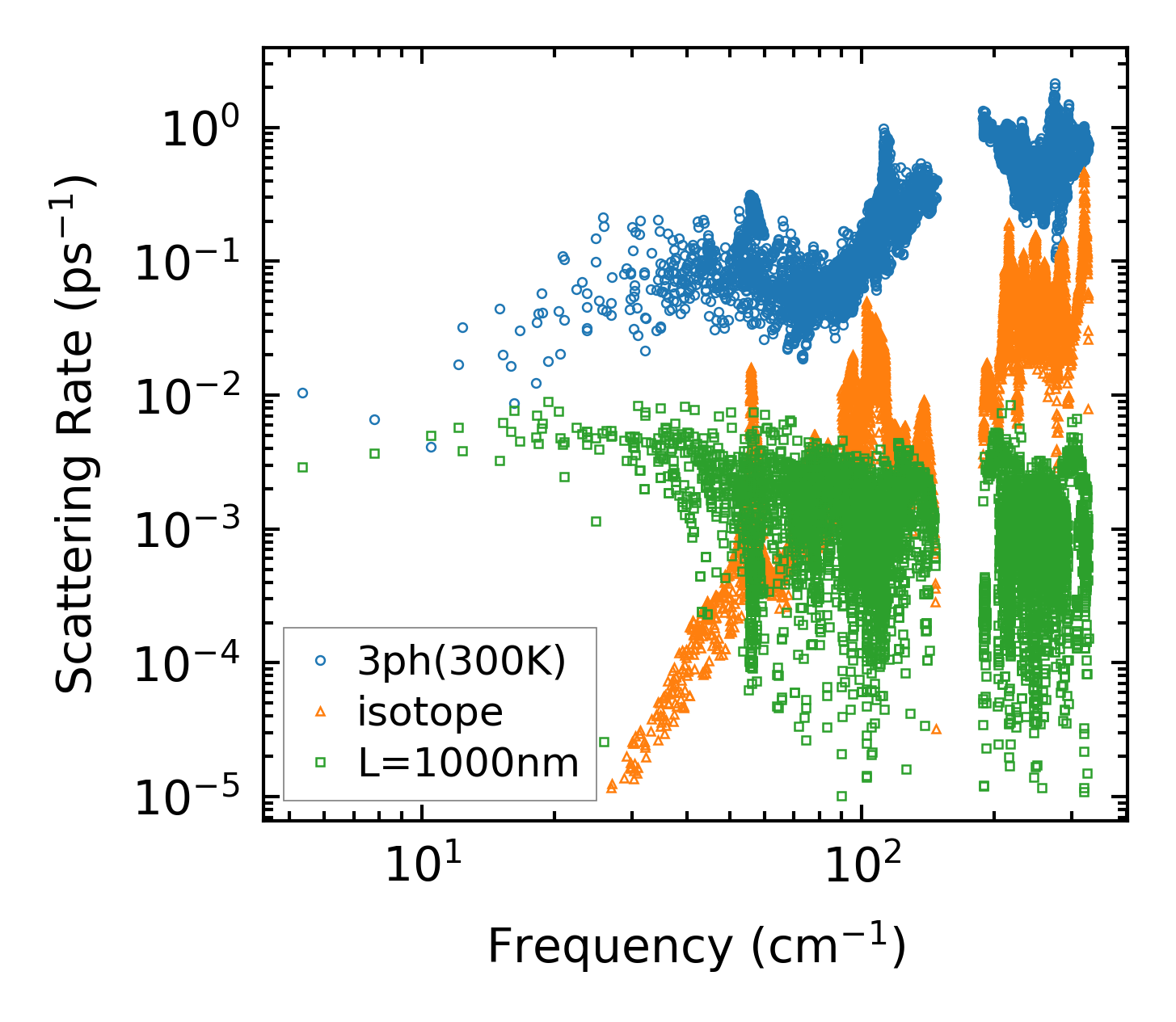

../../_images/fig_scat_rates6170.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

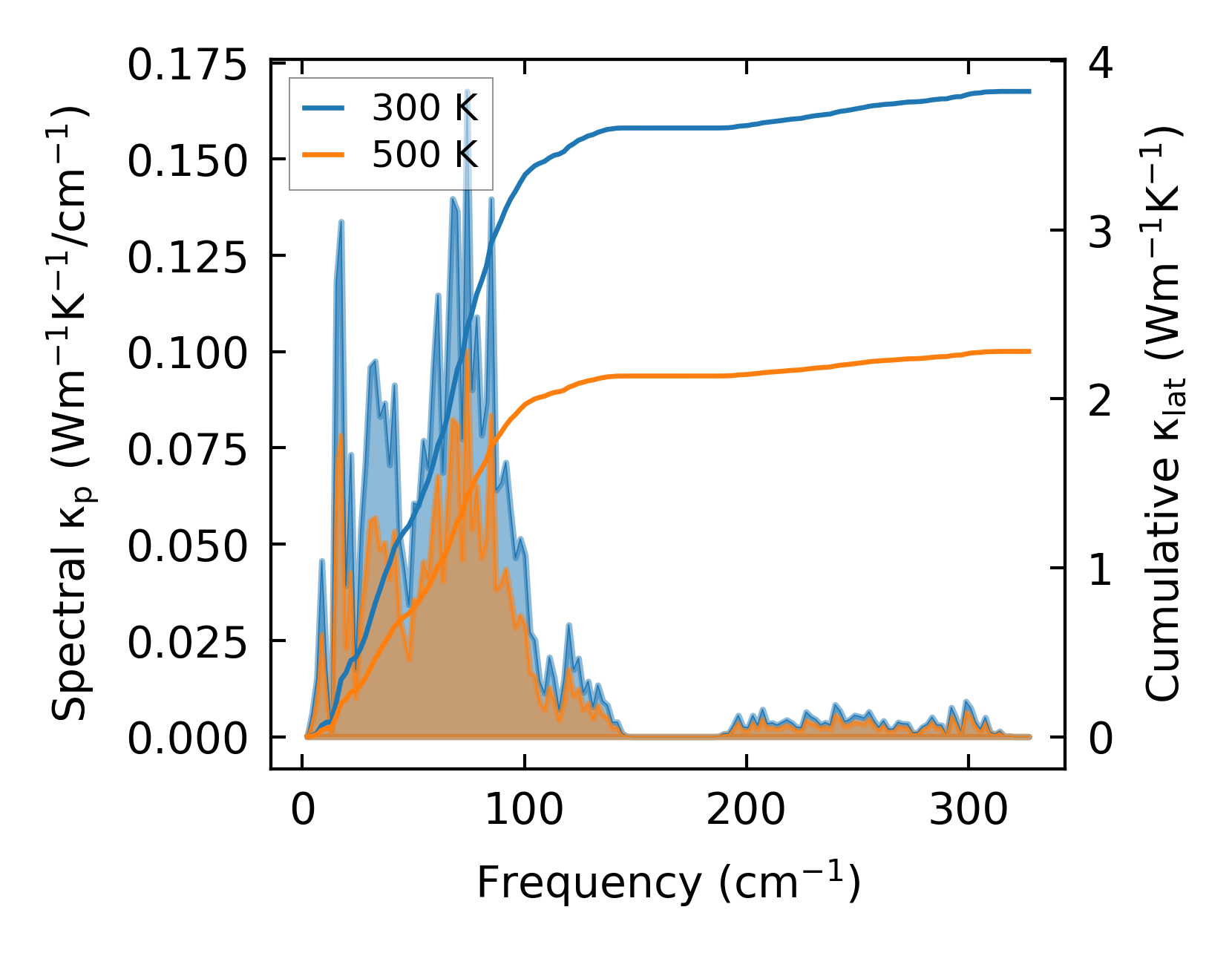

../../_images/fig_cumu_frequency6171.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

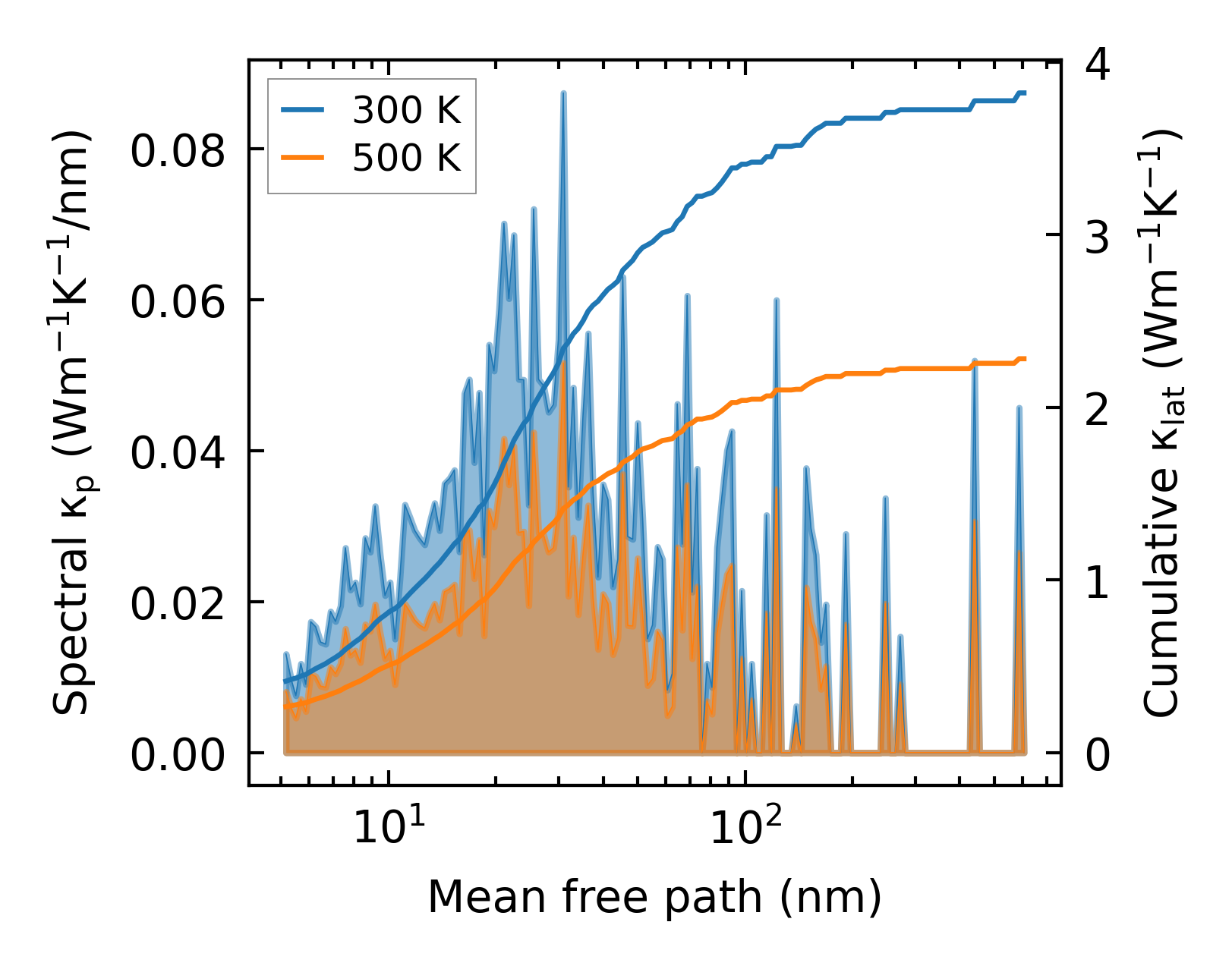

../../_images/fig_cumu_mfp6170.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

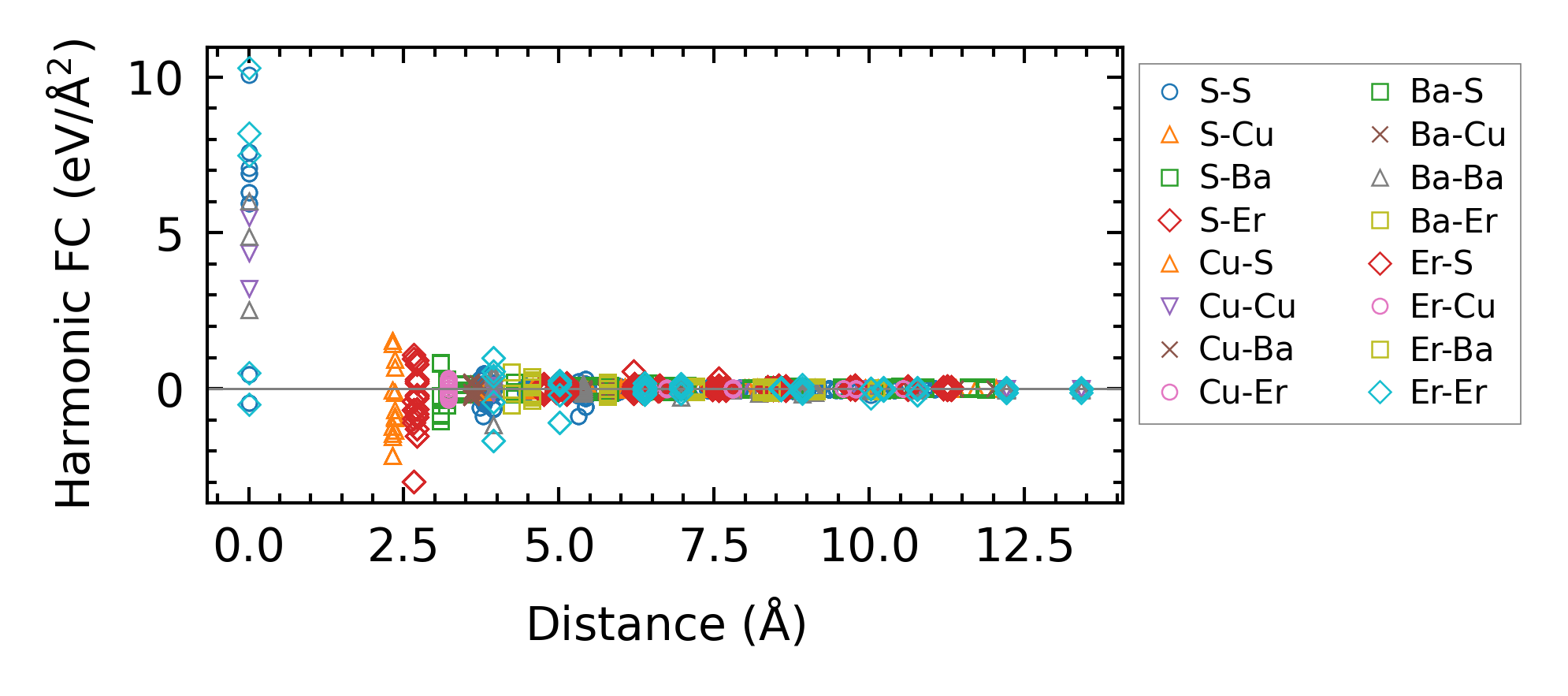

../../_images/fig_fc214179.png — (a) Force constants w.r.t atomic distance

Summary

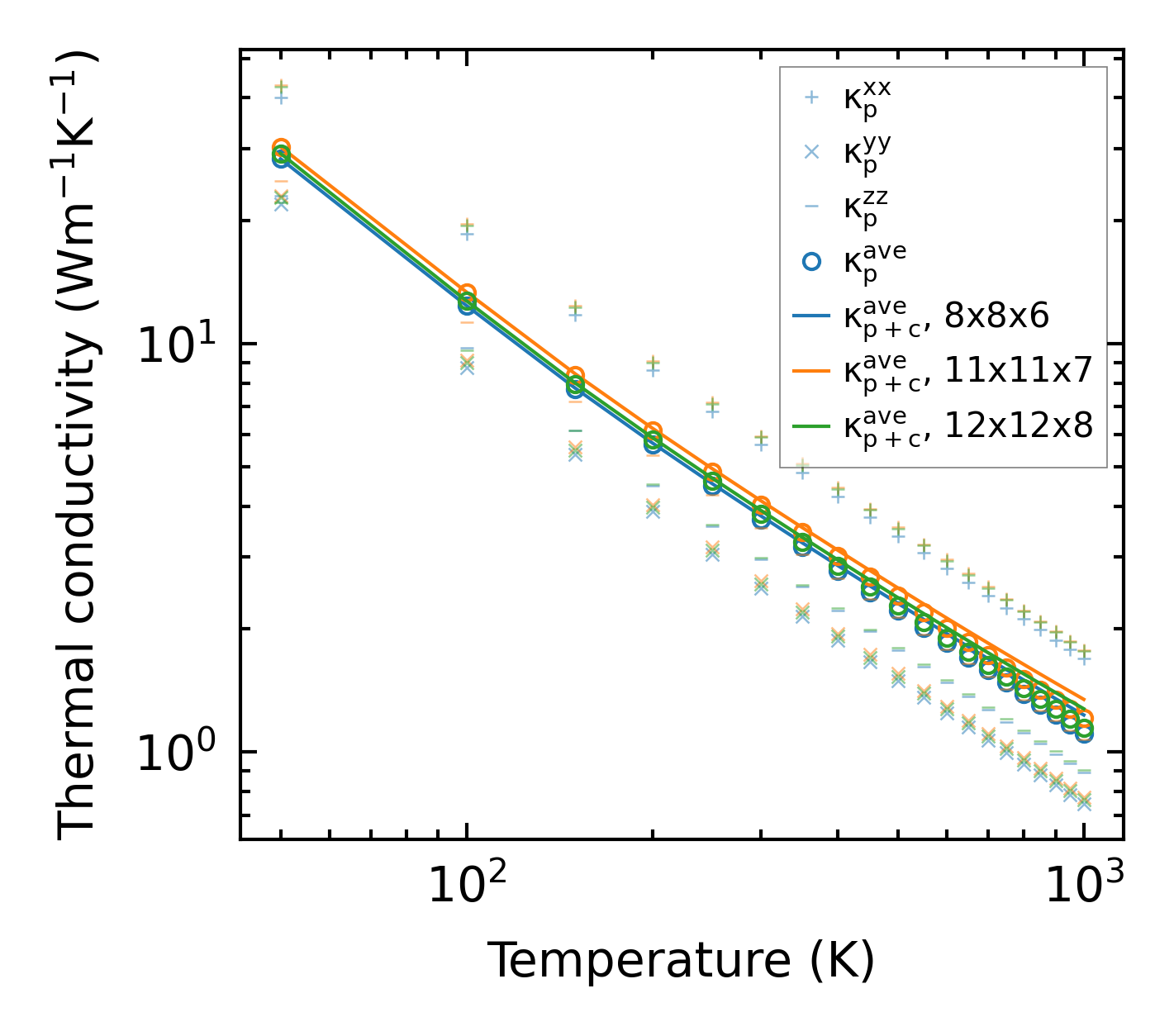

../../_images/fig_kappa11727.png — (a) Temperature-dependent lattice thermal conductivity

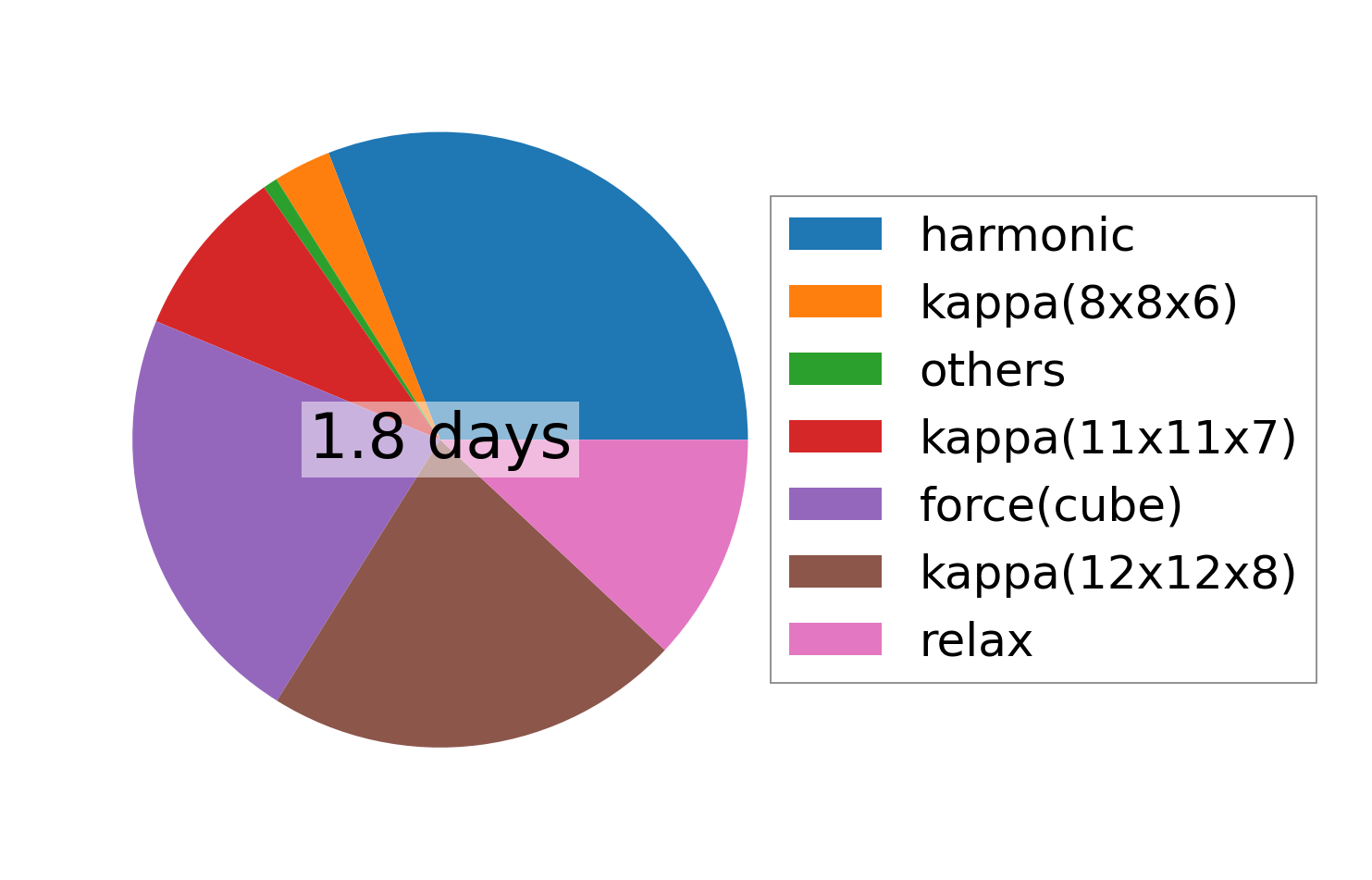

../../_images/fig_times24228.png — (b) Computation time
