mp-14193/K2ThF6/anharm

Space group: P-62m (189)
Link: Materials Project
Download: mp-14193.tar.gz

Harmonic properties

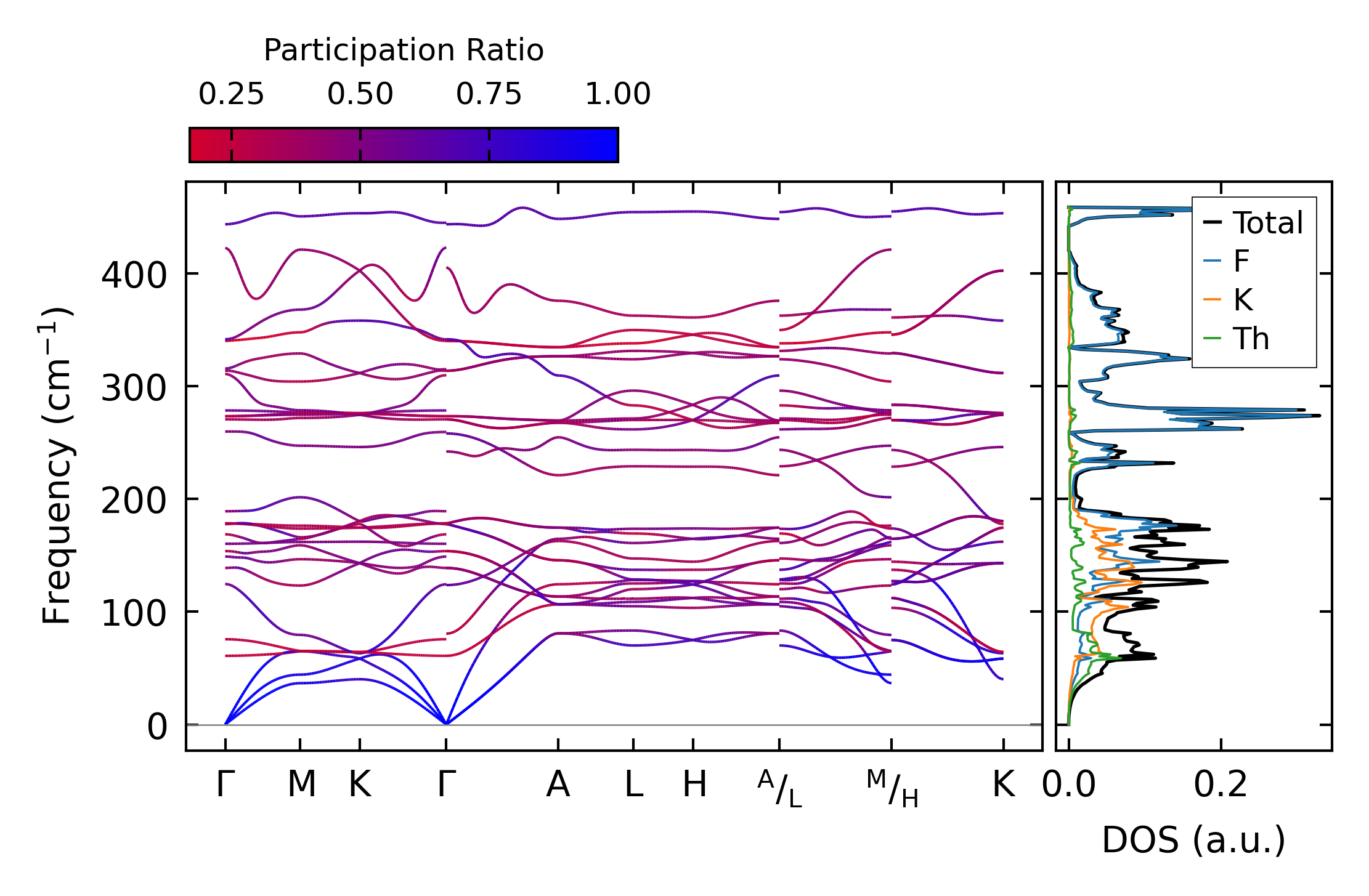

../../_images/fig_bandos_pr14719.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14719.png — (b) Thermodynamic properties

Grüneisen parameters

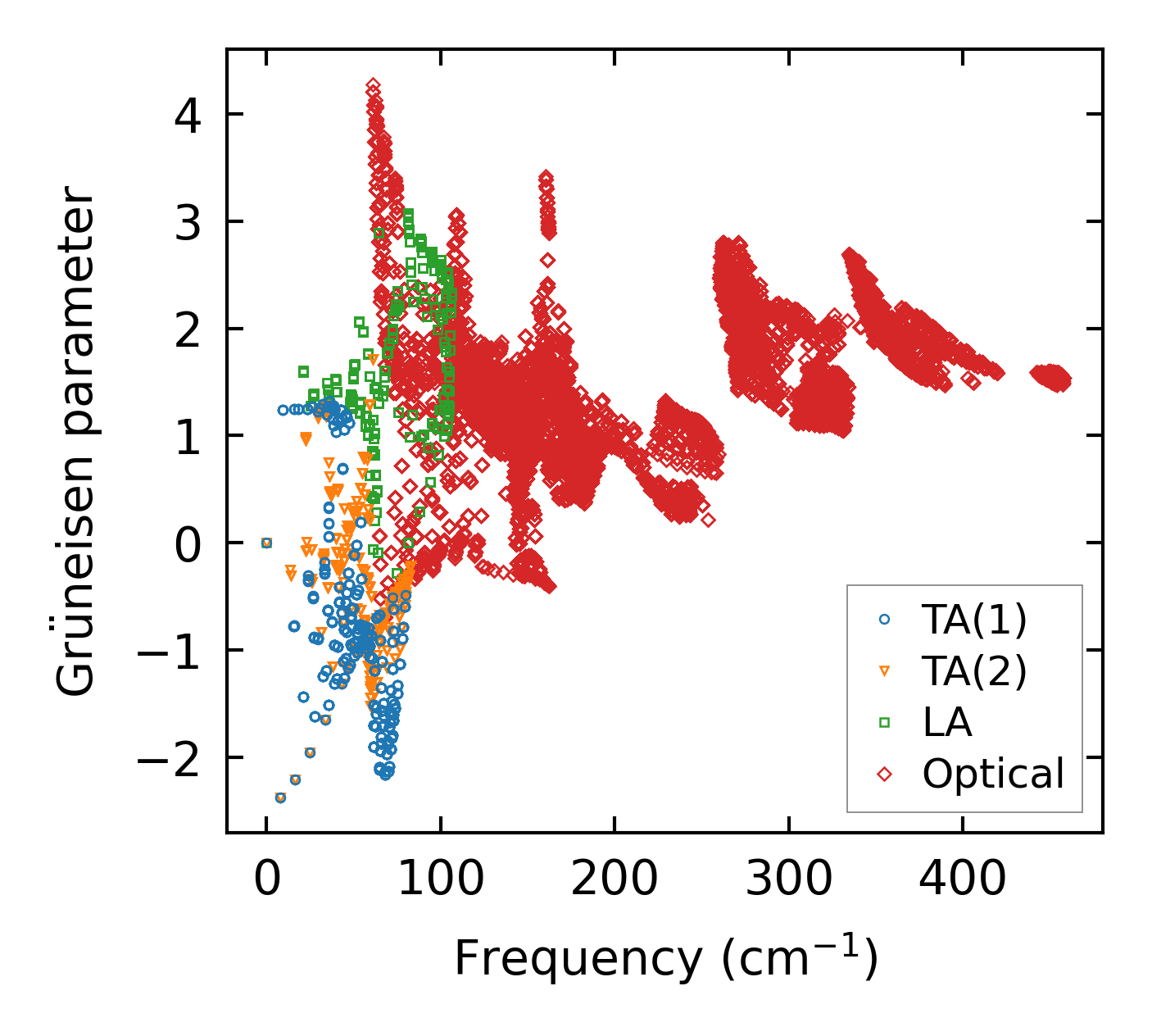

../../_images/fig_gru_all6304.png — (a) Grüneisen parameters

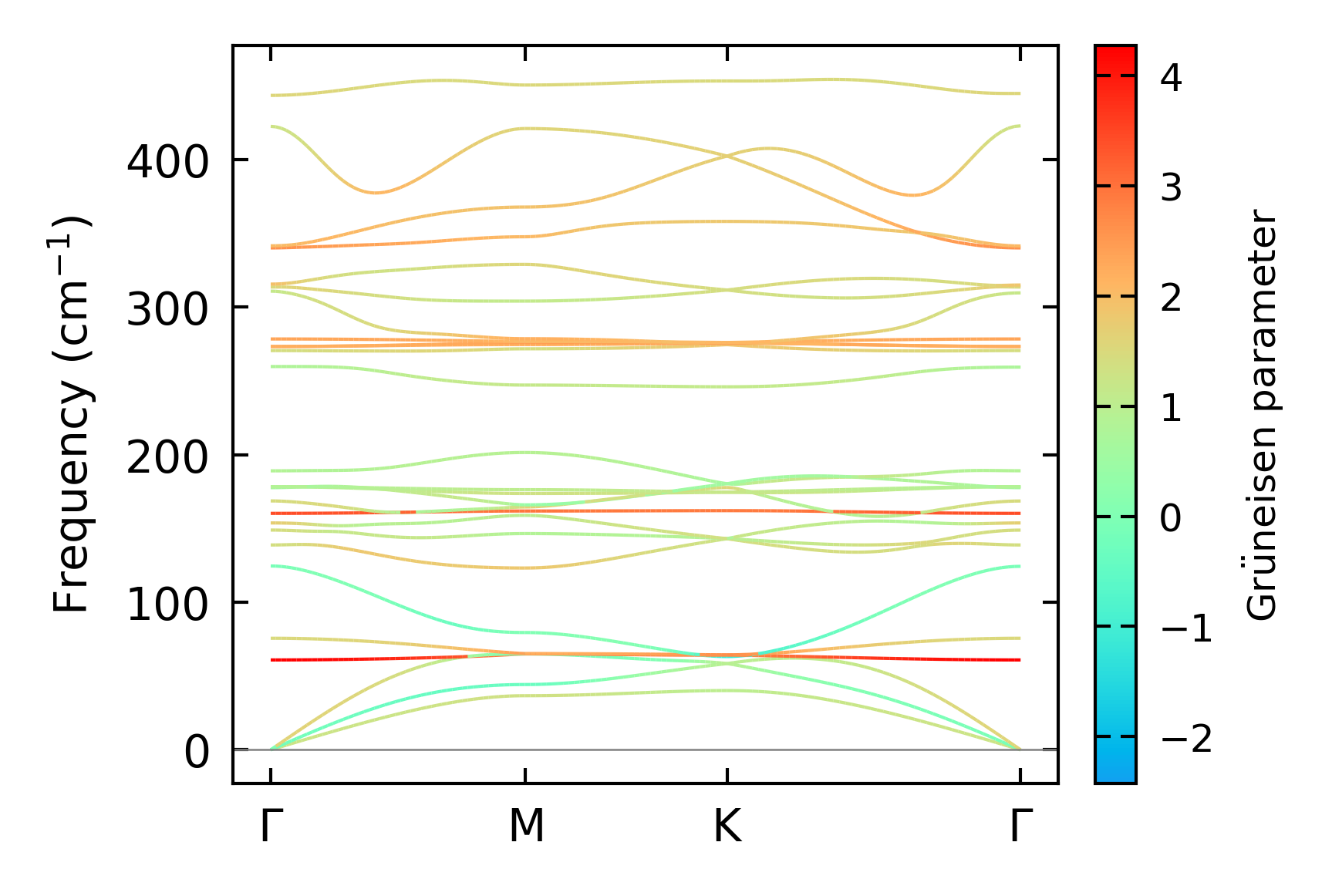

../../_images/fig_gruneisen6304.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x19, supercell: 2x2x4

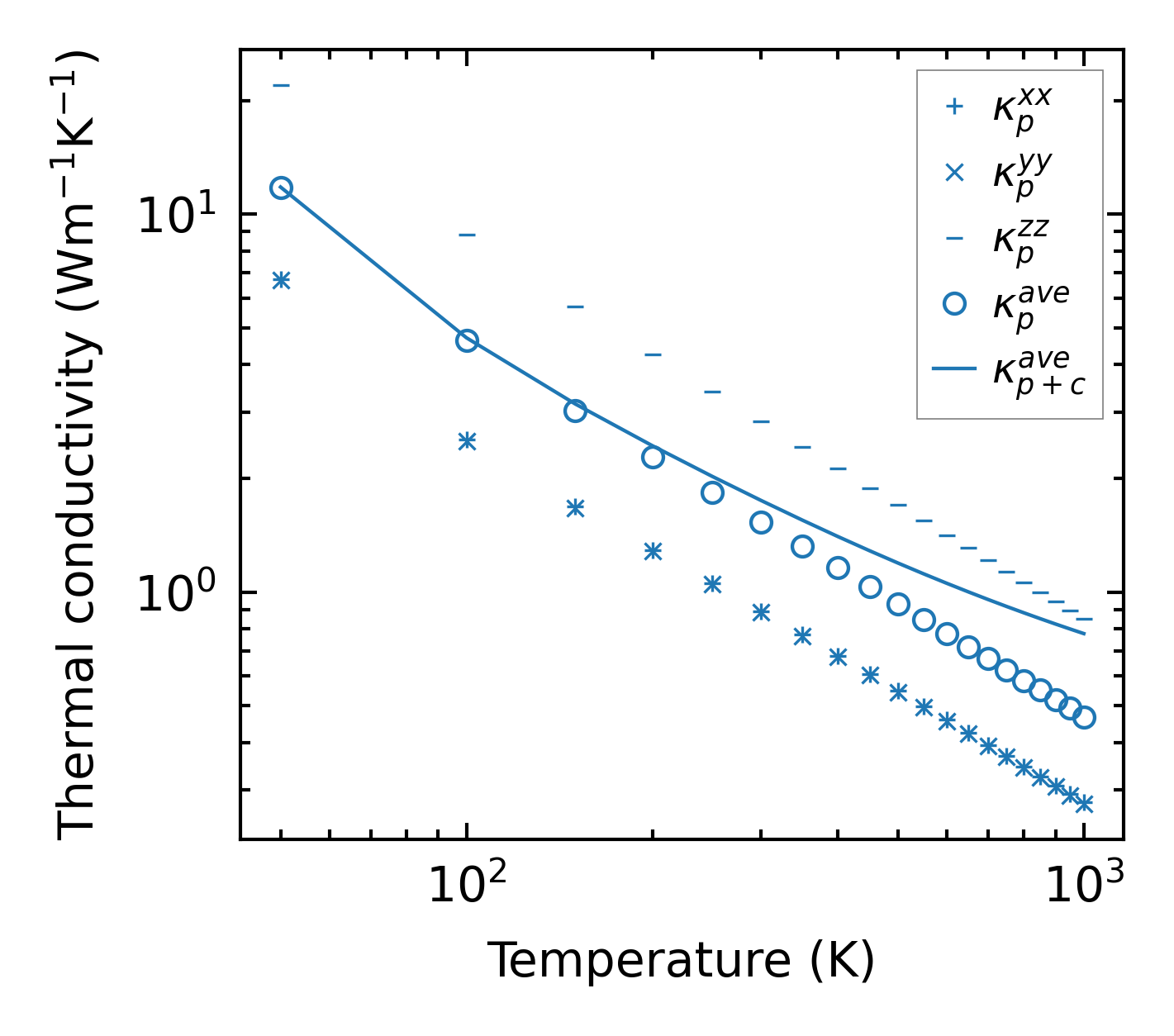

../../_images/fig_kappa11857.png — (a) Temperature-dependent lattice thermal conductivity

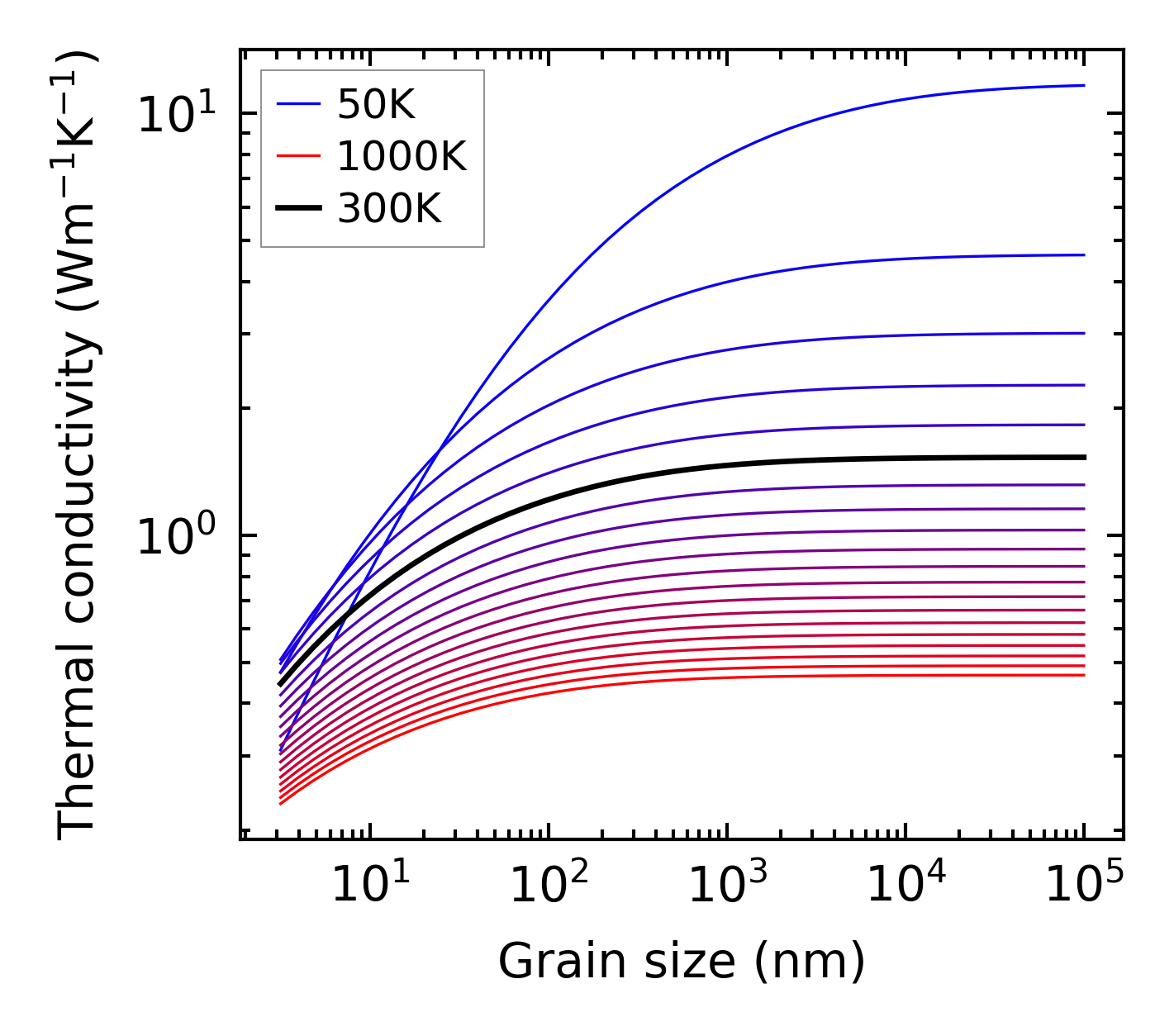

../../_images/fig_kappa_vs_grain_size6380.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

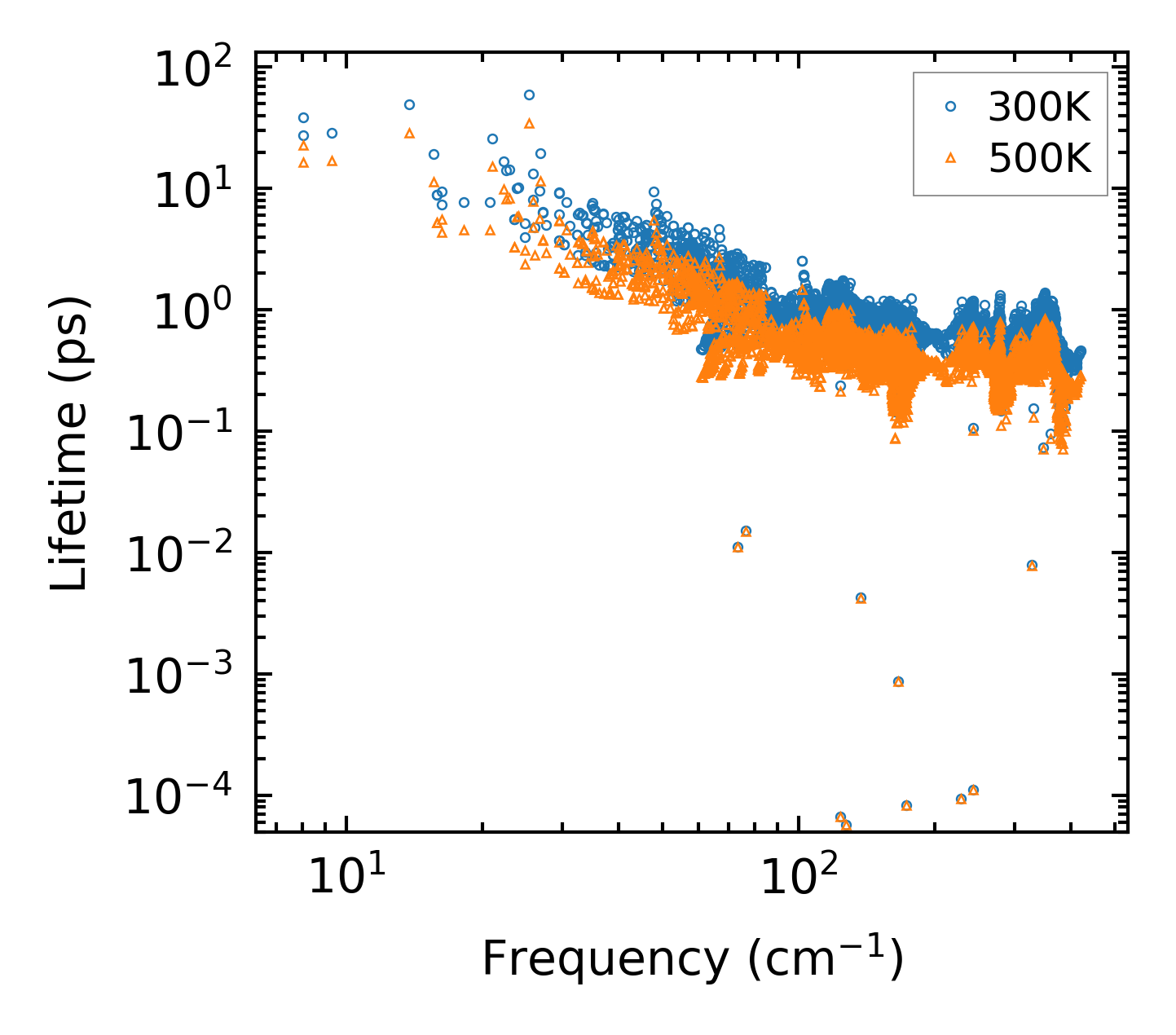

../../_images/fig_lifetime6241.png — (a) Phonon lifetime due to phonon-phonon scattering

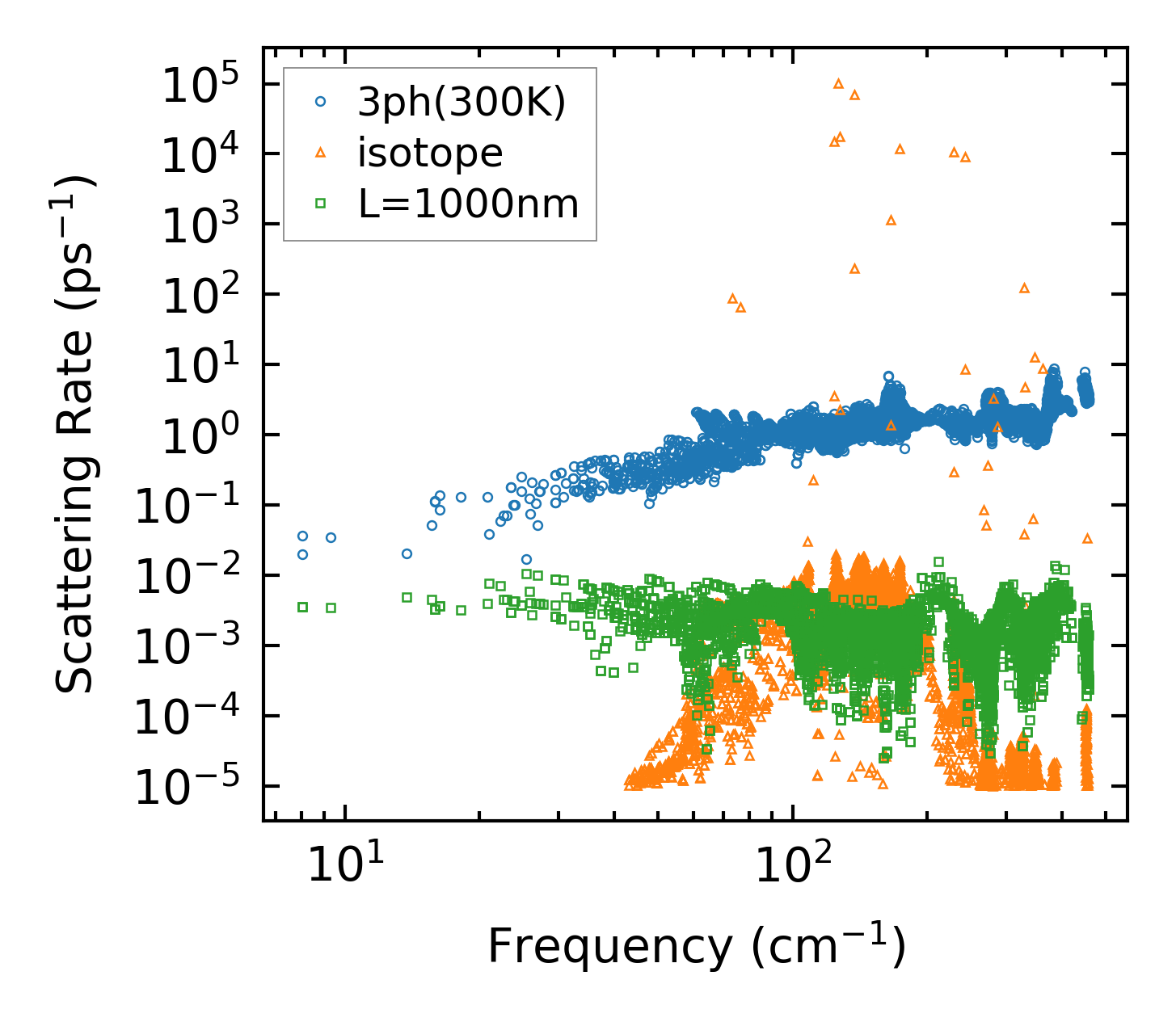

../../_images/fig_scat_rates6240.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

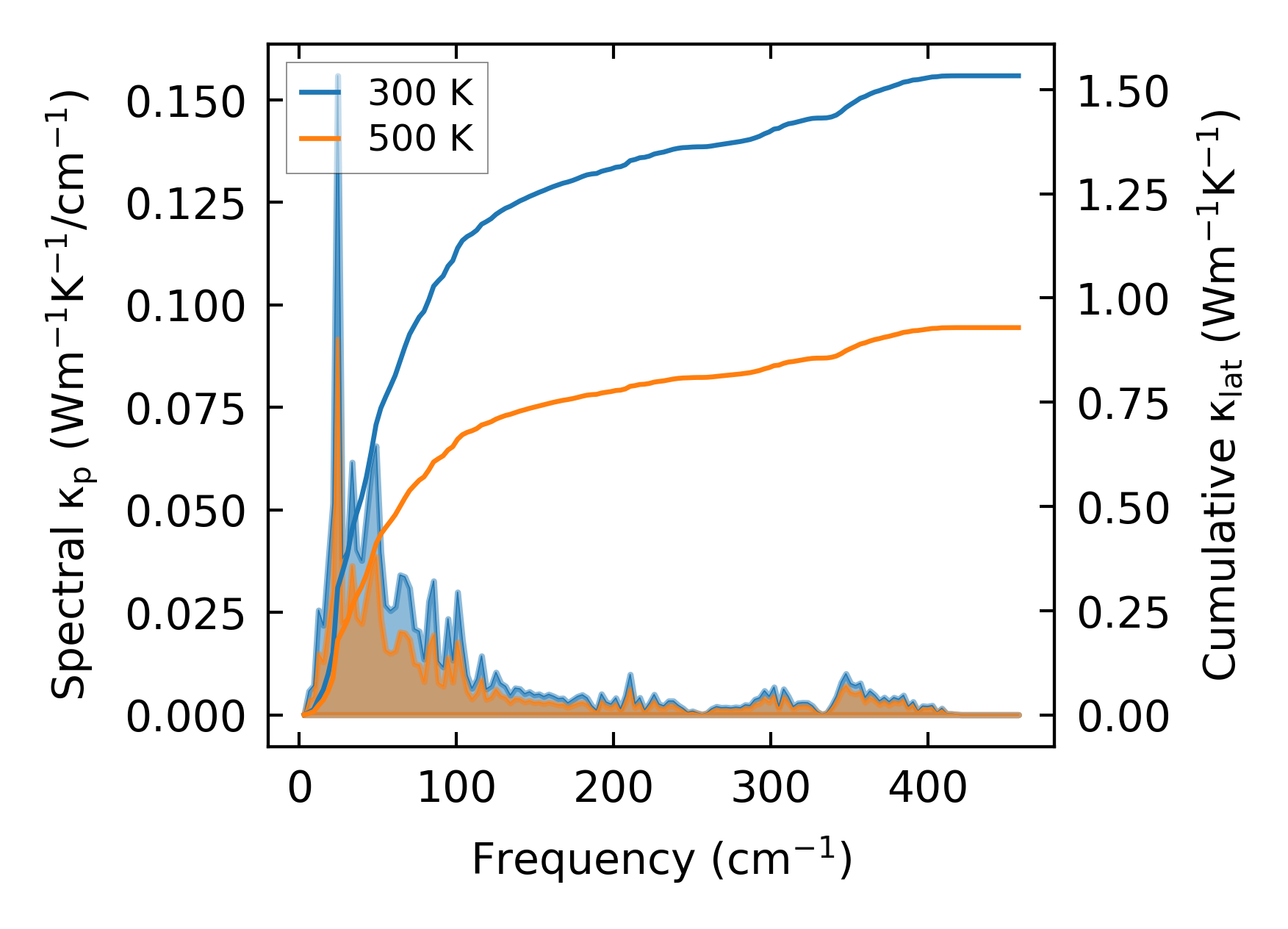

../../_images/fig_cumu_frequency6241.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

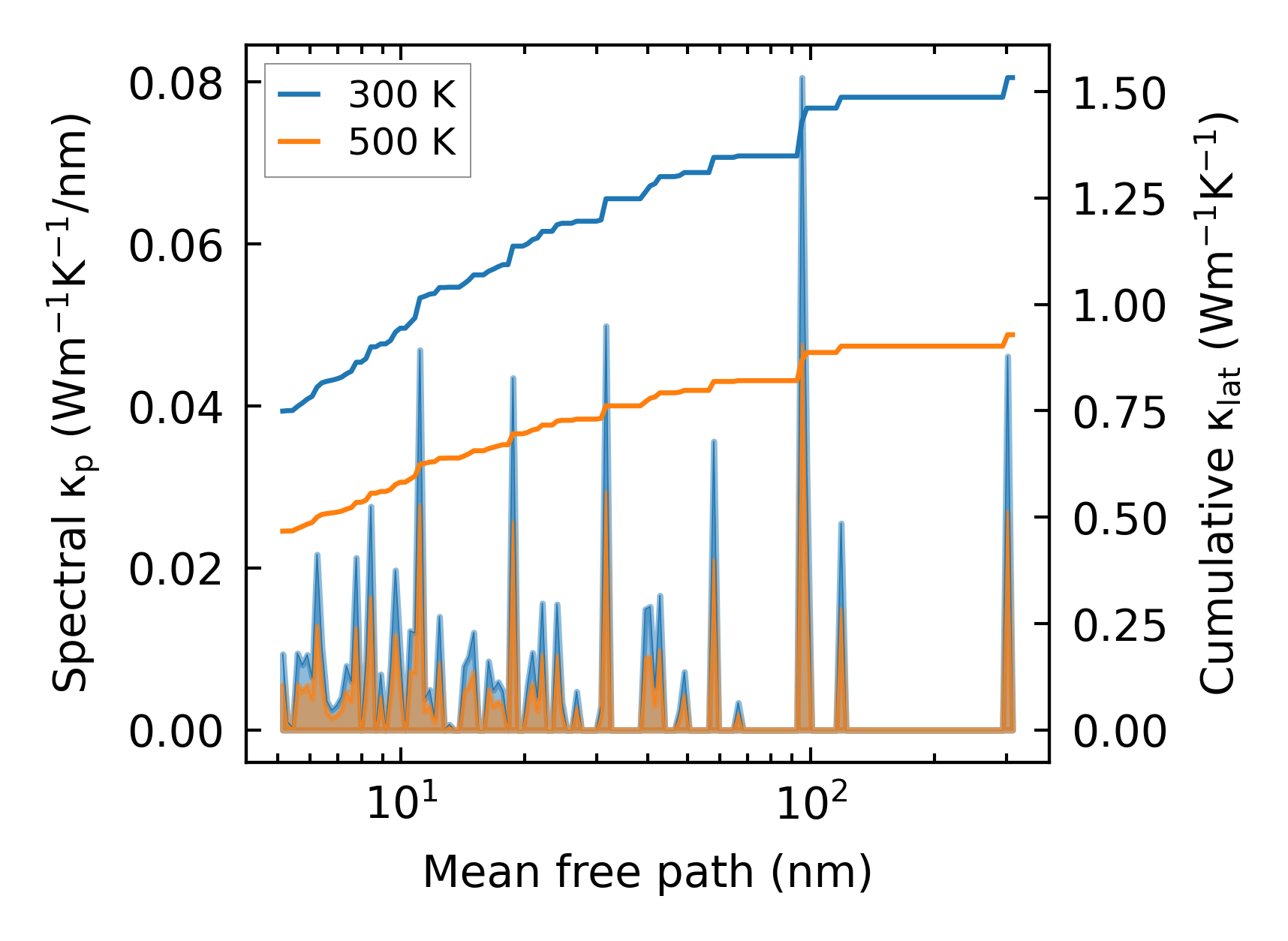

../../_images/fig_cumu_mfp6240.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

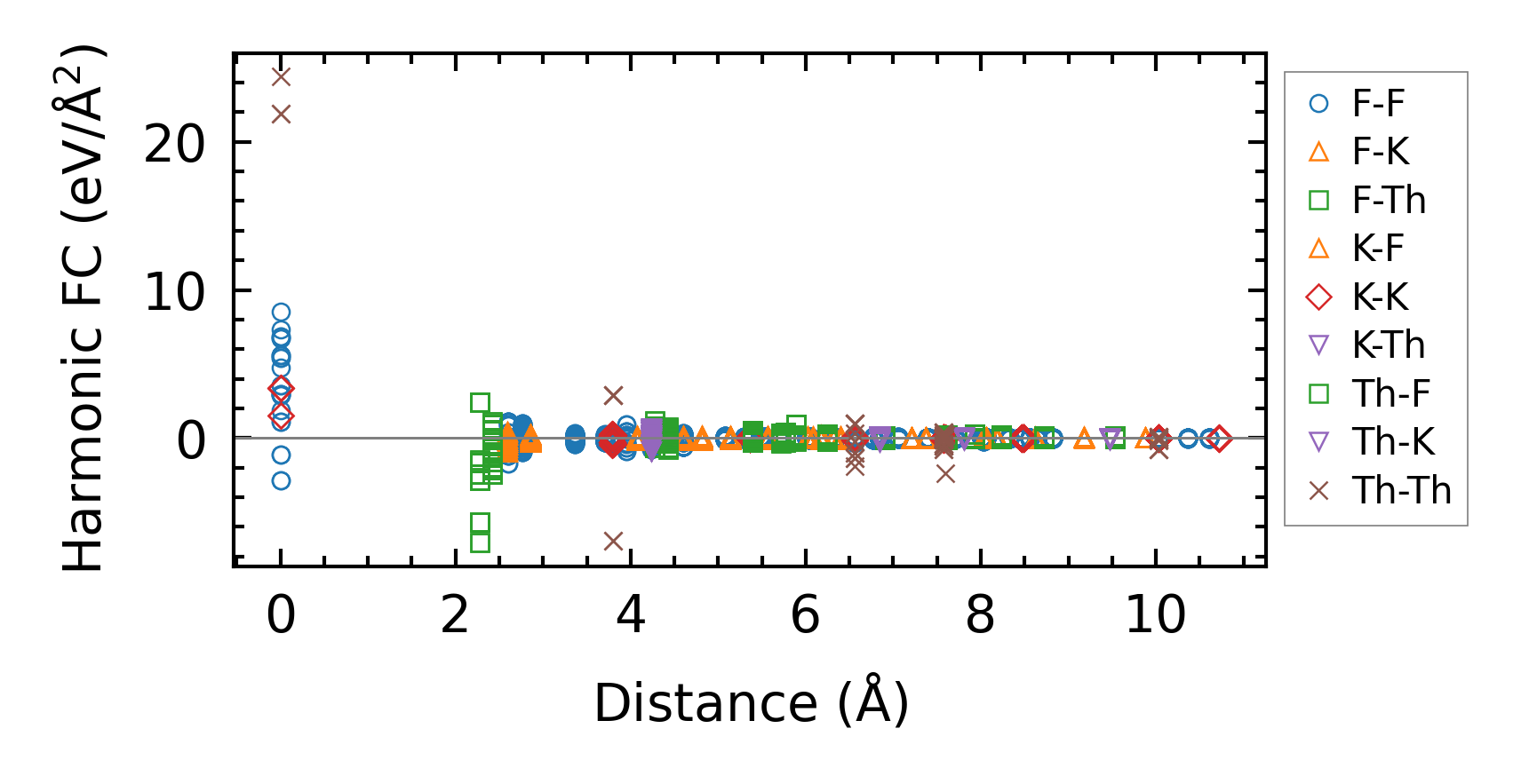

../../_images/fig_fc214337.png — (a) Force constants w.r.t atomic distance

Summary

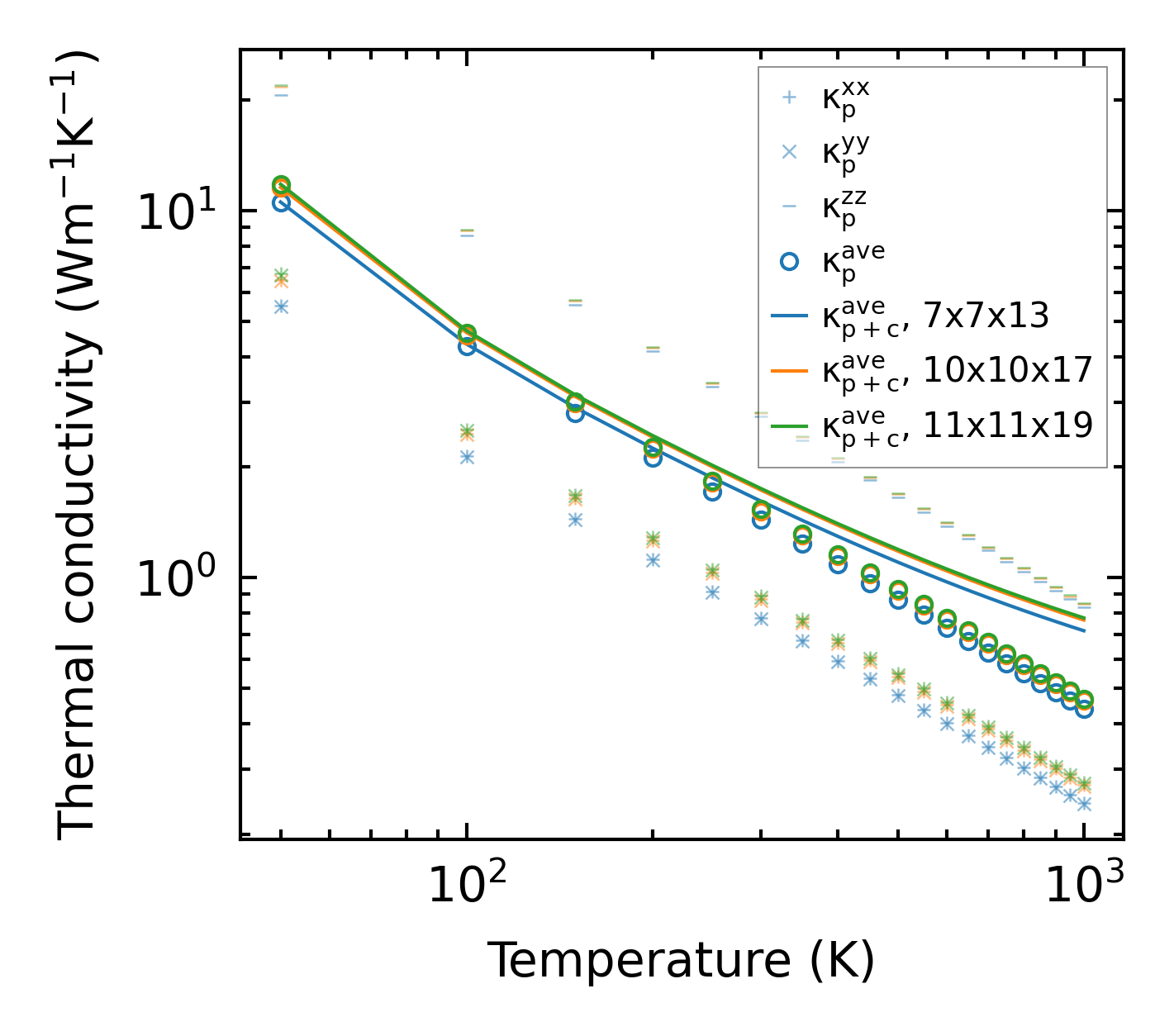

../../_images/fig_kappa11858.png — (a) Temperature-dependent lattice thermal conductivity

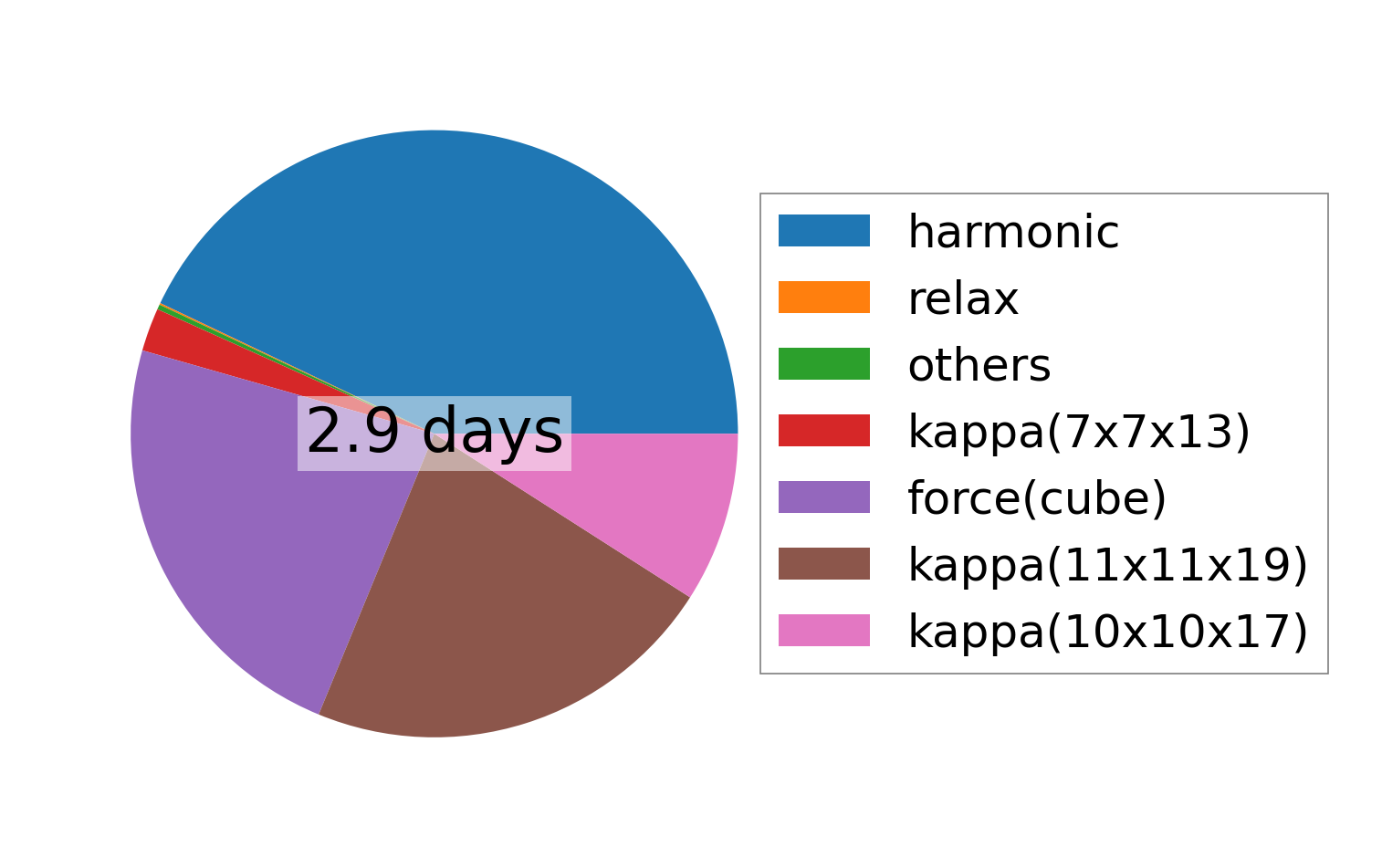

../../_images/fig_times24460.png — (b) Computation time
