mp-14099/ZnAgF3/harm

Harmonic properties

../../_images/fig_bandos_pr14694.png

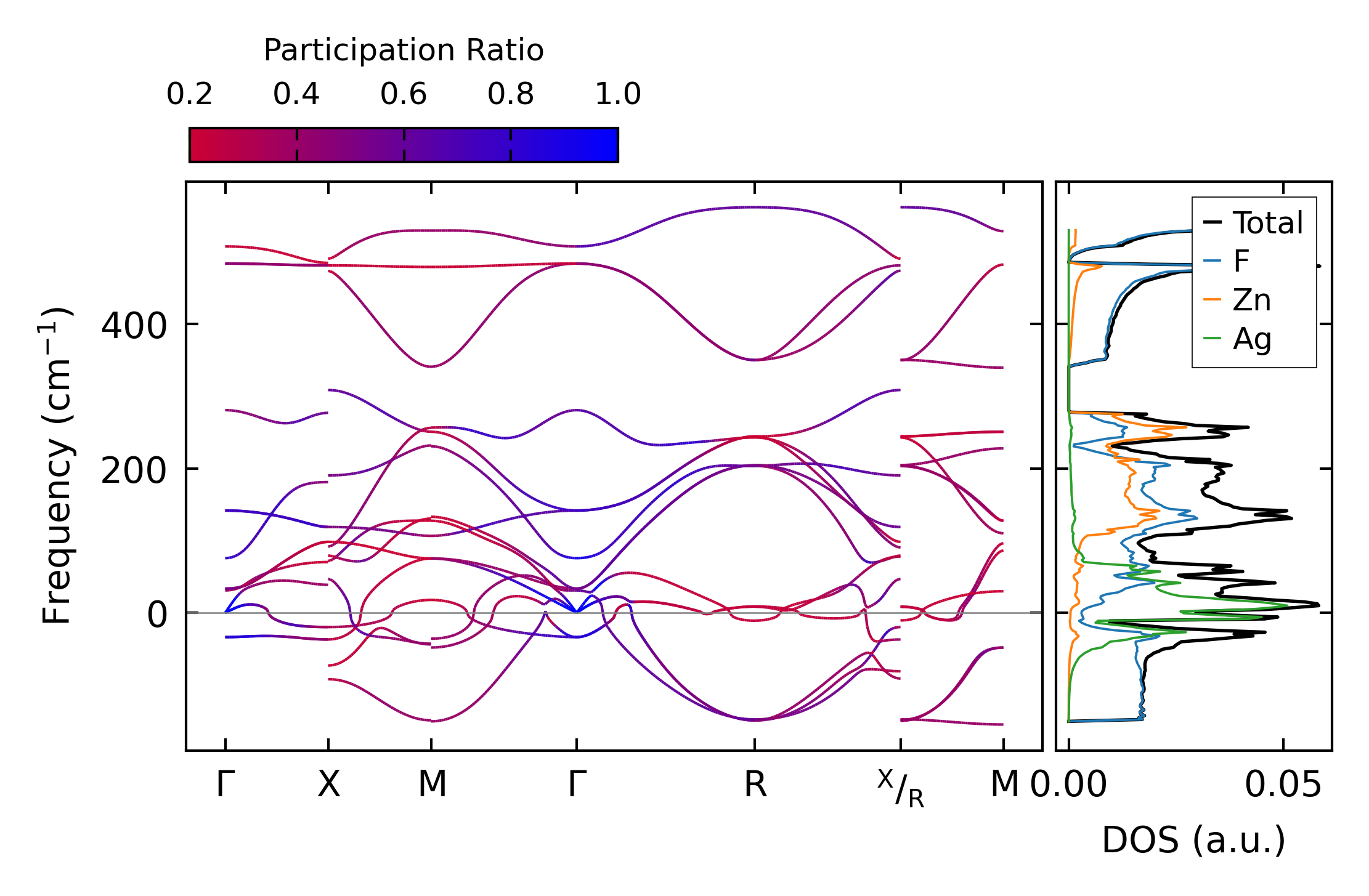

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos19070.png

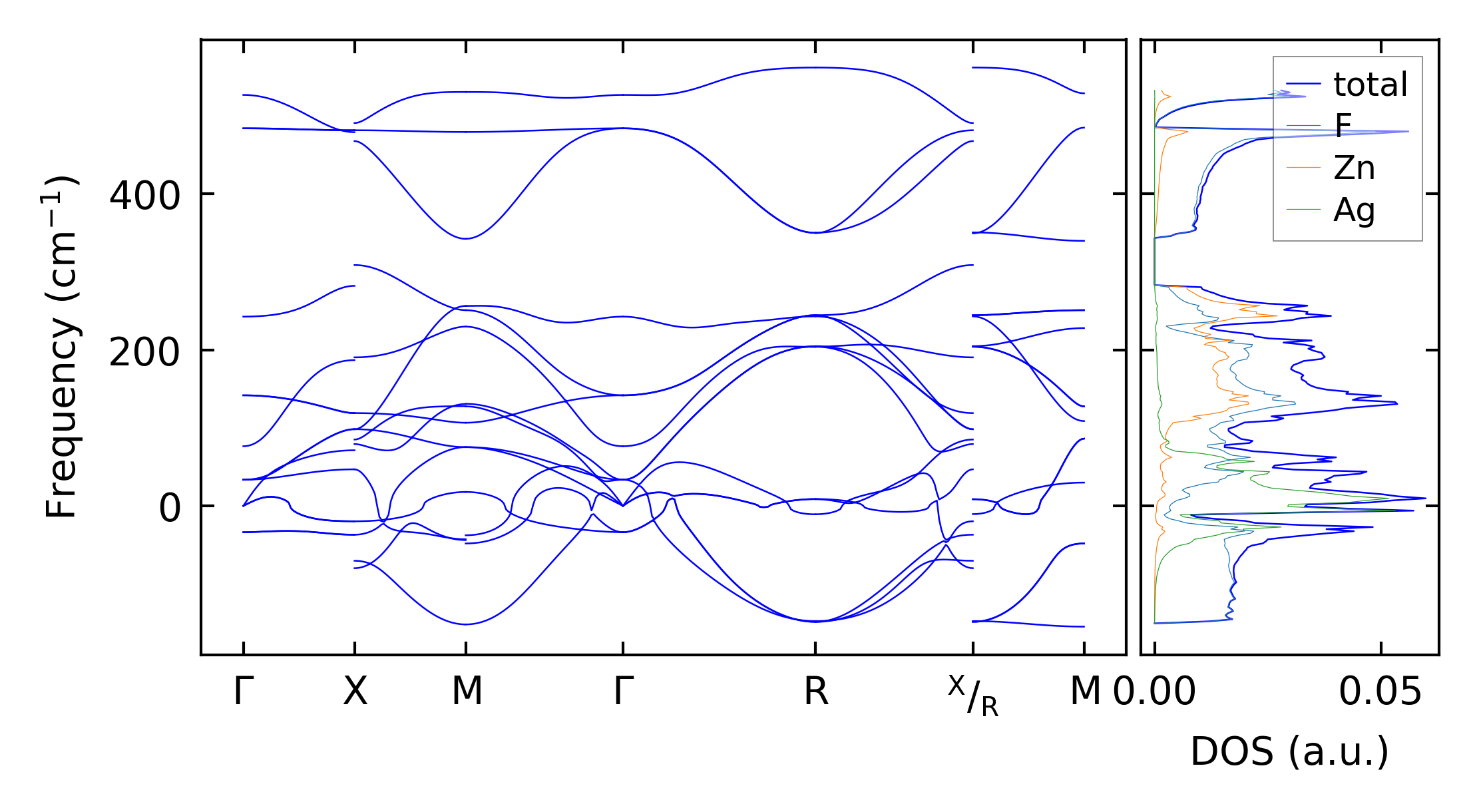

(b) Phonon dispersion and DOS

../../_images/fig_thermo14694.png

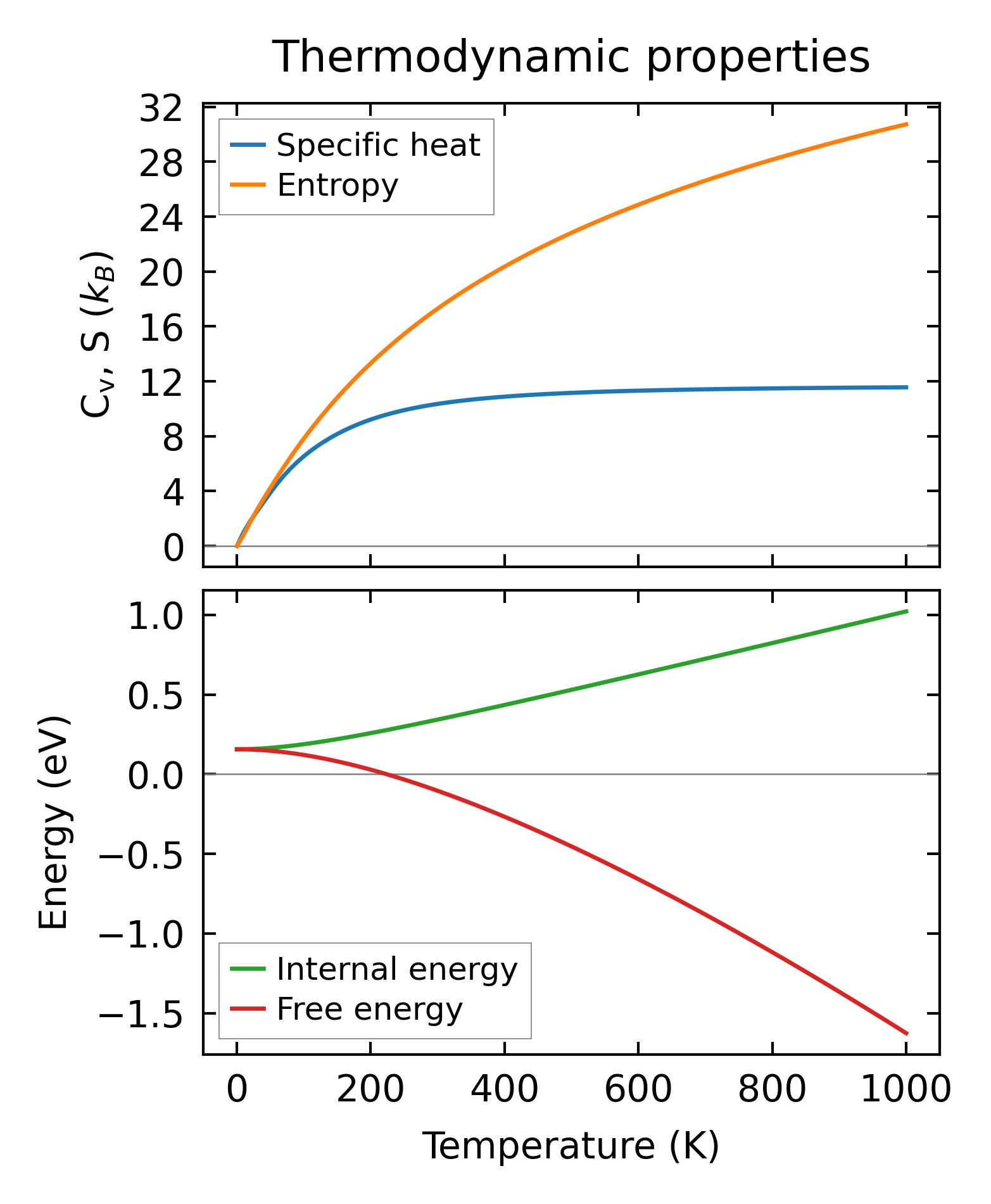

(c) Thermodynamic properties

Force constants

../../_images/fig_fc214312.png

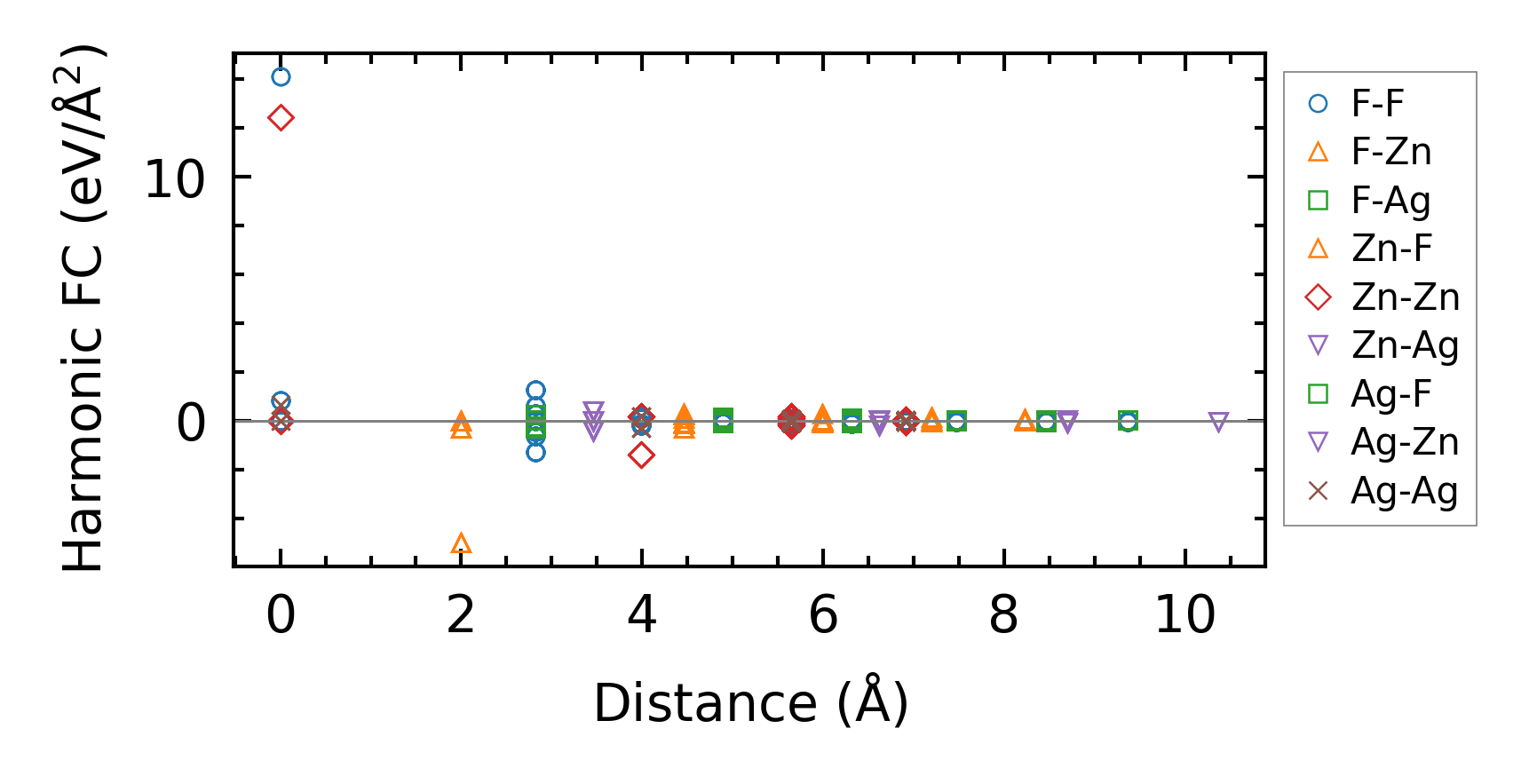

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times24430.png

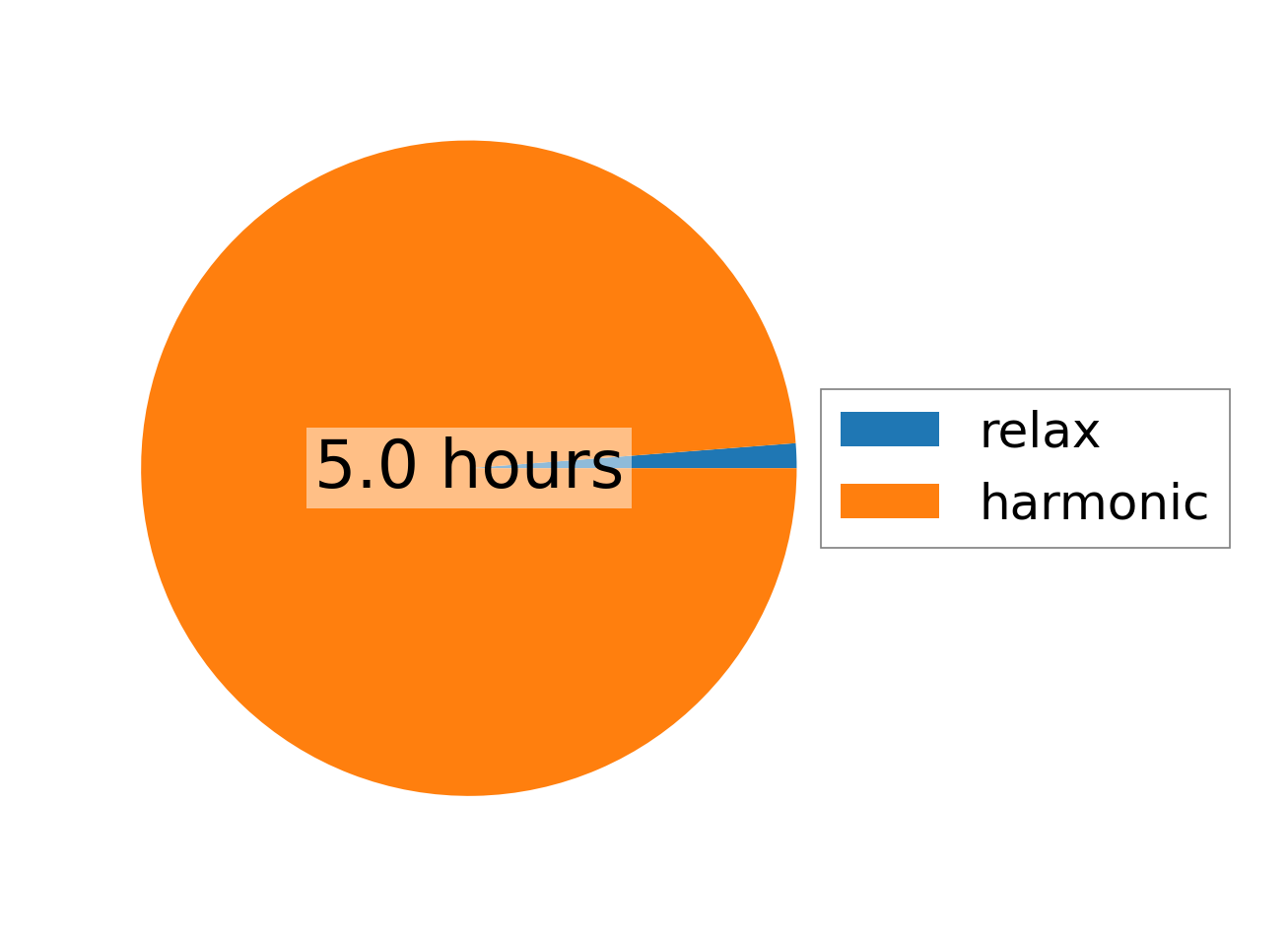

(a) Computation time
