mp-14100-2/CdRh2O4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-14100-2.tar.gz

Equation of state

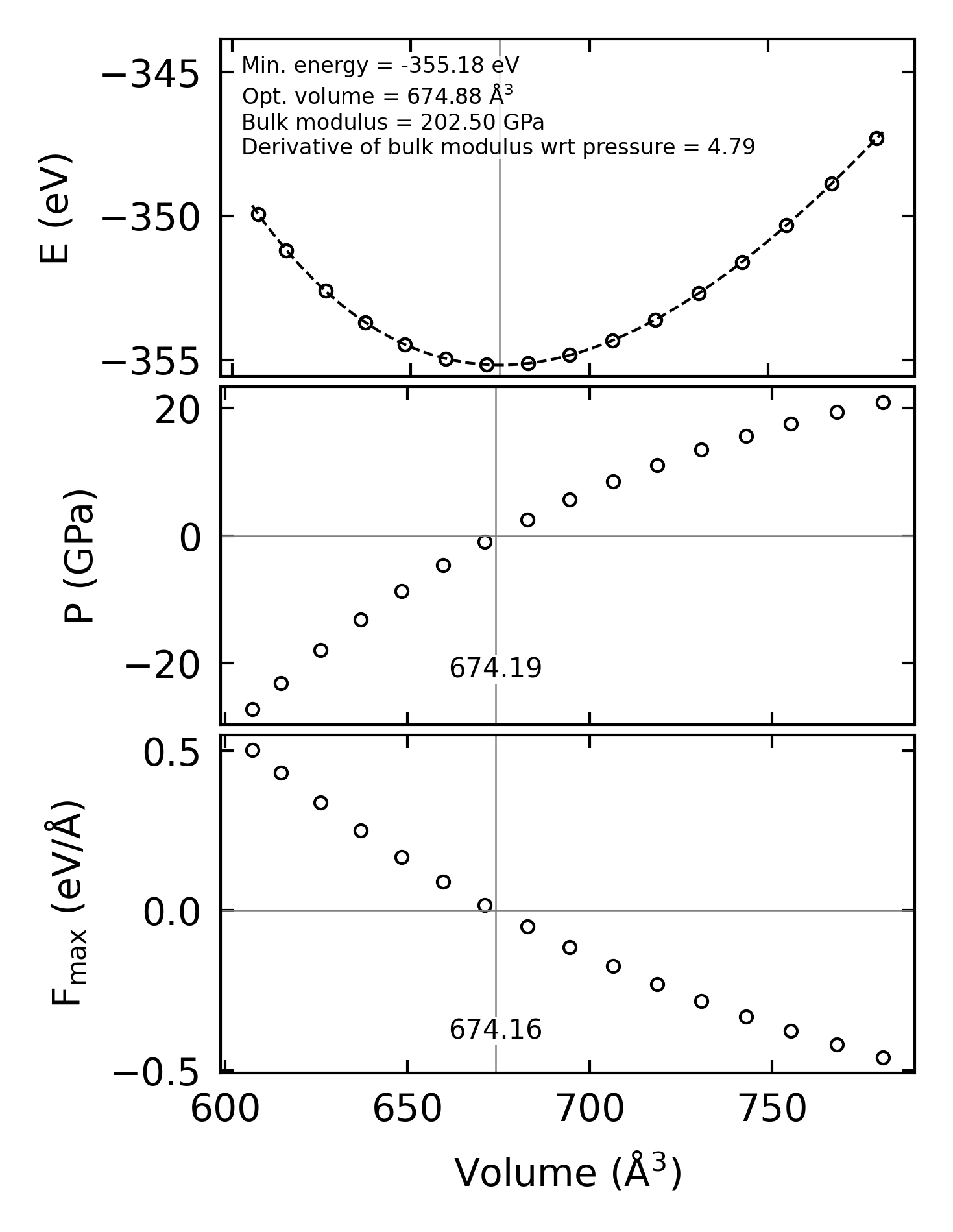

../../_images/fig_bm7345.png — (a) Equation of state

Harmonic properties

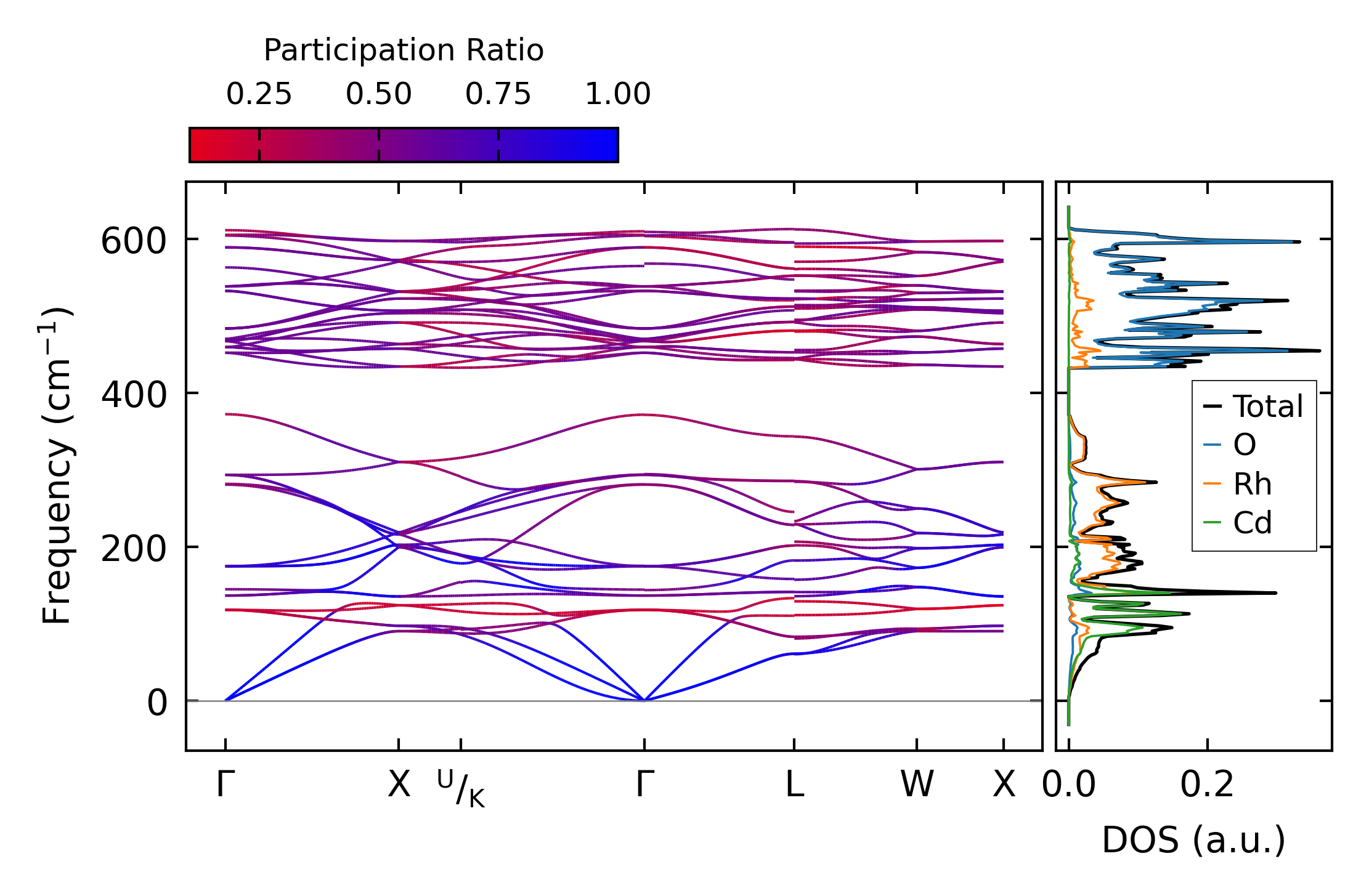

../../_images/fig_bandos_pr14696.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14696.png — (b) Thermodynamic properties

Grüneisen parameters

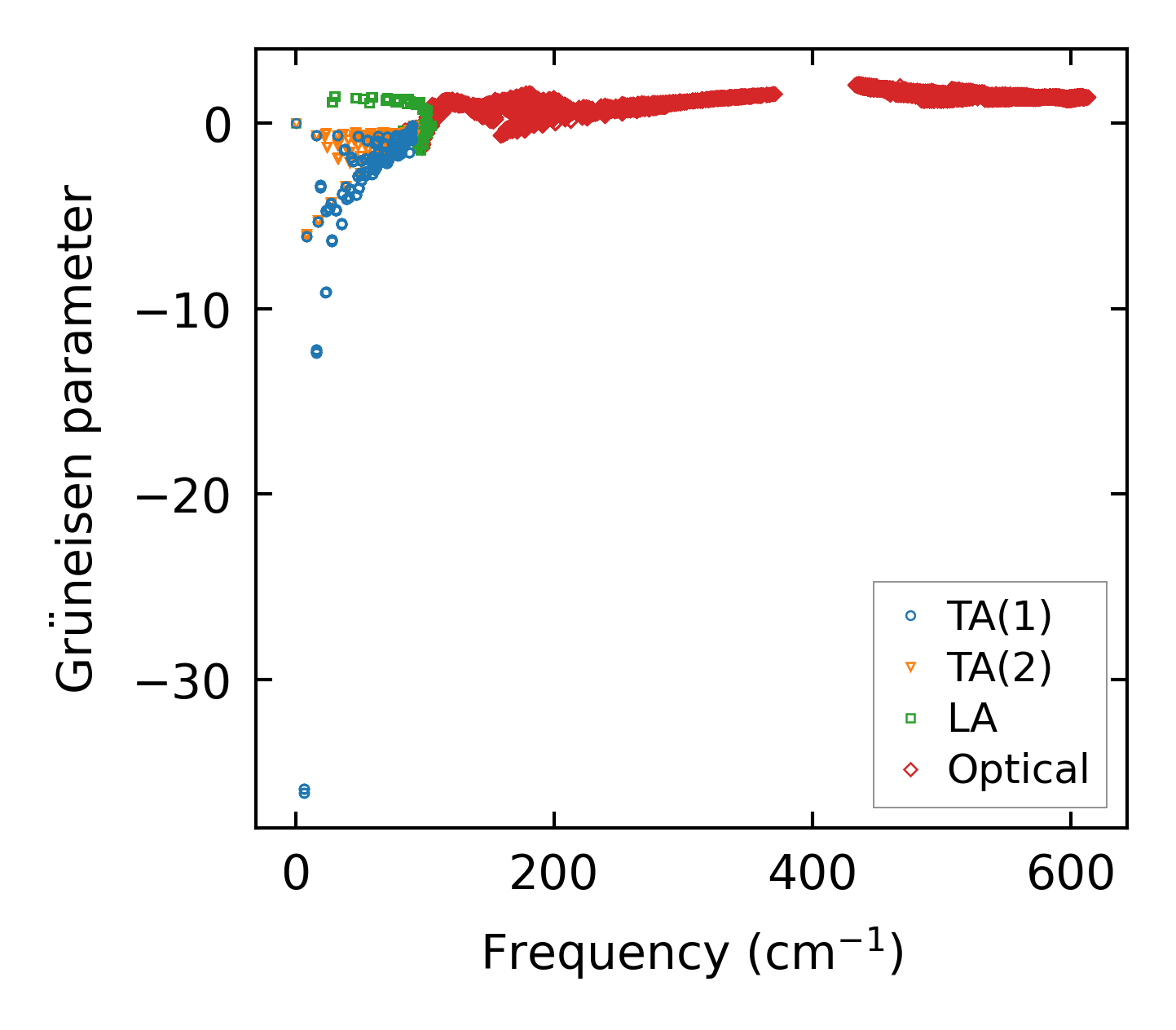

../../_images/fig_gru_all6296.png — (a) Grüneisen parameters

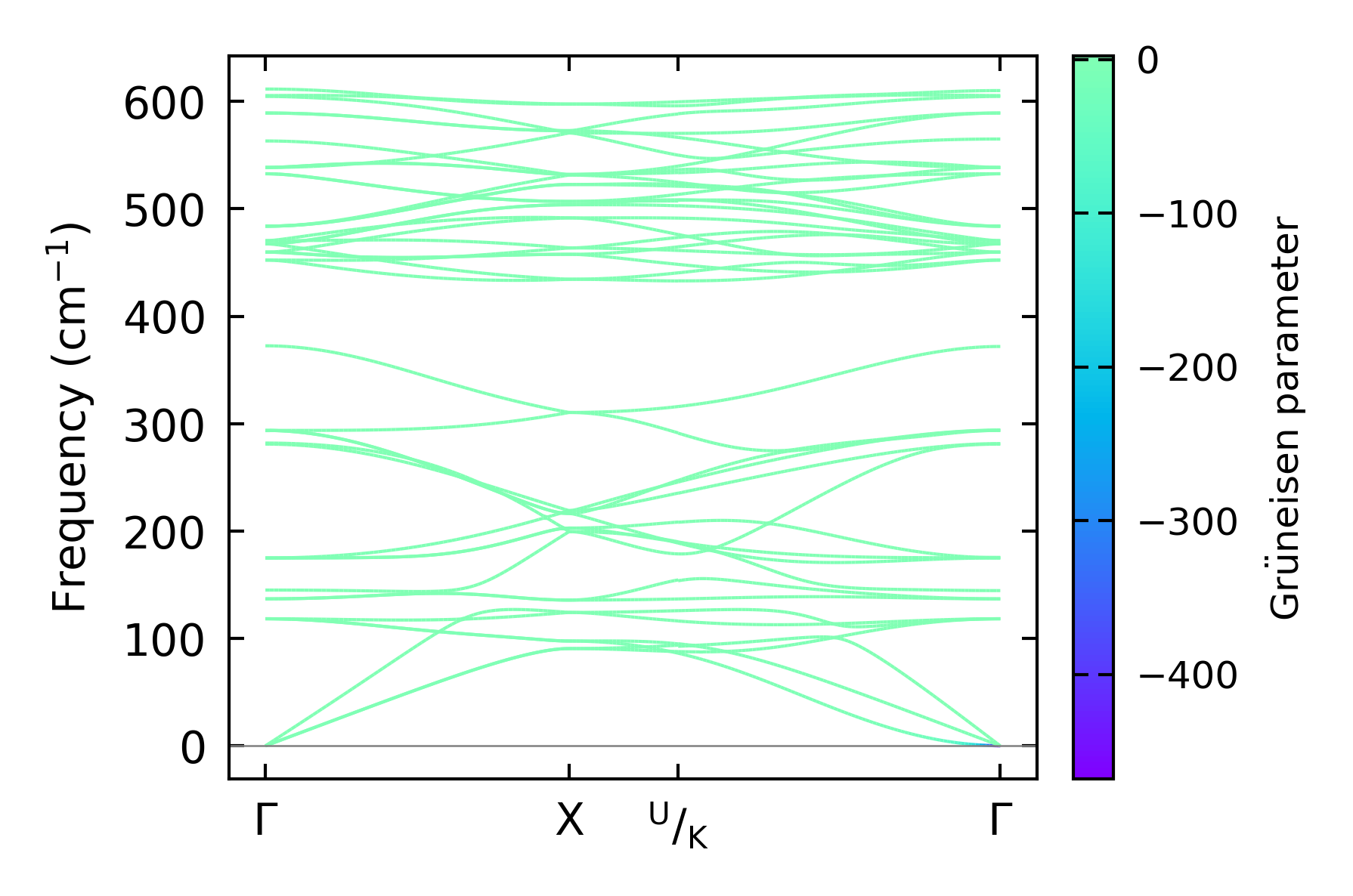

../../_images/fig_gruneisen6296.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 1x1x1

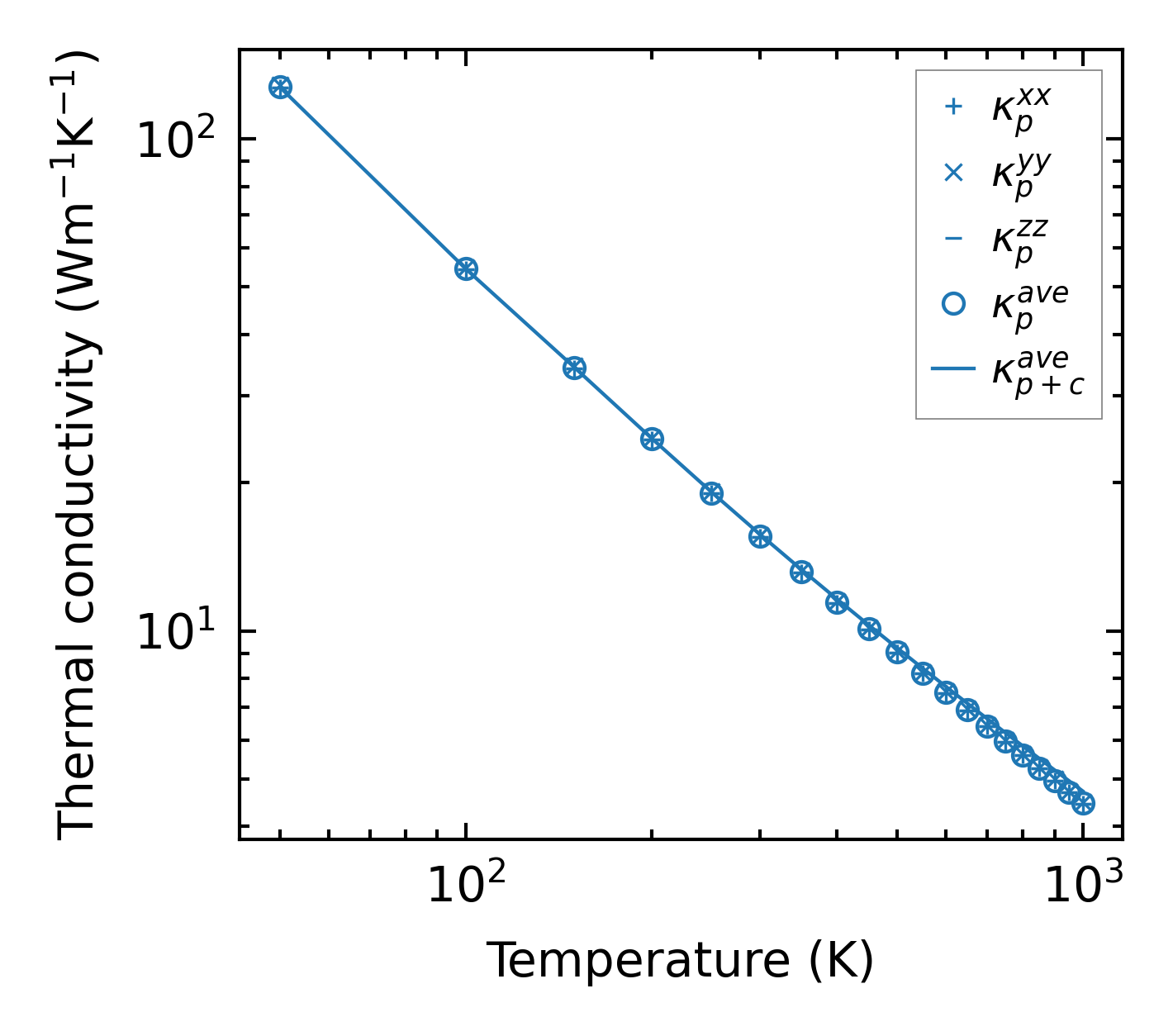

../../_images/fig_kappa11843.png — (a) Temperature-dependent lattice thermal conductivity

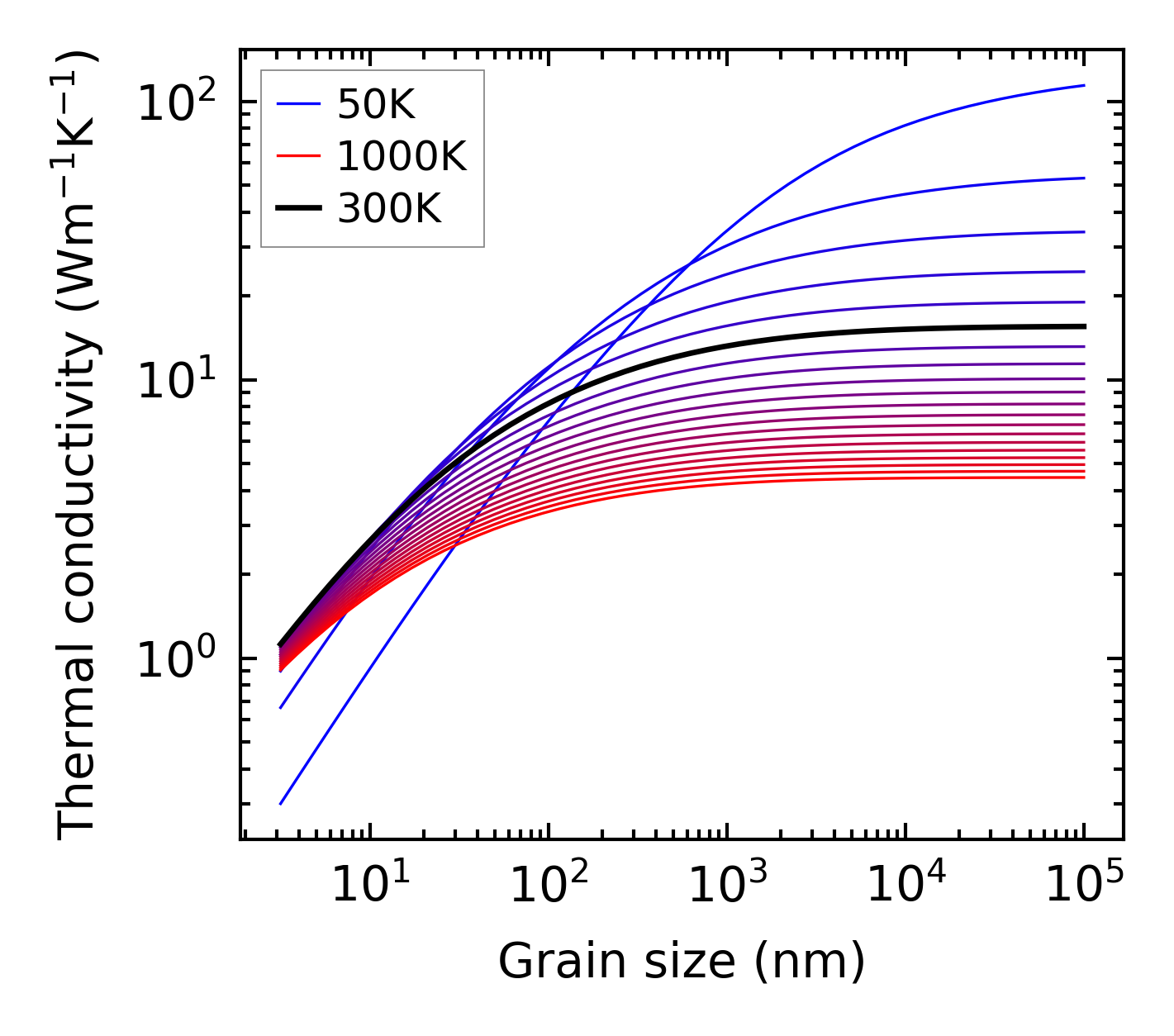

../../_images/fig_kappa_vs_grain_size6373.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

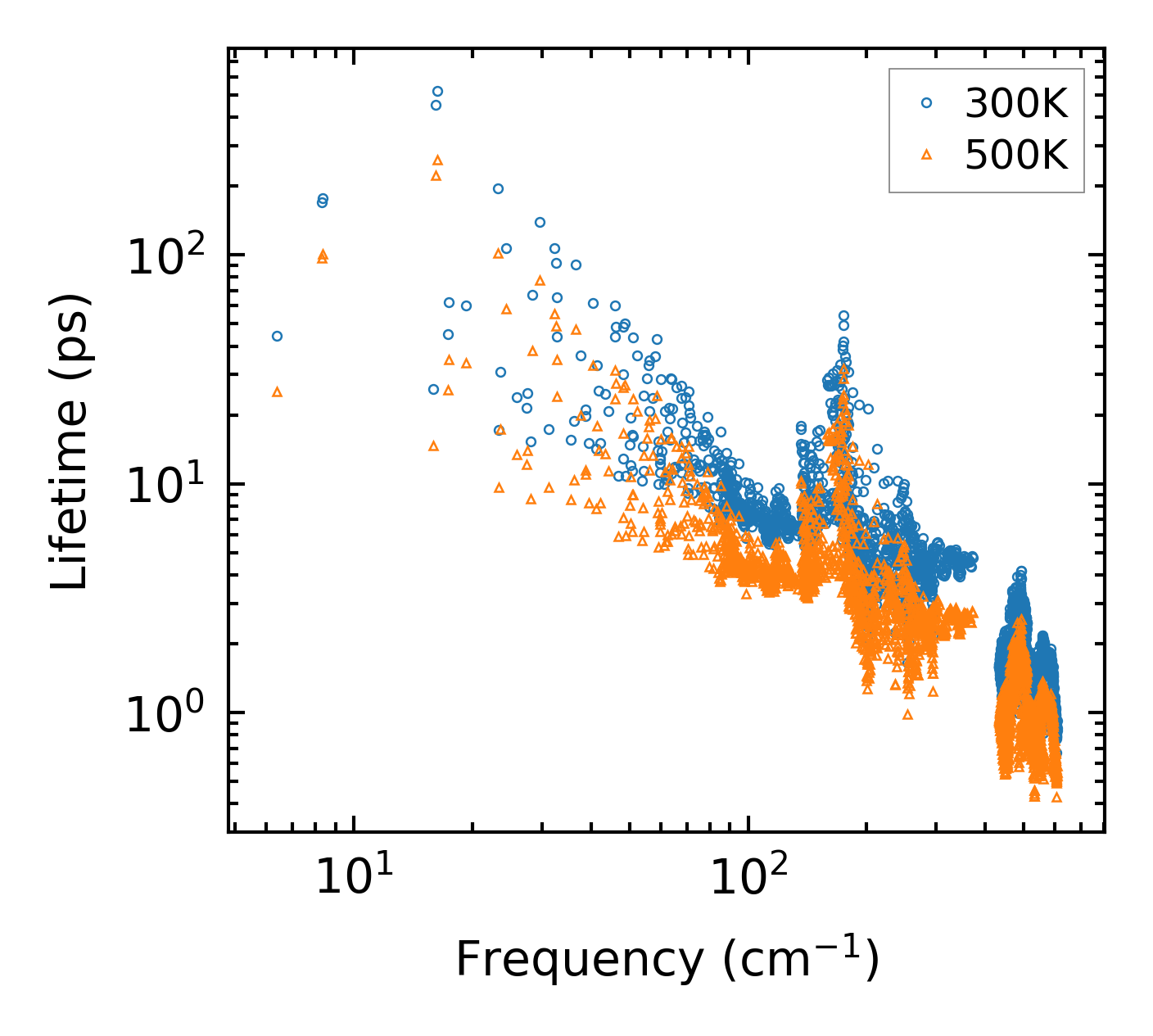

../../_images/fig_lifetime6234.png — (a) Phonon lifetime due to phonon-phonon scattering

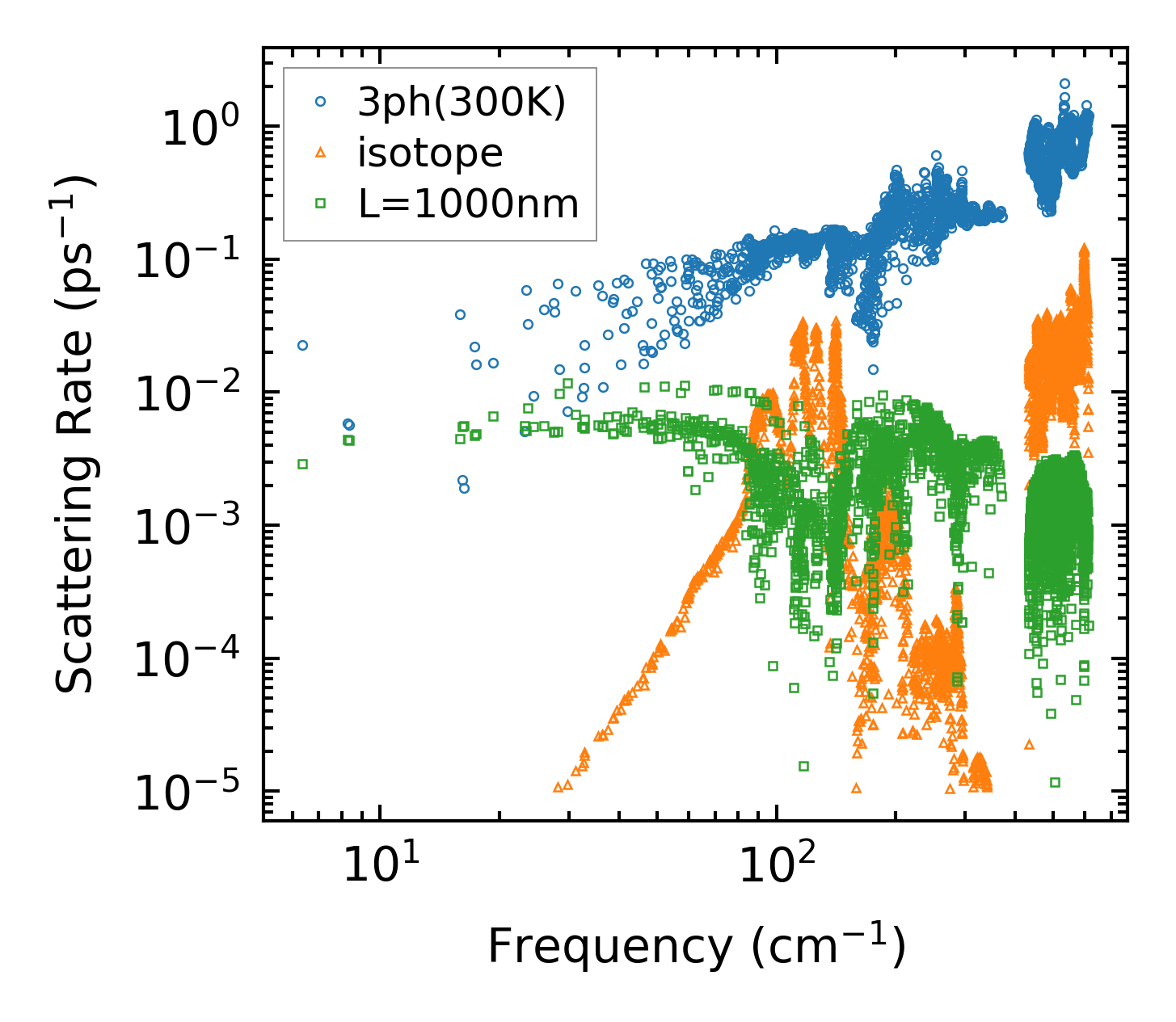

../../_images/fig_scat_rates6233.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

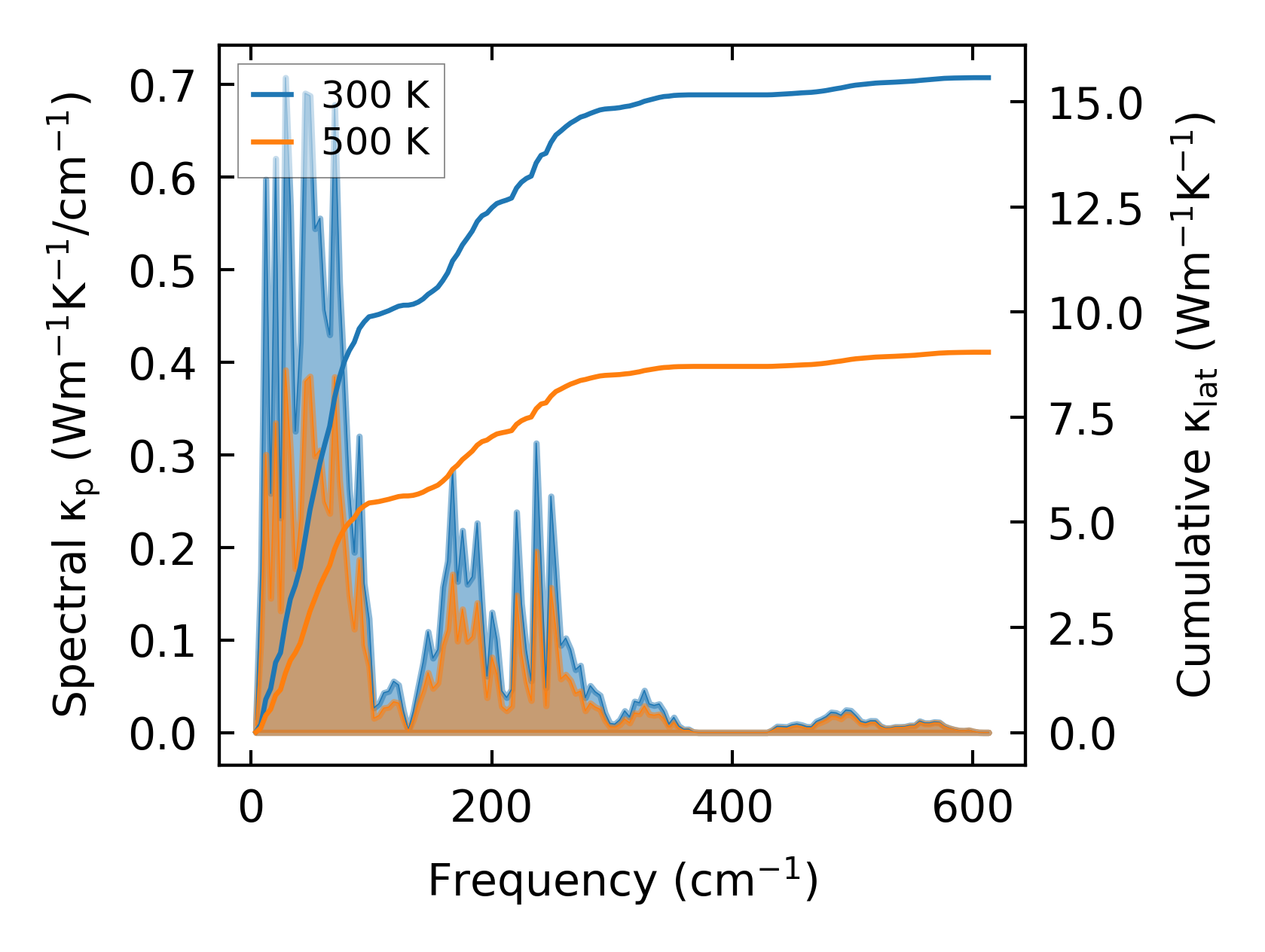

../../_images/fig_cumu_frequency6234.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

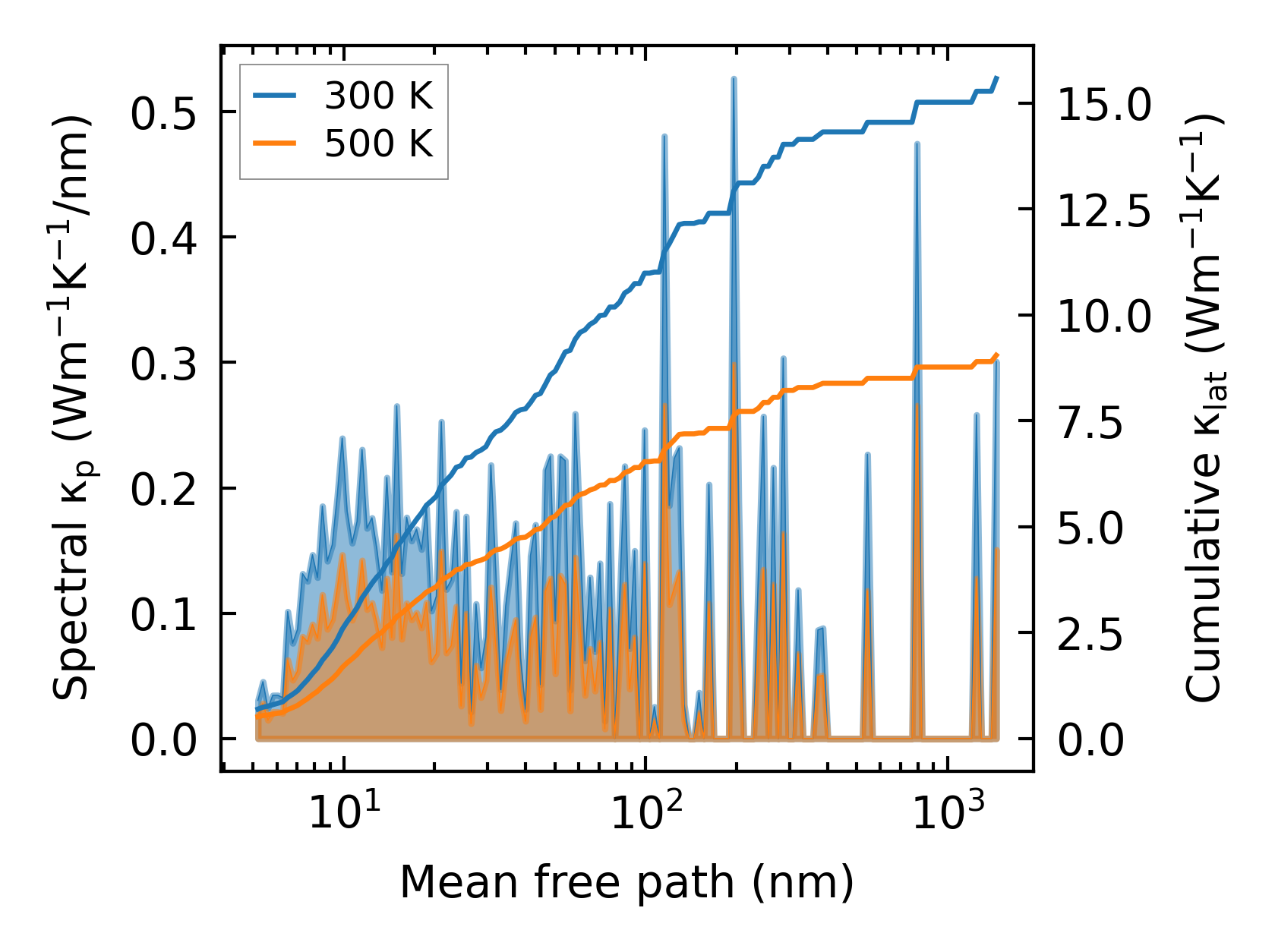

../../_images/fig_cumu_mfp6233.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

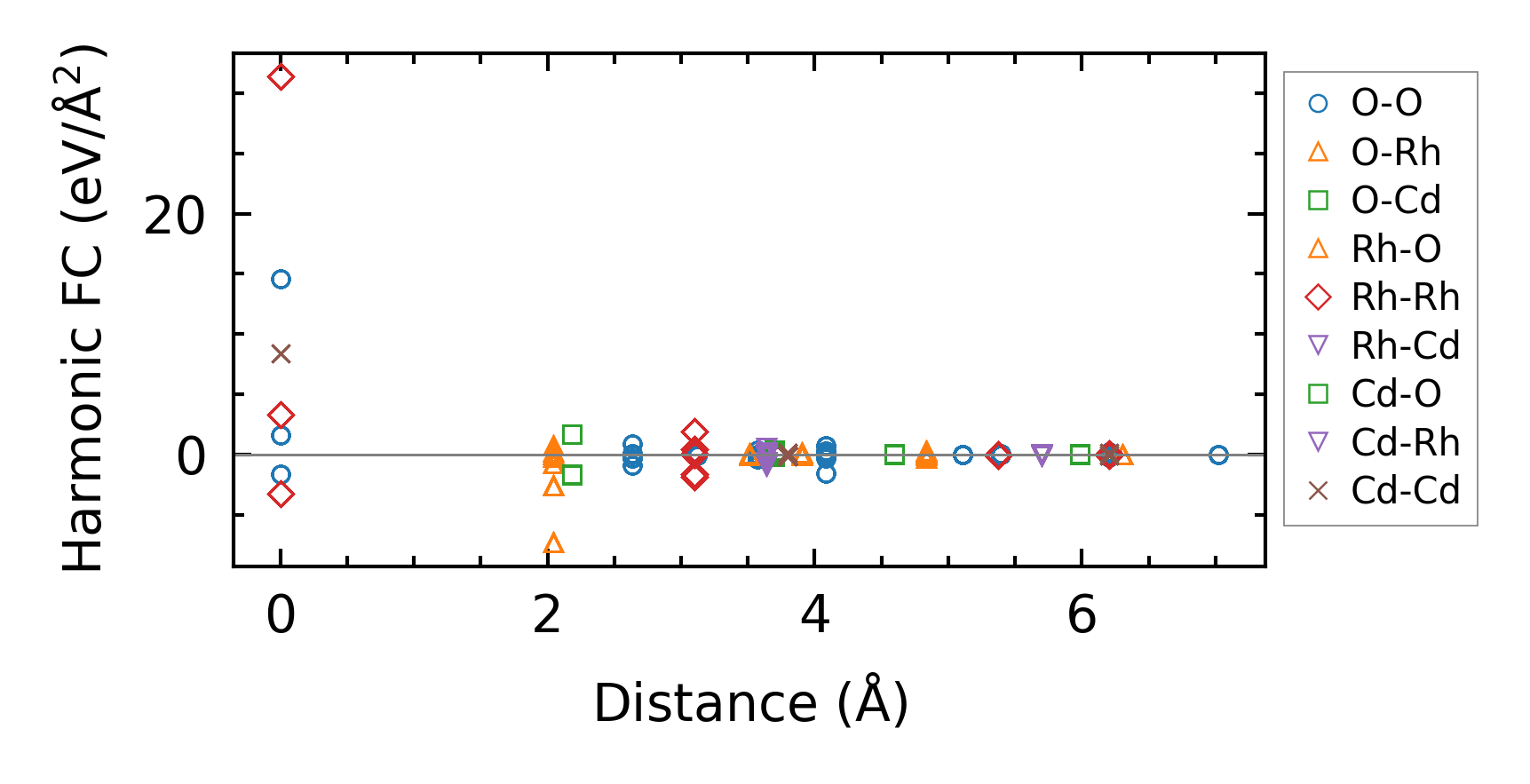

../../_images/fig_fc214314.png — (a) Force constants w.r.t atomic distance

Summary

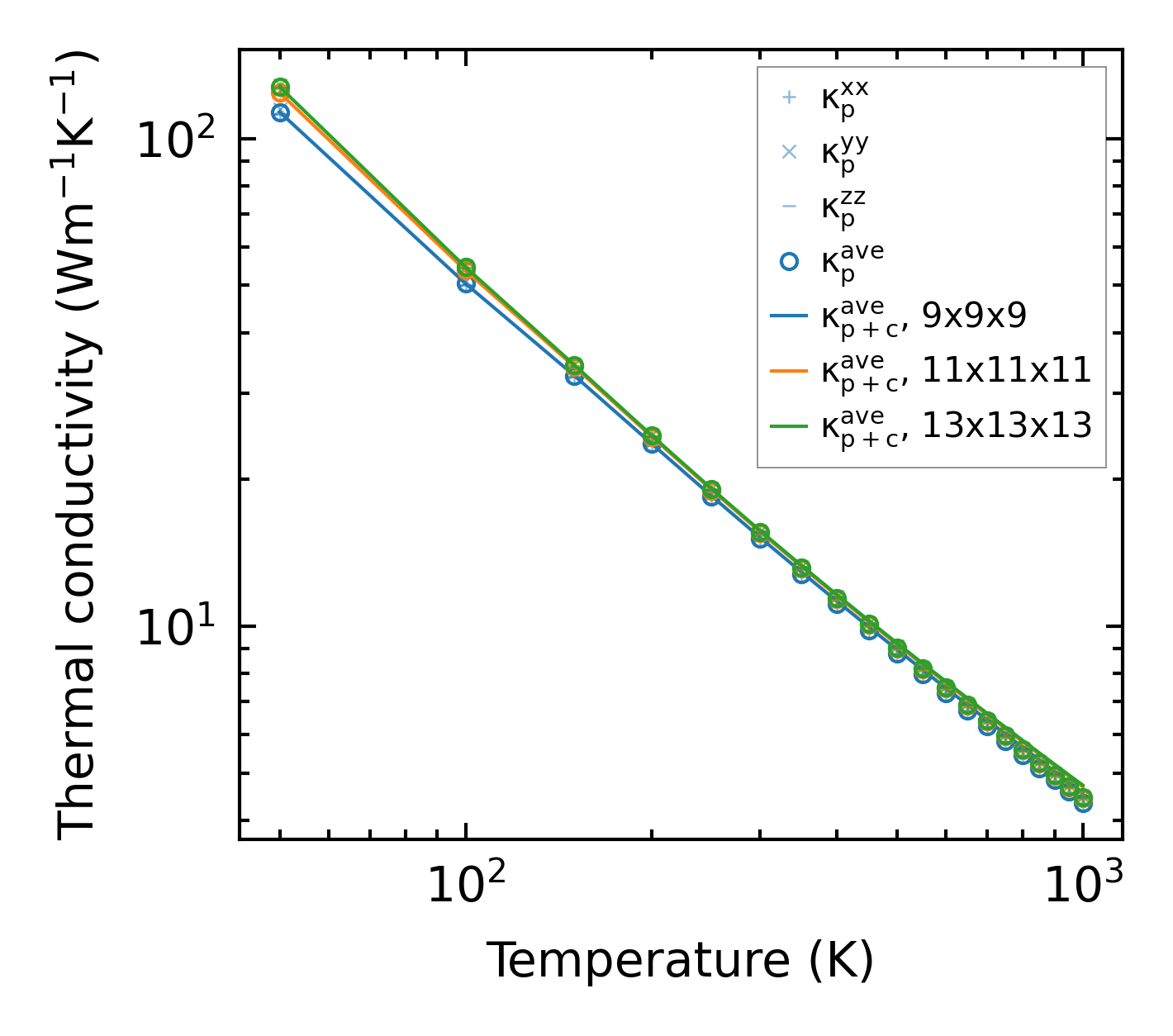

../../_images/fig_kappa11844.png — (a) Temperature-dependent lattice thermal conductivity

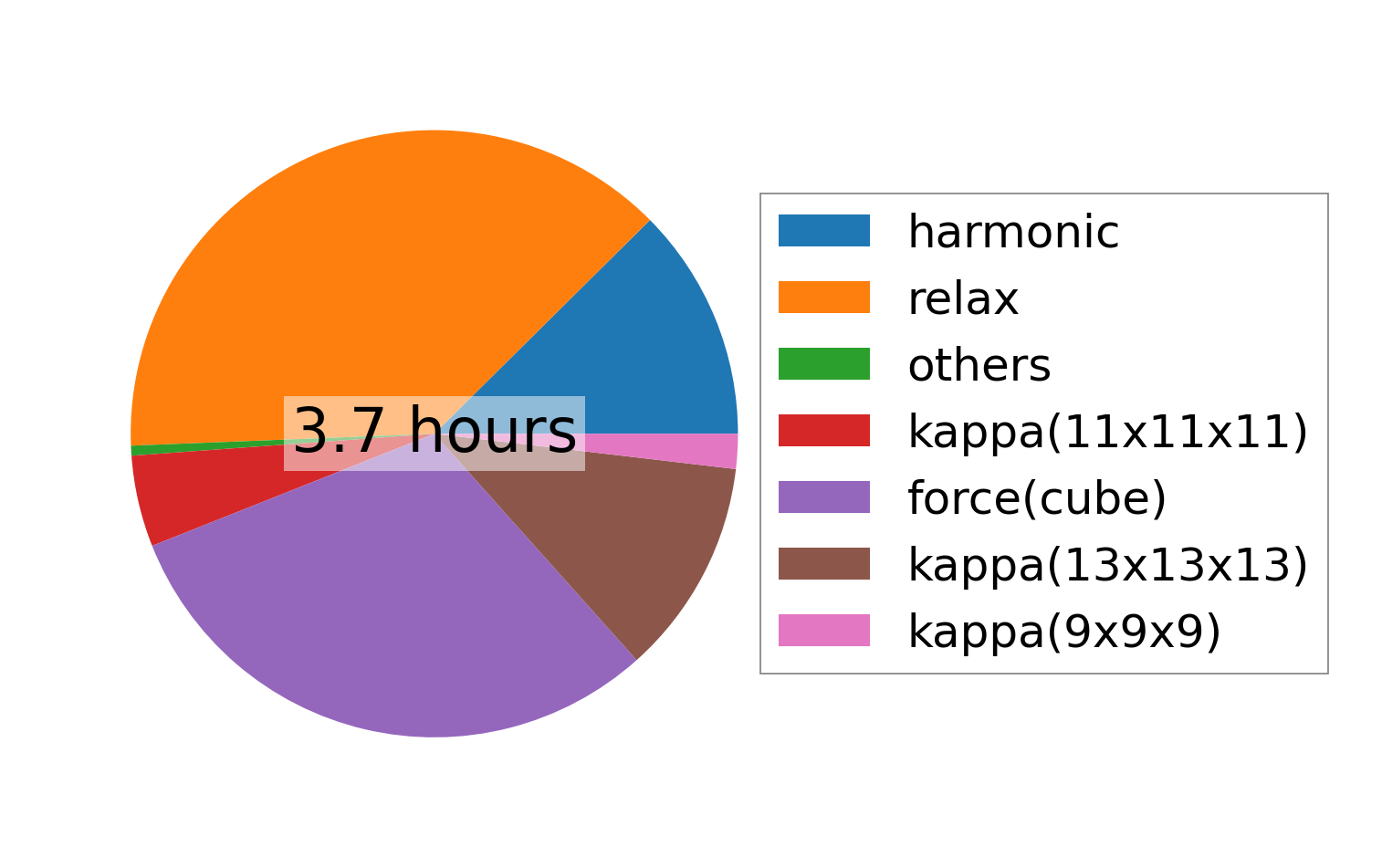

../../_images/fig_times24433.png — (b) Computation time
