mp-14552/Ba2SrUO6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-14552.tar.gz

Harmonic properties

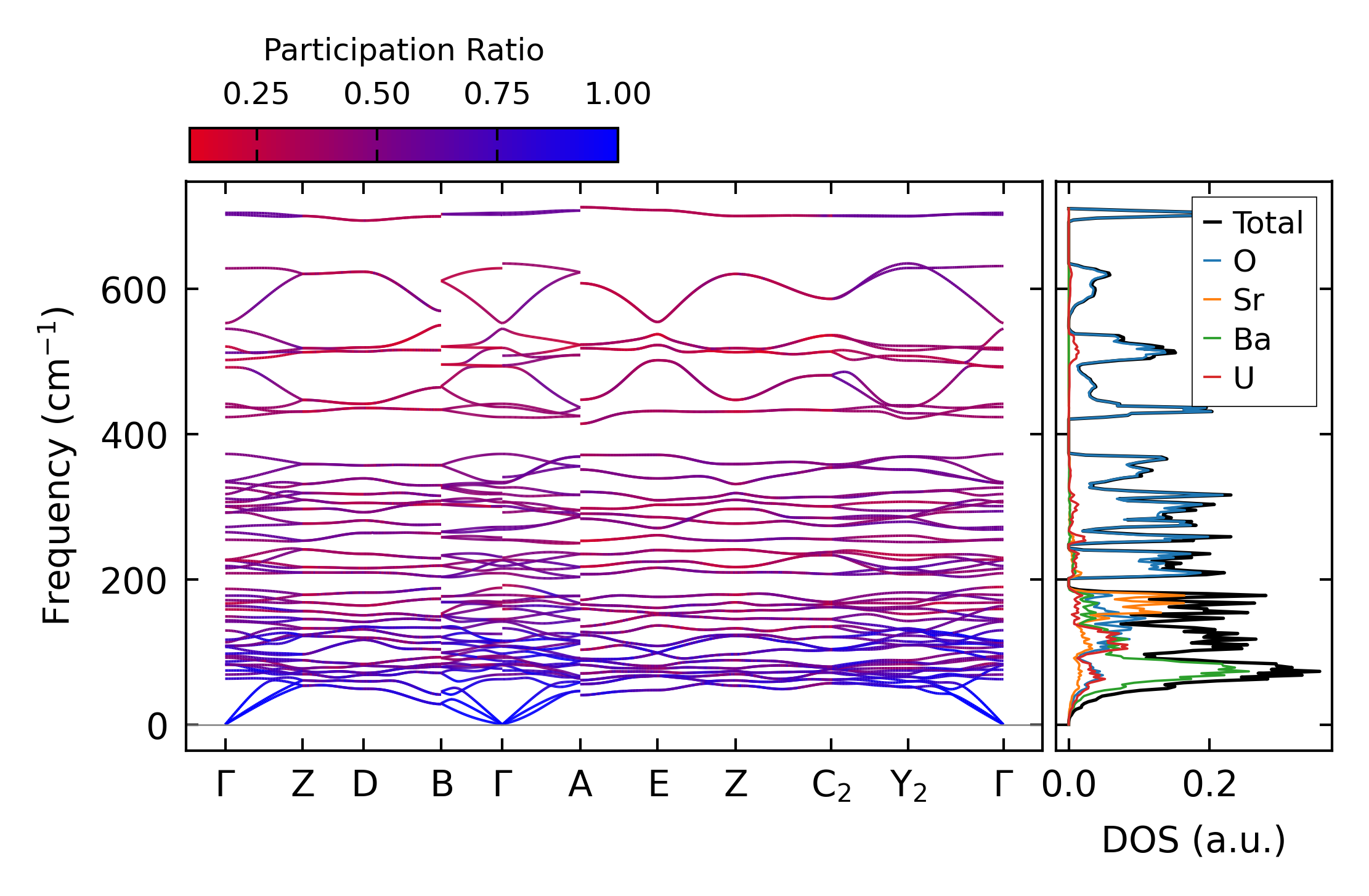

../../_images/fig_bandos_pr14832.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14832.png — (b) Thermodynamic properties

Grüneisen parameters

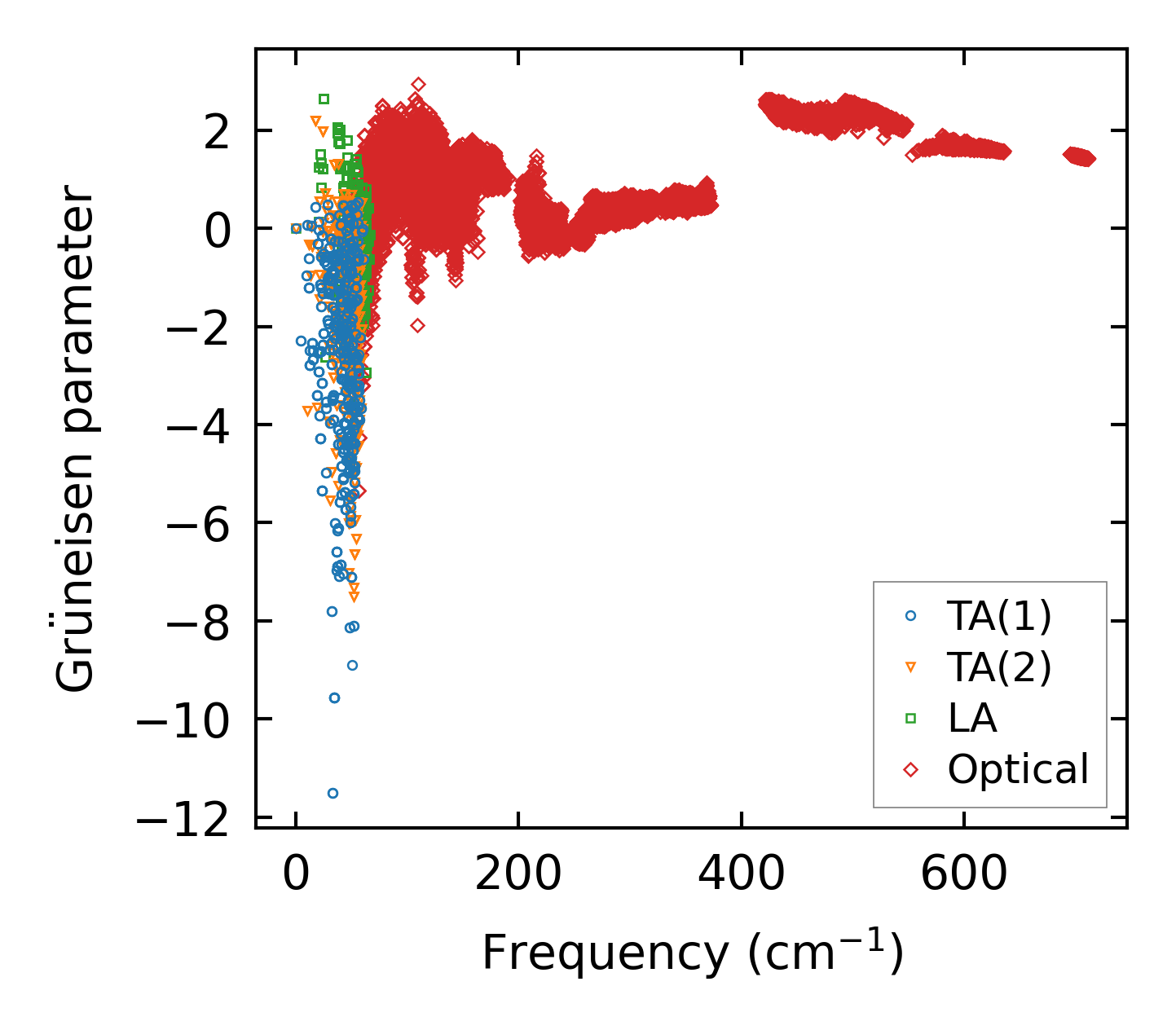

../../_images/fig_gru_all6360.png — (a) Grüneisen parameters

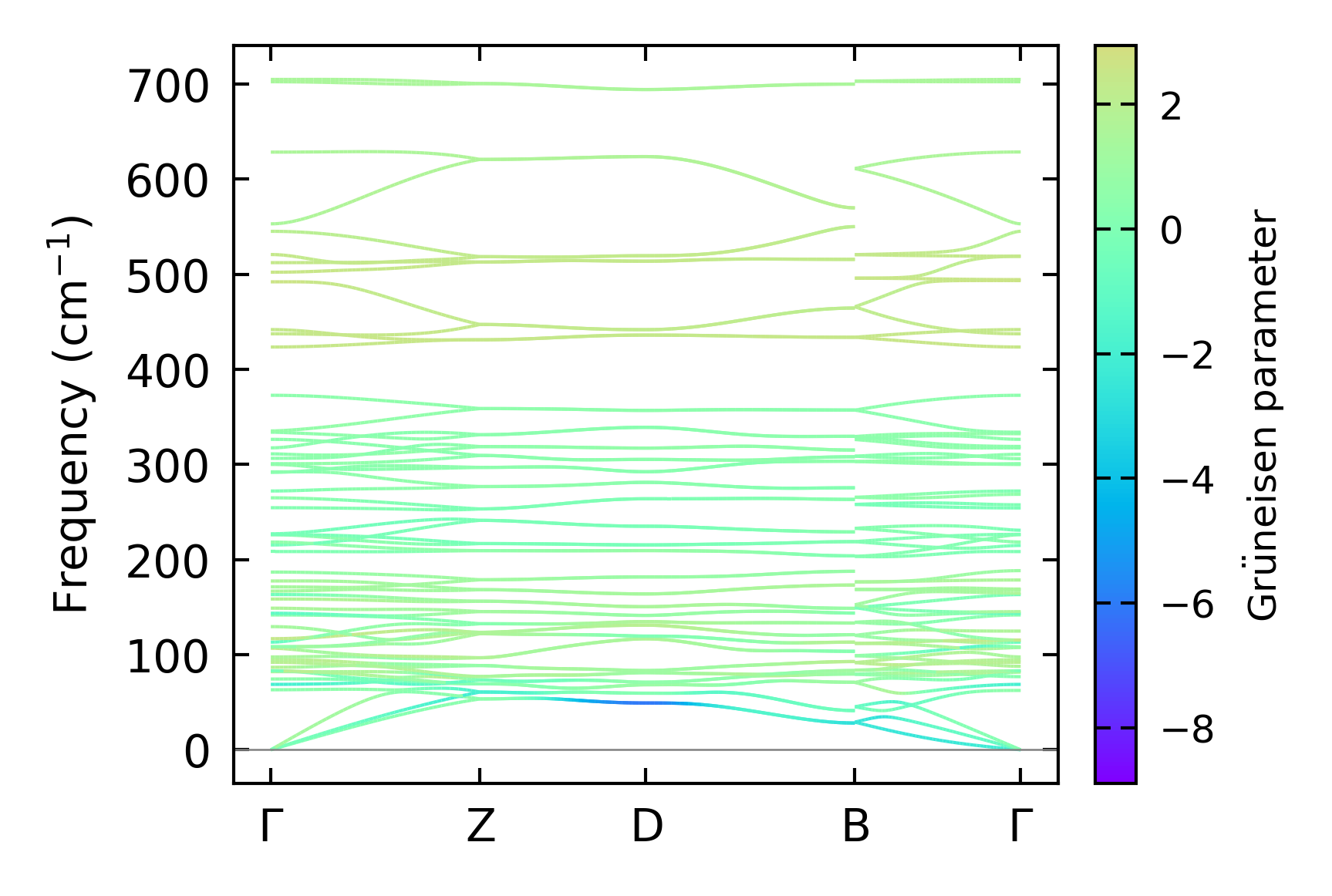

../../_images/fig_gruneisen6360.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x7, supercell: 2x2x1

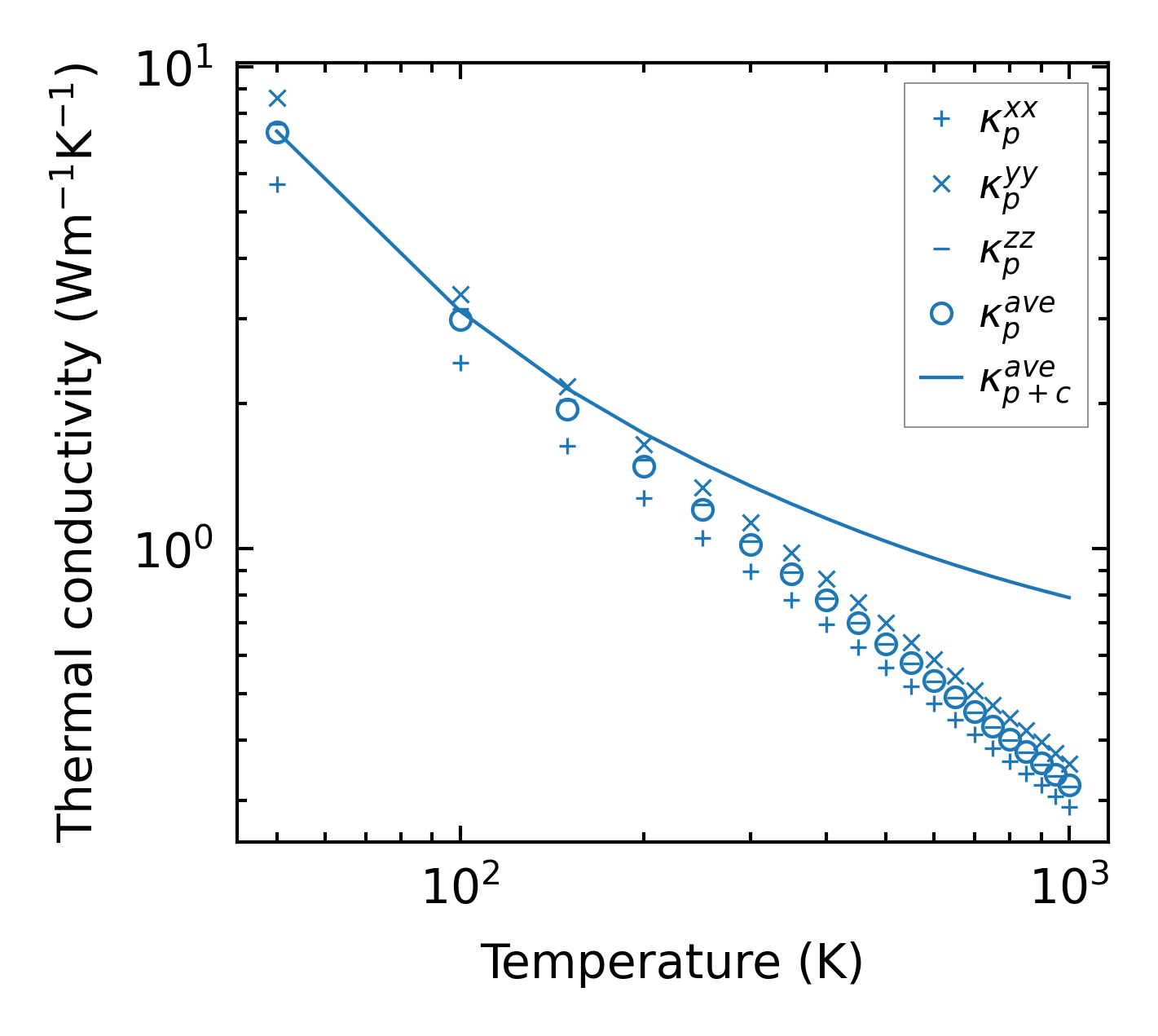

../../_images/fig_kappa11961.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6436.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

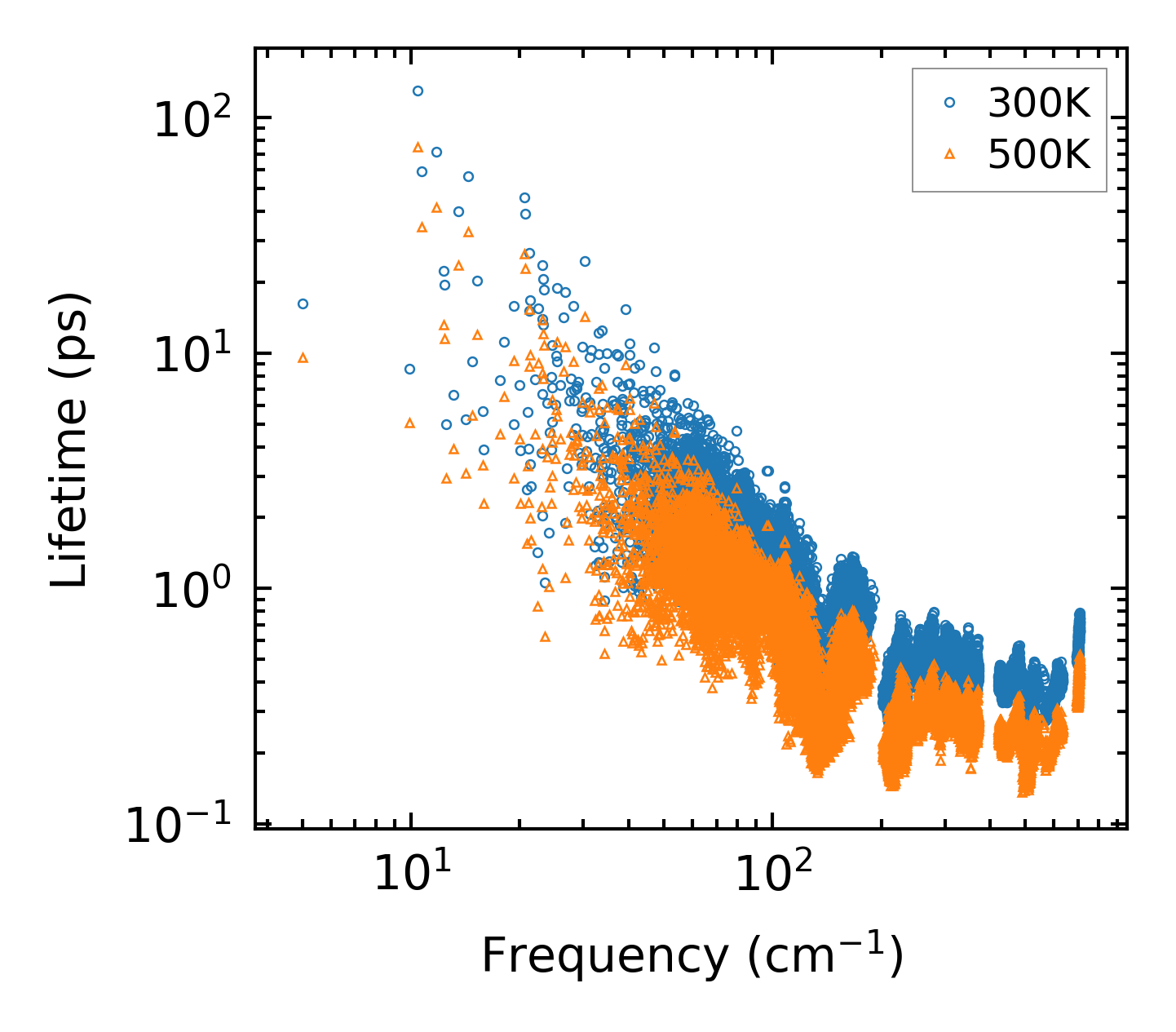

../../_images/fig_lifetime6295.png — (a) Phonon lifetime due to phonon-phonon scattering

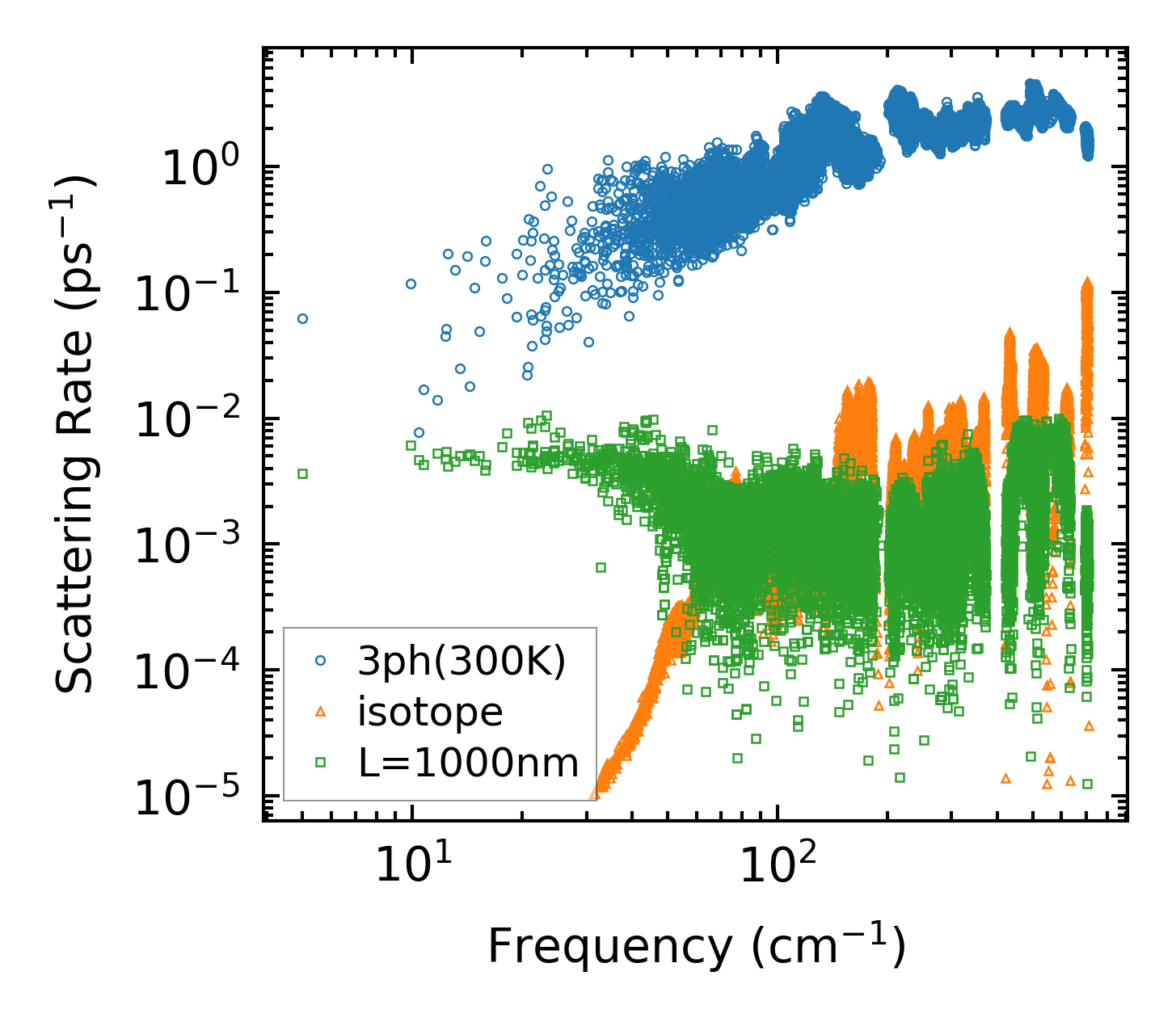

../../_images/fig_scat_rates6294.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

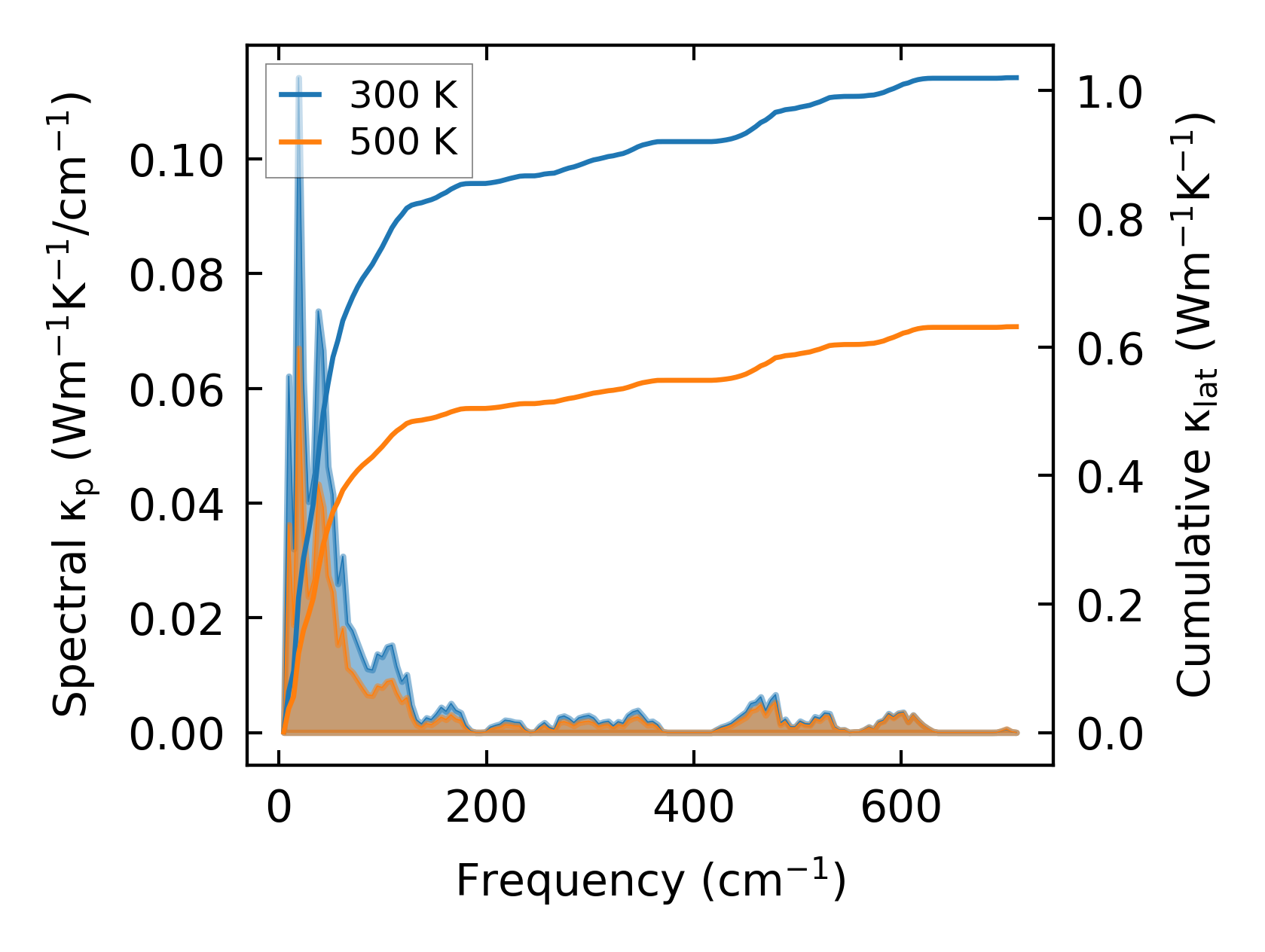

../../_images/fig_cumu_frequency6295.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6294.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214450.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11962.png — (a) Temperature-dependent lattice thermal conductivity

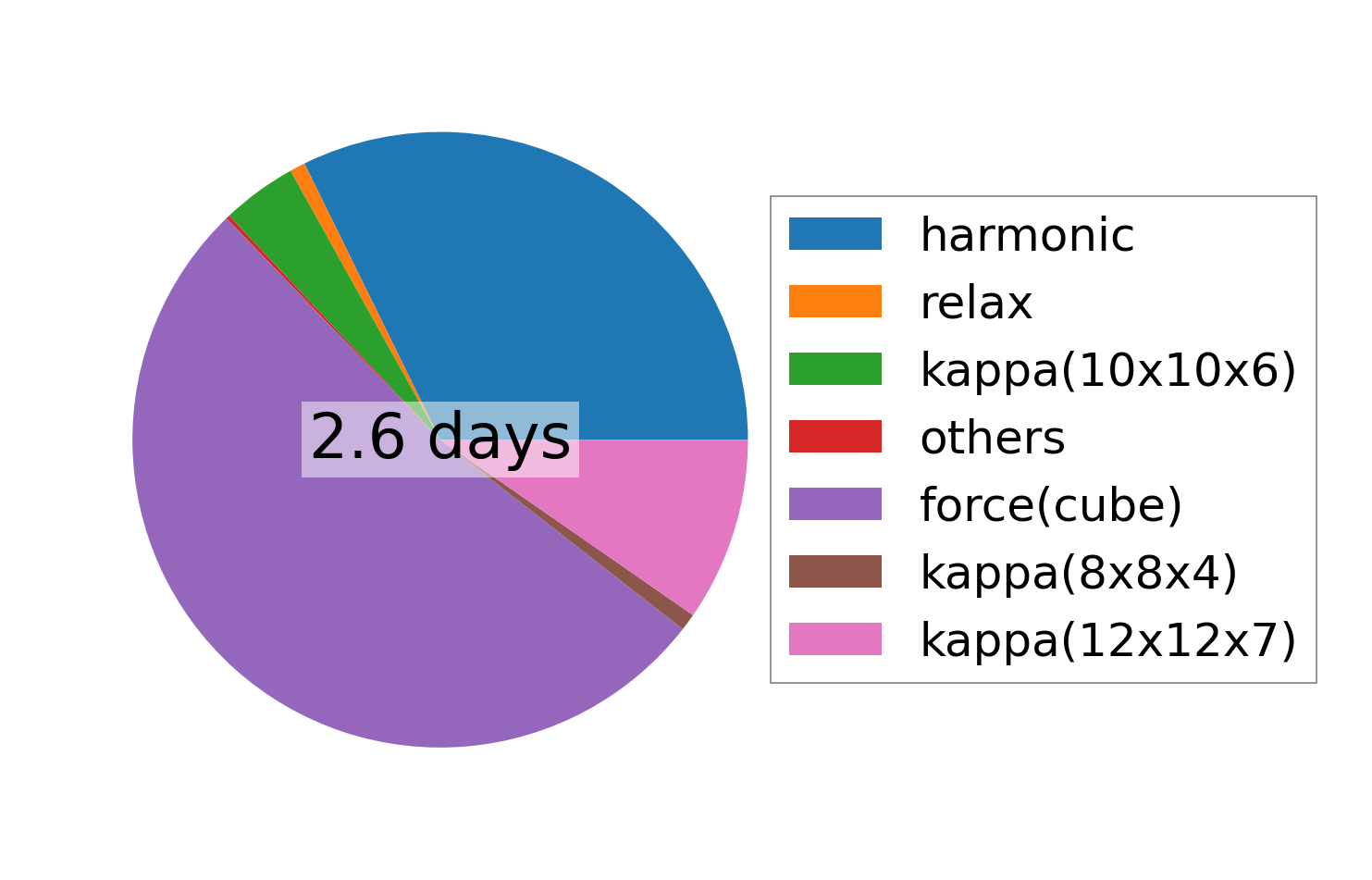

../../_images/fig_times24618.png — (b) Computation time
