mp-14047/Al2Cd3Si3O12/anharm

Space group: Ia-3d (230)
Link: Materials Project
Download: mp-14047.tar.gz

Harmonic properties

../../_images/fig_bandos_pr14677.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14677.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6285.png — (a) Grüneisen parameters

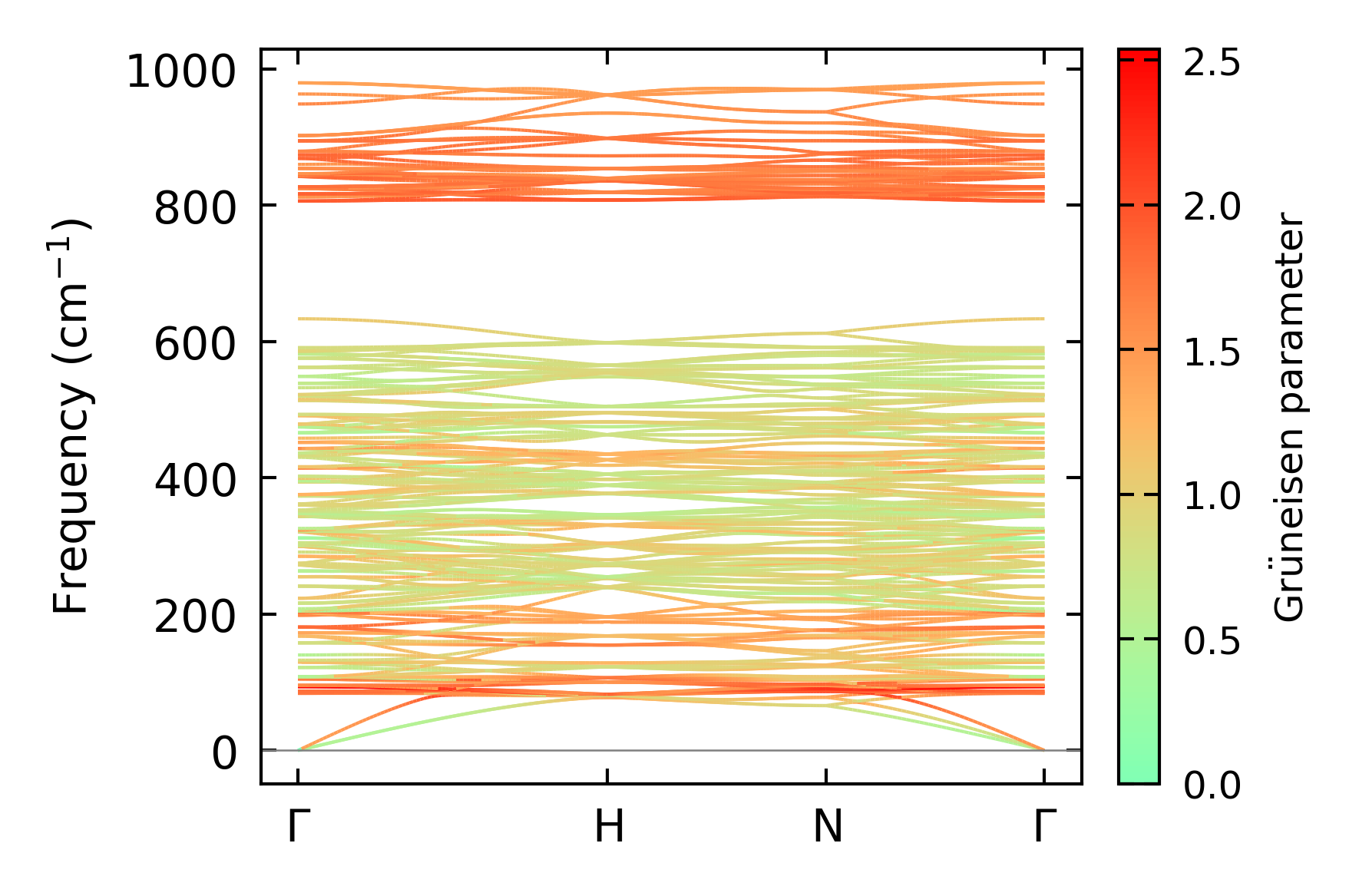

../../_images/fig_gruneisen6285.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

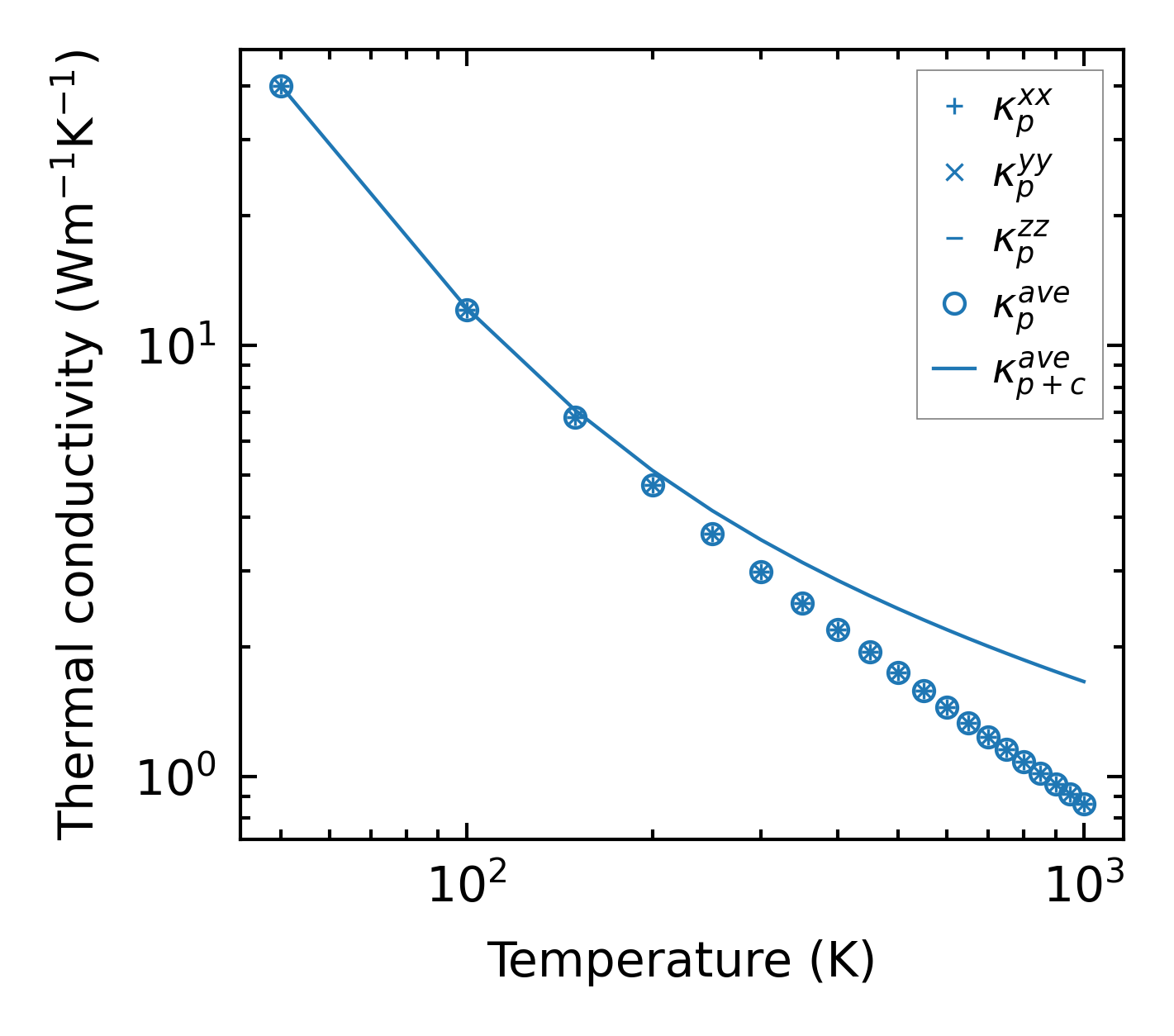

../../_images/fig_kappa11823.png — (a) Temperature-dependent lattice thermal conductivity

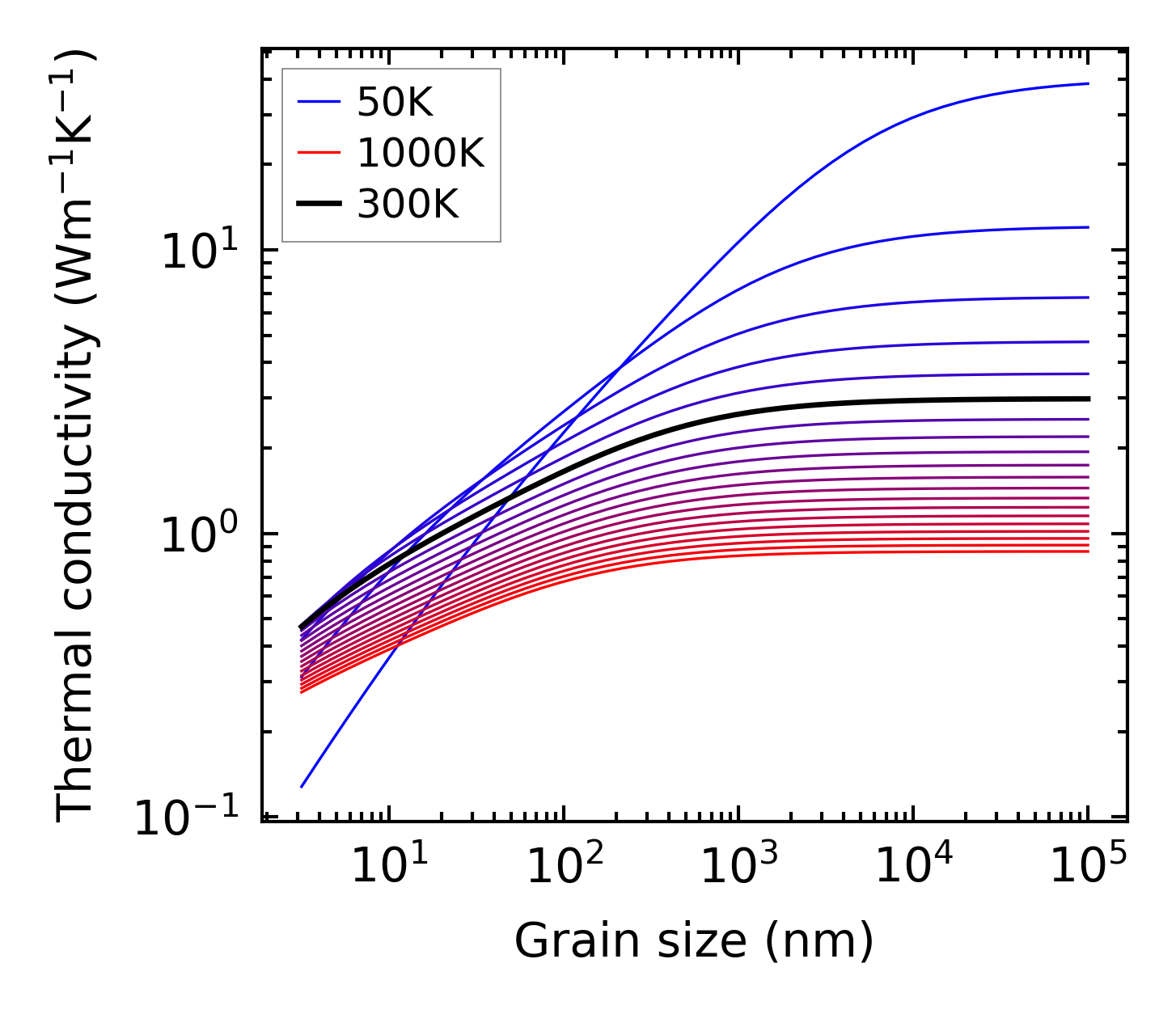

../../_images/fig_kappa_vs_grain_size6362.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

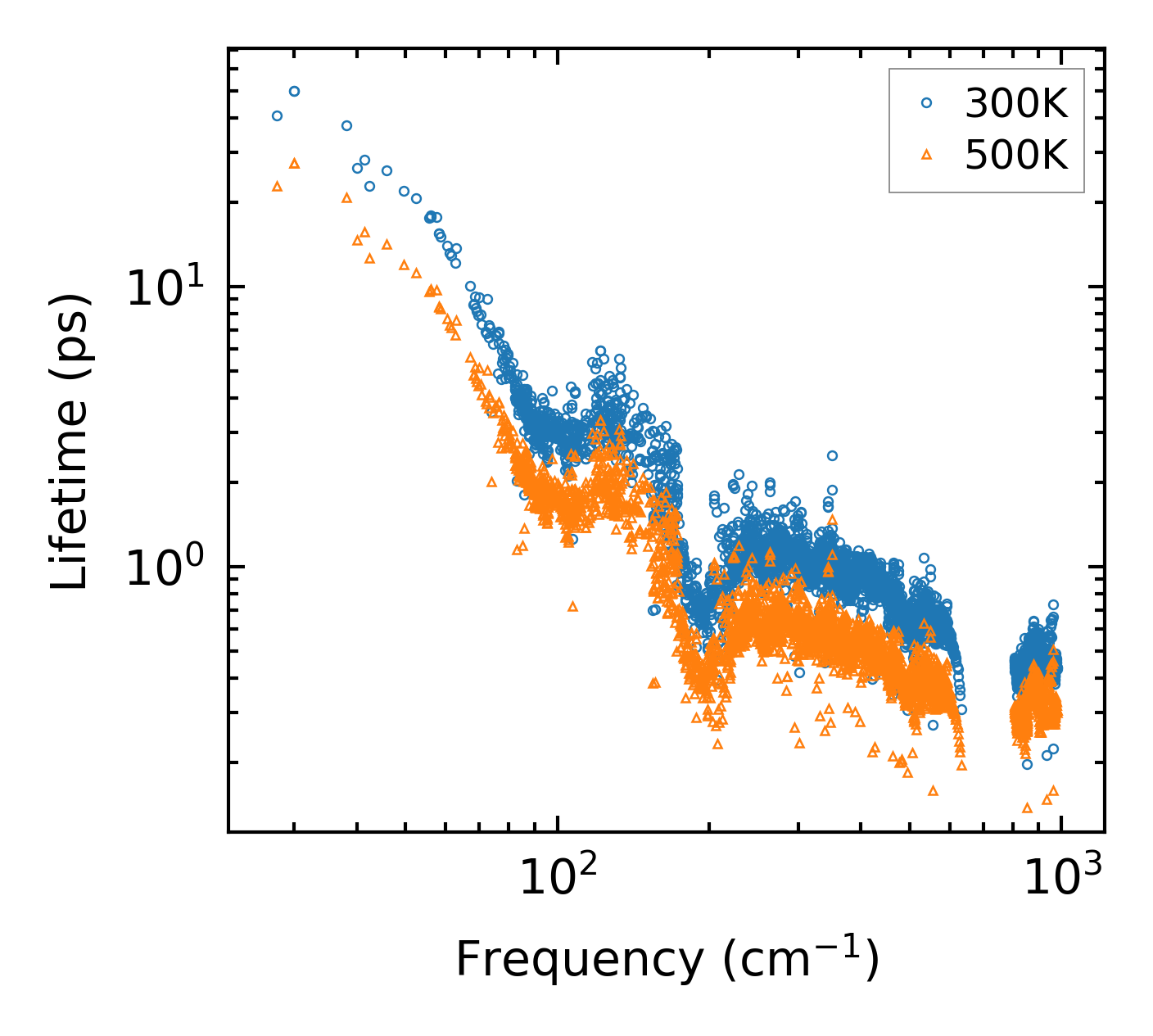

../../_images/fig_lifetime6223.png — (a) Phonon lifetime due to phonon-phonon scattering

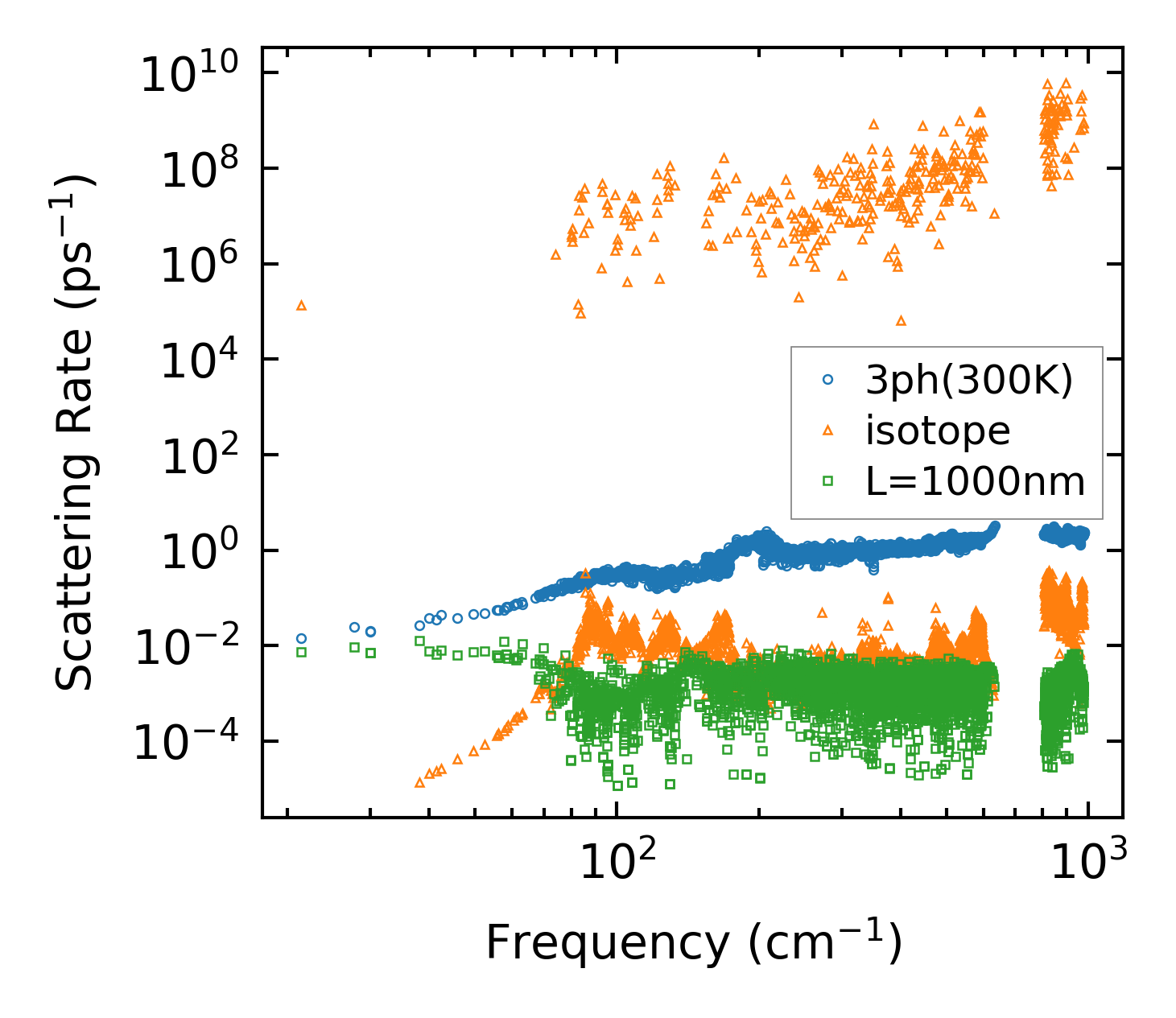

../../_images/fig_scat_rates6222.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

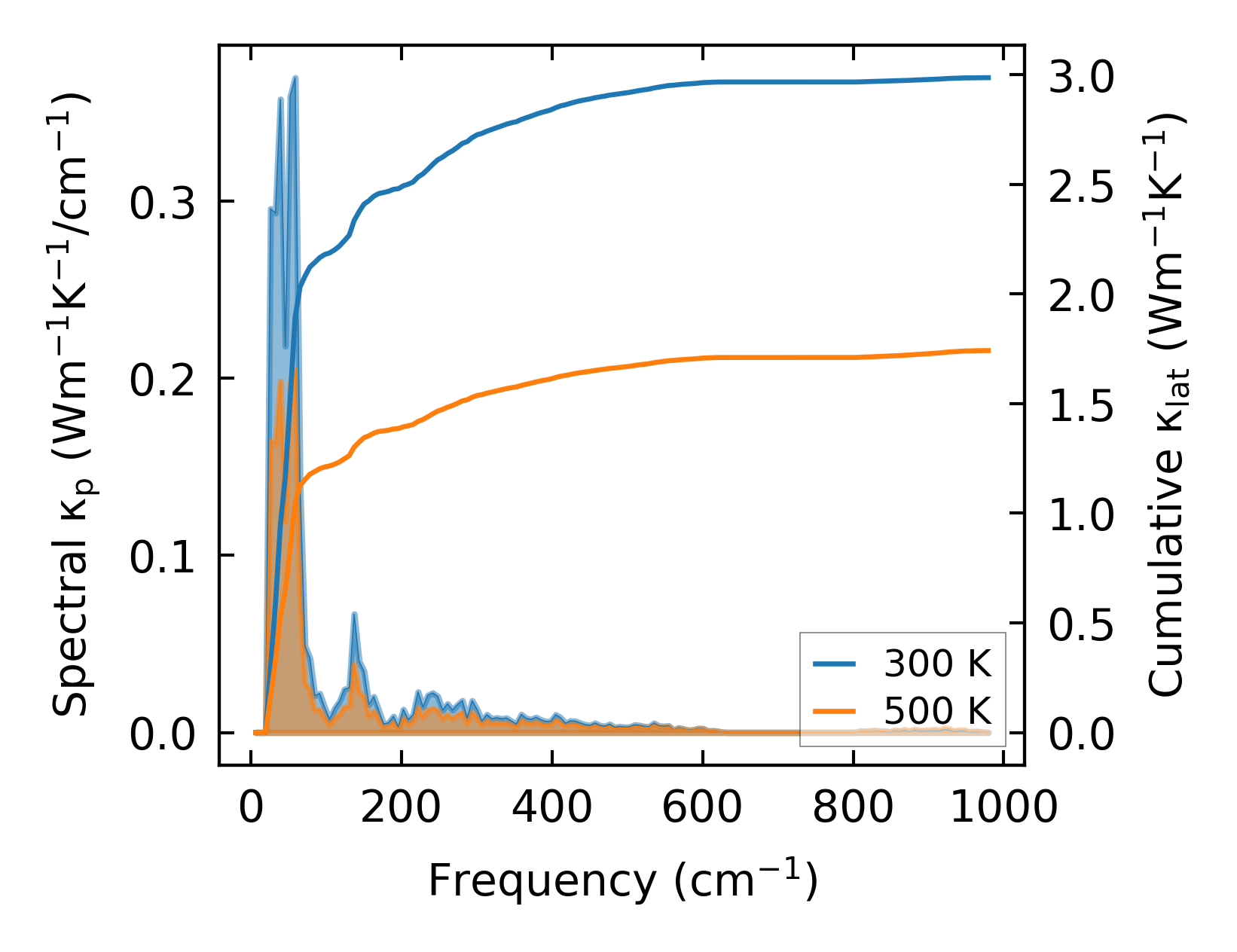

../../_images/fig_cumu_frequency6223.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

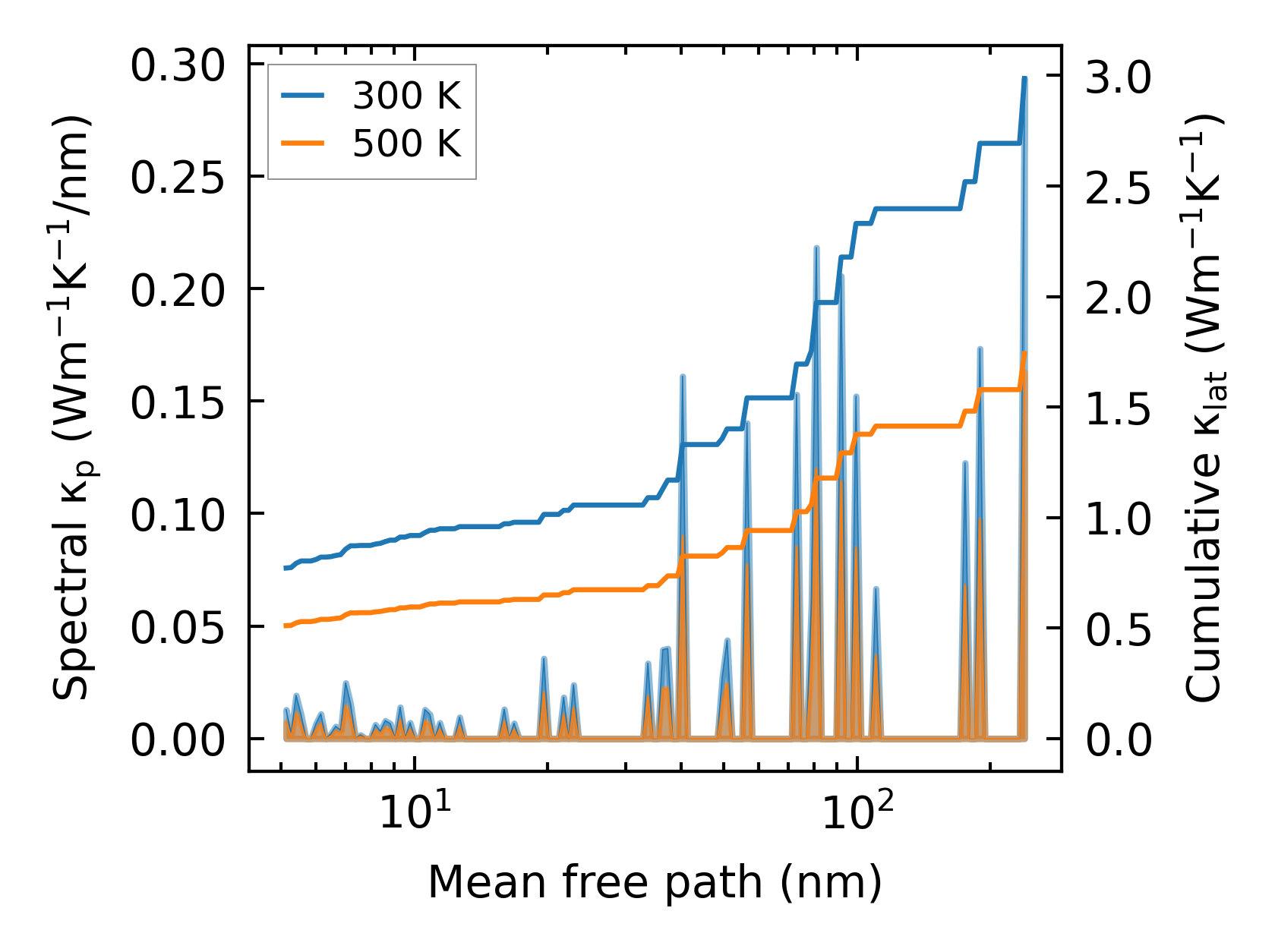

../../_images/fig_cumu_mfp6222.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214296.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa11824.png — (a) Temperature-dependent lattice thermal conductivity

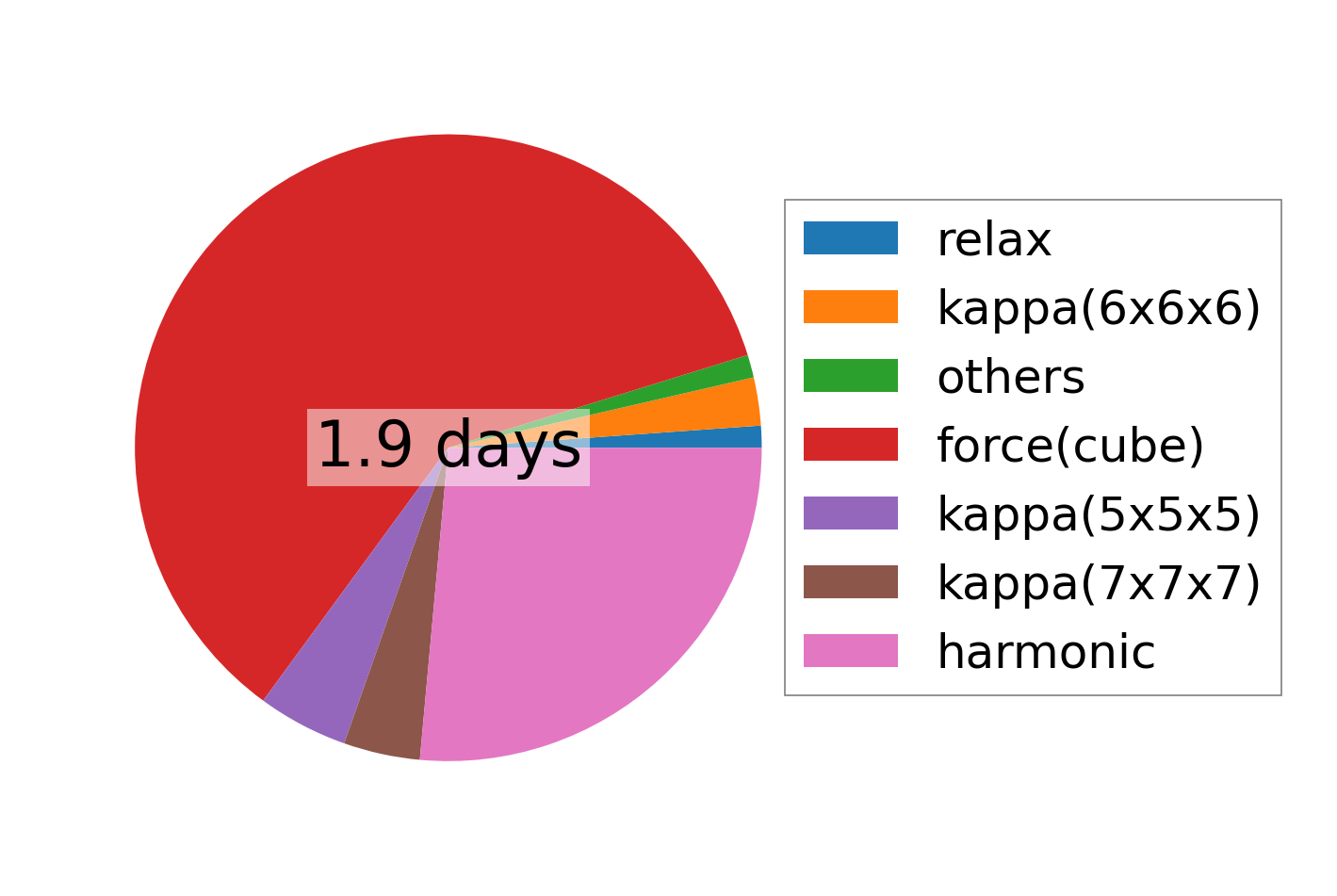

../../_images/fig_times24411.png — (b) Computation time
