mp-14047-2/Al2Cd3Si3O12/anharm

Space group: Ia-3d (230)
Link: Materials Project
Download: mp-14047-2.tar.gz

Equation of state

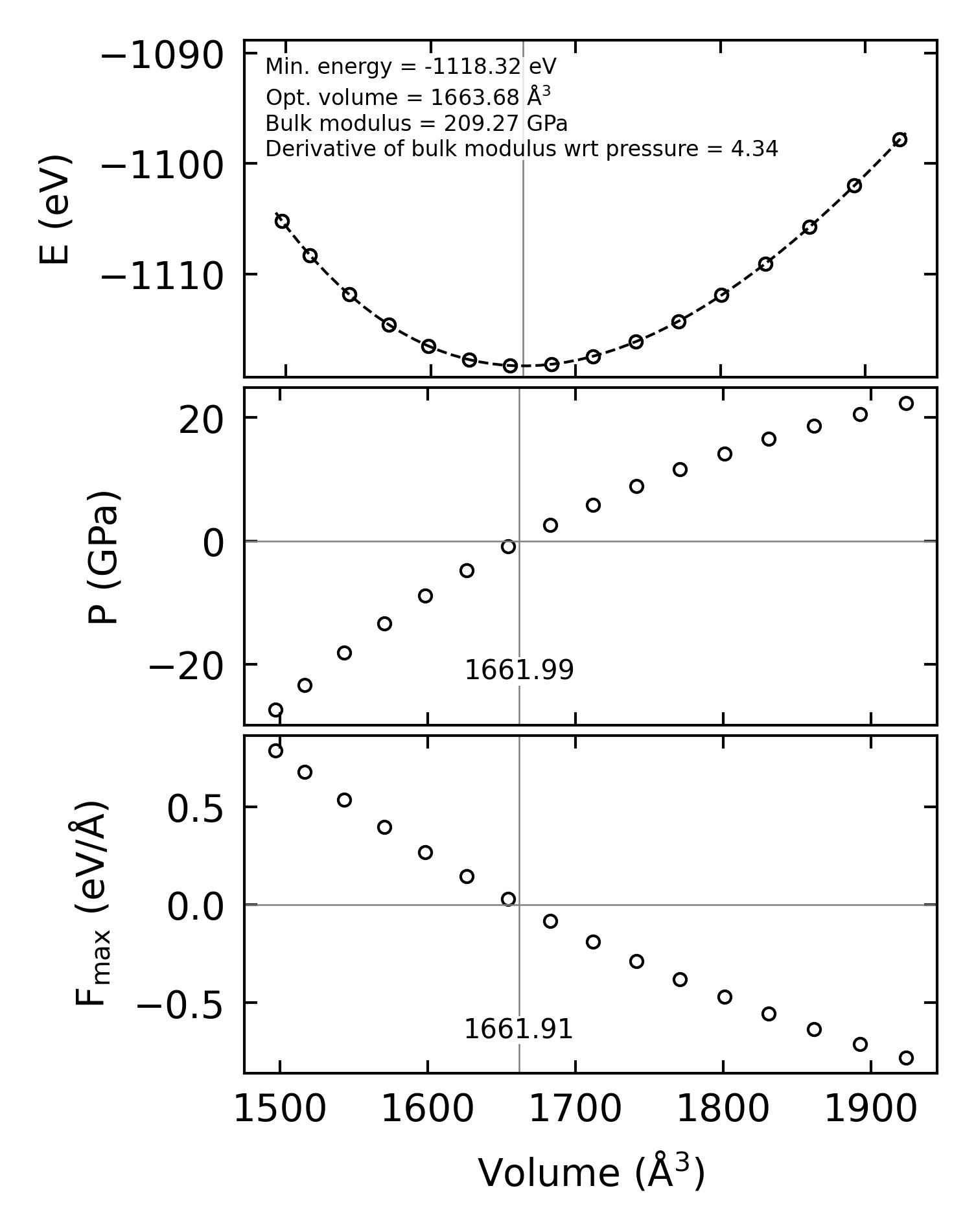

../../_images/fig_bm7336.png — (a) Equation of state

Harmonic properties

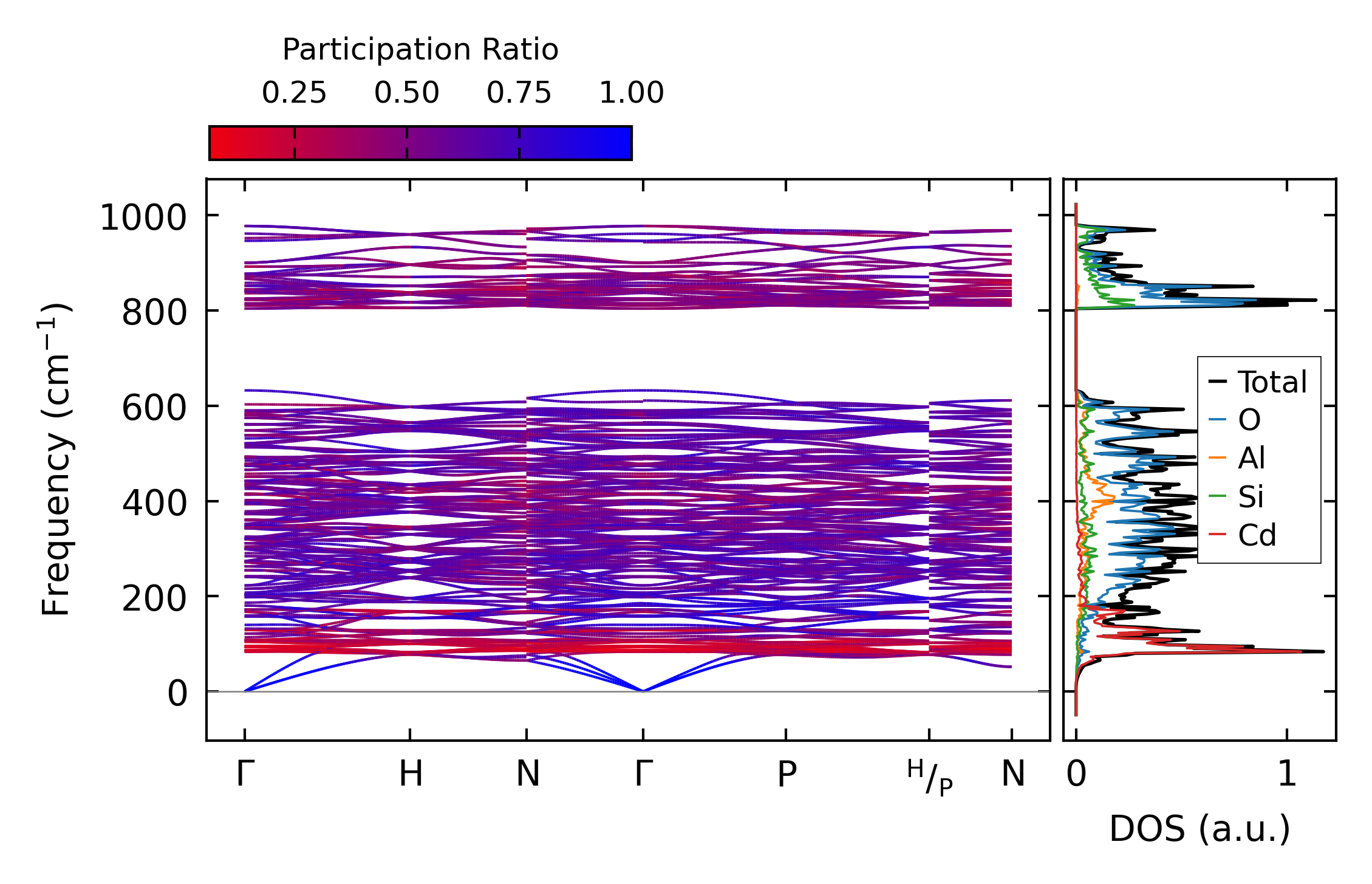

../../_images/fig_bandos_pr14678.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14678.png — (b) Thermodynamic properties

Grüneisen parameters

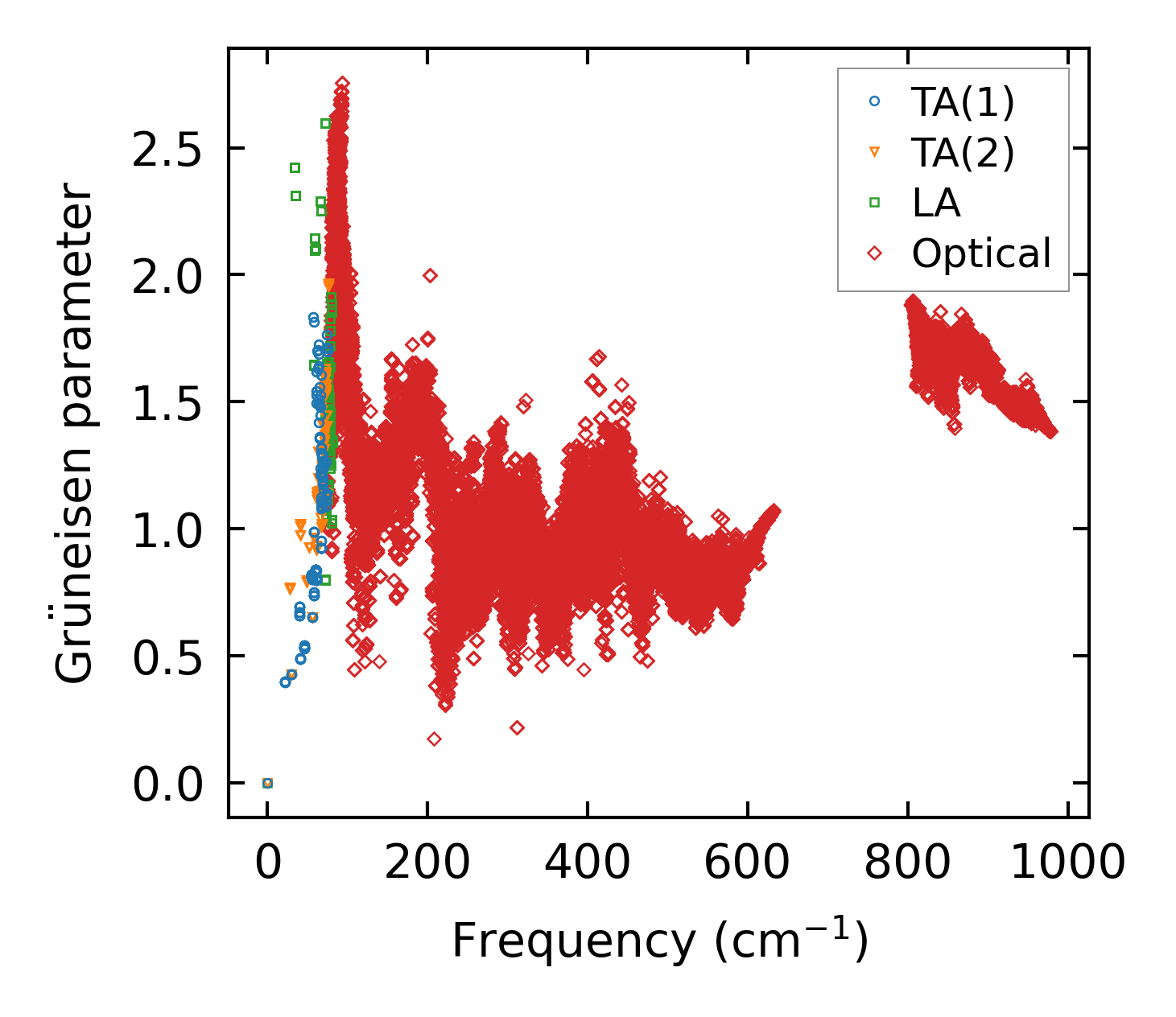

../../_images/fig_gru_all6286.png — (a) Grüneisen parameters

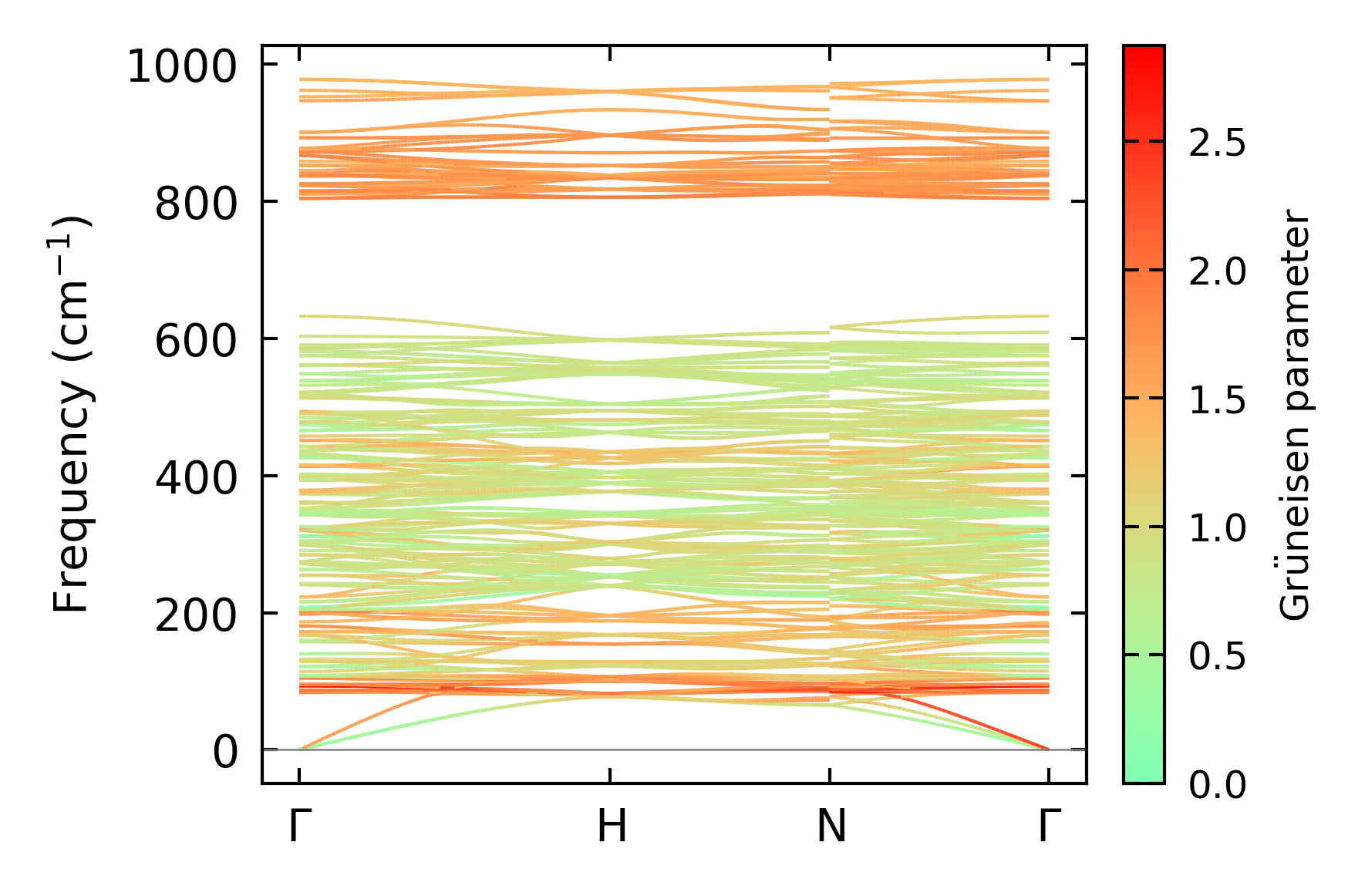

../../_images/fig_gruneisen6286.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

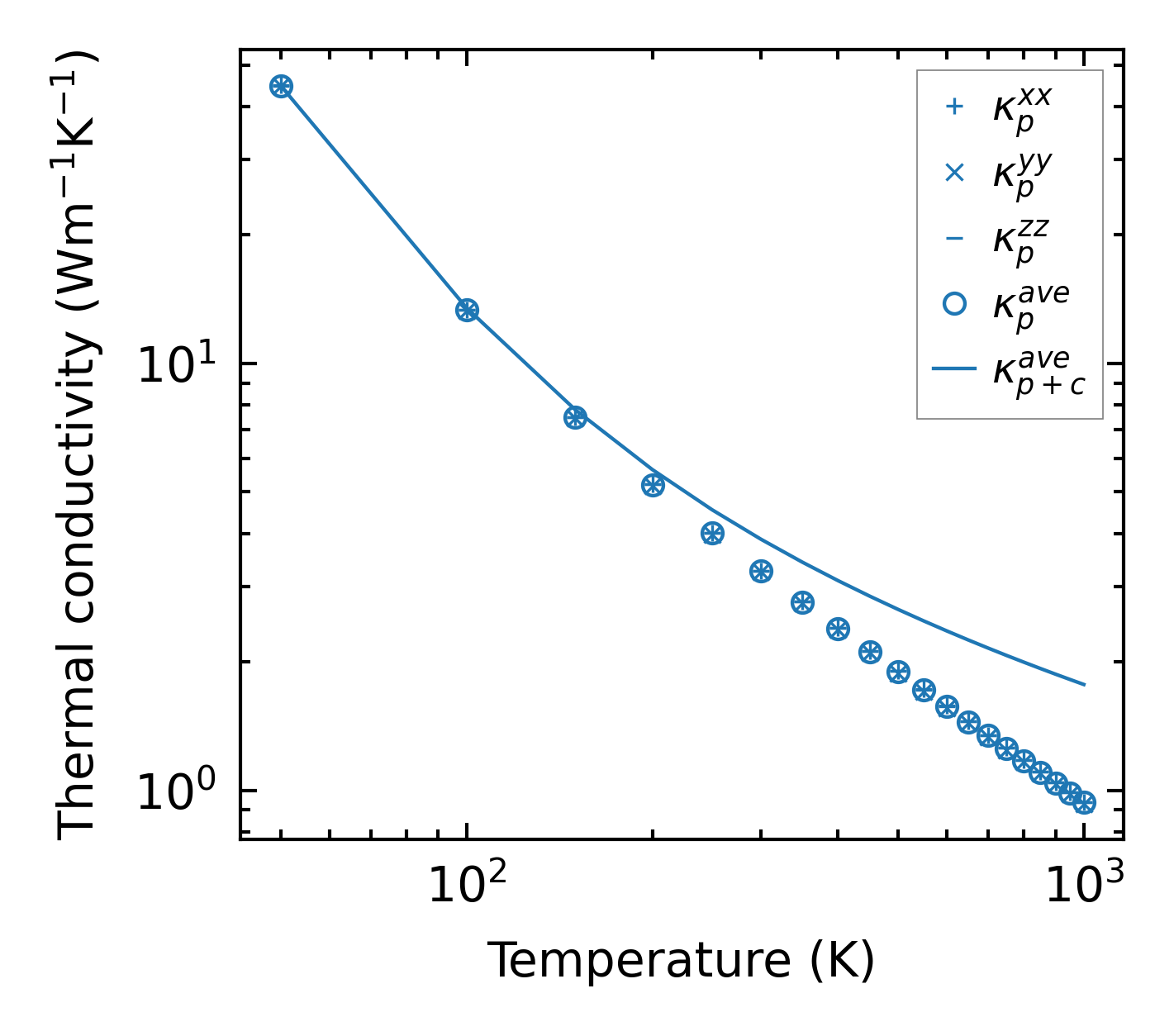

../../_images/fig_kappa11825.png — (a) Temperature-dependent lattice thermal conductivity

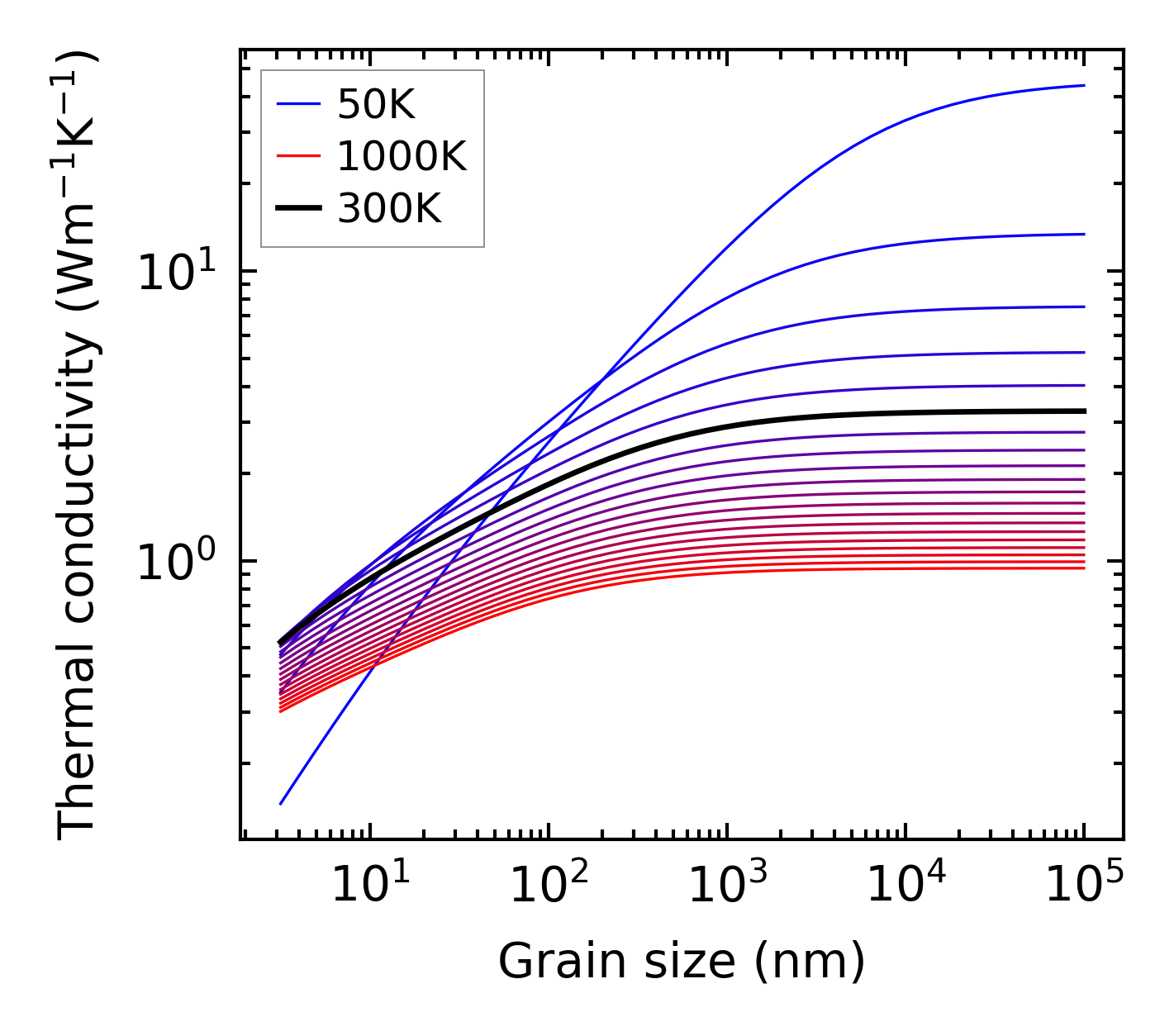

../../_images/fig_kappa_vs_grain_size6363.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

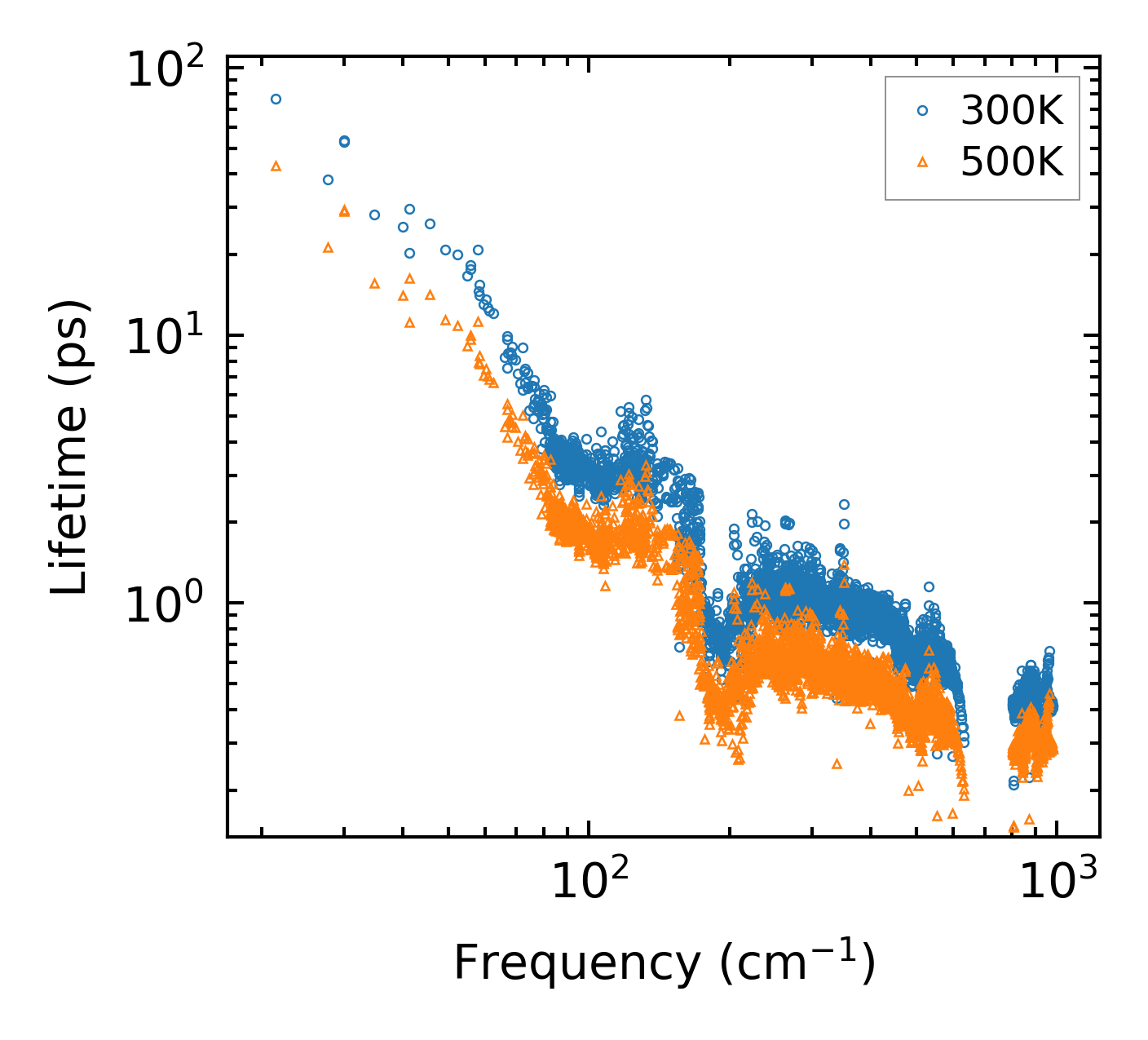

../../_images/fig_lifetime6224.png — (a) Phonon lifetime due to phonon-phonon scattering

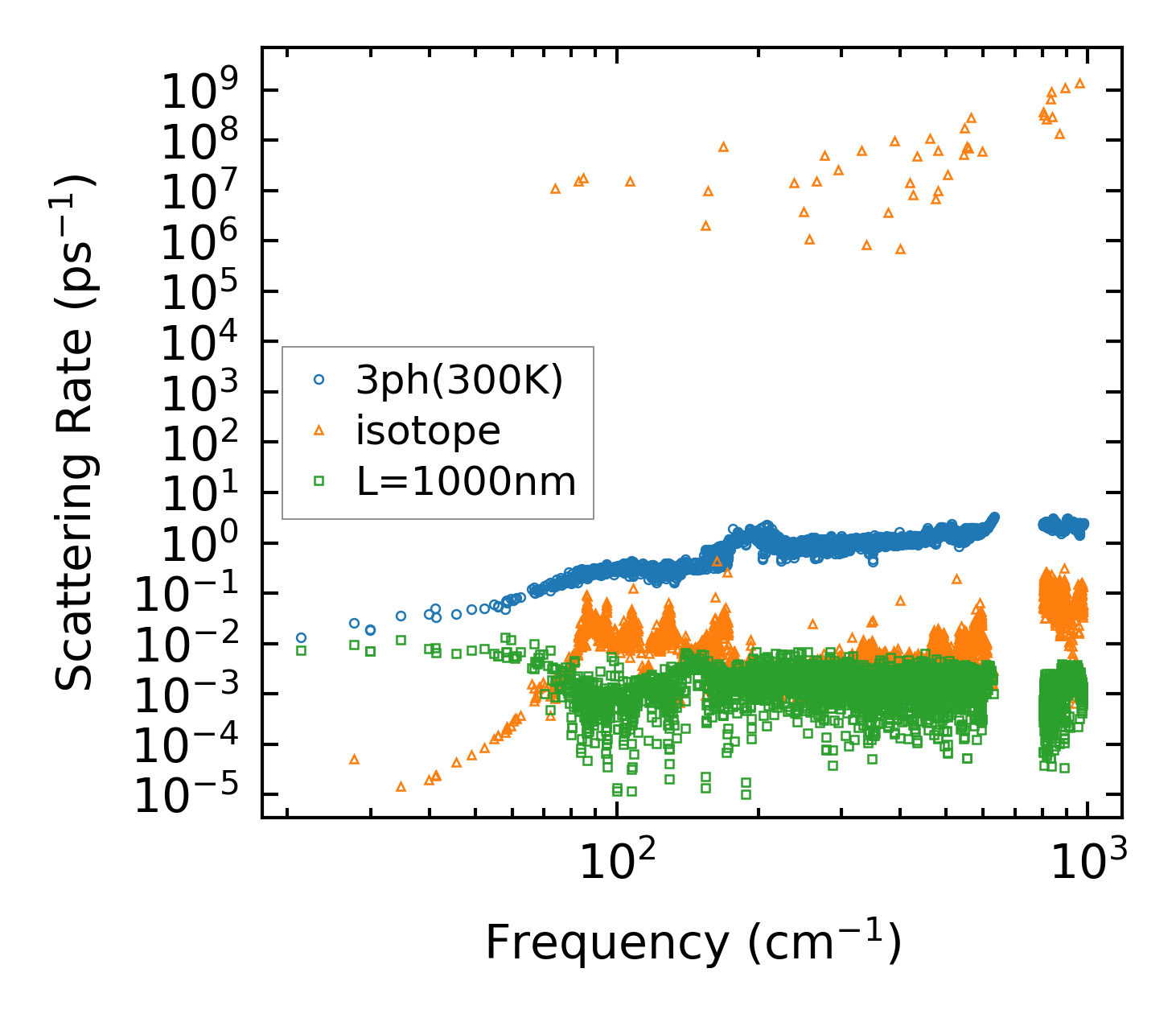

../../_images/fig_scat_rates6223.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

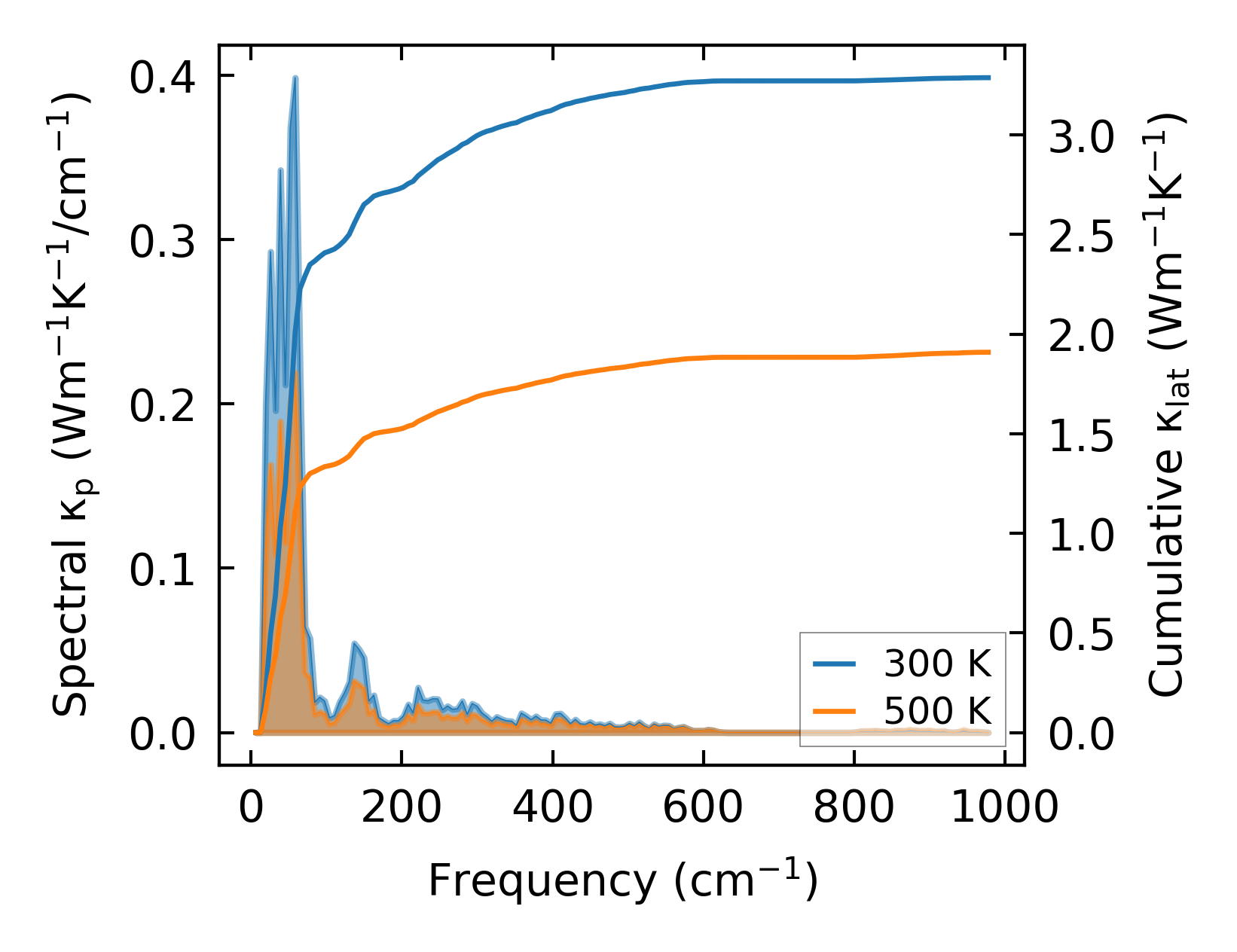

../../_images/fig_cumu_frequency6224.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

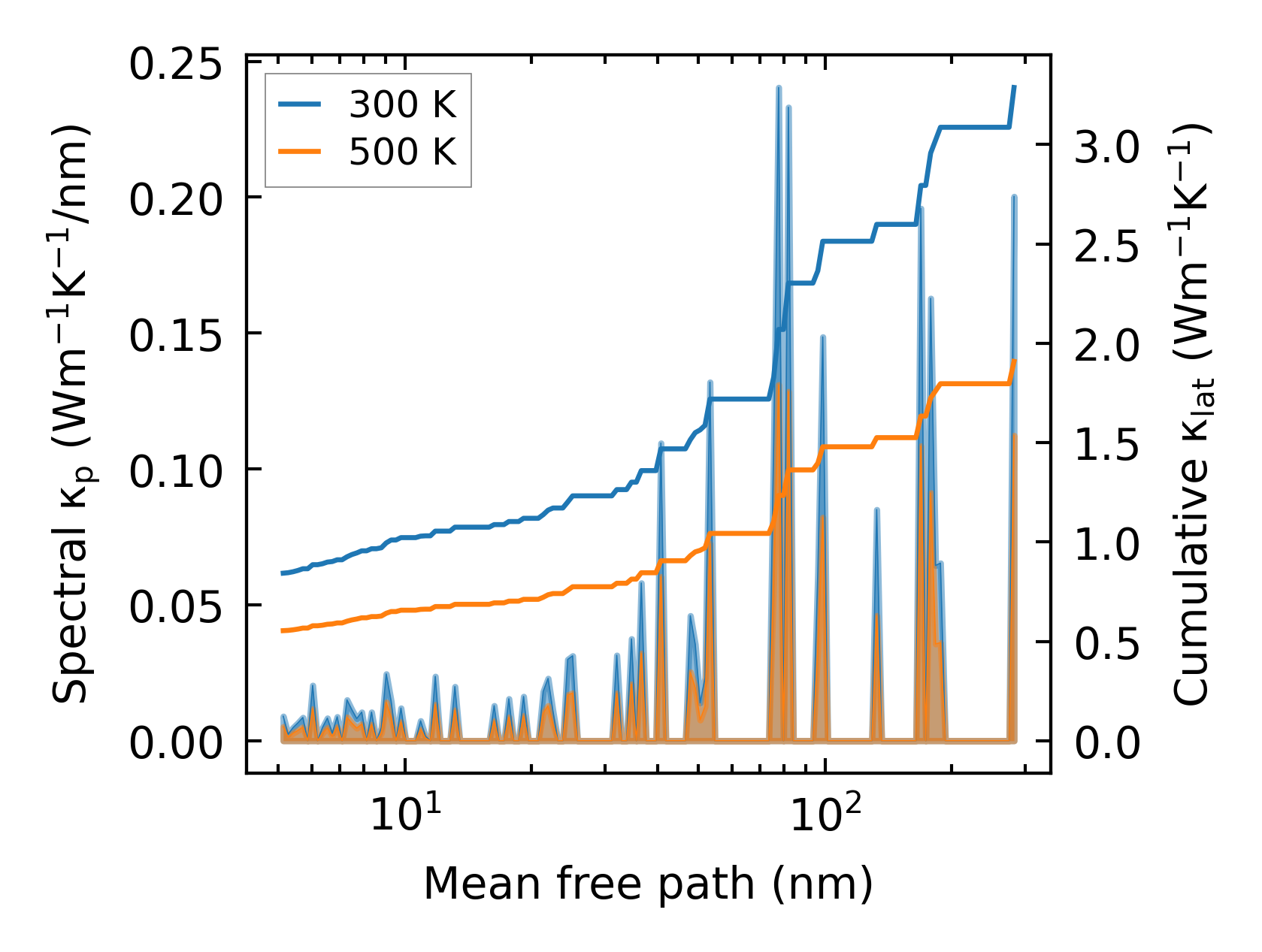

../../_images/fig_cumu_mfp6223.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

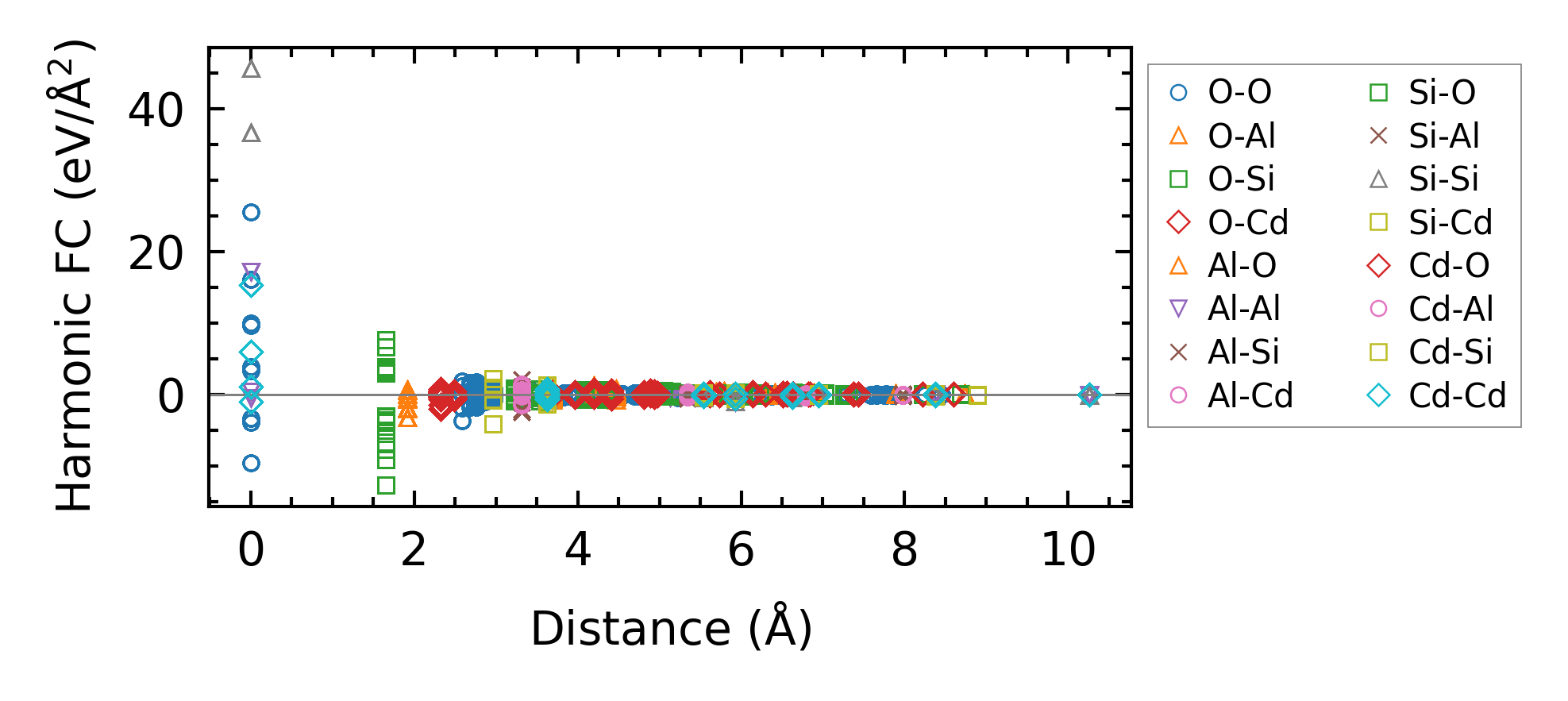

../../_images/fig_fc214297.png — (a) Force constants w.r.t atomic distance

Summary

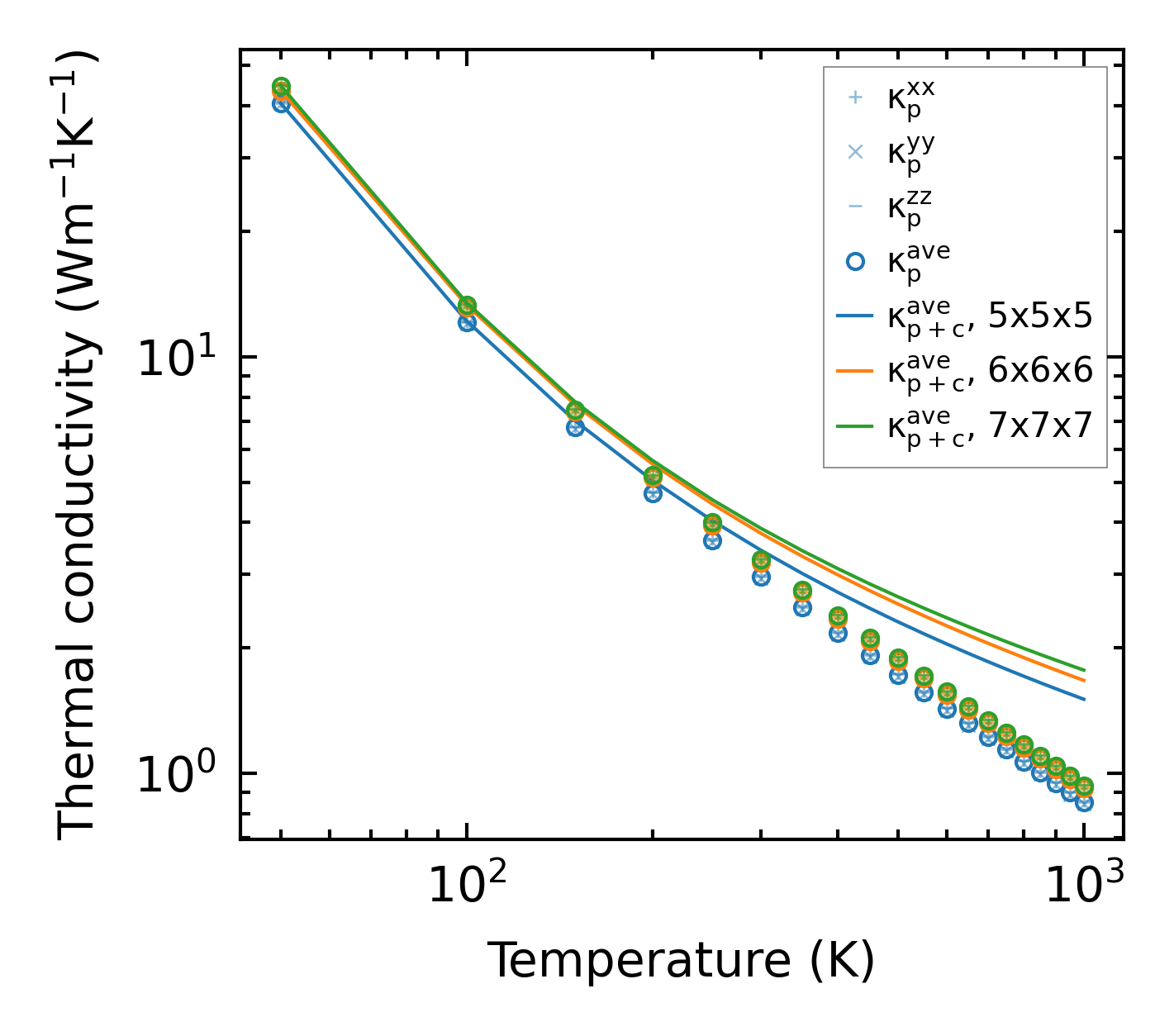

../../_images/fig_kappa11826.png — (a) Temperature-dependent lattice thermal conductivity

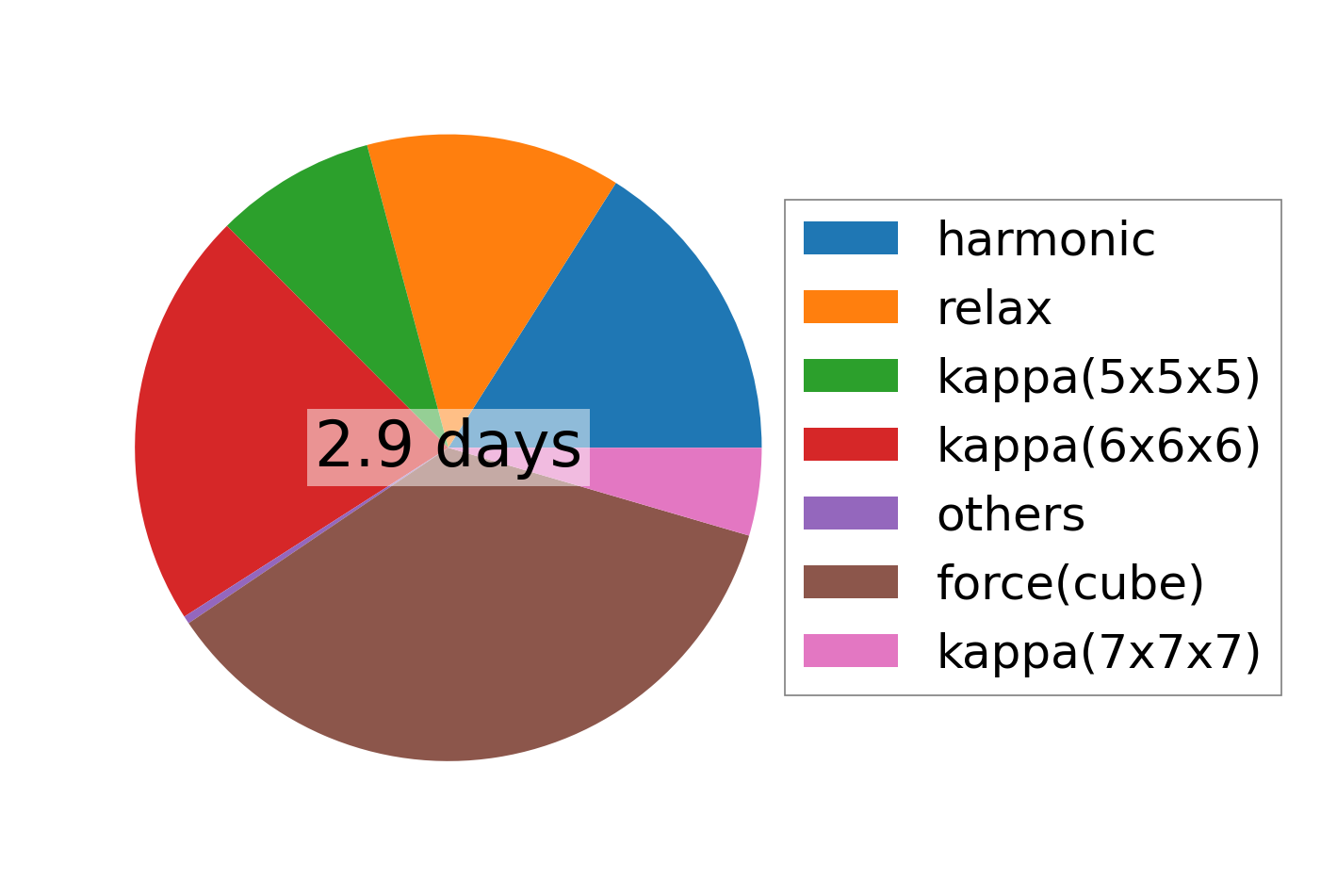

../../_images/fig_times24412.png — (b) Computation time
