mp-14588-2/Na2PtSe2/anharm

Space group: Cmc2_1 (36)
Link: Materials Project
Download: mp-14588-2.tar.gz

Equation of state

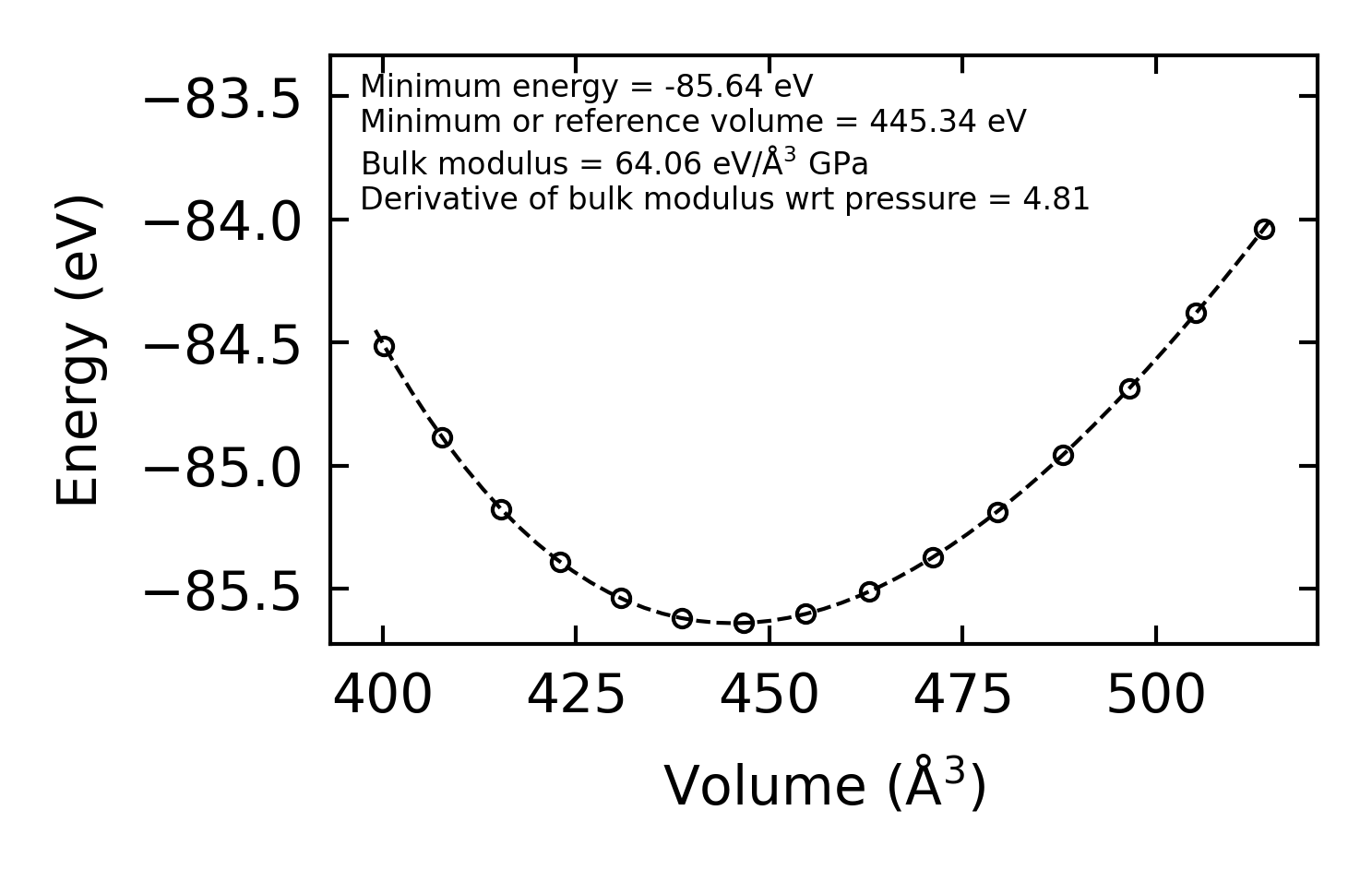

../../_images/fig_bm7241.png — (a) Equation of state

Harmonic properties

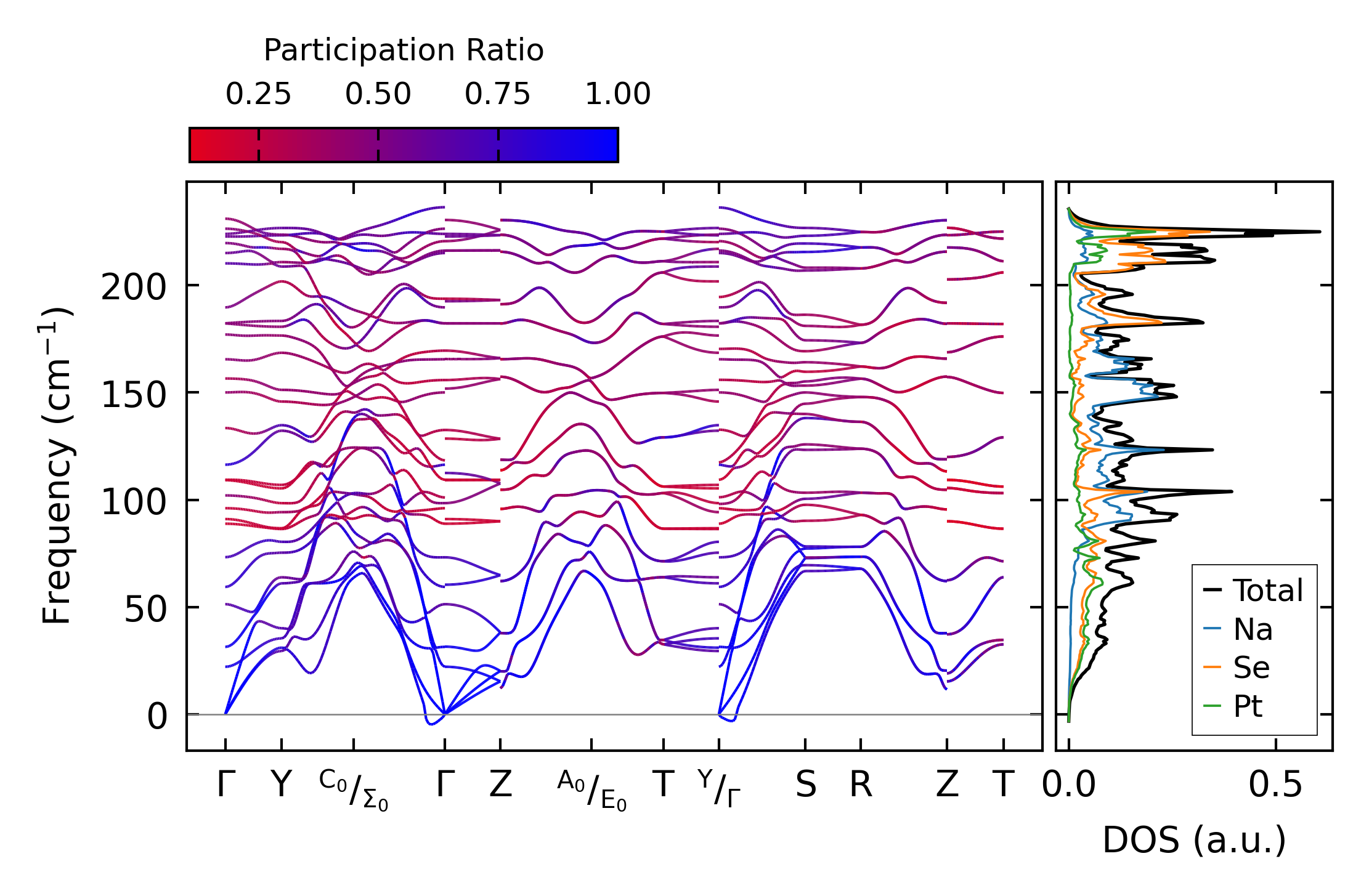

../../_images/fig_bandos_pr14491.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos18849.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14491.png — (c) Thermodynamic properties

Grüneisen parameters

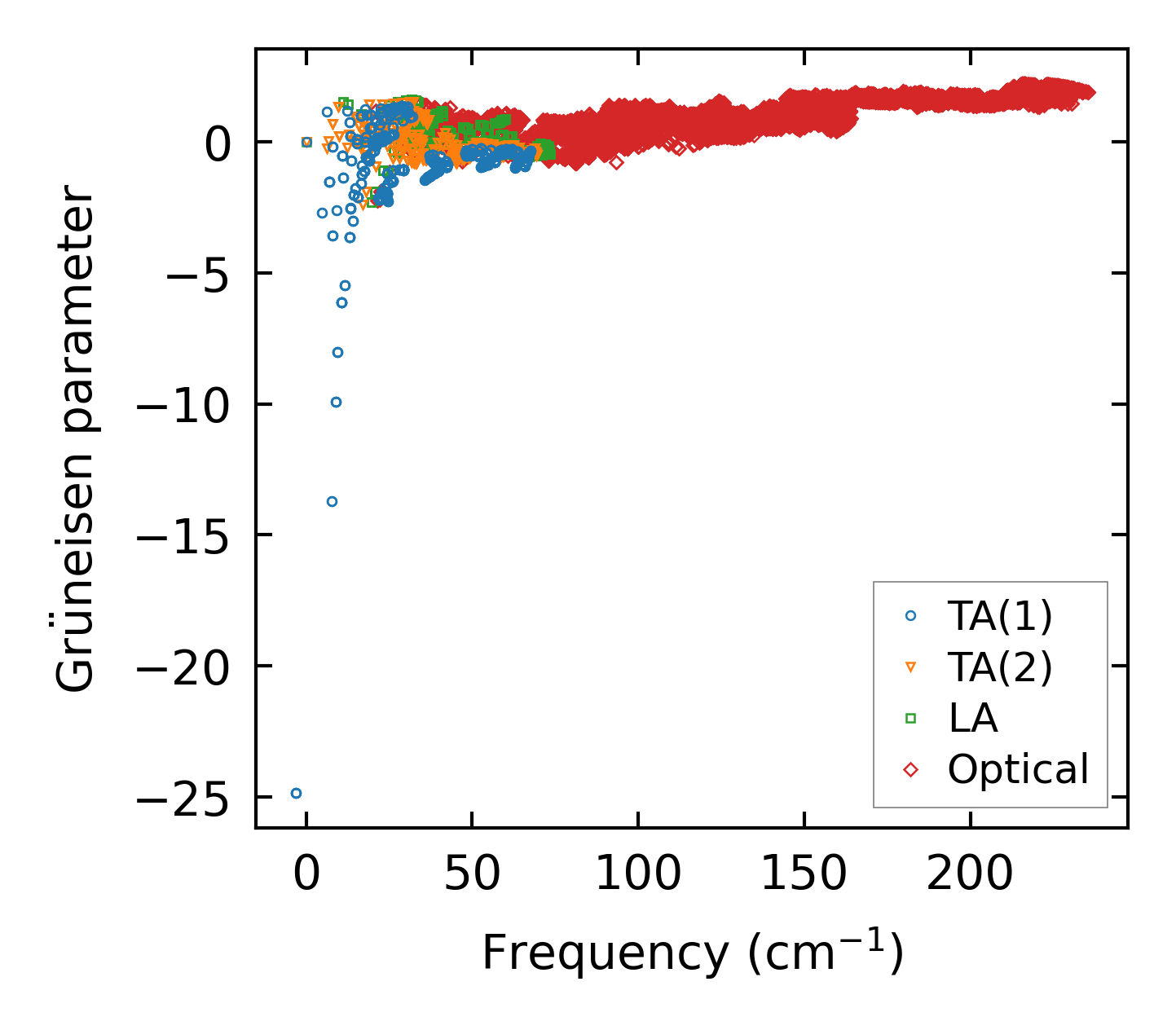

../../_images/fig_gru_all6199.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6199.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x2x1 — q-mesh: 14x14x7, supercell: 4x2x1

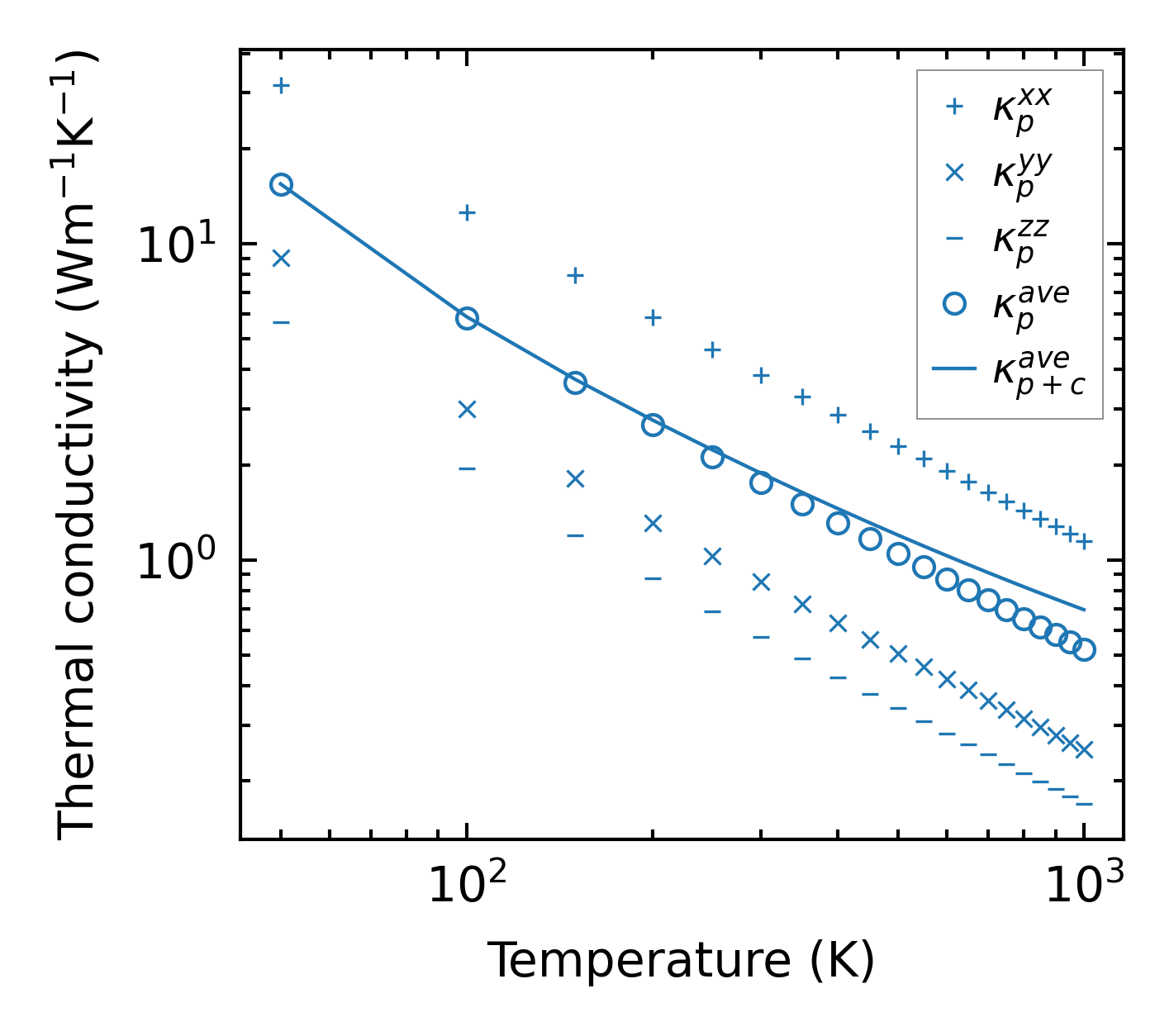

../../_images/fig_kappa11663.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6277.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

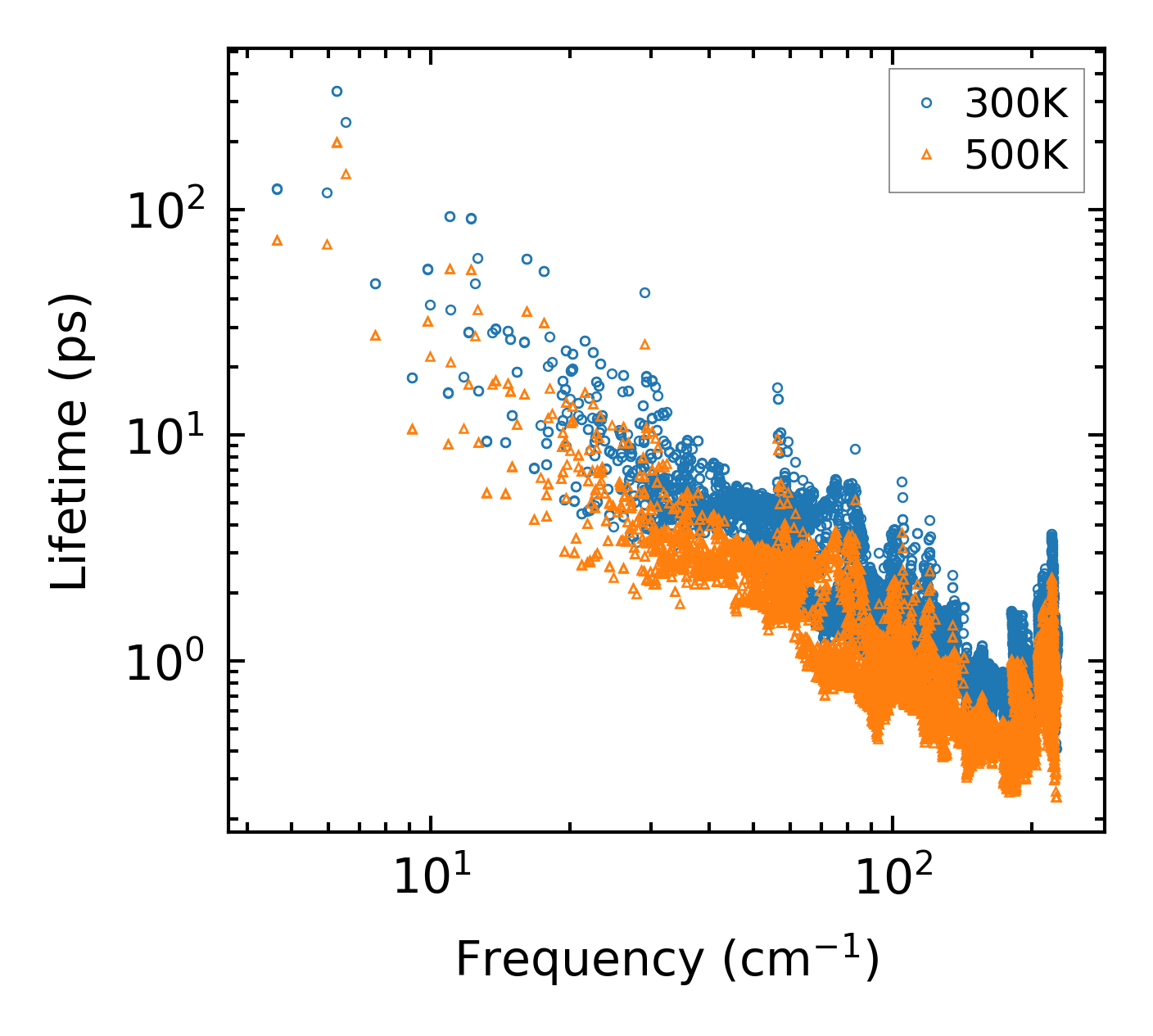

../../_images/fig_lifetime6138.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6137.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

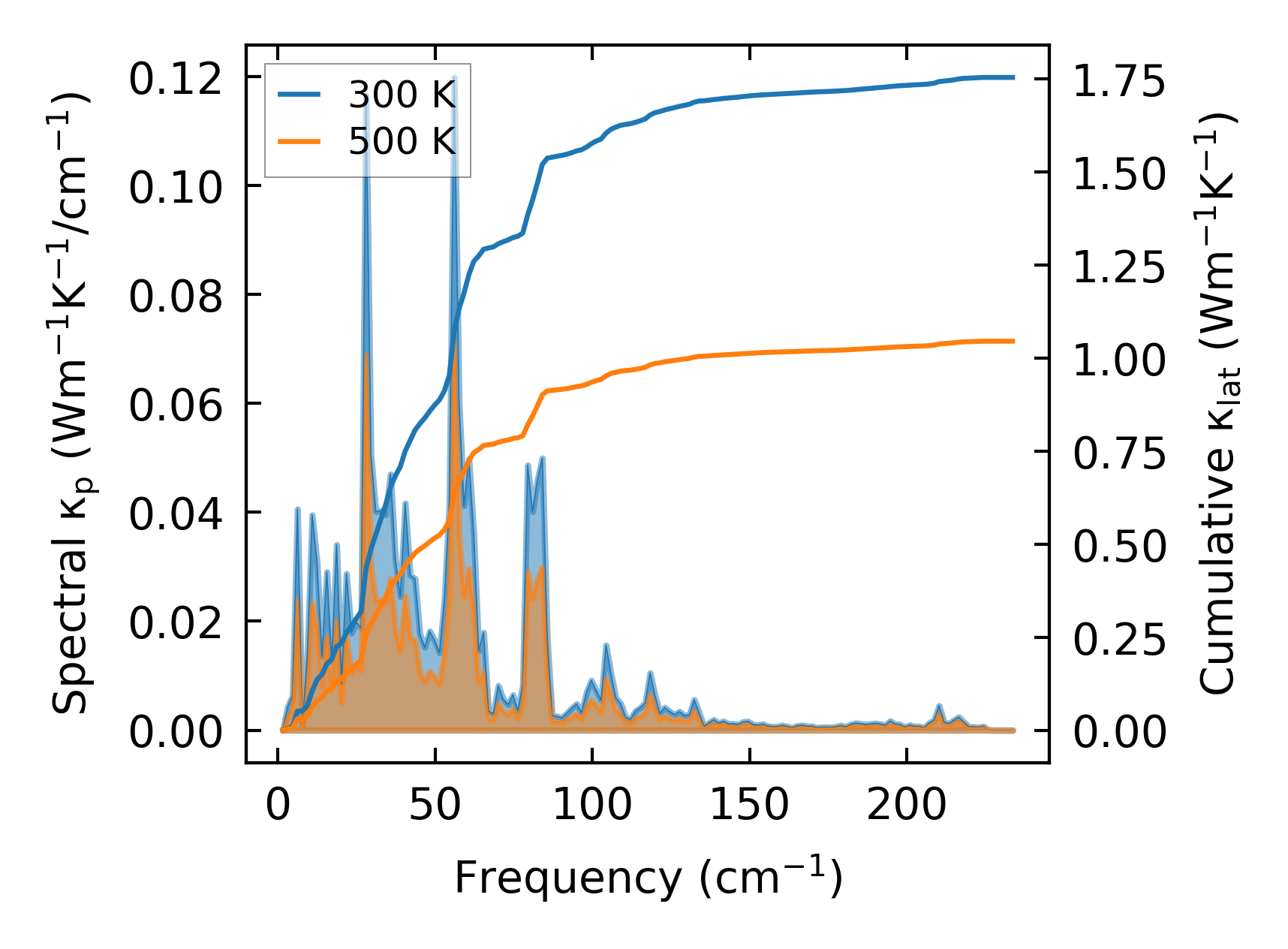

../../_images/fig_cumu_frequency6138.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

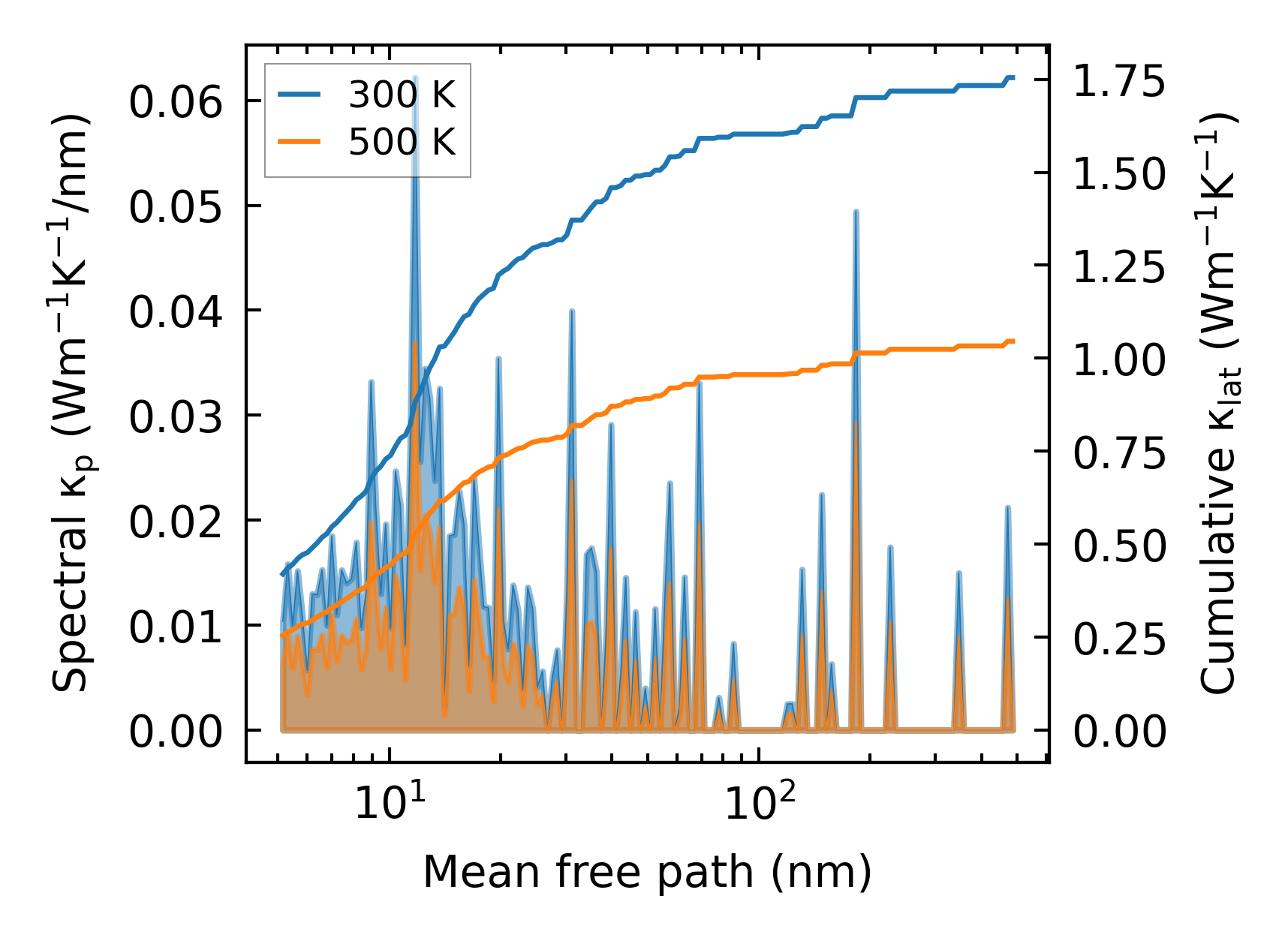

../../_images/fig_cumu_mfp6137.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc214110.png — (a) Force constants w.r.t atomic distance

Summary

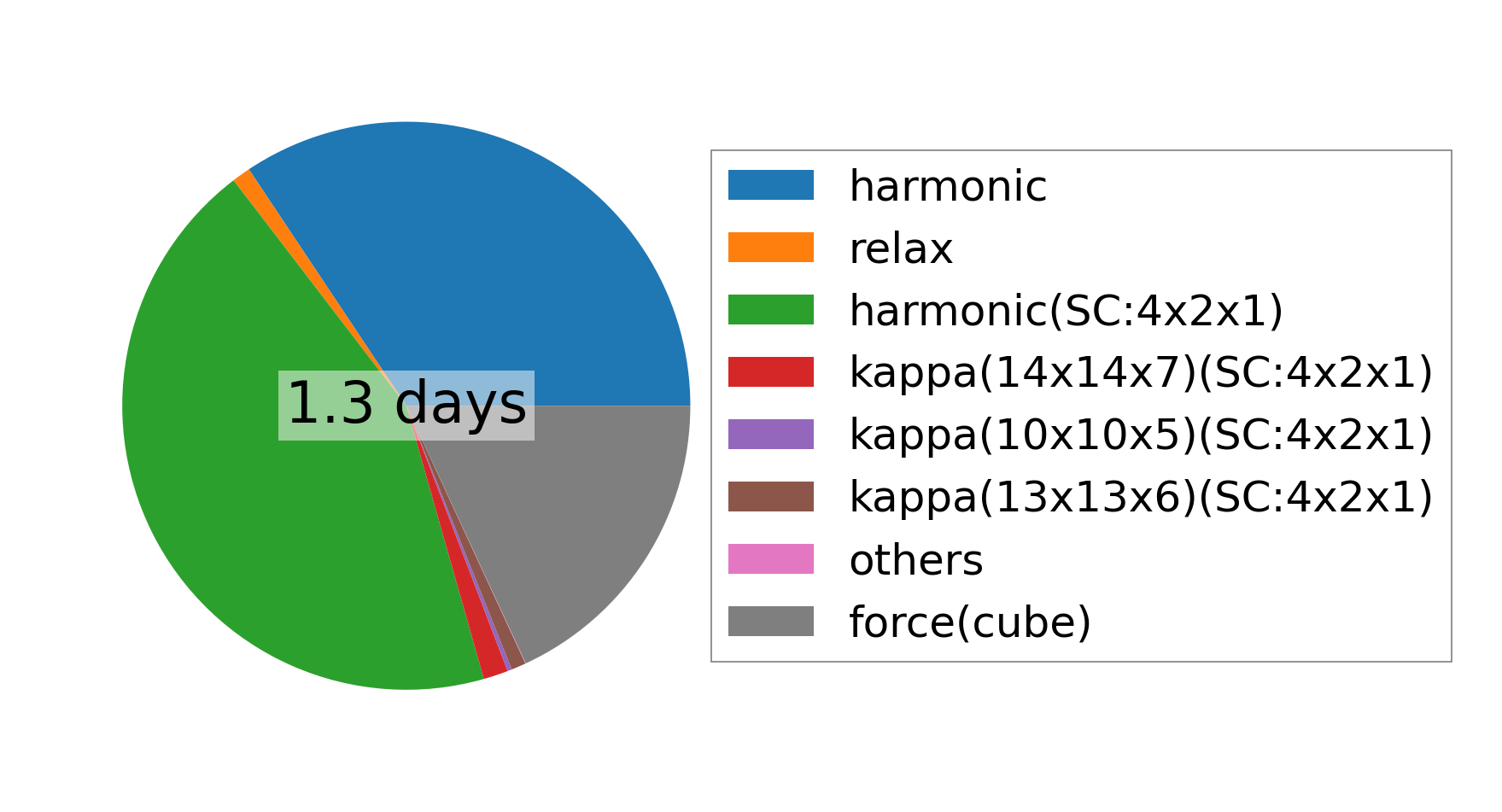

../../_images/fig_times24128.png — (a) Computation time
