mp-14324-3/K2Na4Be2O5/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-14324-3.tar.gz

Equation of state

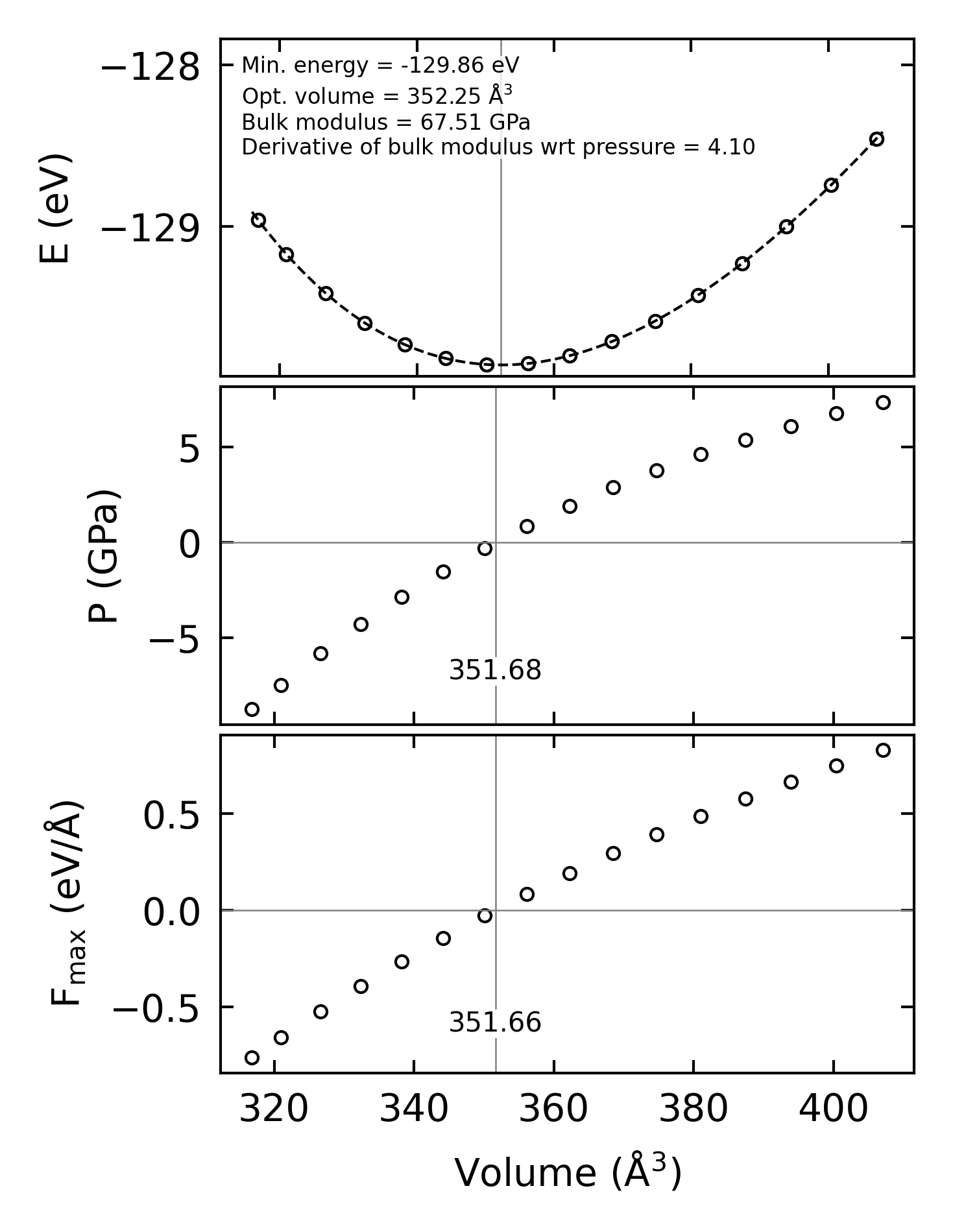

../../_images/fig_bm7383.png — (a) Equation of state

Harmonic properties

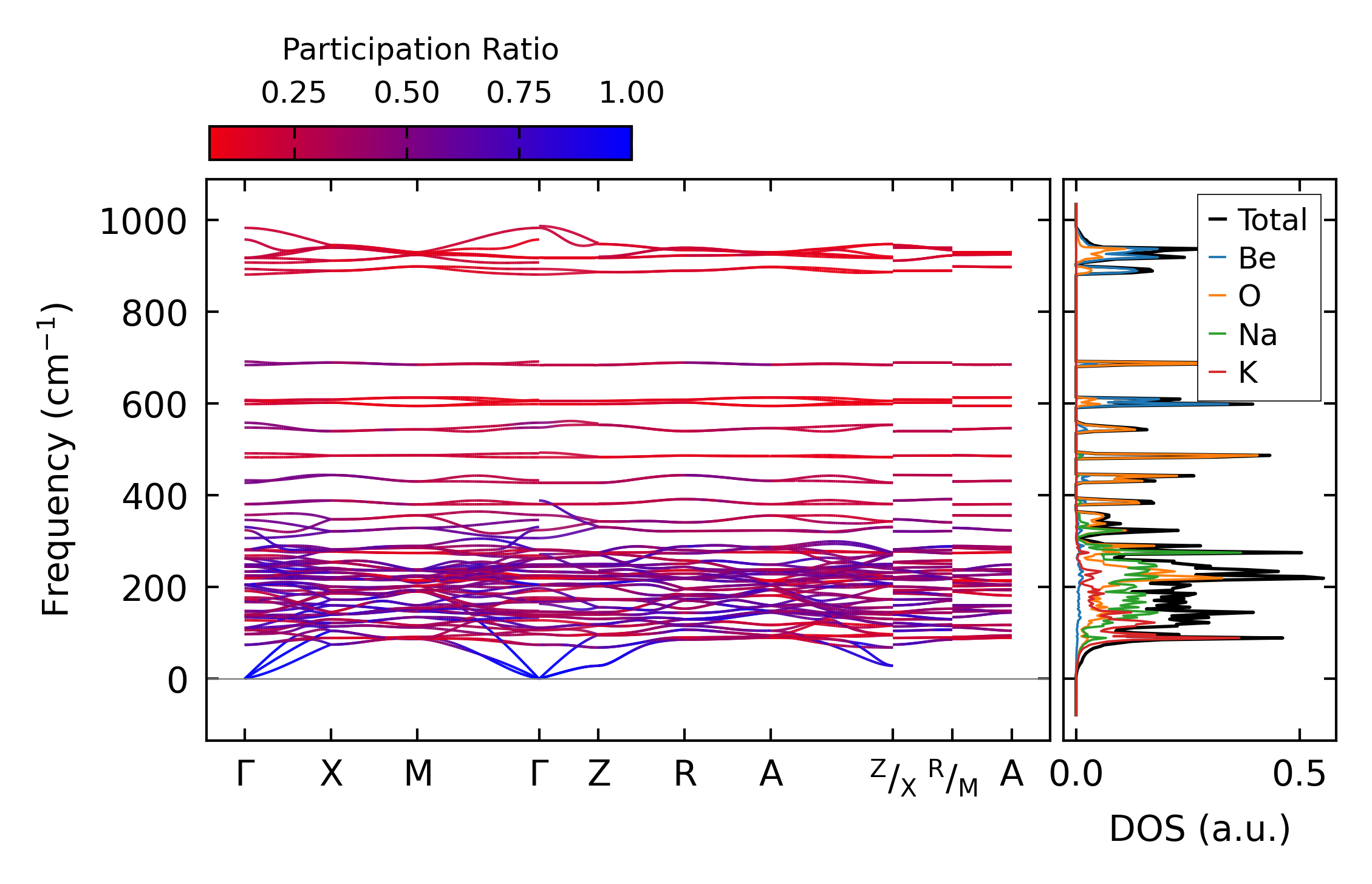

../../_images/fig_bandos_pr14760.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo14760.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6328.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6328.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x7, supercell: 2x2x1

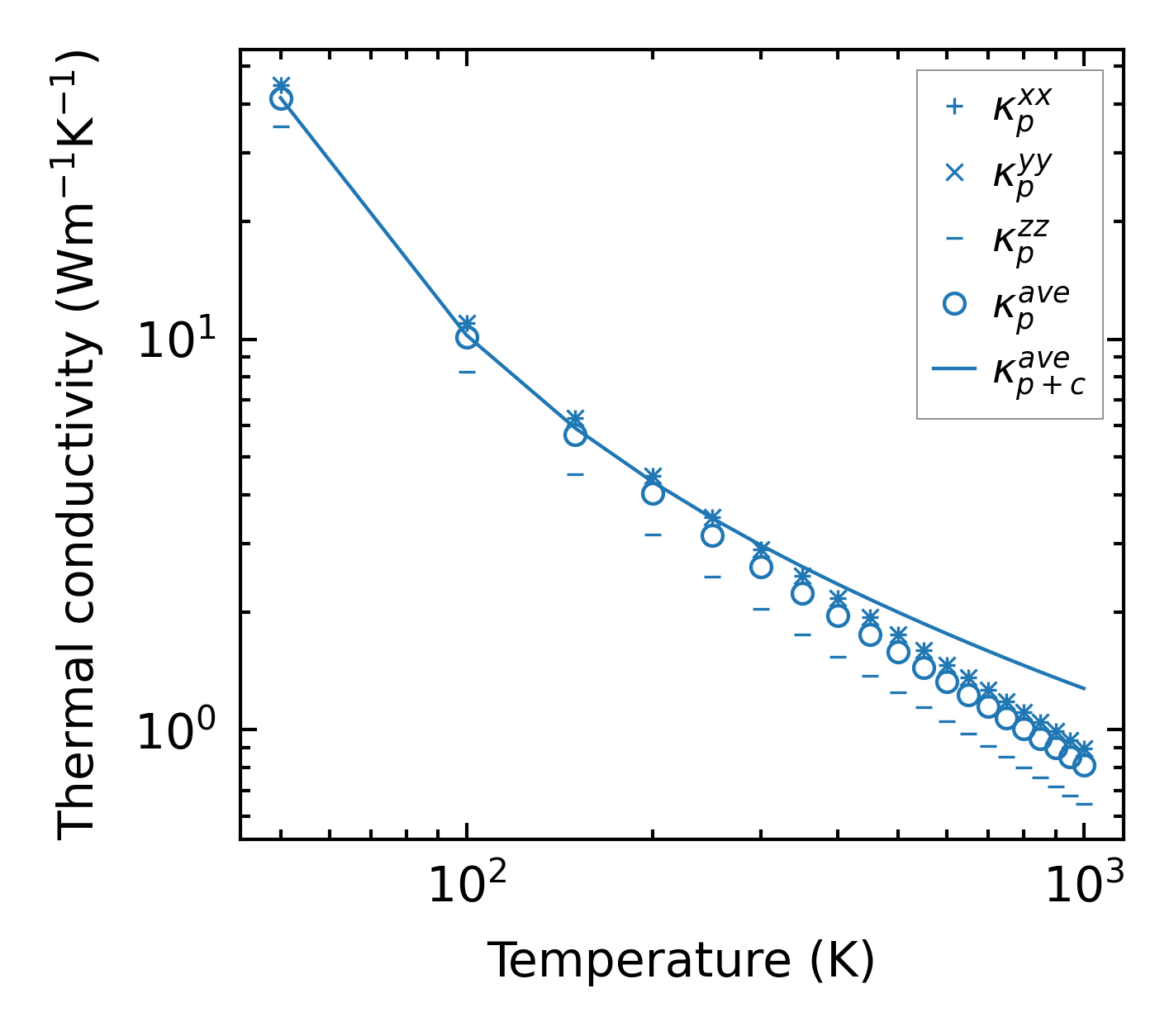

../../_images/fig_kappa11903.png — (a) Temperature-dependent lattice thermal conductivity

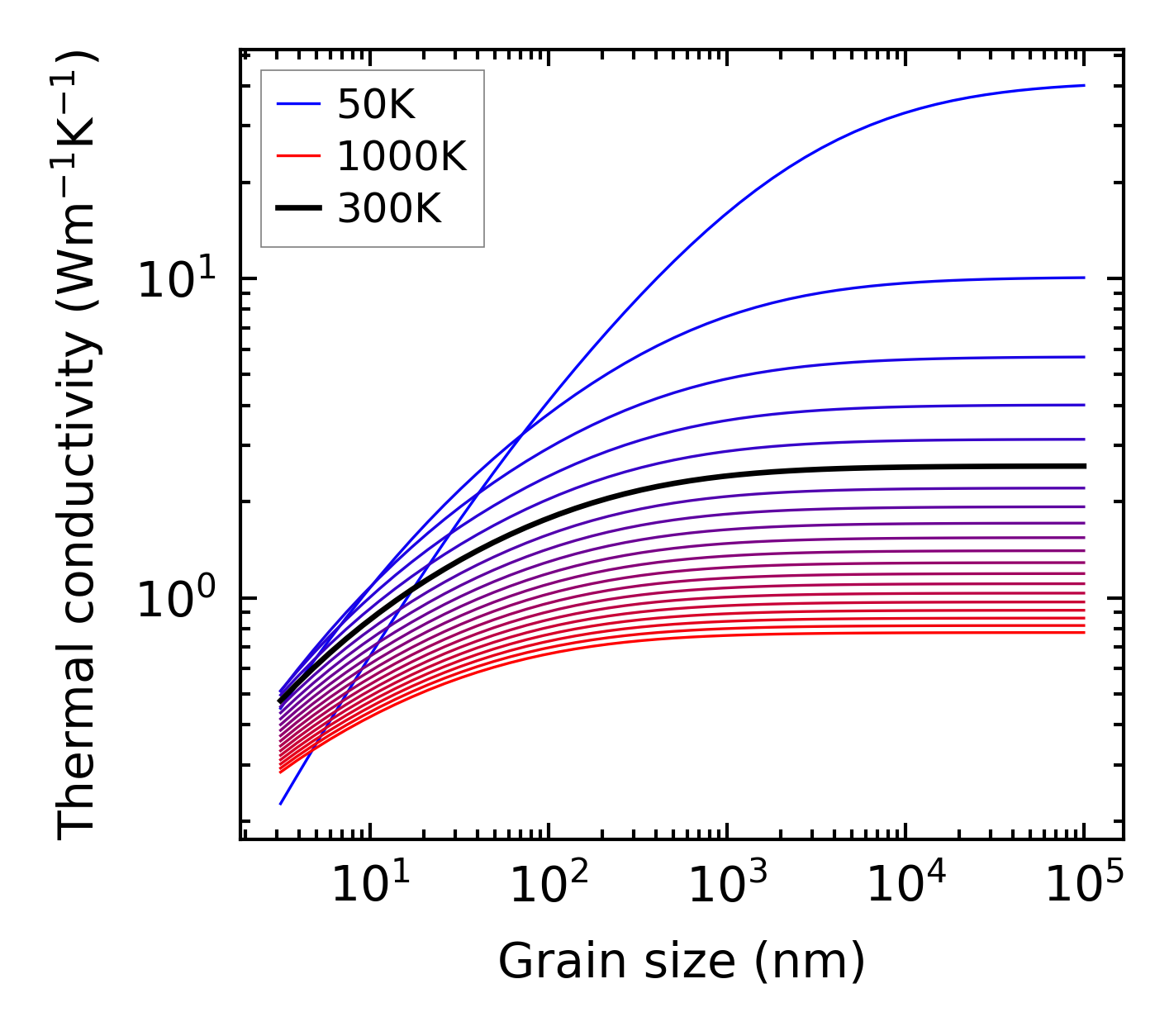

../../_images/fig_kappa_vs_grain_size6404.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6265.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6264.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

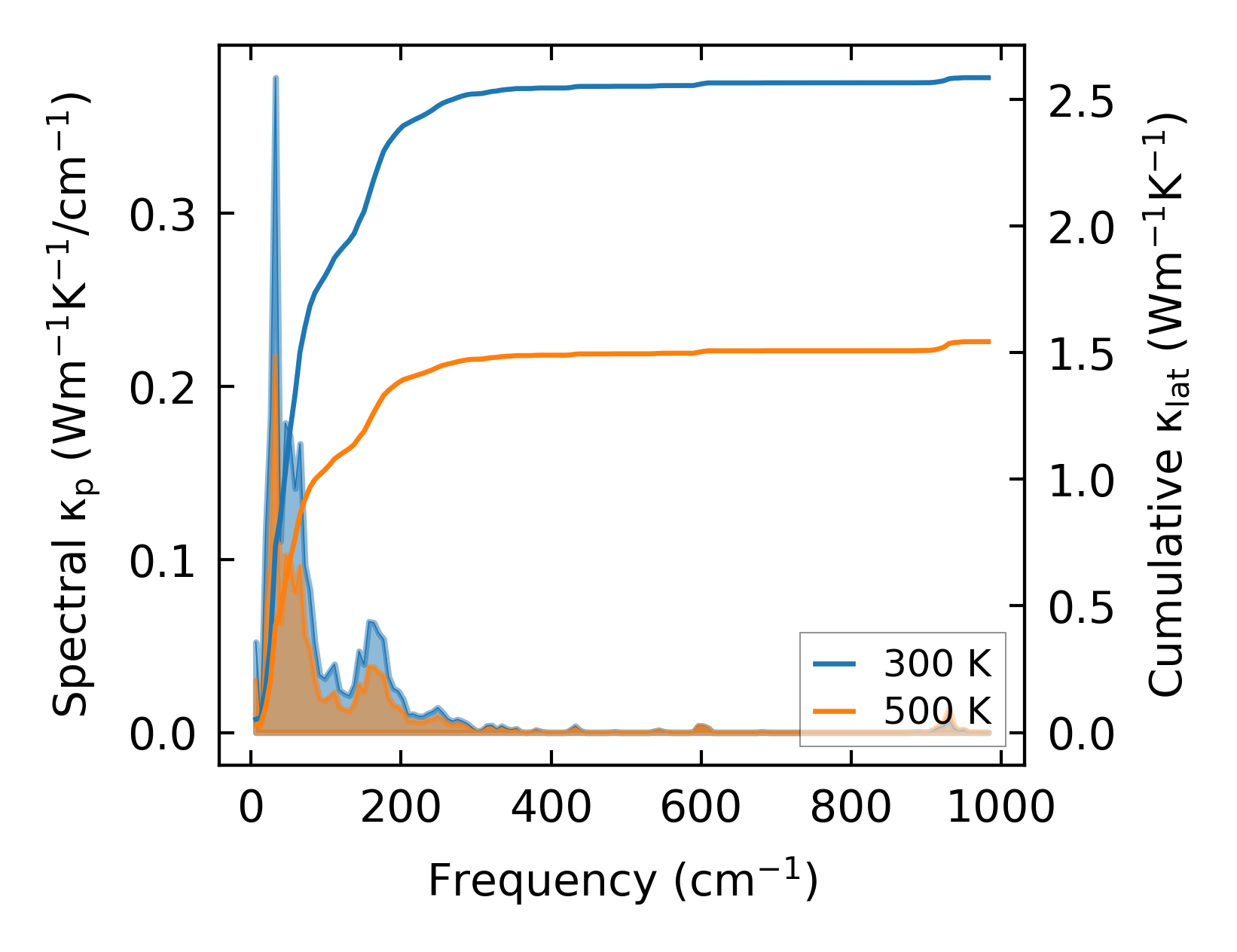

../../_images/fig_cumu_frequency6265.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

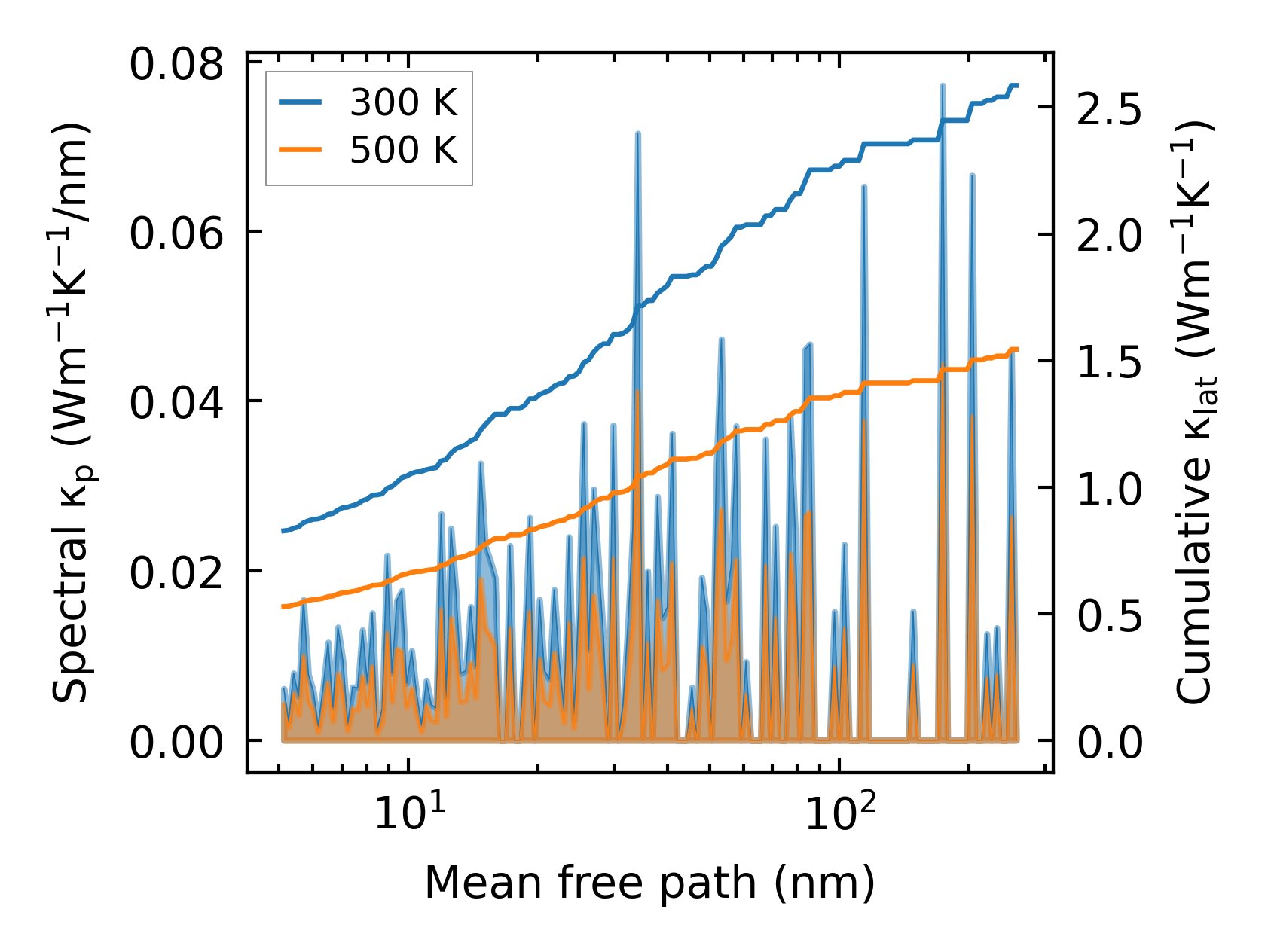

../../_images/fig_cumu_mfp6264.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

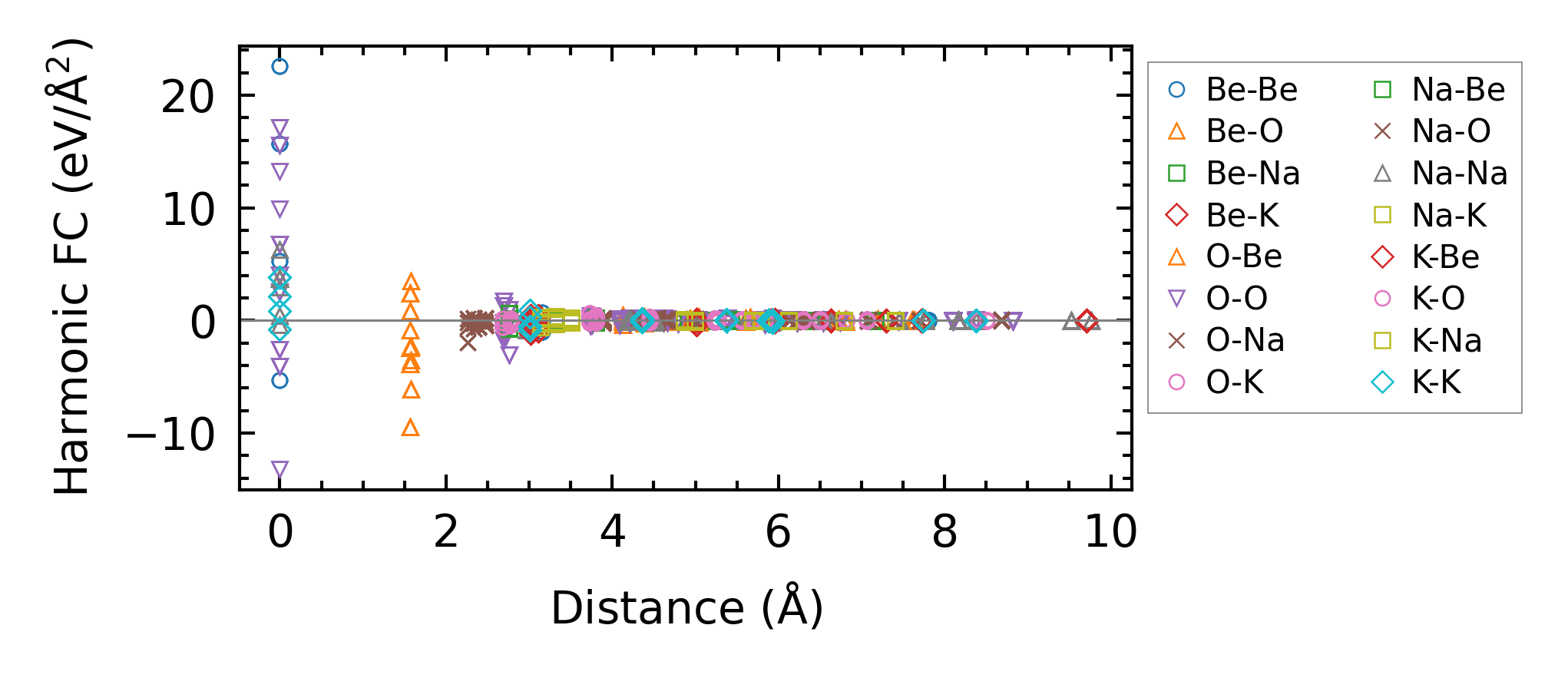

../../_images/fig_fc214378.png — (a) Force constants w.r.t atomic distance

Summary

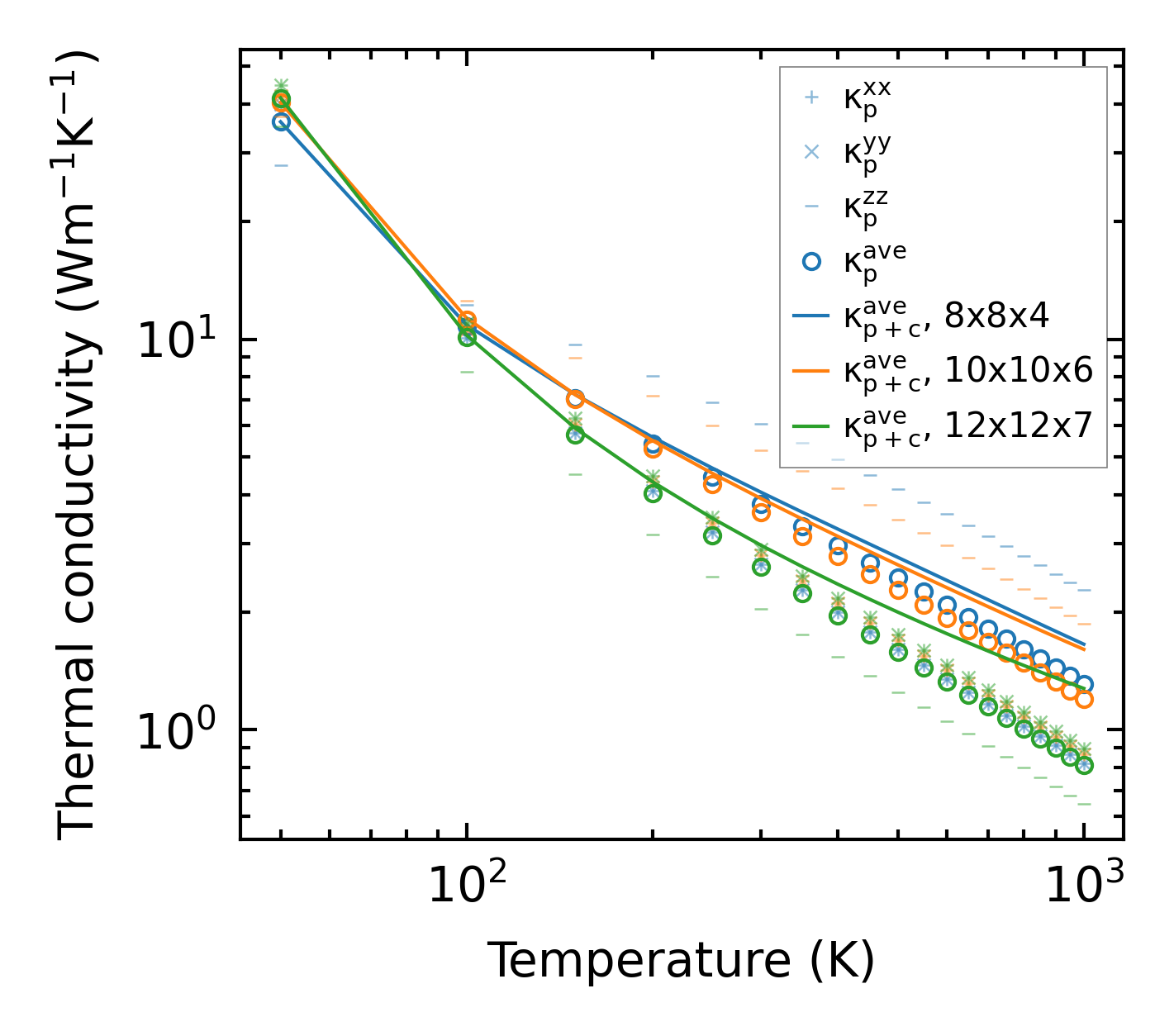

../../_images/fig_kappa11904.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times24517.png — (b) Computation time
