mp-14389/Na3AlP8O23/anharm

Space group: P4_132 (213)
Link: Materials Project
Download: mp-14389.tar.gz

Equation of state

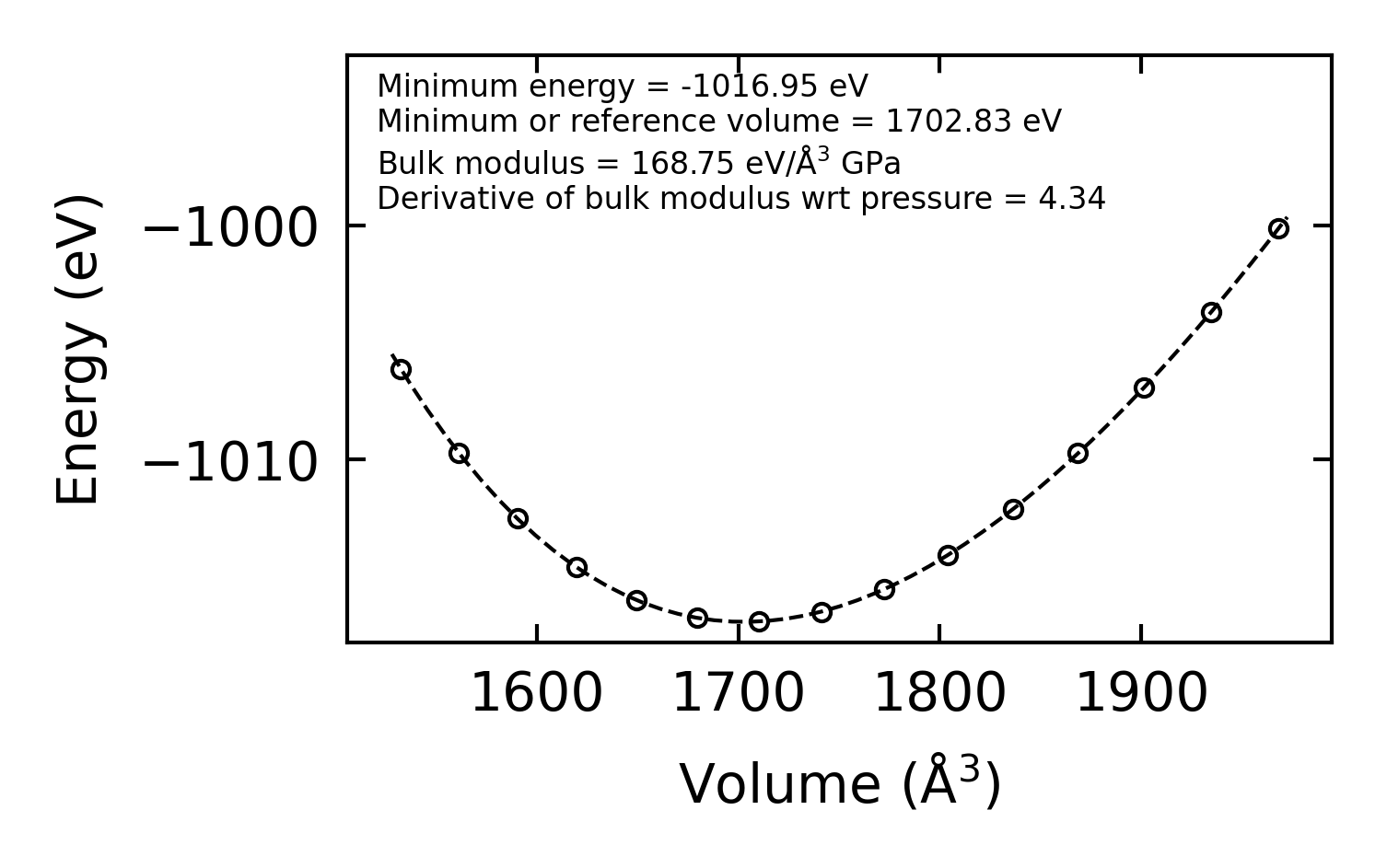

../../_images/fig_bm7399.png — (a) Equation of state

Harmonic properties

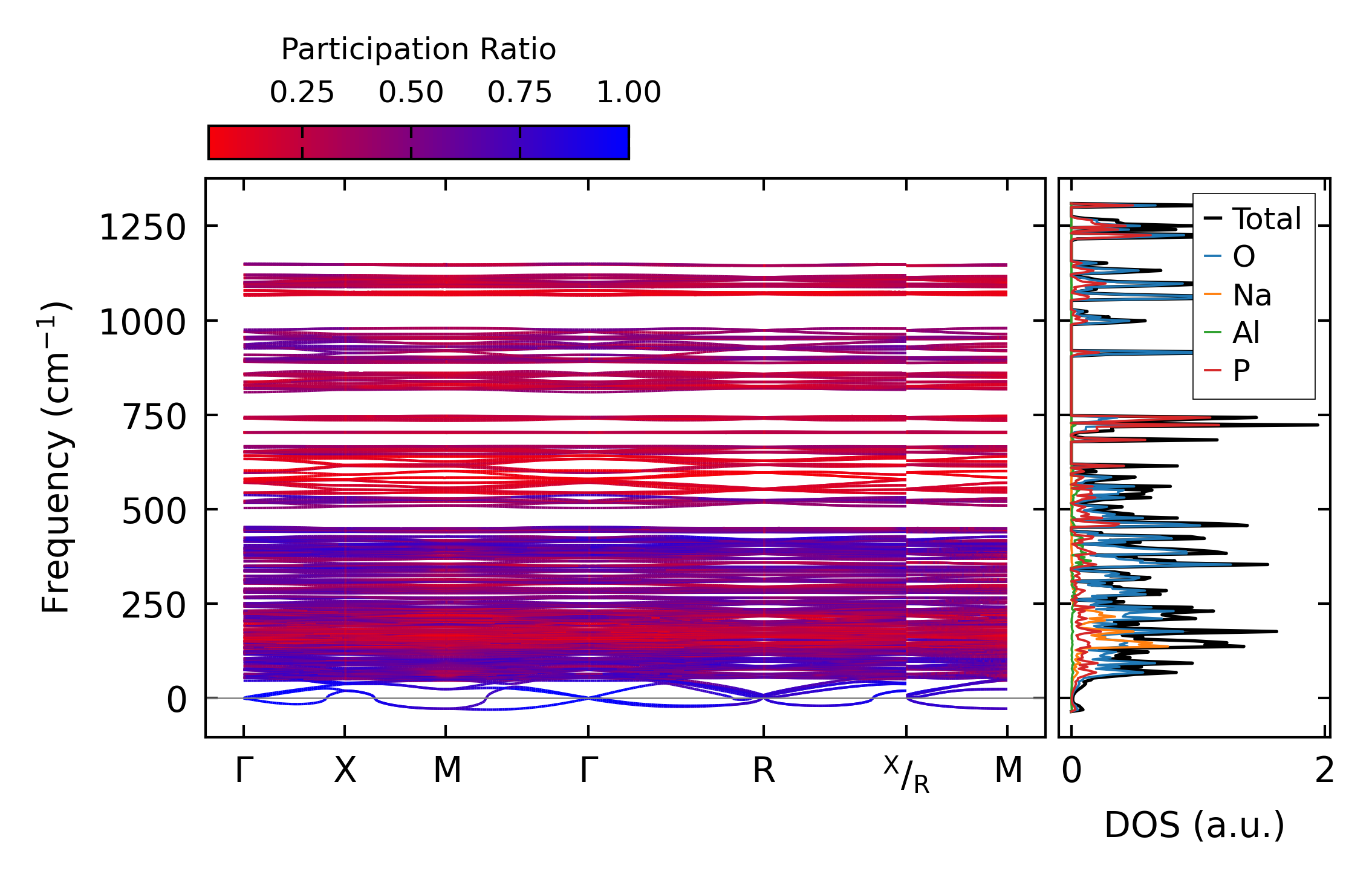

../../_images/fig_bandos_pr14786.png — (a) Phonon dispersion with participation ratio and DOS

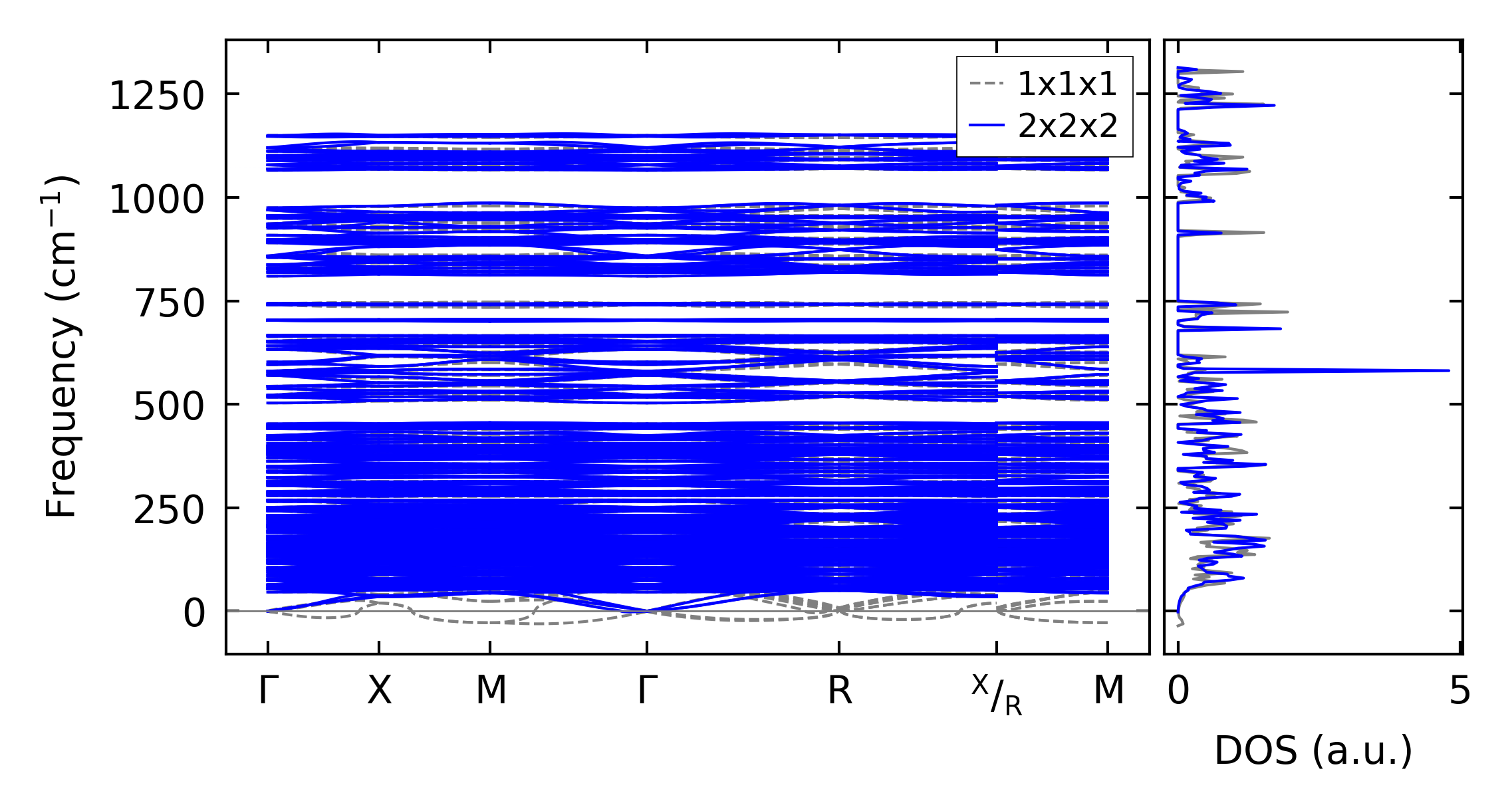

../../_images/fig_bandos19157.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo14786.png — (c) Thermodynamic properties

Thermal conductivity

Force constants

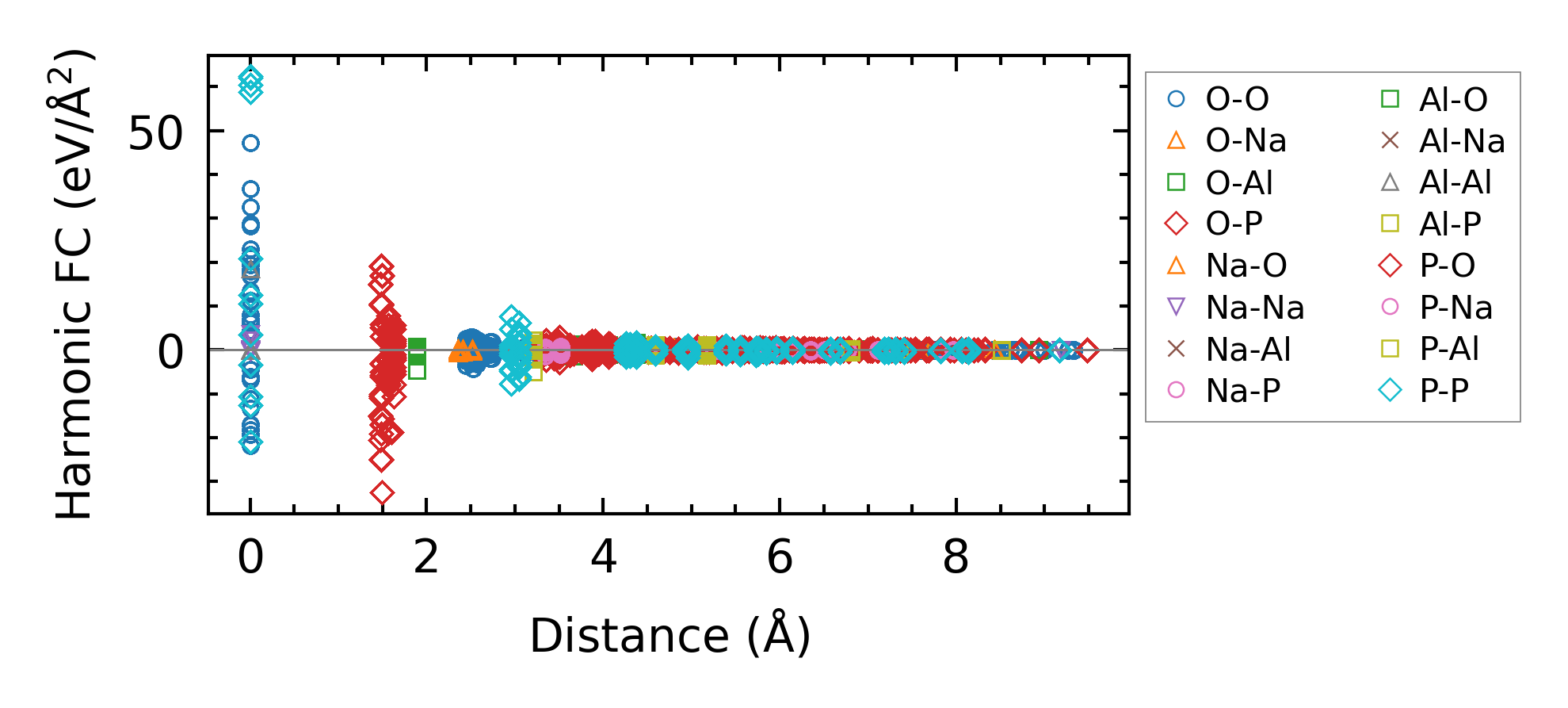

../../_images/fig_fc214404.png — (a) Force constants w.r.t atomic distance

Summary

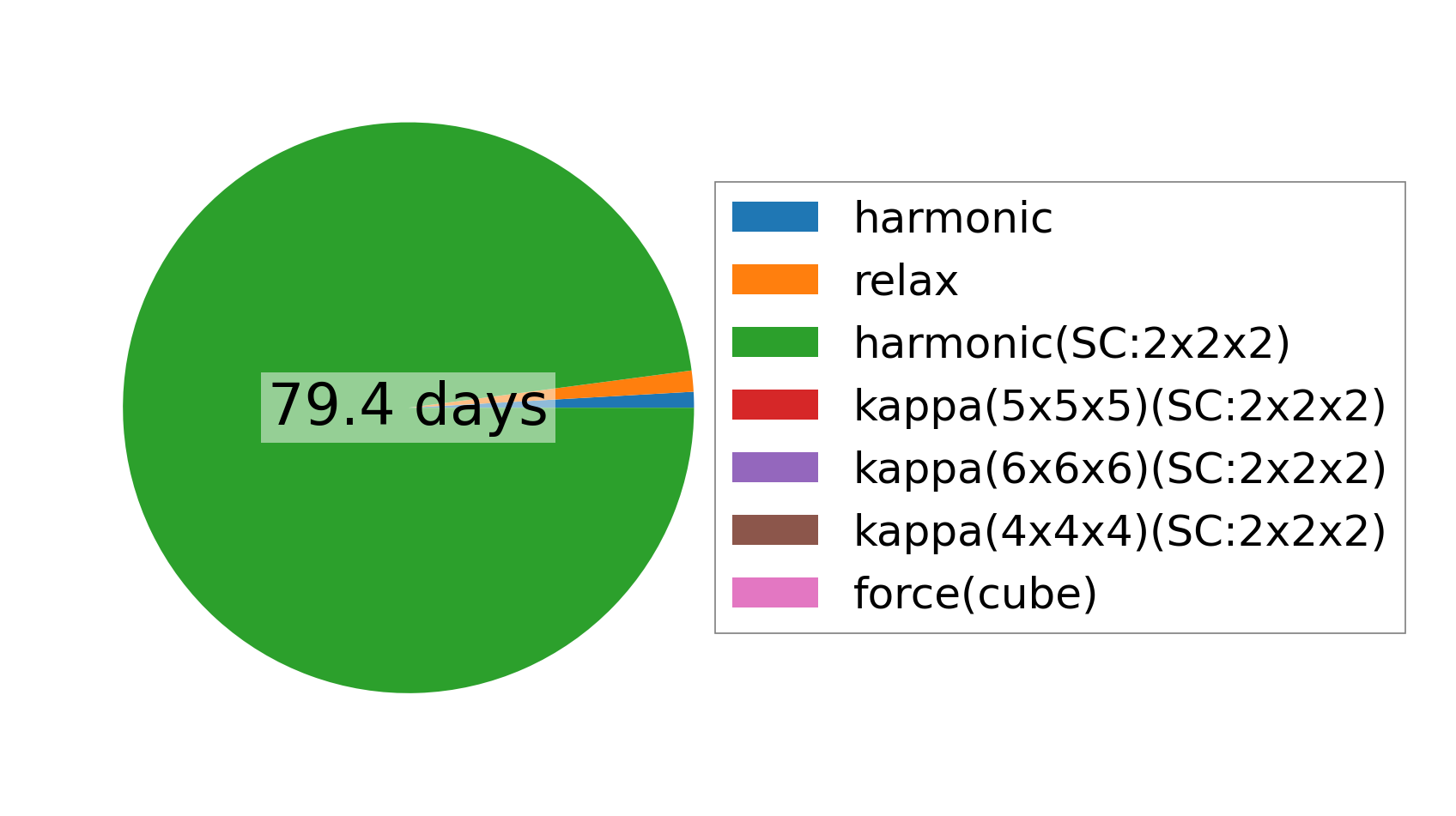

../../_images/fig_times24553.png — (a) Computation time
