mp-22917/CuBr/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-22917.tar.gz

Harmonic properties

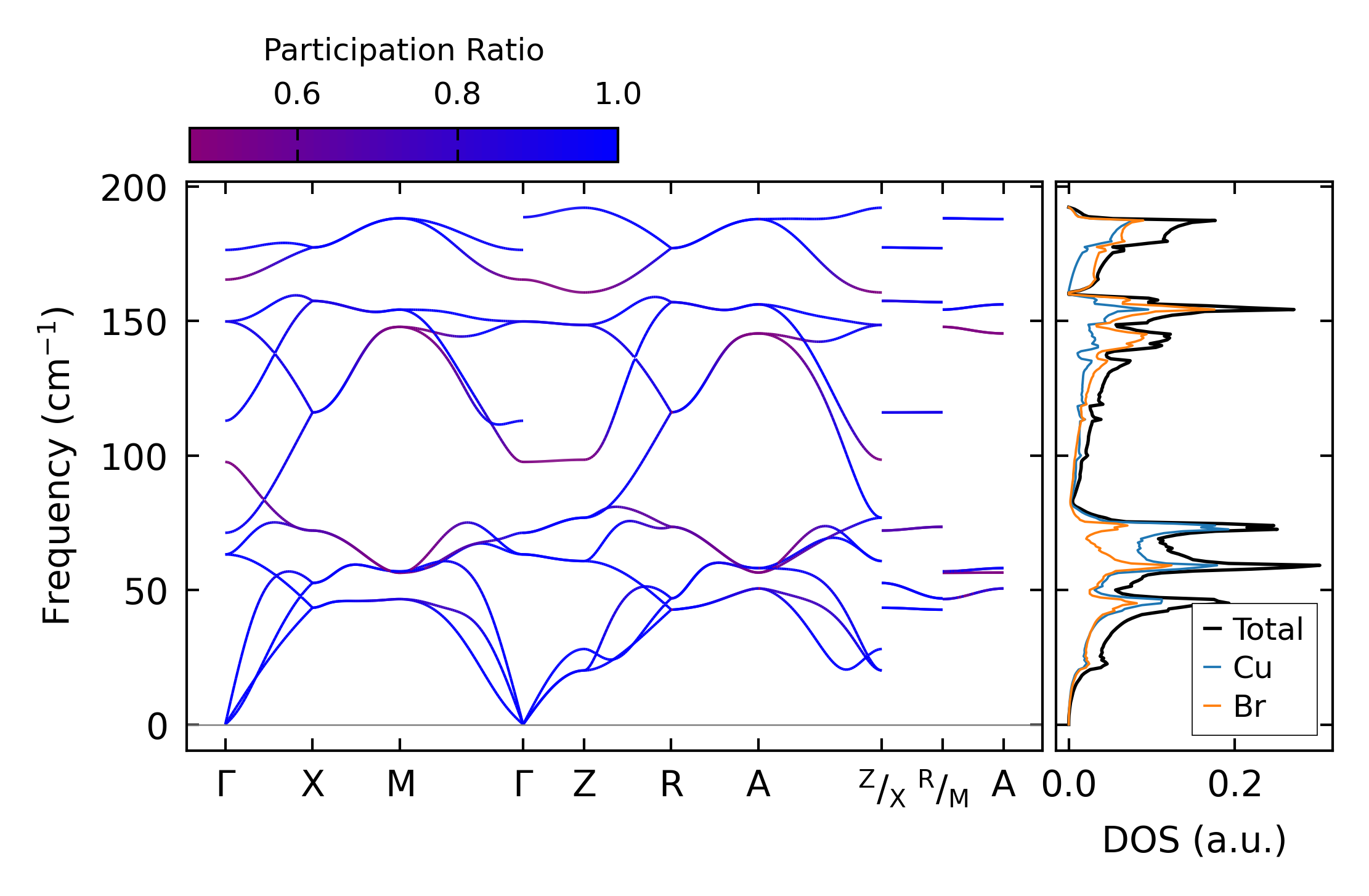

../../_images/fig_bandos_pr13139.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13139.png — (b) Thermodynamic properties

Grüneisen parameters

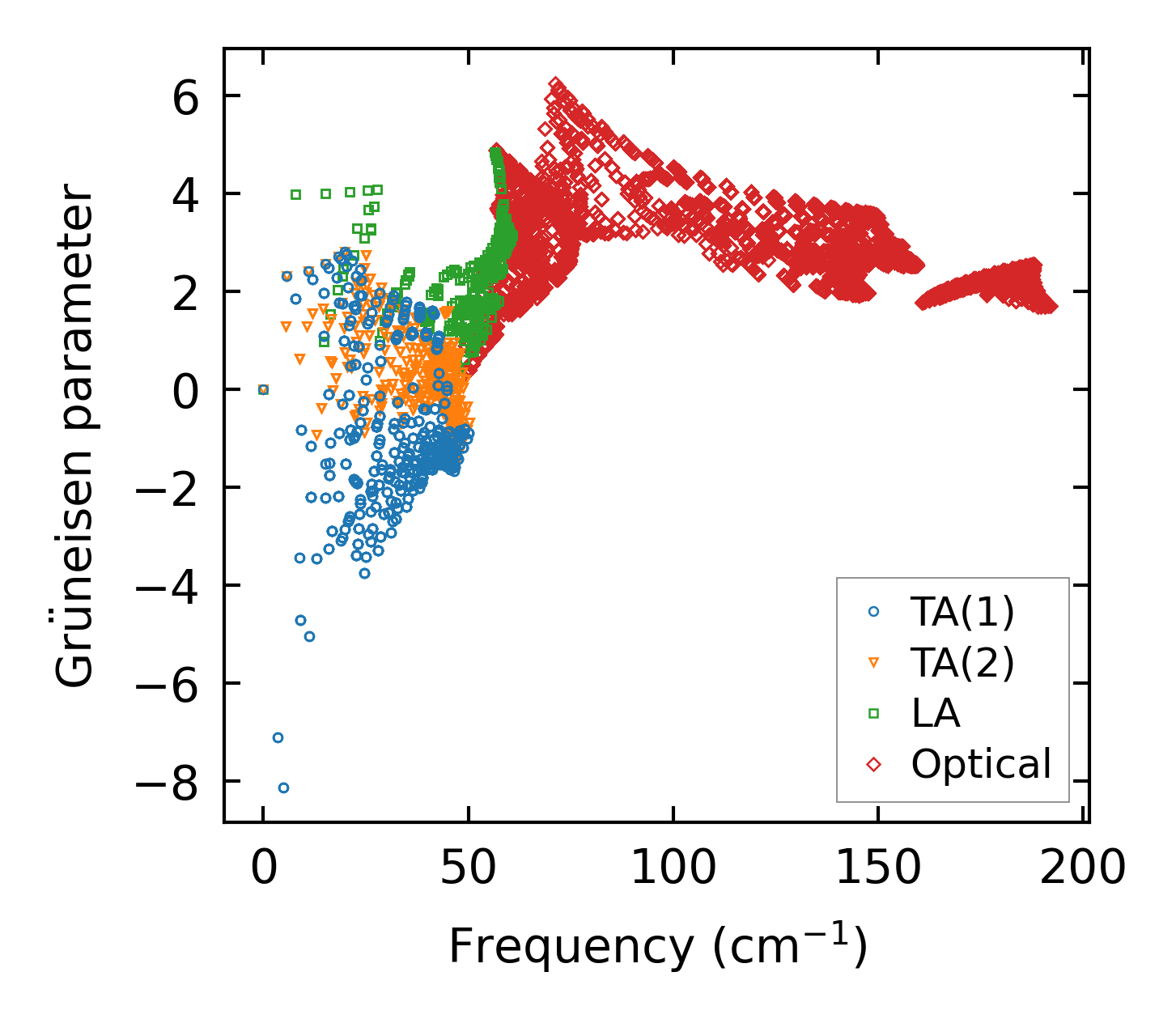

../../_images/fig_gru_all5497.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5497.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 19x19x11, supercell: 4x4x2

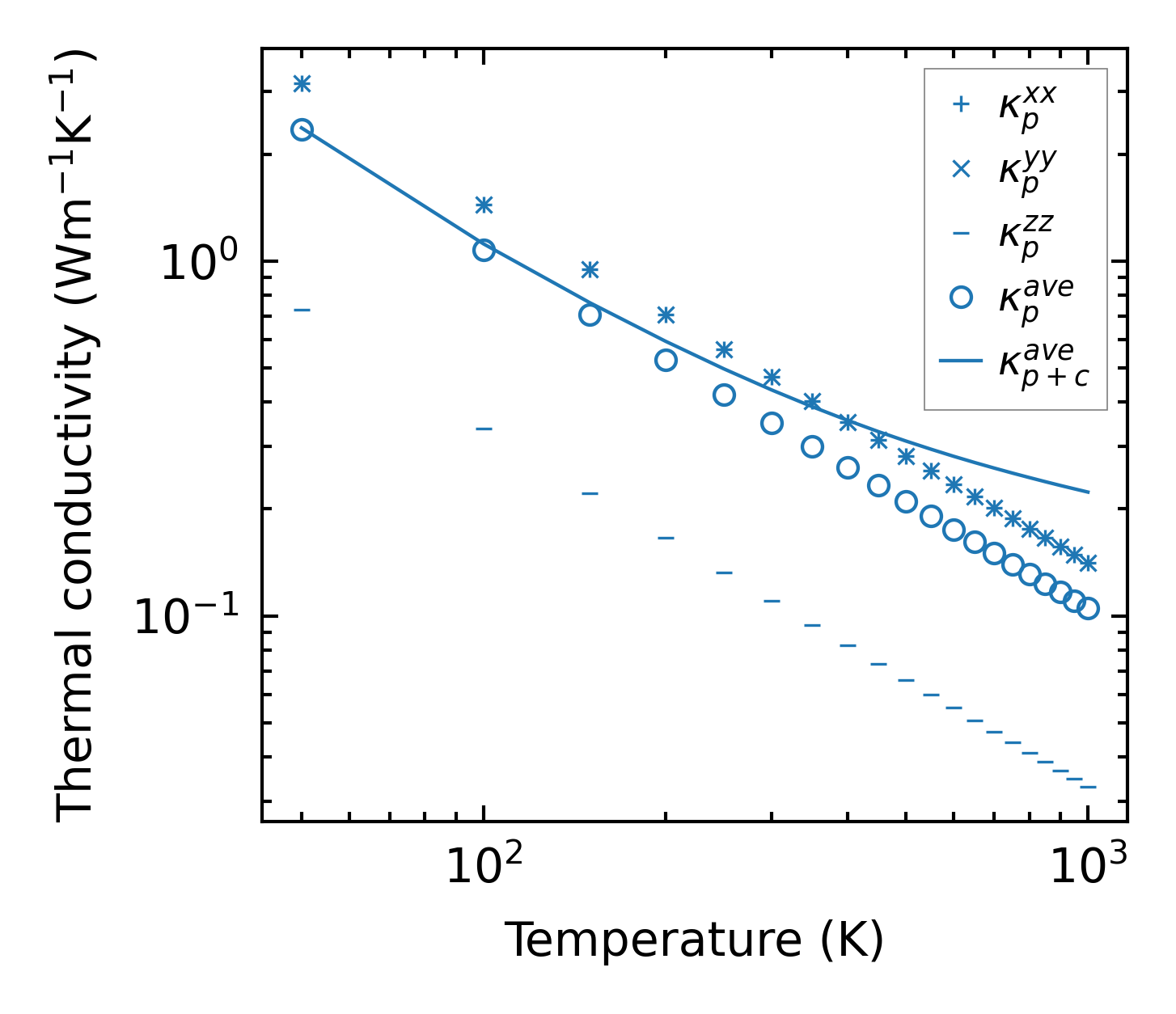

../../_images/fig_kappa10324.png — (a) Temperature-dependent lattice thermal conductivity

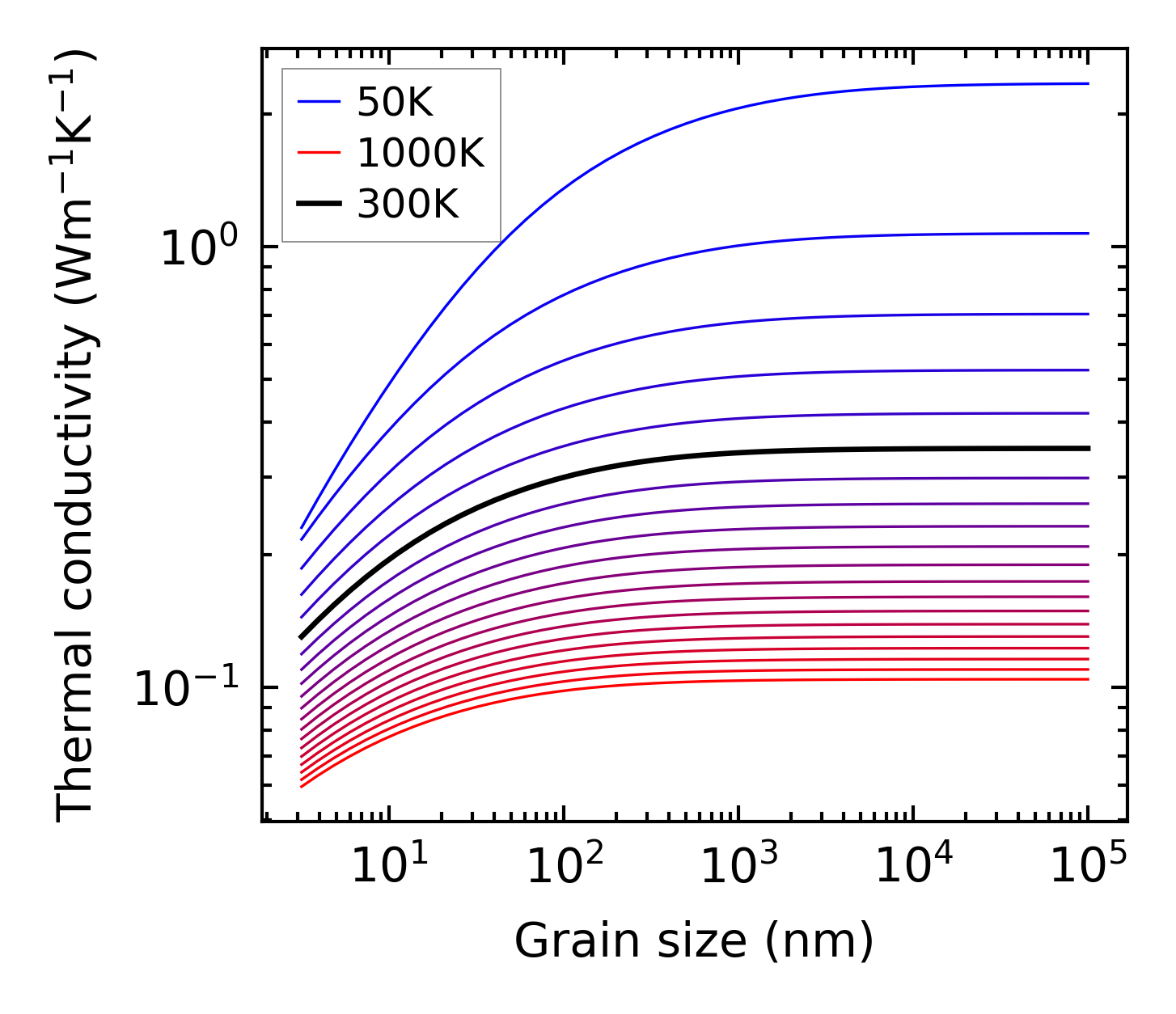

../../_images/fig_kappa_vs_grain_size5563.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5445.png — (a) Phonon lifetime due to phonon-phonon scattering

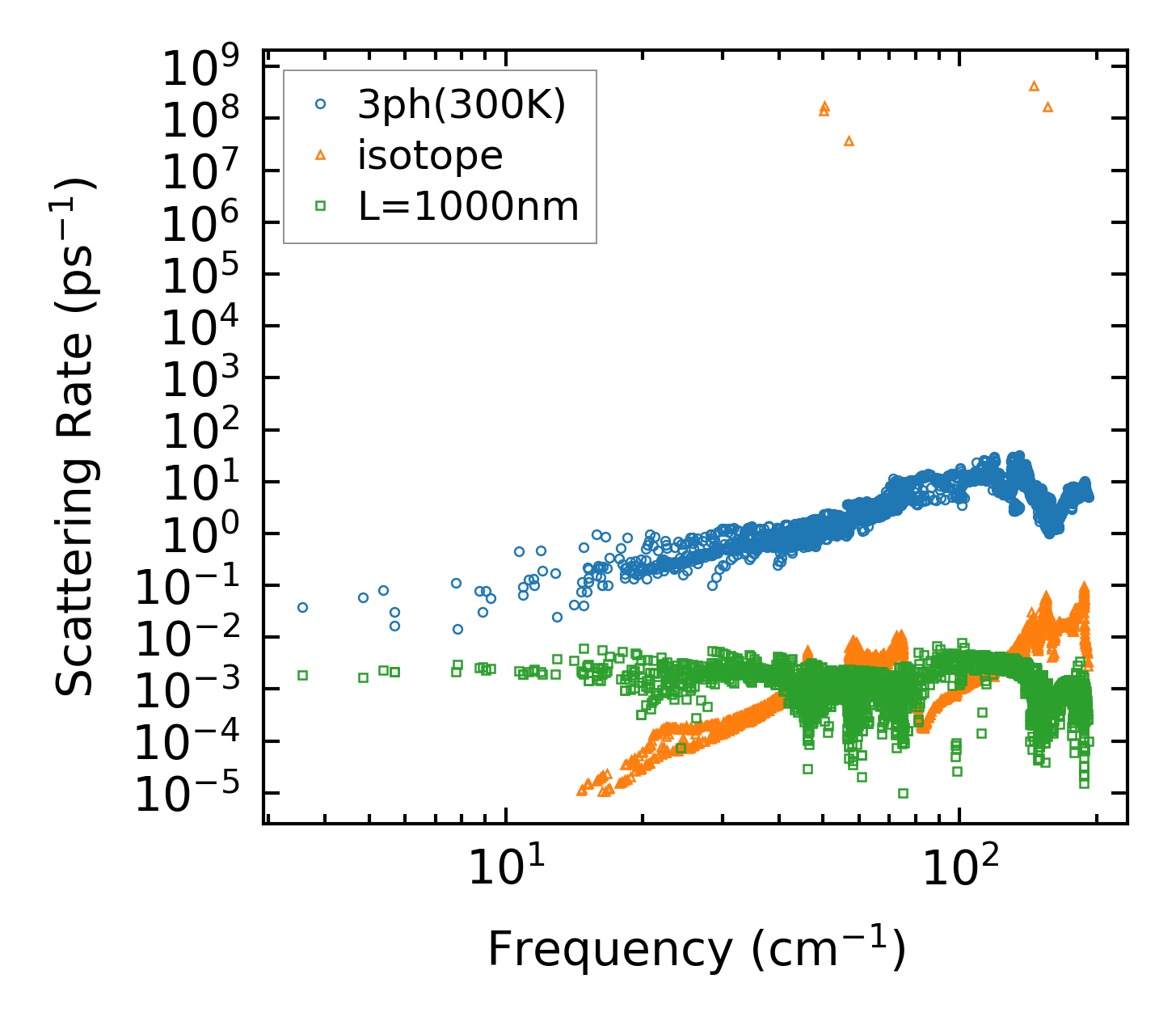

../../_images/fig_scat_rates5444.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5445.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

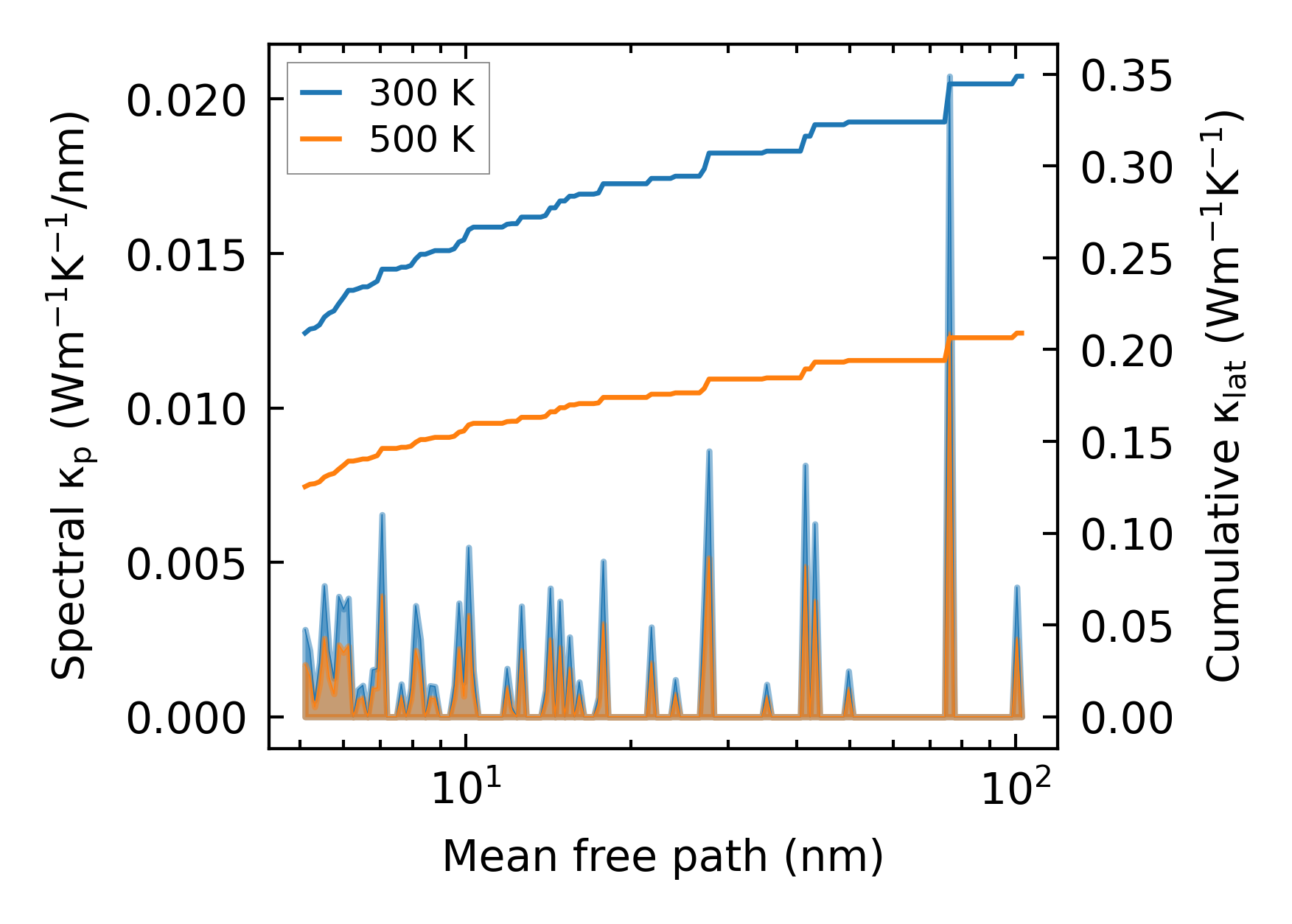

../../_images/fig_cumu_mfp5444.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

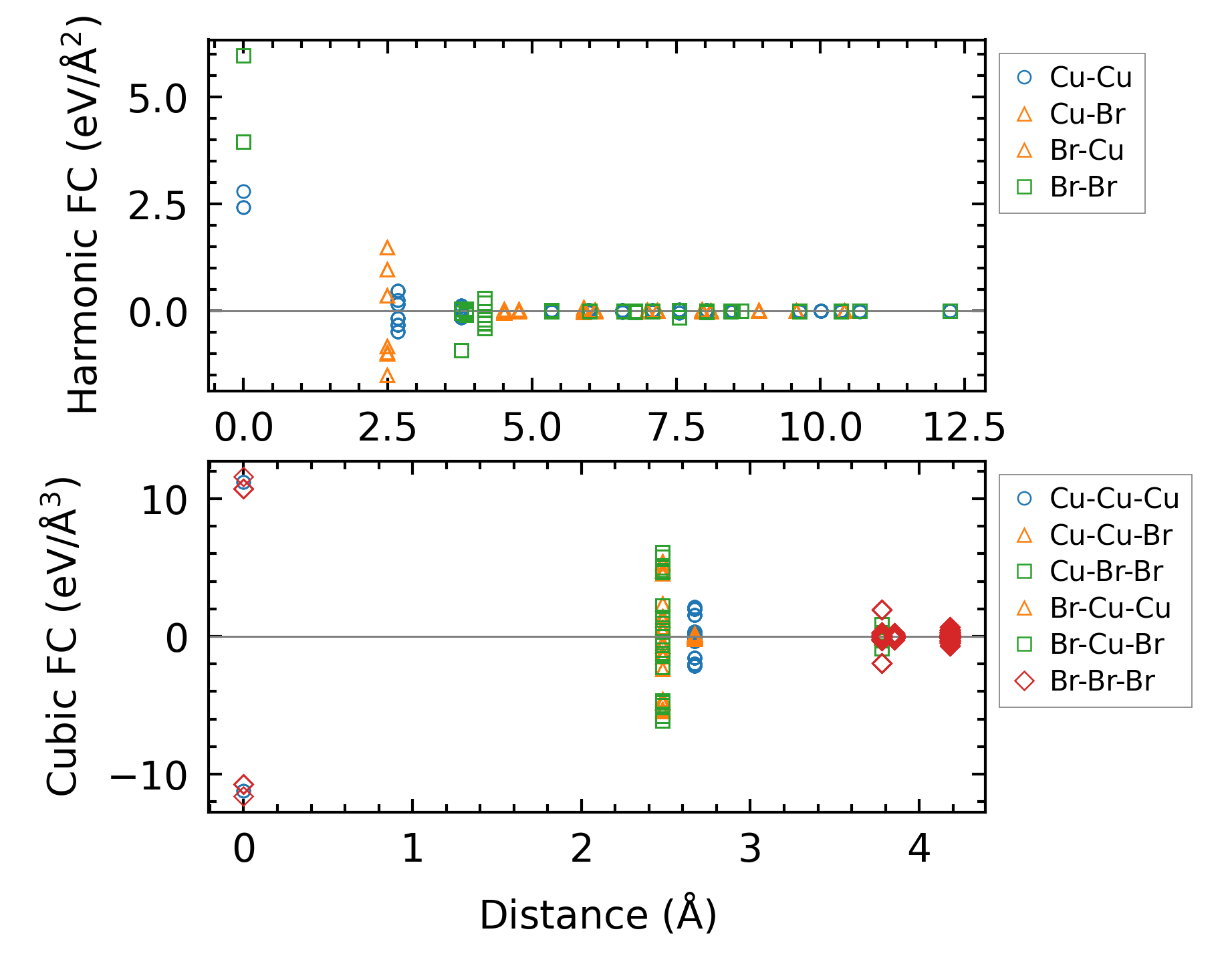

../../_images/fig_fc3338.png — (a) Force constants w.r.t atomic distance

Summary

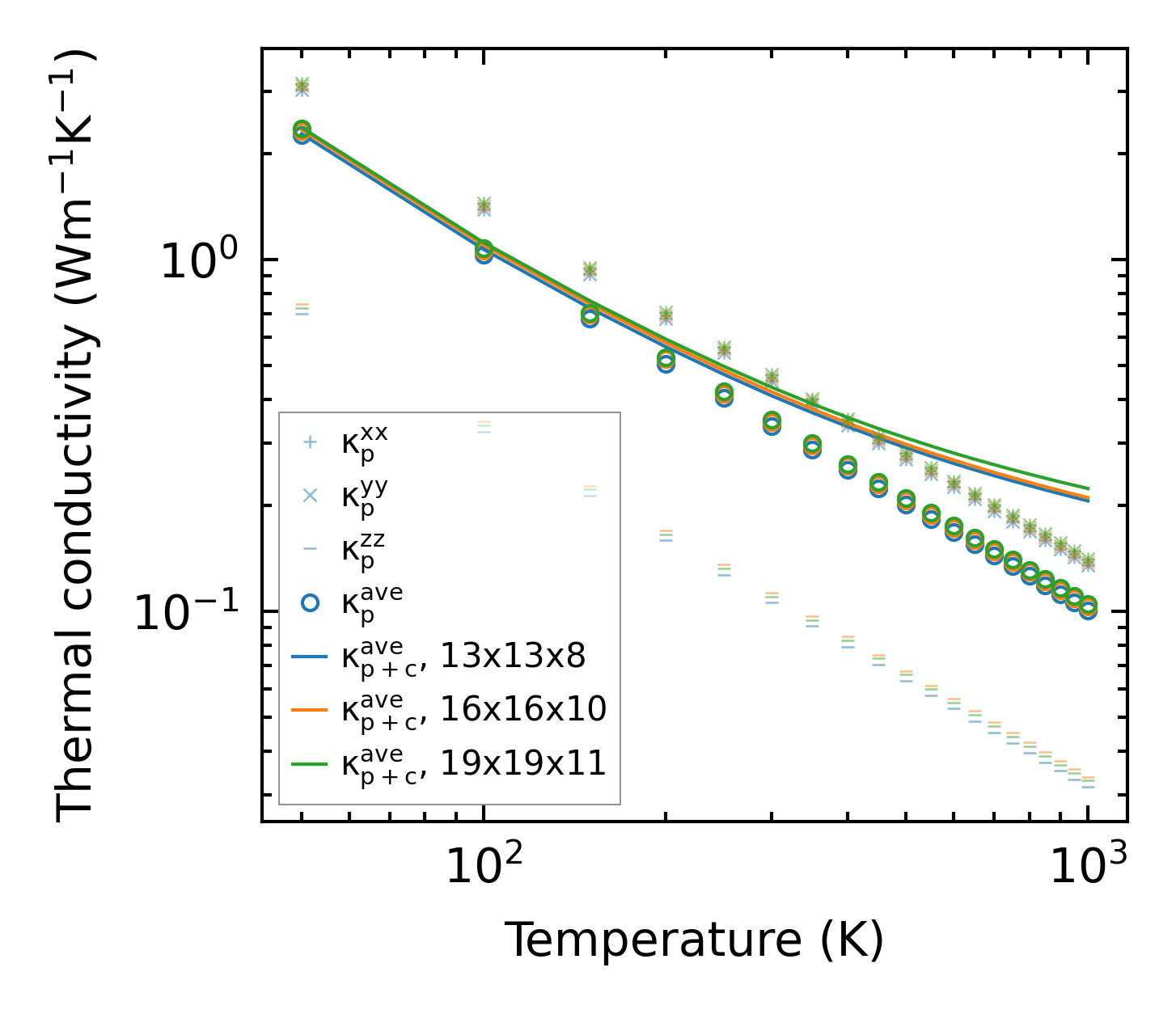

../../_images/fig_kappa10325.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times22197.png — (b) Computation time
