mp-22102-2/Na3IrN6O12/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-22102-2.tar.gz

Equation of state

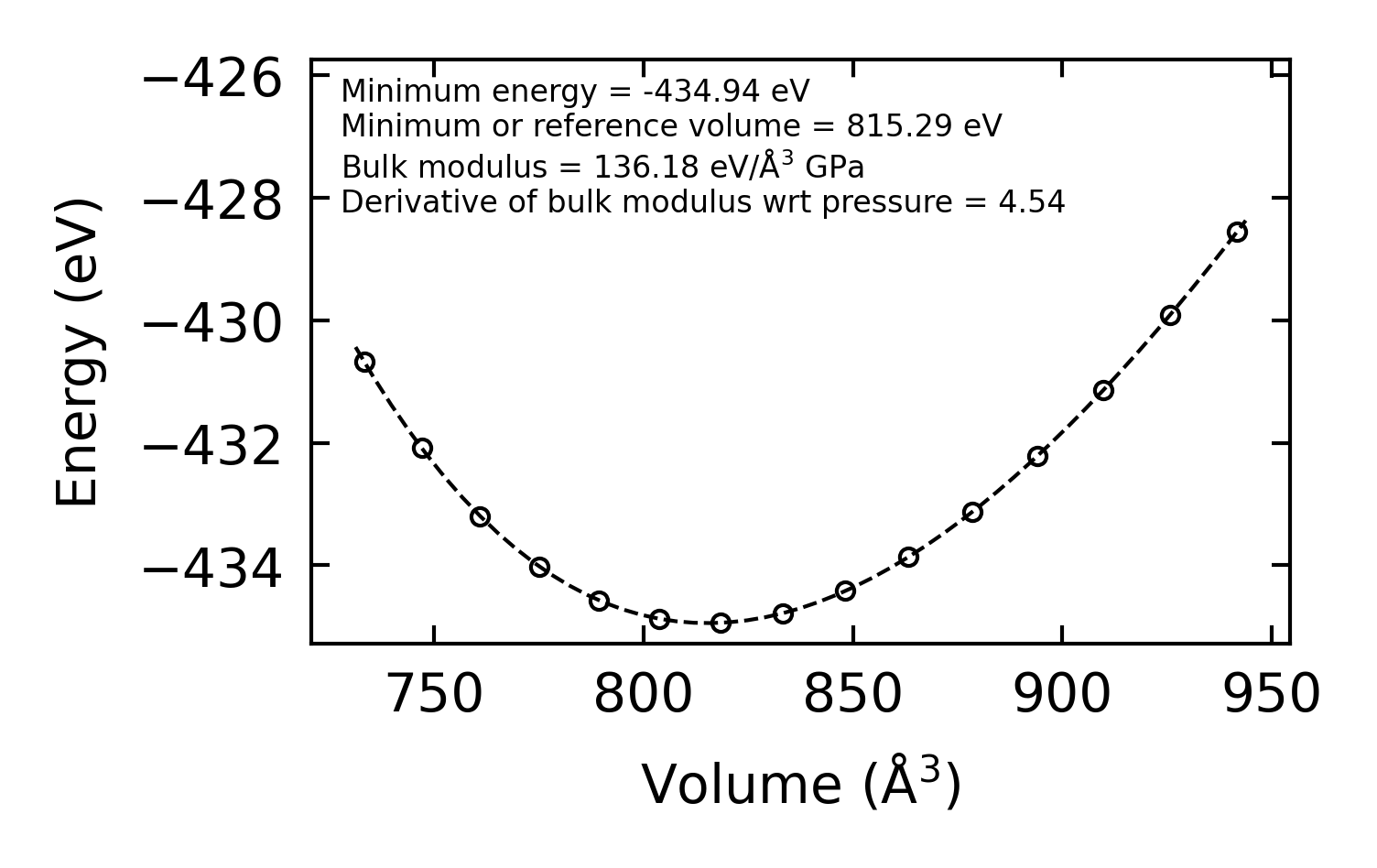

../../_images/fig_bm6501.png — (a) Equation of state

Harmonic properties

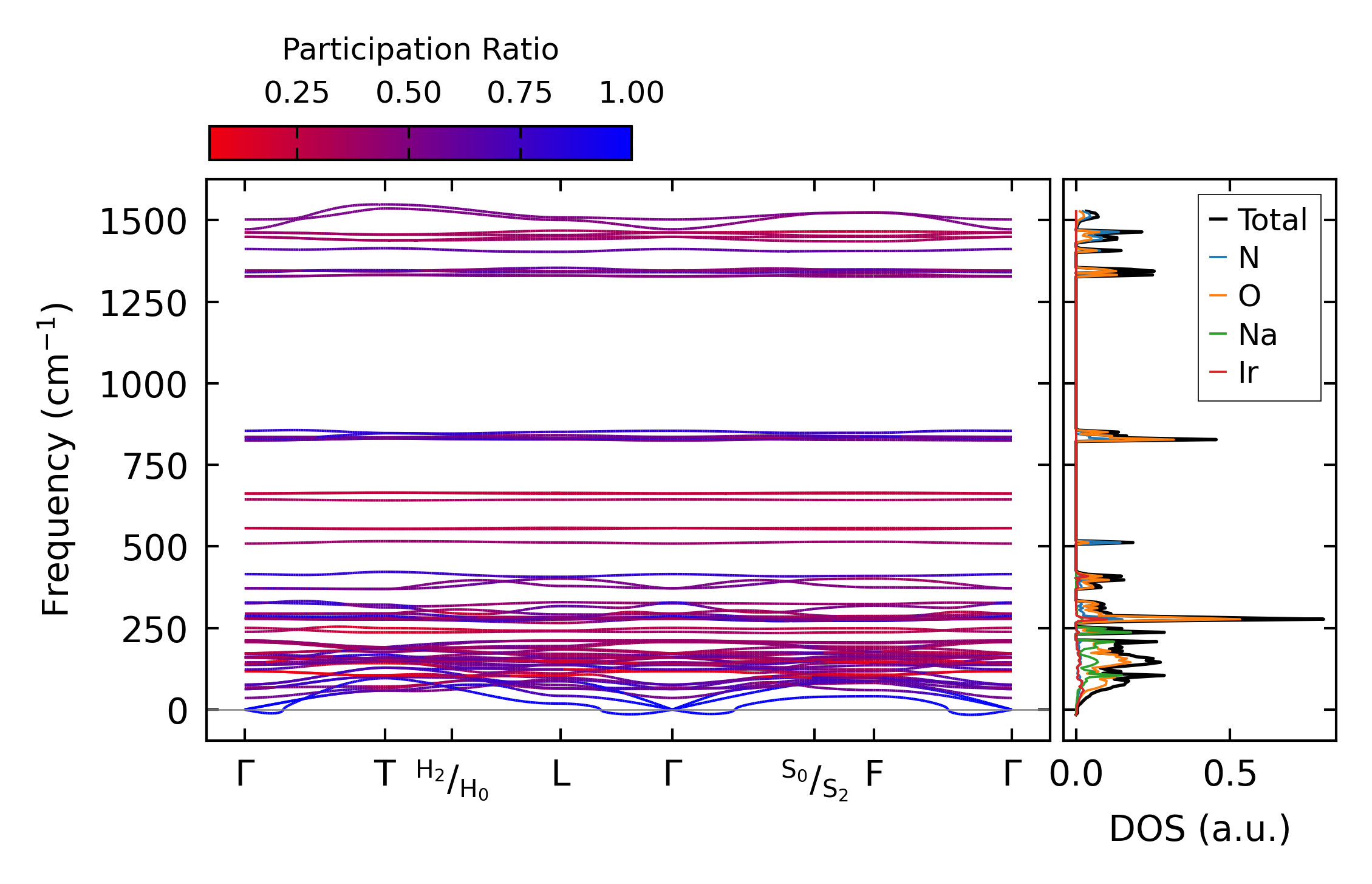

../../_images/fig_bandos_pr13021.png — (a) Phonon dispersion with participation ratio and DOS

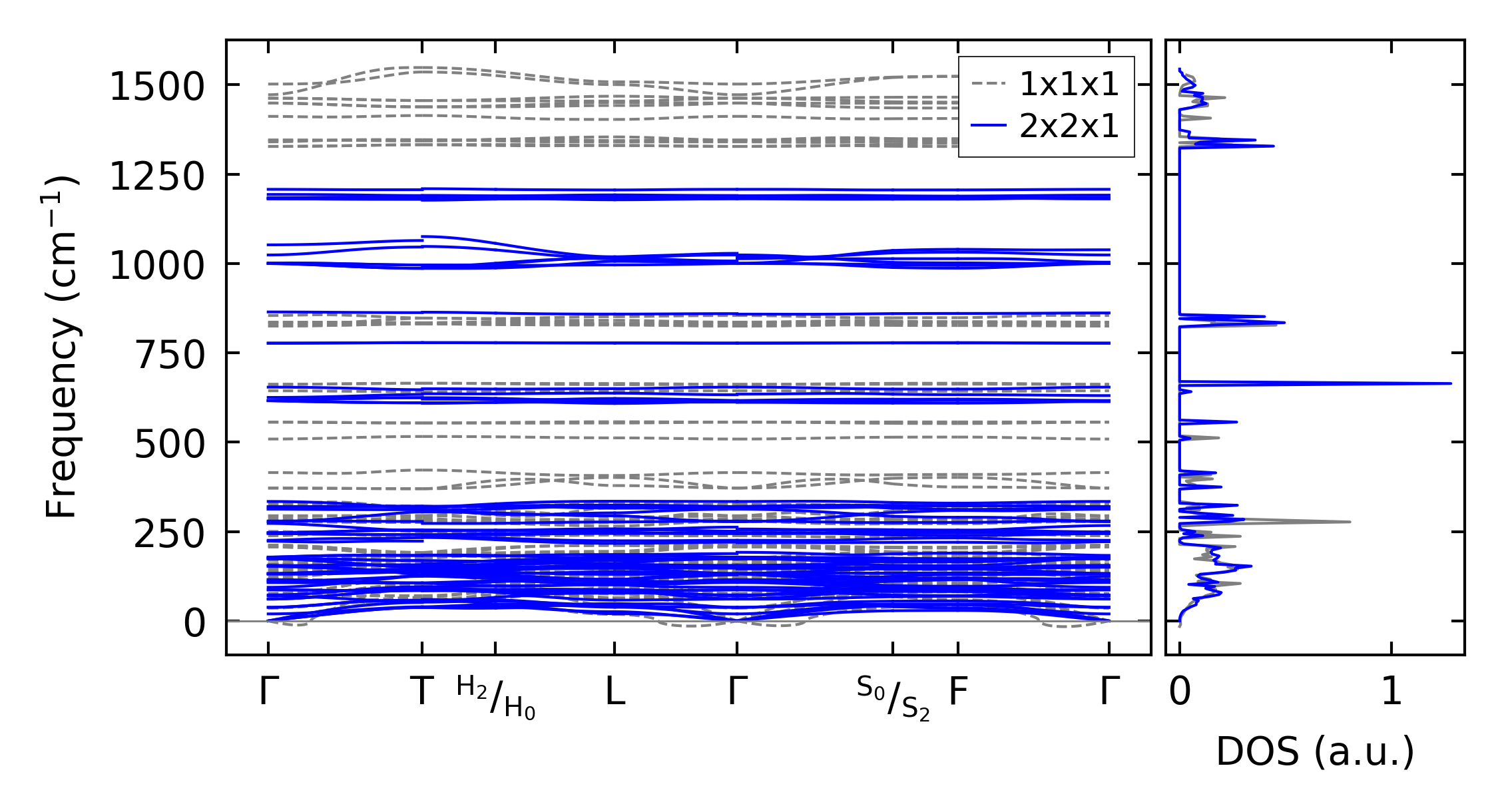

../../_images/fig_bandos17402.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13021.png — (c) Thermodynamic properties

Grüneisen parameters

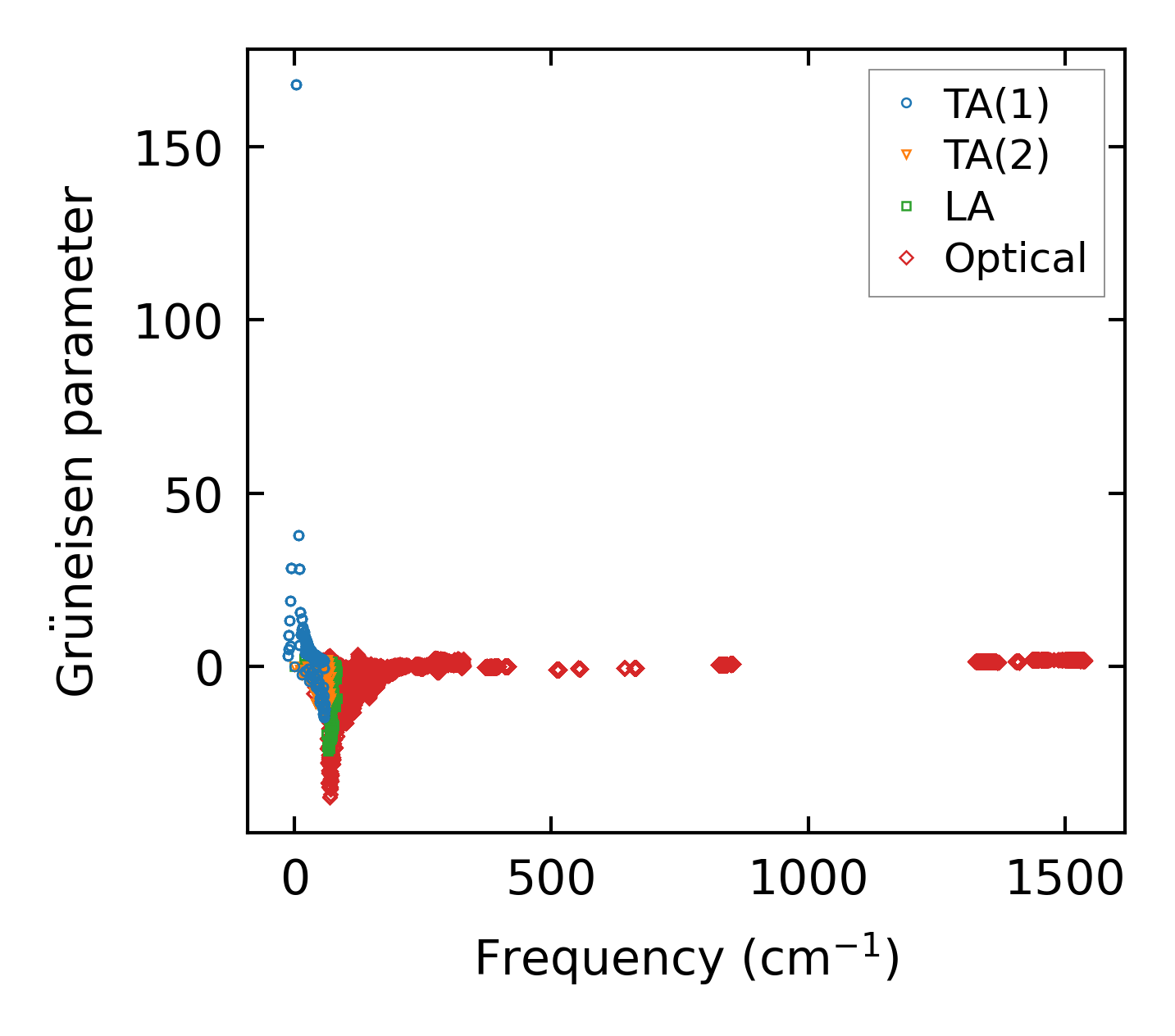

../../_images/fig_gru_all5421.png — (a) Grüneisen parameters

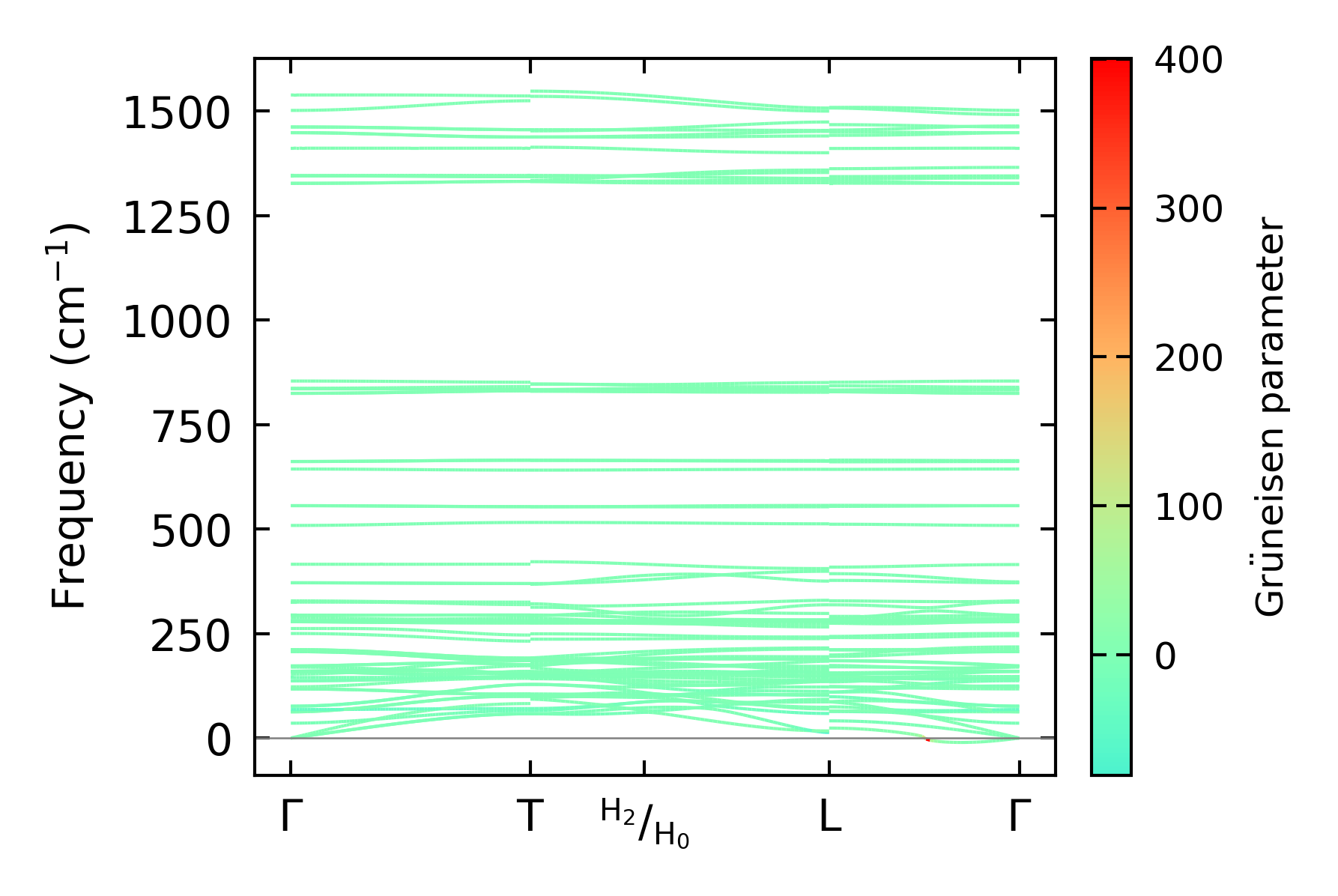

../../_images/fig_gruneisen5421.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 11x11x11, supercell: 2x2x1

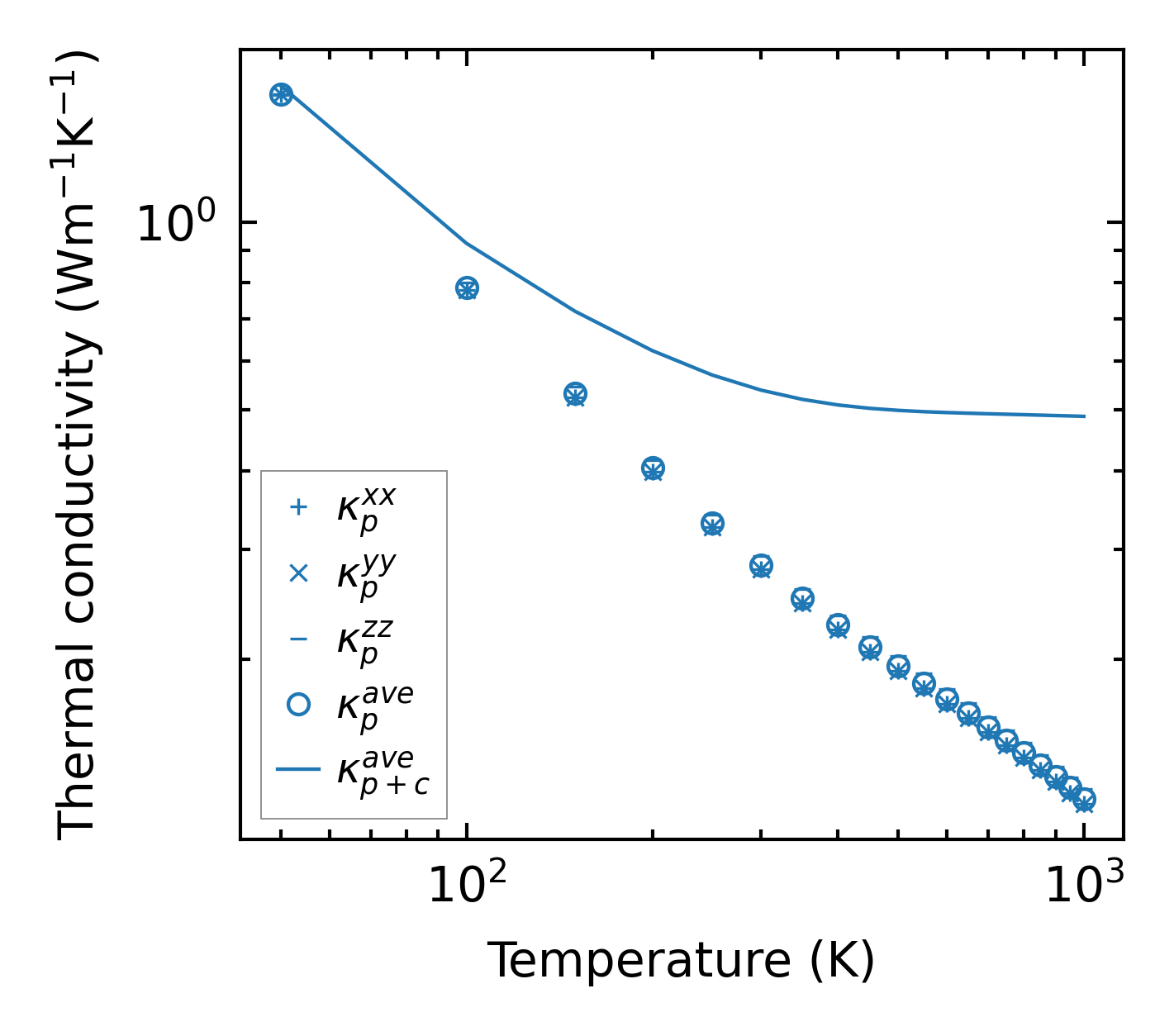

../../_images/fig_kappa10181.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5485.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5369.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5368.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

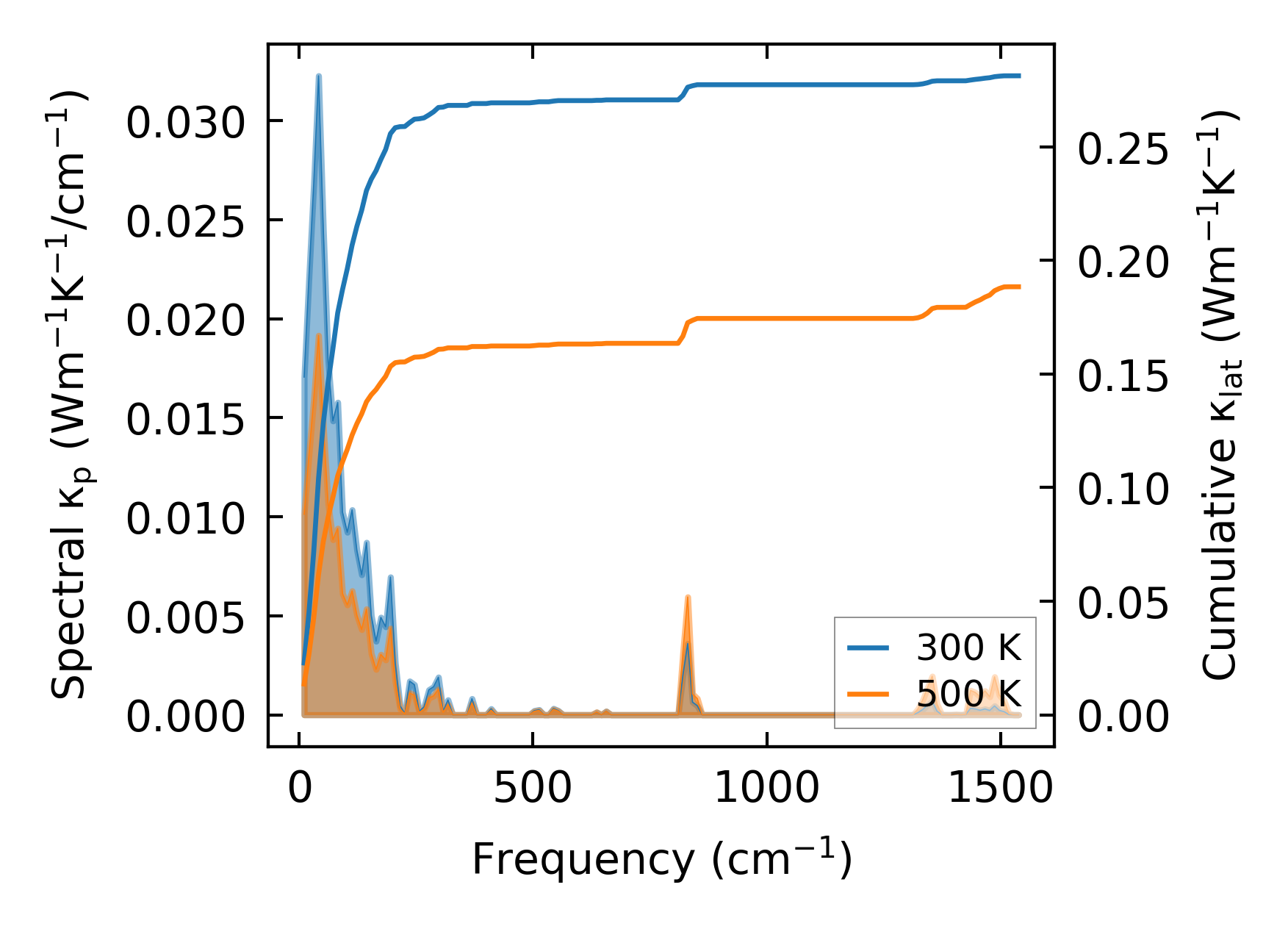

../../_images/fig_cumu_frequency5369.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5368.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212701.png — (a) Force constants w.r.t atomic distance

Summary

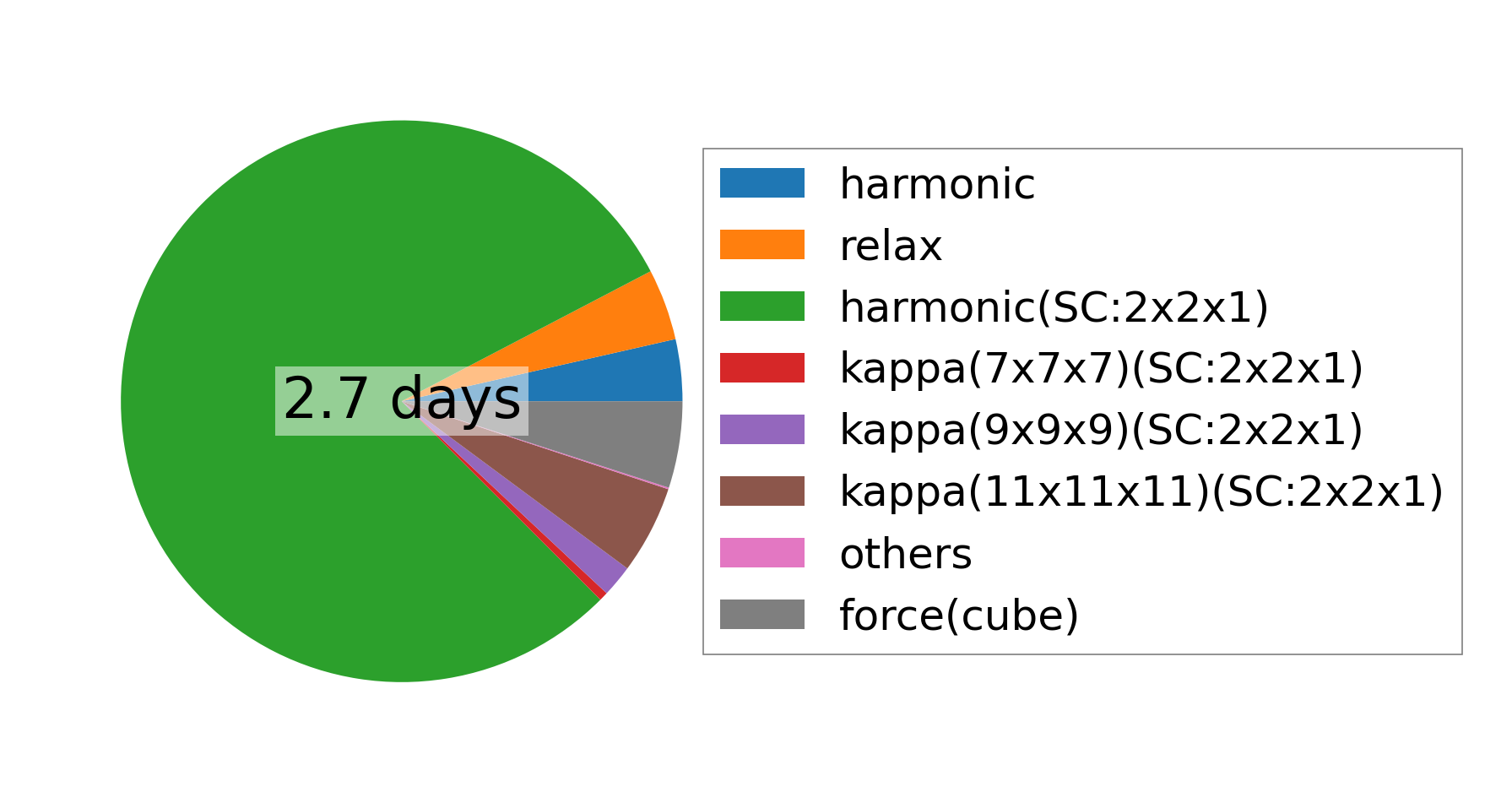

../../_images/fig_times22006.png — (a) Computation time
