mp-22786/ThNiSn/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-22786.tar.gz

Harmonic properties

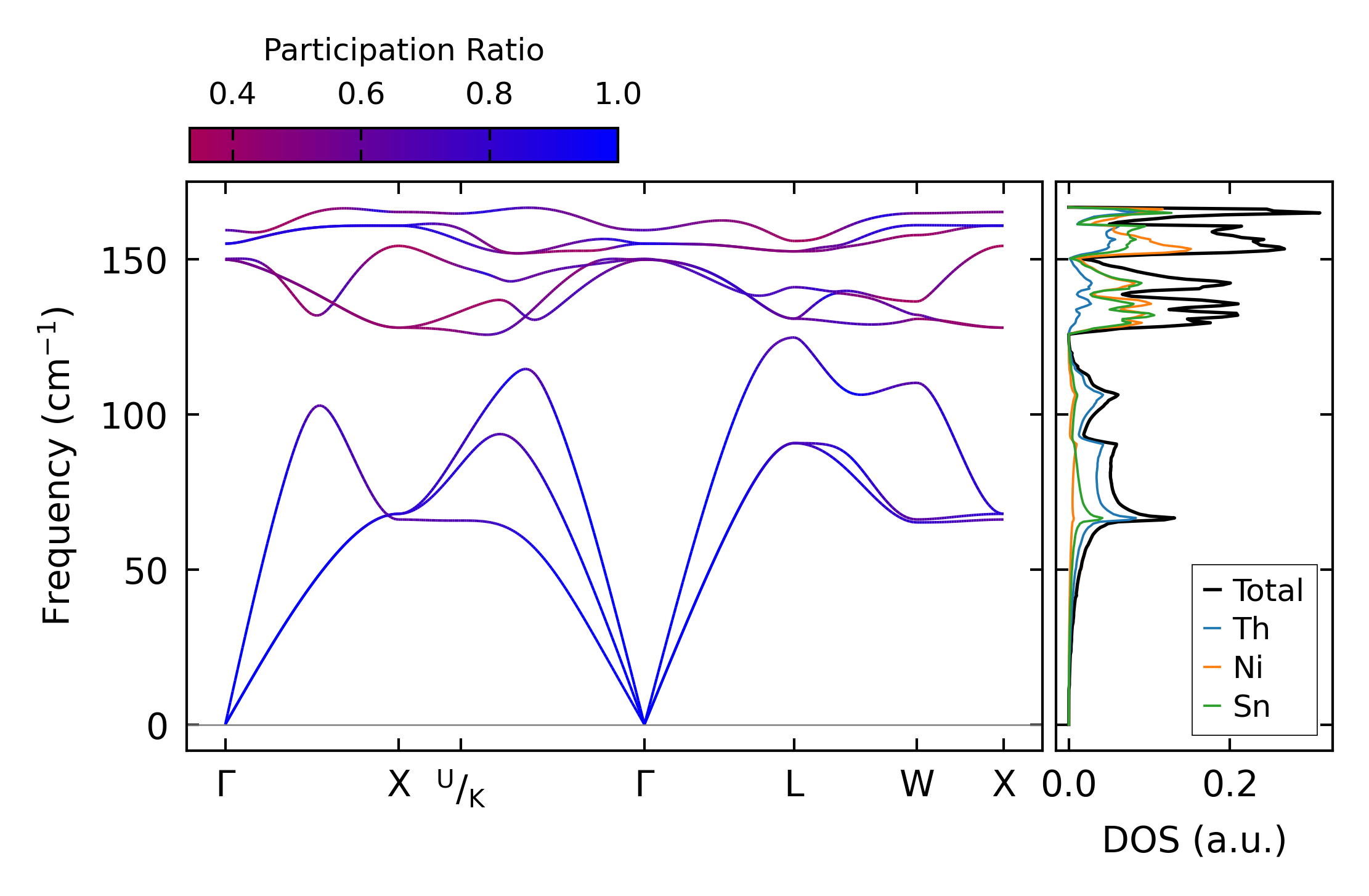

../../_images/fig_bandos_pr13105.png — (a) Phonon dispersion with participation ratio and DOS

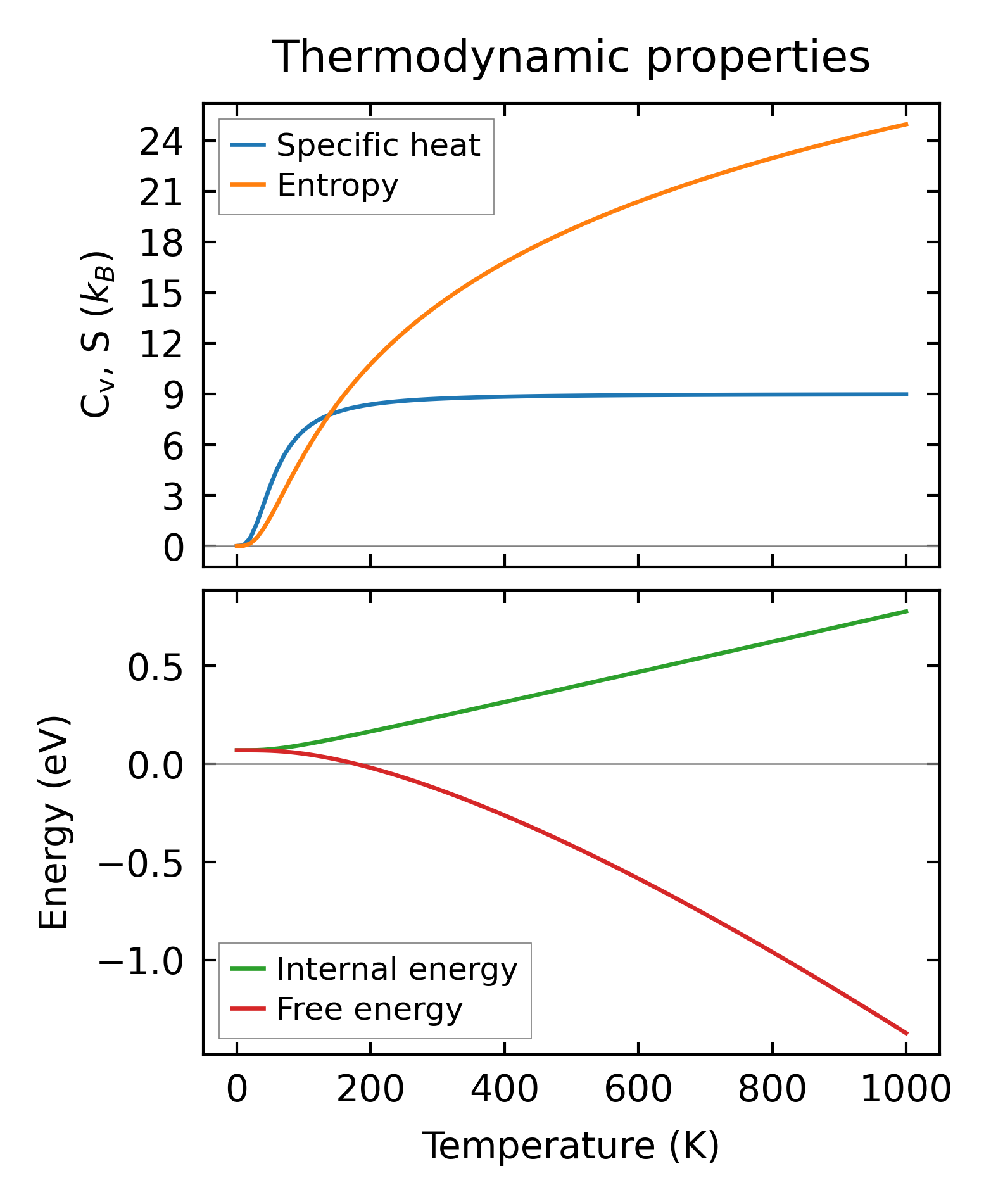

../../_images/fig_thermo13105.png — (b) Thermodynamic properties

Grüneisen parameters

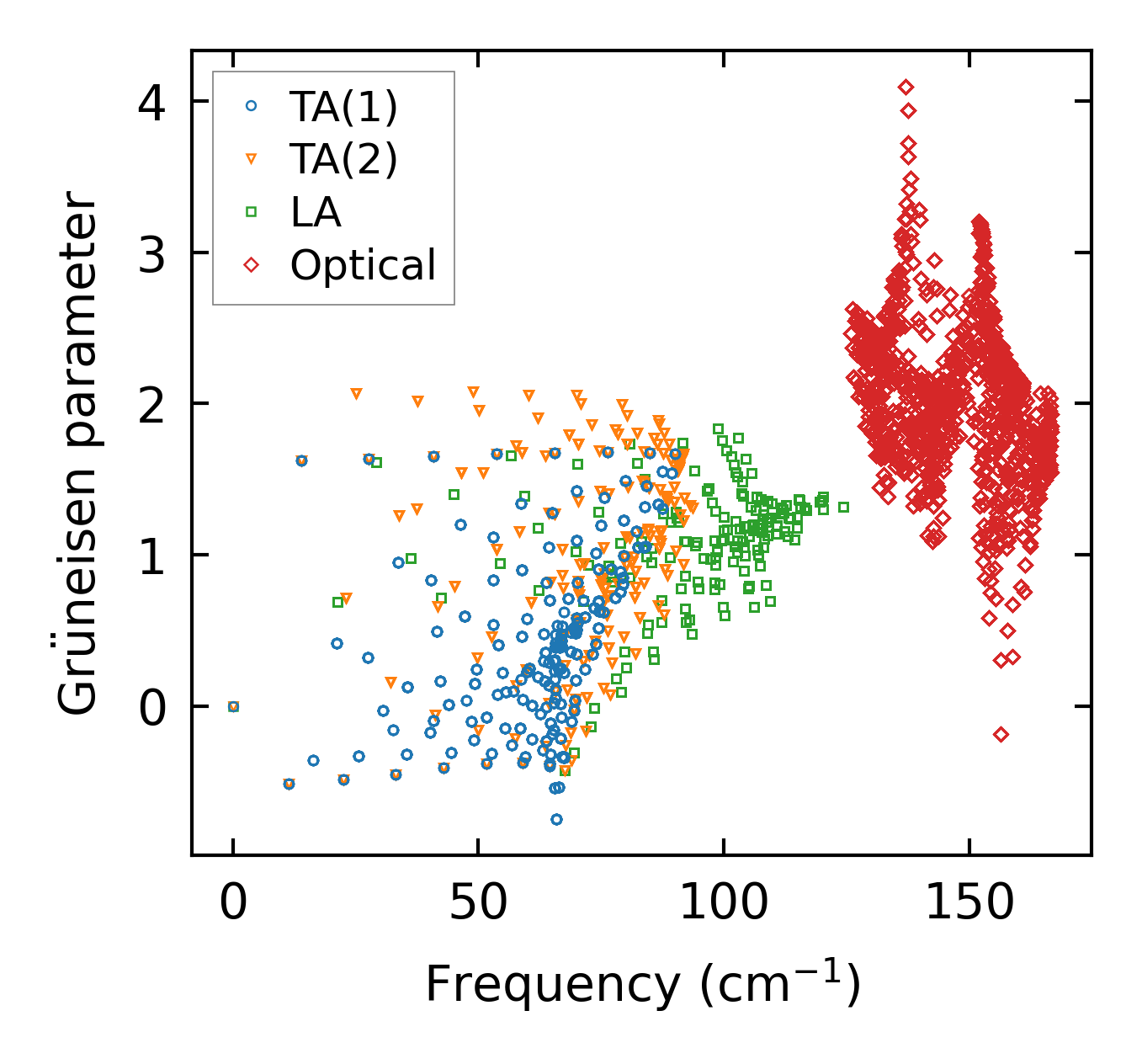

../../_images/fig_gru_all5470.png — (a) Grüneisen parameters

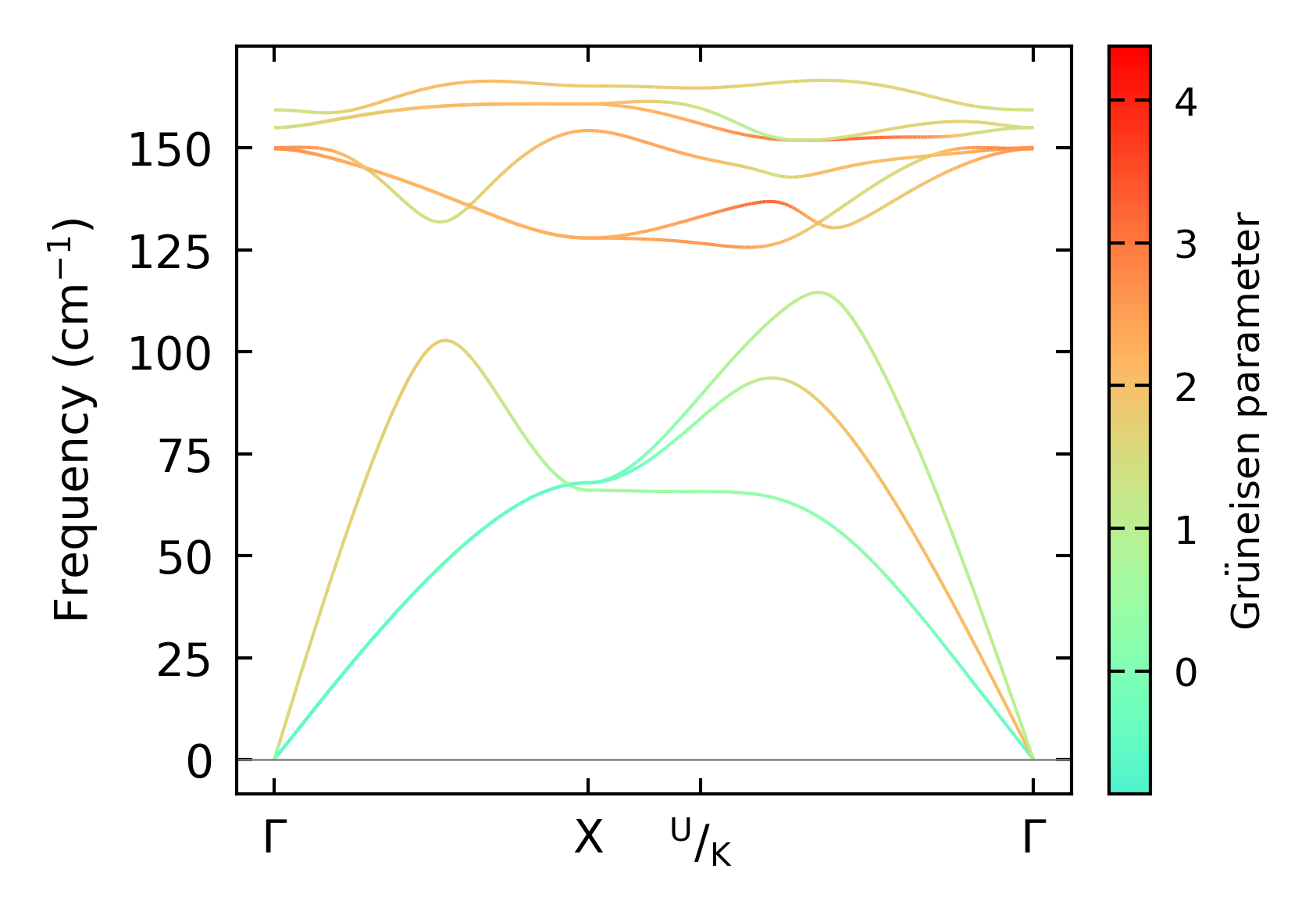

../../_images/fig_gruneisen5470.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 17x17x17, supercell: 2x2x2

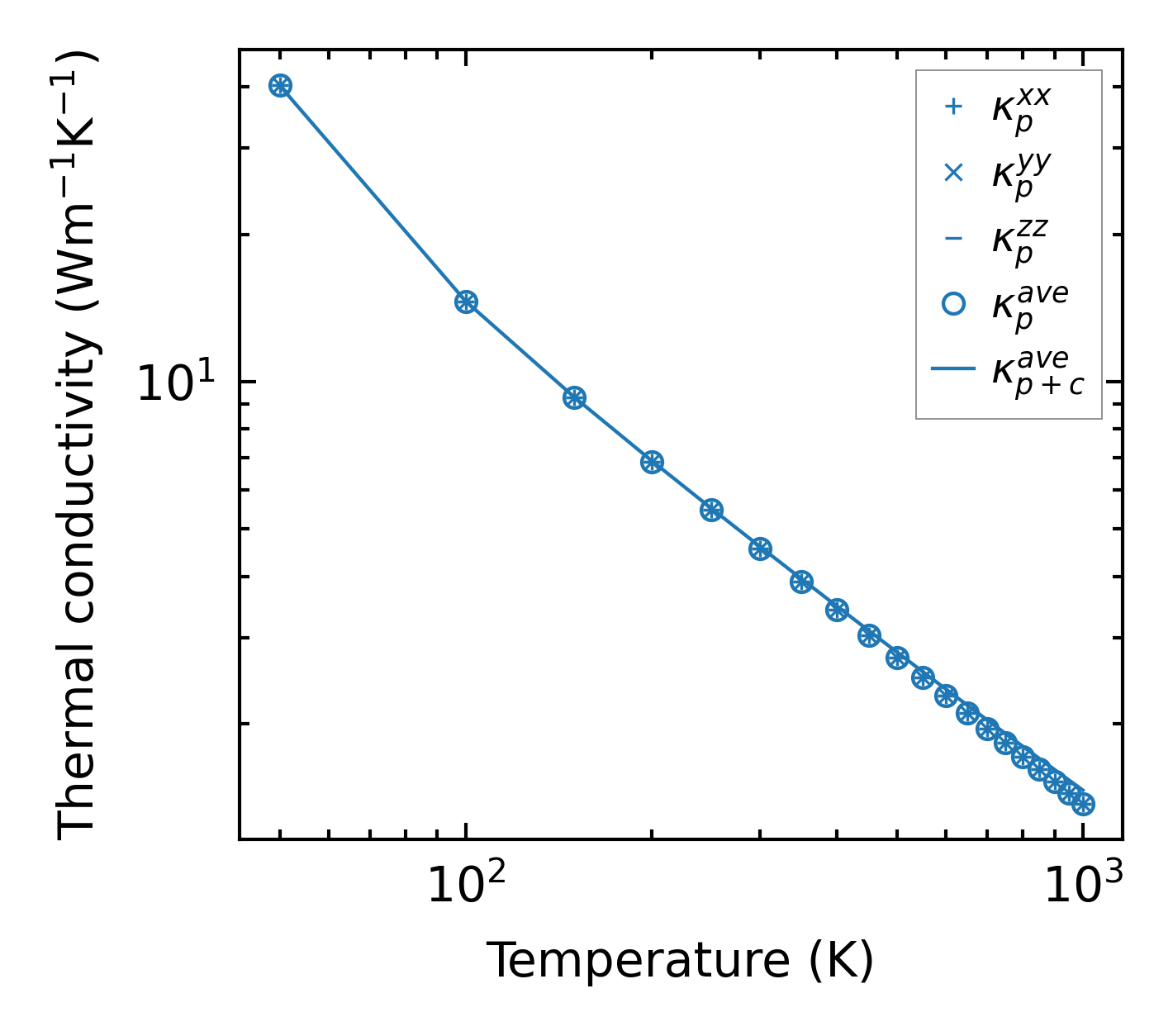

../../_images/fig_kappa10272.png — (a) Temperature-dependent lattice thermal conductivity

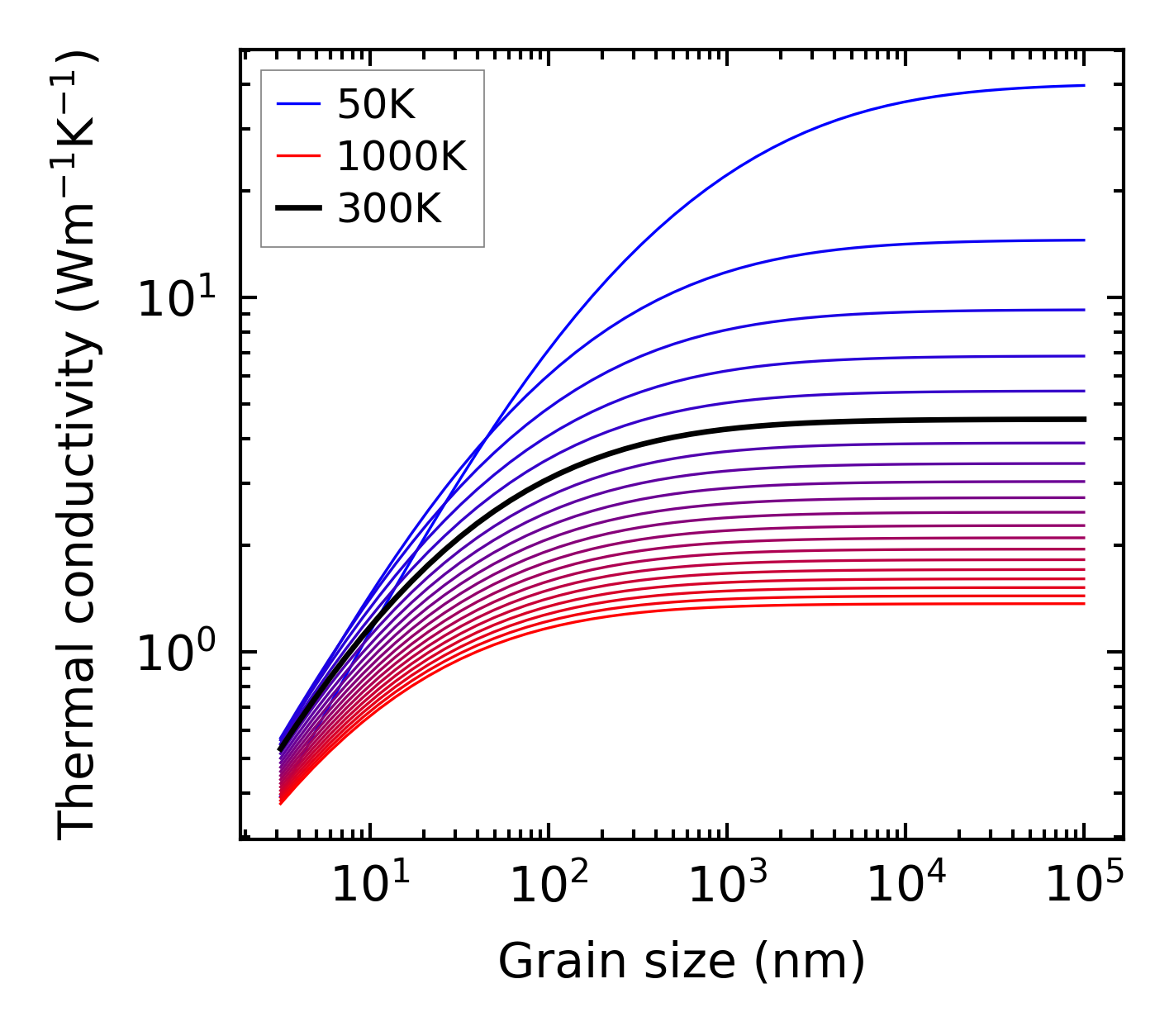

../../_images/fig_kappa_vs_grain_size5535.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

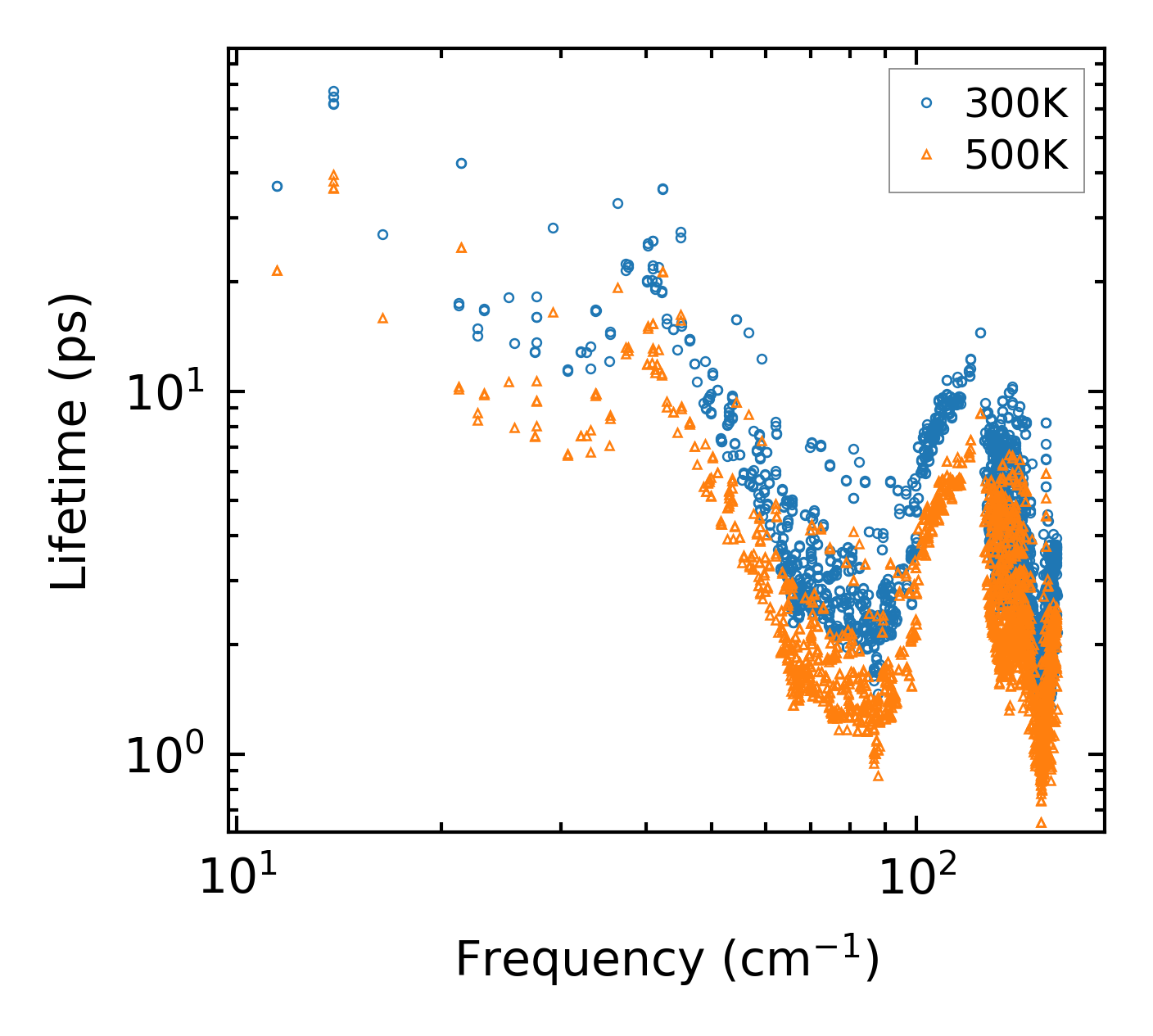

../../_images/fig_lifetime5418.png — (a) Phonon lifetime due to phonon-phonon scattering

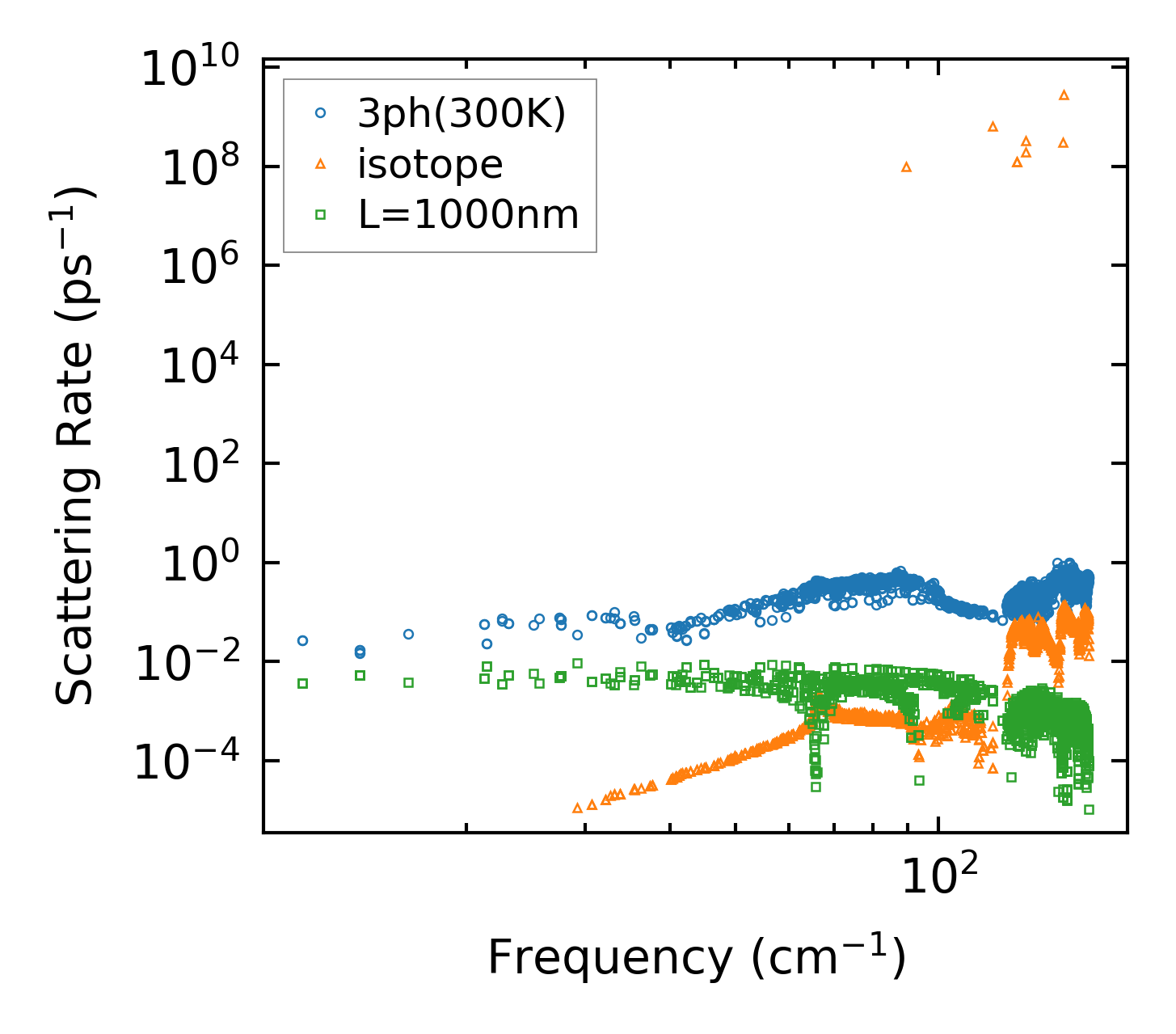

../../_images/fig_scat_rates5417.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

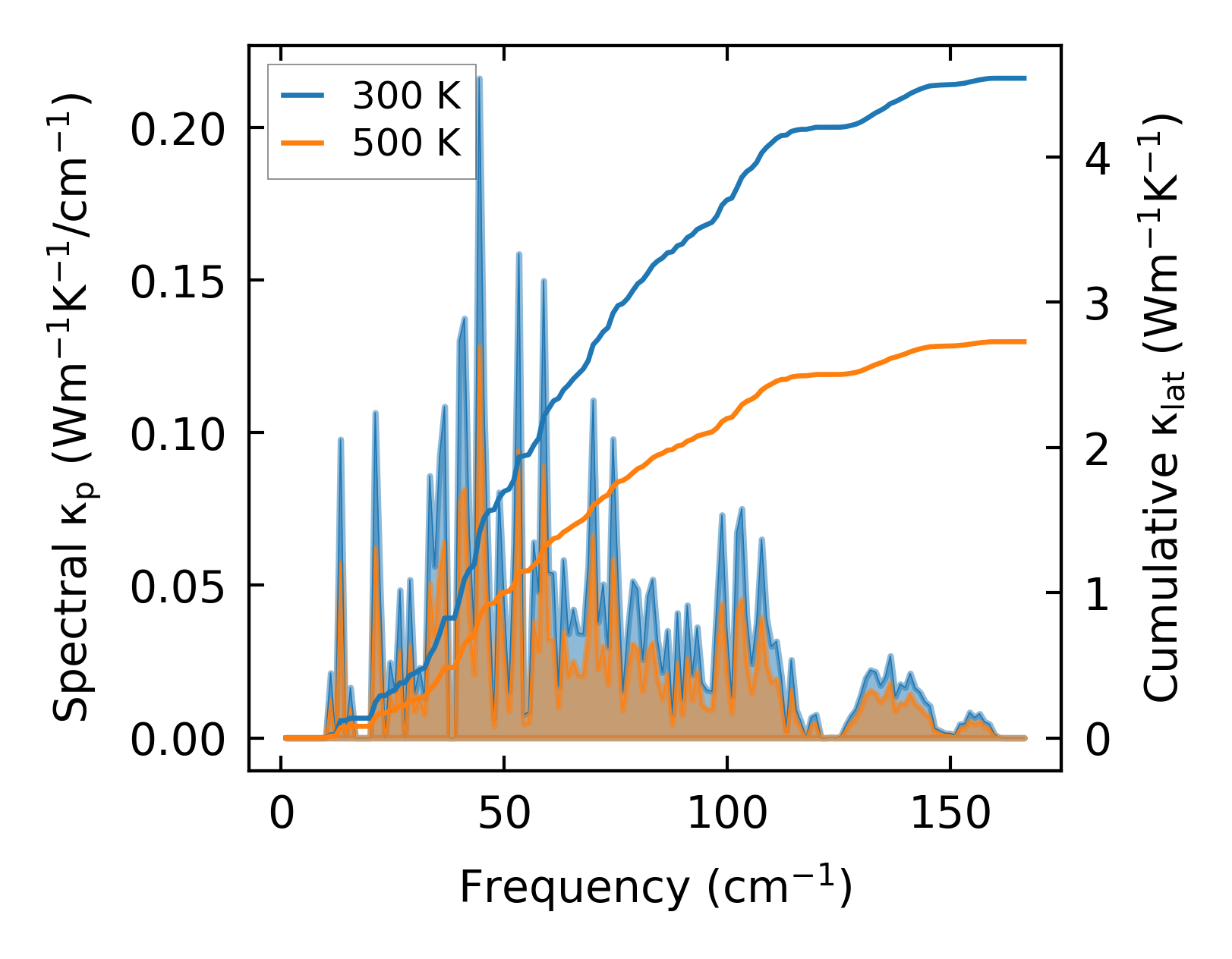

../../_images/fig_cumu_frequency5418.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

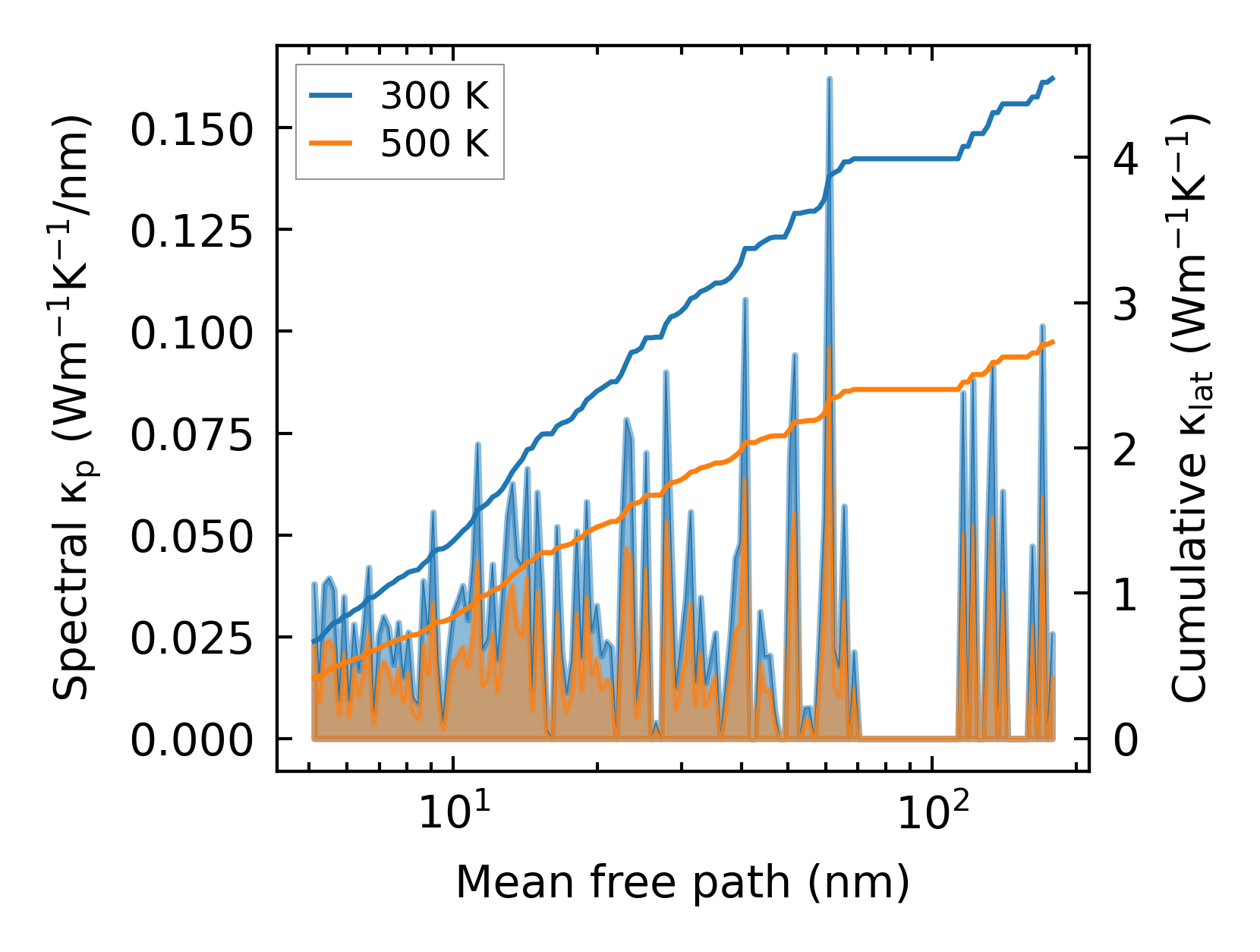

../../_images/fig_cumu_mfp5417.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

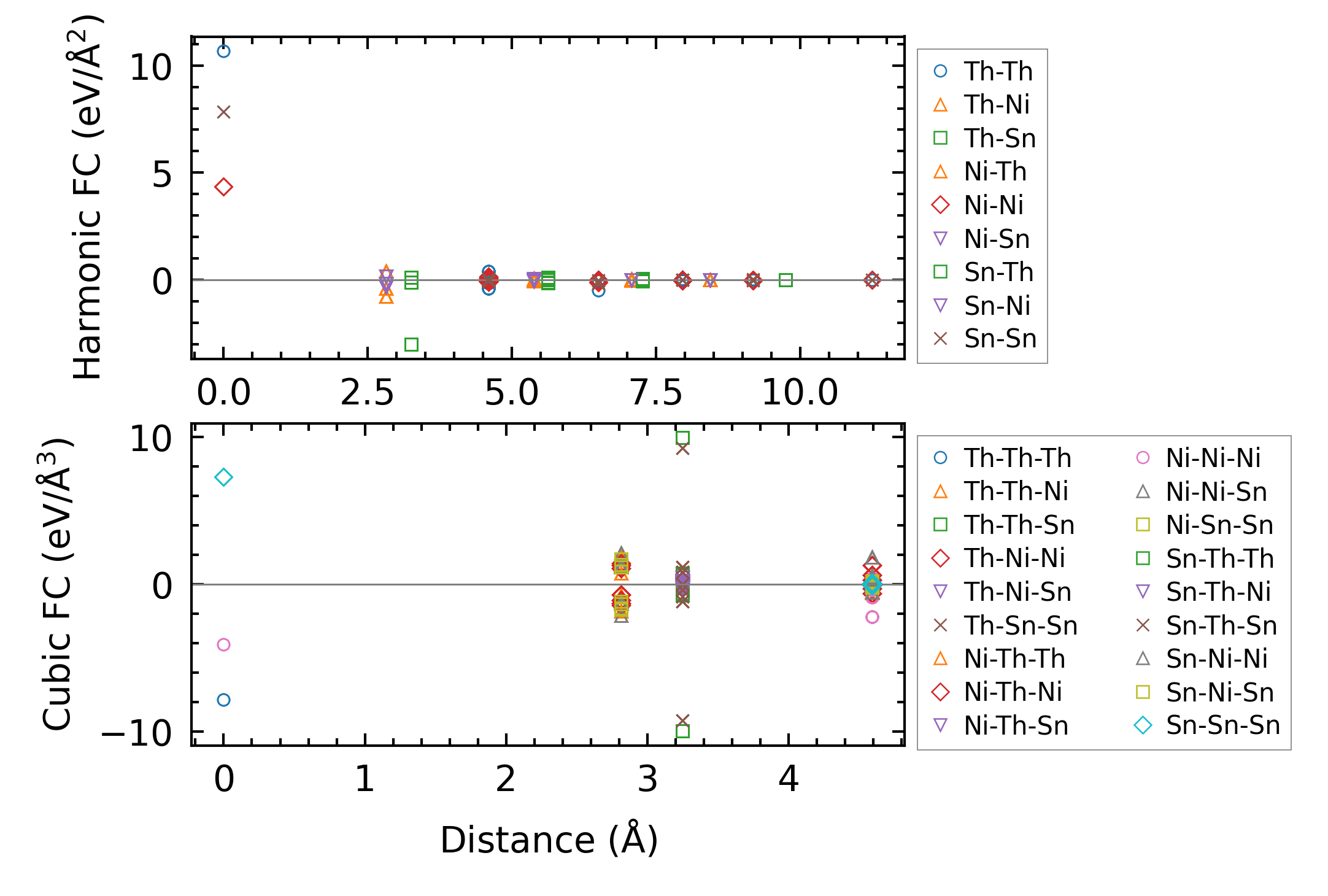

../../_images/fig_fc3323.png — (a) Force constants w.r.t atomic distance

Summary

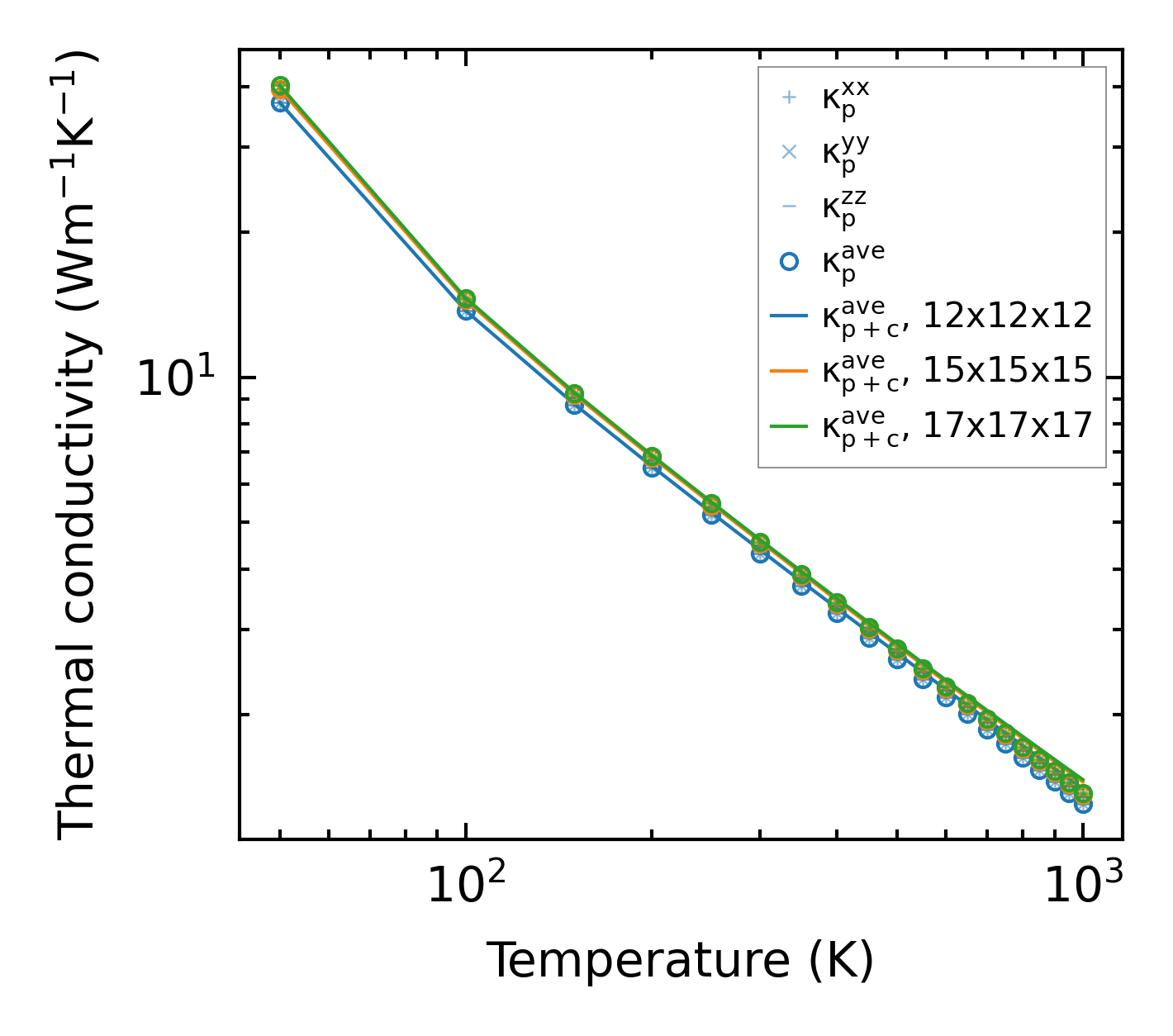

../../_images/fig_kappa10273.png — (a) Temperature-dependent lattice thermal conductivity

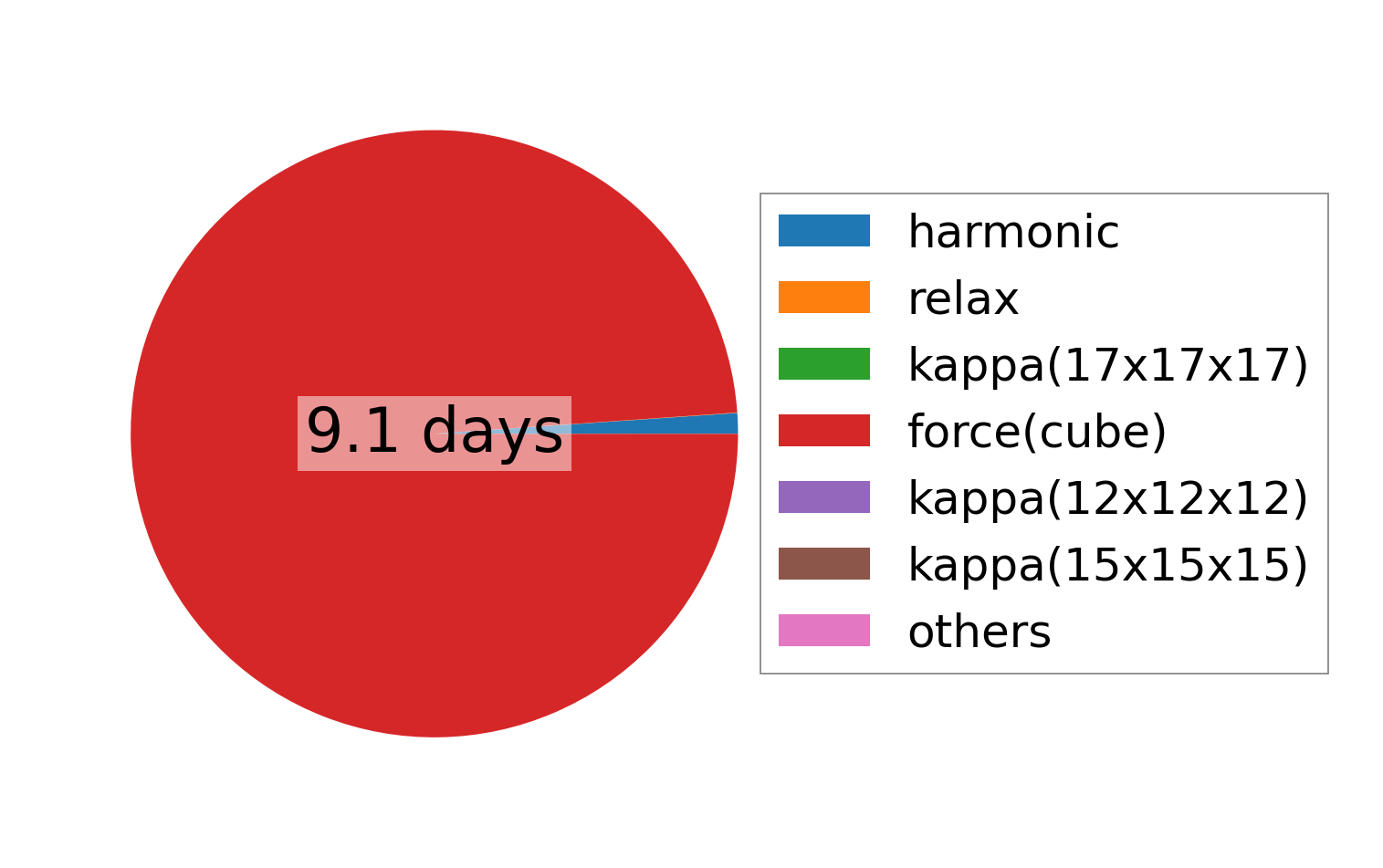

../../_images/fig_times22135.png — (b) Computation time
