mp-22882/YbBr2/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-22882.tar.gz

Harmonic properties

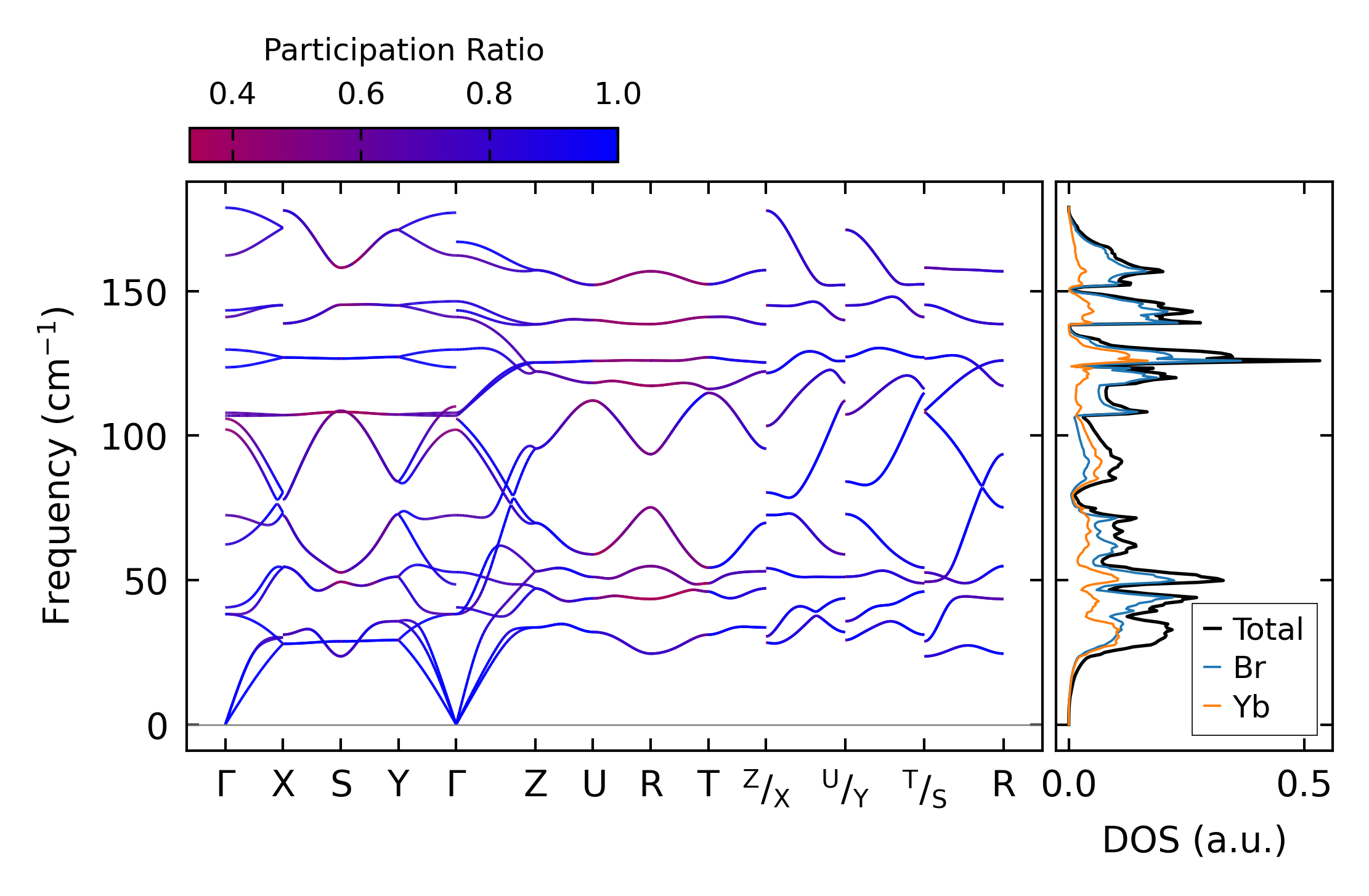

../../_images/fig_bandos_pr13117.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13117.png — (b) Thermodynamic properties

Grüneisen parameters

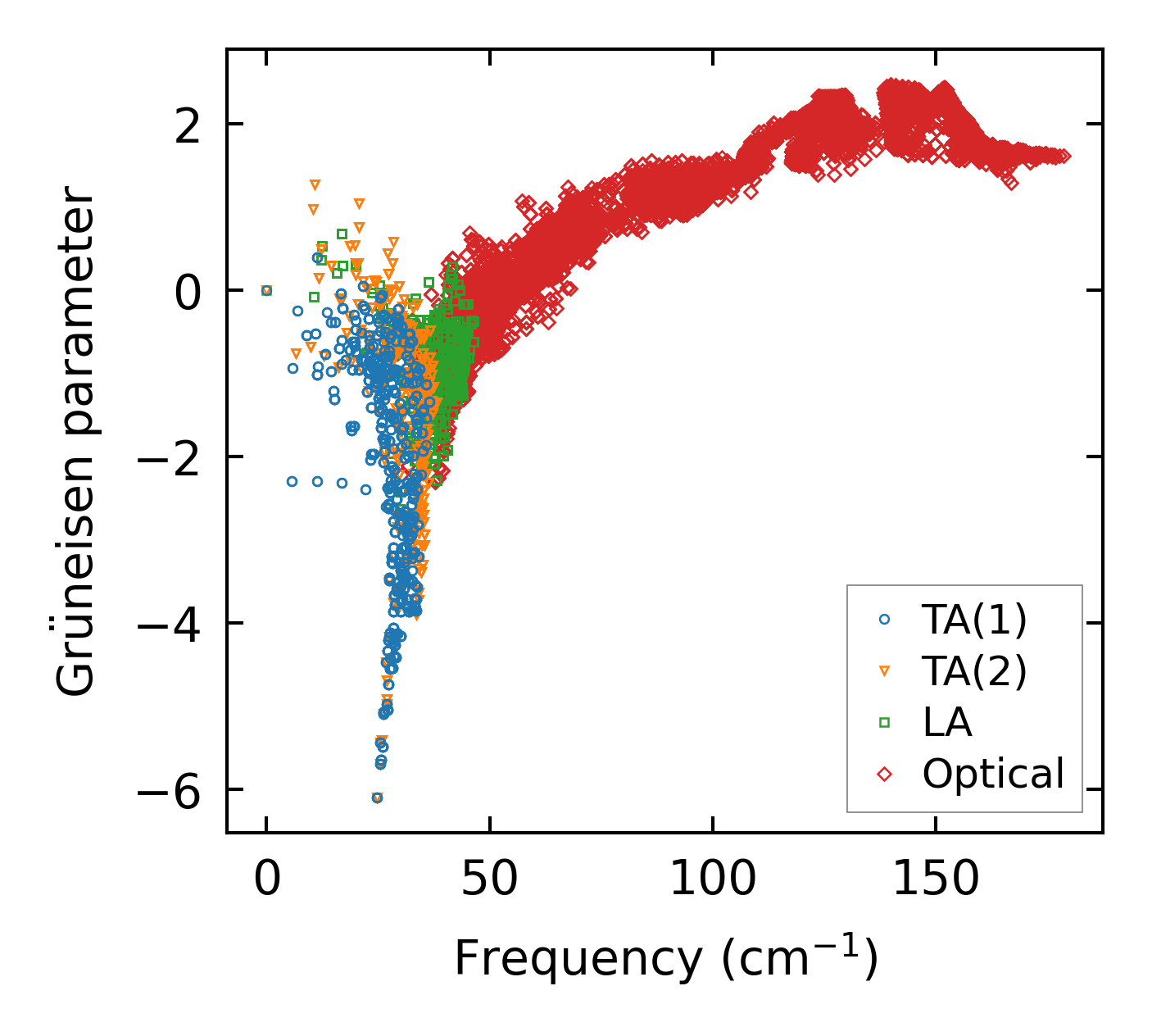

../../_images/fig_gru_all5479.png — (a) Grüneisen parameters

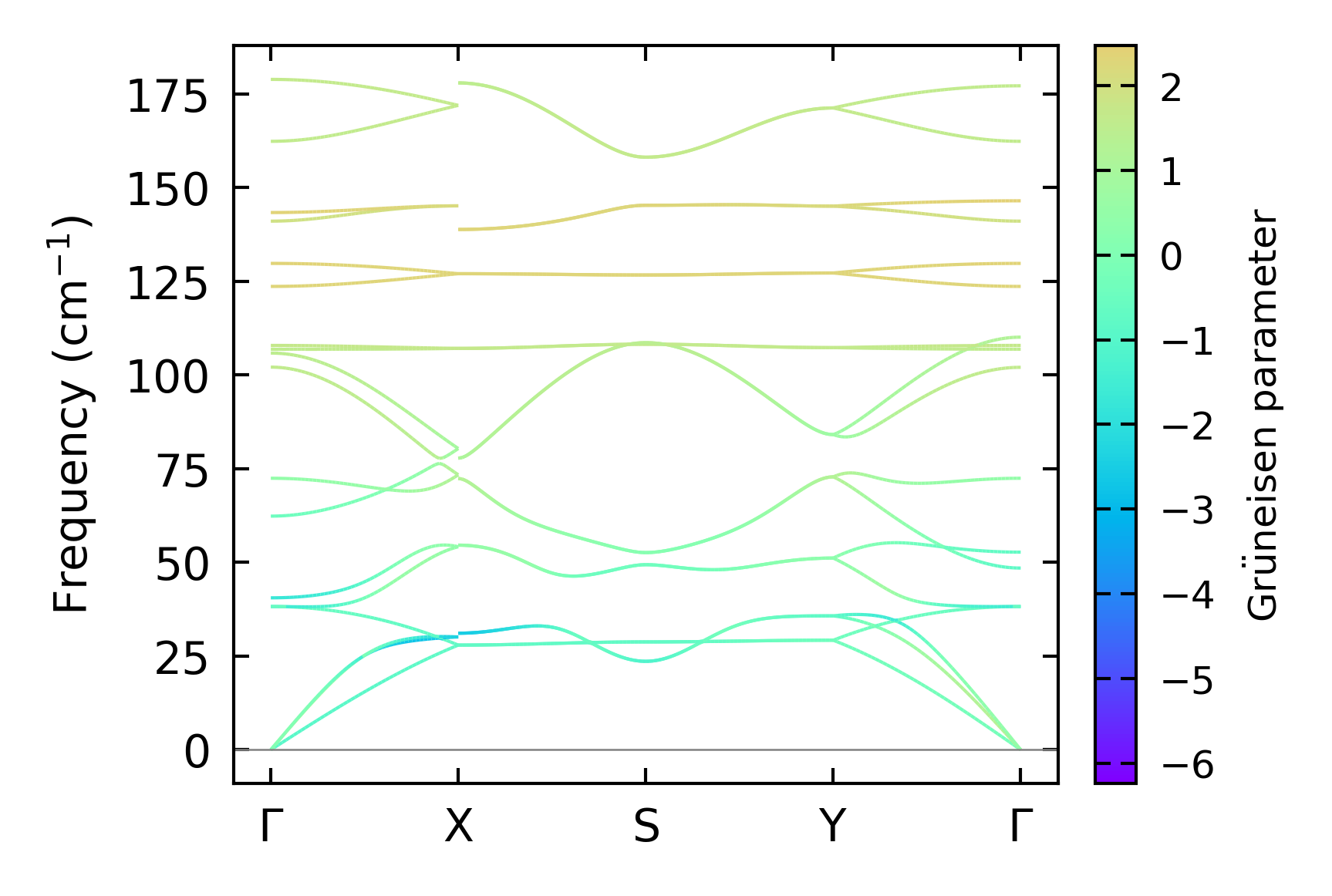

../../_images/fig_gruneisen5479.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x10x17, supercell: 3x2x4

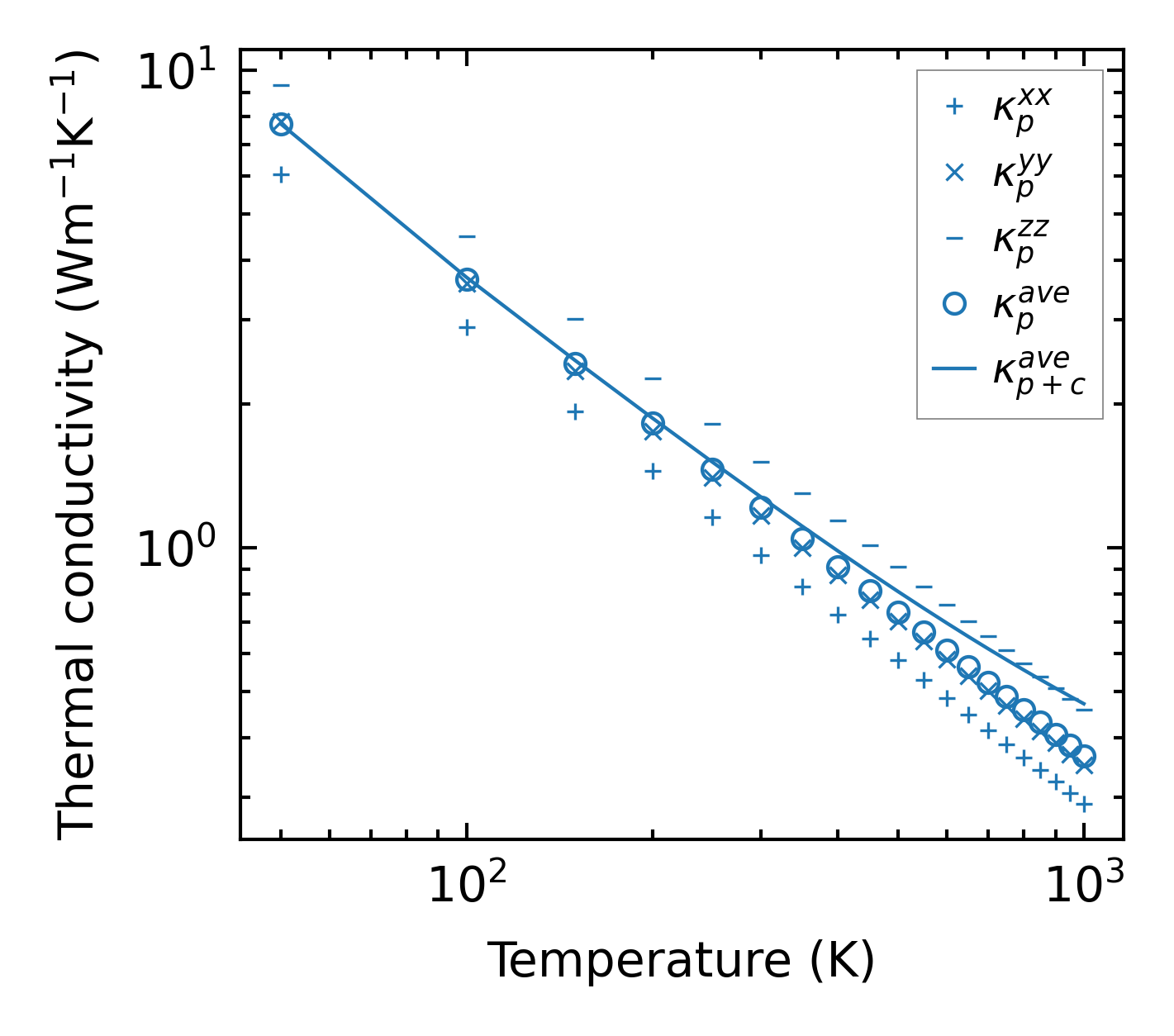

../../_images/fig_kappa10288.png — (a) Temperature-dependent lattice thermal conductivity

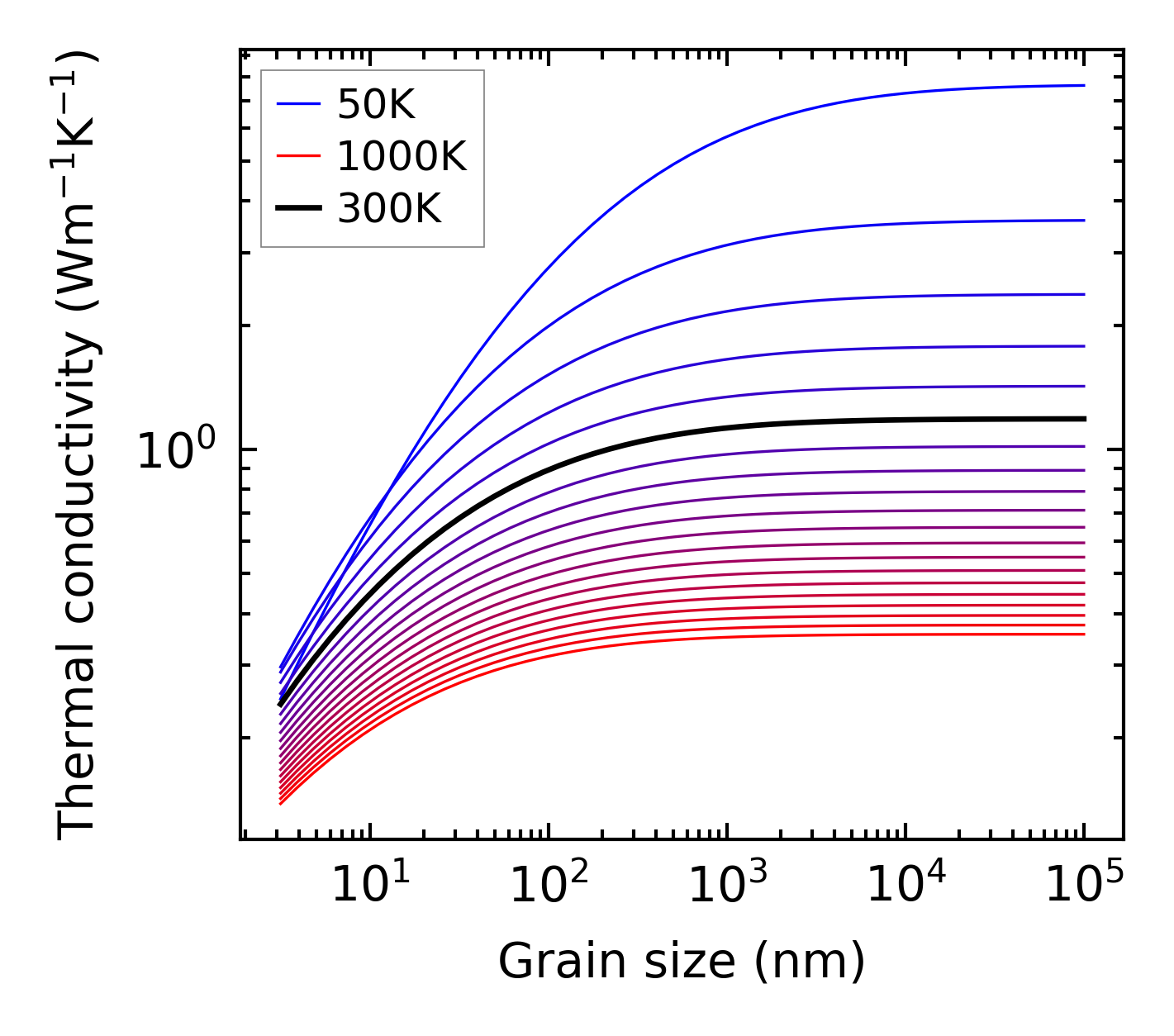

../../_images/fig_kappa_vs_grain_size5544.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

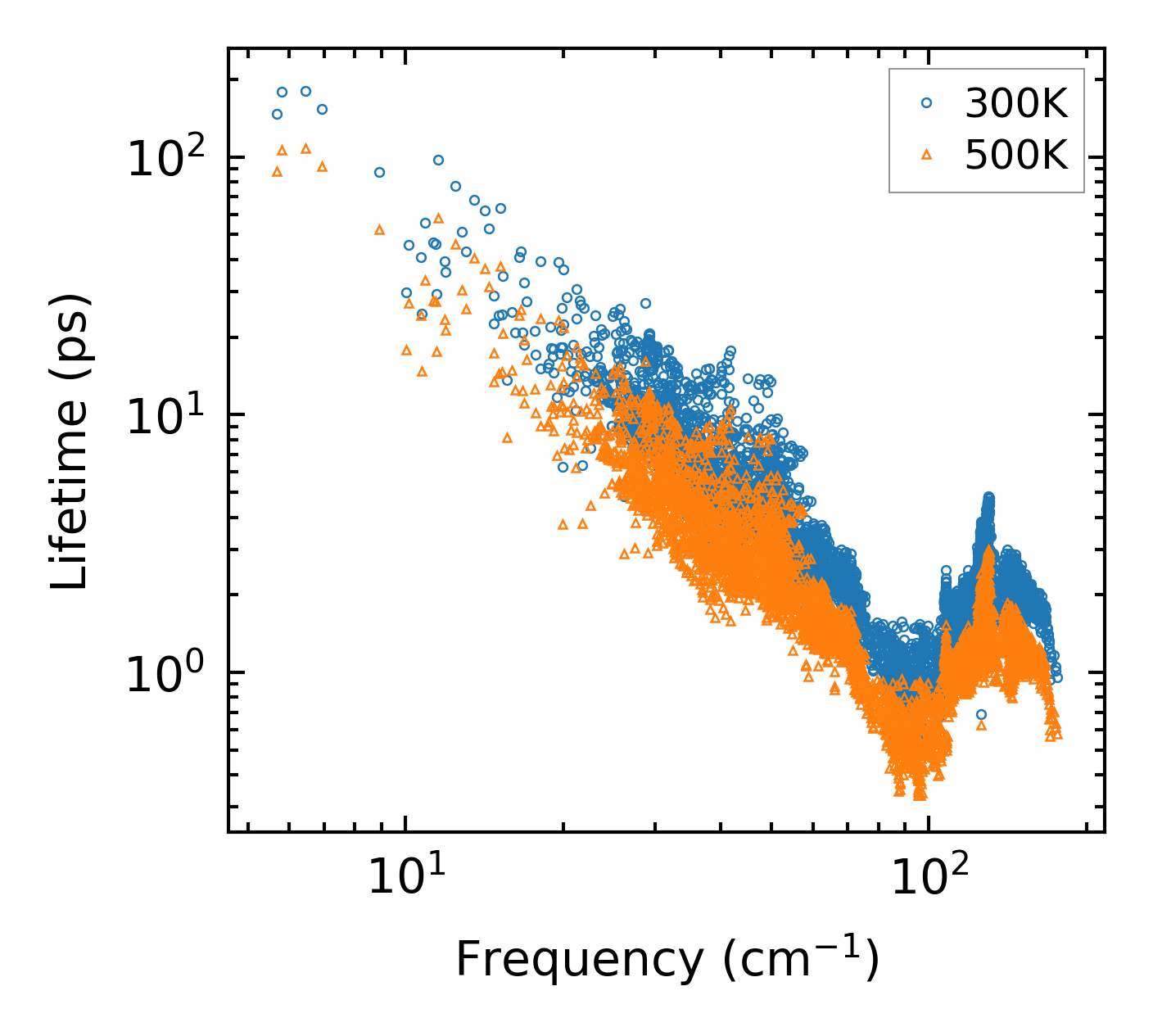

../../_images/fig_lifetime5427.png — (a) Phonon lifetime due to phonon-phonon scattering

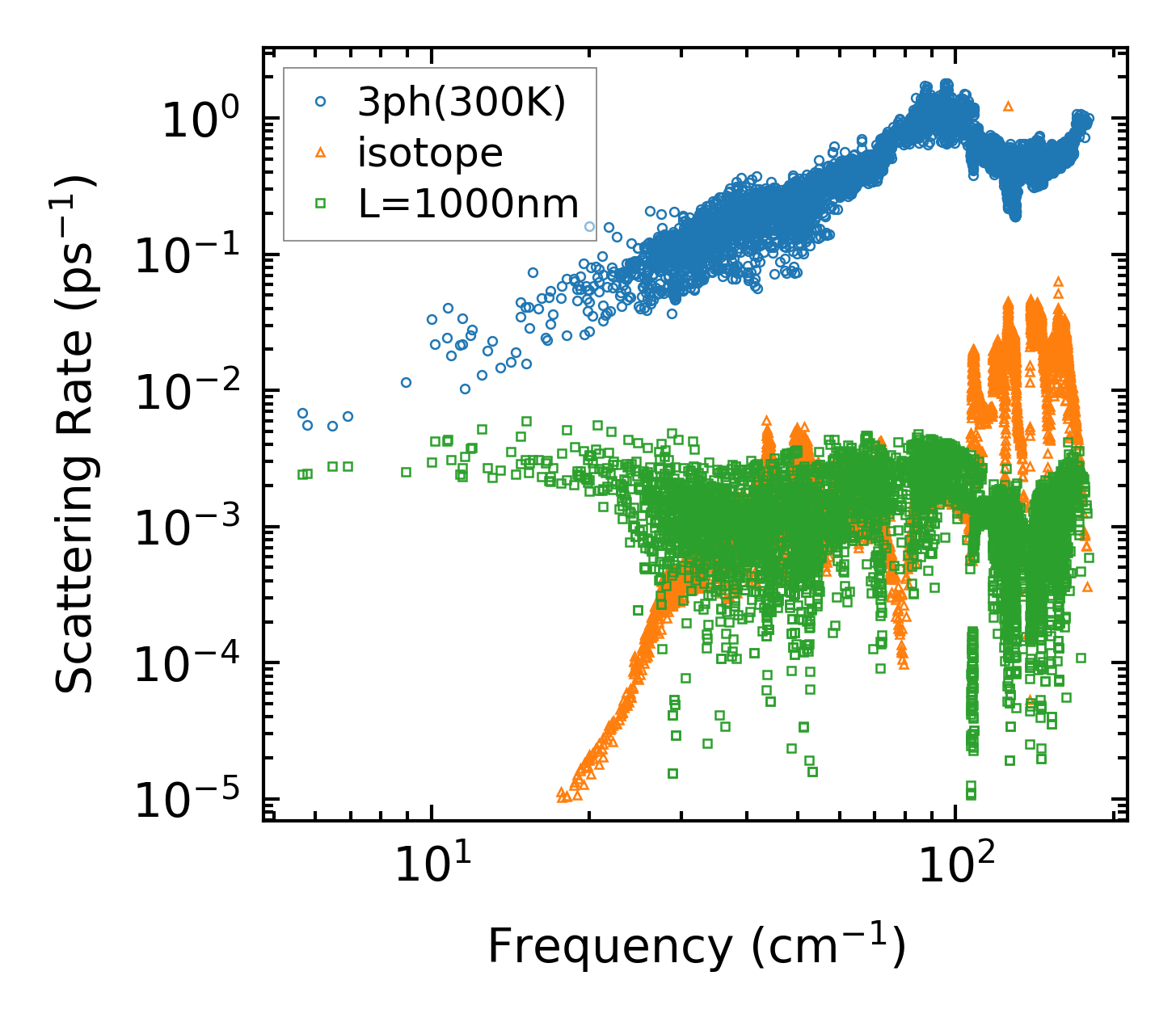

../../_images/fig_scat_rates5426.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

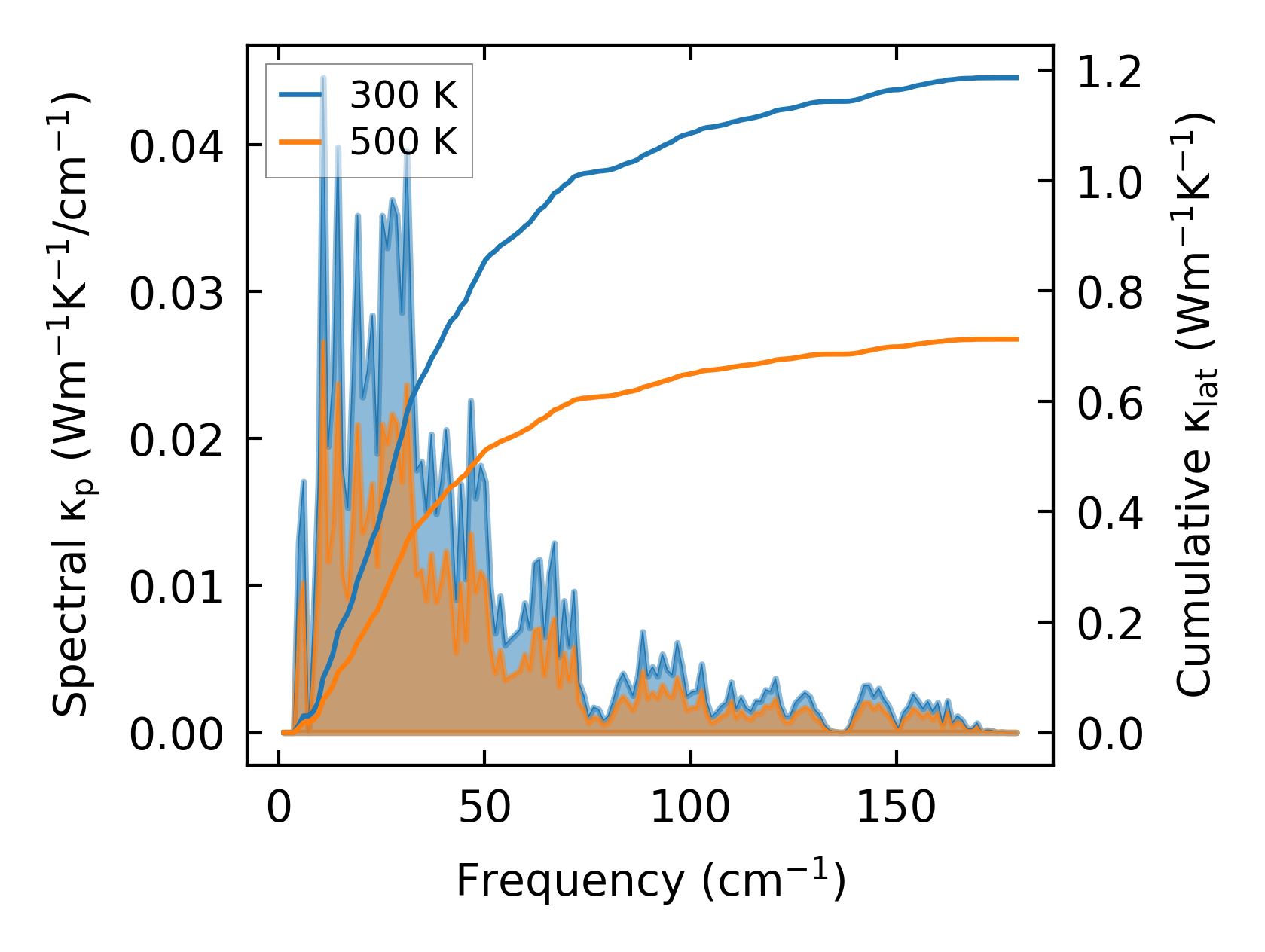

../../_images/fig_cumu_frequency5427.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

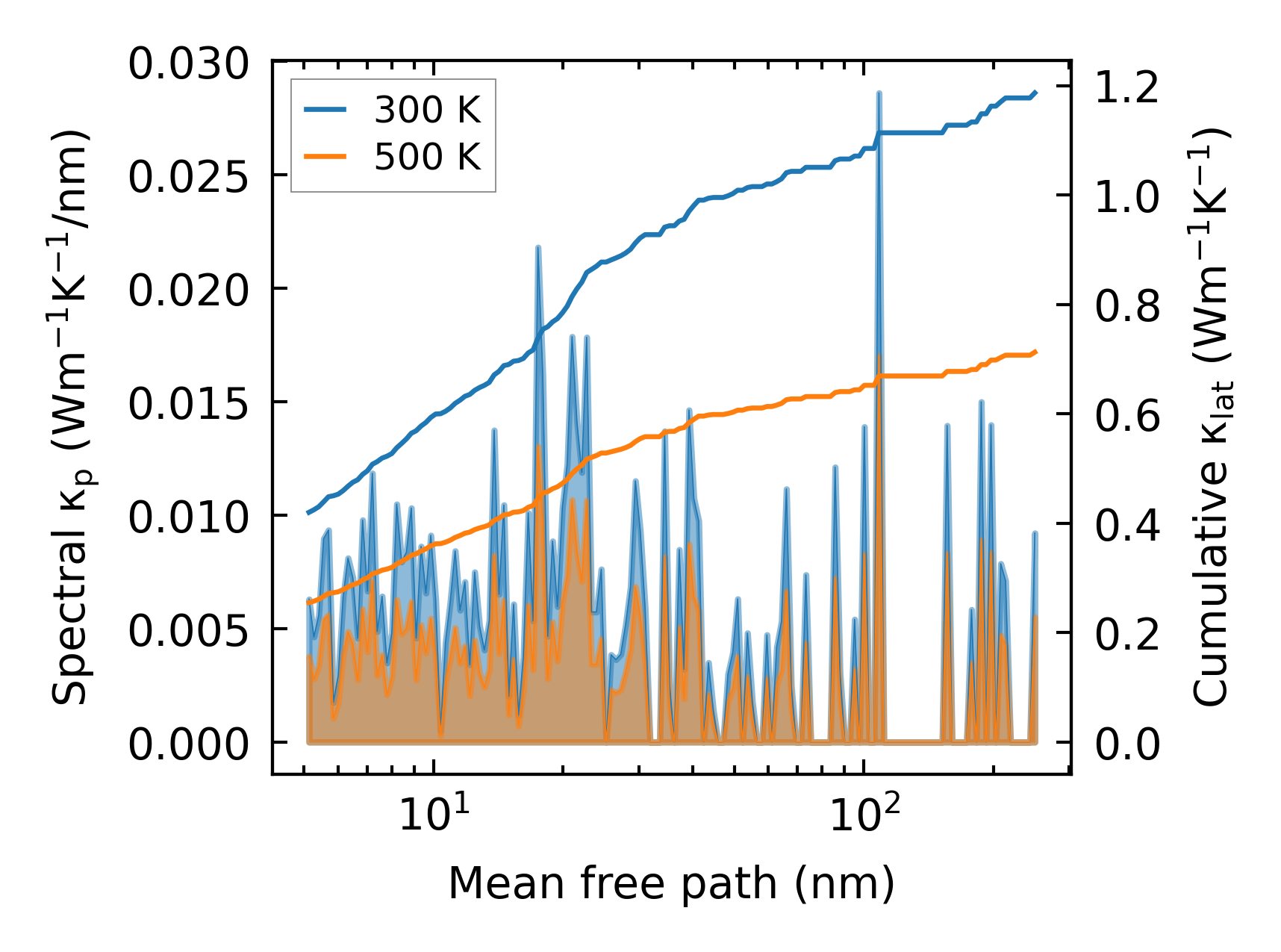

../../_images/fig_cumu_mfp5426.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

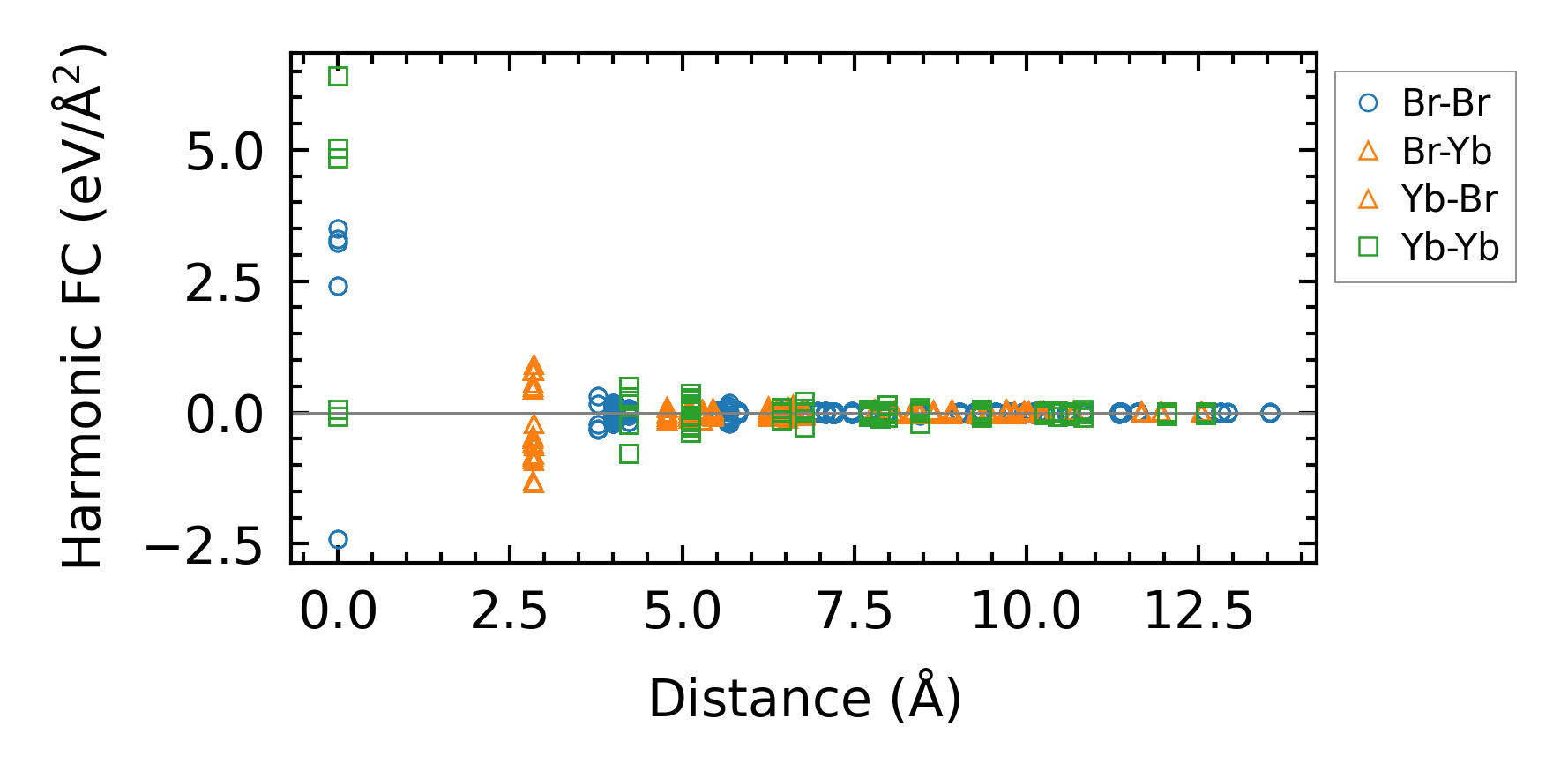

../../_images/fig_fc212788.png — (a) Force constants w.r.t atomic distance

Summary

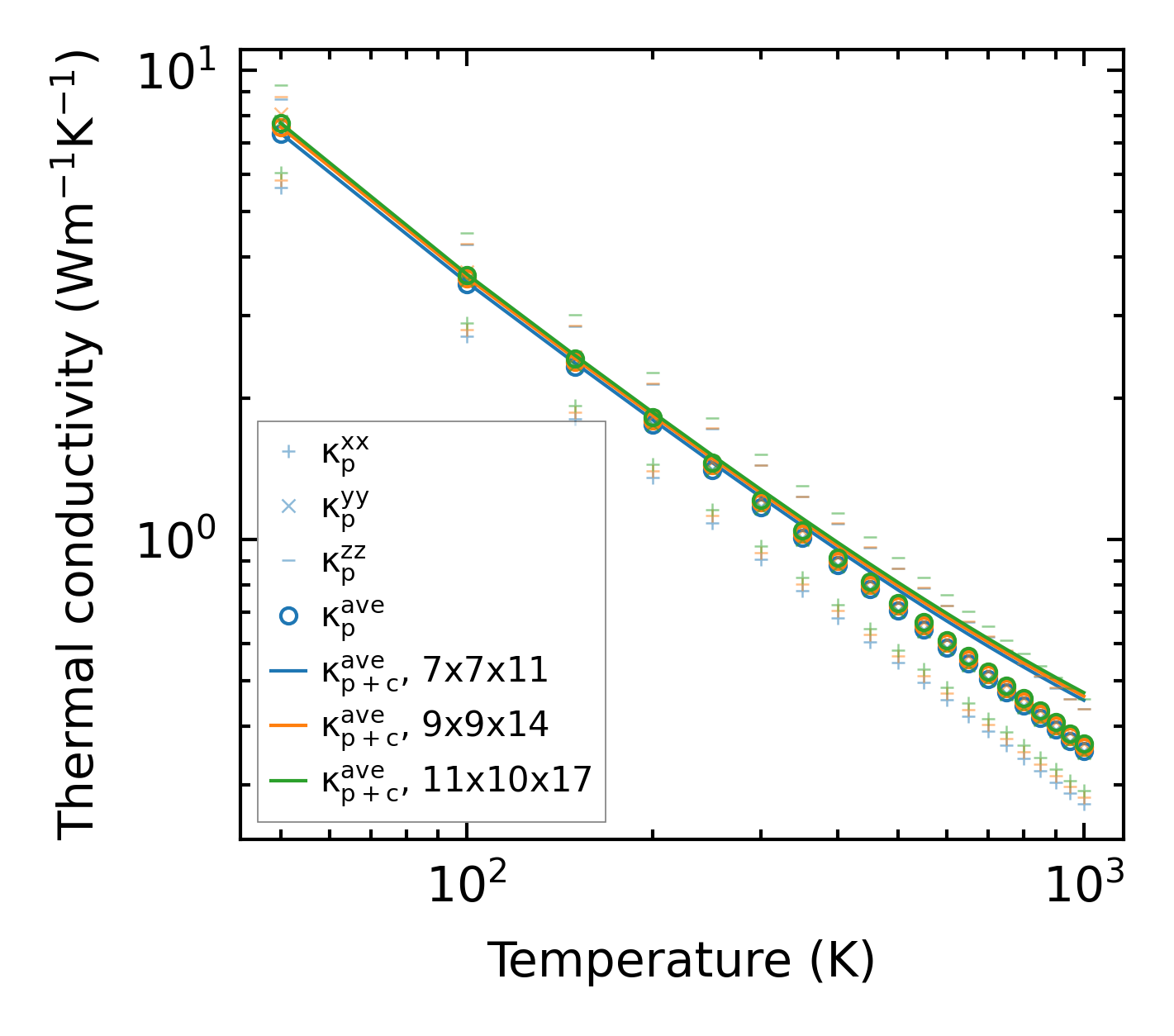

../../_images/fig_kappa10289.png — (a) Temperature-dependent lattice thermal conductivity

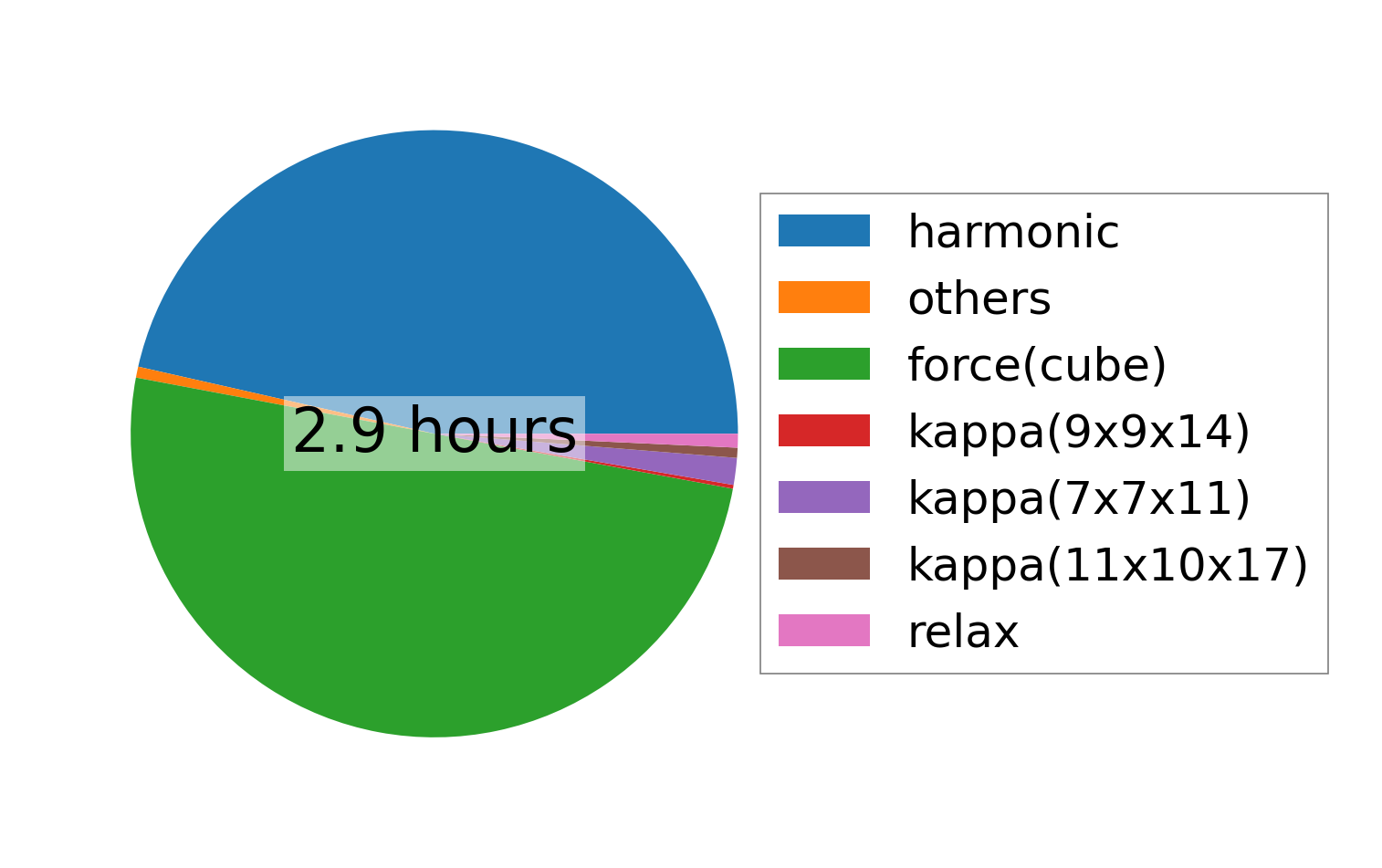

../../_images/fig_times22171.png — (b) Computation time
