mp-22858-2/TlI/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-22858-2.tar.gz

Equation of state

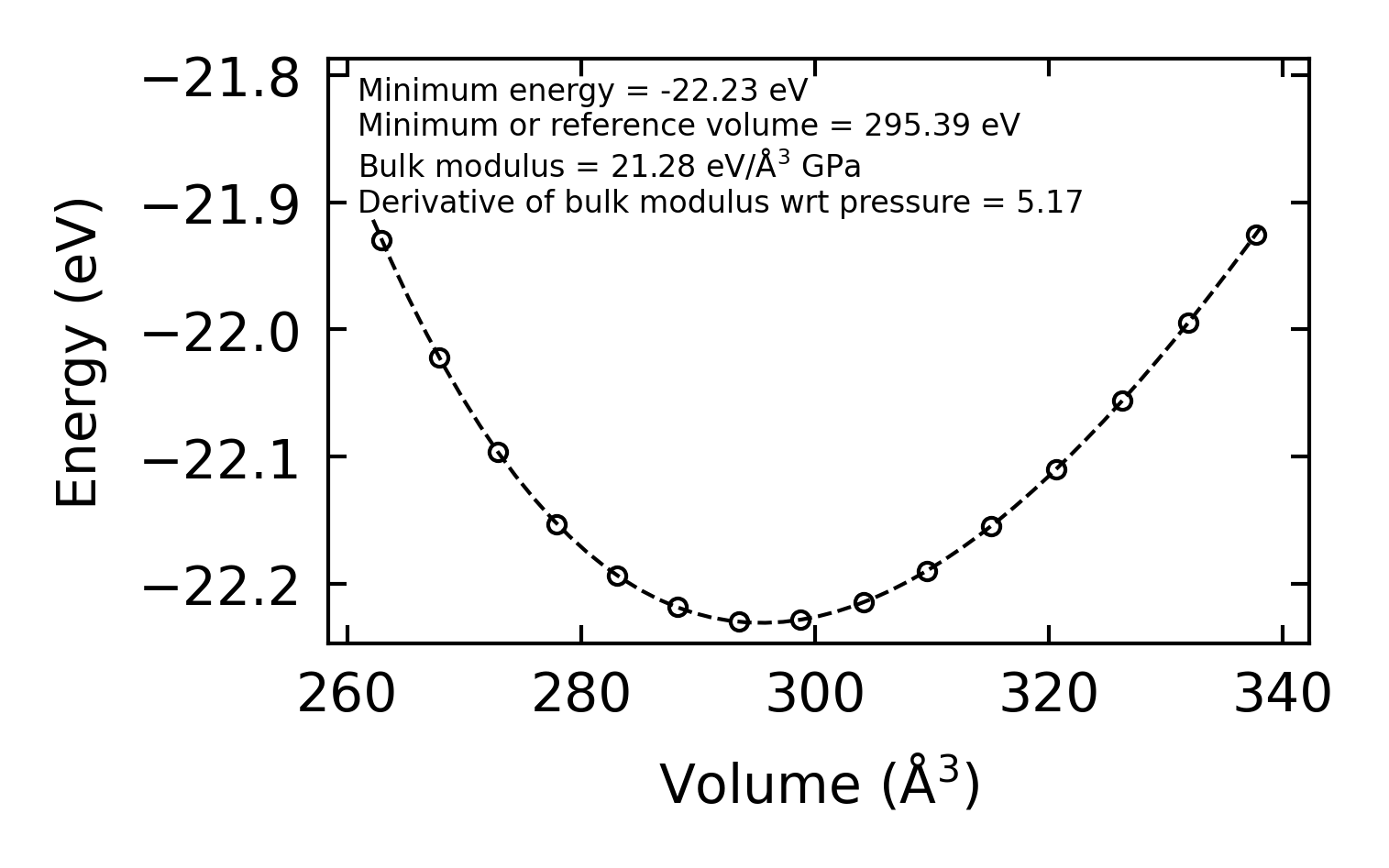

../../_images/fig_bm6555.png — (a) Equation of state

Harmonic properties

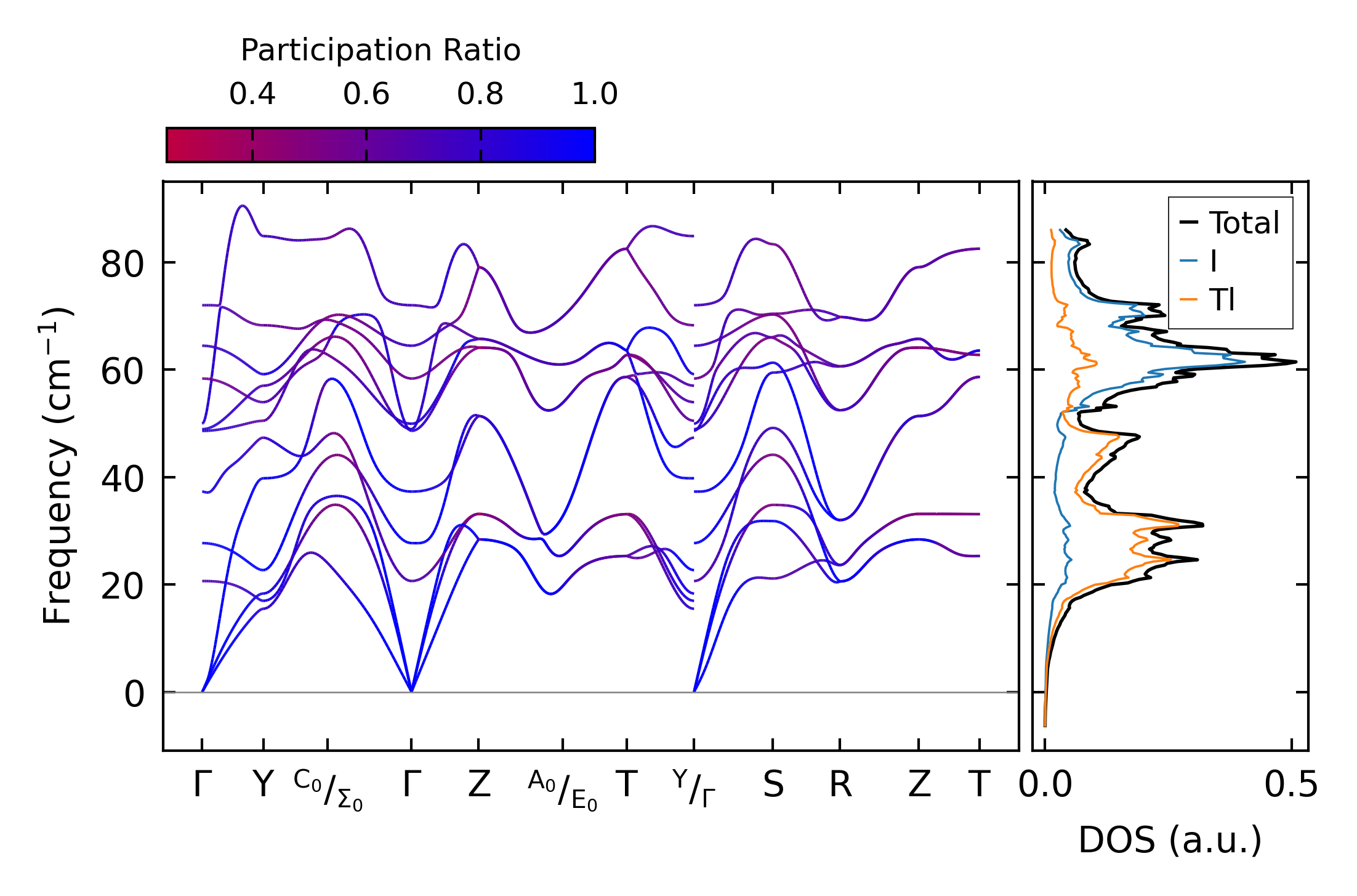

../../_images/fig_bandos_pr13110.png — (a) Phonon dispersion with participation ratio and DOS

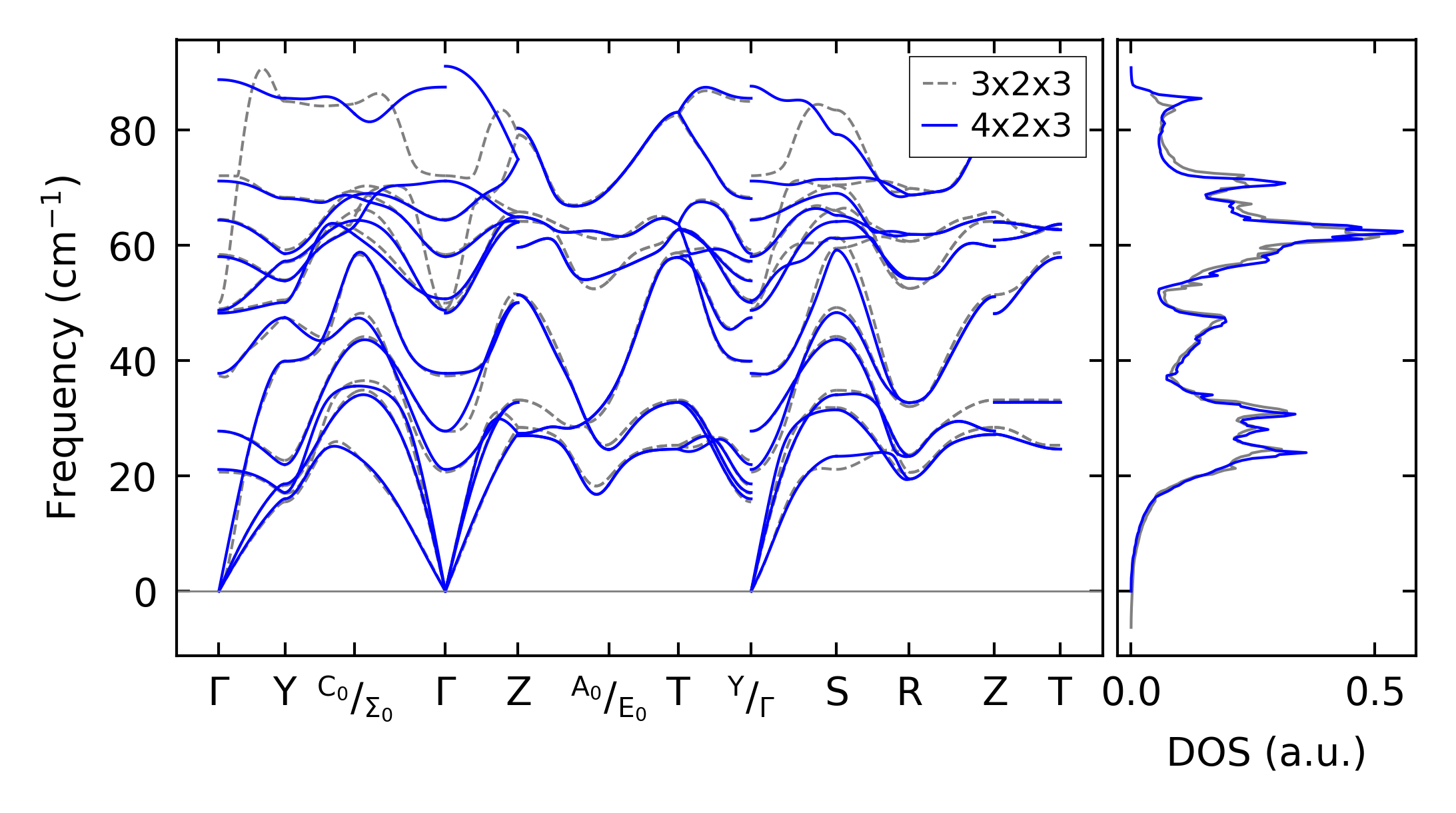

../../_images/fig_bandos17508.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13110.png — (c) Thermodynamic properties

Grüneisen parameters

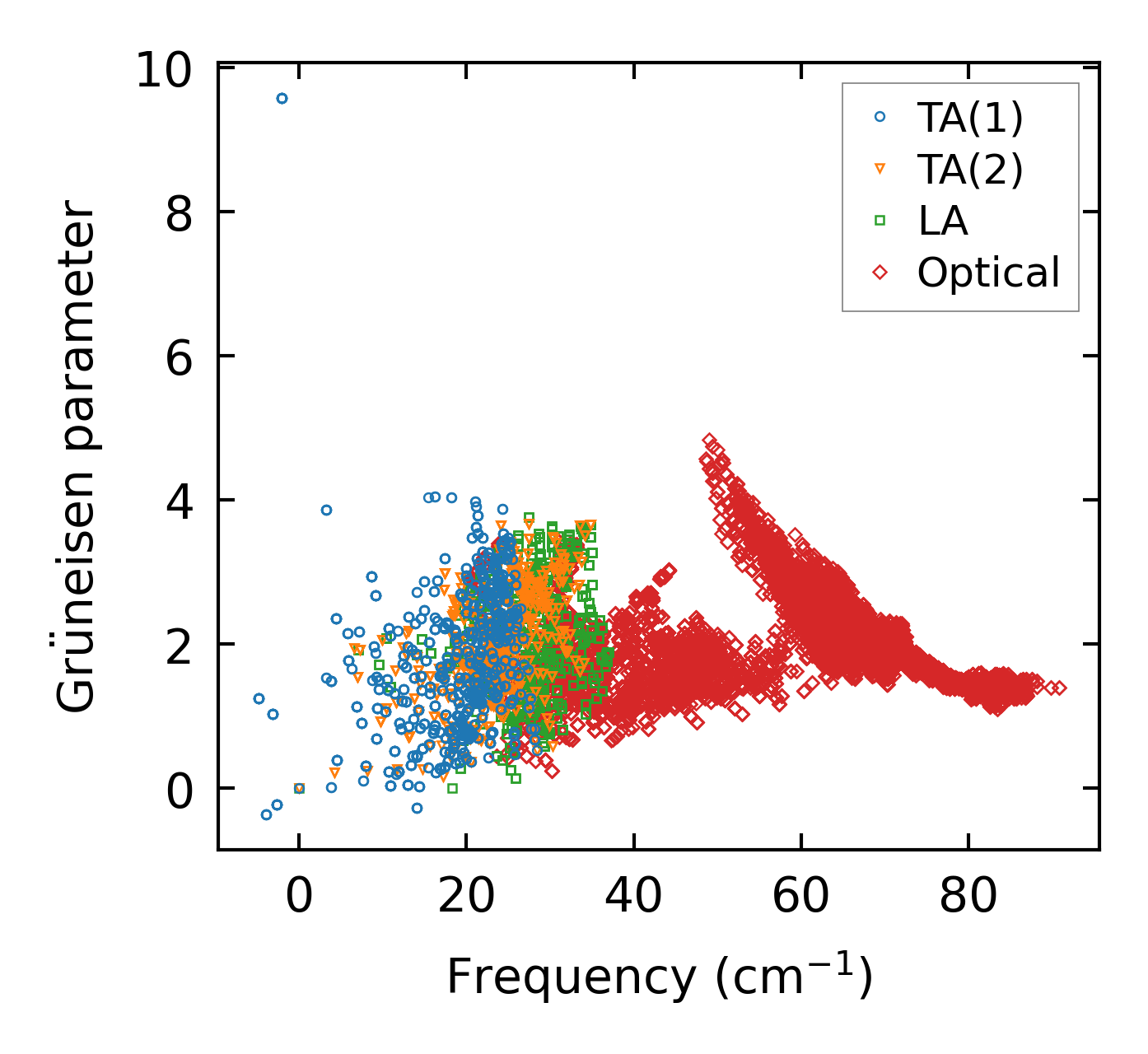

../../_images/fig_gru_all5473.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5473.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon, supercell 4x2x3 — q-mesh: 12x12x16, supercell: 4x2x3

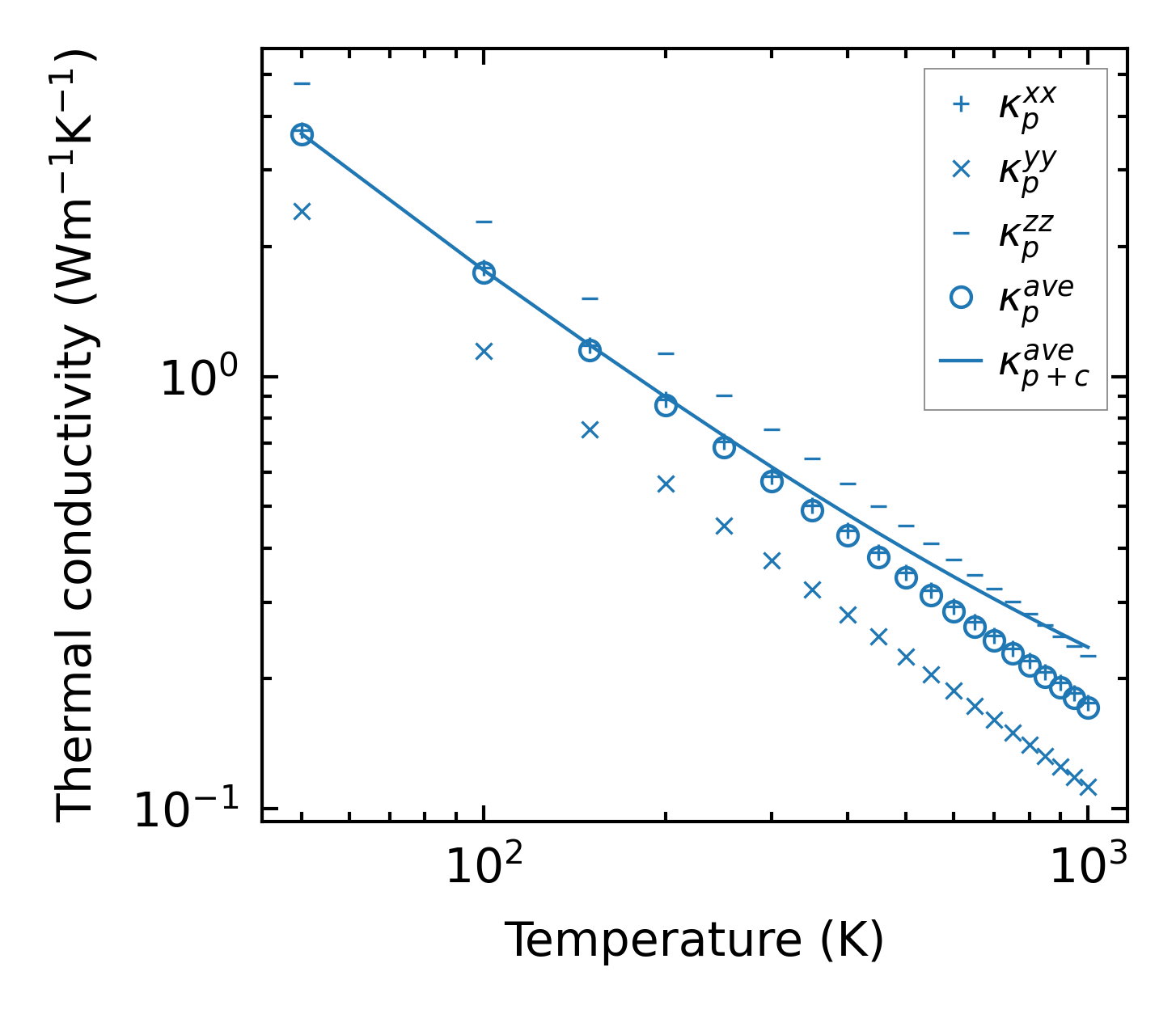

../../_images/fig_kappa10277.png — (a) Temperature-dependent lattice thermal conductivity

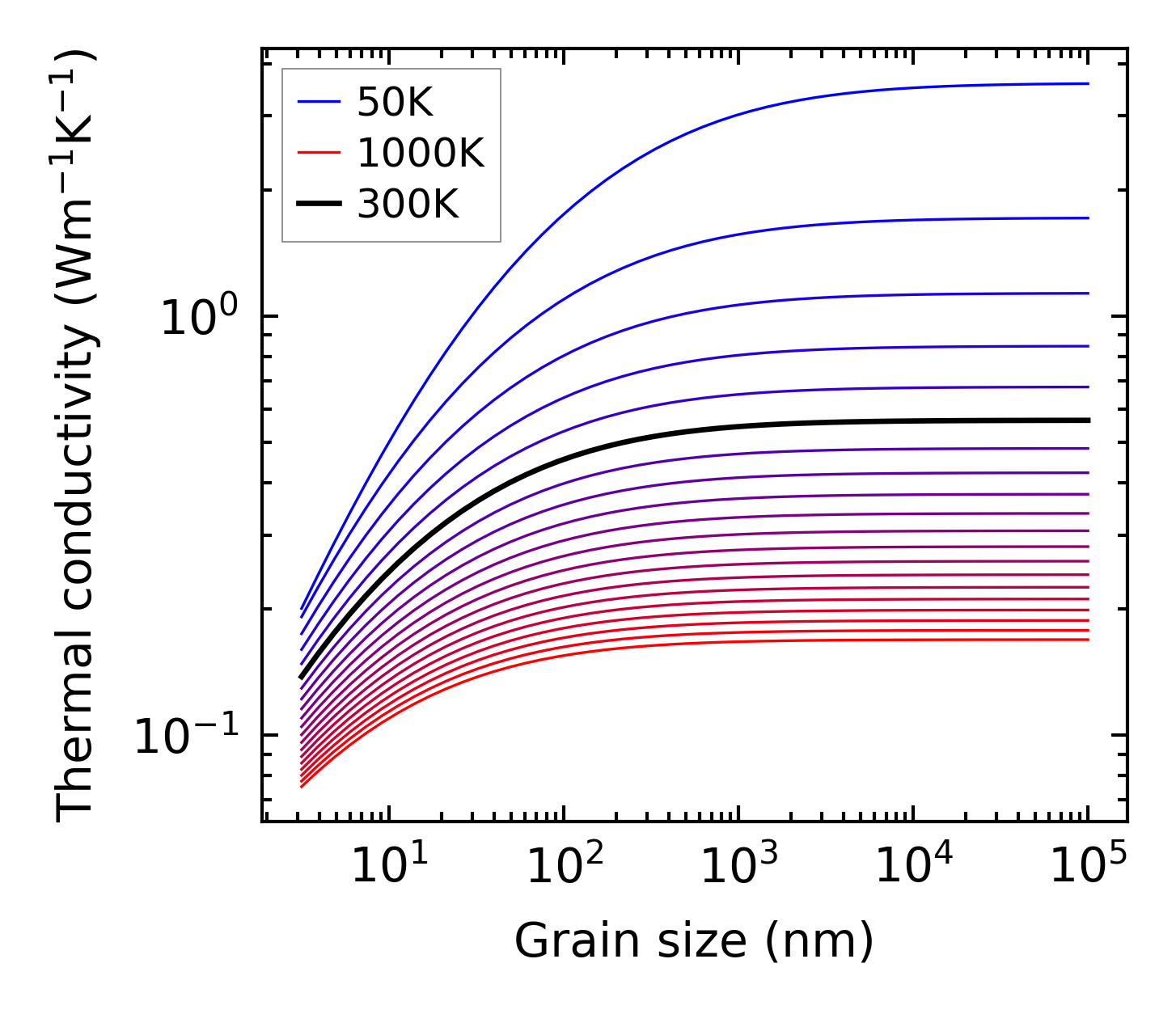

../../_images/fig_kappa_vs_grain_size5538.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5421.png — (a) Phonon lifetime due to phonon-phonon scattering

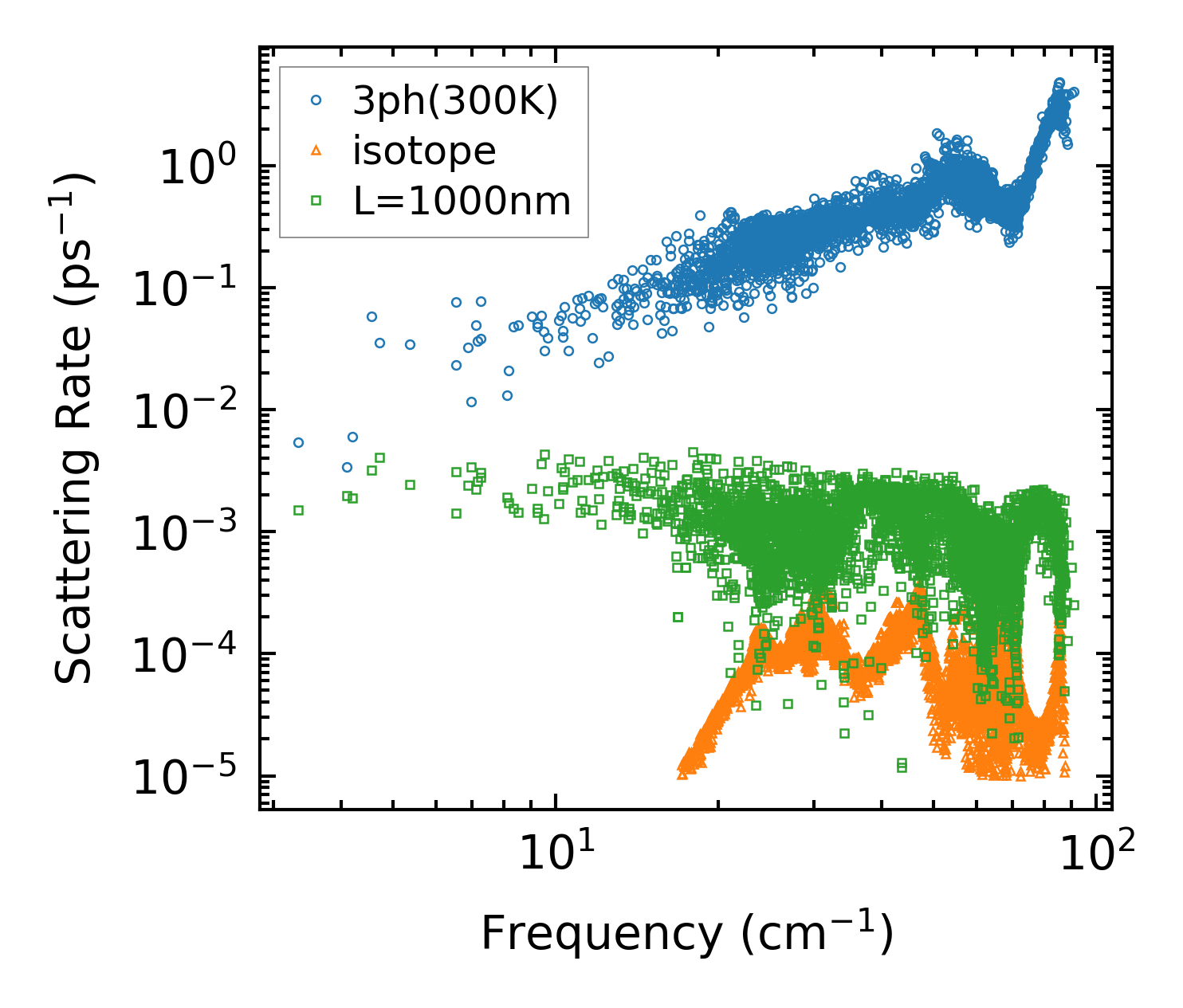

../../_images/fig_scat_rates5420.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5421.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5420.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3324.png — (a) Force constants w.r.t atomic distance

Summary

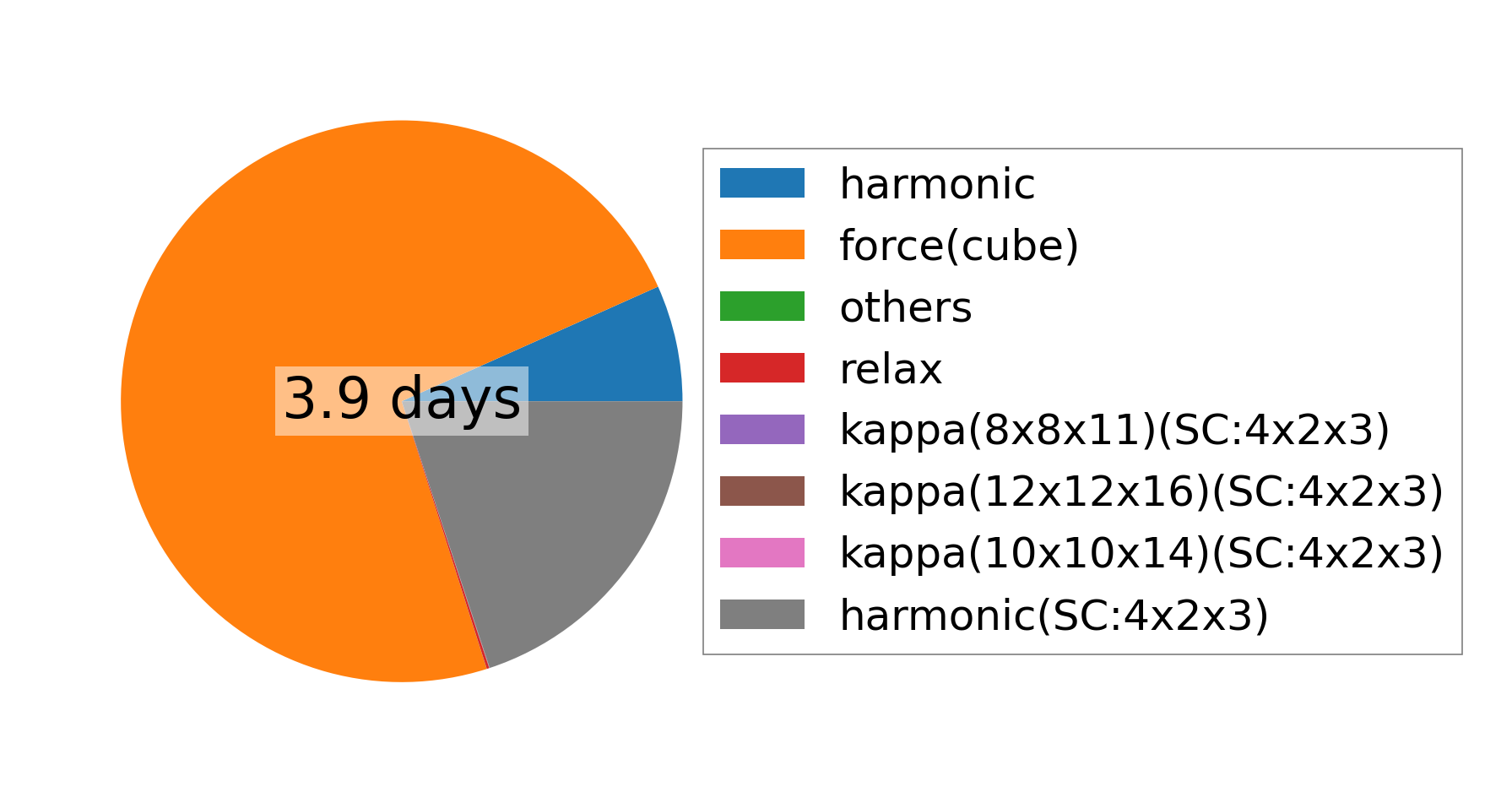

../../_images/fig_times22152.png — (a) Computation time
