mp-22569-2/InPO4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-22569-2.tar.gz

Equation of state

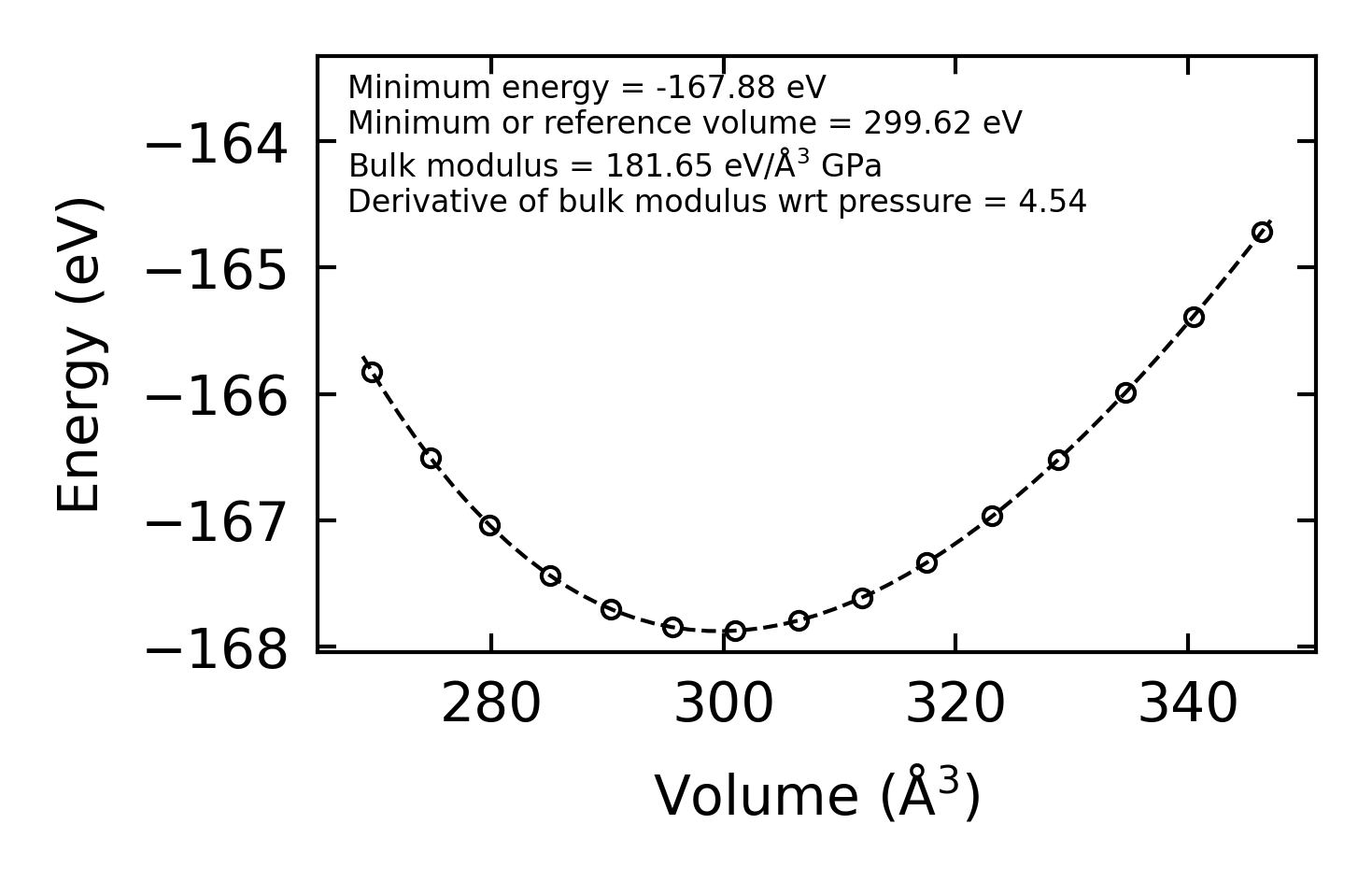

../../_images/fig_bm6529.png — (a) Equation of state

Harmonic properties

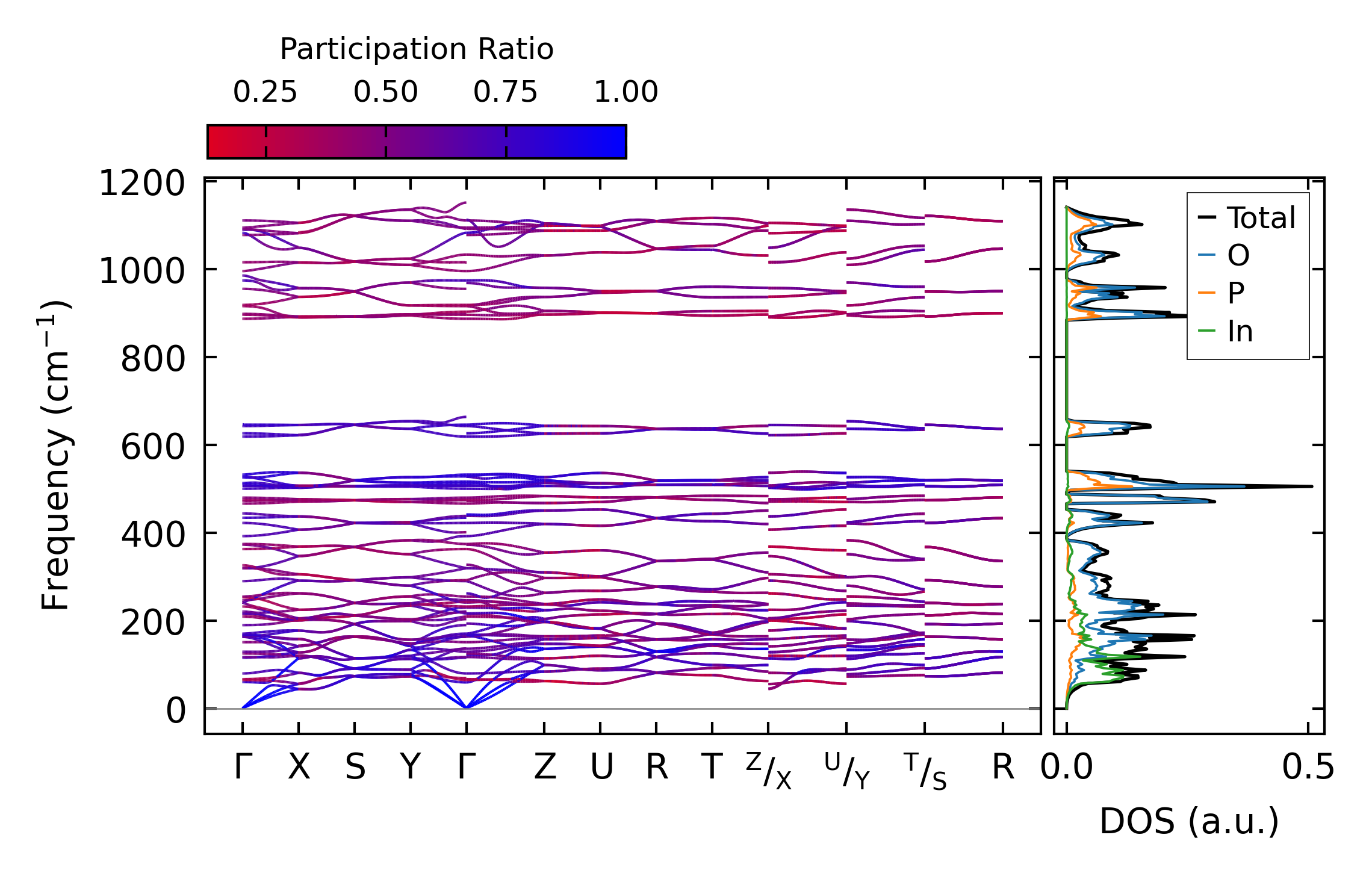

../../_images/fig_bandos_pr13077.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13077.png — (b) Thermodynamic properties

Grüneisen parameters

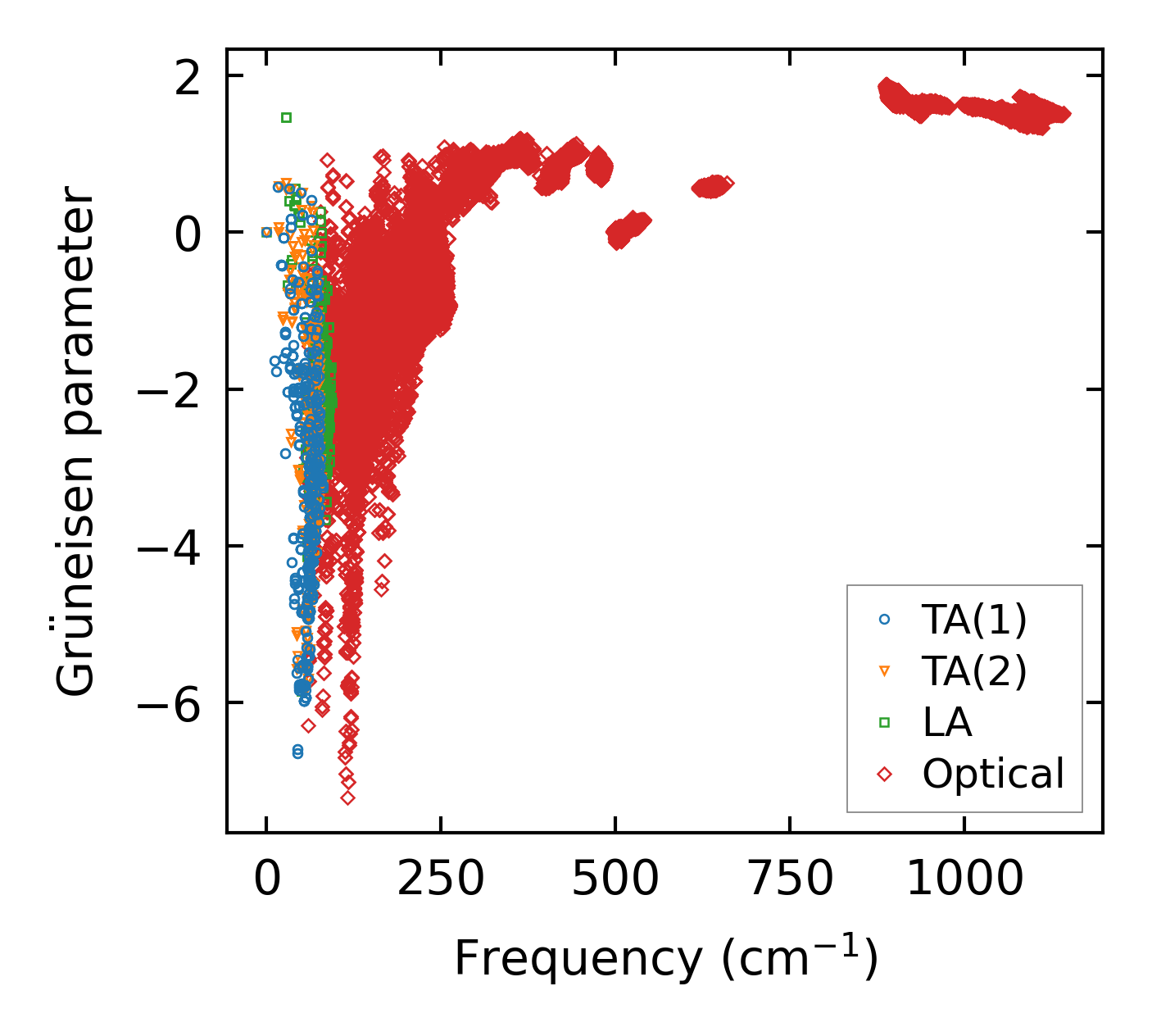

../../_images/fig_gru_all5458.png — (a) Grüneisen parameters

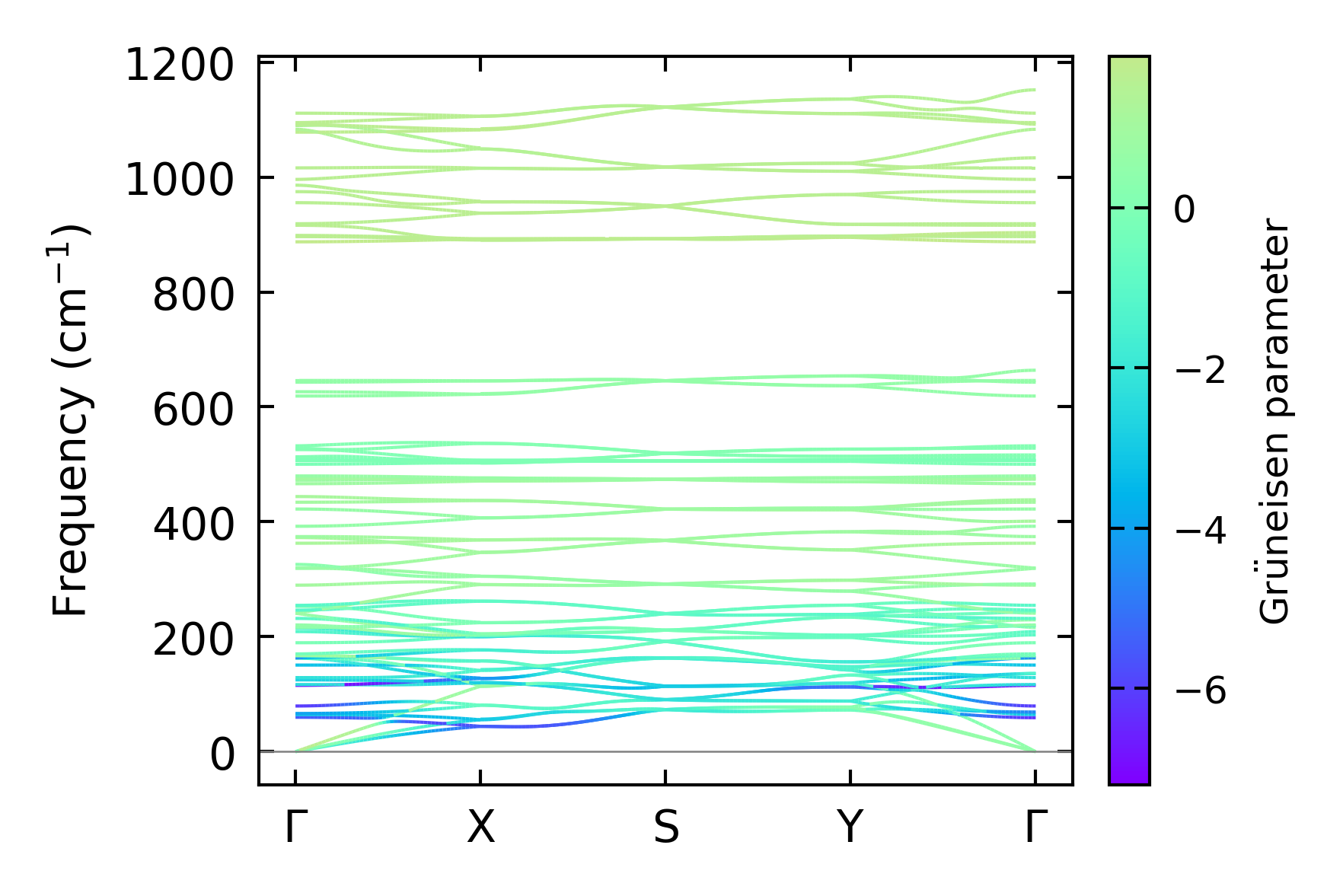

../../_images/fig_gruneisen5458.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x10x14, supercell: 1x2x2

../../_images/fig_kappa10250.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5522.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 8x10x14, supercell: 2x2x2

../../_images/fig_kappa10251.png — (a) Temperature-dependent lattice thermal conductivity

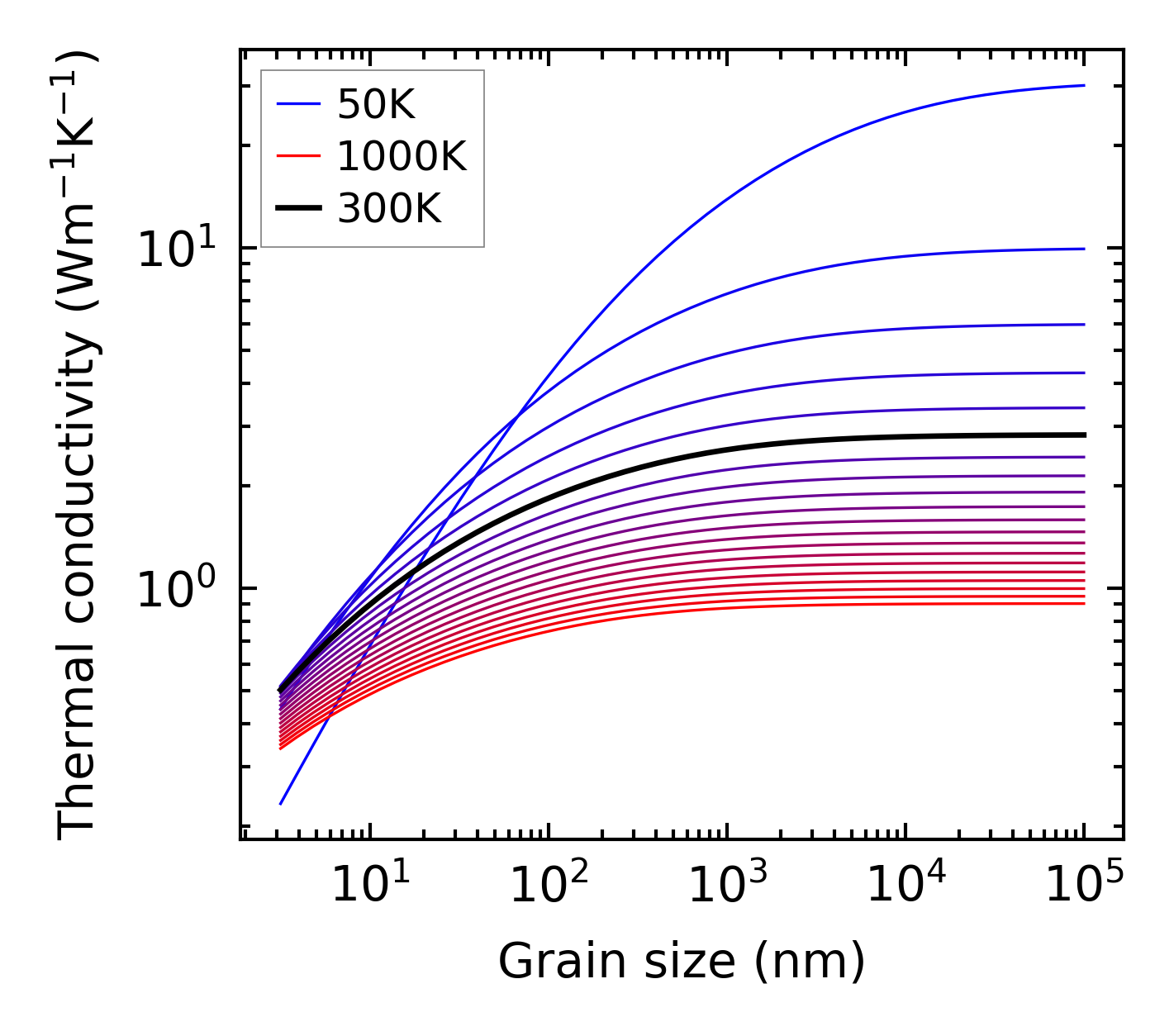

../../_images/fig_kappa_vs_grain_size5523.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5406.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5405.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

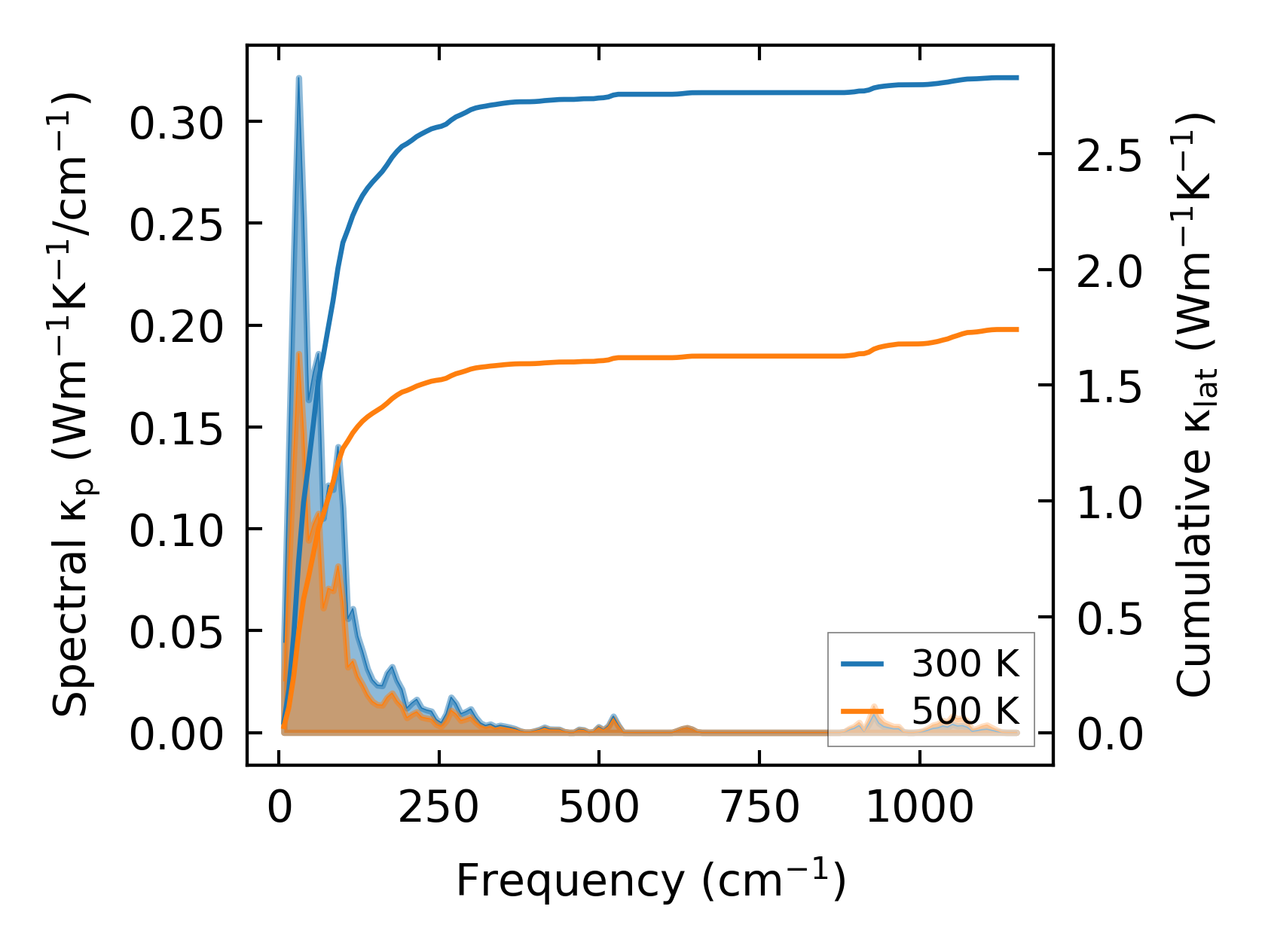

../../_images/fig_cumu_frequency5406.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

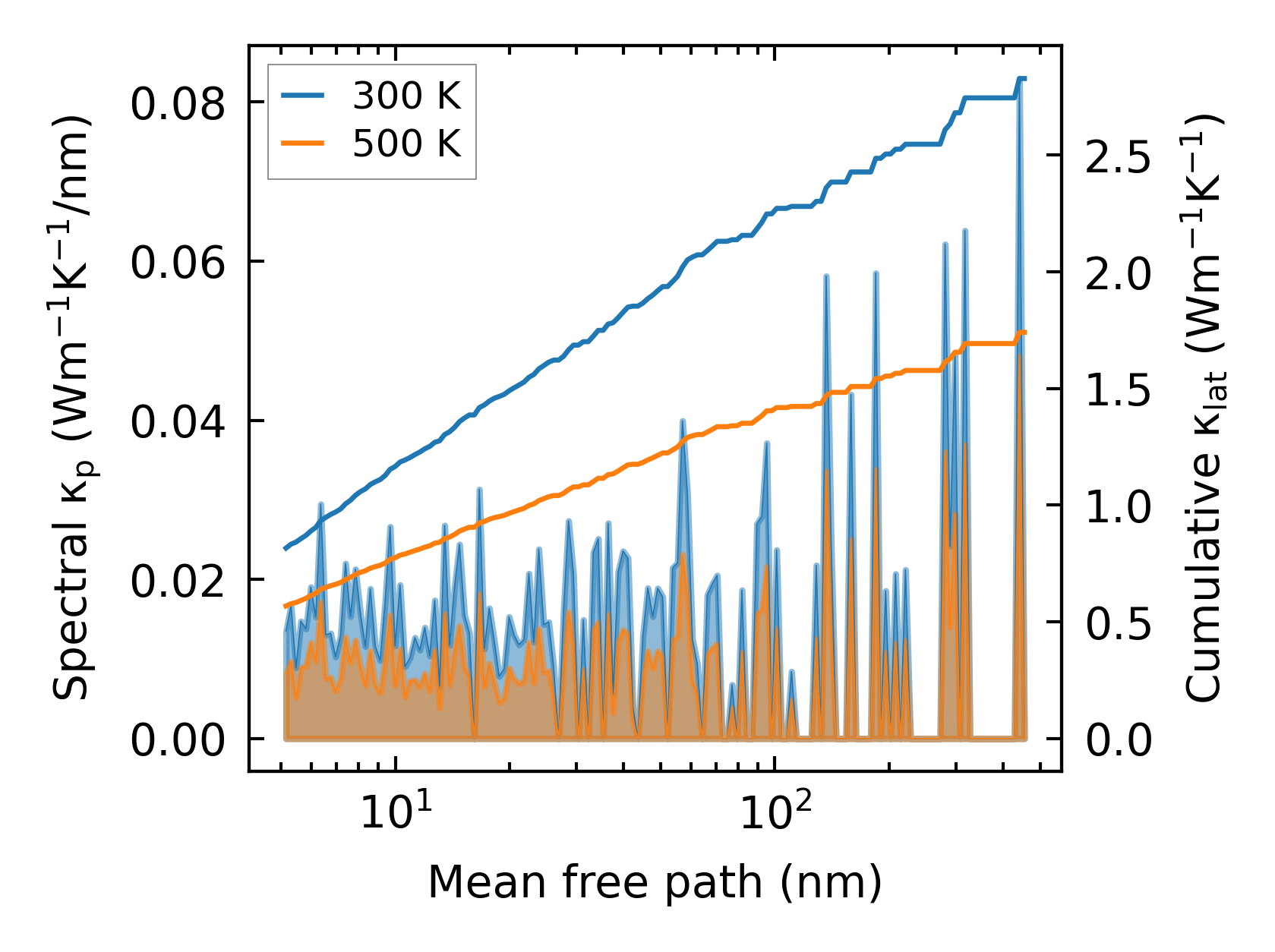

../../_images/fig_cumu_mfp5405.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

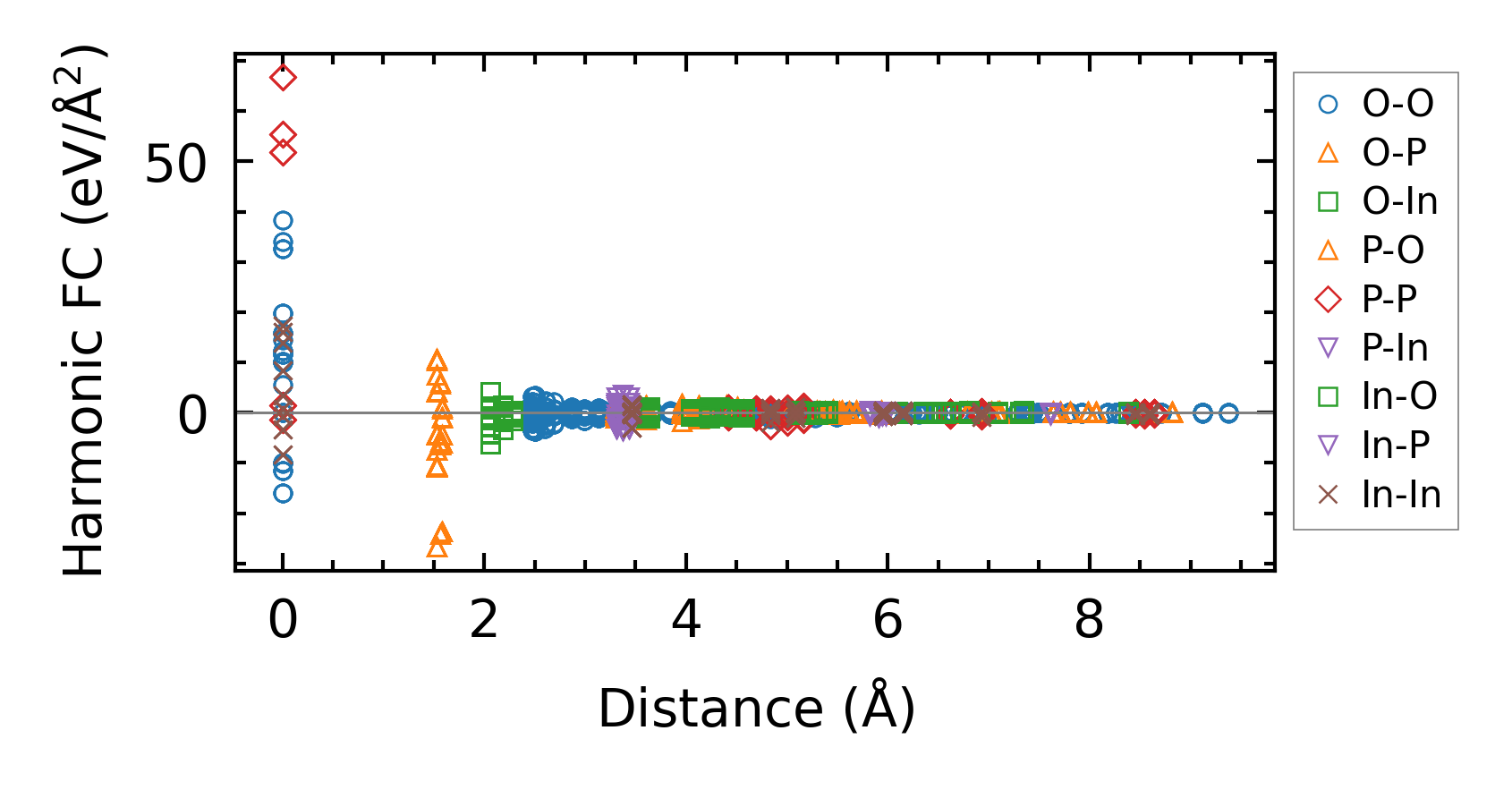

../../_images/fig_fc212756.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10252.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times22089.png — (b) Computation time
