mp-22607/ZnIn2Se4/anharm

Space group: I-4 (82)
Link: Materials Project
Download: mp-22607.tar.gz

Harmonic properties

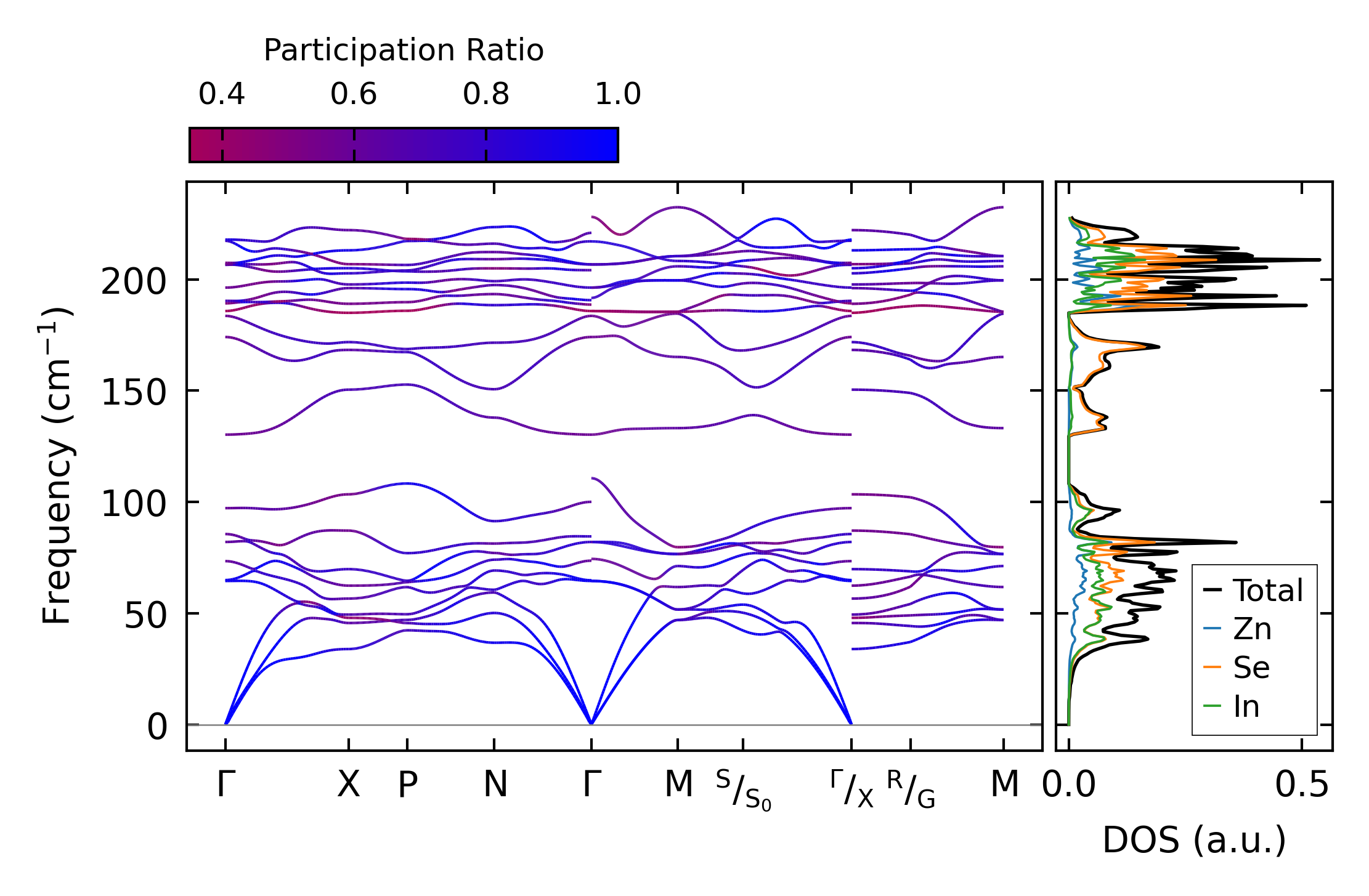

../../_images/fig_bandos_pr13084.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13084.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5462.png — (a) Grüneisen parameters

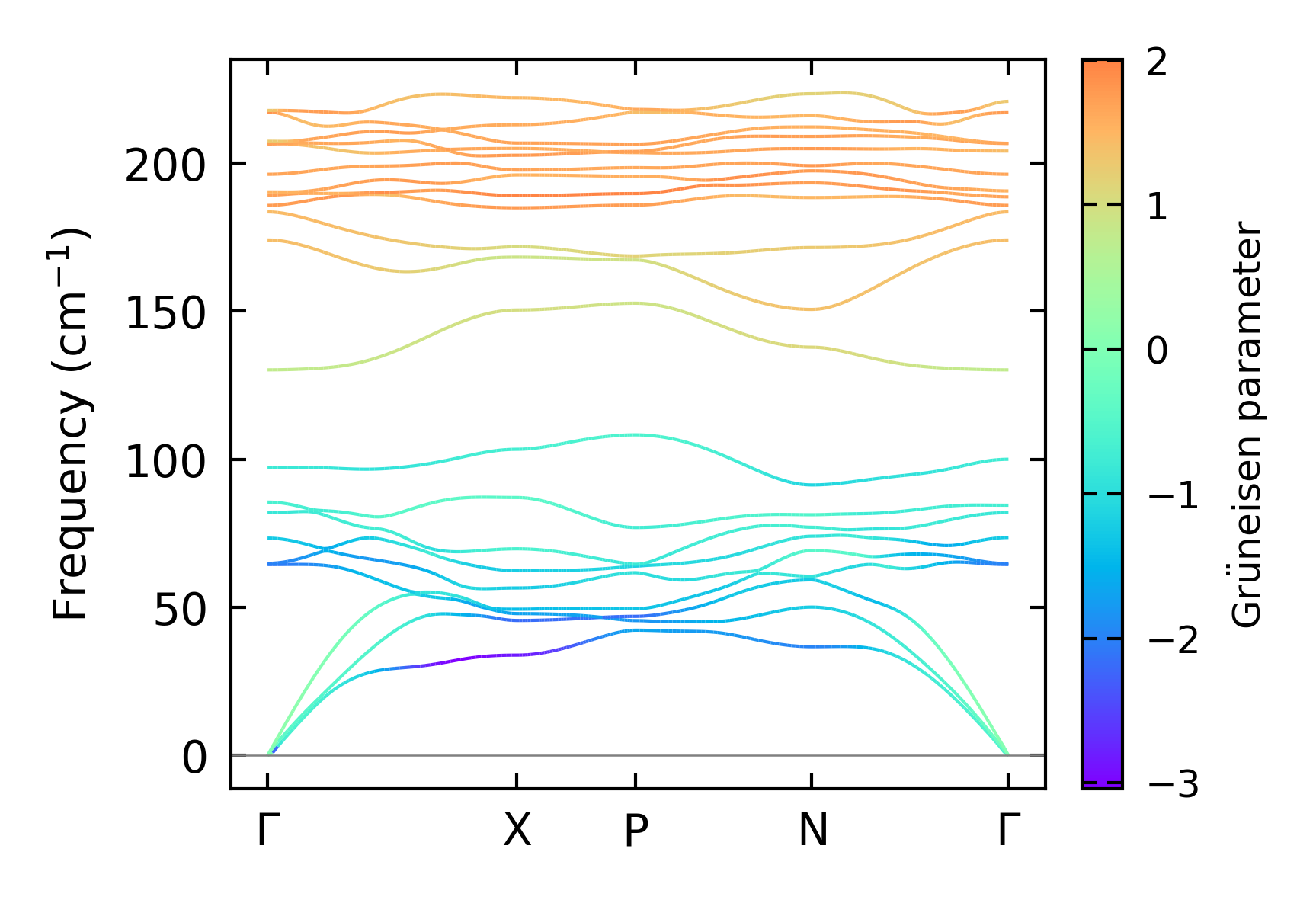

../../_images/fig_gruneisen5462.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 3x3x1

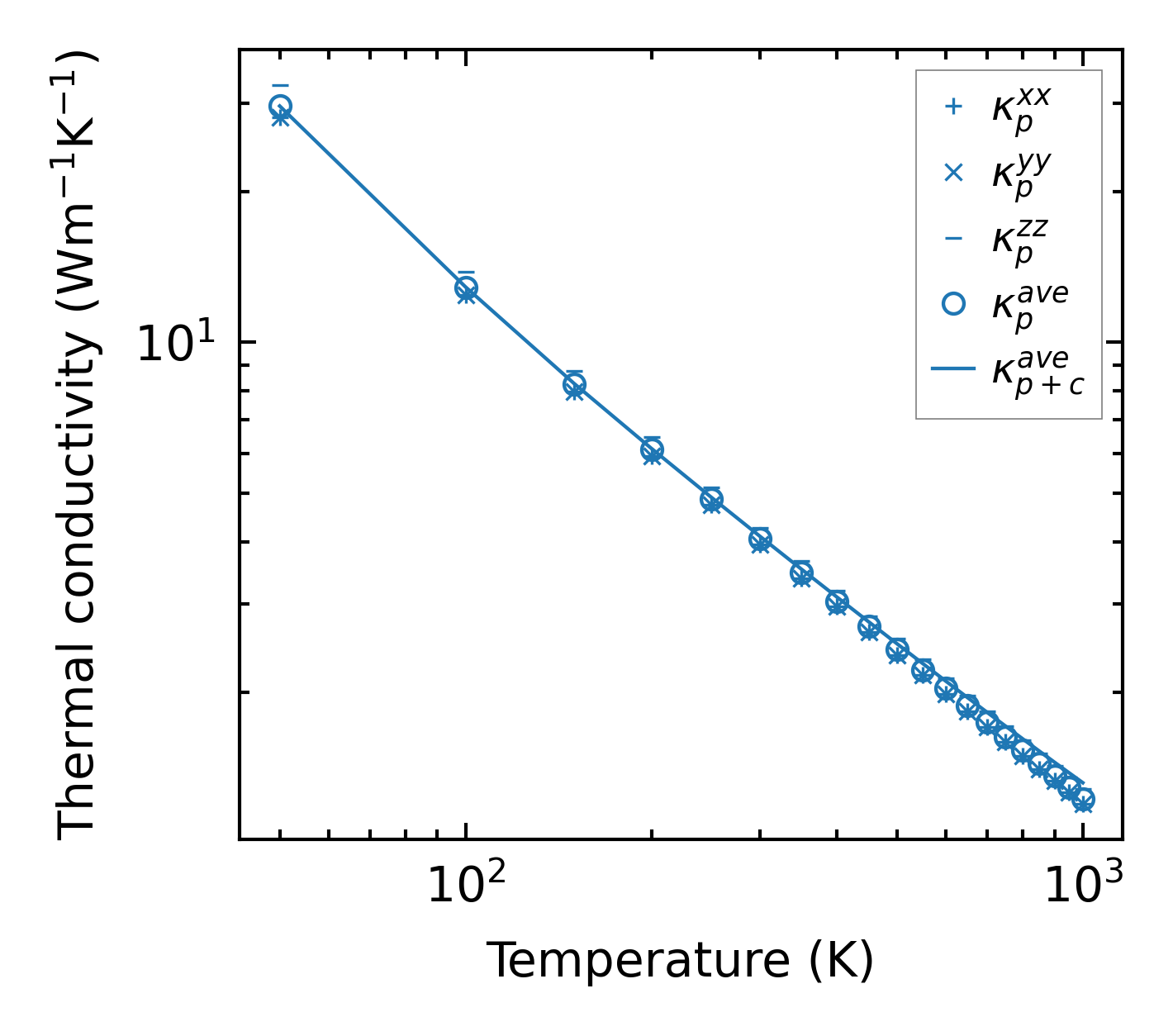

../../_images/fig_kappa10259.png — (a) Temperature-dependent lattice thermal conductivity

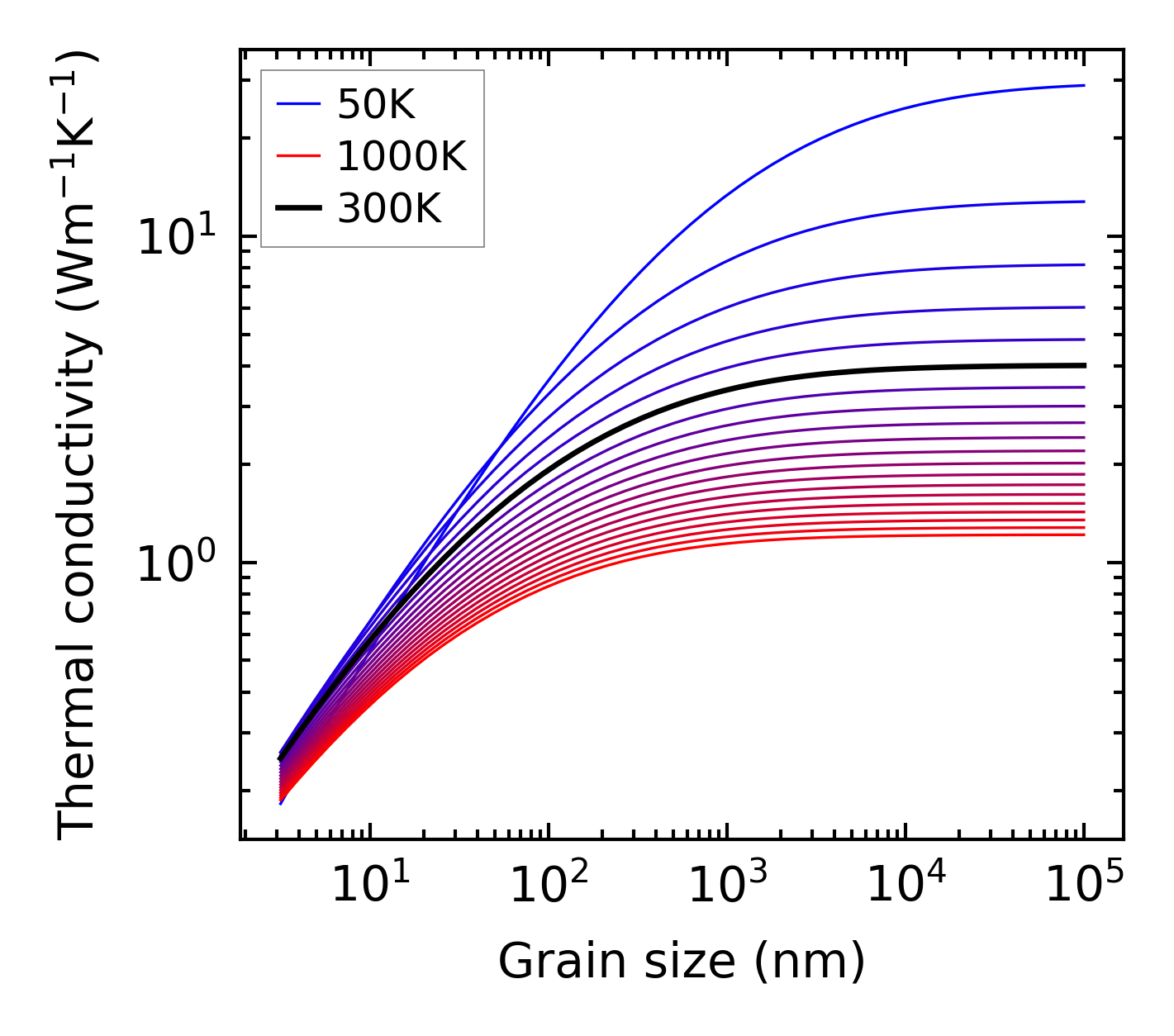

../../_images/fig_kappa_vs_grain_size5527.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5410.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5409.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

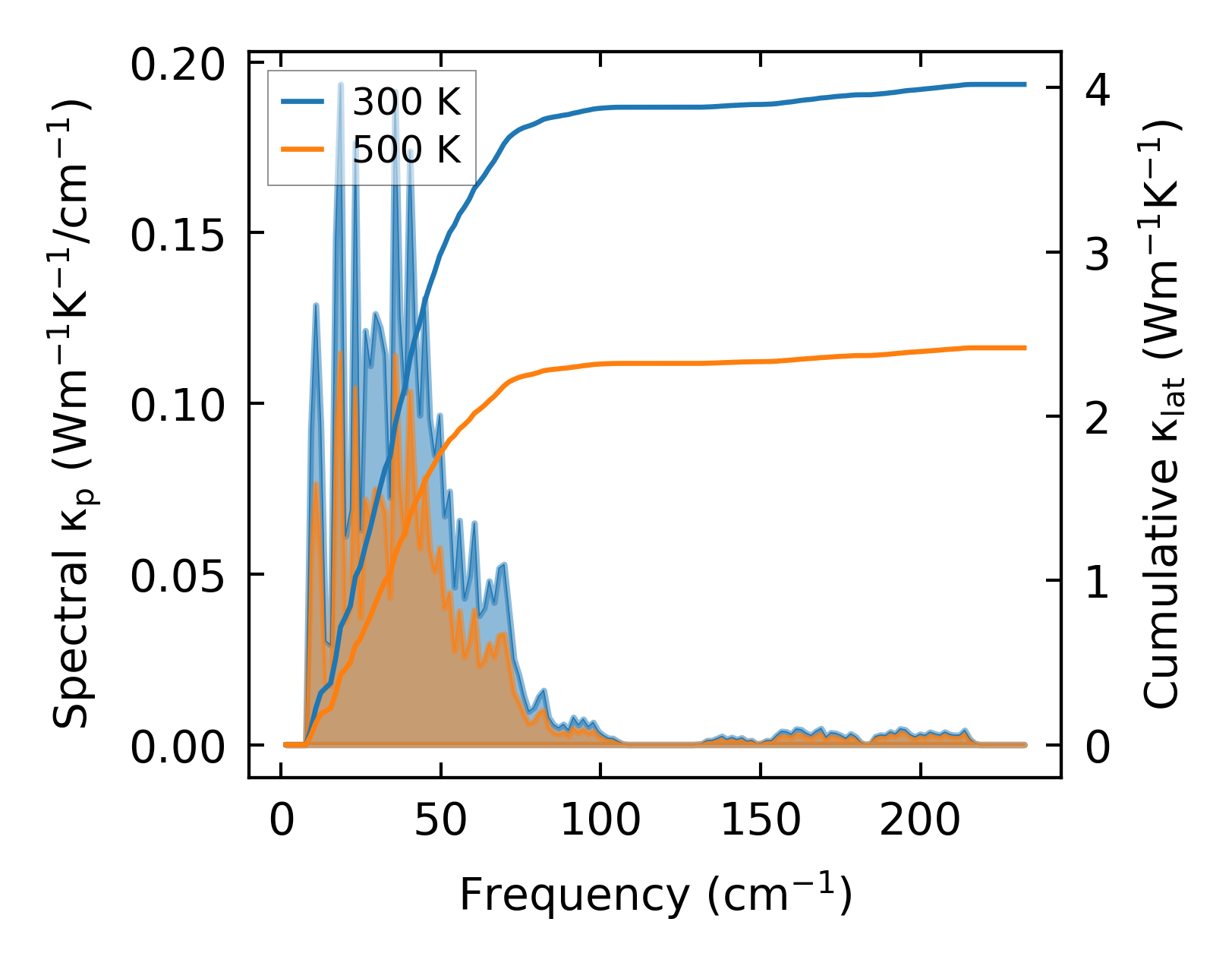

../../_images/fig_cumu_frequency5410.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

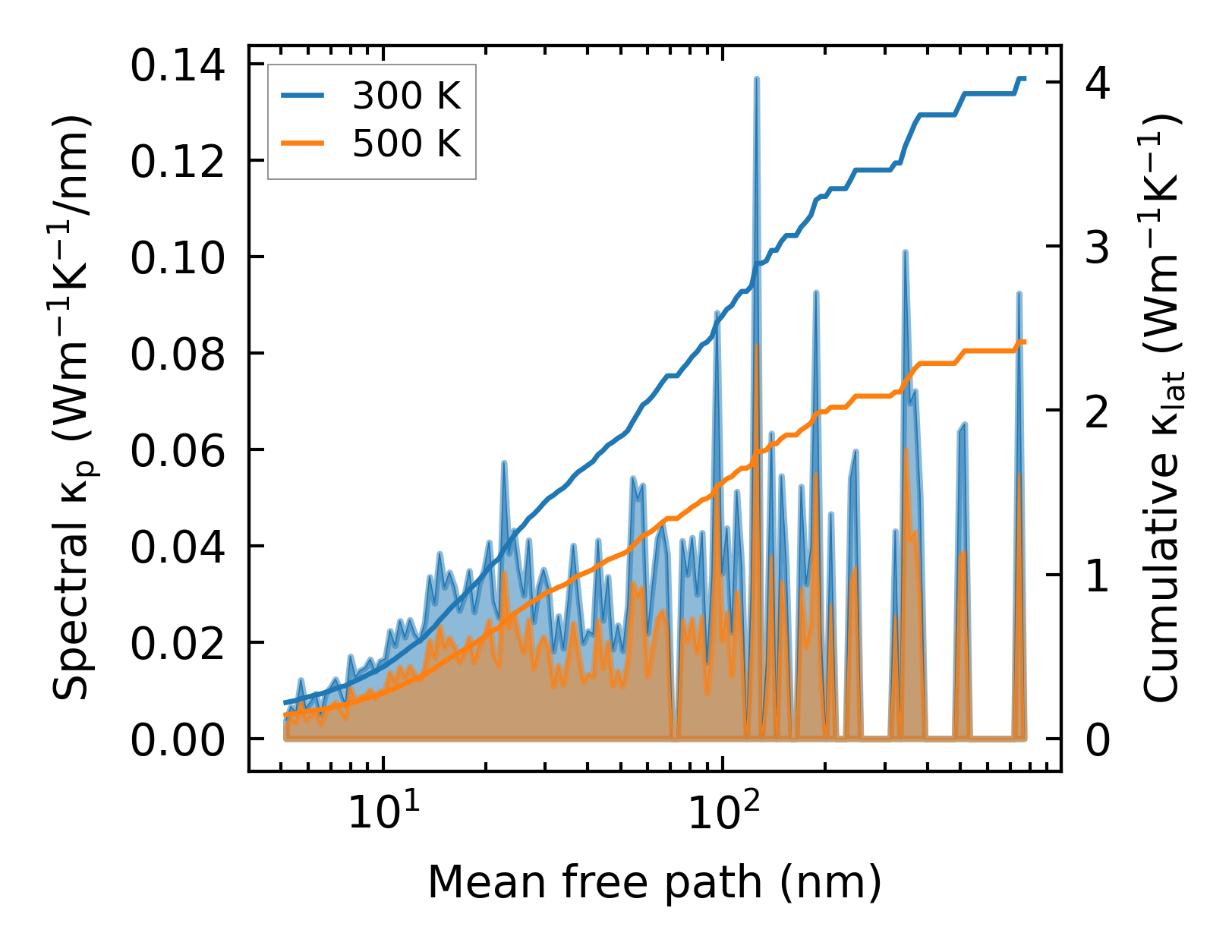

../../_images/fig_cumu_mfp5409.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

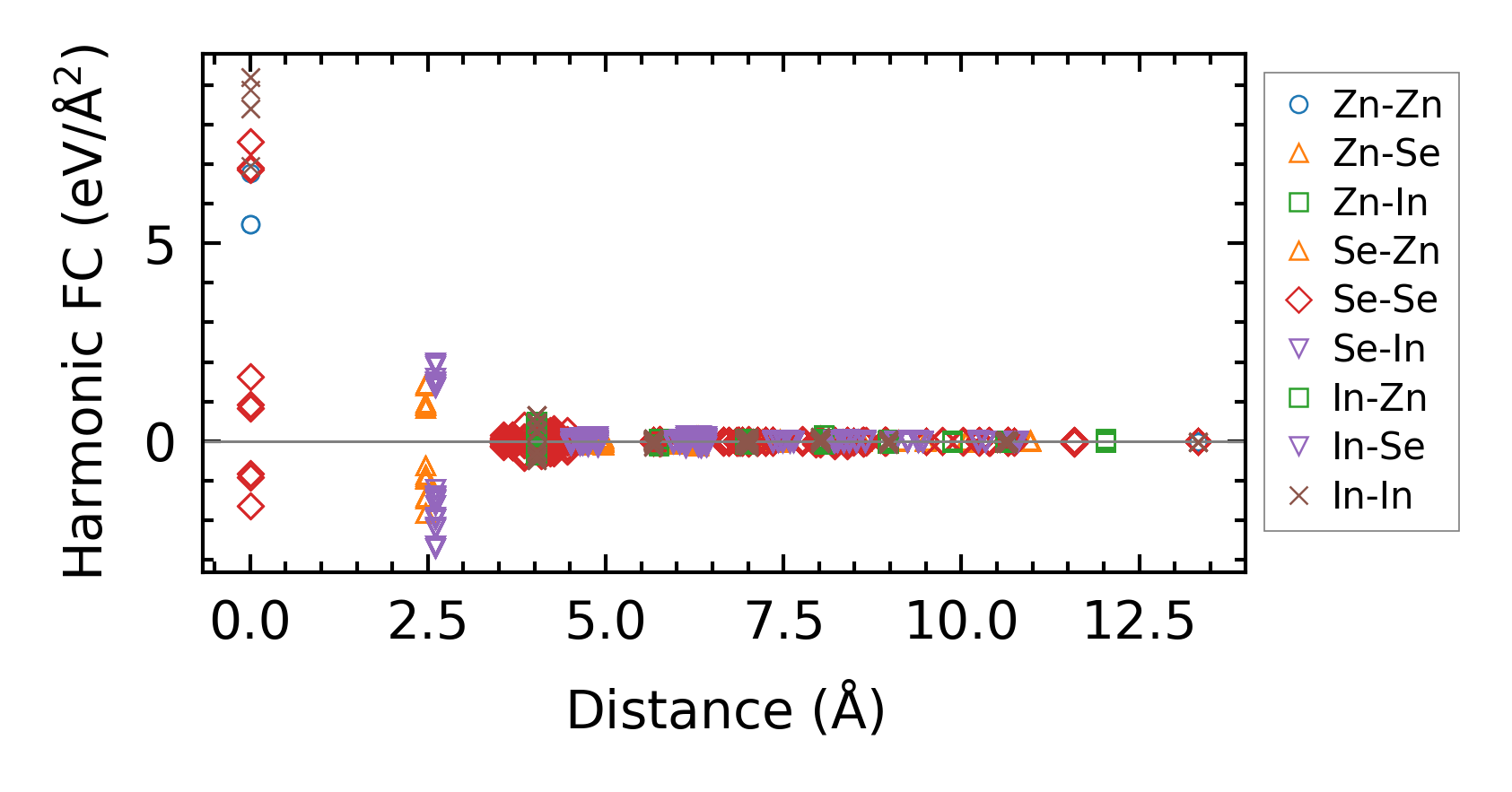

../../_images/fig_fc212762.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10260.png — (a) Temperature-dependent lattice thermal conductivity

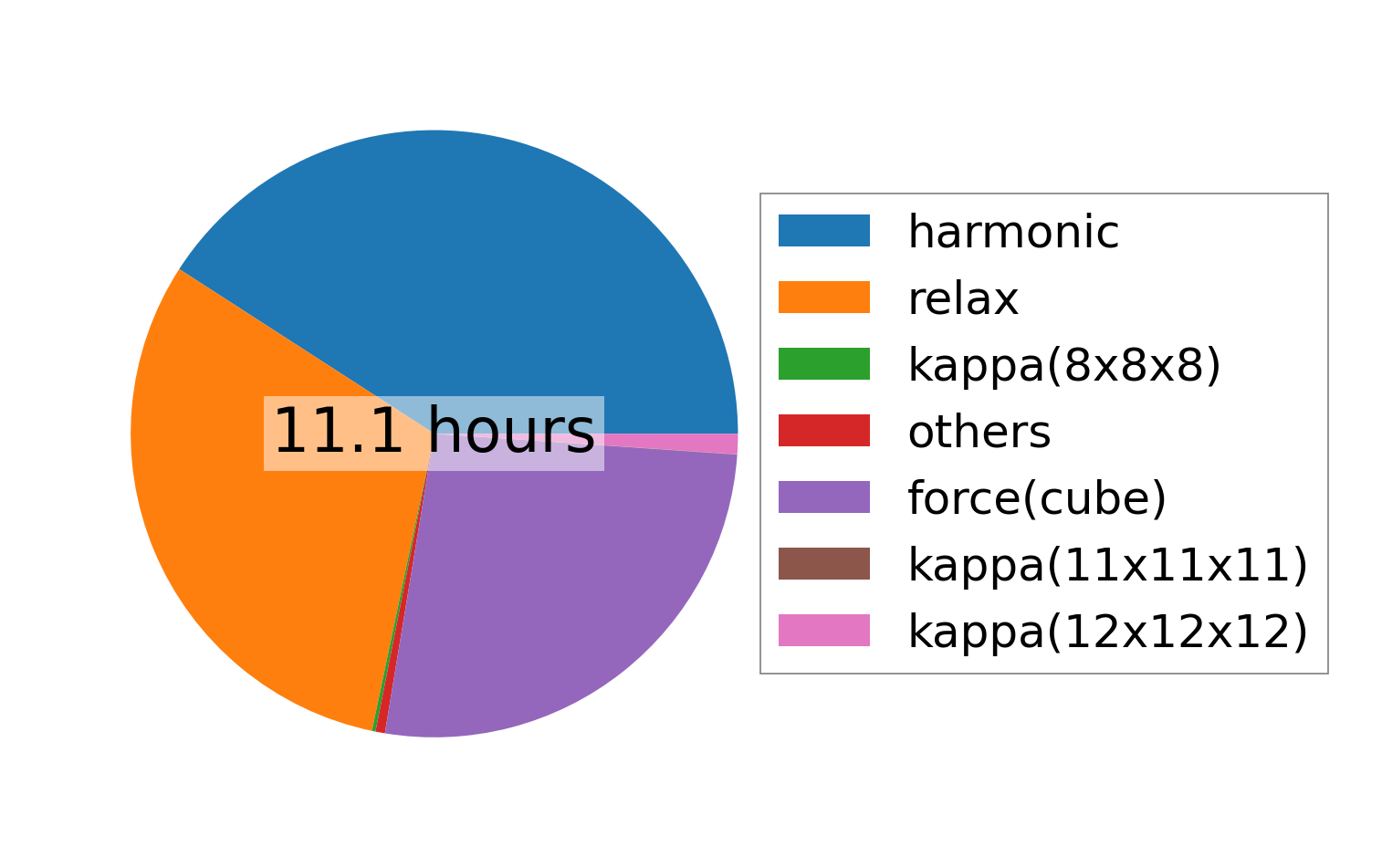

../../_images/fig_times22097.png — (b) Computation time
