mp-22899/LiI/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-22899.tar.gz

Harmonic properties

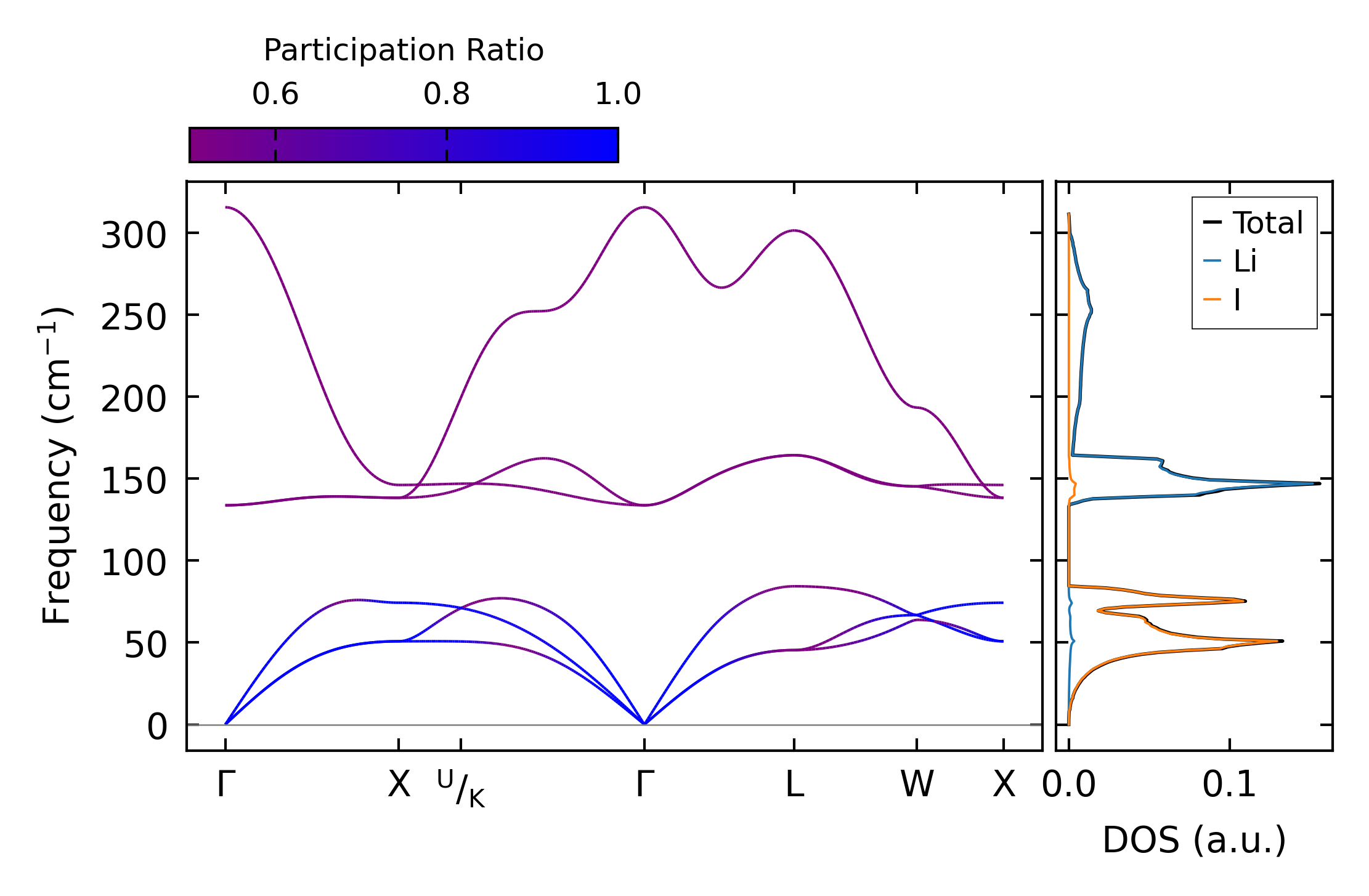

../../_images/fig_bandos_pr13129.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13129.png — (b) Thermodynamic properties

Grüneisen parameters

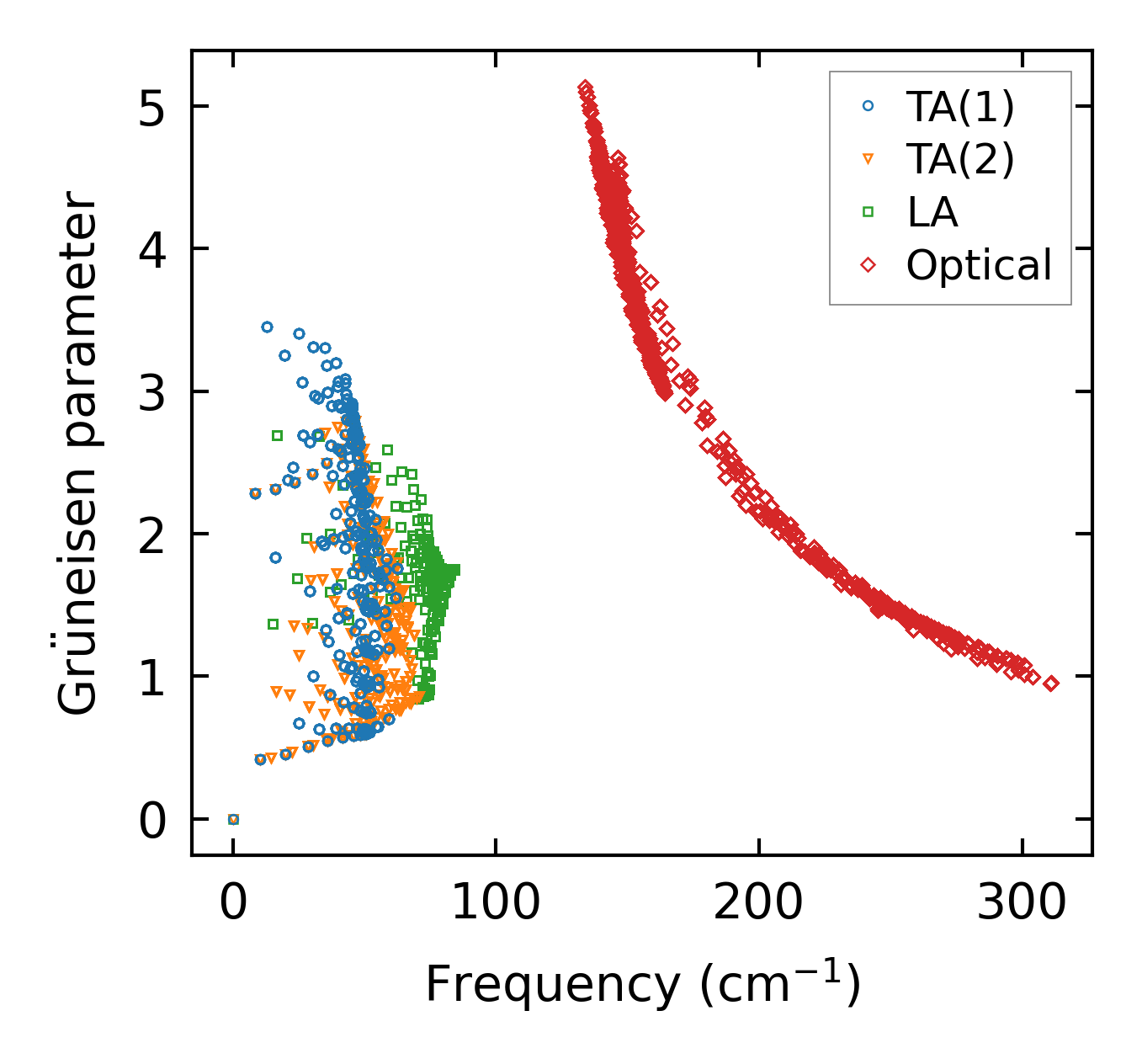

../../_images/fig_gru_all5489.png — (a) Grüneisen parameters

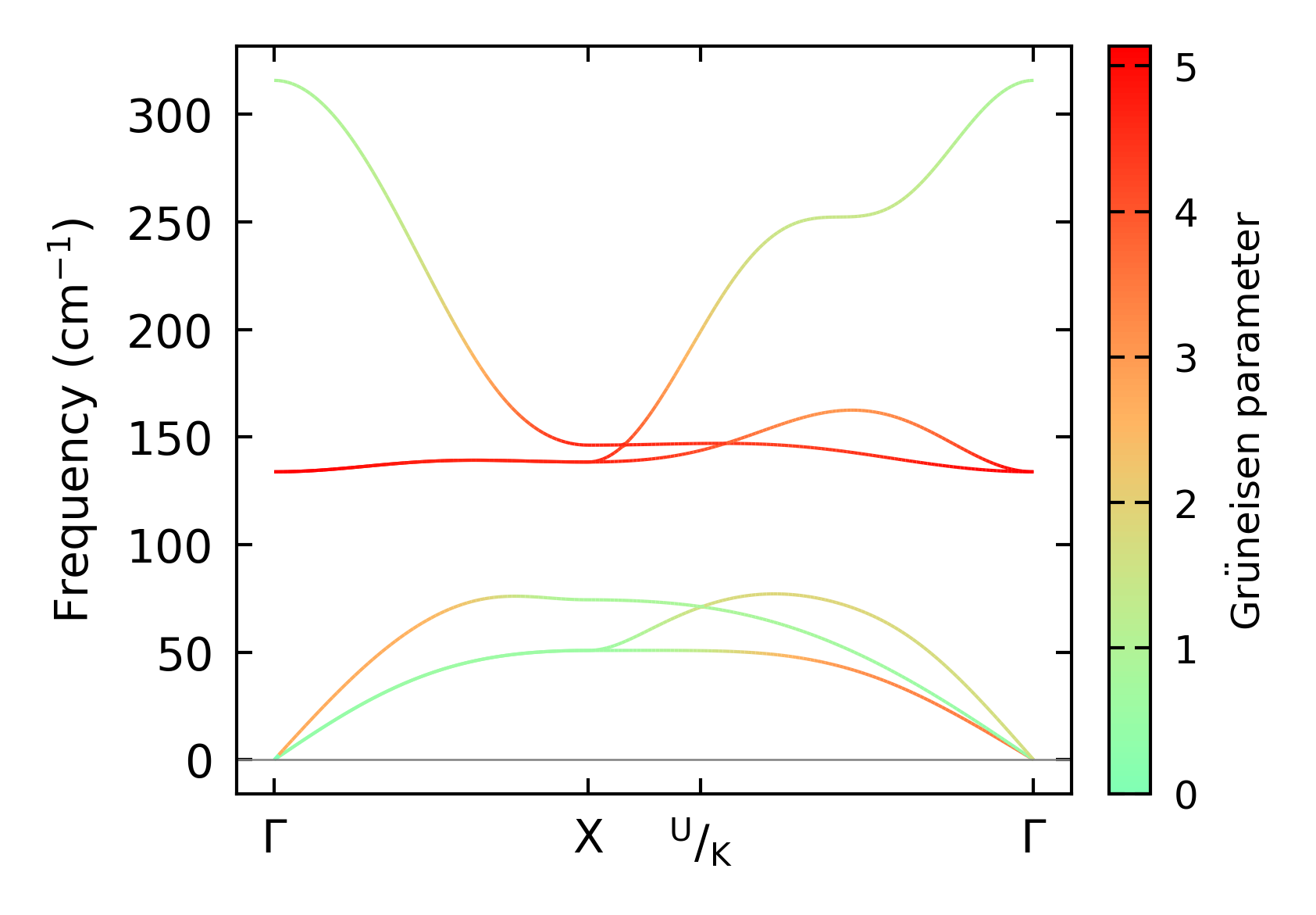

../../_images/fig_gruneisen5489.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x19, supercell: 2x2x2

../../_images/fig_kappa10308.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5555.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

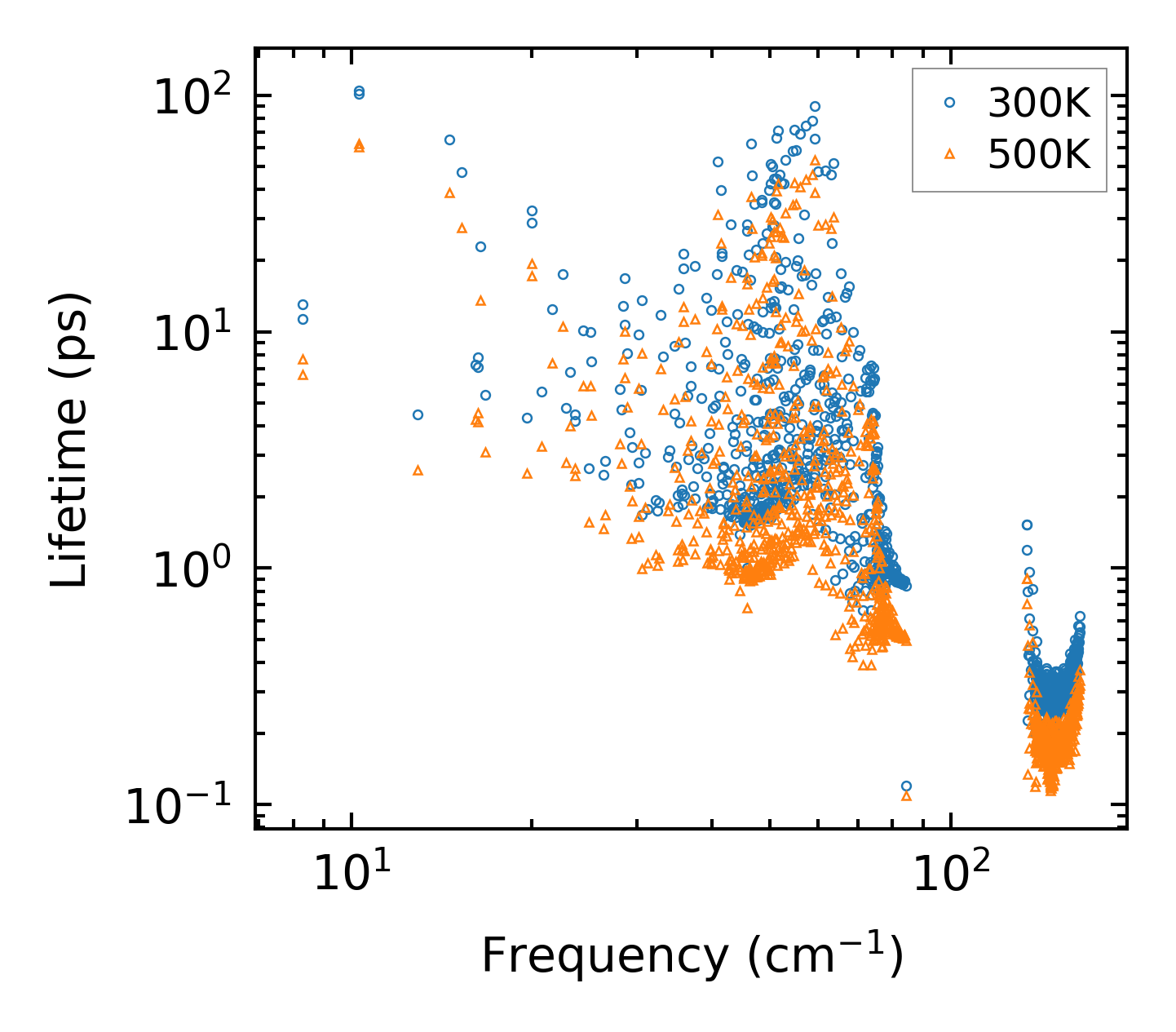

../../_images/fig_lifetime5437.png — (a) Phonon lifetime due to phonon-phonon scattering

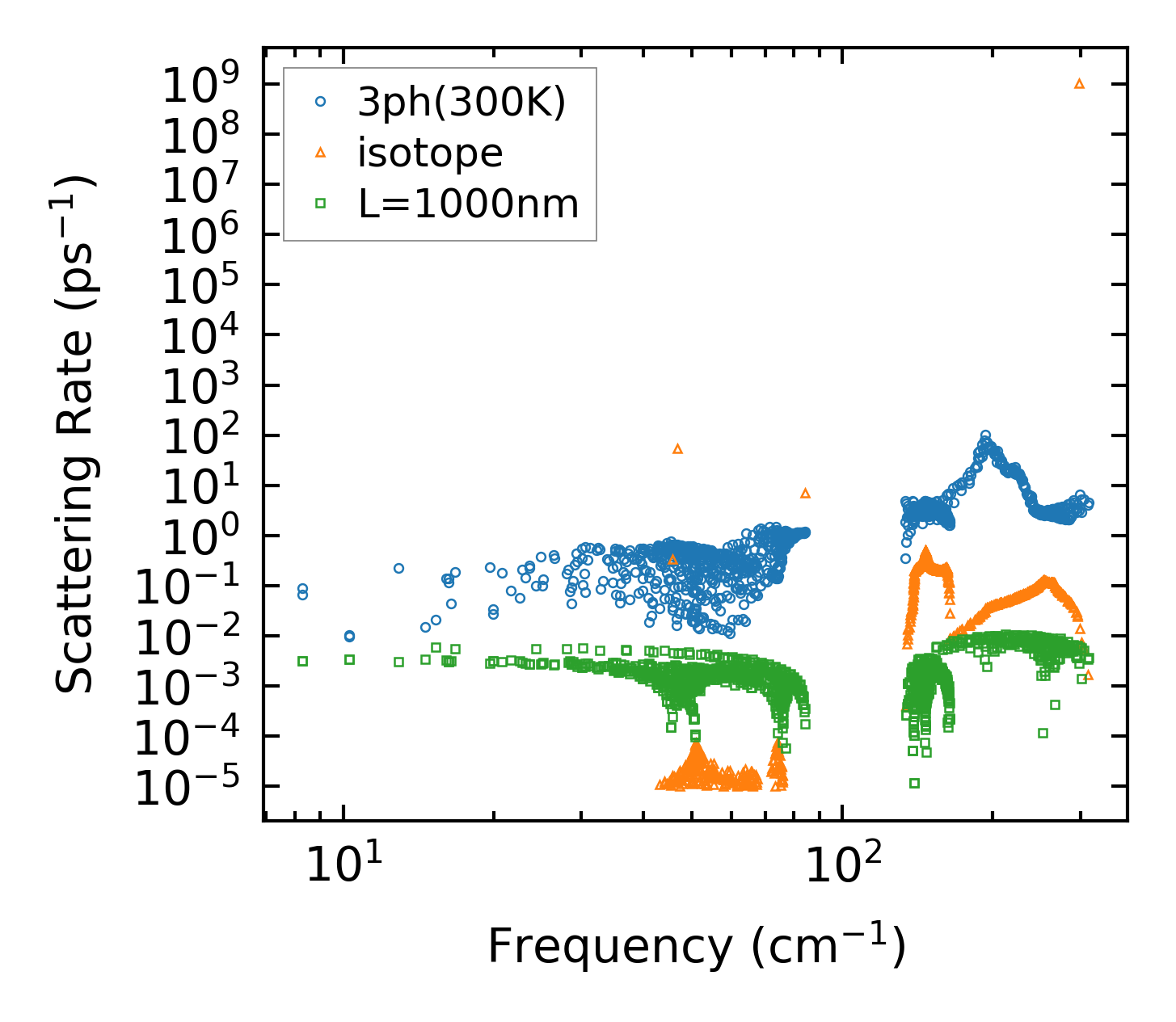

../../_images/fig_scat_rates5436.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

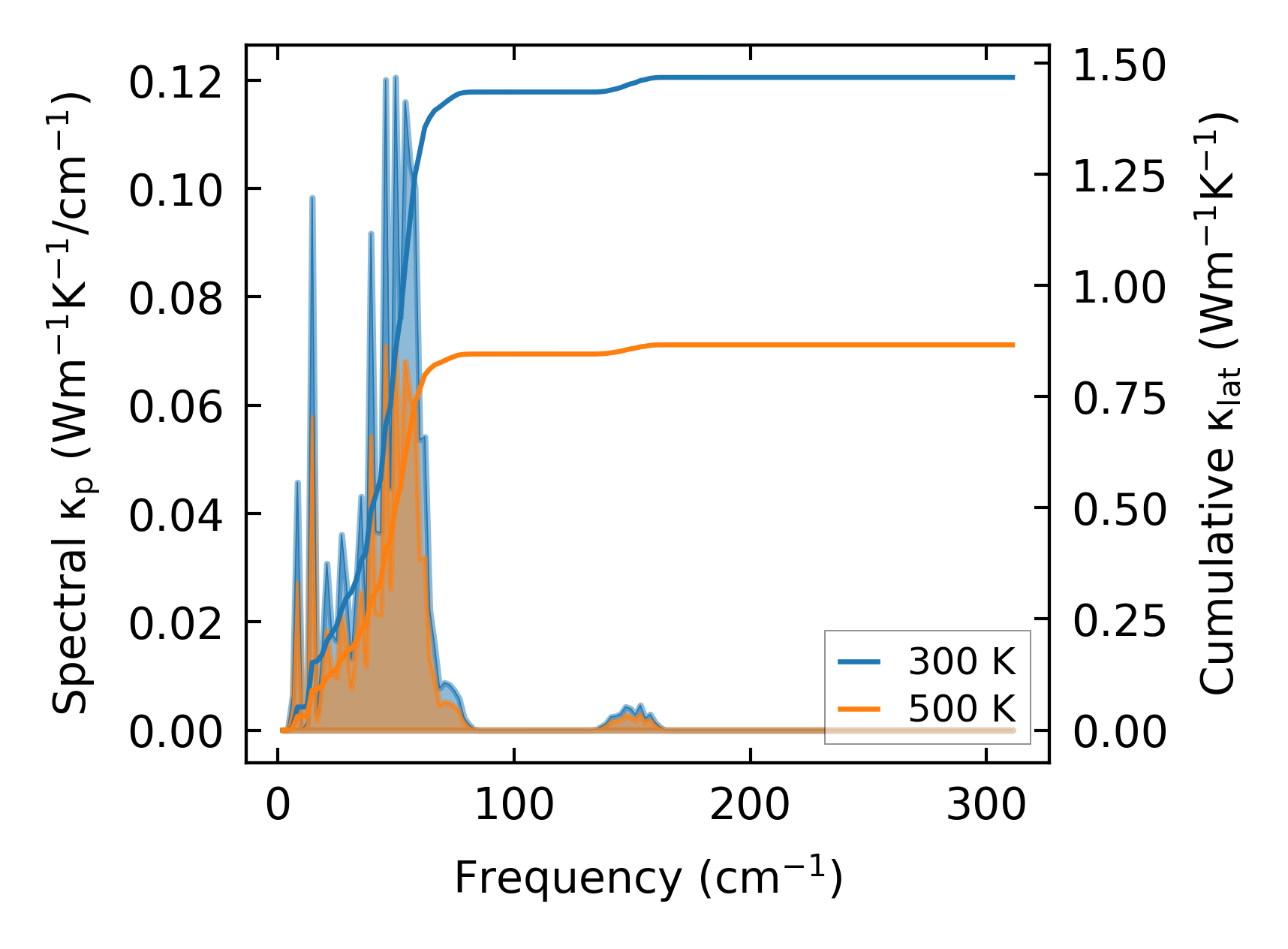

../../_images/fig_cumu_frequency5437.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5436.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

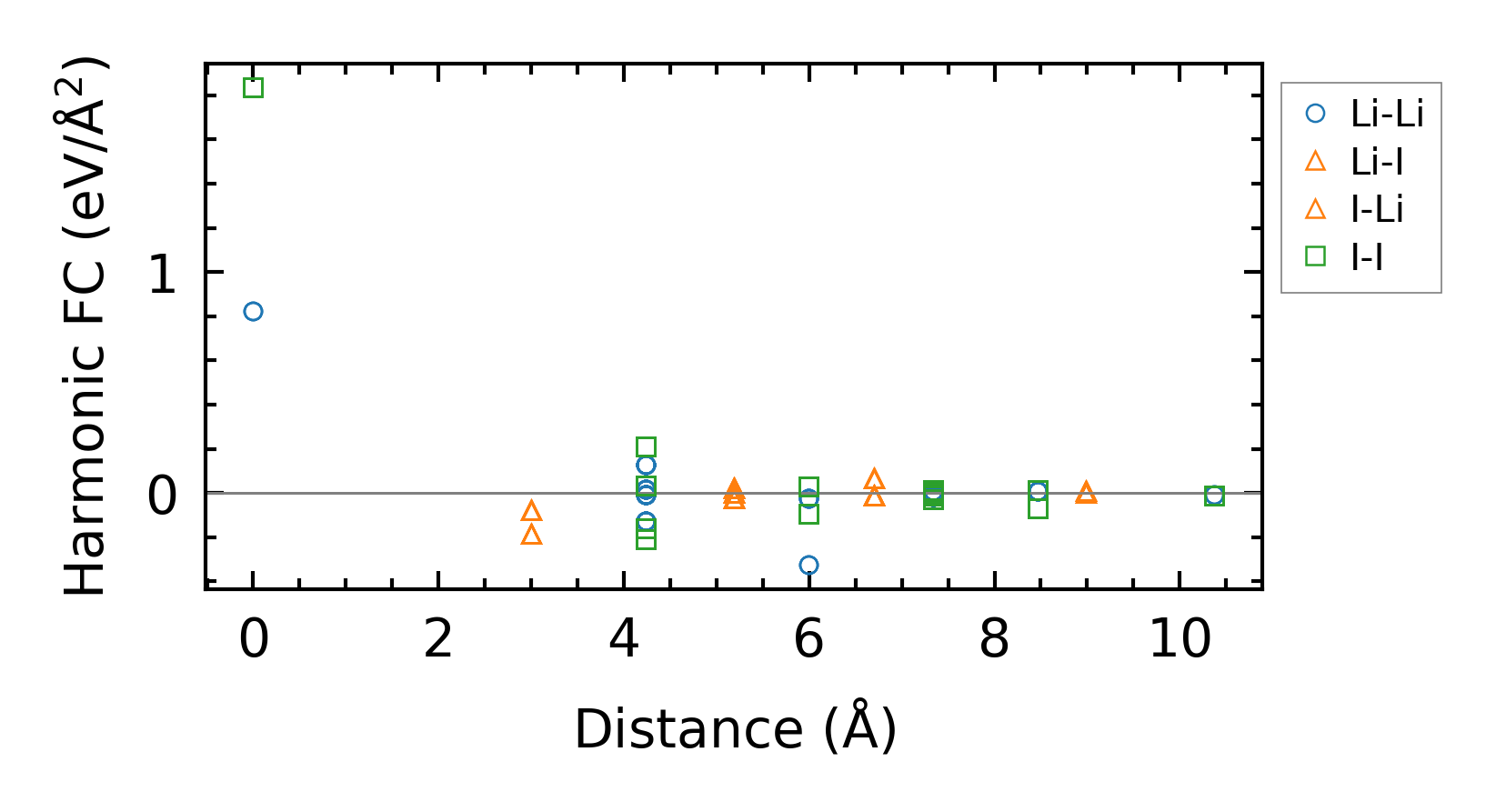

../../_images/fig_fc212798.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10309.png — (a) Temperature-dependent lattice thermal conductivity

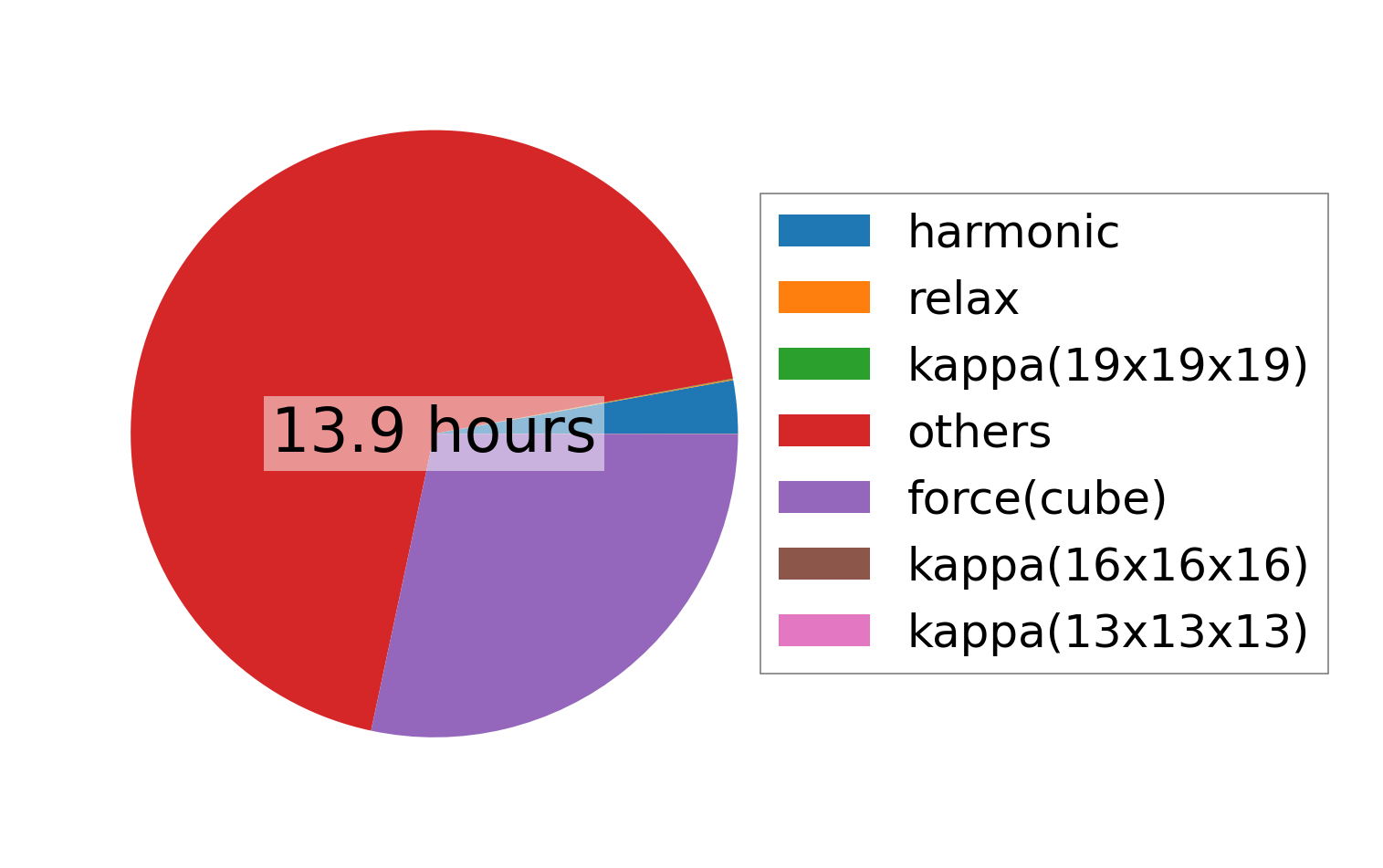

../../_images/fig_times22185.png — (b) Computation time
