mp-22410/PbWO4/anharm

Space group: I4_1/a (88)
Link: Materials Project
Download: mp-22410.tar.gz

Equation of state

../../_images/fig_bm6516.png — (a) Equation of state

Harmonic properties

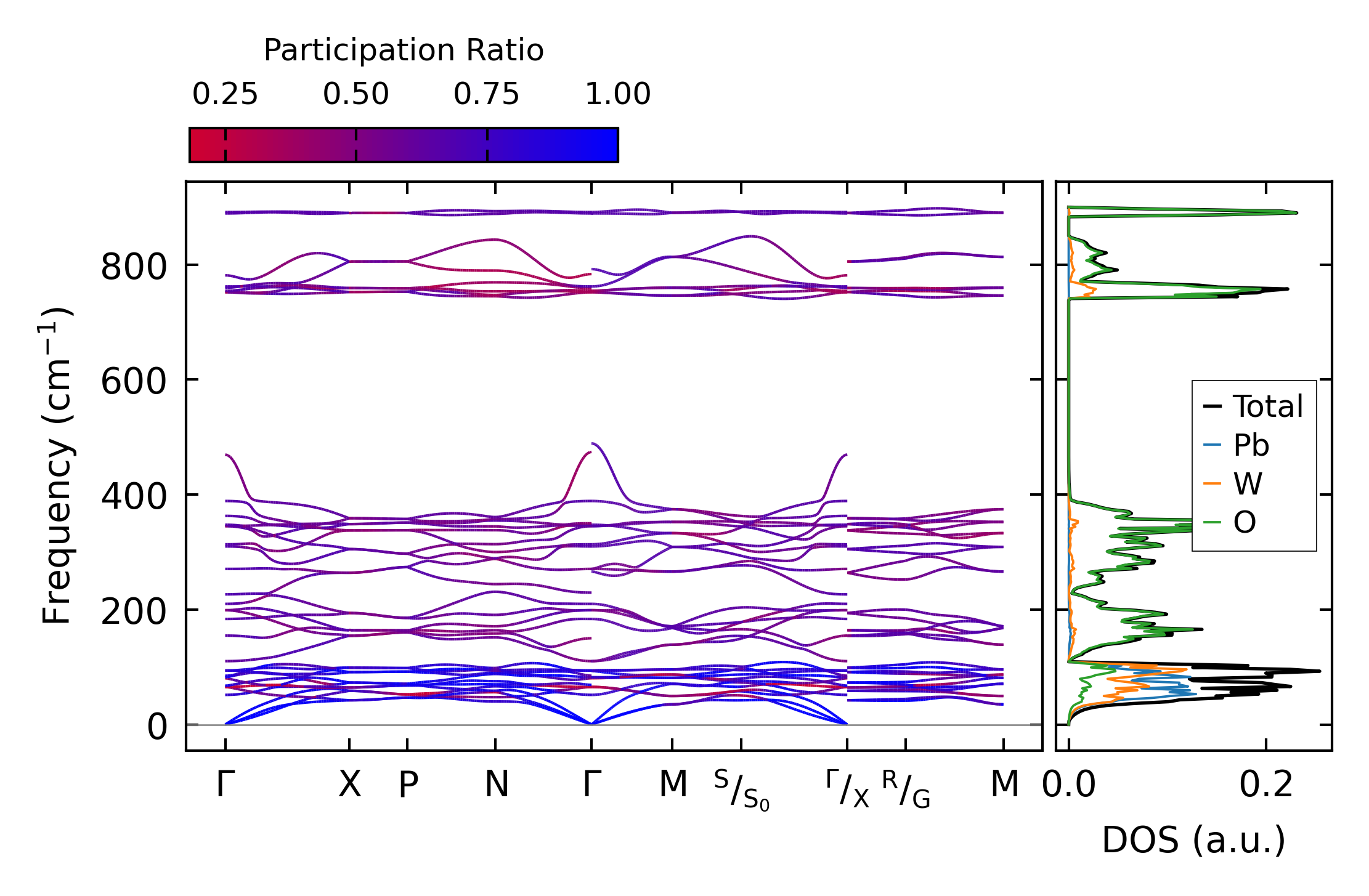

../../_images/fig_bandos_pr13058.png — (a) Phonon dispersion with participation ratio and DOS

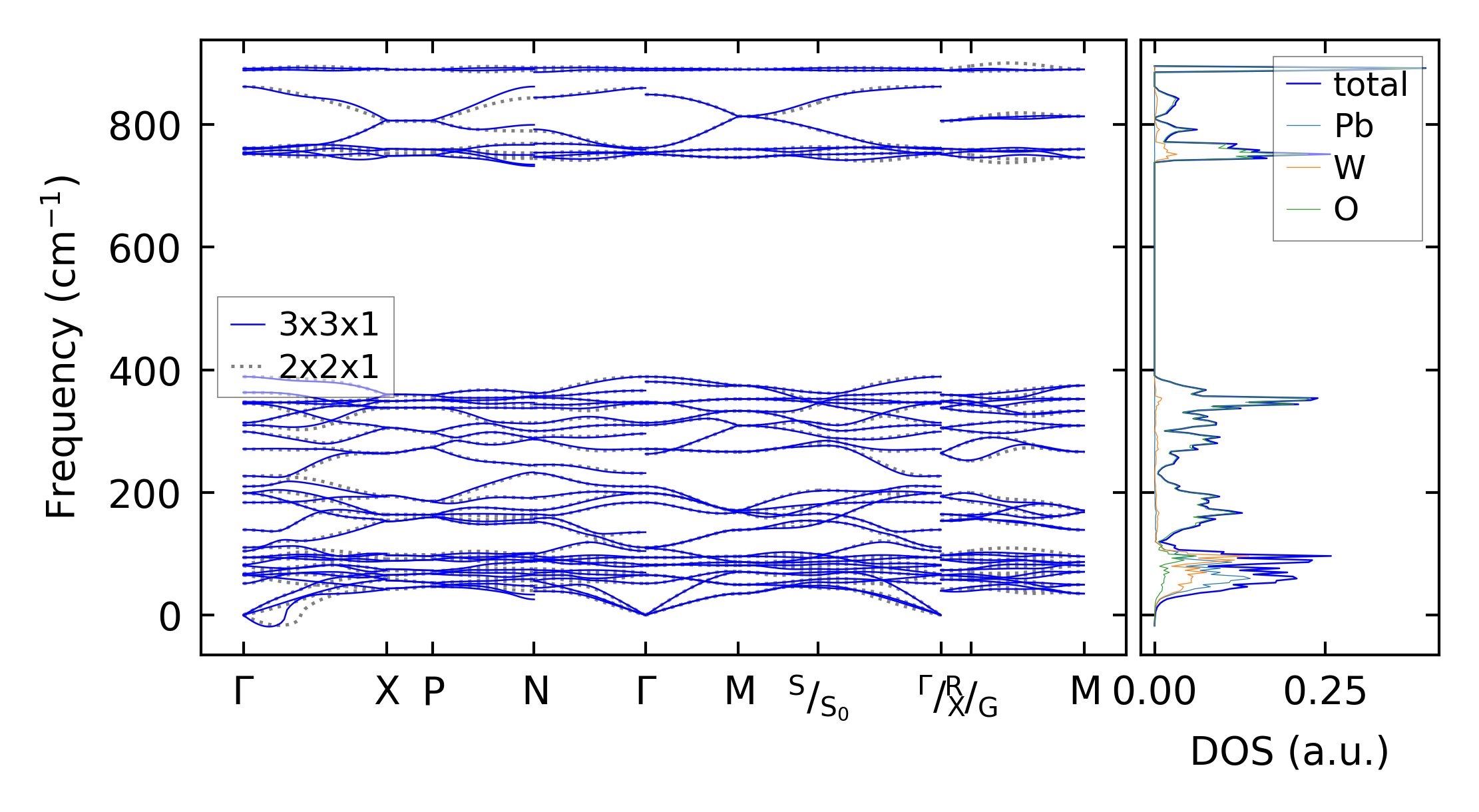

../../_images/fig_bandos17430.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13058.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5446.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5446.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x1

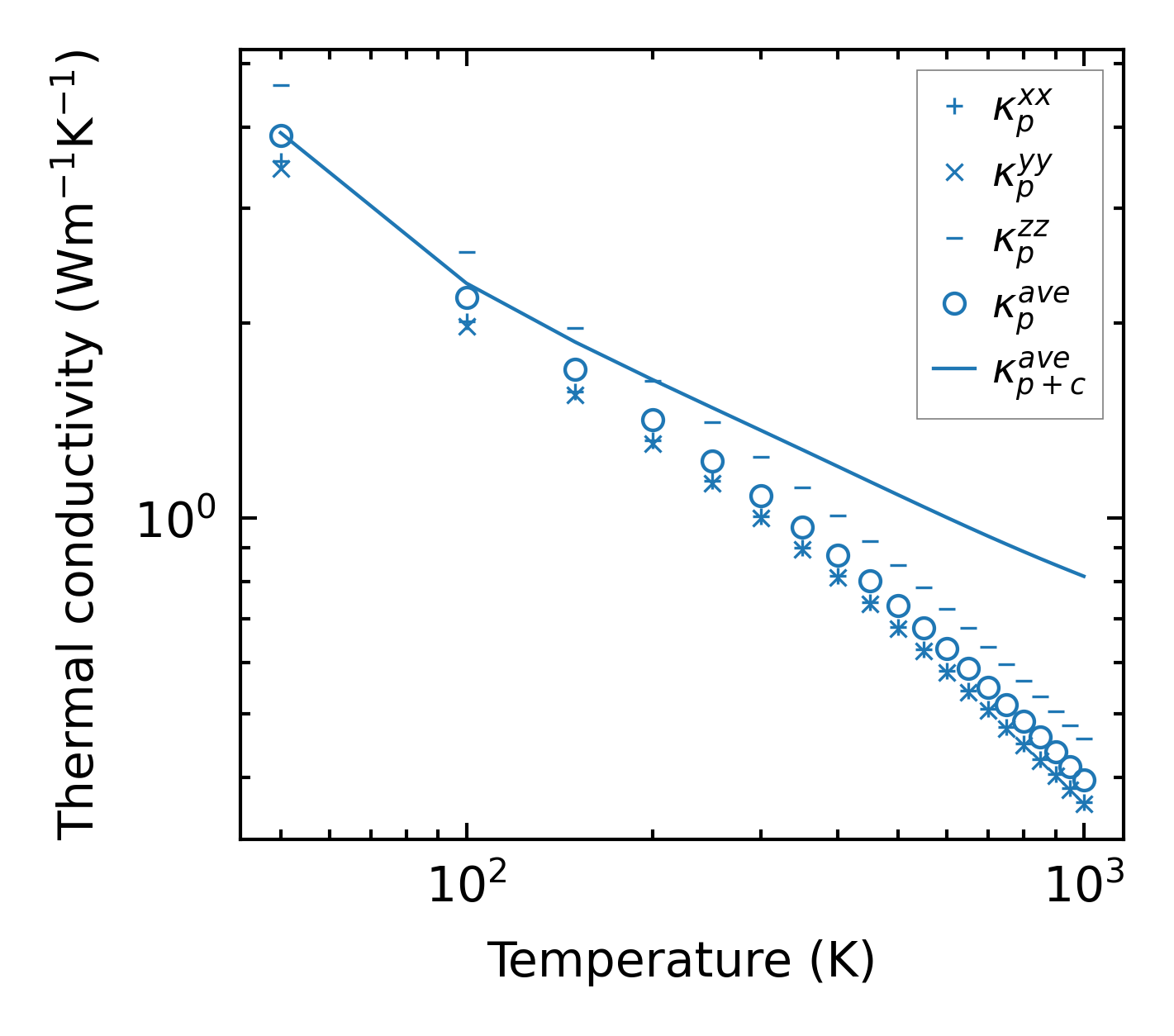

../../_images/fig_kappa10228.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5510.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5394.png — (a) Phonon lifetime due to phonon-phonon scattering

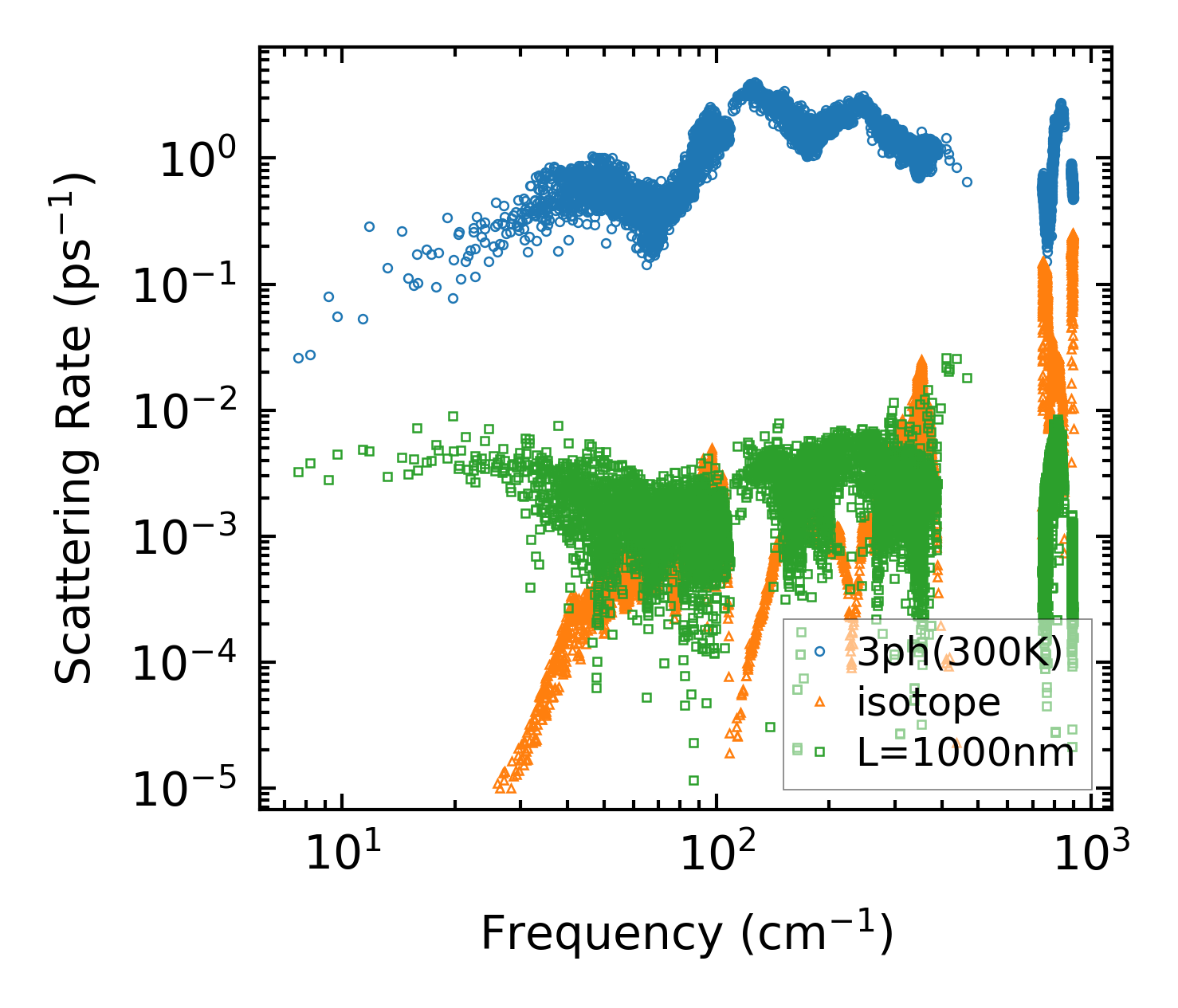

../../_images/fig_scat_rates5393.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

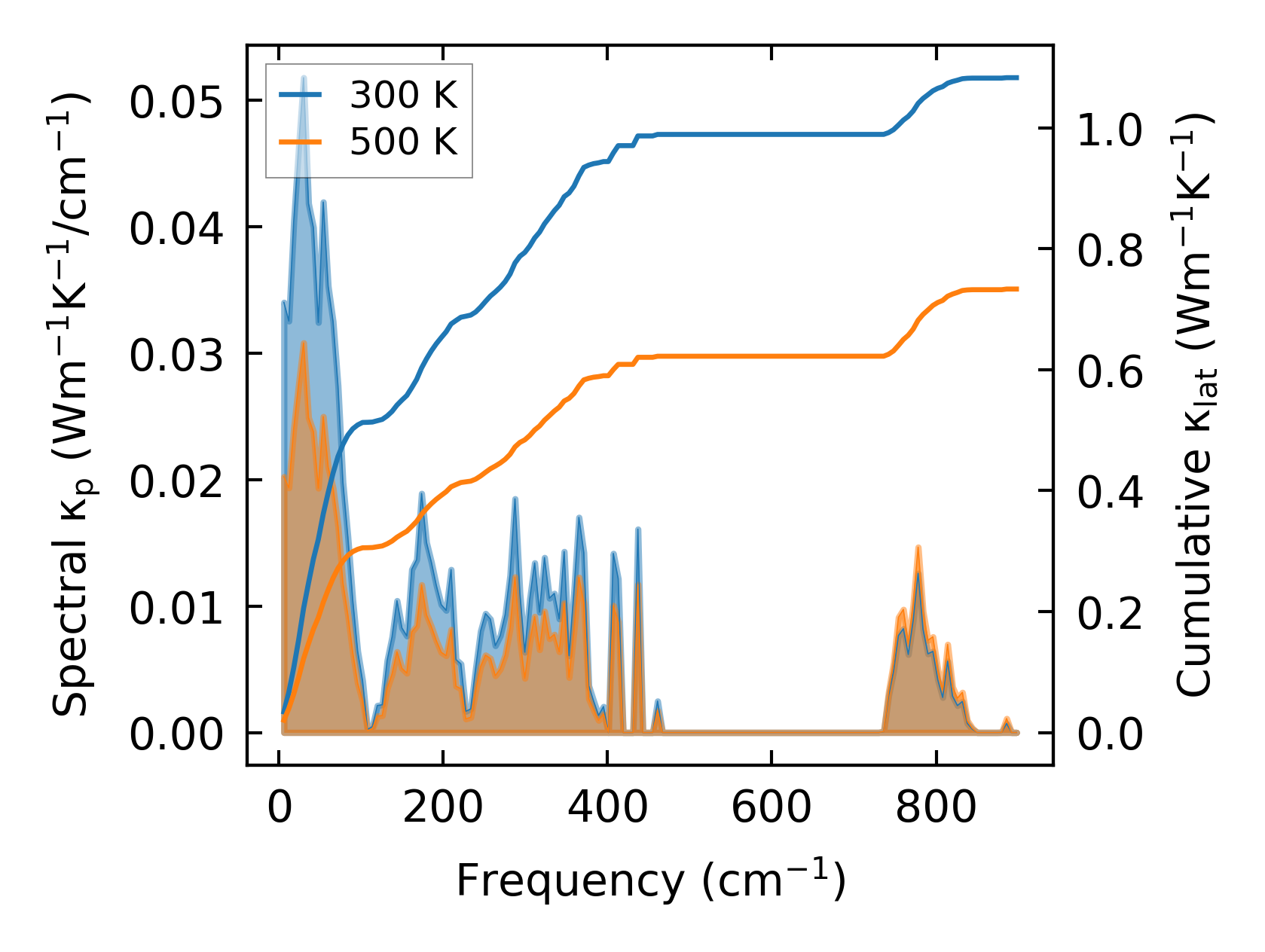

../../_images/fig_cumu_frequency5394.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

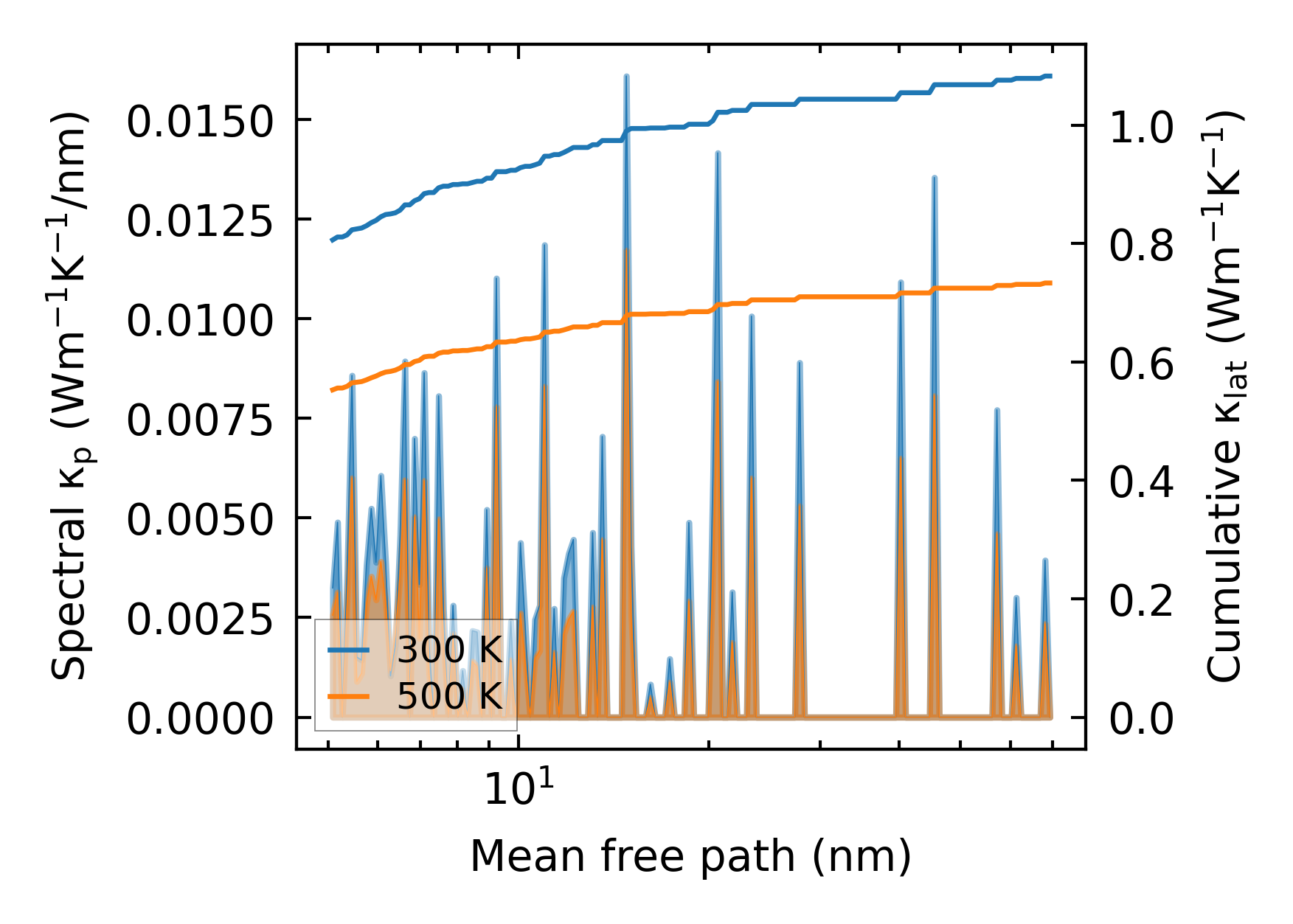

../../_images/fig_cumu_mfp5393.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

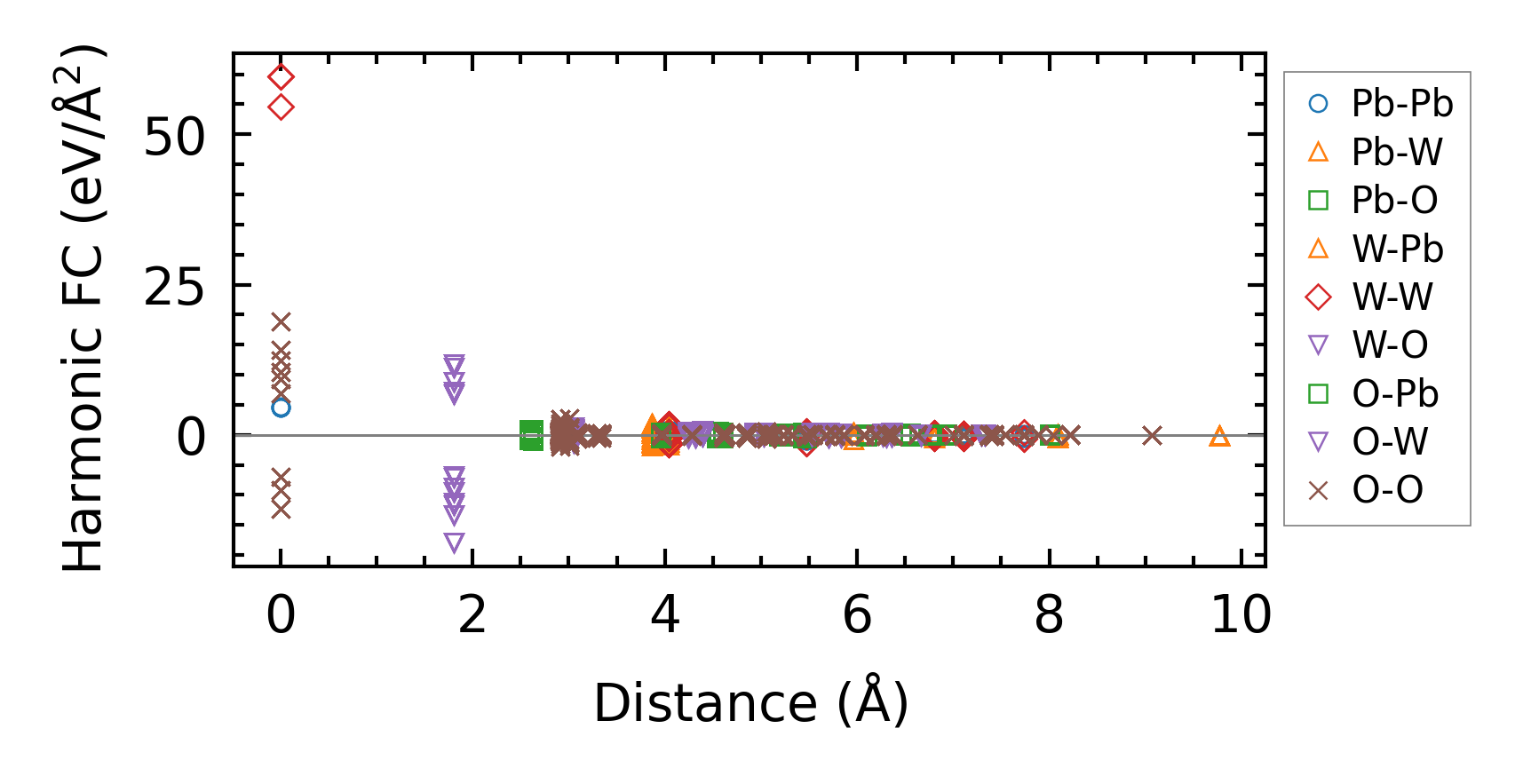

../../_images/fig_fc212737.png — (a) Force constants w.r.t atomic distance

Summary

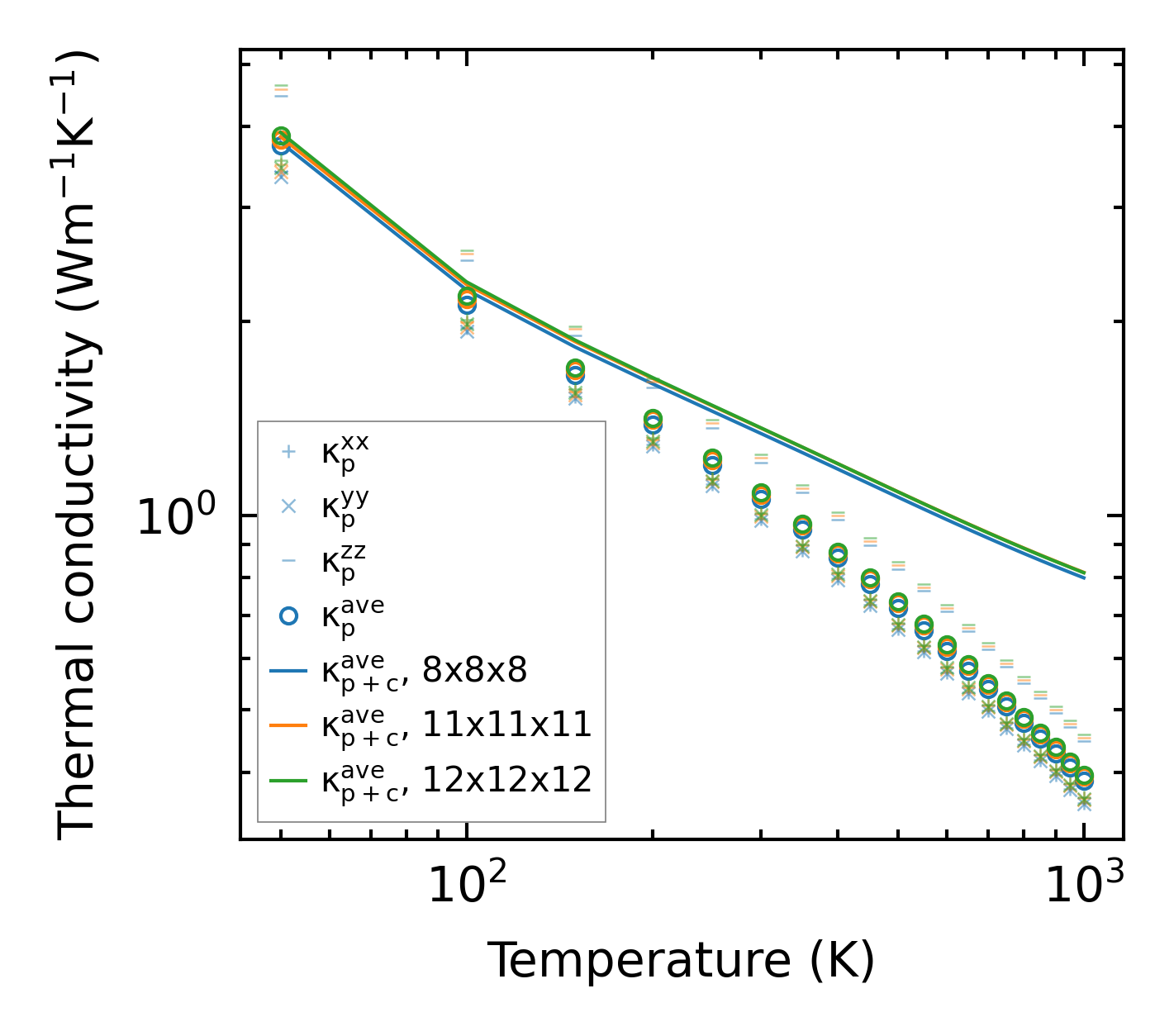

../../_images/fig_kappa10229.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times22056.png — (b) Computation time
