mp-22566-2/TlInS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-22566-2.tar.gz

Equation of state

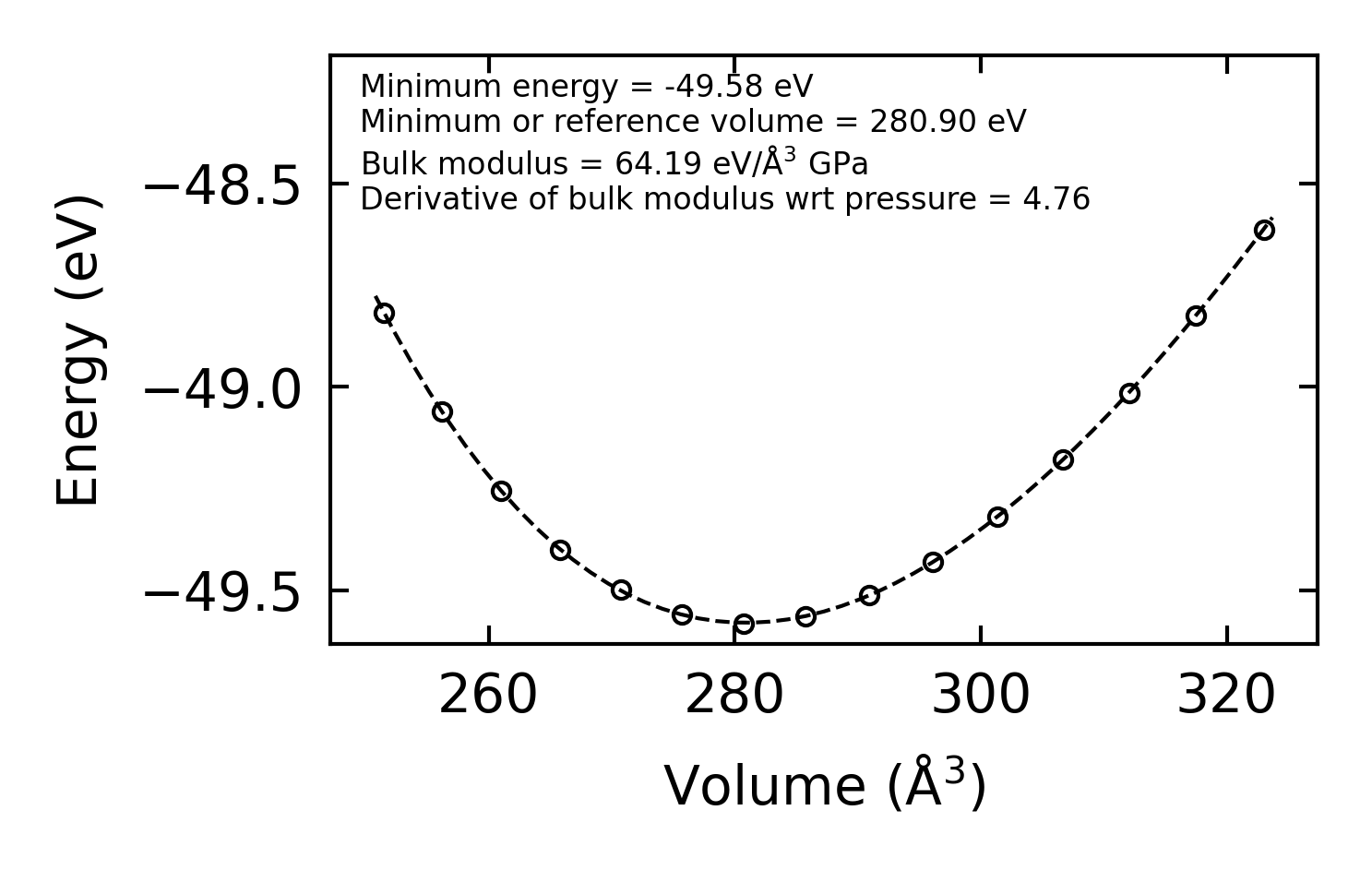

../../_images/fig_bm6528.png — (a) Equation of state

Harmonic properties

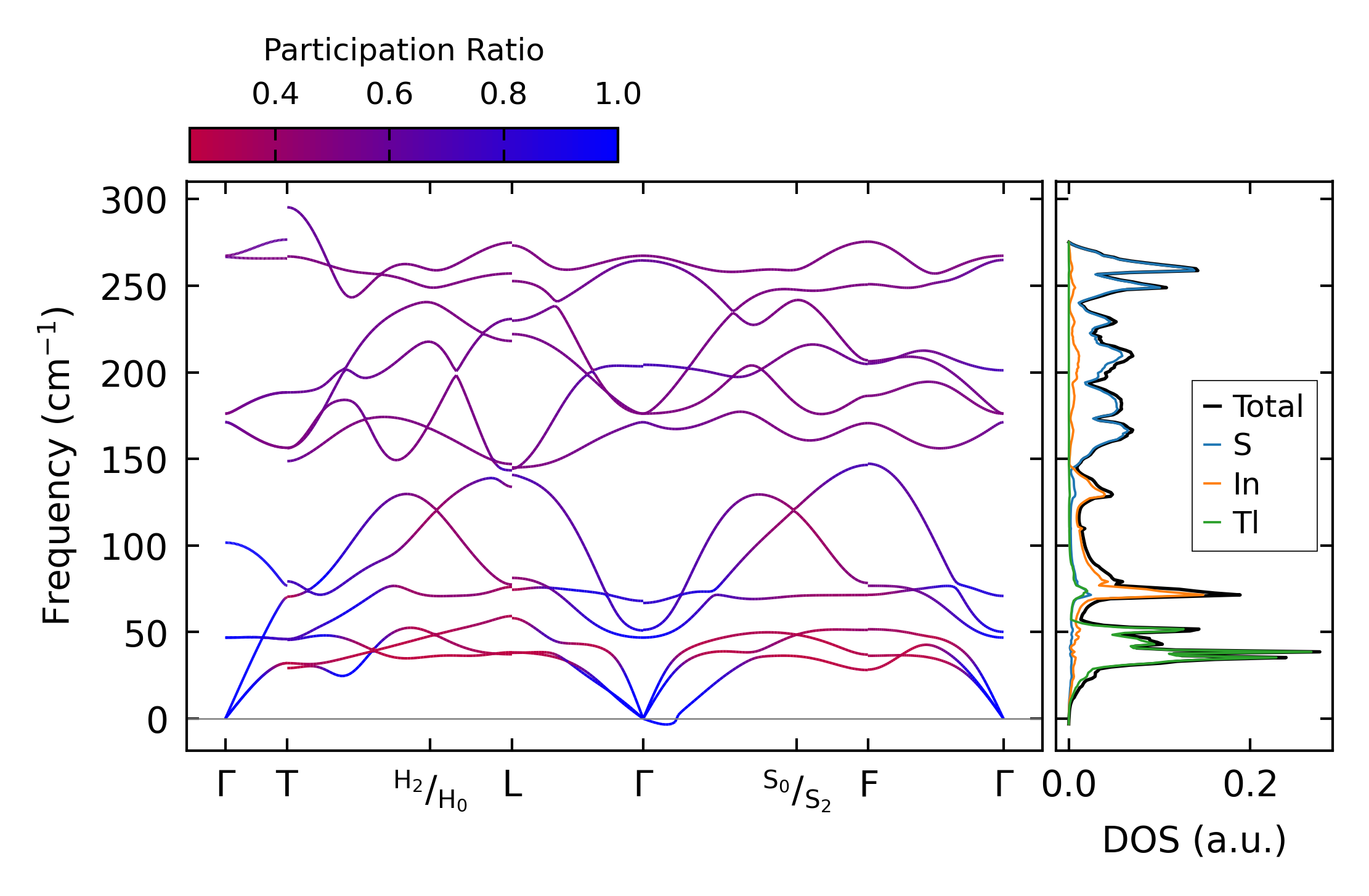

../../_images/fig_bandos_pr13076.png — (a) Phonon dispersion with participation ratio and DOS

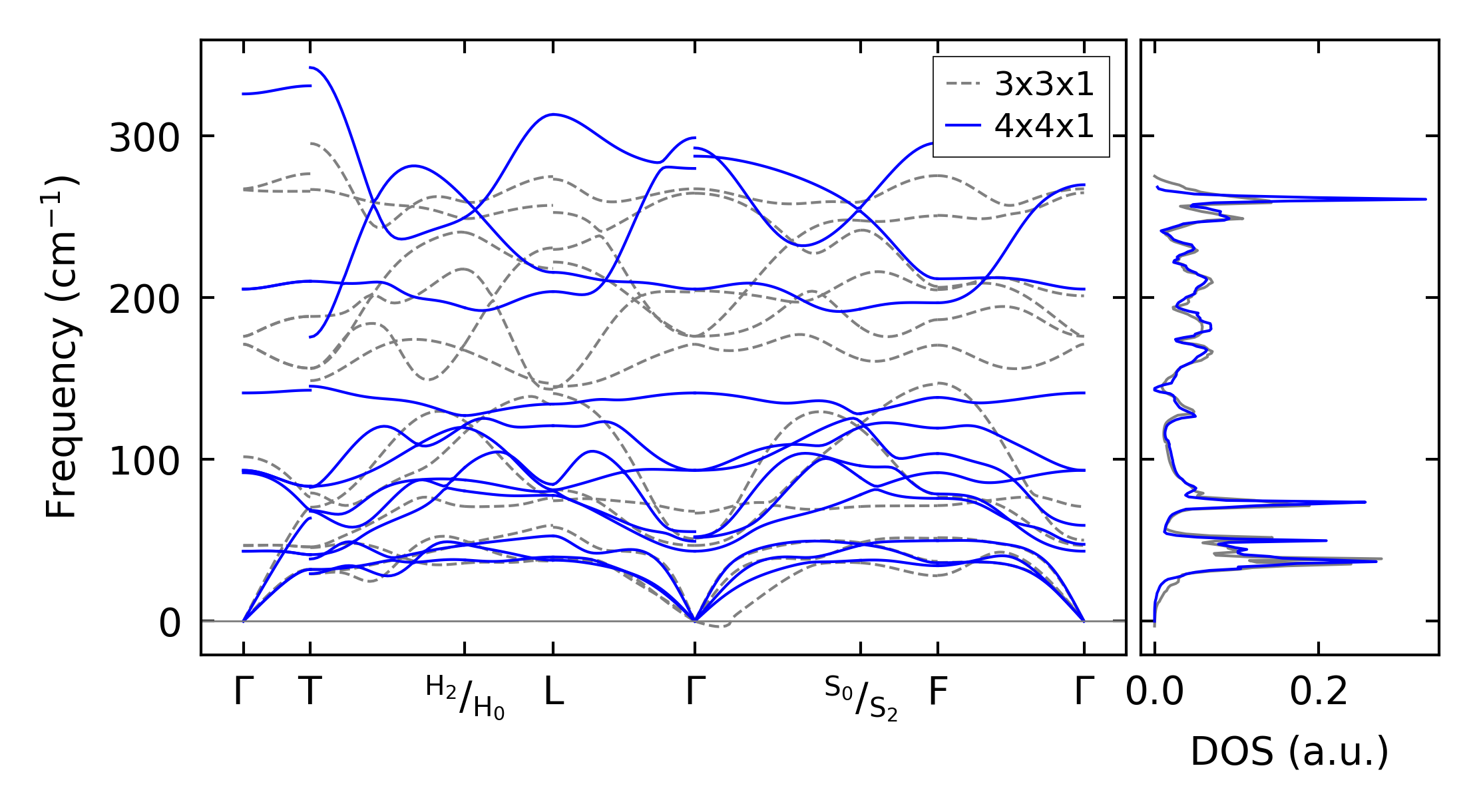

../../_images/fig_bandos17454.png — (b) Phonon dispersion and DOS

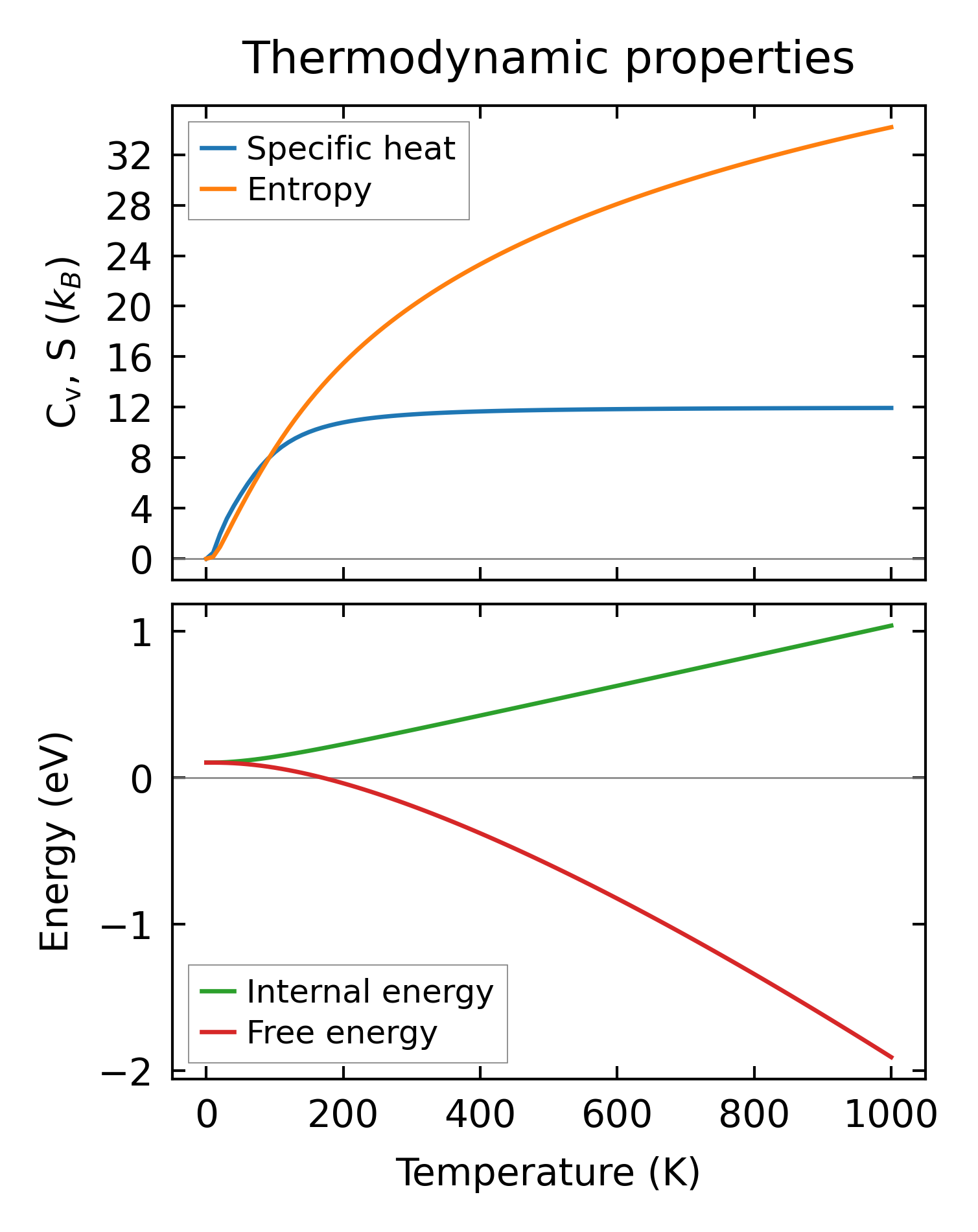

../../_images/fig_thermo13076.png — (c) Thermodynamic properties

Grüneisen parameters

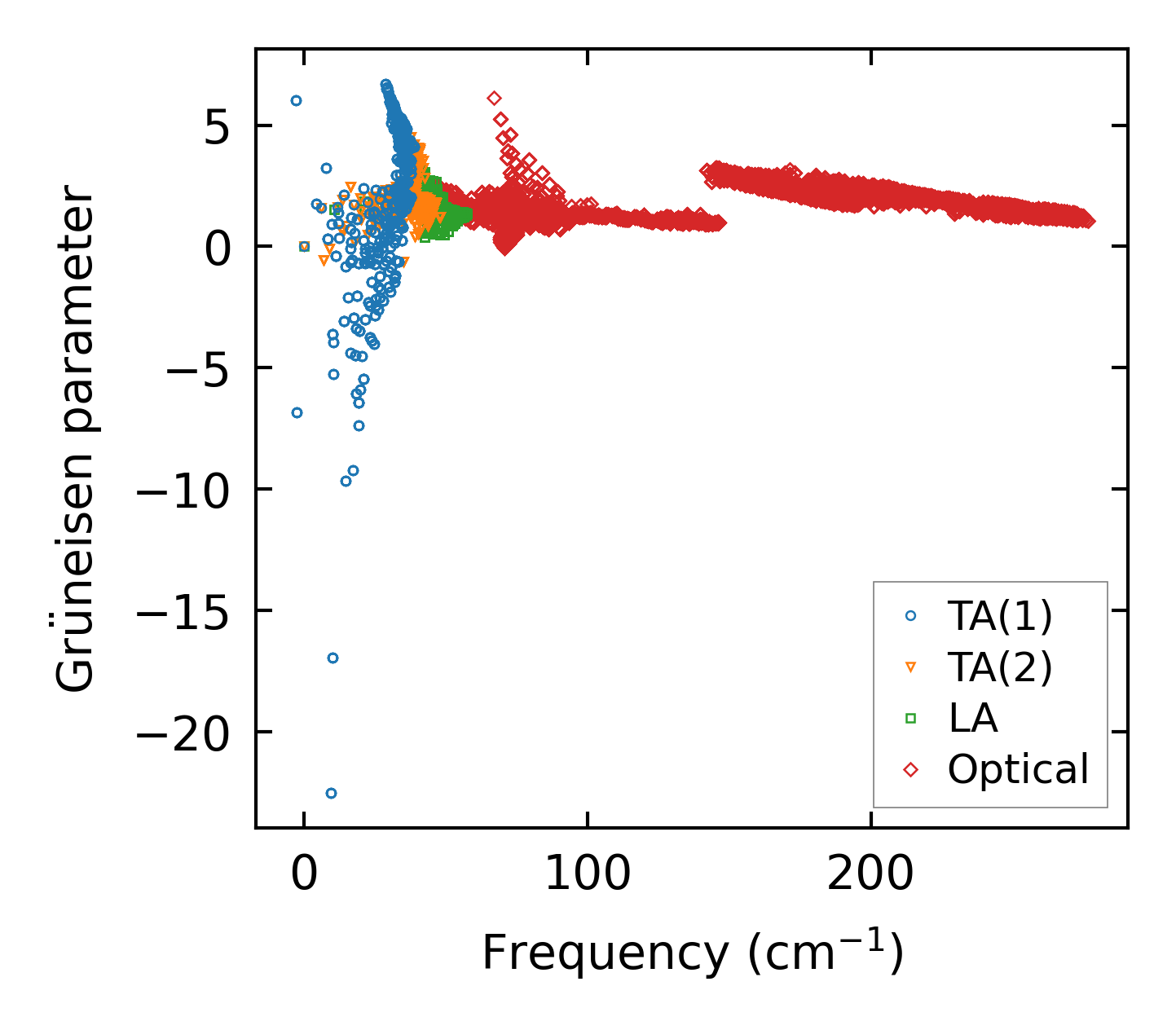

../../_images/fig_gru_all5457.png — (a) Grüneisen parameters

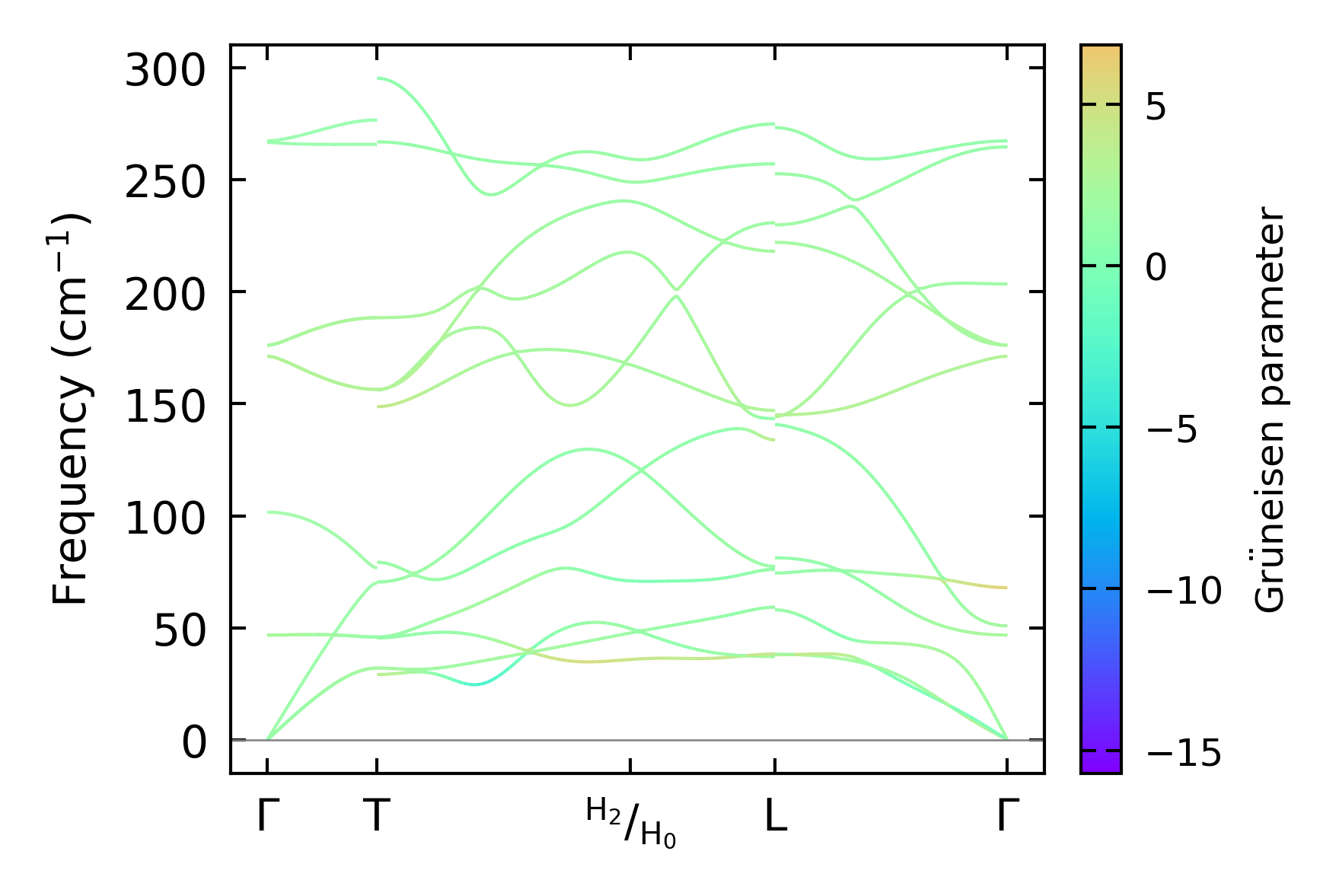

../../_images/fig_gruneisen5457.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x4x1 — q-mesh: 15x15x15, supercell: 4x4x1

../../_images/fig_kappa10249.png — (a) Temperature-dependent lattice thermal conductivity

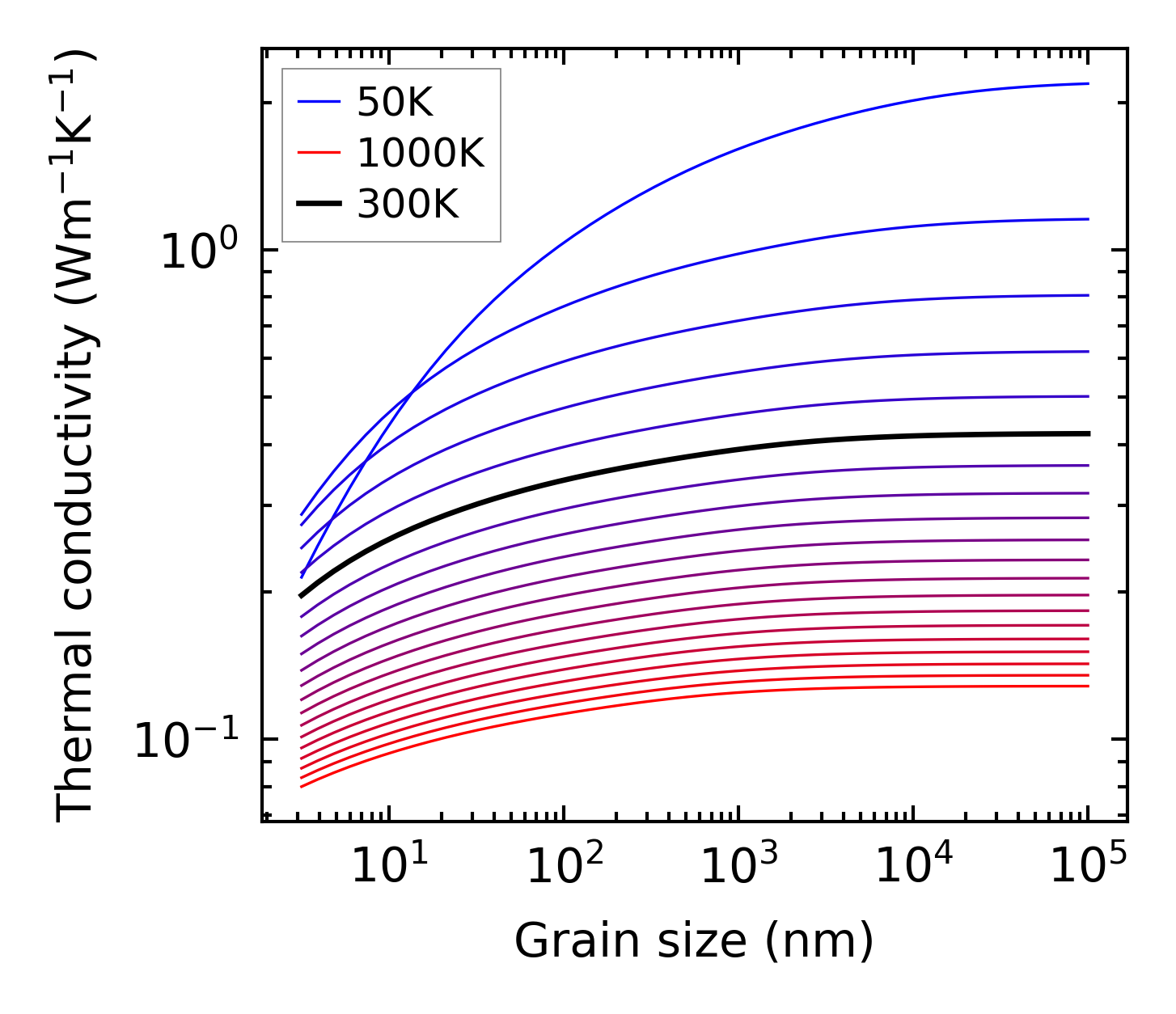

../../_images/fig_kappa_vs_grain_size5521.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

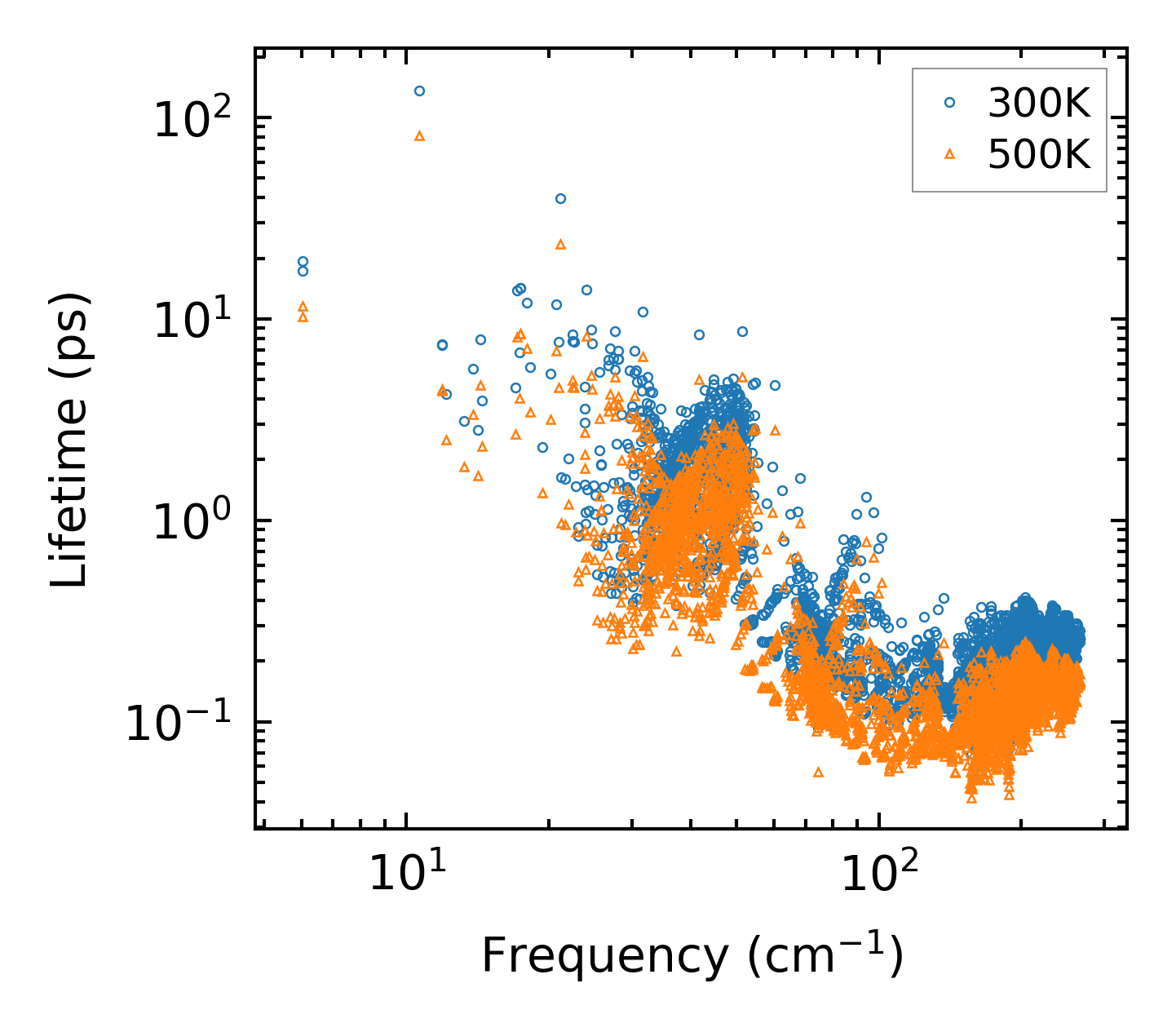

../../_images/fig_lifetime5405.png — (a) Phonon lifetime due to phonon-phonon scattering

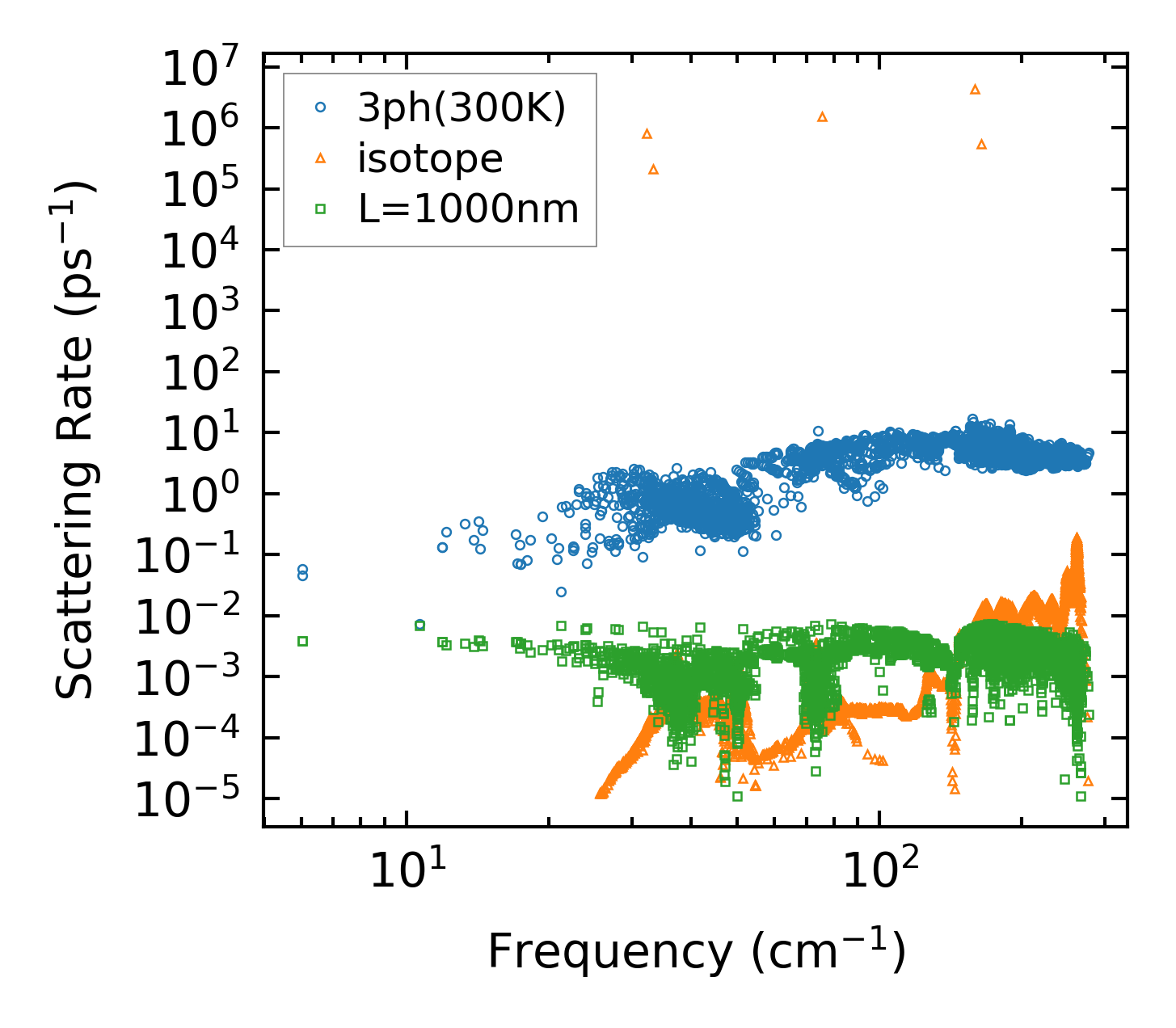

../../_images/fig_scat_rates5404.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

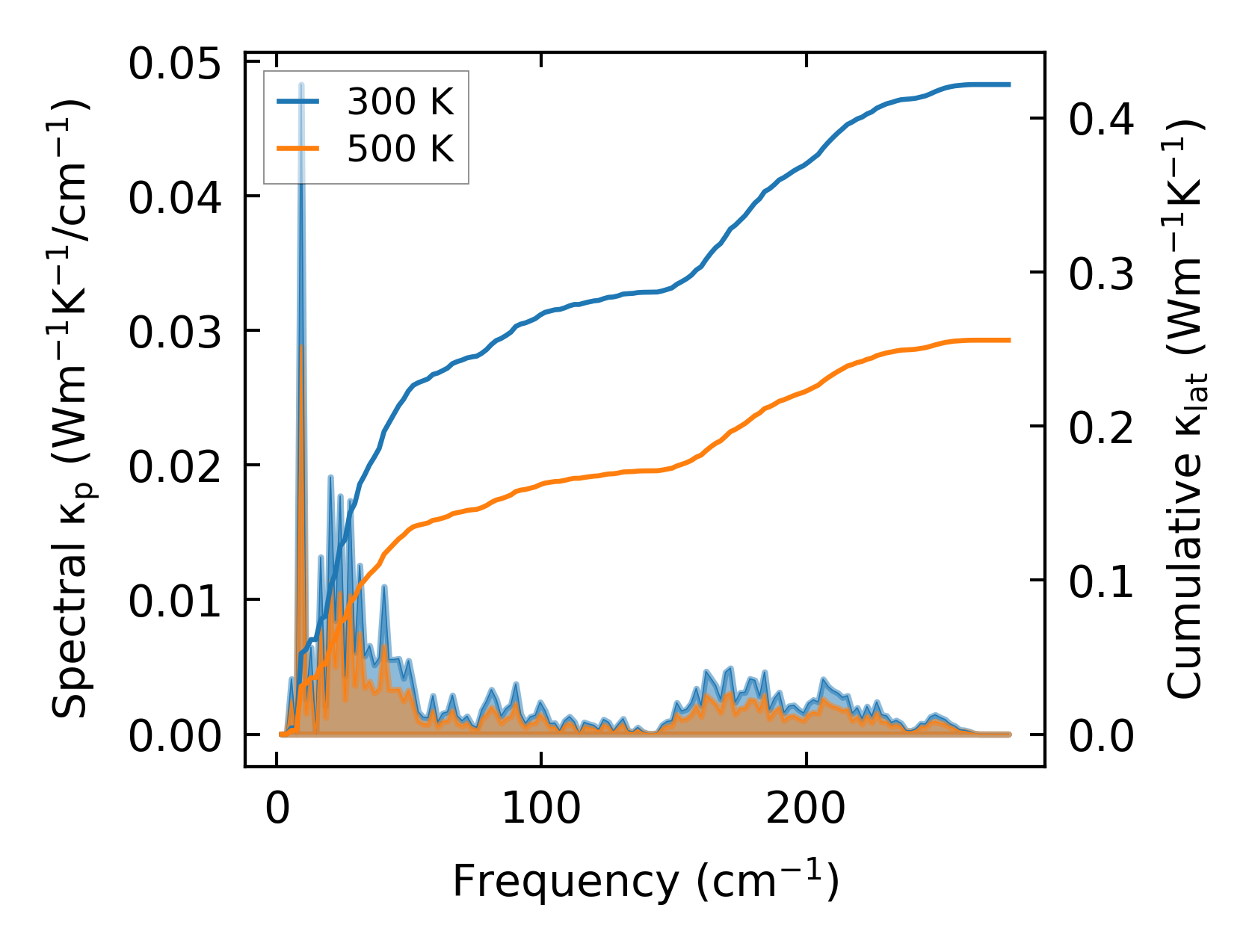

../../_images/fig_cumu_frequency5405.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

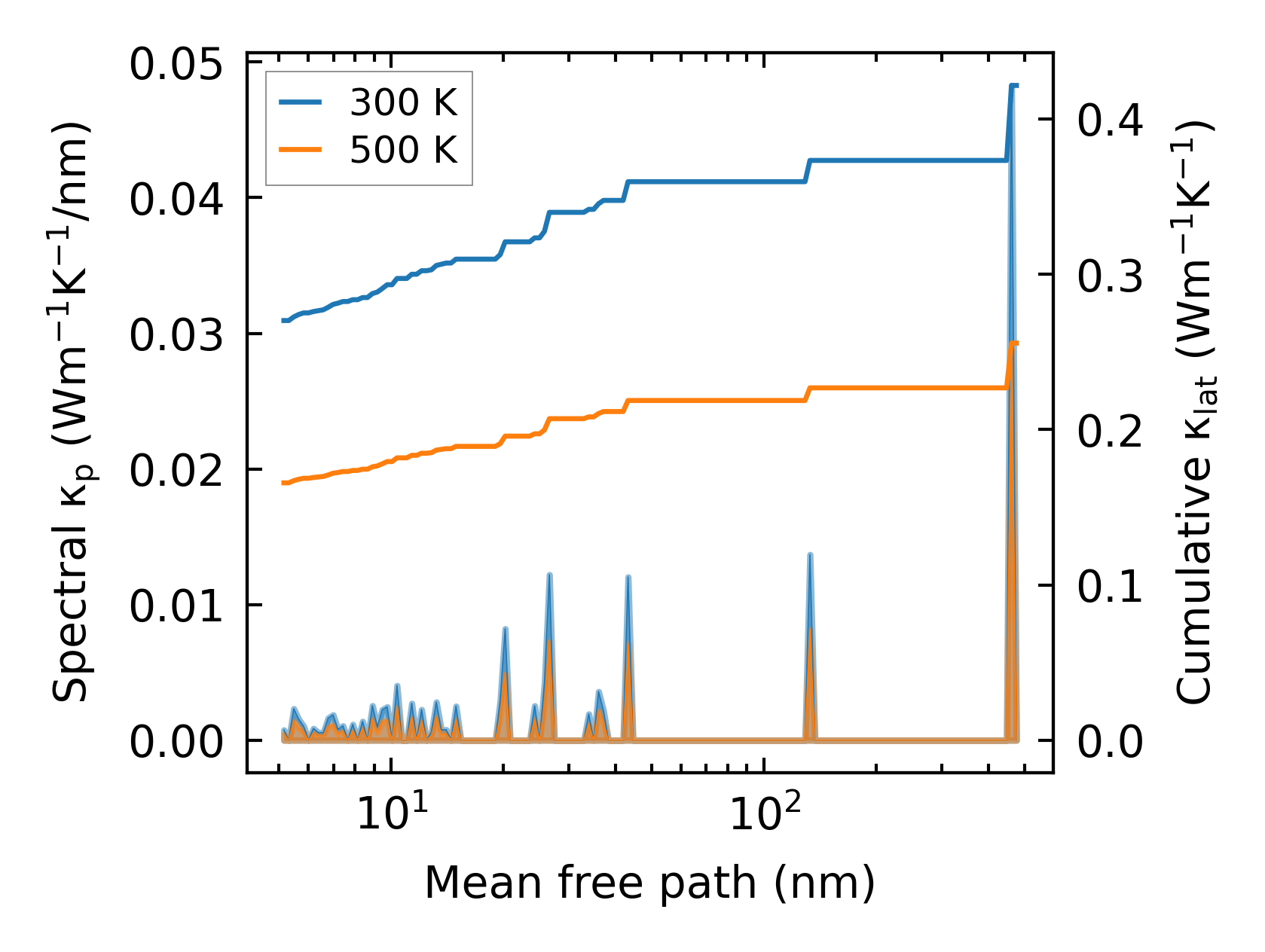

../../_images/fig_cumu_mfp5404.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

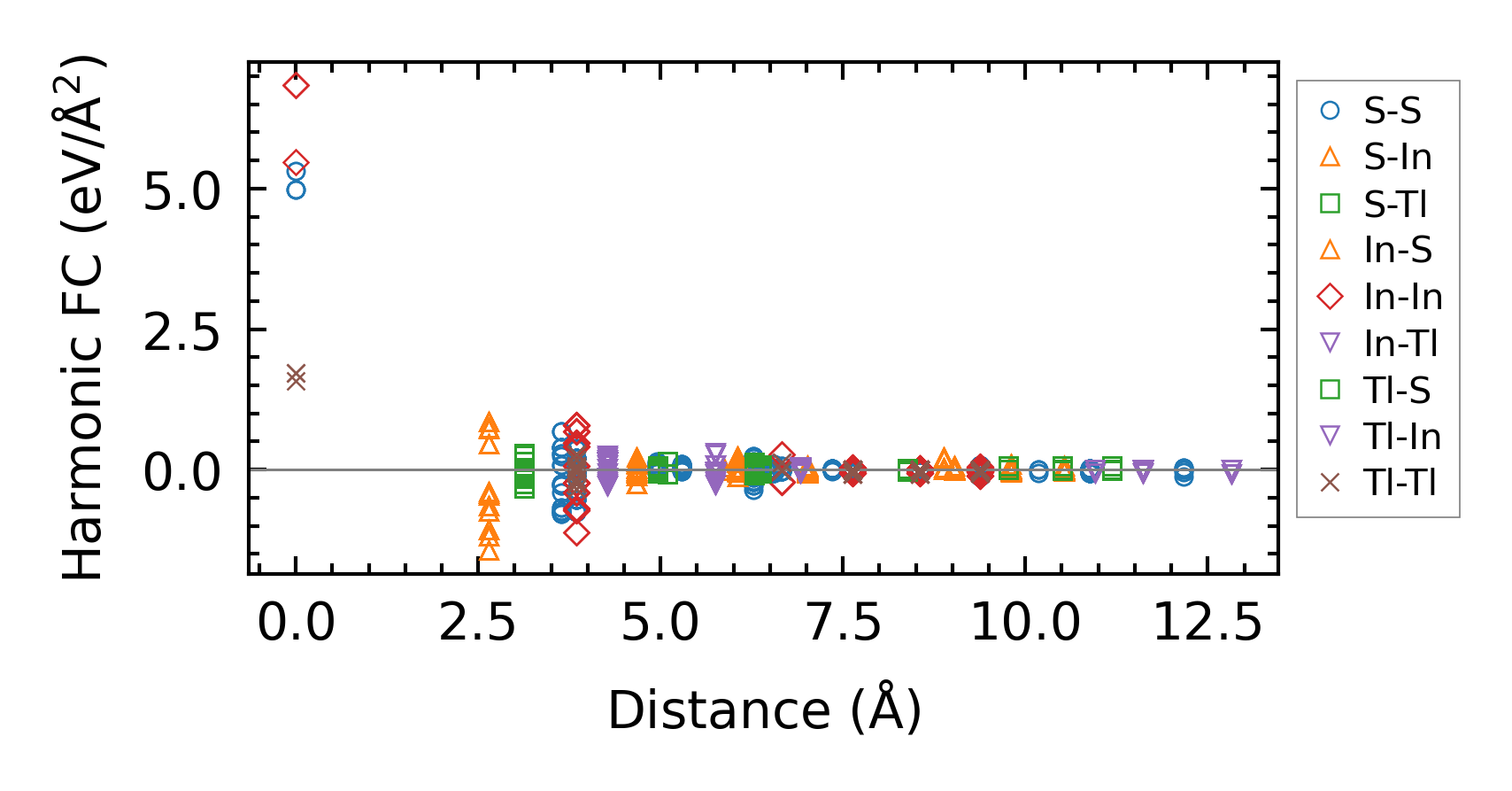

../../_images/fig_fc212755.png — (a) Force constants w.r.t atomic distance

Summary

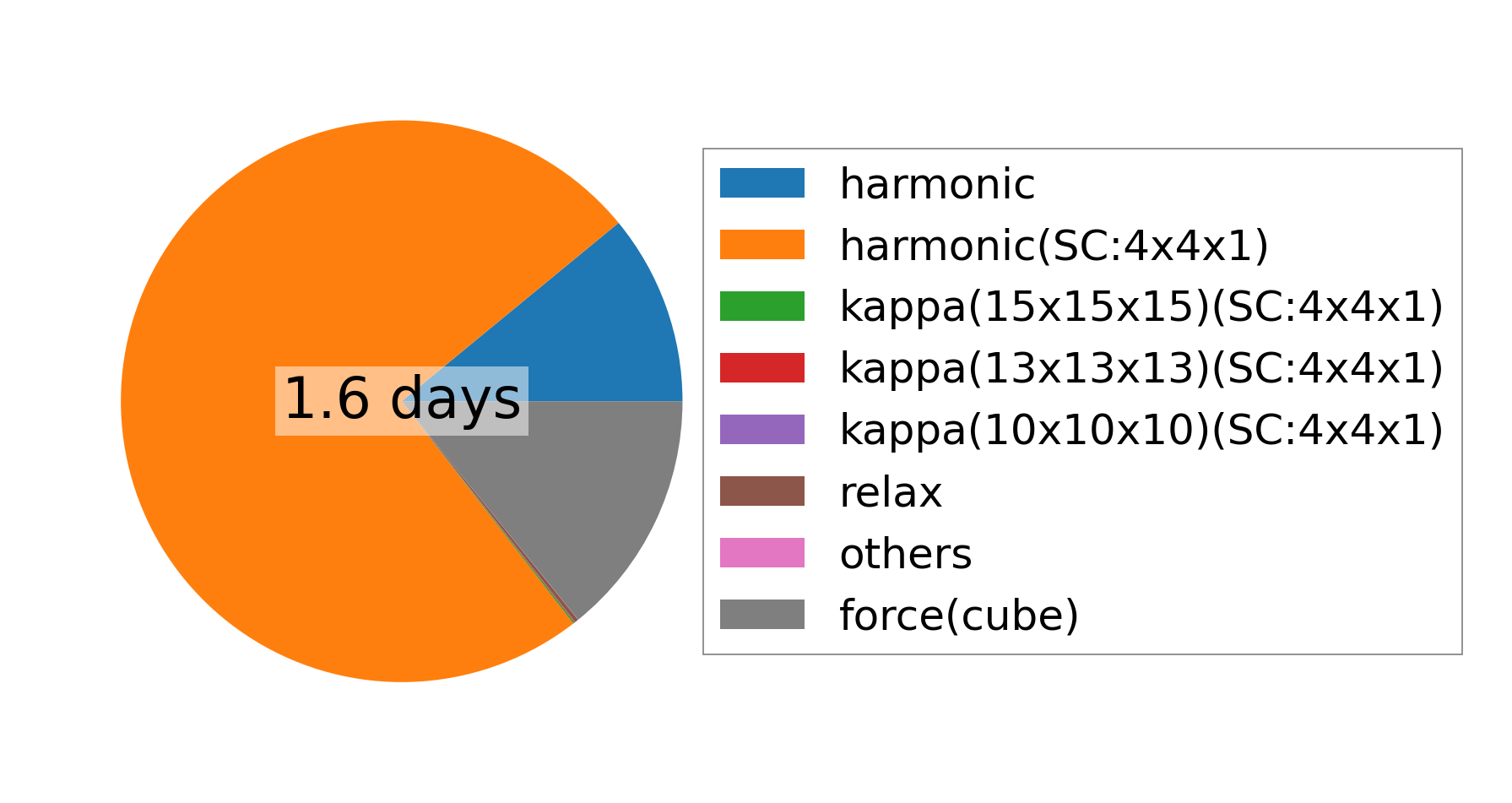

../../_images/fig_times22087.png — (a) Computation time
