mp-22255/RbInTe2/anharm

Space group: I4/mcm (140)
Link: Materials Project
Download: mp-22255.tar.gz

Harmonic properties

../../_images/fig_bandos_pr13046.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13046.png — (b) Thermodynamic properties

Grüneisen parameters

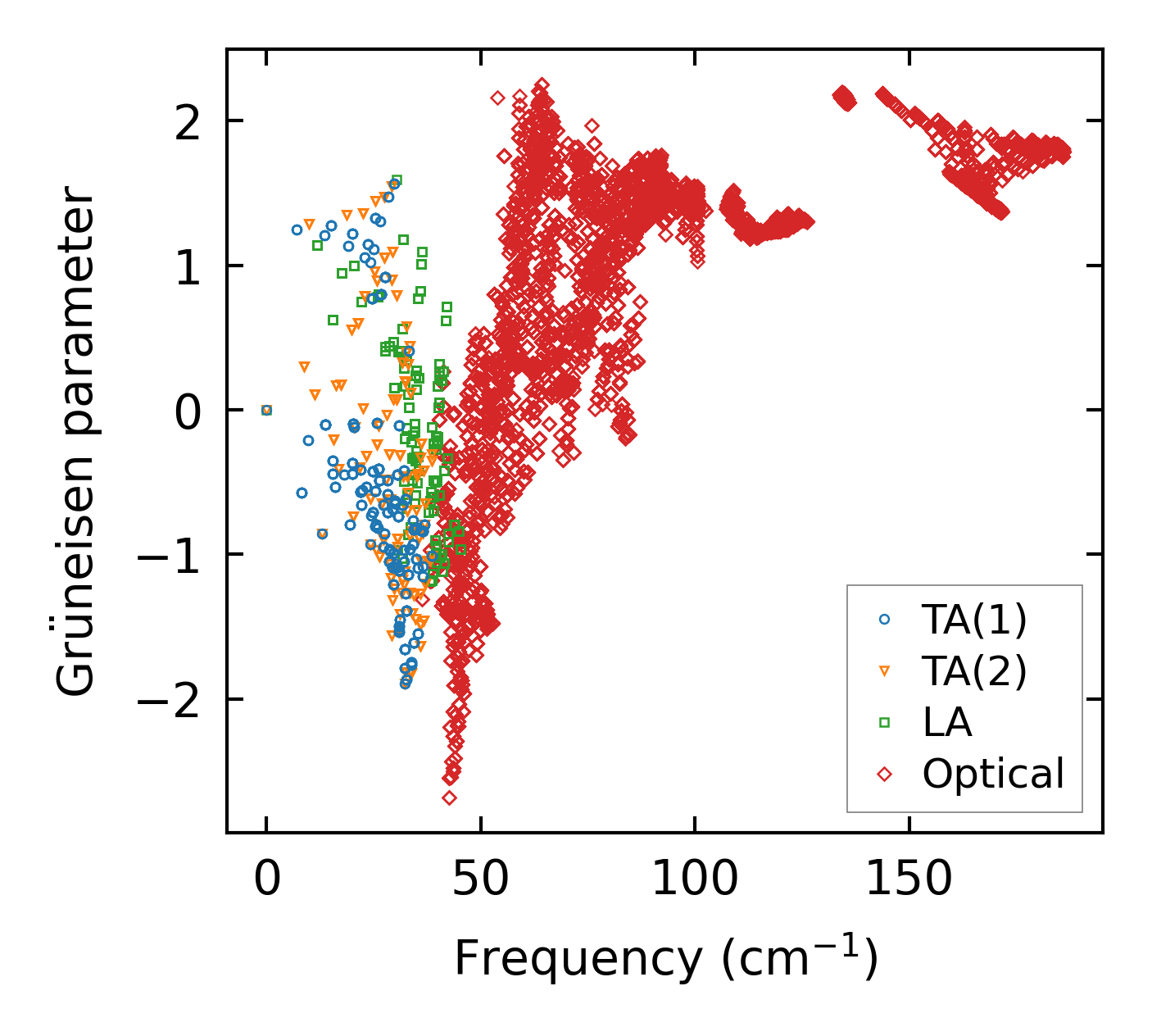

../../_images/fig_gru_all5437.png — (a) Grüneisen parameters

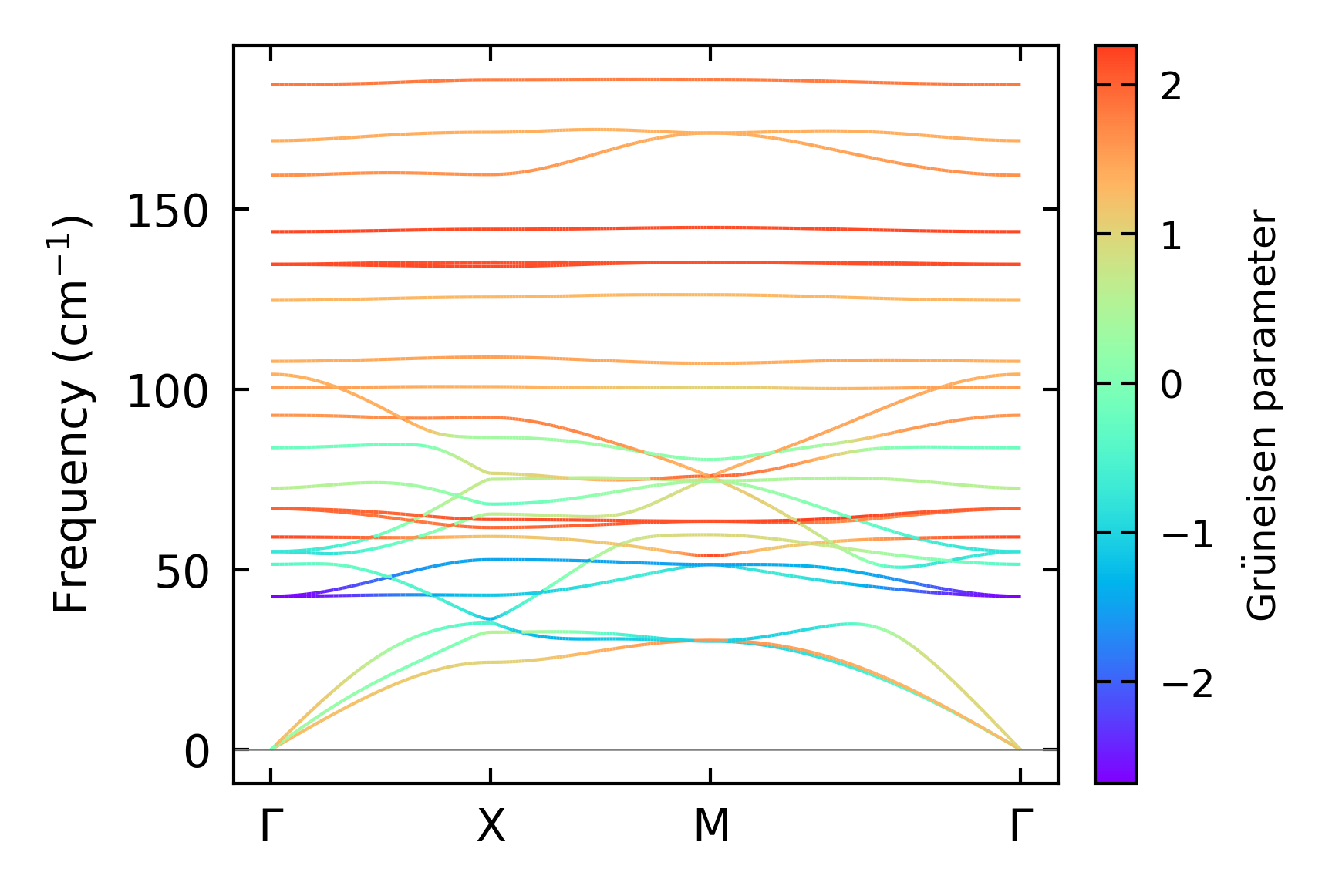

../../_images/fig_gruneisen5437.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 2x2x2

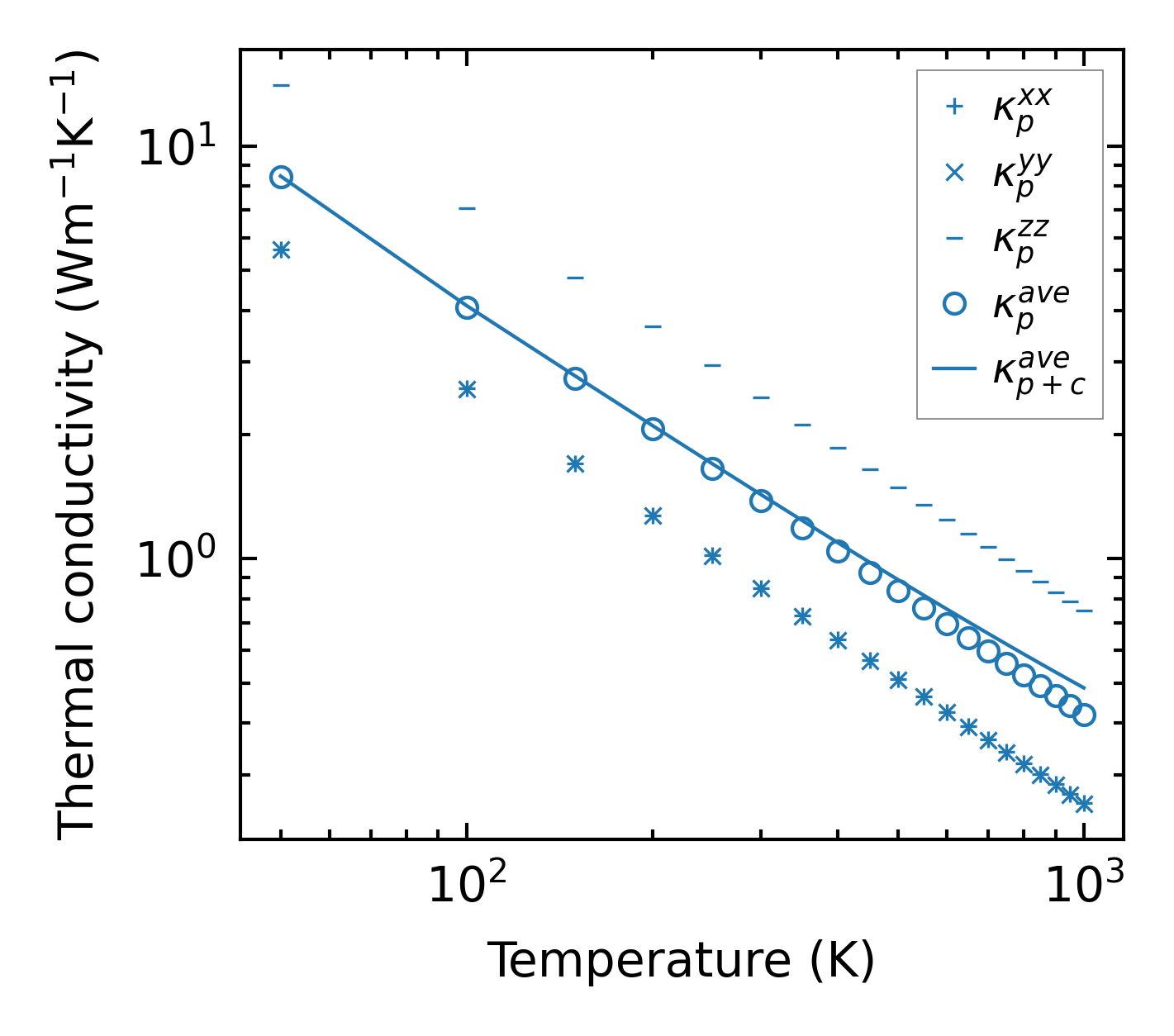

../../_images/fig_kappa10210.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5501.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

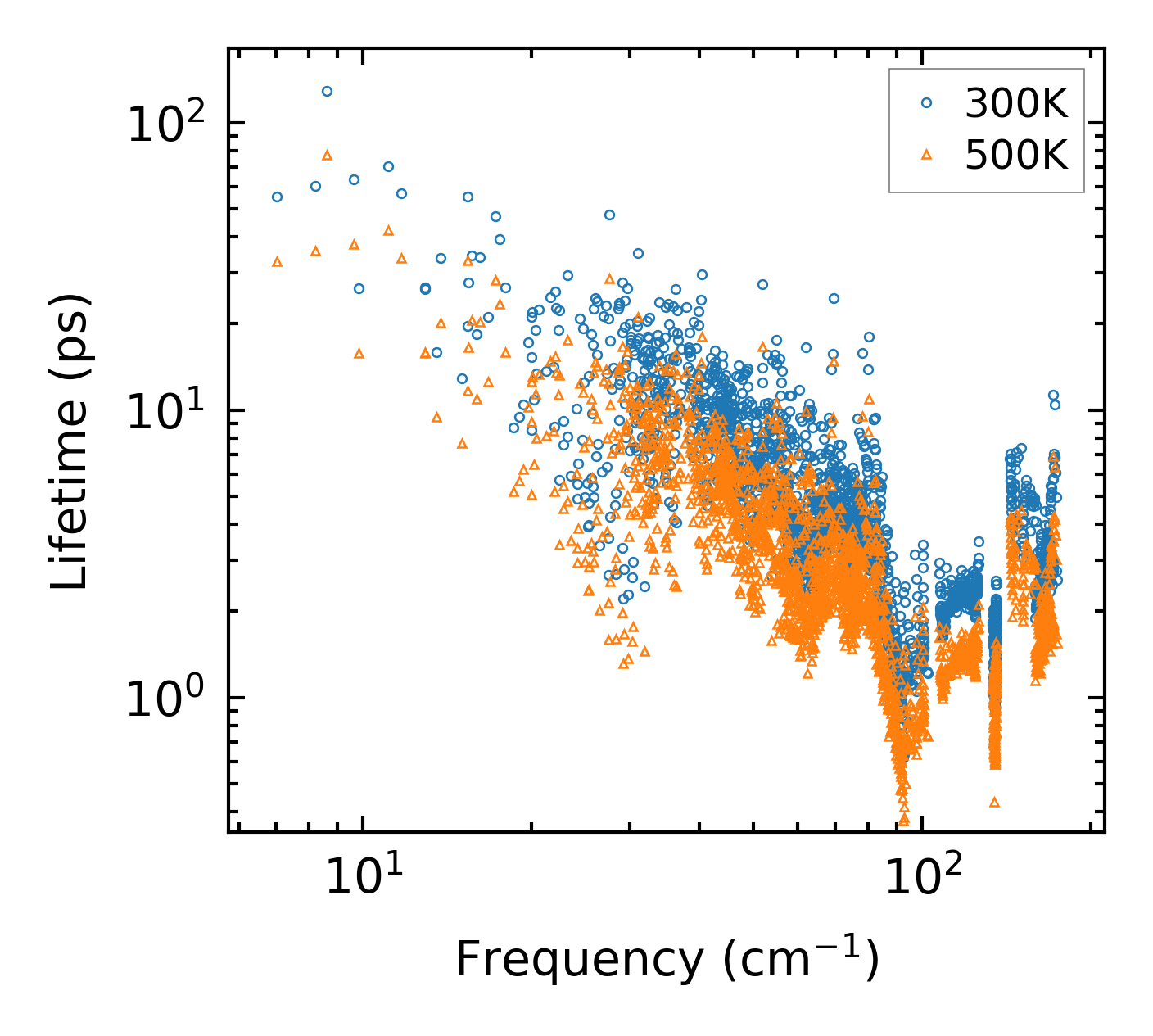

../../_images/fig_lifetime5385.png — (a) Phonon lifetime due to phonon-phonon scattering

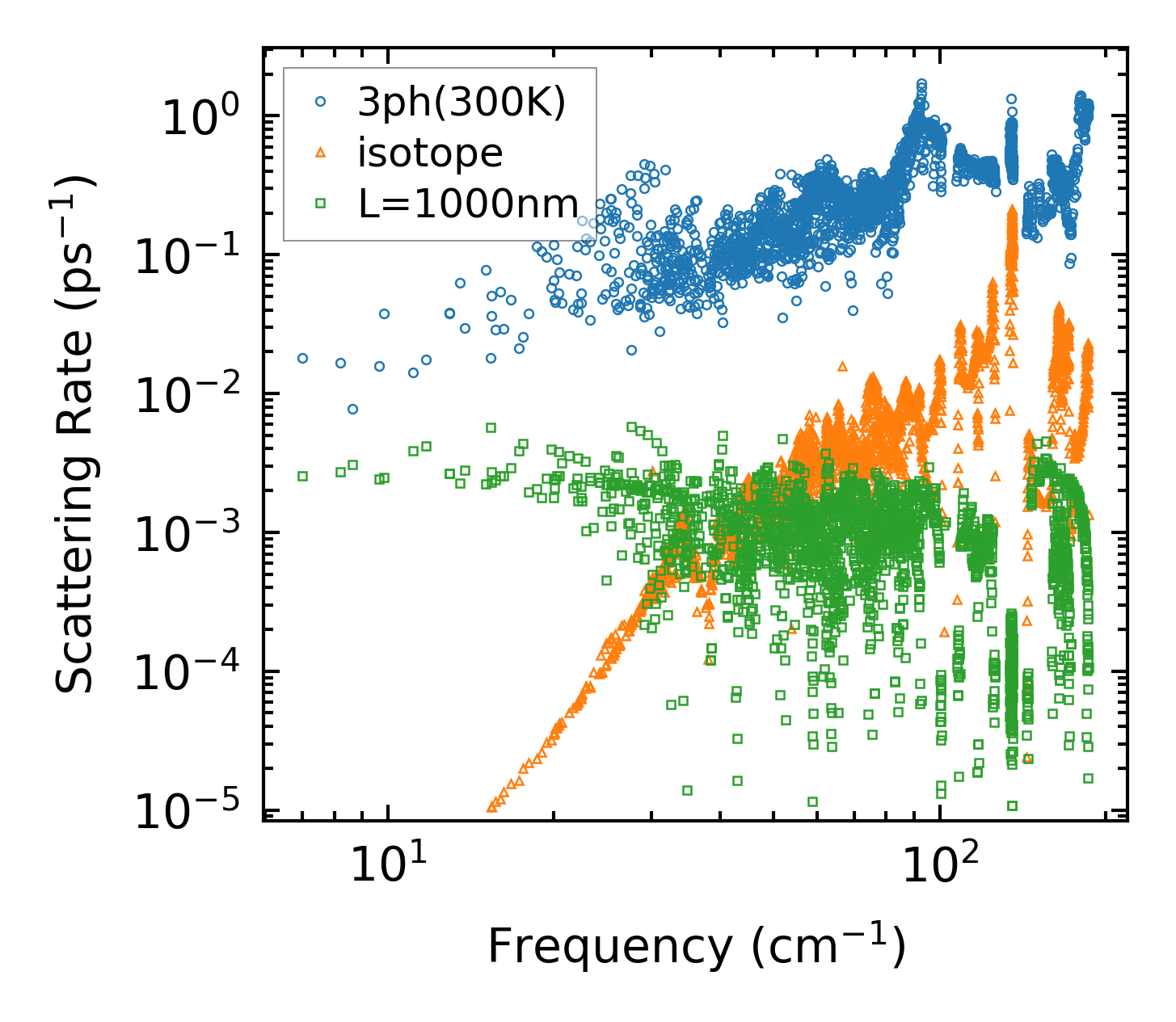

../../_images/fig_scat_rates5384.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

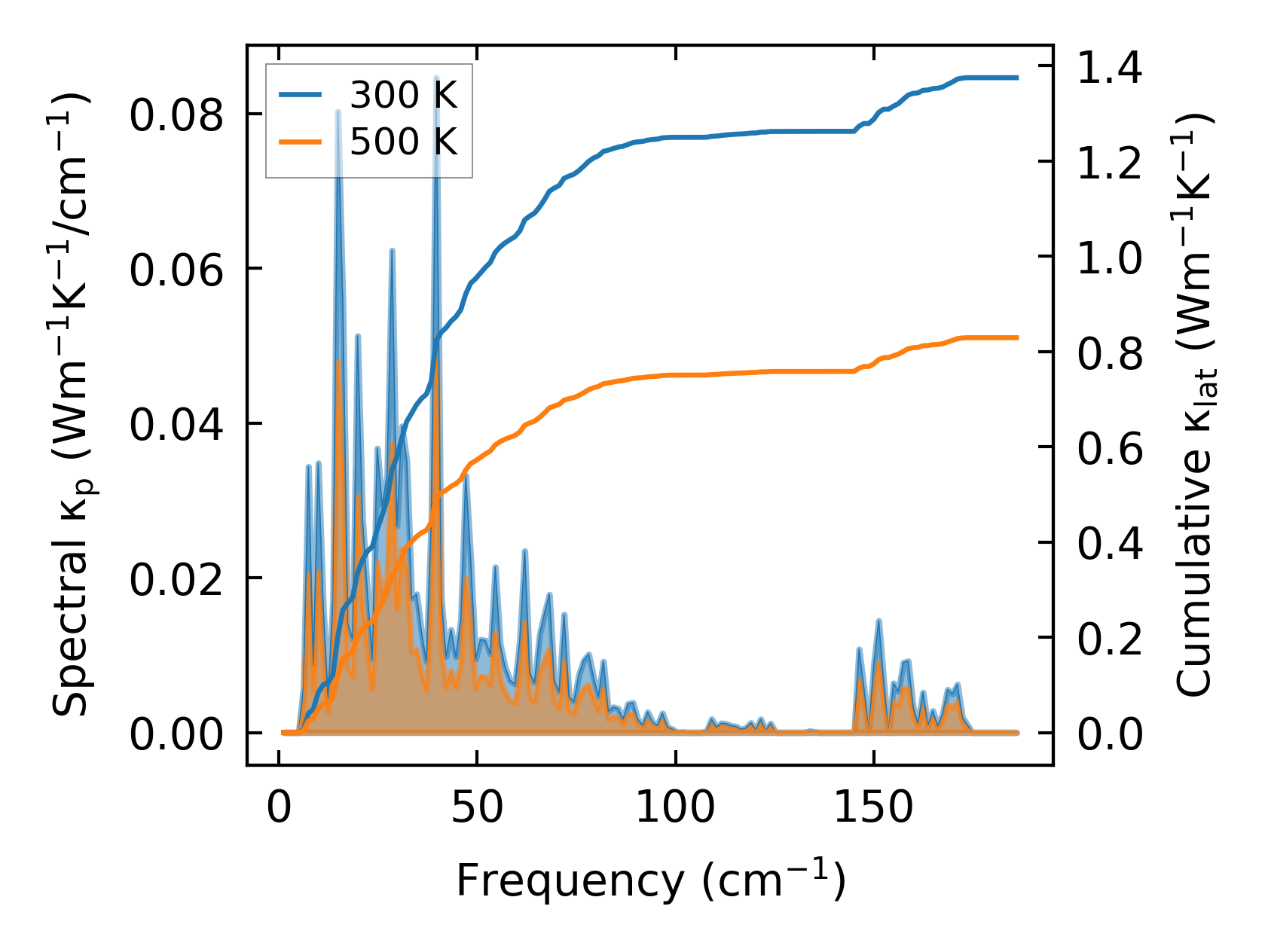

../../_images/fig_cumu_frequency5385.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

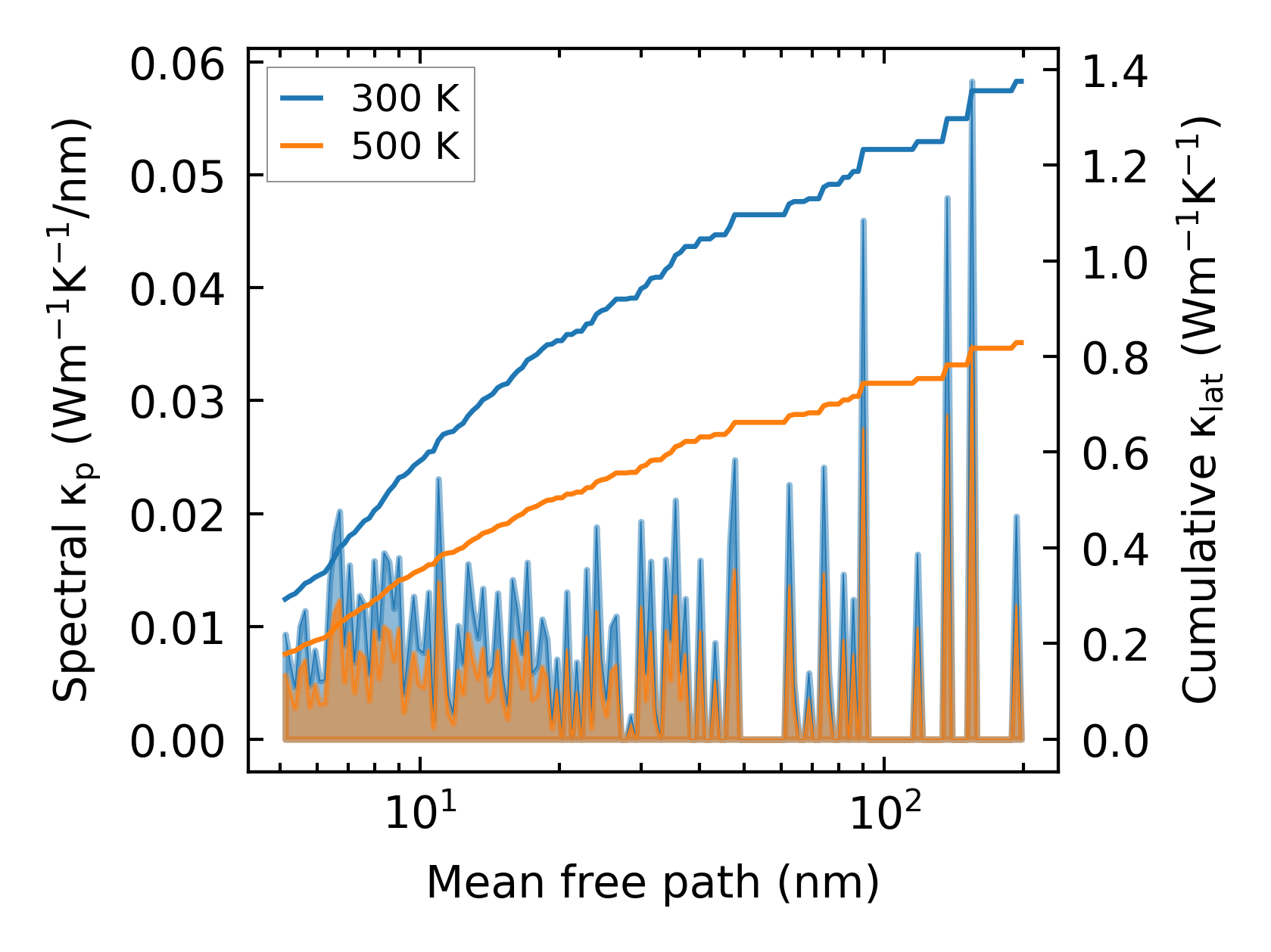

../../_images/fig_cumu_mfp5384.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212726.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10211.png — (a) Temperature-dependent lattice thermal conductivity

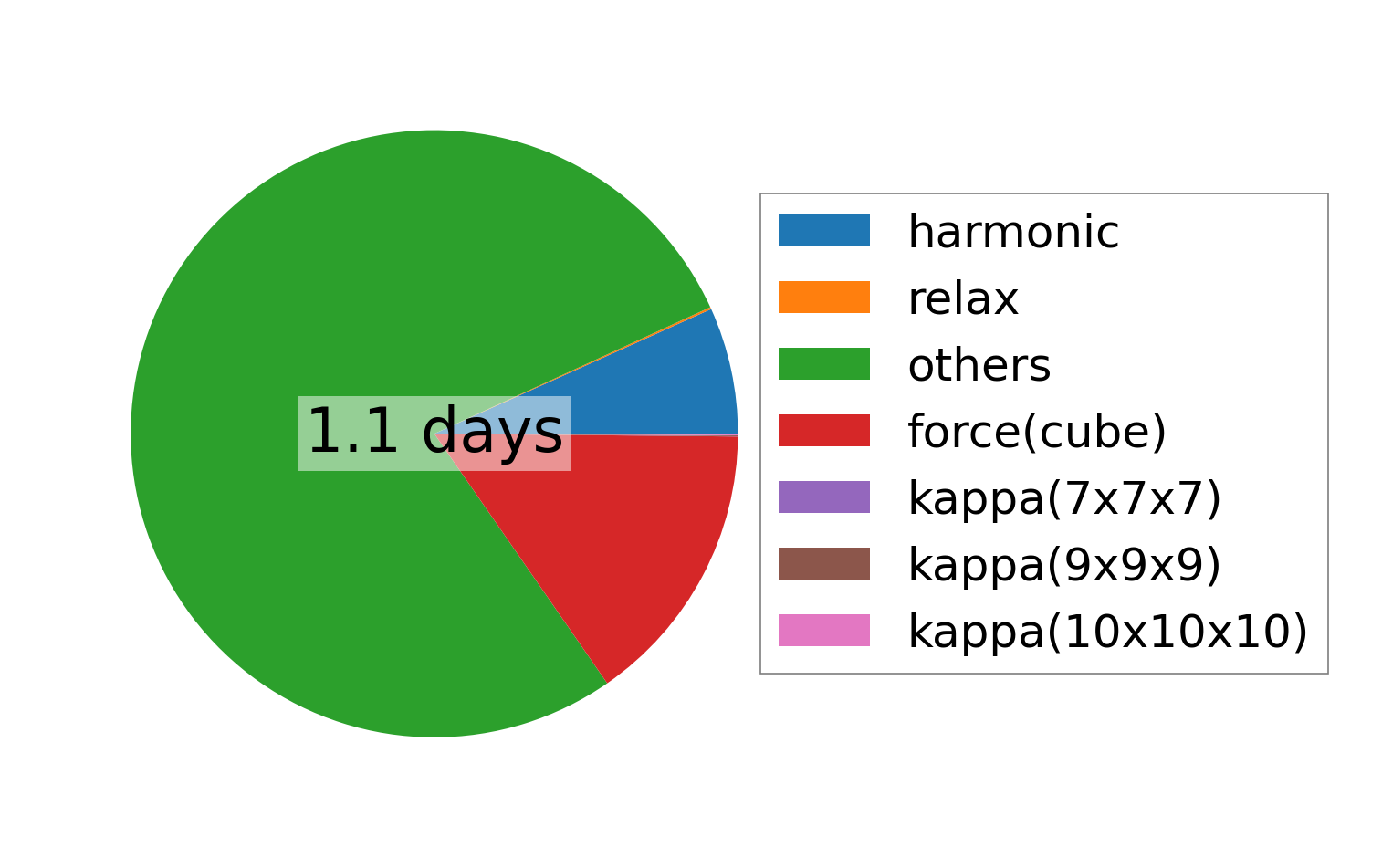

../../_images/fig_times22037.png — (b) Computation time
