mp-22329/NaNd2OsO6/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-22329.tar.gz

Harmonic properties

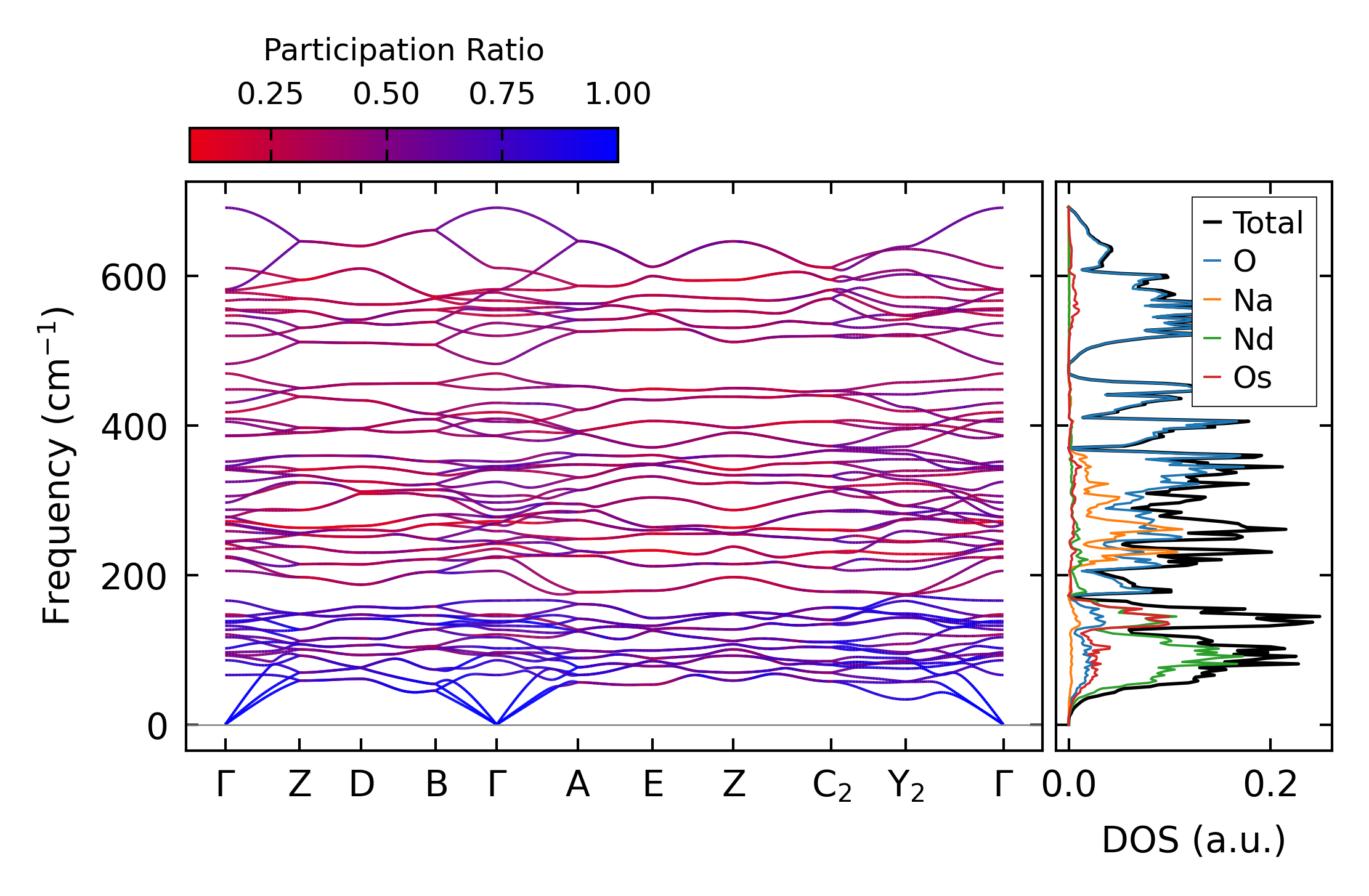

../../_images/fig_bandos_pr13052.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13052.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5441.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5441.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x12x8, supercell: 2x2x1

../../_images/fig_kappa10218.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5505.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

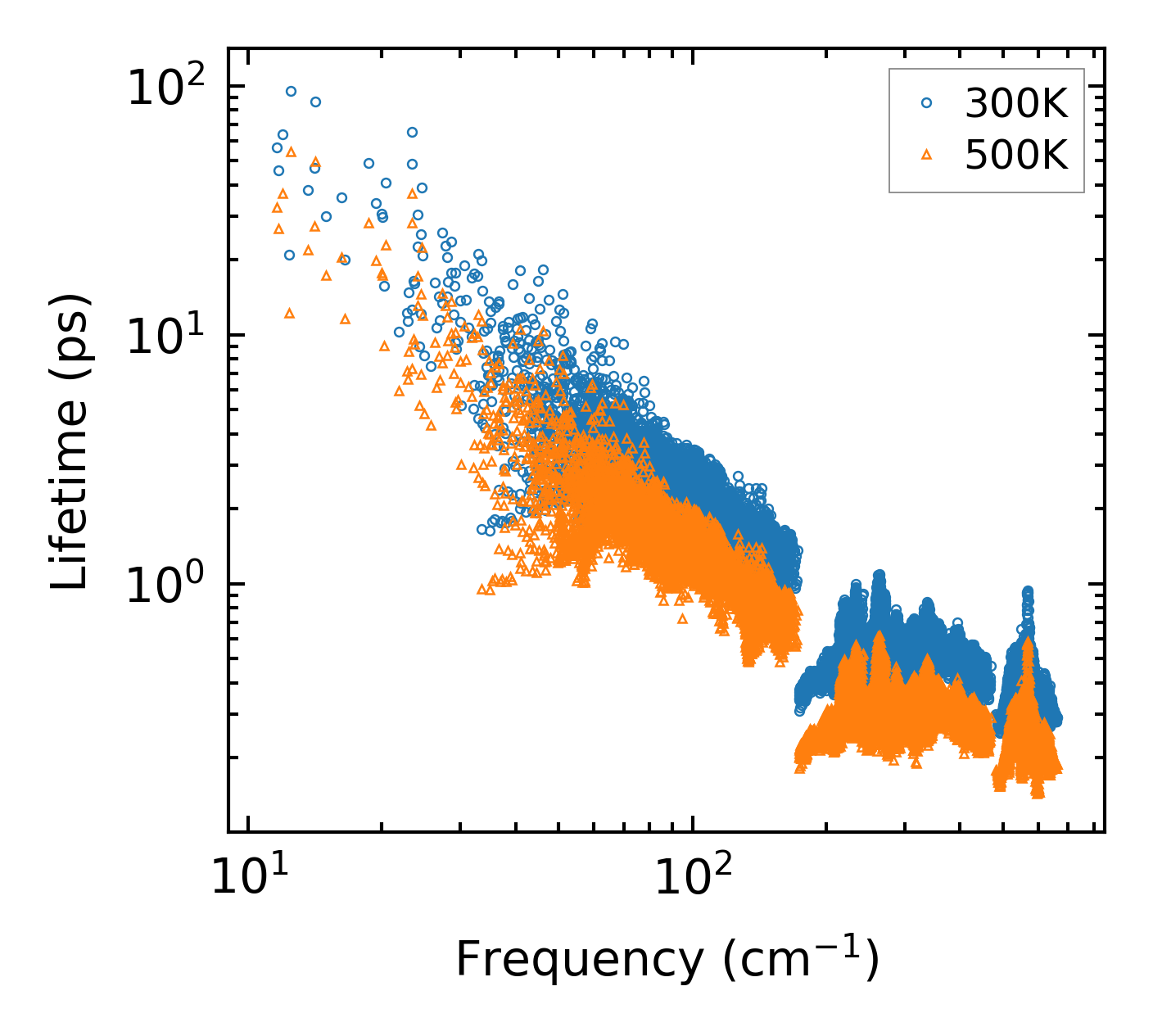

../../_images/fig_lifetime5389.png — (a) Phonon lifetime due to phonon-phonon scattering

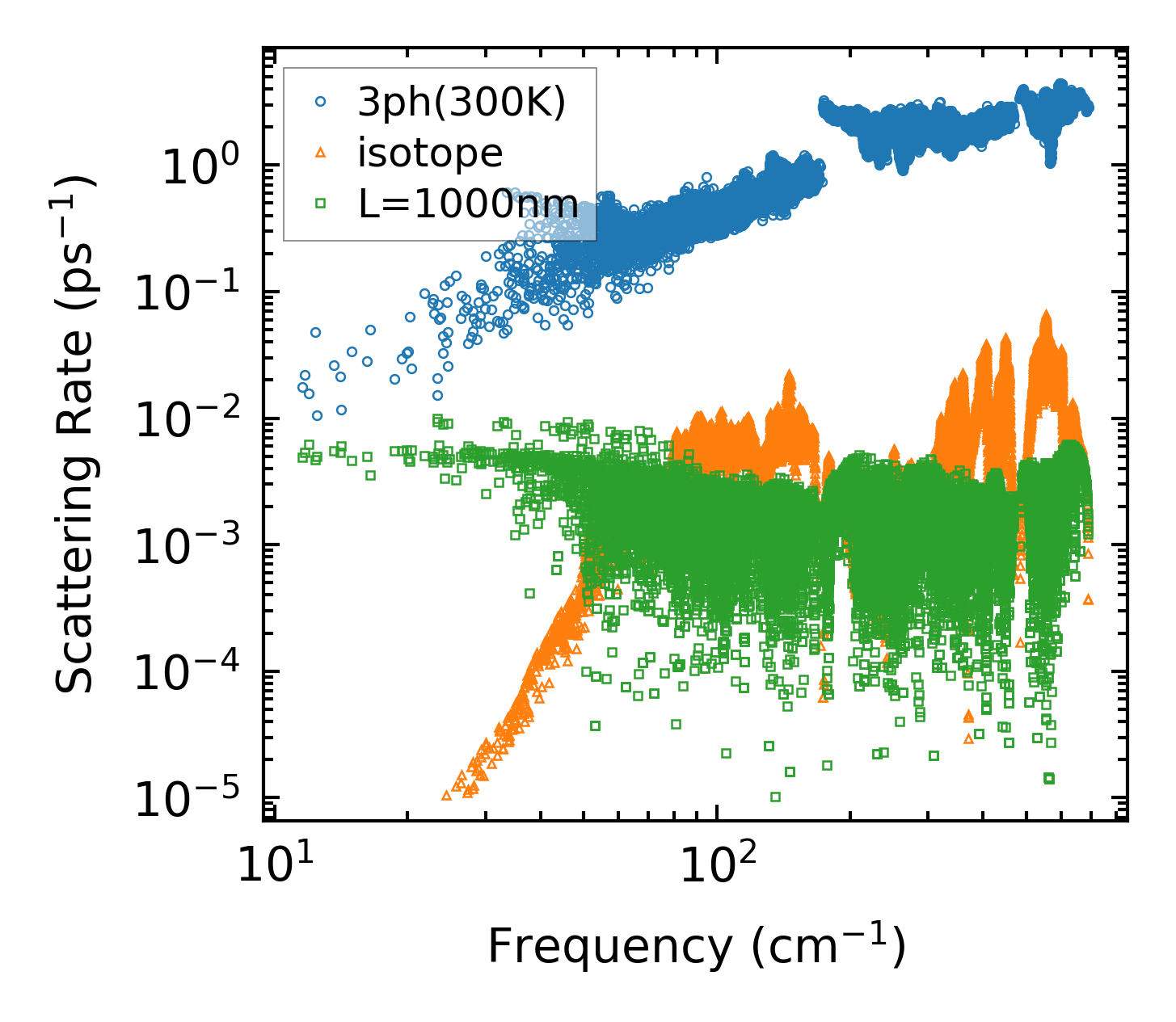

../../_images/fig_scat_rates5388.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

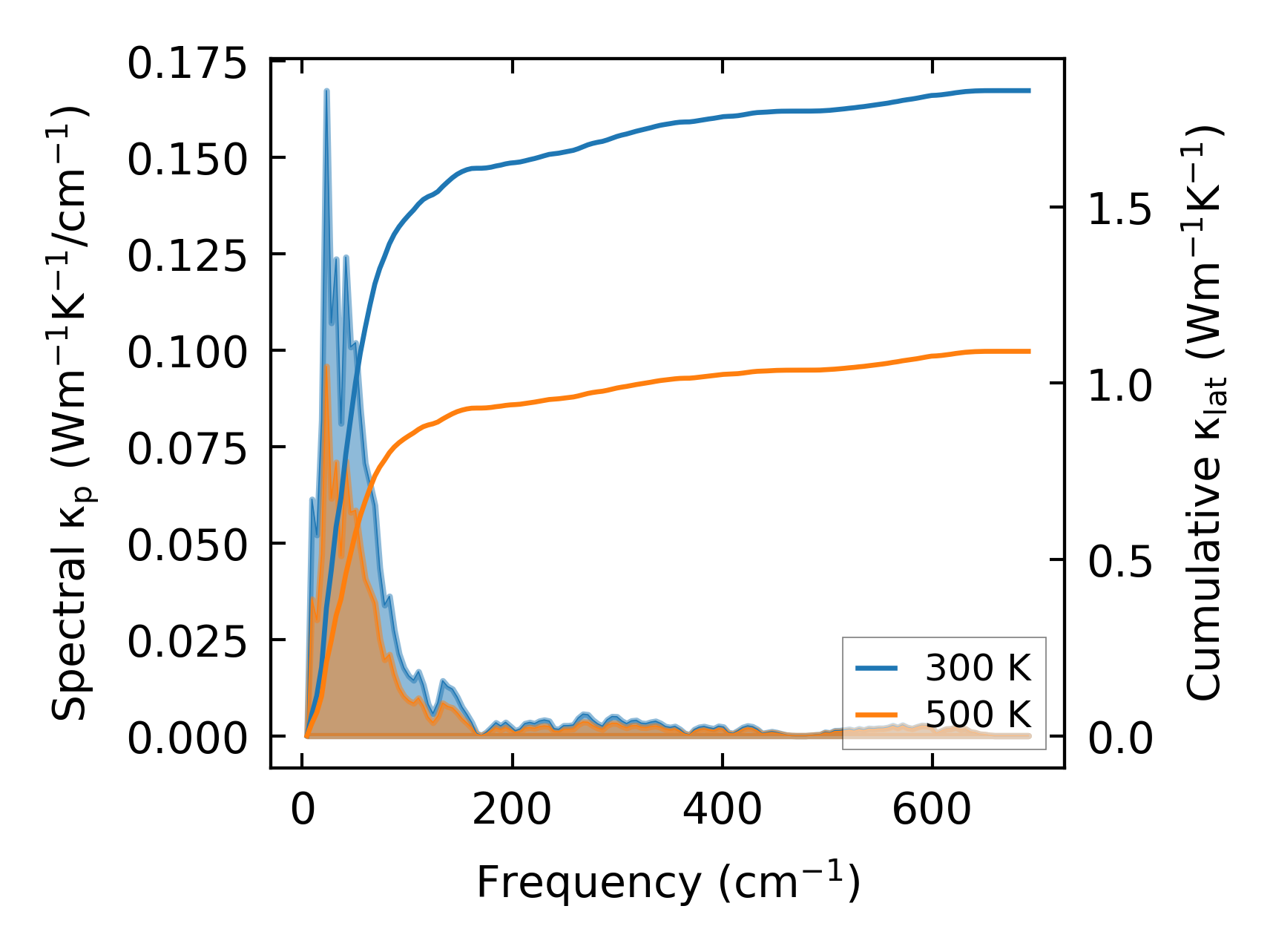

../../_images/fig_cumu_frequency5389.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

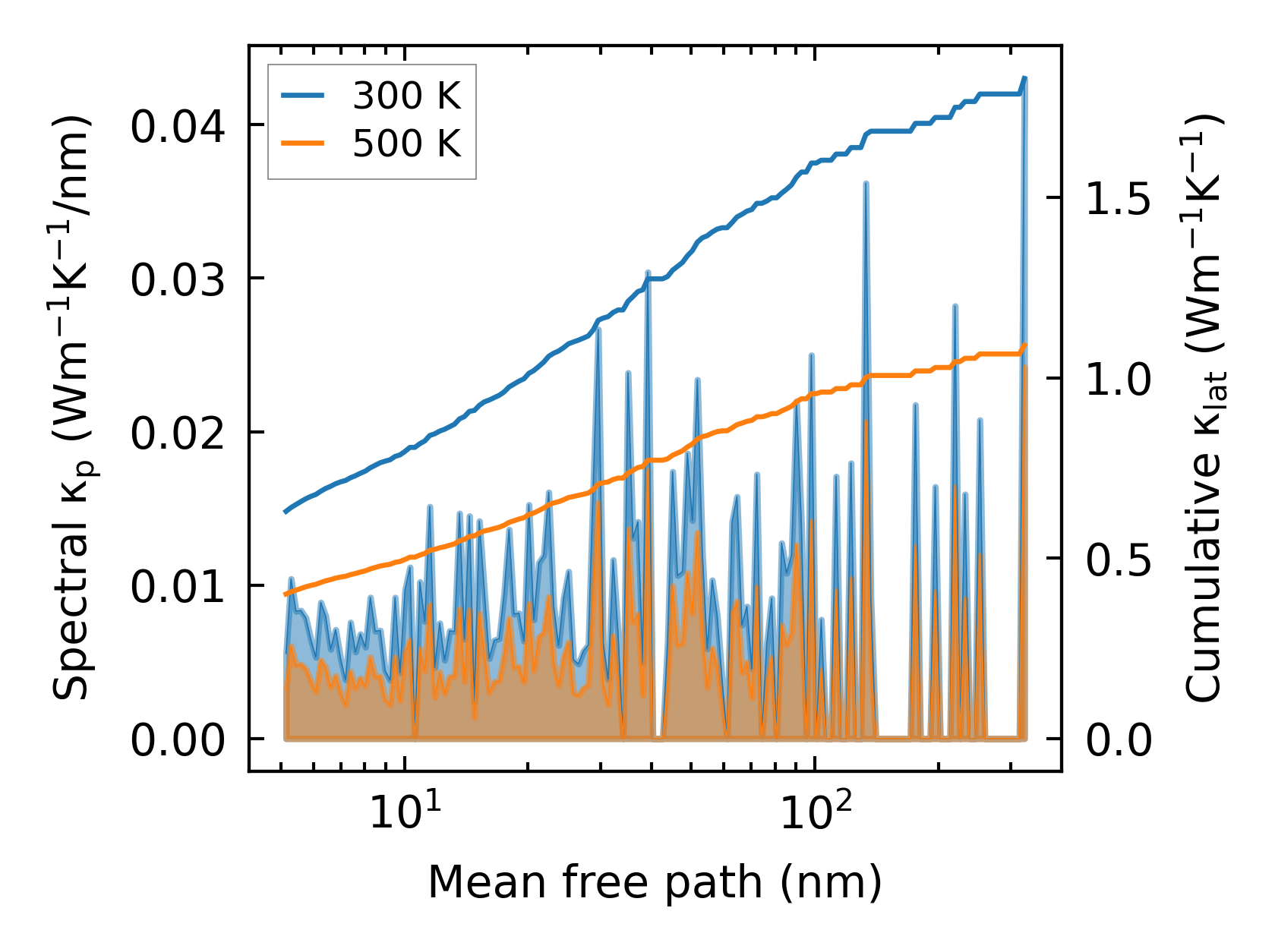

../../_images/fig_cumu_mfp5388.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

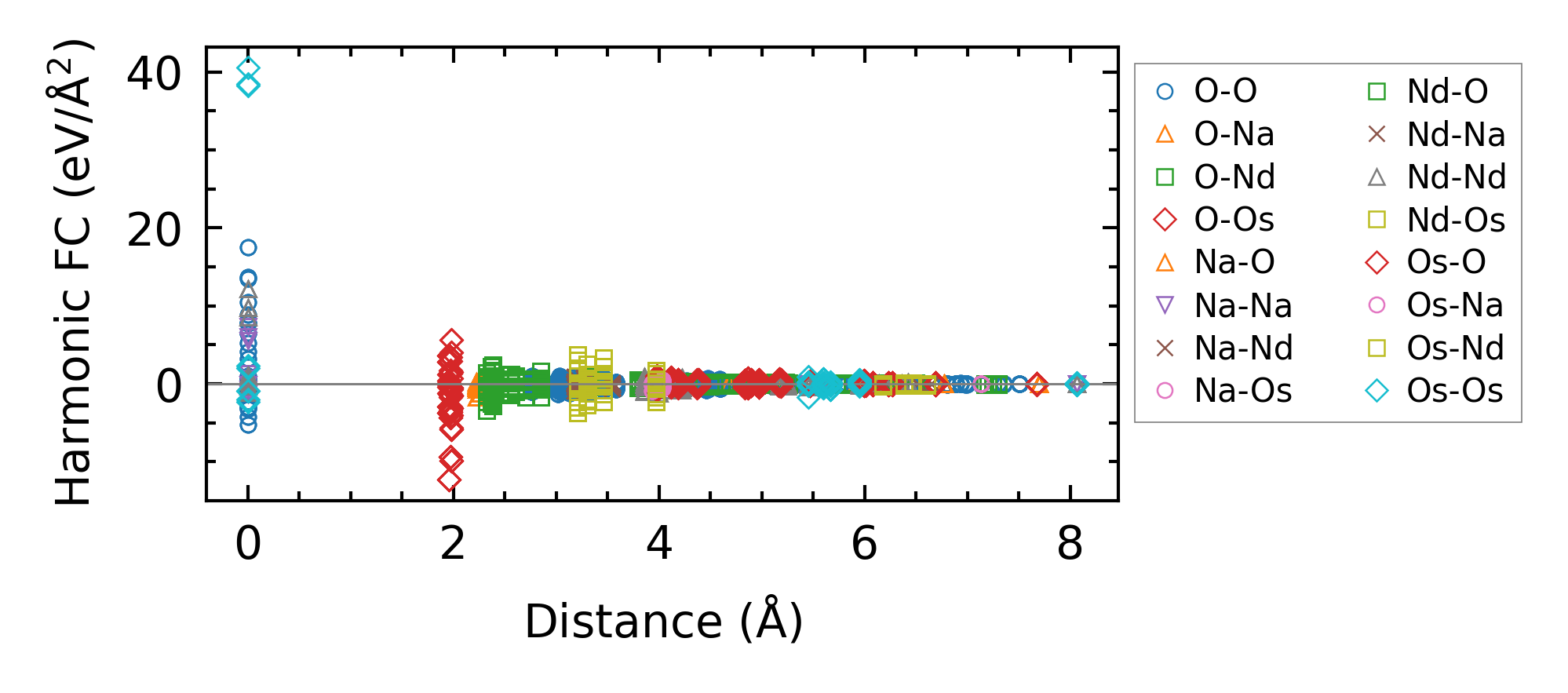

../../_images/fig_fc212732.png — (a) Force constants w.r.t atomic distance

Summary

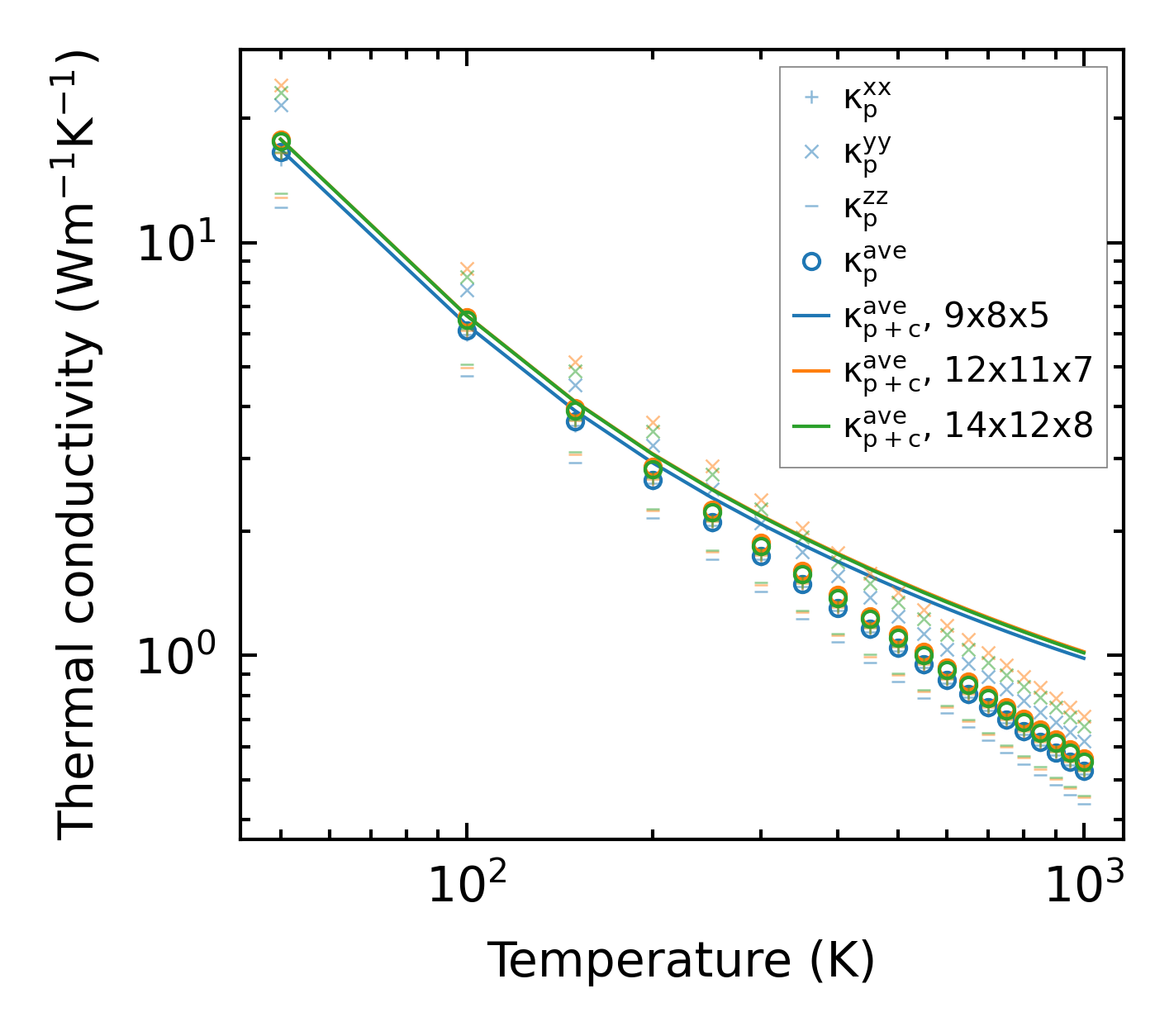

../../_images/fig_kappa10219.png — (a) Temperature-dependent lattice thermal conductivity

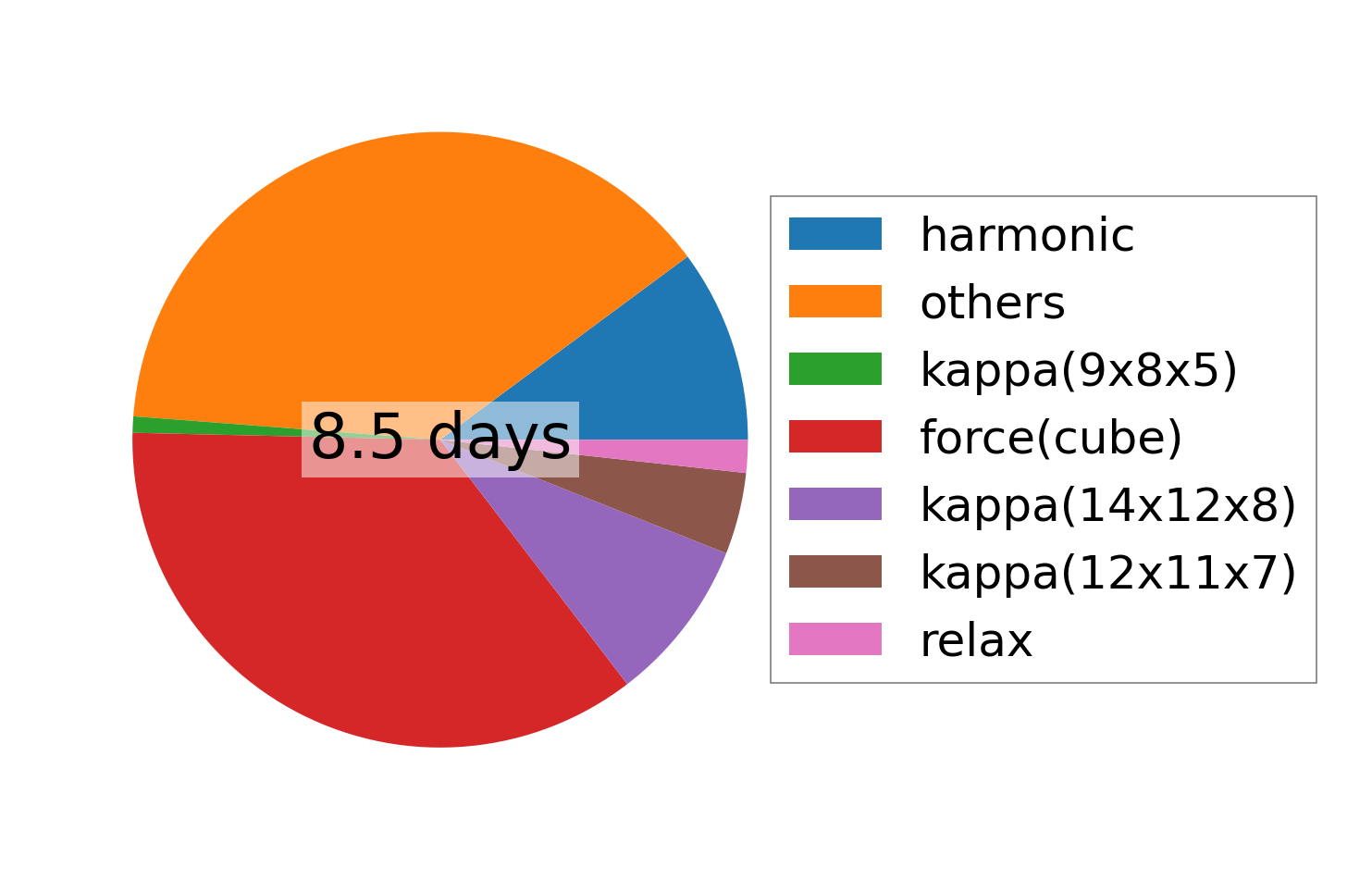

../../_images/fig_times22046.png — (b) Computation time
