mp-22660-2/InAgO2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-22660-2.tar.gz

Equation of state

../../_images/fig_bm6536.png — (a) Equation of state

Harmonic properties

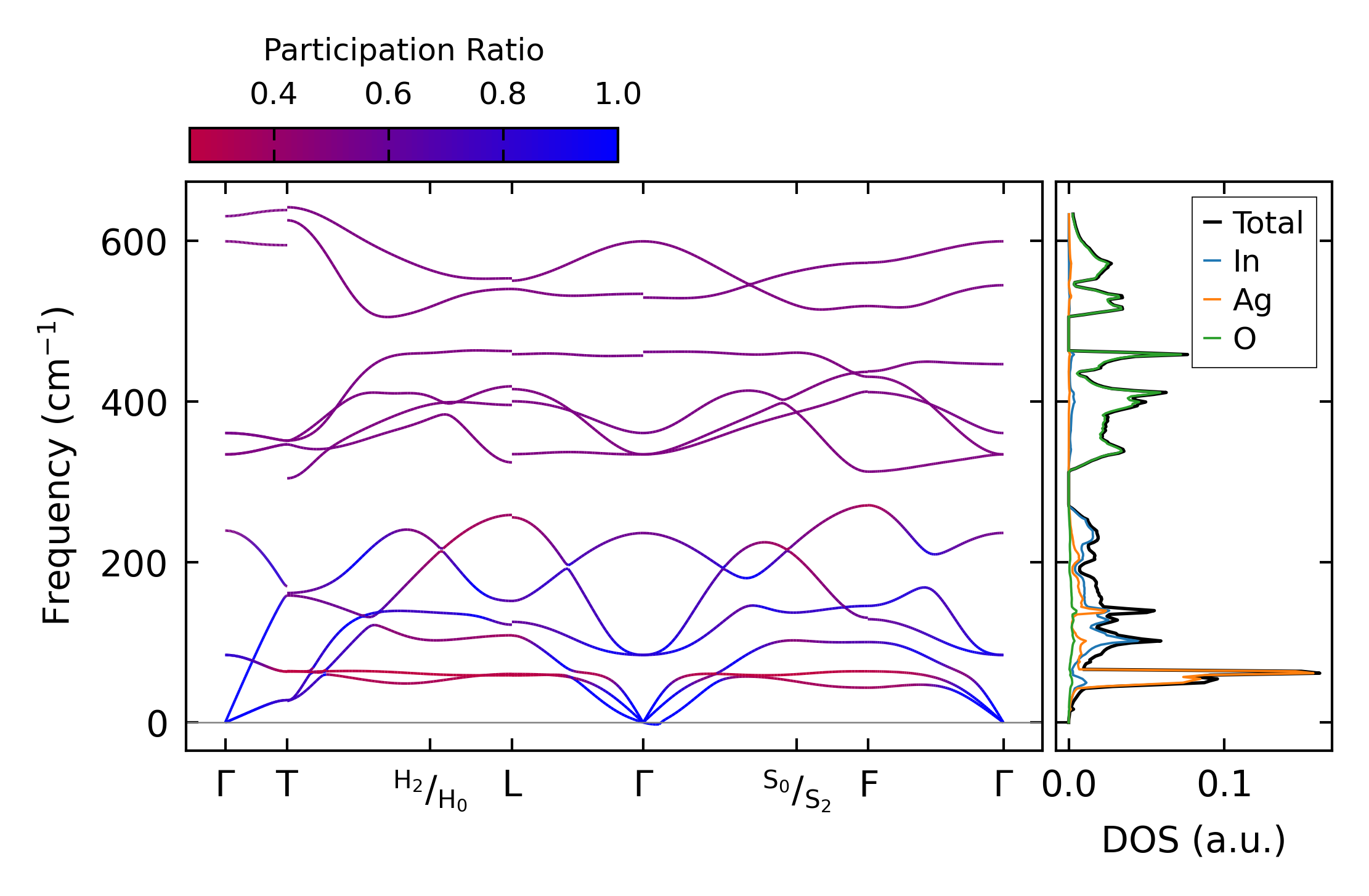

../../_images/fig_bandos_pr13088.png — (a) Phonon dispersion with participation ratio and DOS

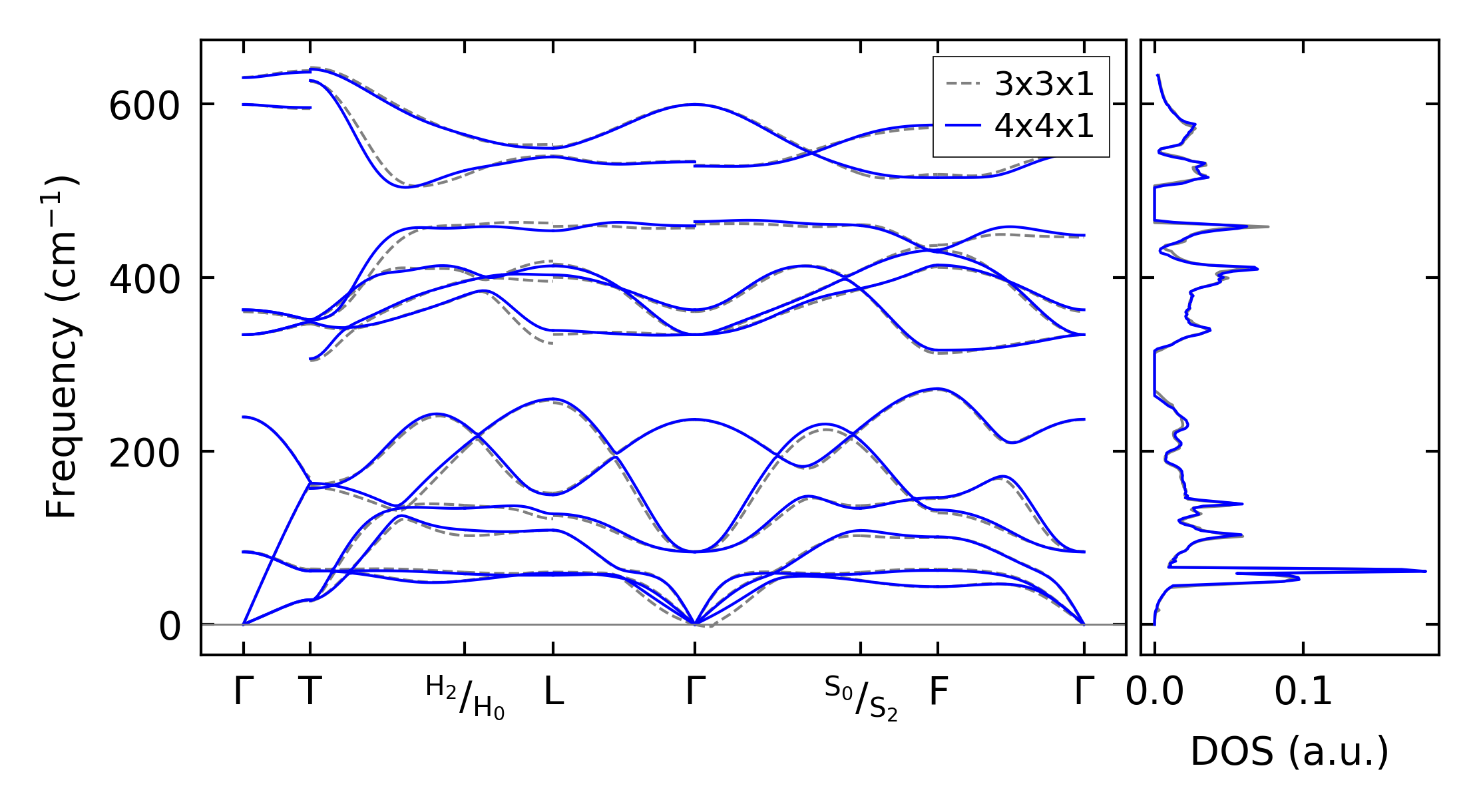

../../_images/fig_bandos17469.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13088.png — (c) Thermodynamic properties

Grüneisen parameters

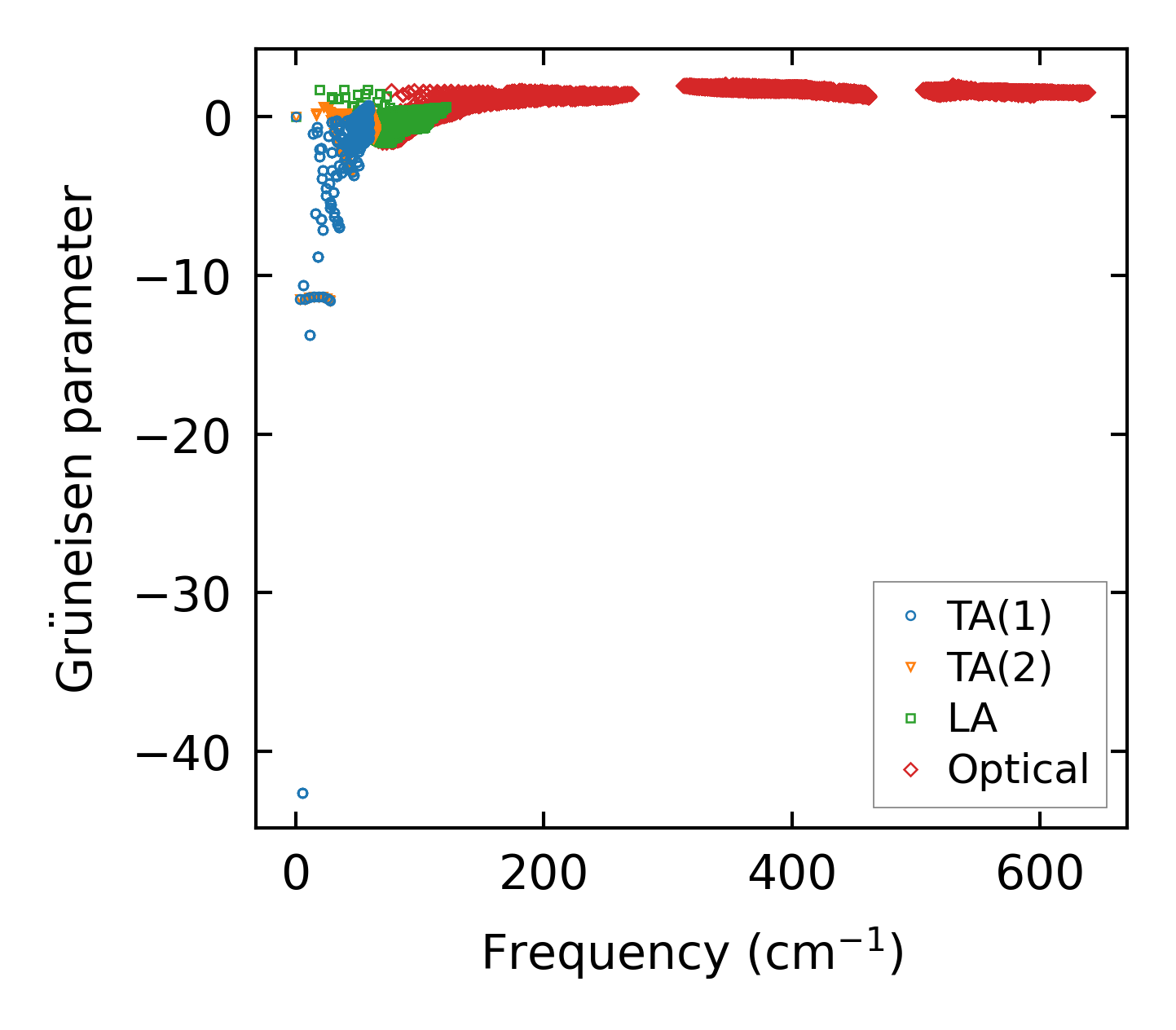

../../_images/fig_gru_all5464.png — (a) Grüneisen parameters

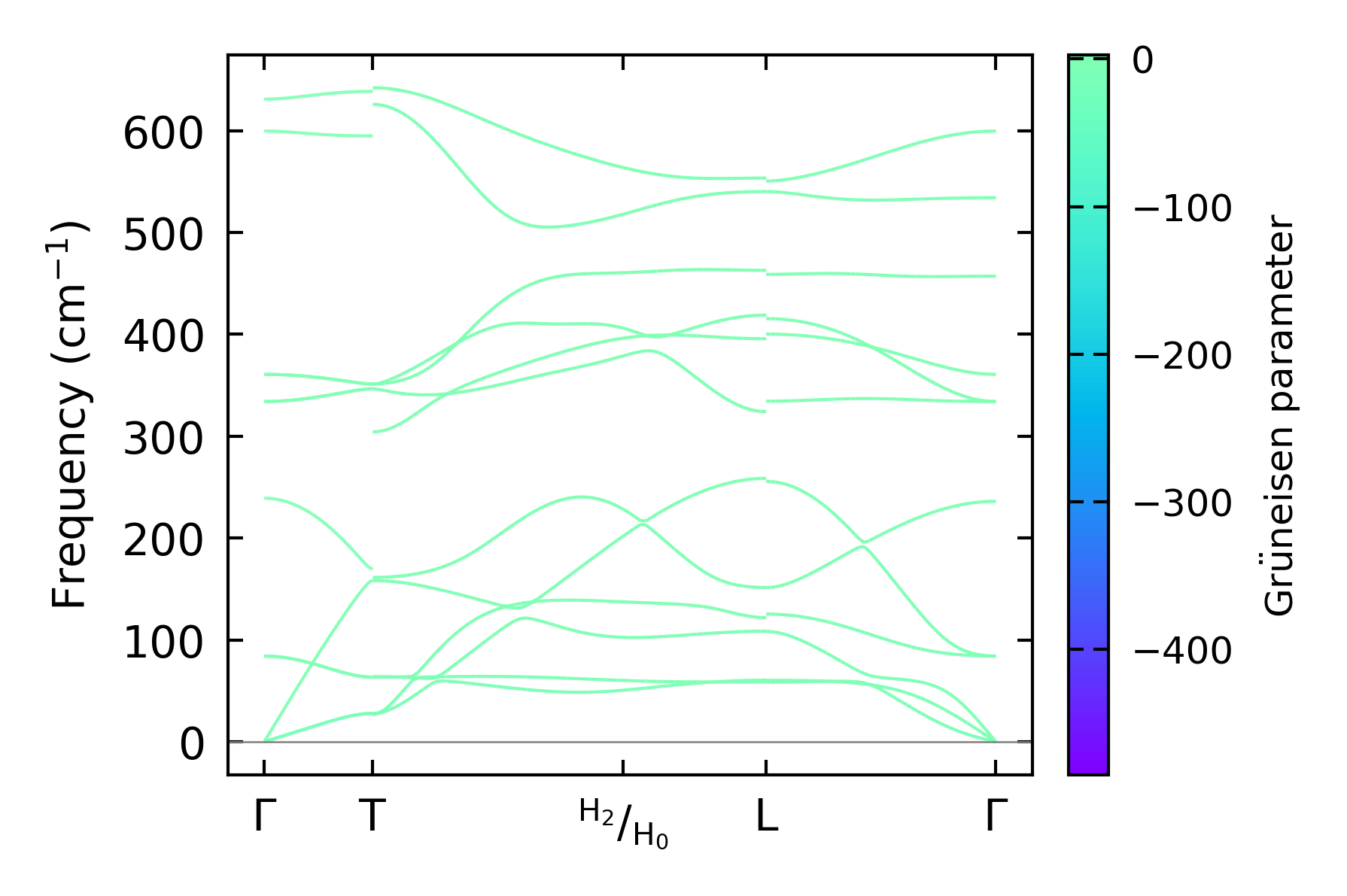

../../_images/fig_gruneisen5464.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x4x1 — q-mesh: 18x18x18, supercell: 4x4x1

../../_images/fig_kappa10263.png — (a) Temperature-dependent lattice thermal conductivity

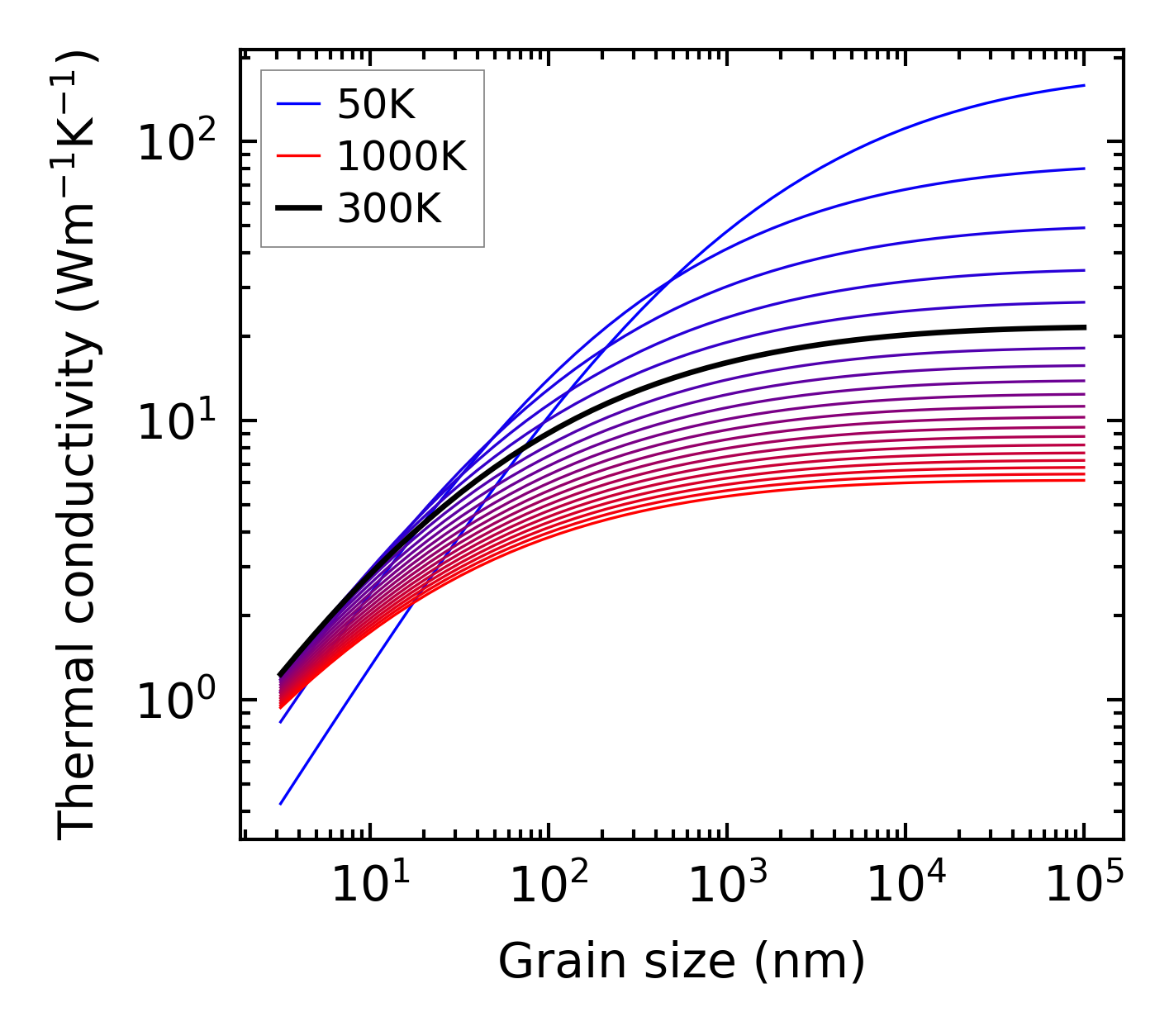

../../_images/fig_kappa_vs_grain_size5529.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5412.png — (a) Phonon lifetime due to phonon-phonon scattering

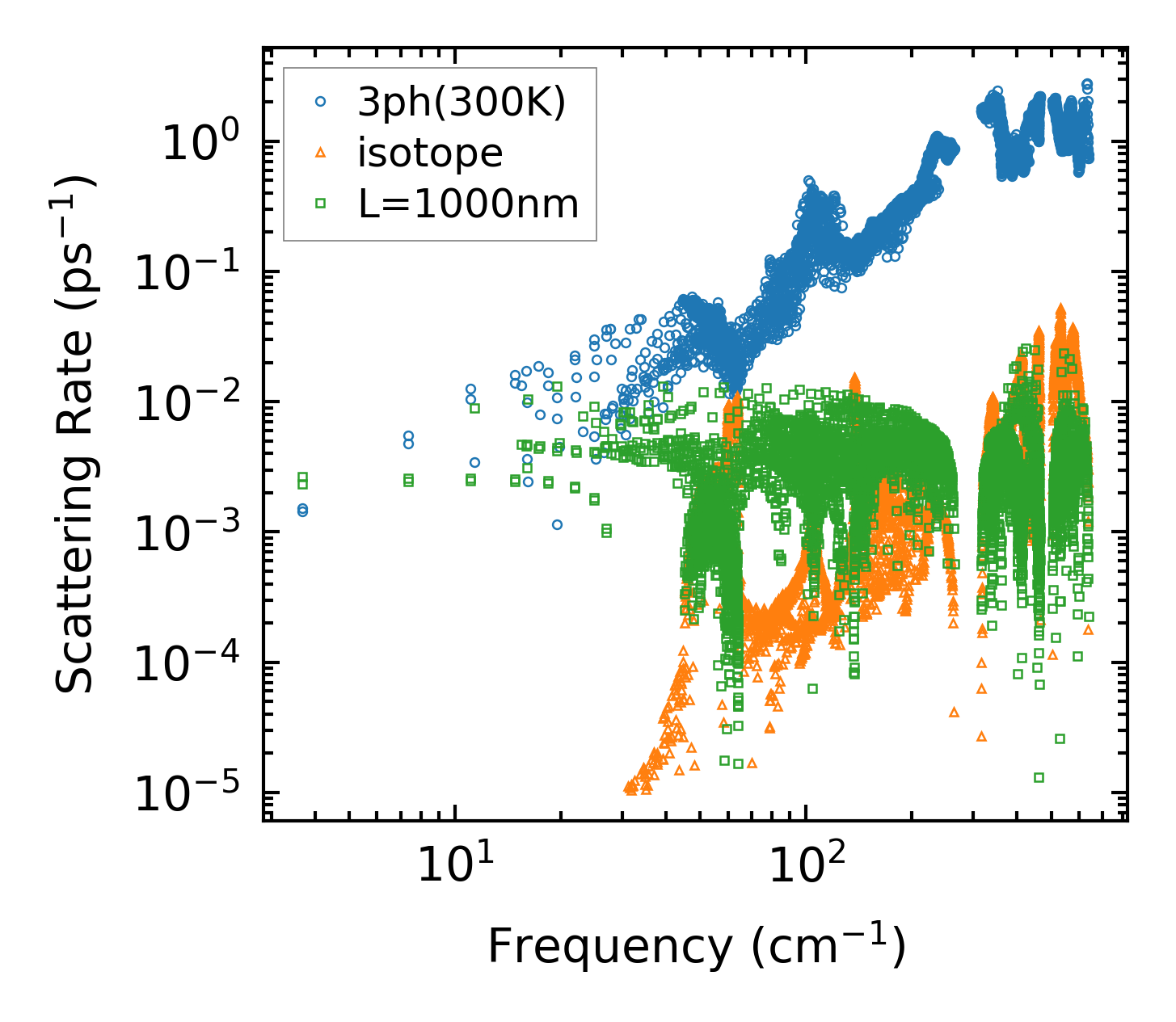

../../_images/fig_scat_rates5411.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5412.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

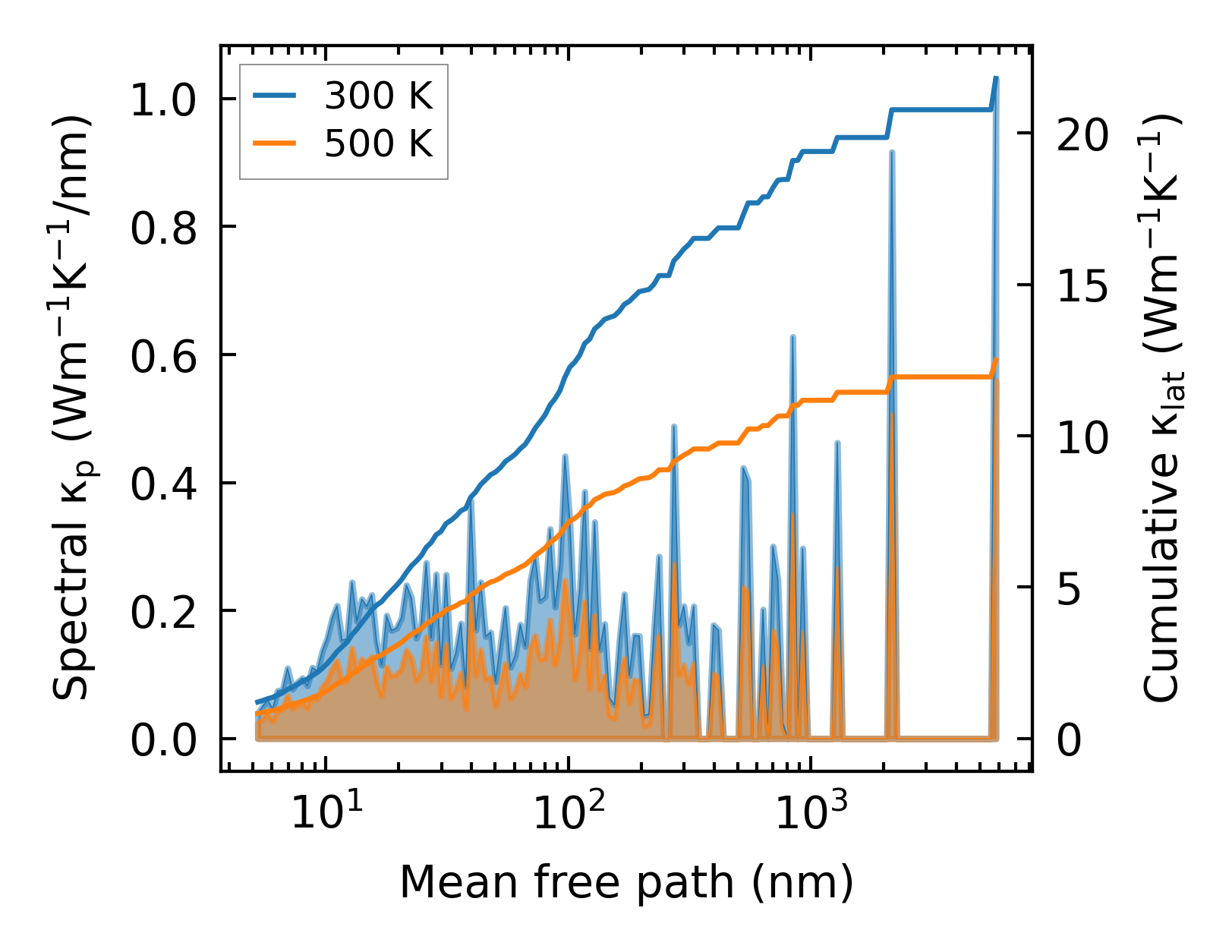

../../_images/fig_cumu_mfp5411.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212766.png — (a) Force constants w.r.t atomic distance

Summary

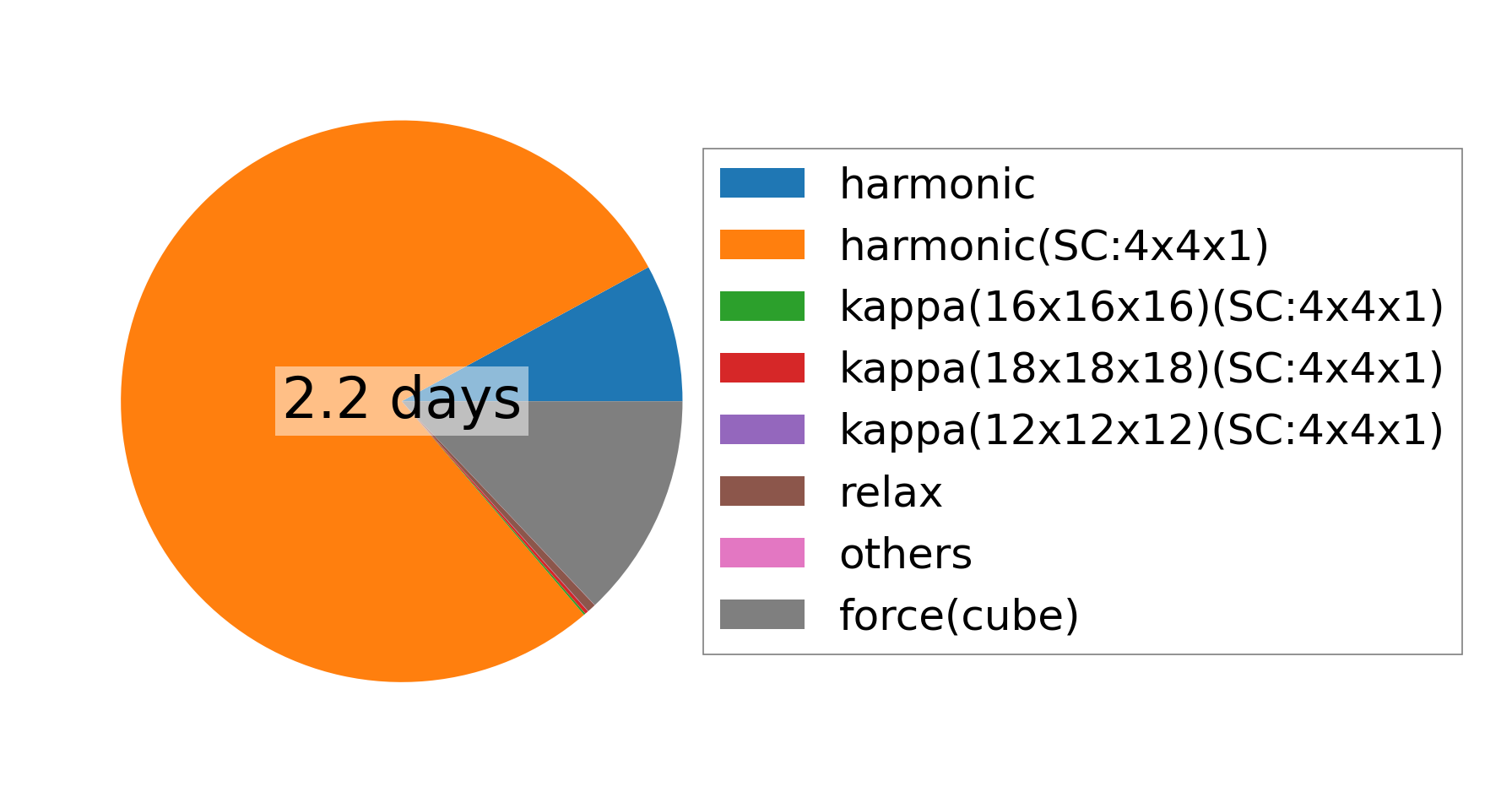

../../_images/fig_times22108.png — (a) Computation time
