mp-22661-2/InAgP2S6/anharm

Space group: P-31c (163)
Link: Materials Project
Download: mp-22661-2.tar.gz

Equation of state

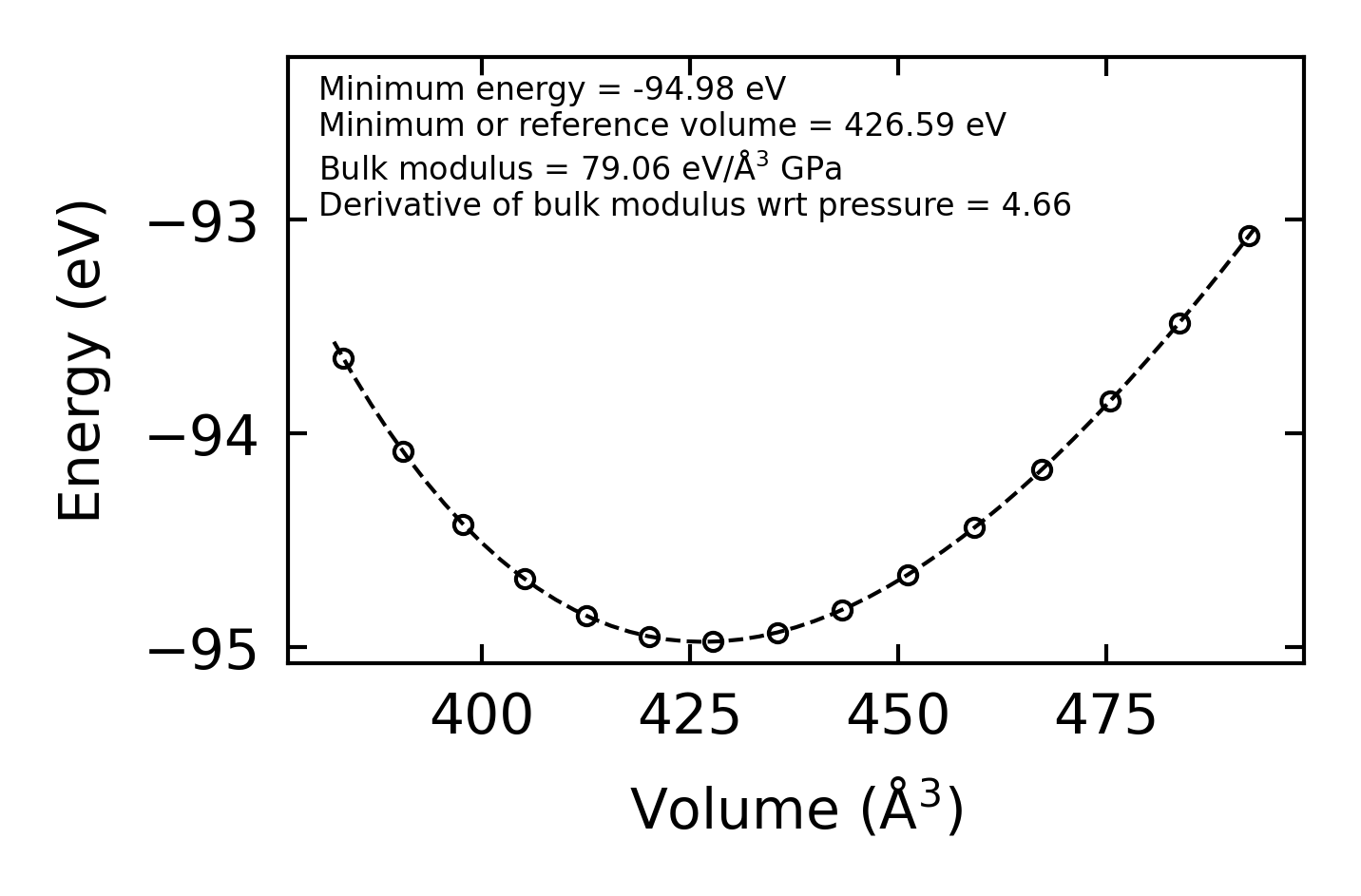

../../_images/fig_bm6537.png — (a) Equation of state

Harmonic properties

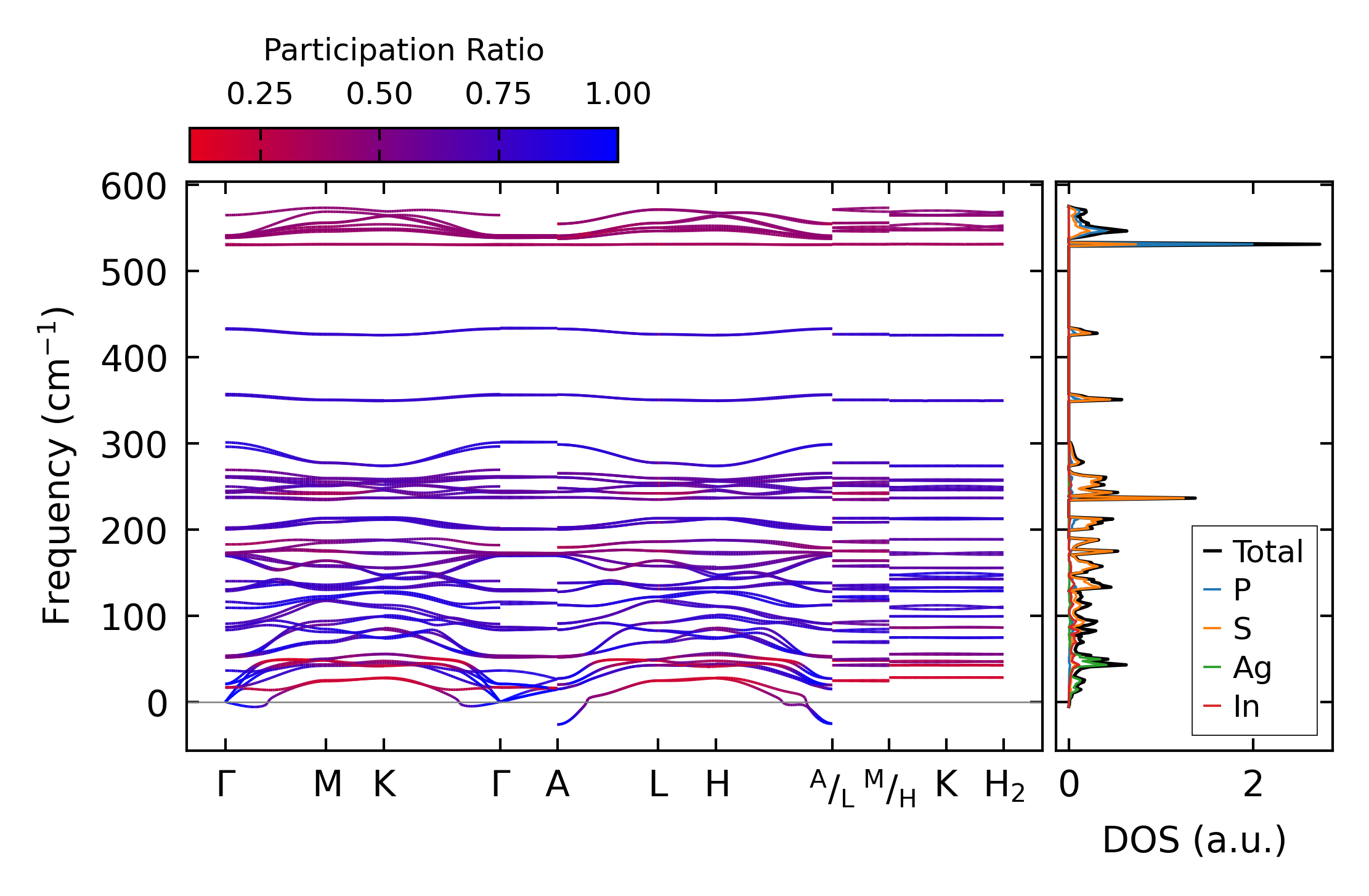

../../_images/fig_bandos_pr13090.png — (a) Phonon dispersion with participation ratio and DOS

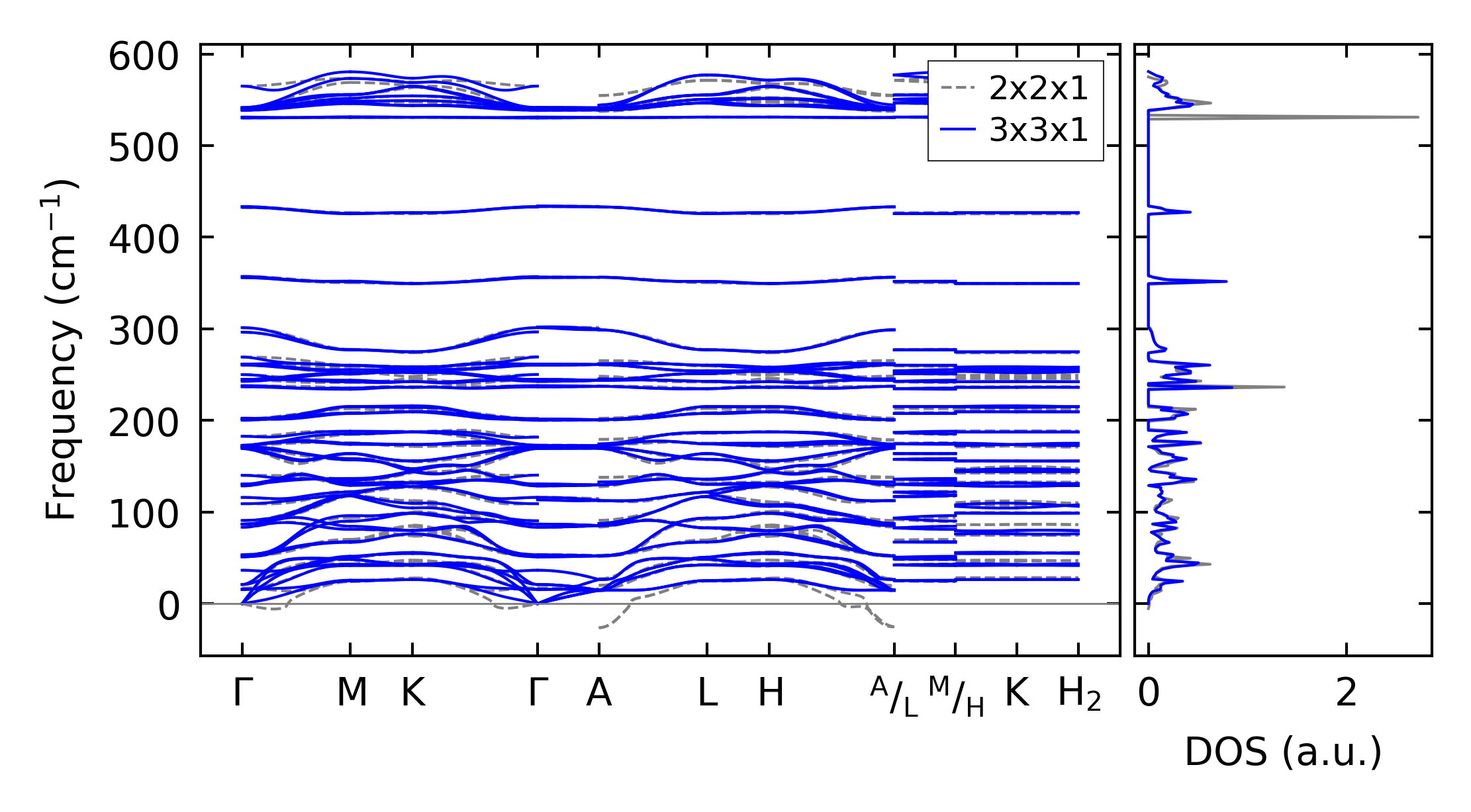

../../_images/fig_bandos17471.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13090.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5465.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5465.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x3x1 — q-mesh: 12x12x5, supercell: 3x3x1

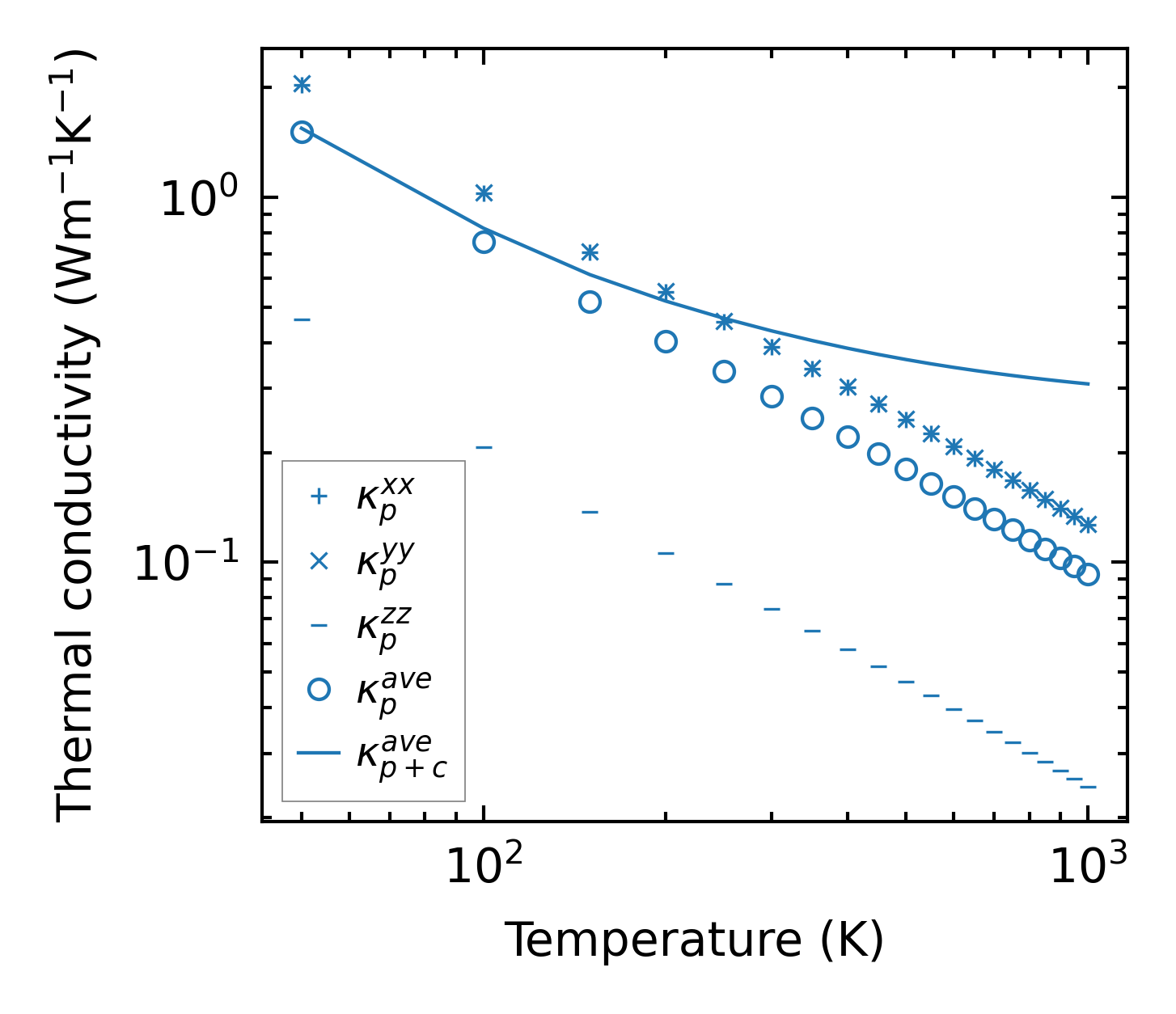

../../_images/fig_kappa10264.png — (a) Temperature-dependent lattice thermal conductivity

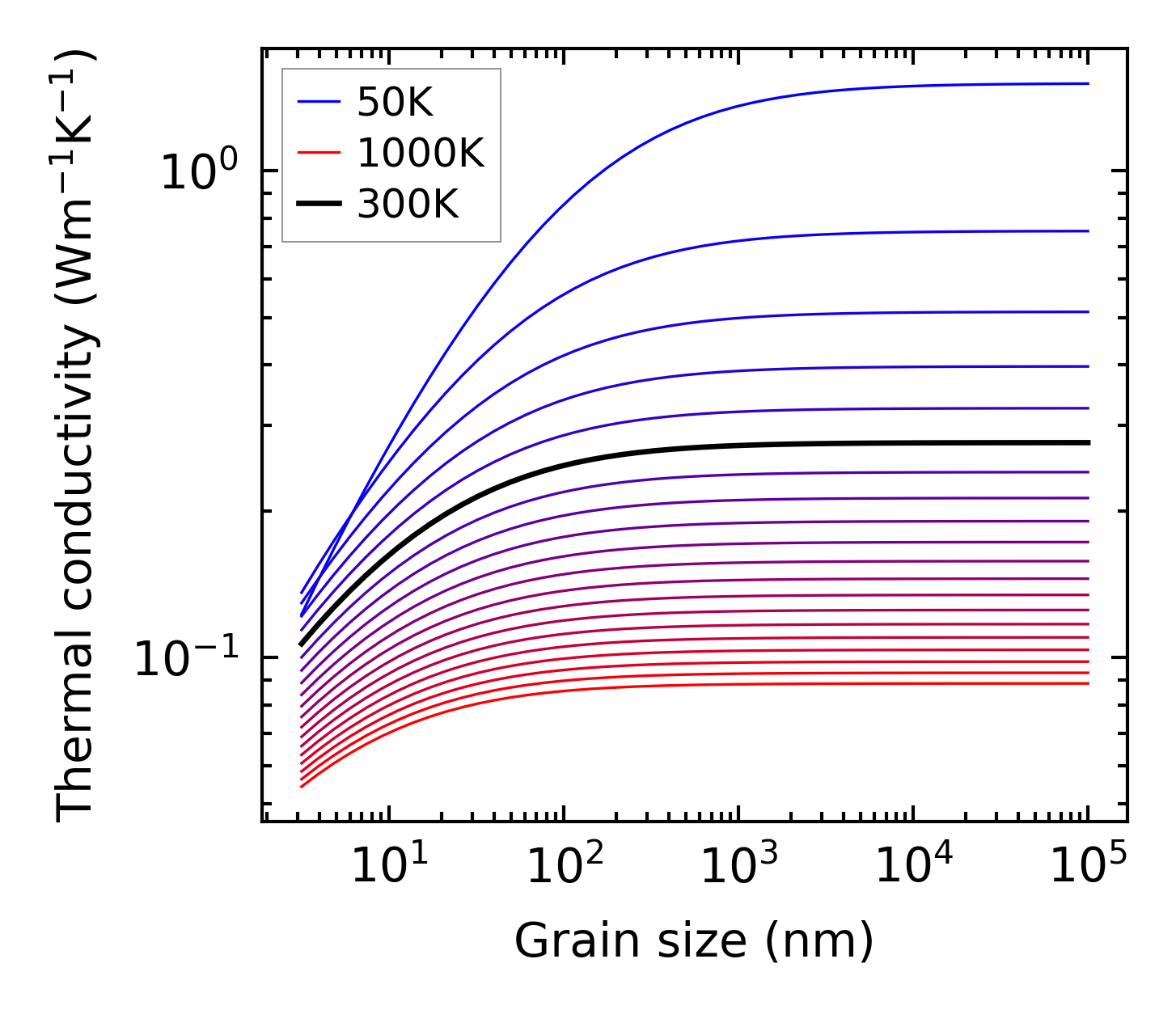

../../_images/fig_kappa_vs_grain_size5530.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

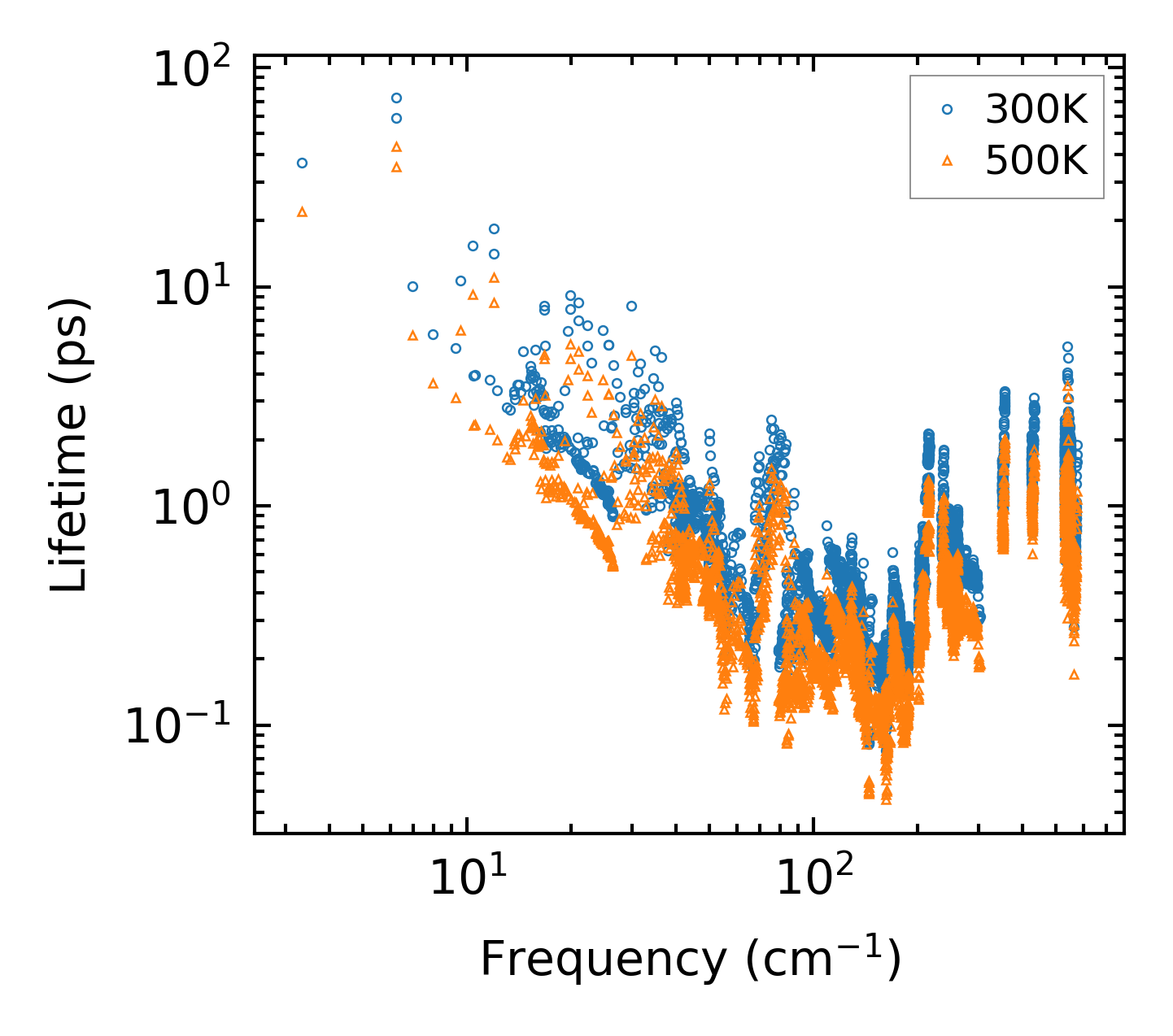

../../_images/fig_lifetime5413.png — (a) Phonon lifetime due to phonon-phonon scattering

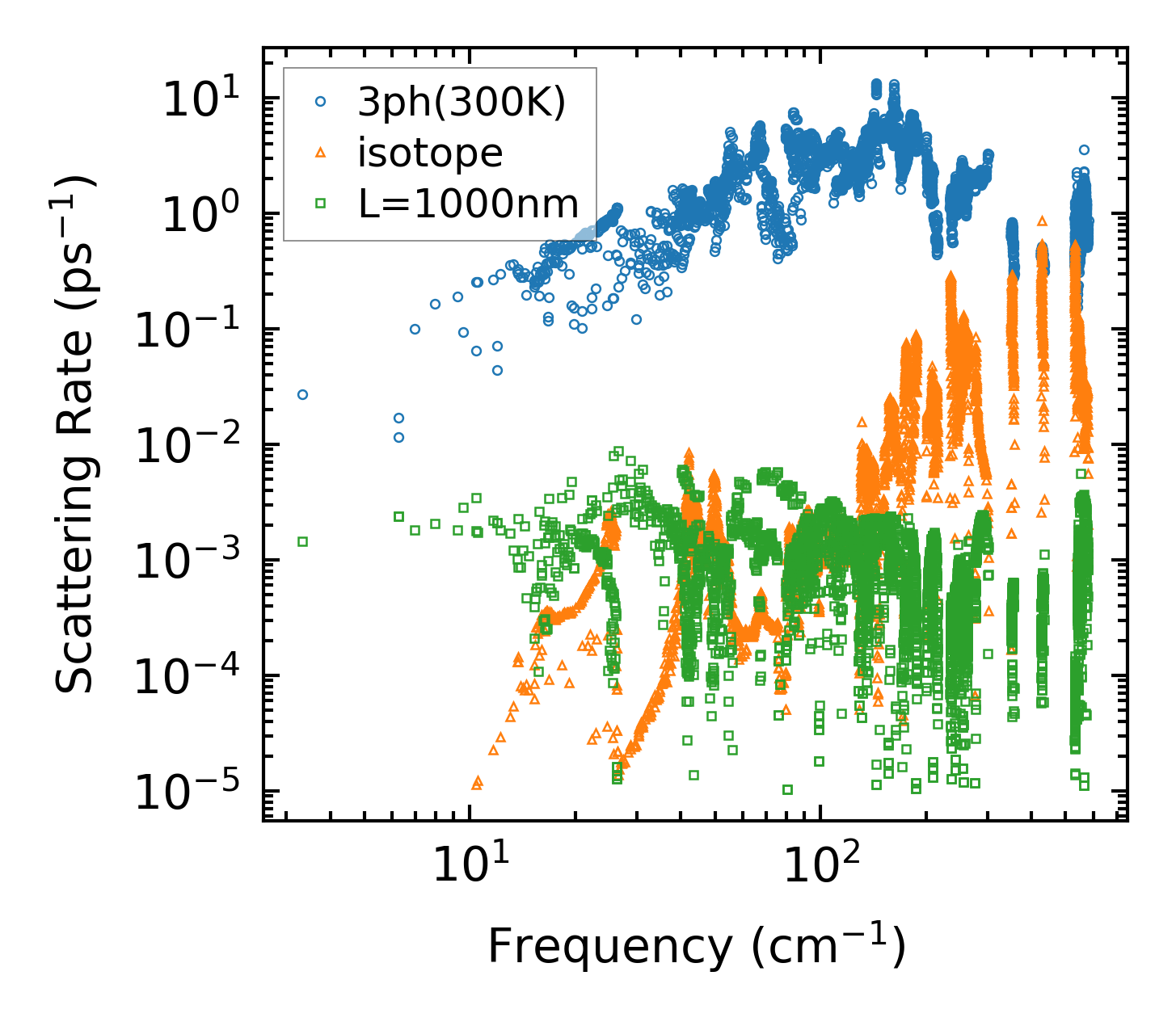

../../_images/fig_scat_rates5412.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5413.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5412.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

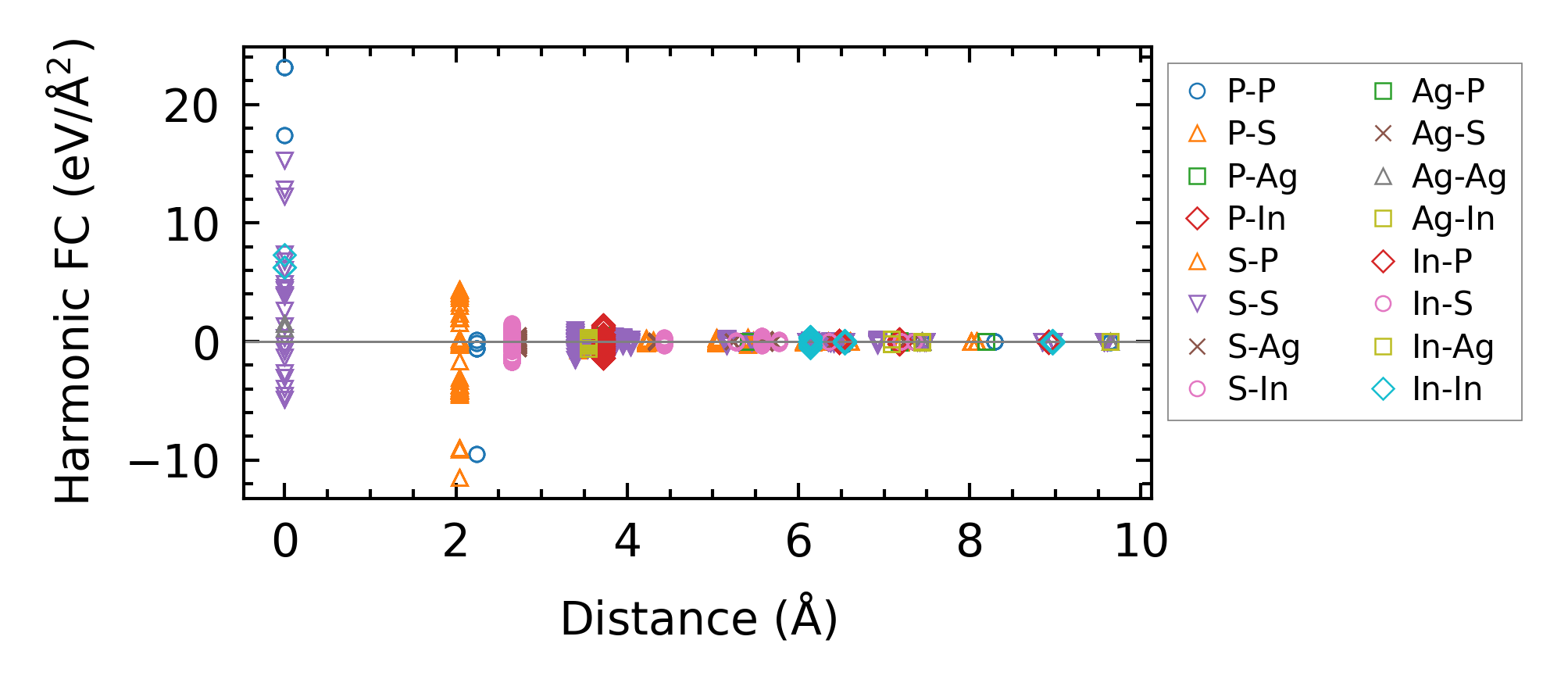

../../_images/fig_fc212768.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times22110.png — (a) Computation time
