mp-978/Sr2Sn/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-978.tar.gz

Harmonic properties

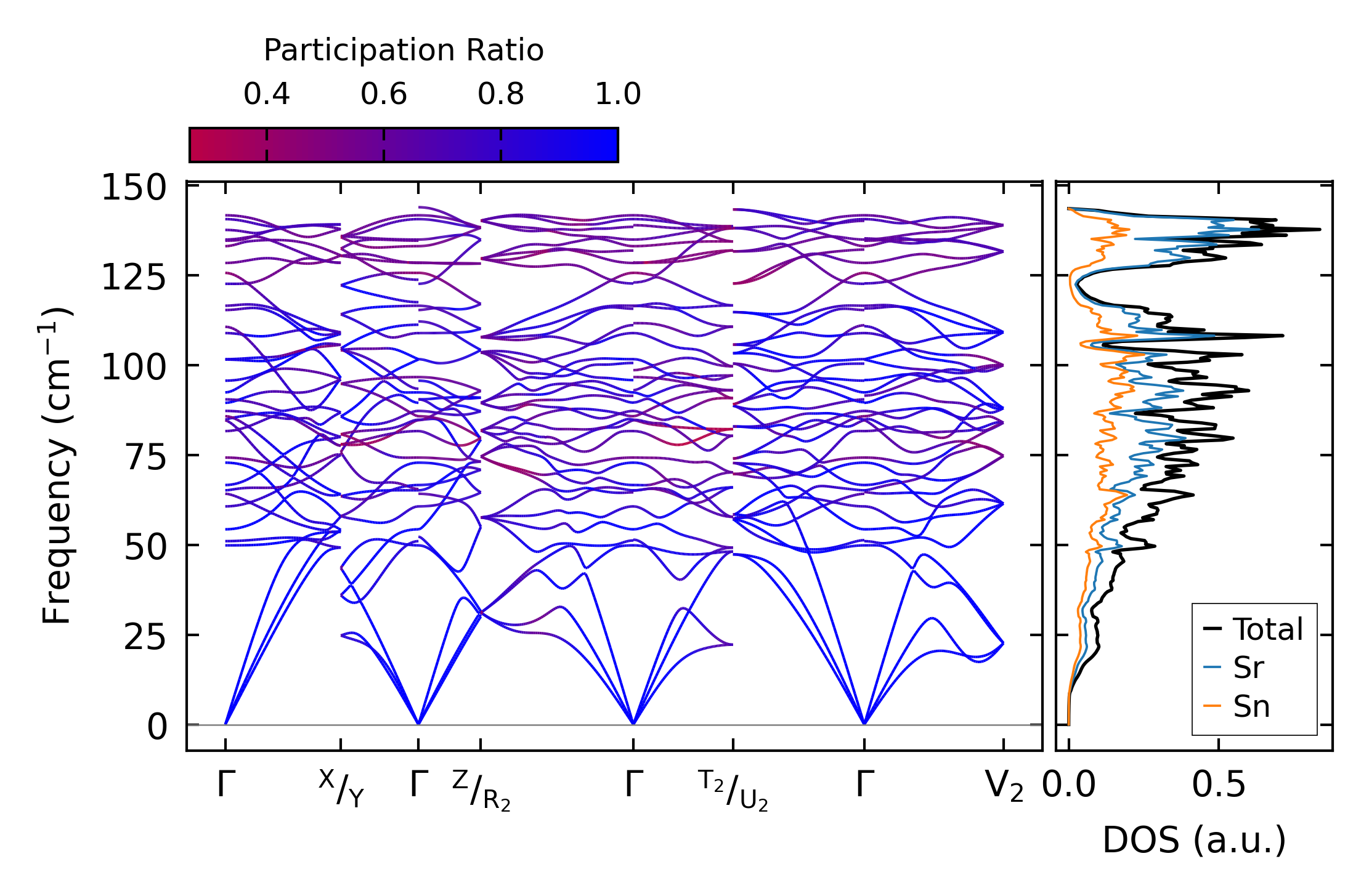

../../_images/fig_bandos_pr483.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo483.png — (b) Thermodynamic properties

Grüneisen parameters

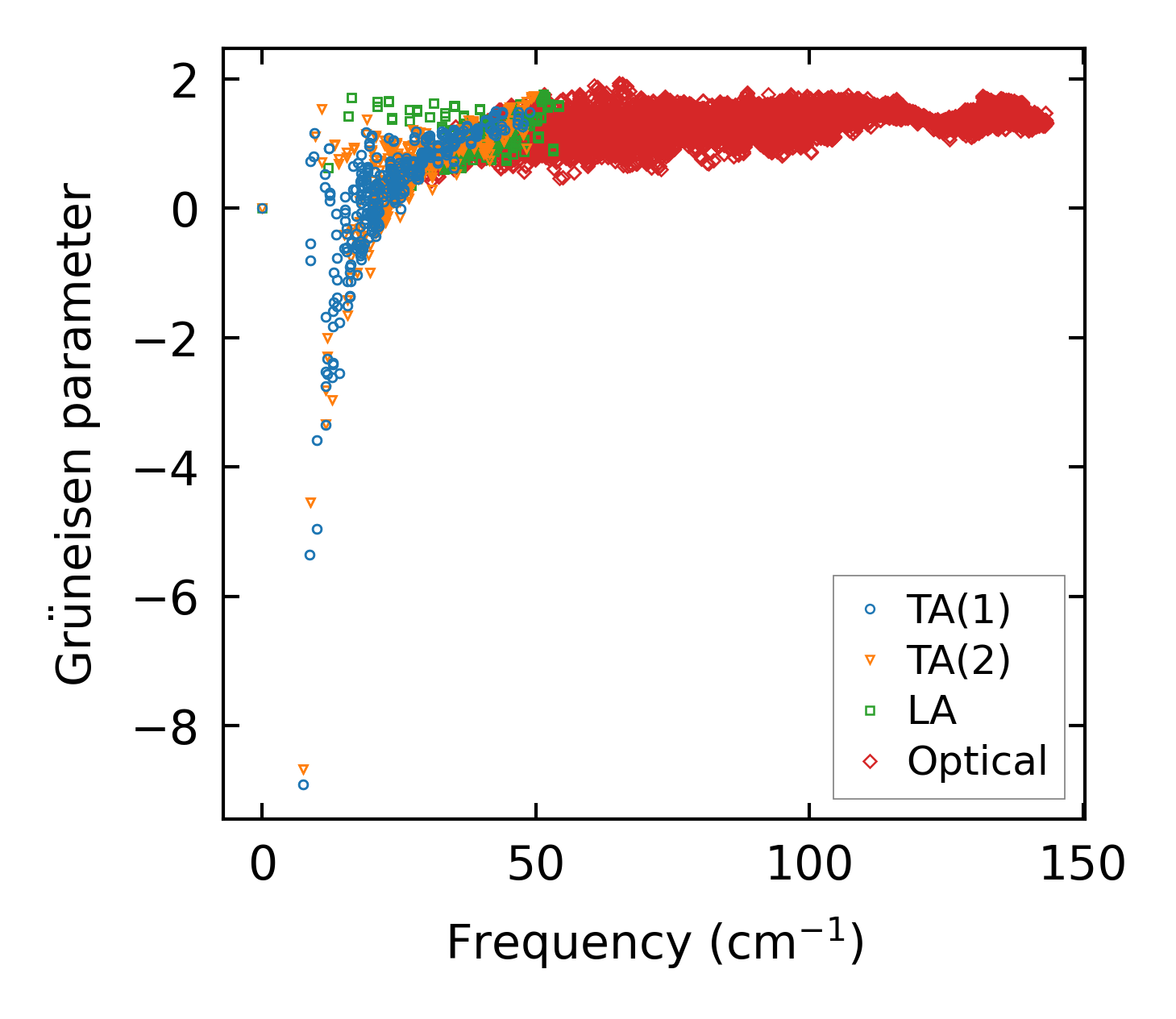

../../_images/fig_gru_all330.png — (a) Grüneisen parameters

../../_images/fig_gruneisen330.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x8x7, supercell: 3x2x2

../../_images/fig_kappa641.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size332.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

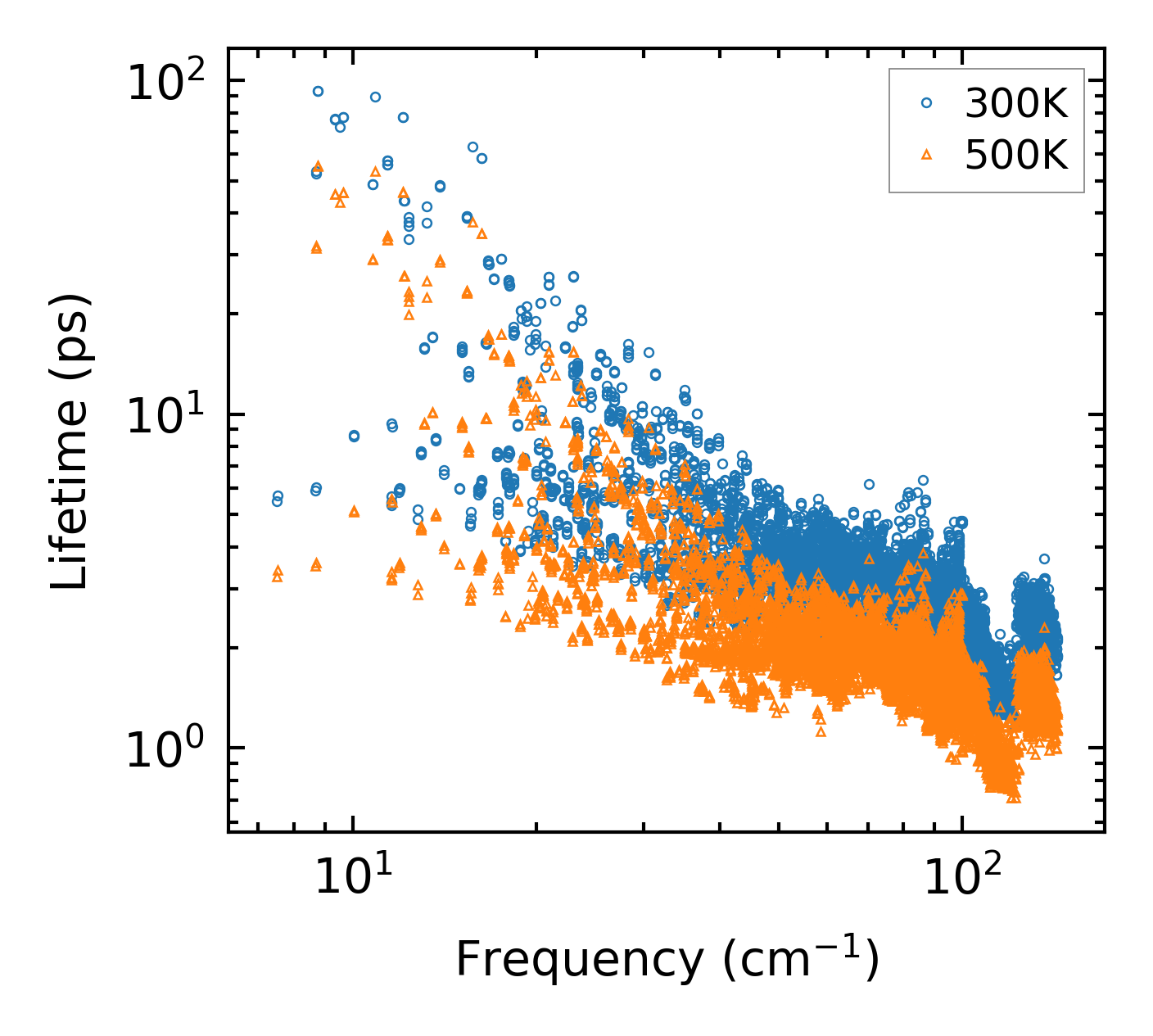

../../_images/fig_lifetime328.png — (a) Phonon lifetime due to phonon-phonon scattering

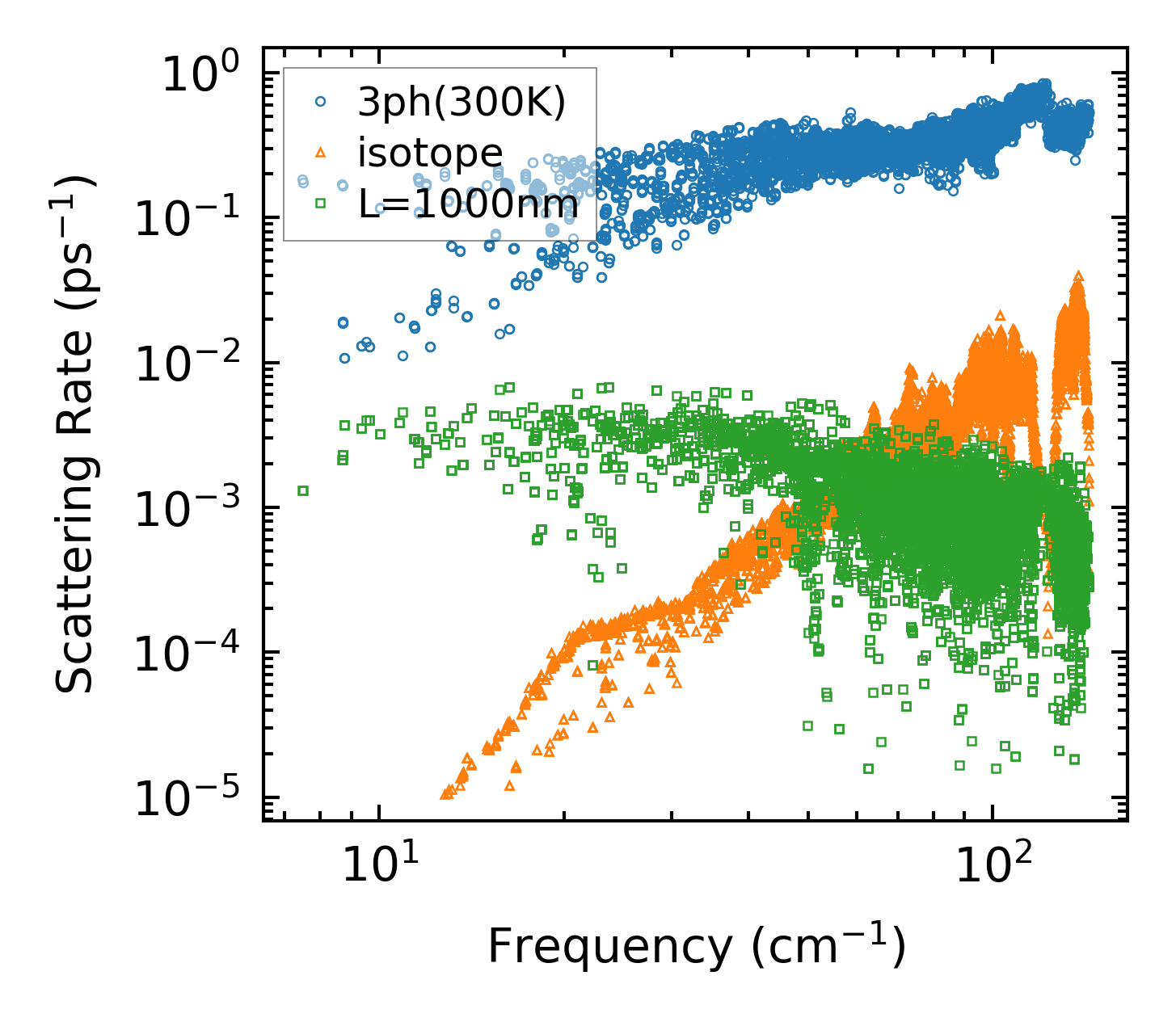

../../_images/fig_scat_rates327.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

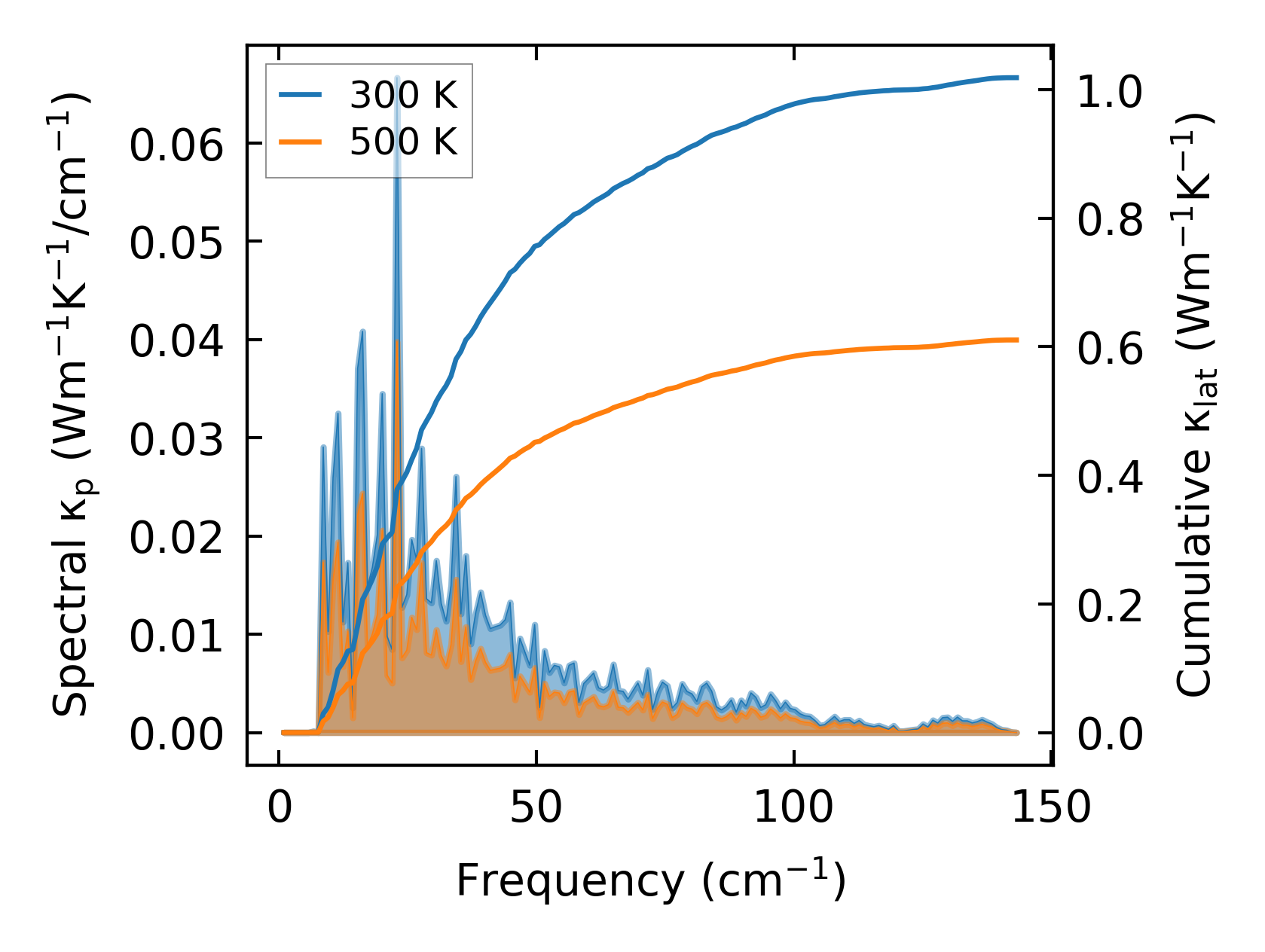

../../_images/fig_cumu_frequency328.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp328.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

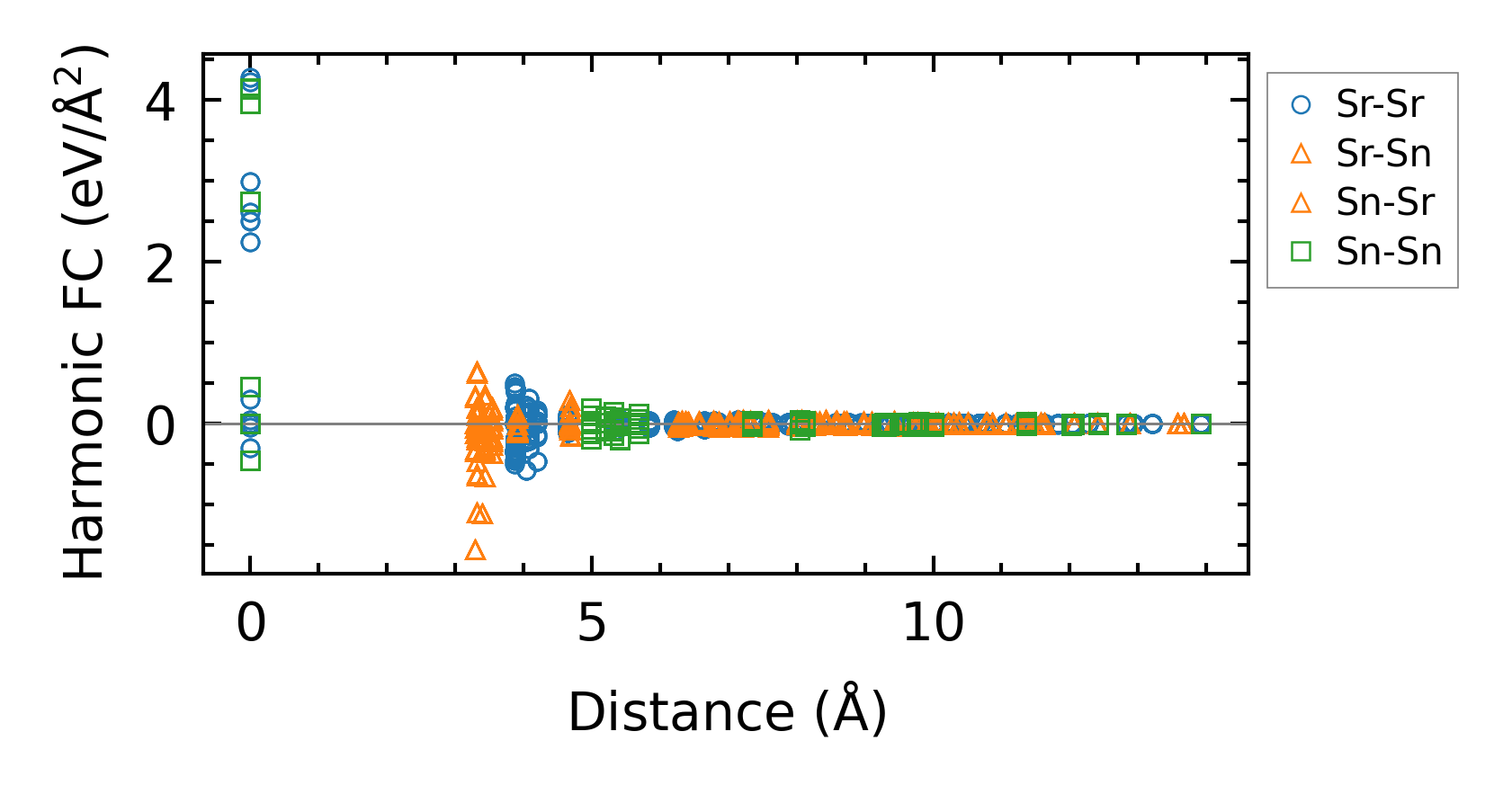

../../_images/fig_fc2409.png — (a) Force constants w.r.t atomic distance

Summary

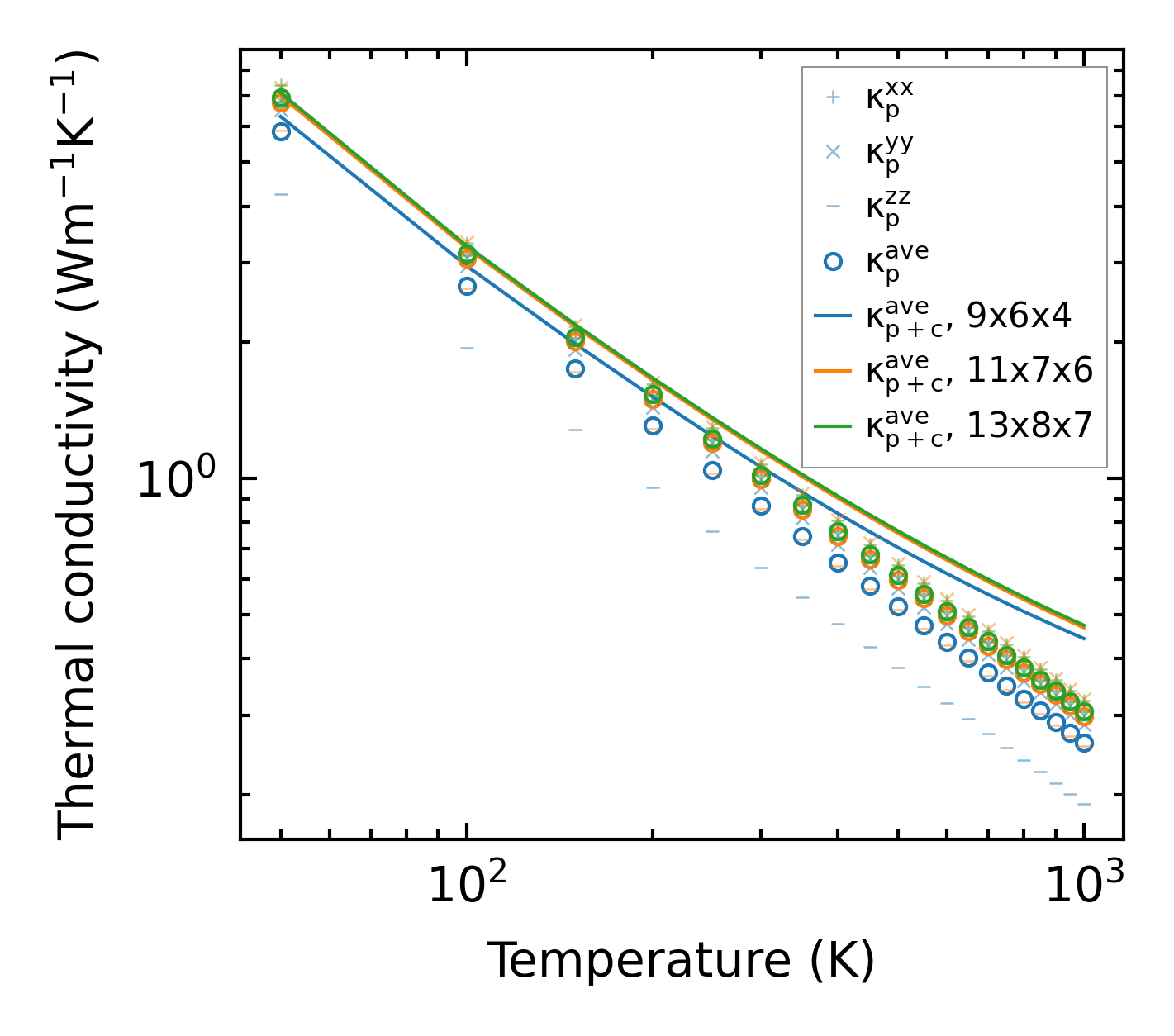

../../_images/fig_kappa642.png — (a) Temperature-dependent lattice thermal conductivity

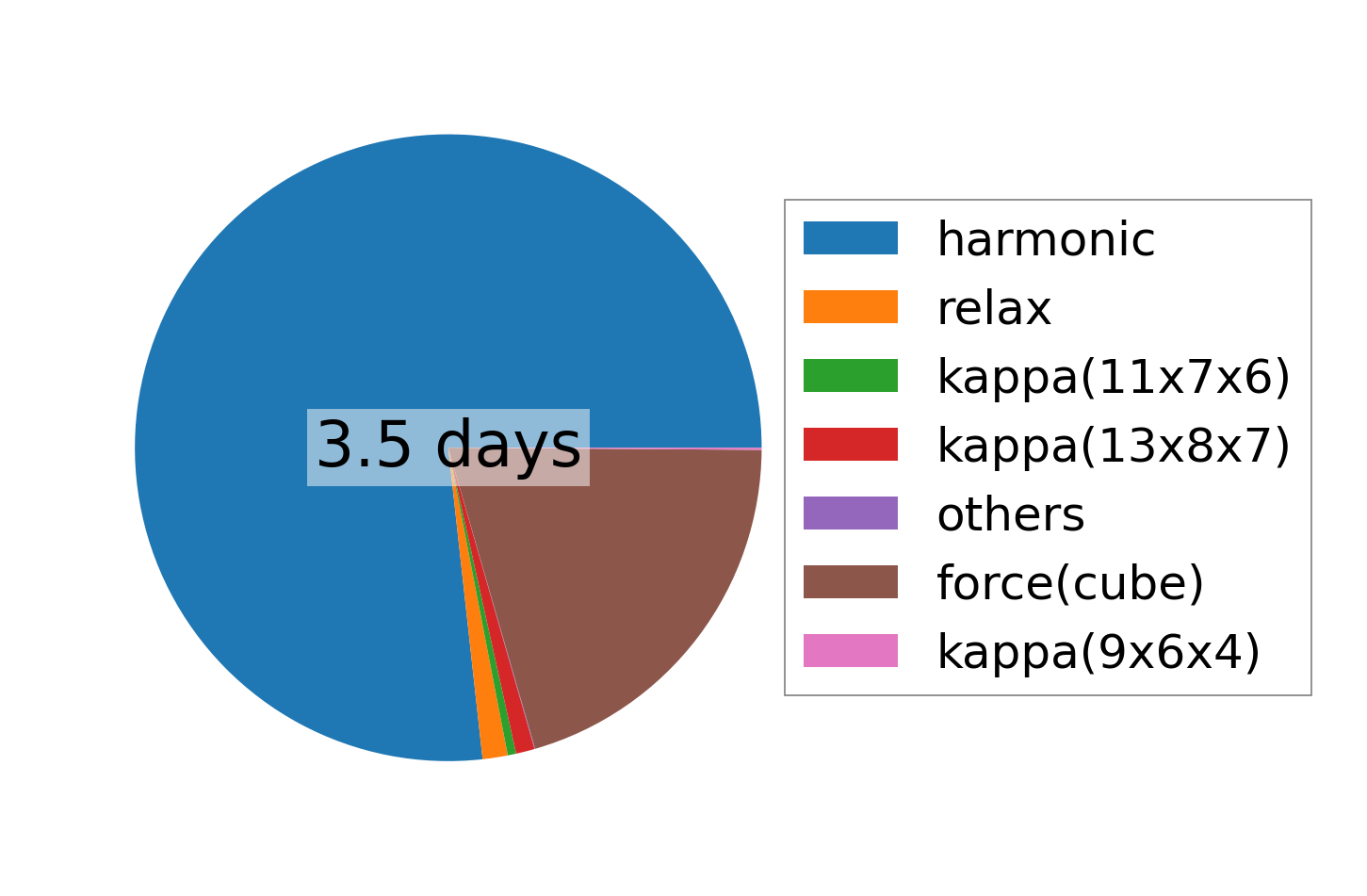

../../_images/fig_times734.png — (b) Computation time
