mp-380-2/ZnSe/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-380-2.tar.gz

Equation of state

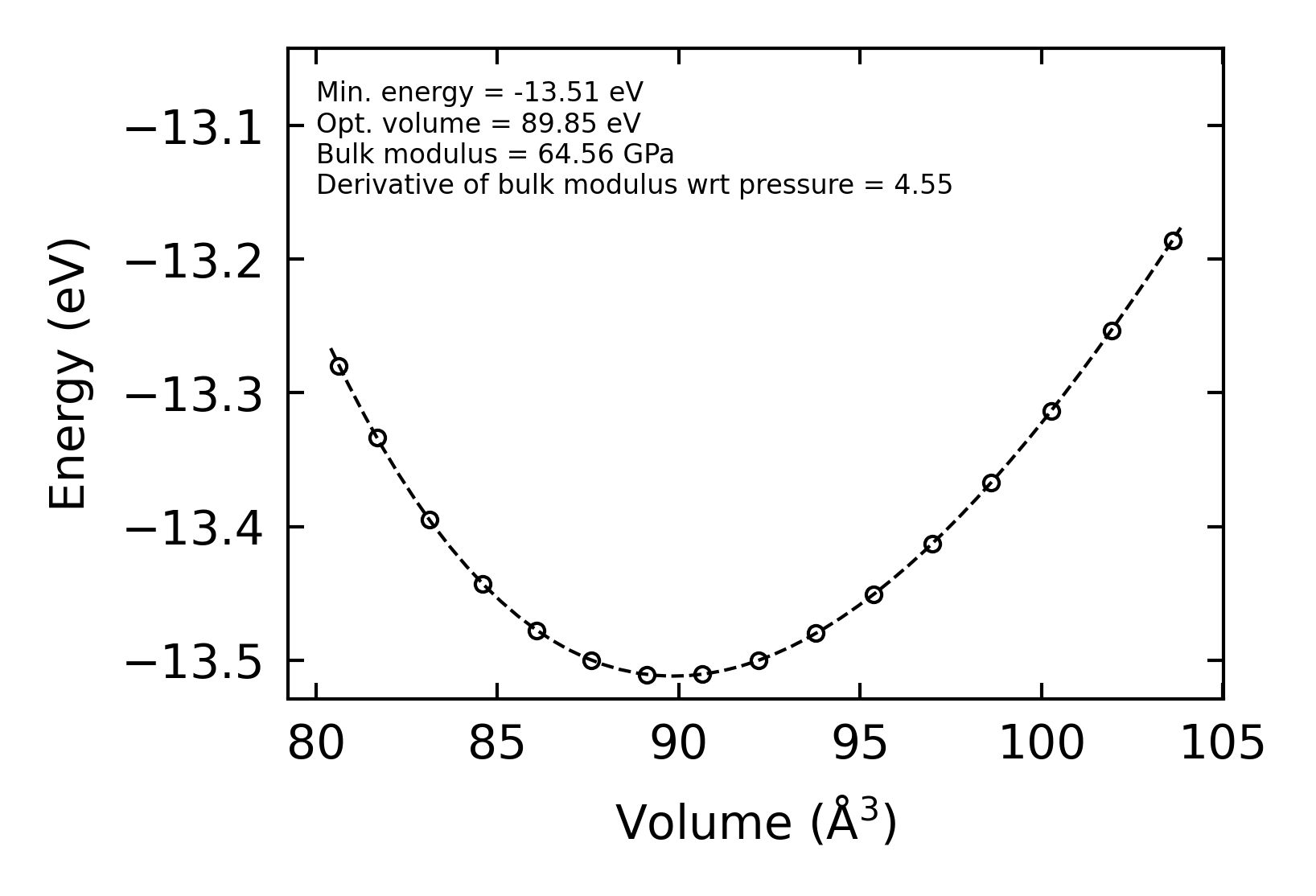

../../_images/fig_bm104.png — (a) Equation of state

Harmonic properties

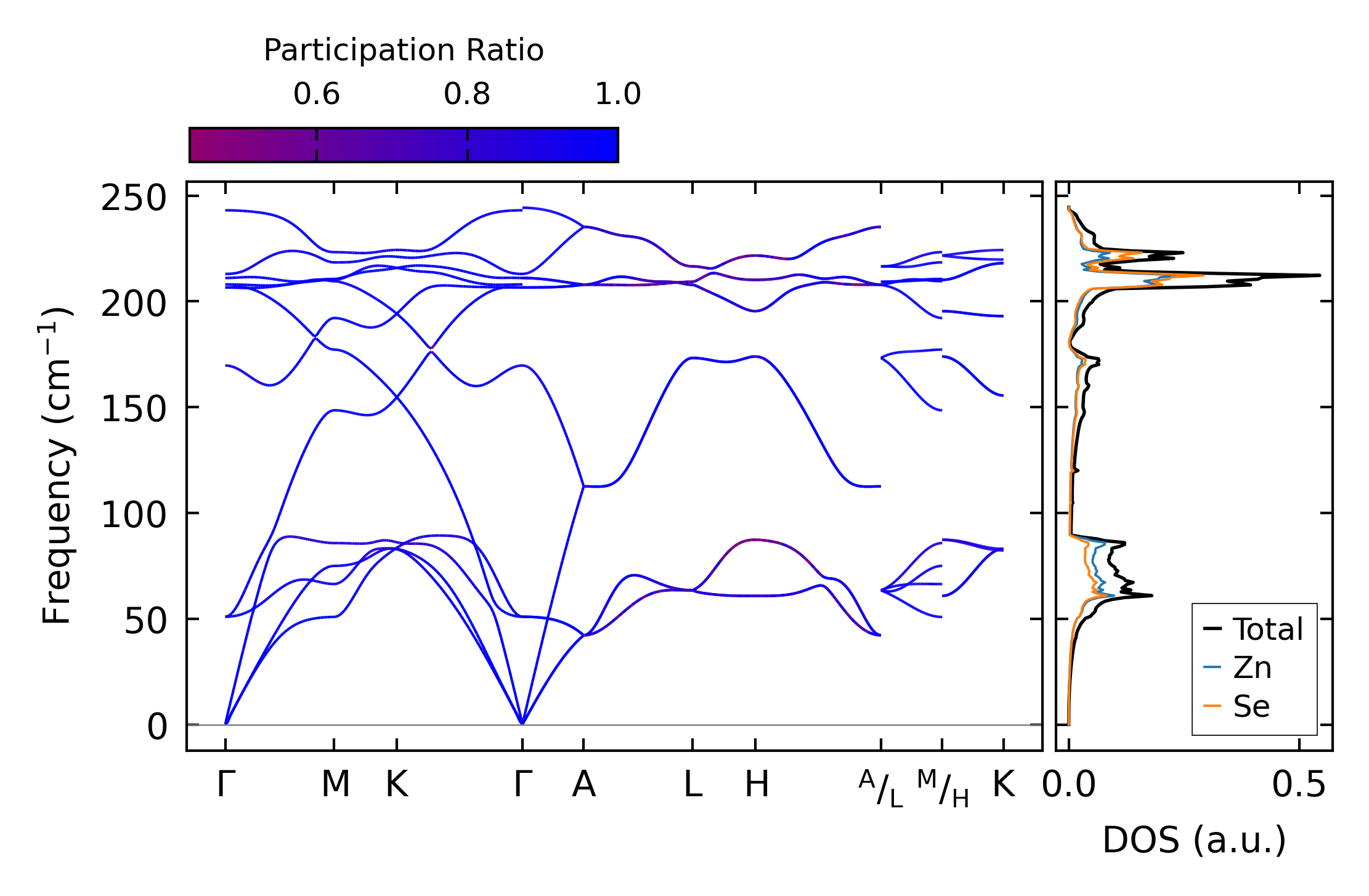

../../_images/fig_bandos_pr372.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo372.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all254.png — (a) Grüneisen parameters

../../_images/fig_gruneisen254.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x11, supercell: 4x4x2

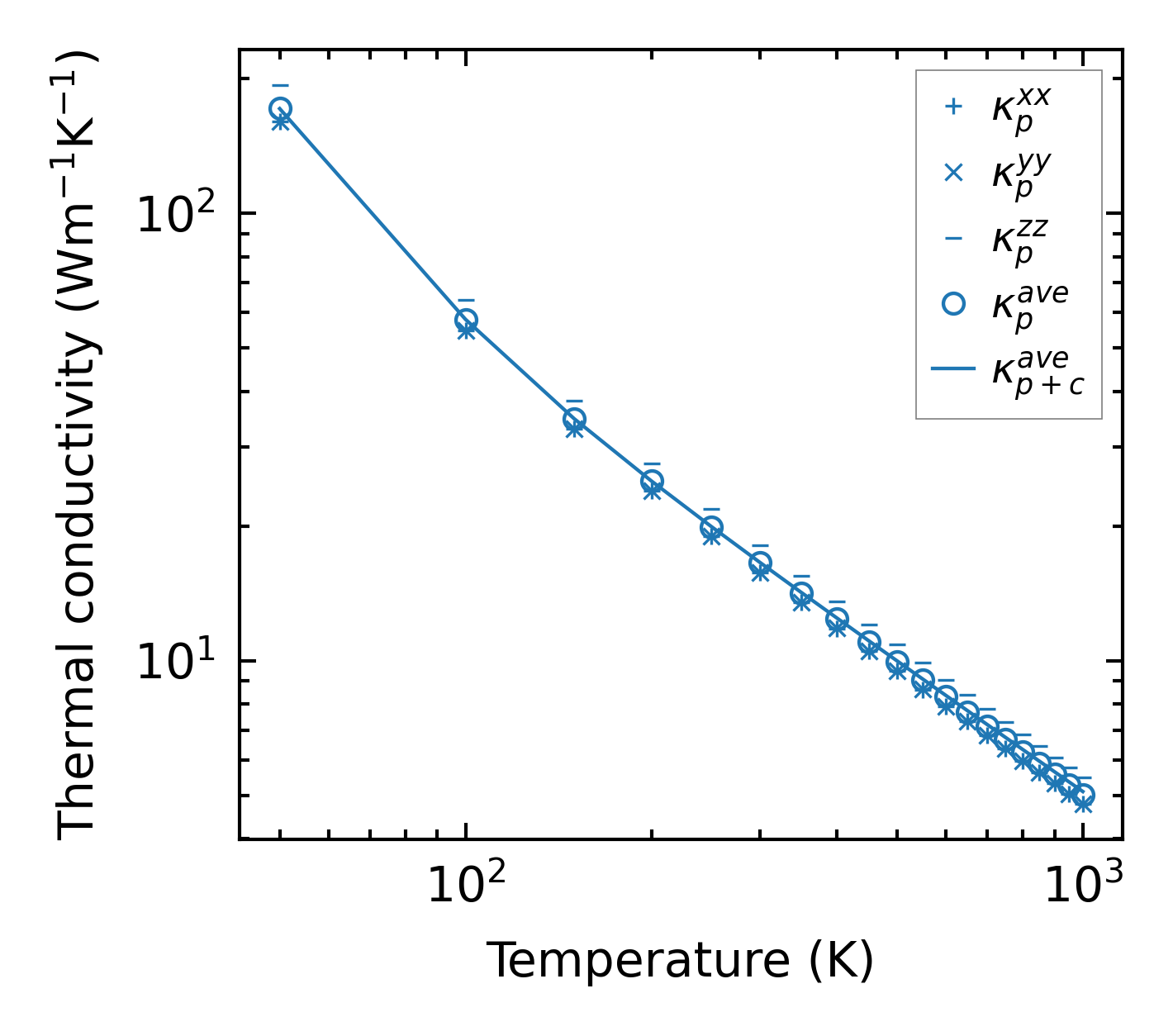

../../_images/fig_kappa500.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size257.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime253.png — (a) Phonon lifetime due to phonon-phonon scattering

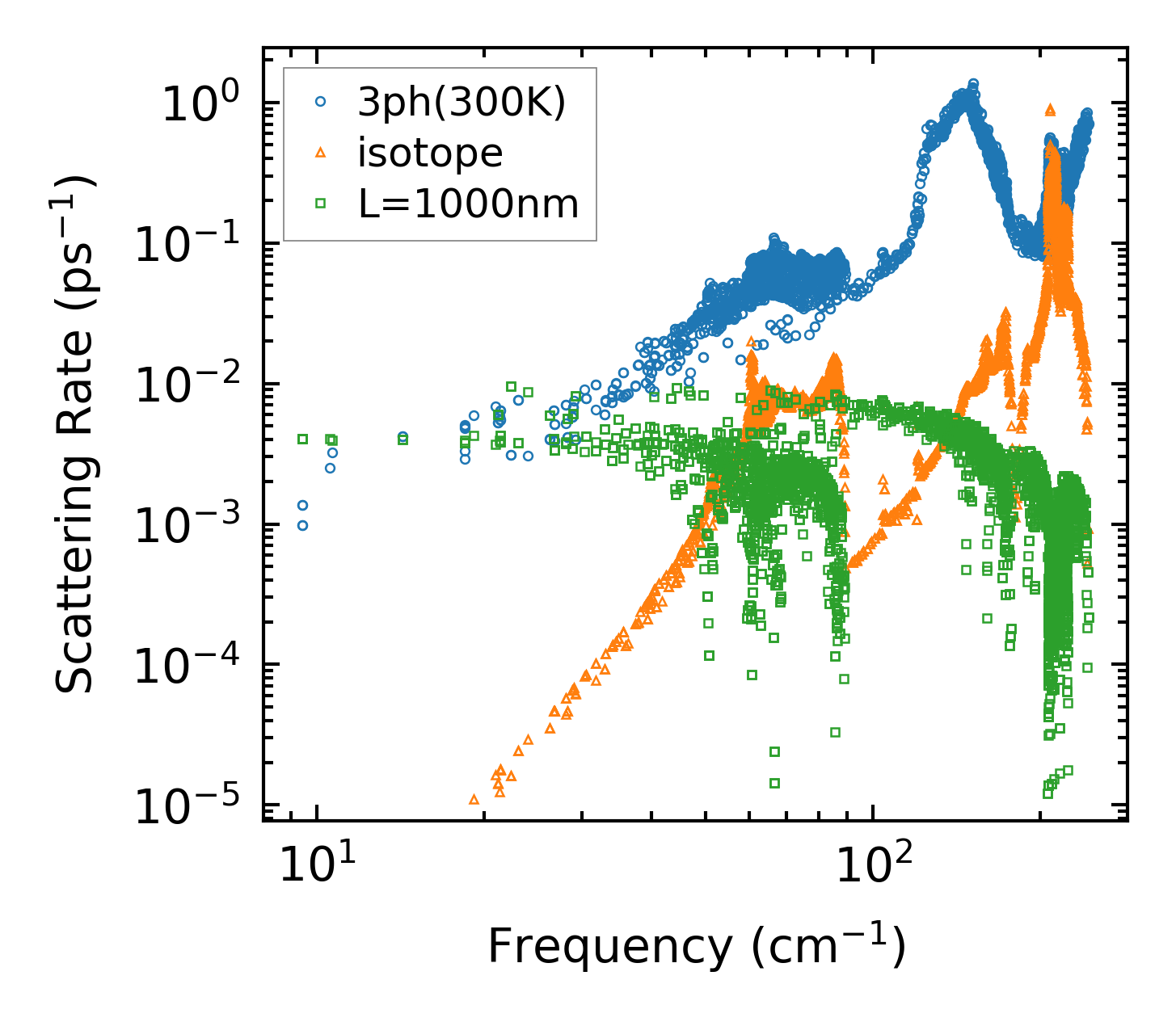

../../_images/fig_scat_rates252.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency253.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

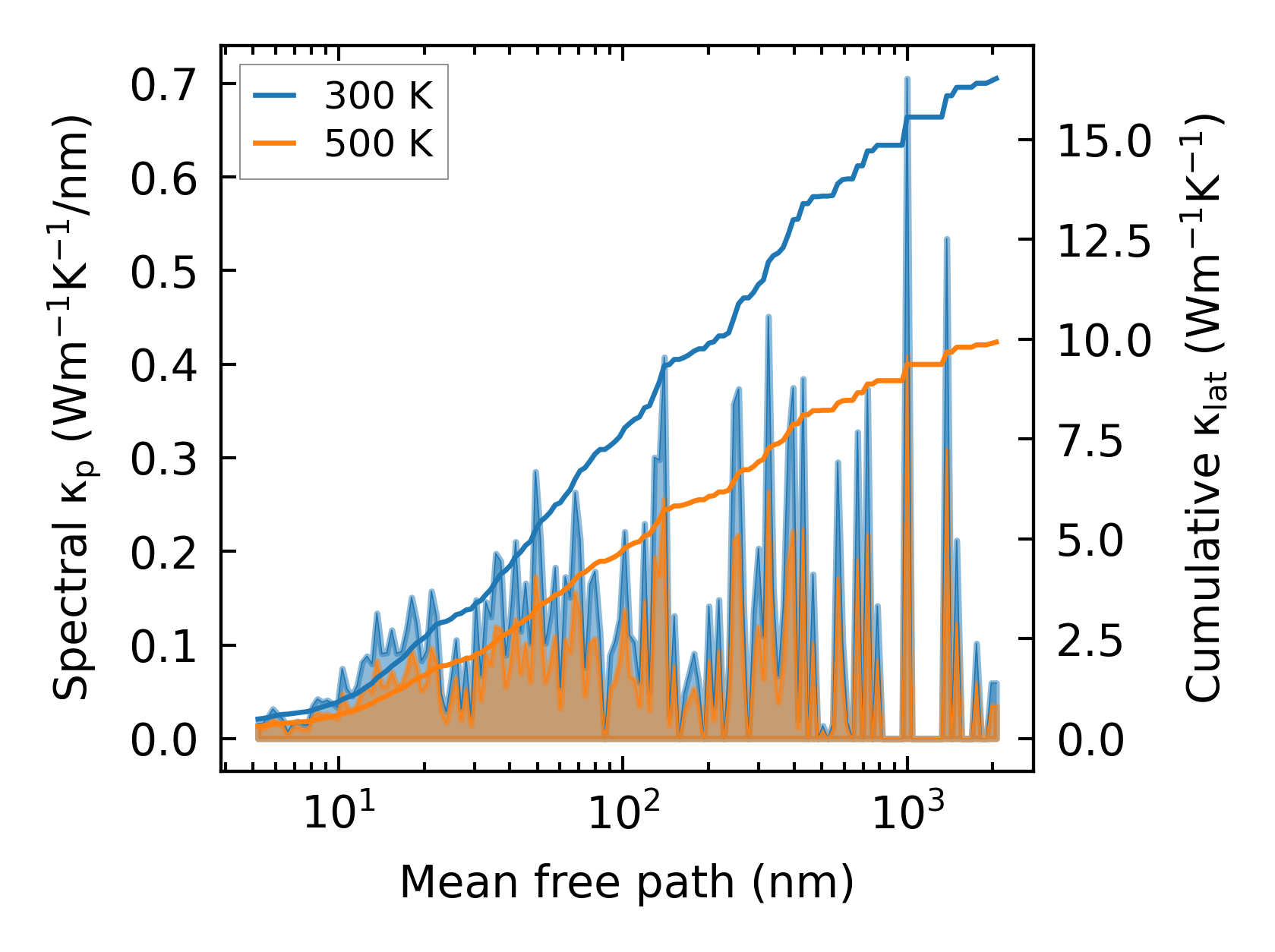

../../_images/fig_cumu_mfp253.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

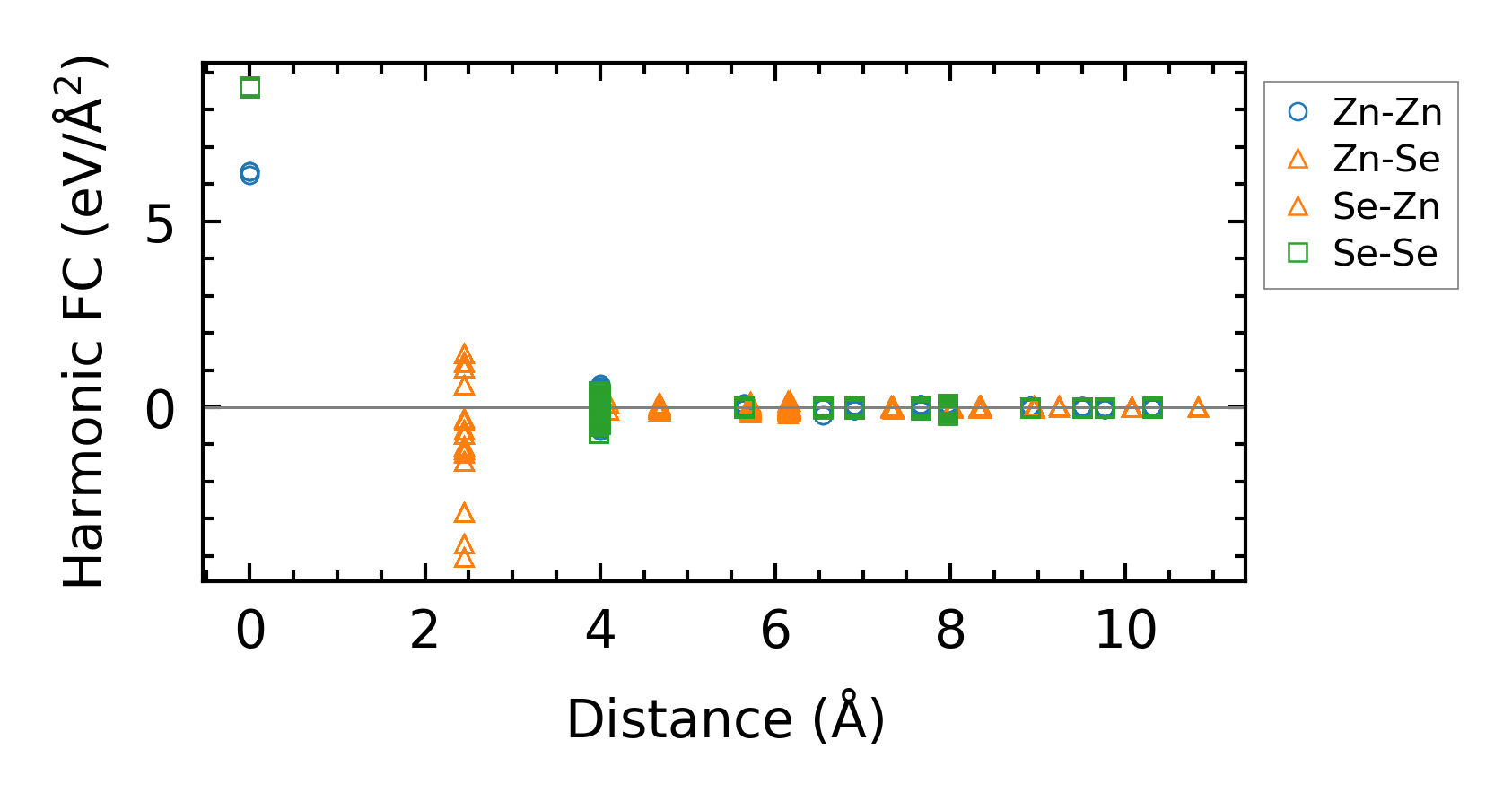

../../_images/fig_fc2307.png — (a) Force constants w.r.t atomic distance

Summary

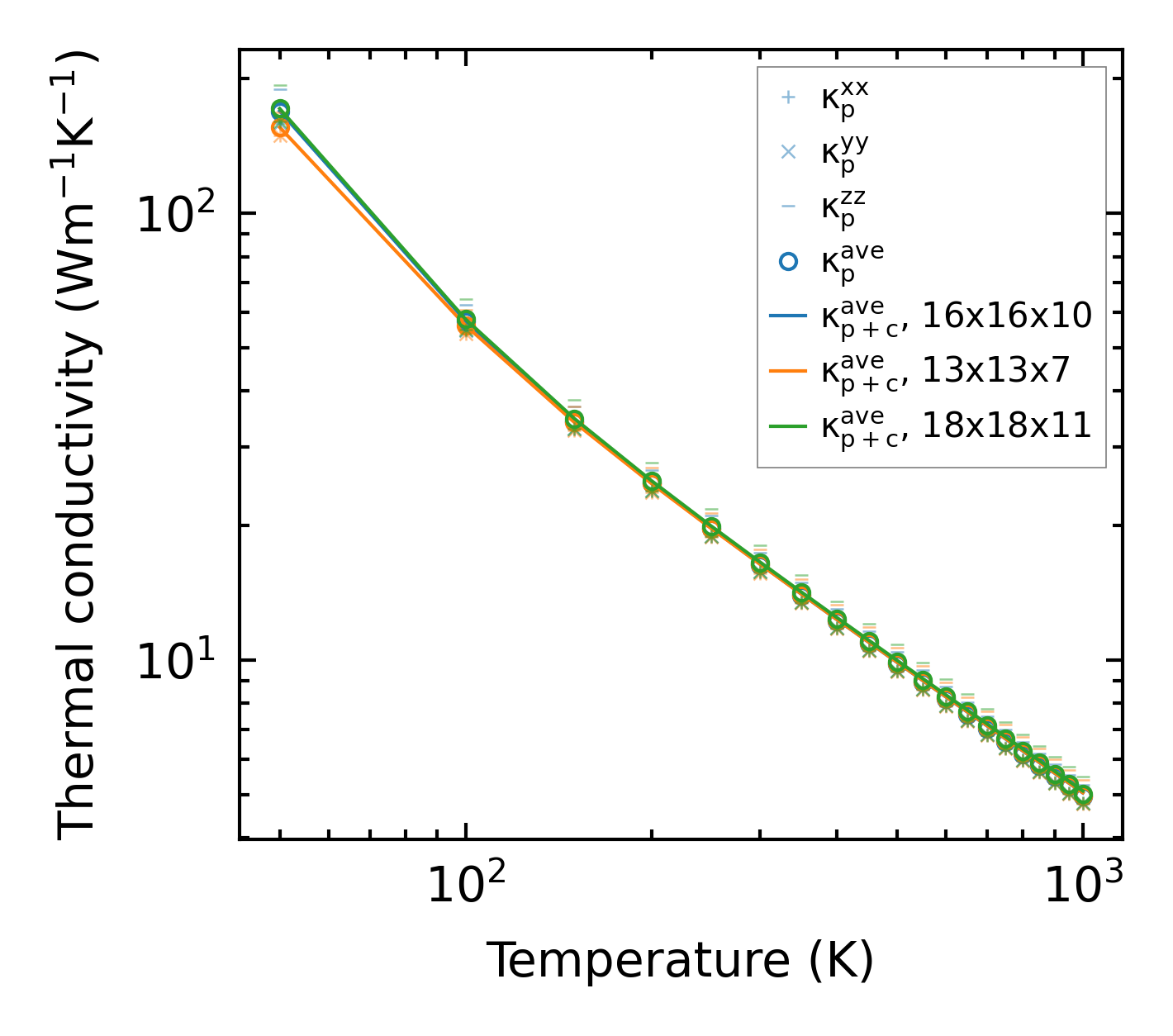

../../_images/fig_kappa501.png — (a) Temperature-dependent lattice thermal conductivity

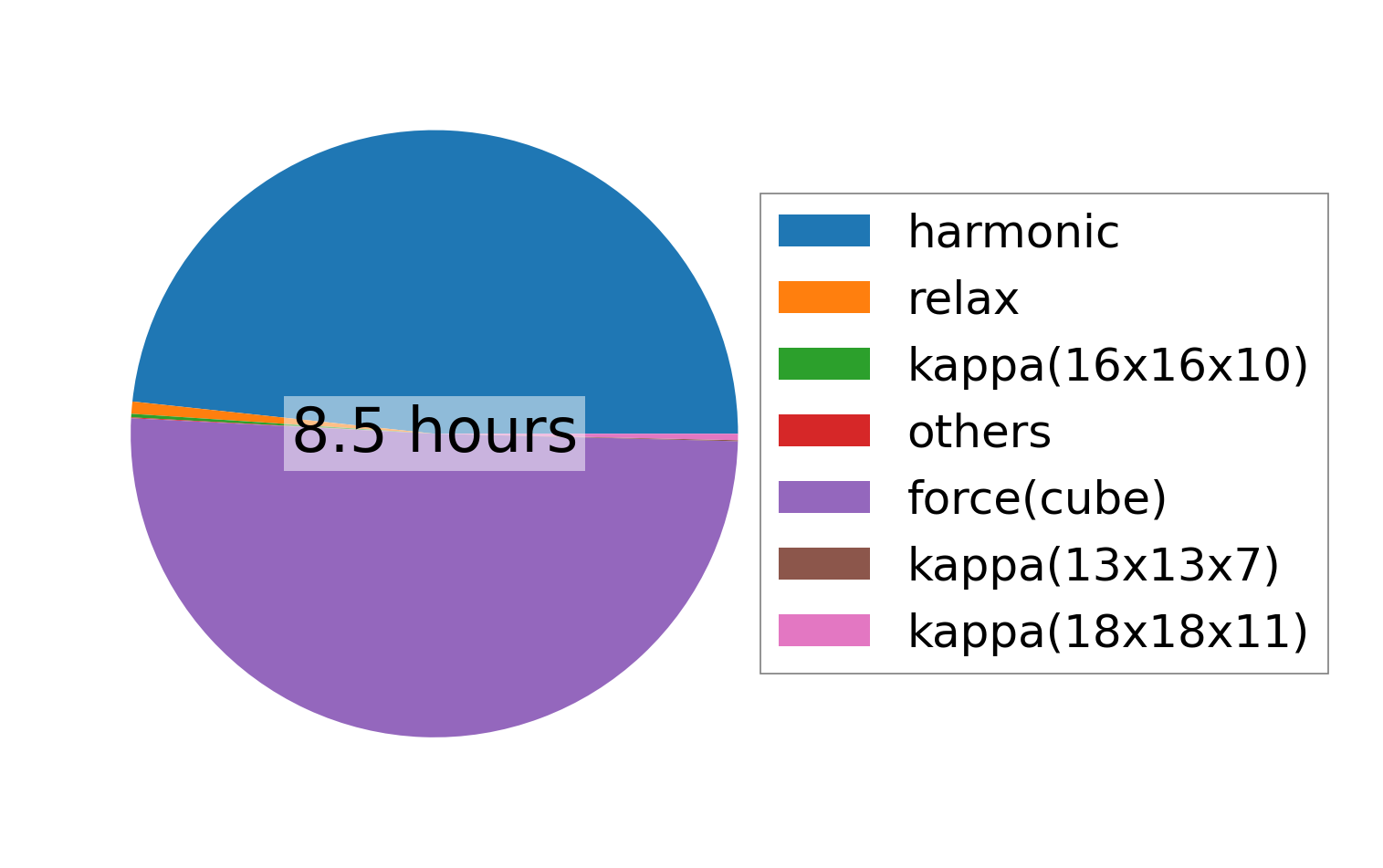

../../_images/fig_times593.png — (b) Computation time
