mp-473-2/Na3P11/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-473-2.tar.gz

Equation of state

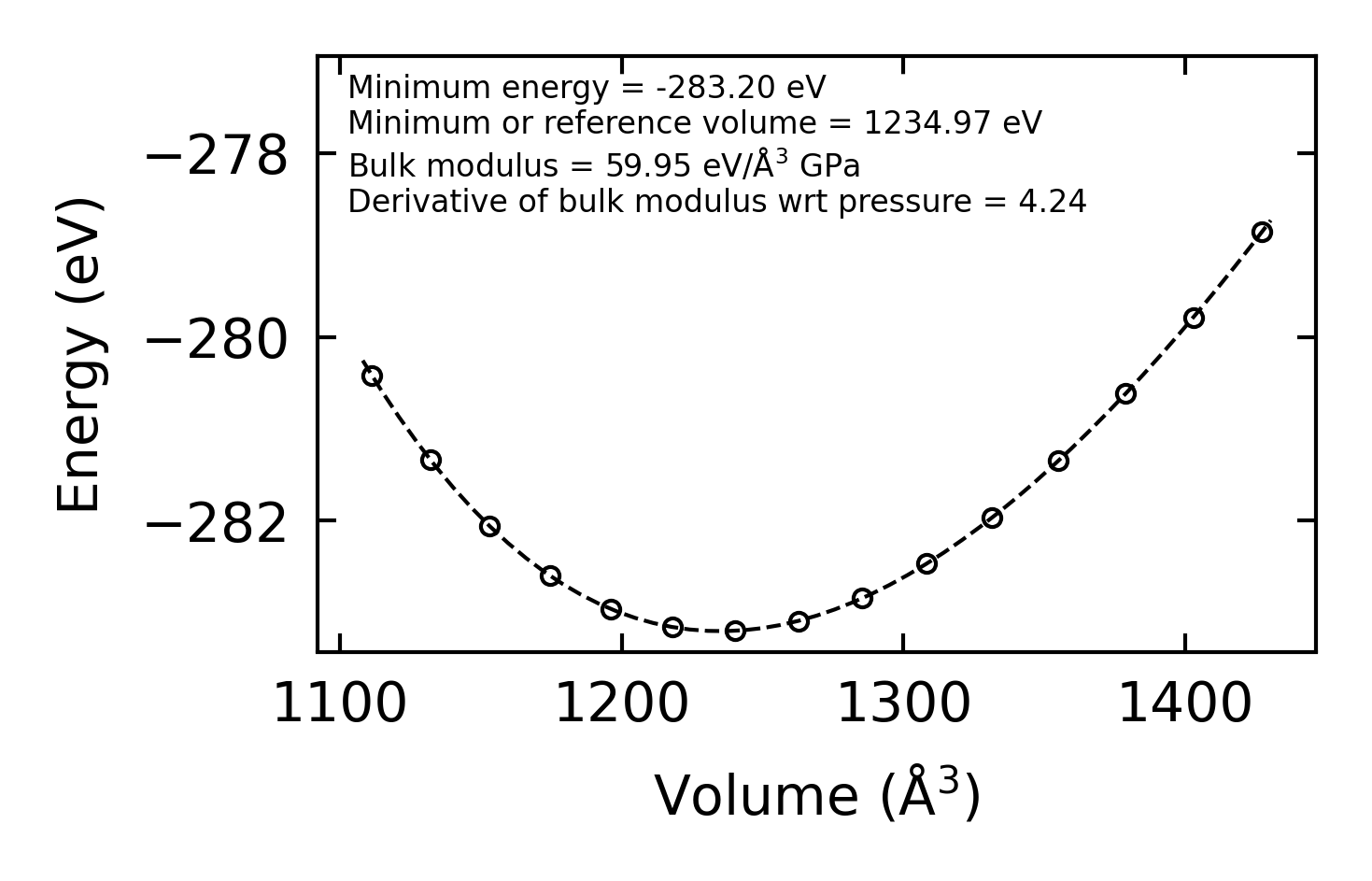

../../_images/fig_bm116.png — (a) Equation of state

Harmonic properties

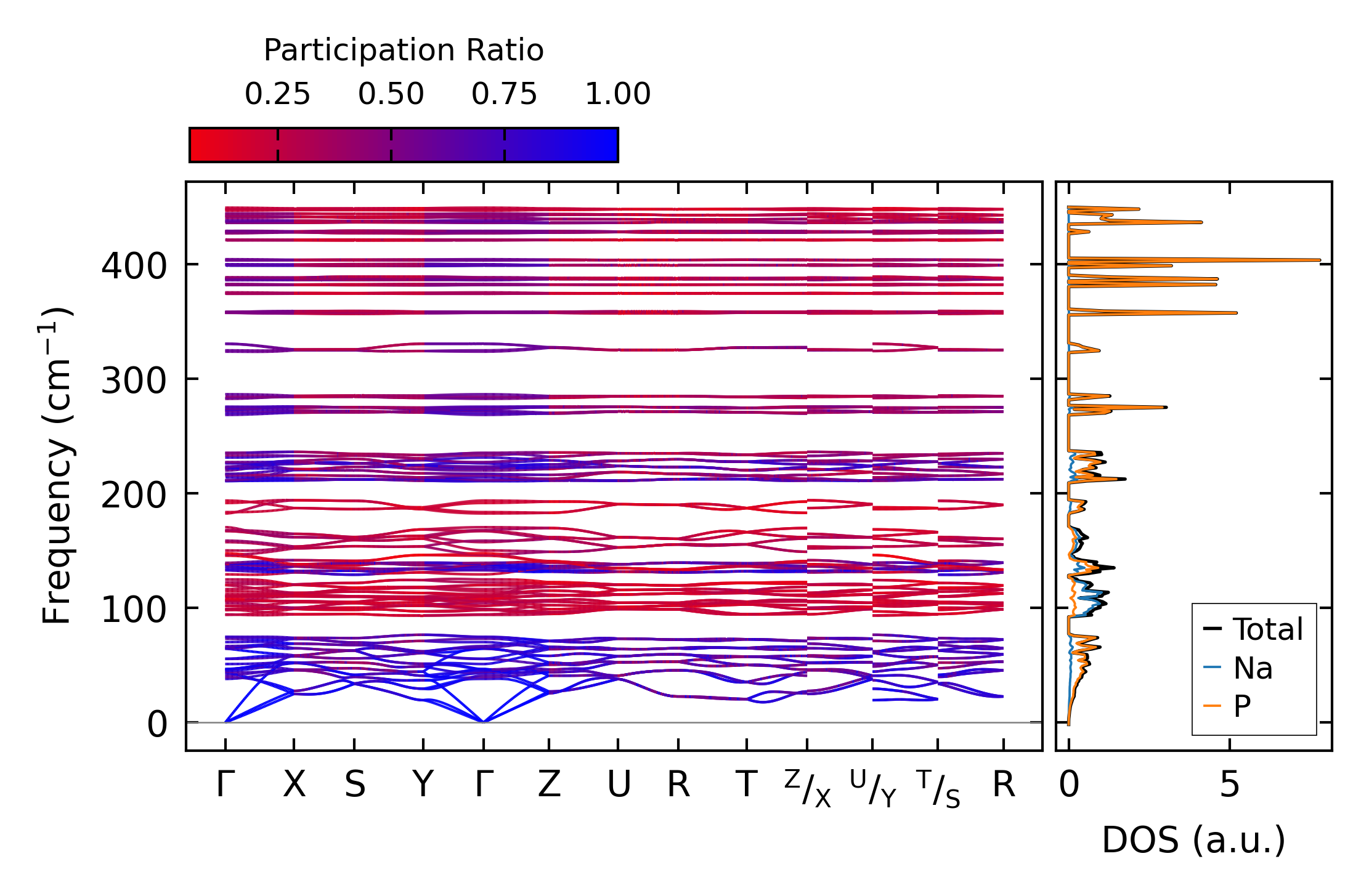

../../_images/fig_bandos_pr397.png — (a) Phonon dispersion with participation ratio and DOS

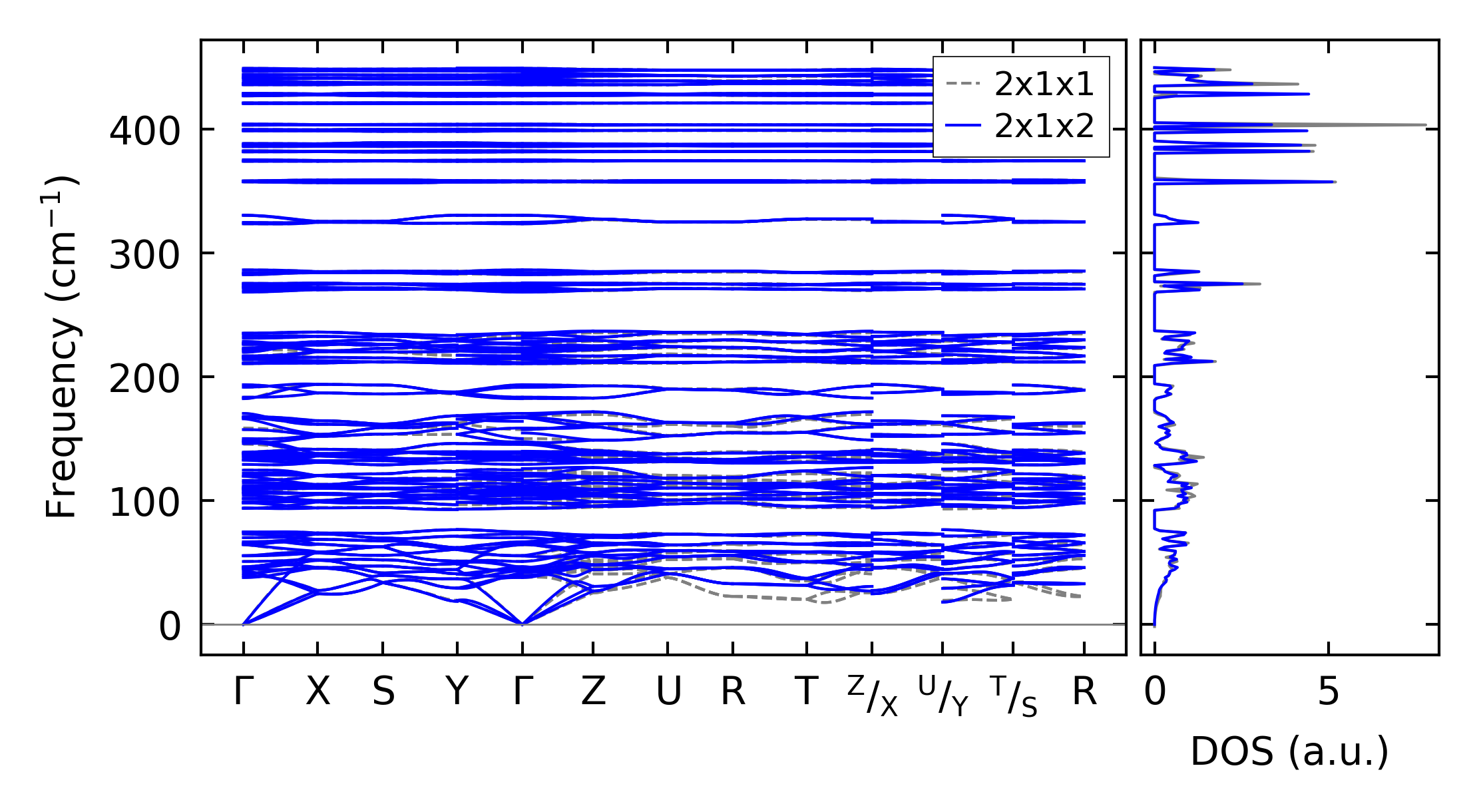

../../_images/fig_bandos371.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo397.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all275.png — (a) Grüneisen parameters

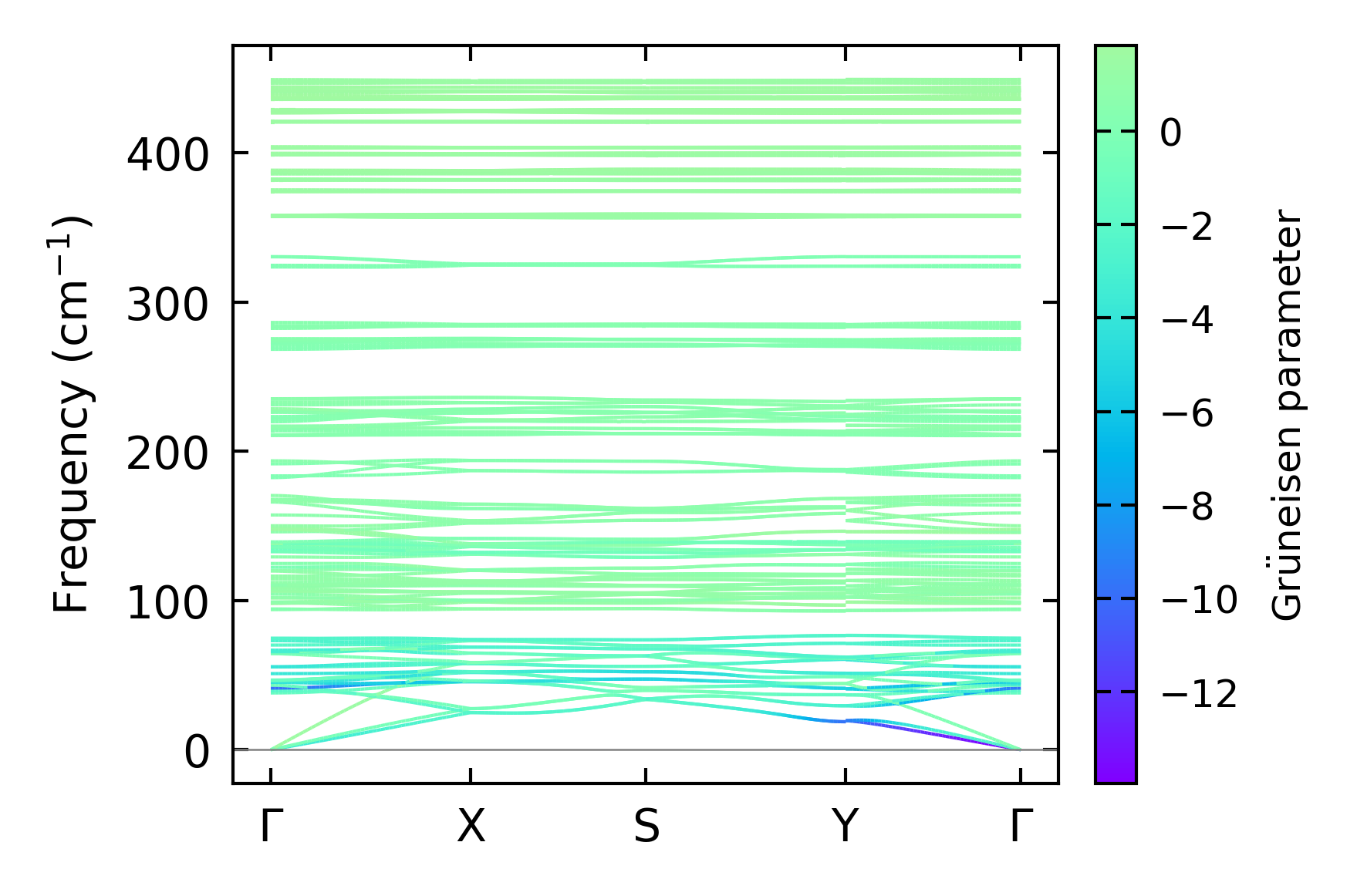

../../_images/fig_gruneisen275.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x2 — q-mesh: 7x5x7, supercell: 2x1x2

../../_images/fig_kappa539.png — (a) Temperature-dependent lattice thermal conductivity

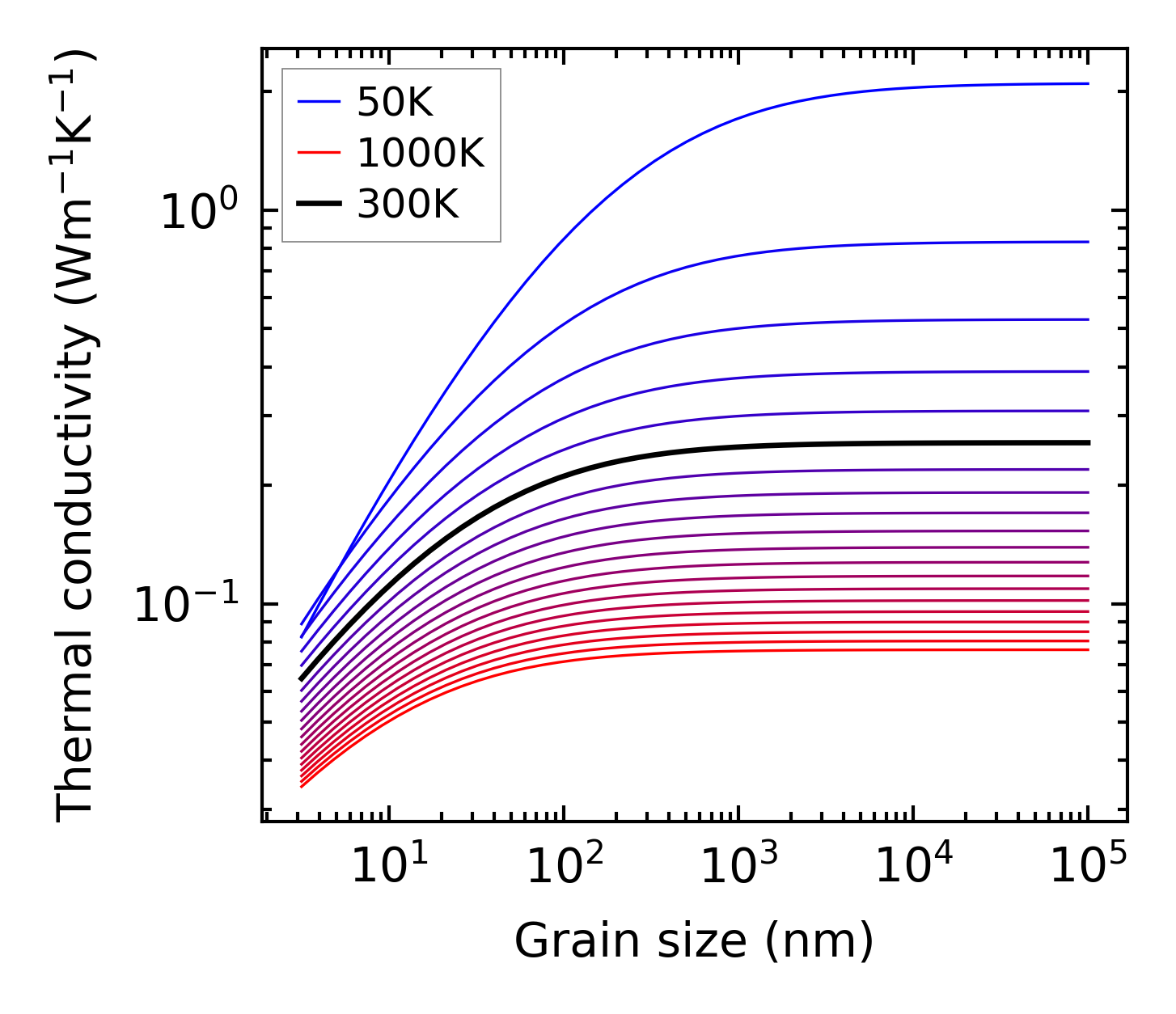

../../_images/fig_kappa_vs_grain_size278.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

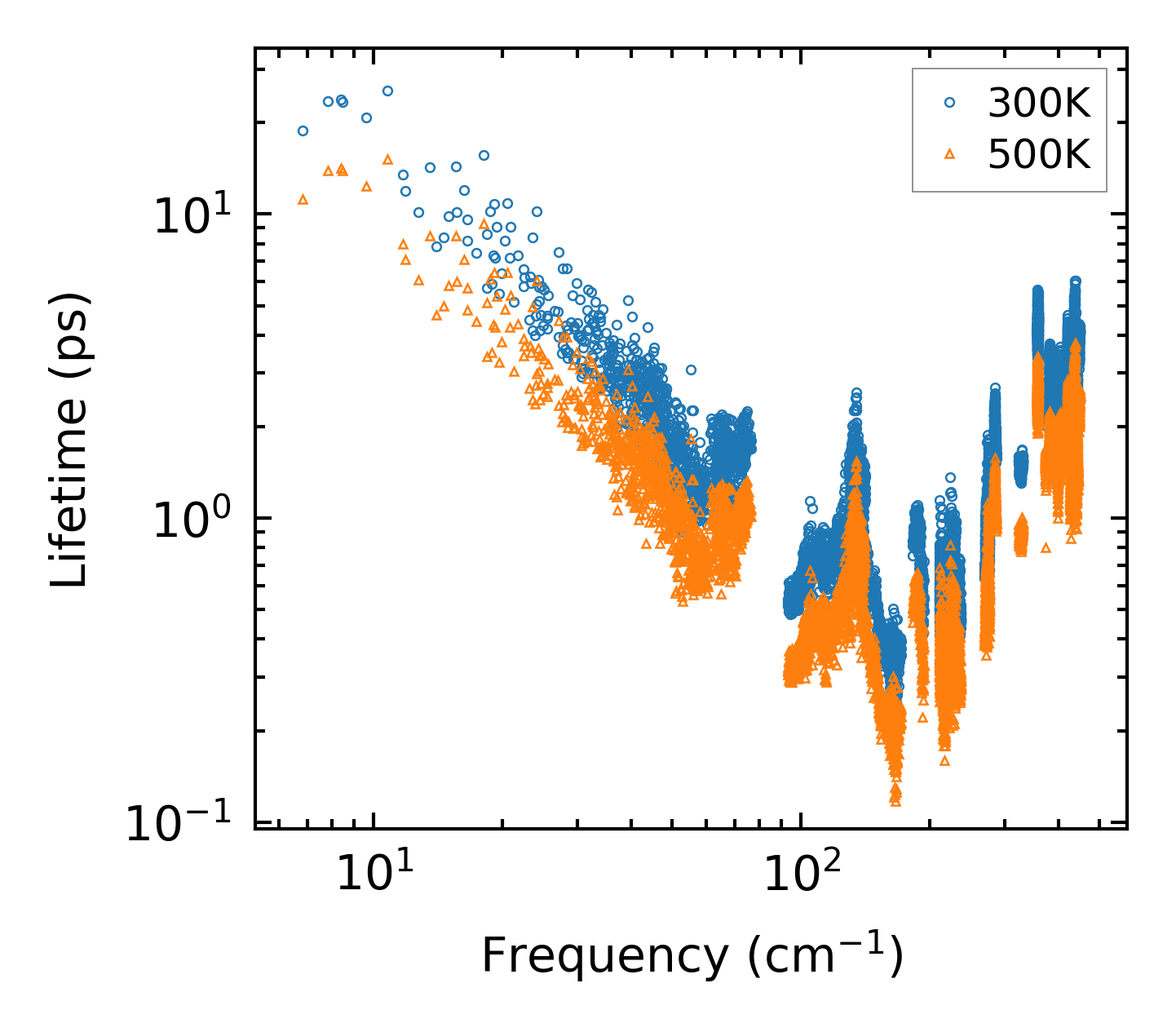

../../_images/fig_lifetime274.png — (a) Phonon lifetime due to phonon-phonon scattering

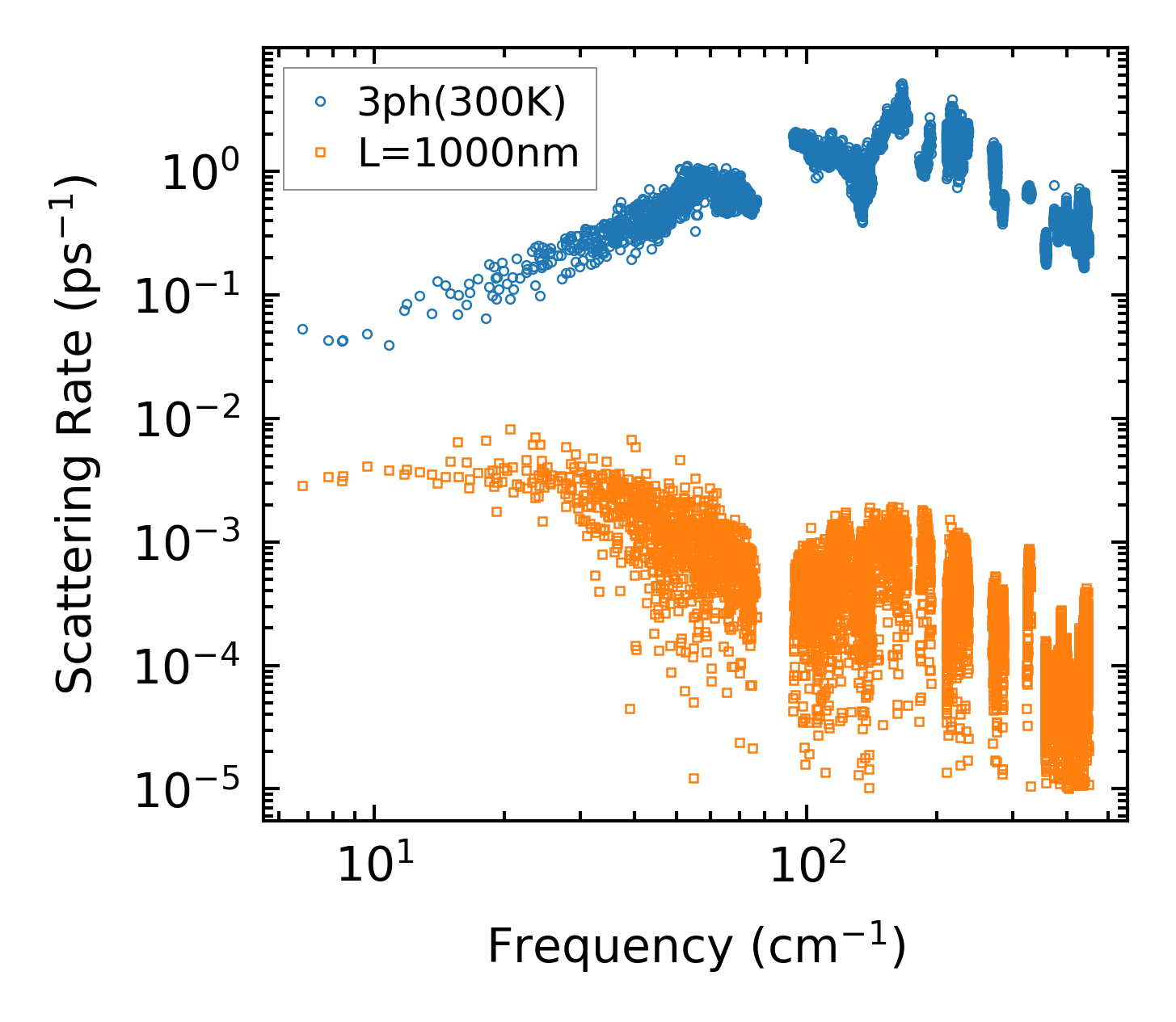

../../_images/fig_scat_rates273.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

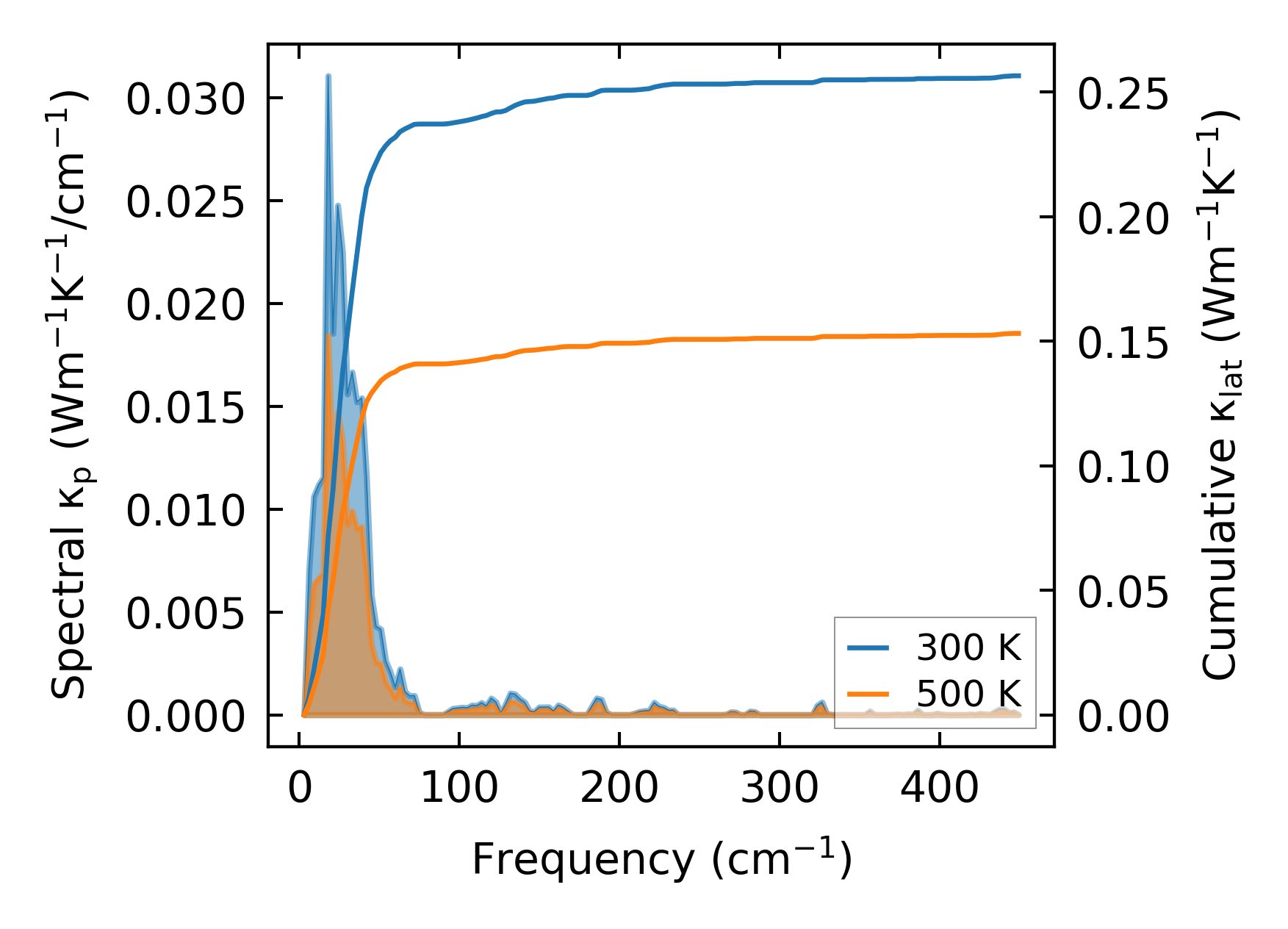

../../_images/fig_cumu_frequency274.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp274.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2328.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times625.png — (a) Computation time
