mp-236/SN/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-236.tar.gz

Harmonic properties

../../_images/fig_bandos_pr344.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo344.png — (b) Thermodynamic properties

Grüneisen parameters

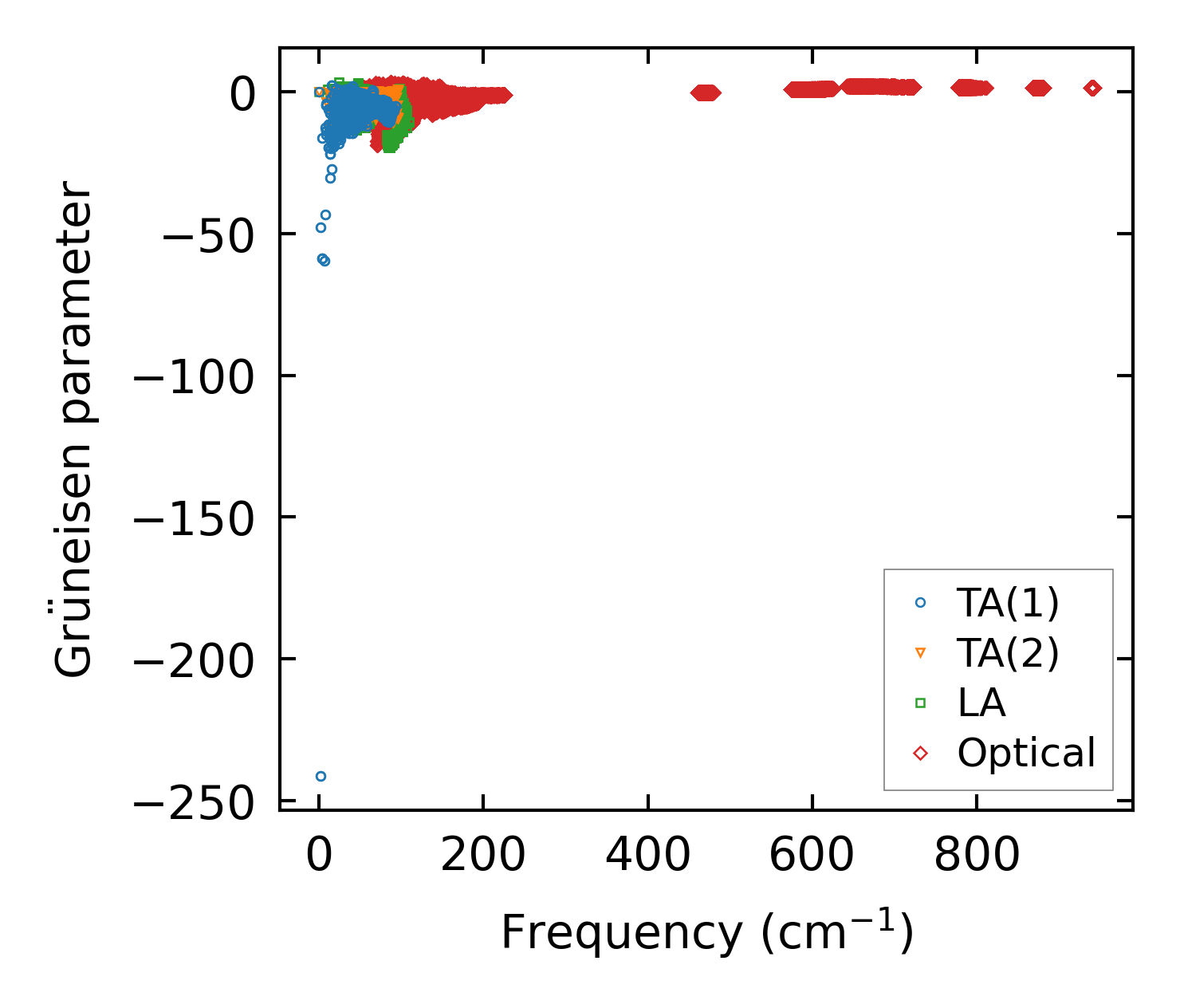

../../_images/fig_gru_all236.png — (a) Grüneisen parameters

../../_images/fig_gruneisen236.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x19x8, supercell: 3x3x2

../../_images/fig_kappa464.png — (a) Temperature-dependent lattice thermal conductivity

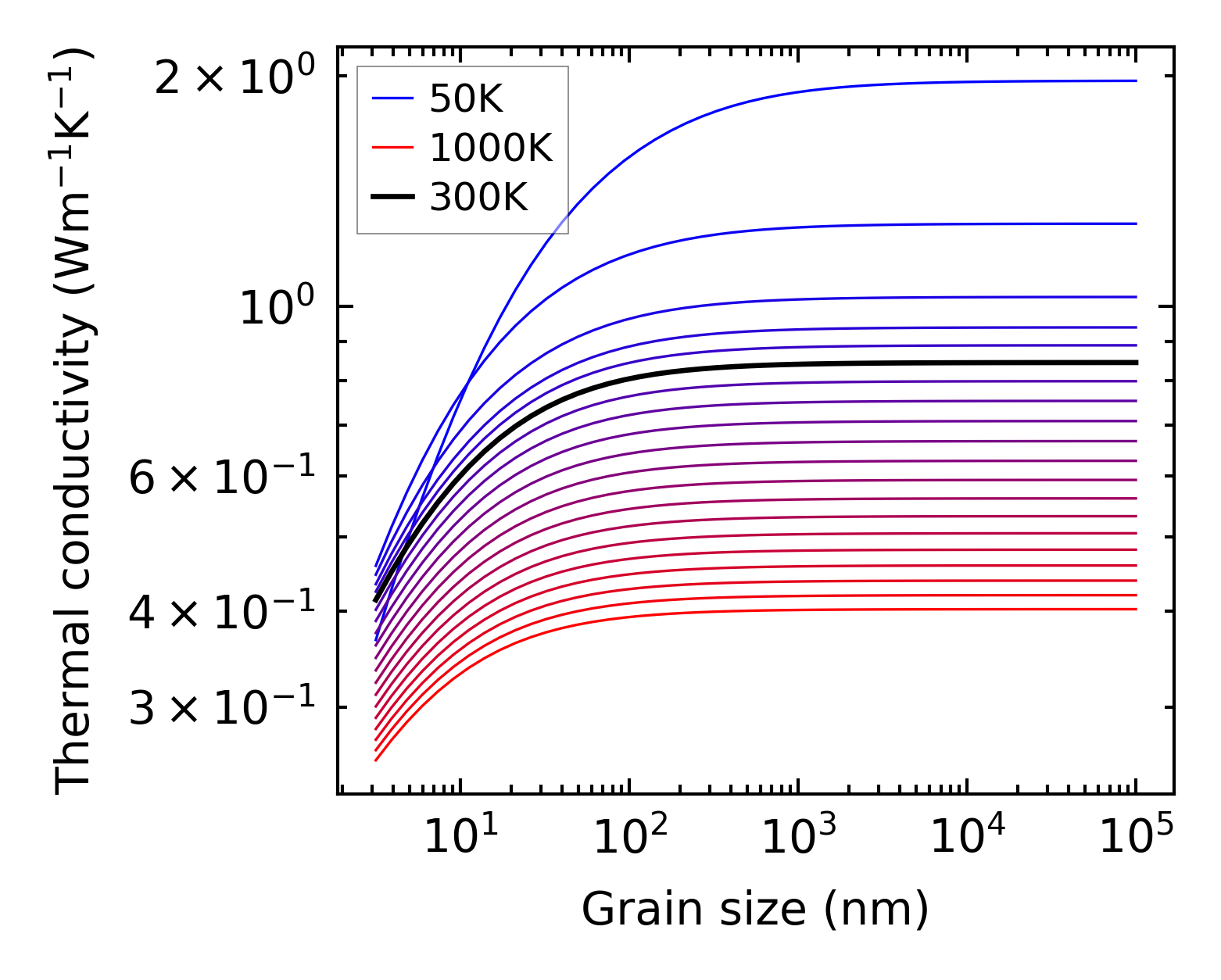

../../_images/fig_kappa_vs_grain_size239.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

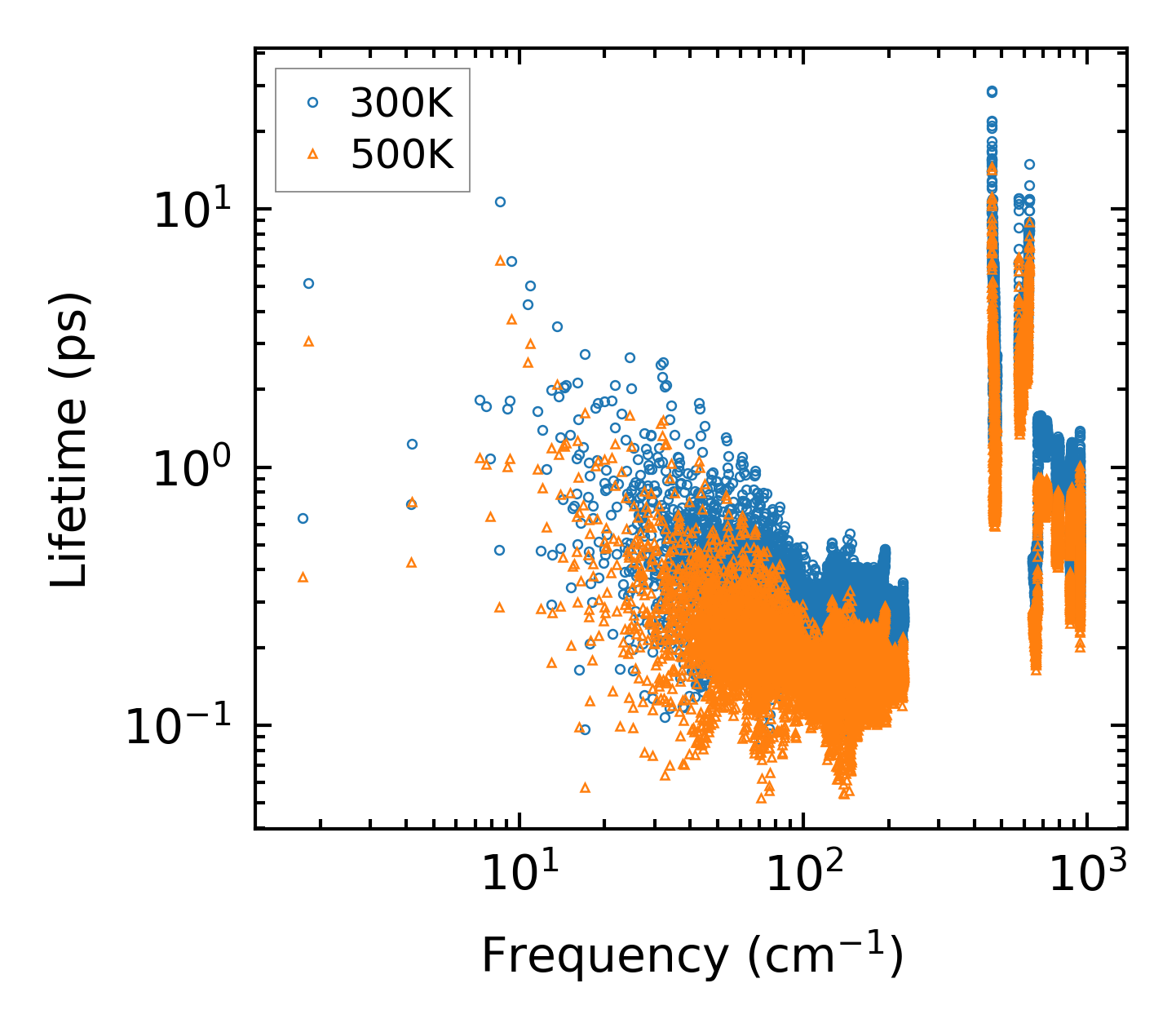

../../_images/fig_lifetime235.png — (a) Phonon lifetime due to phonon-phonon scattering

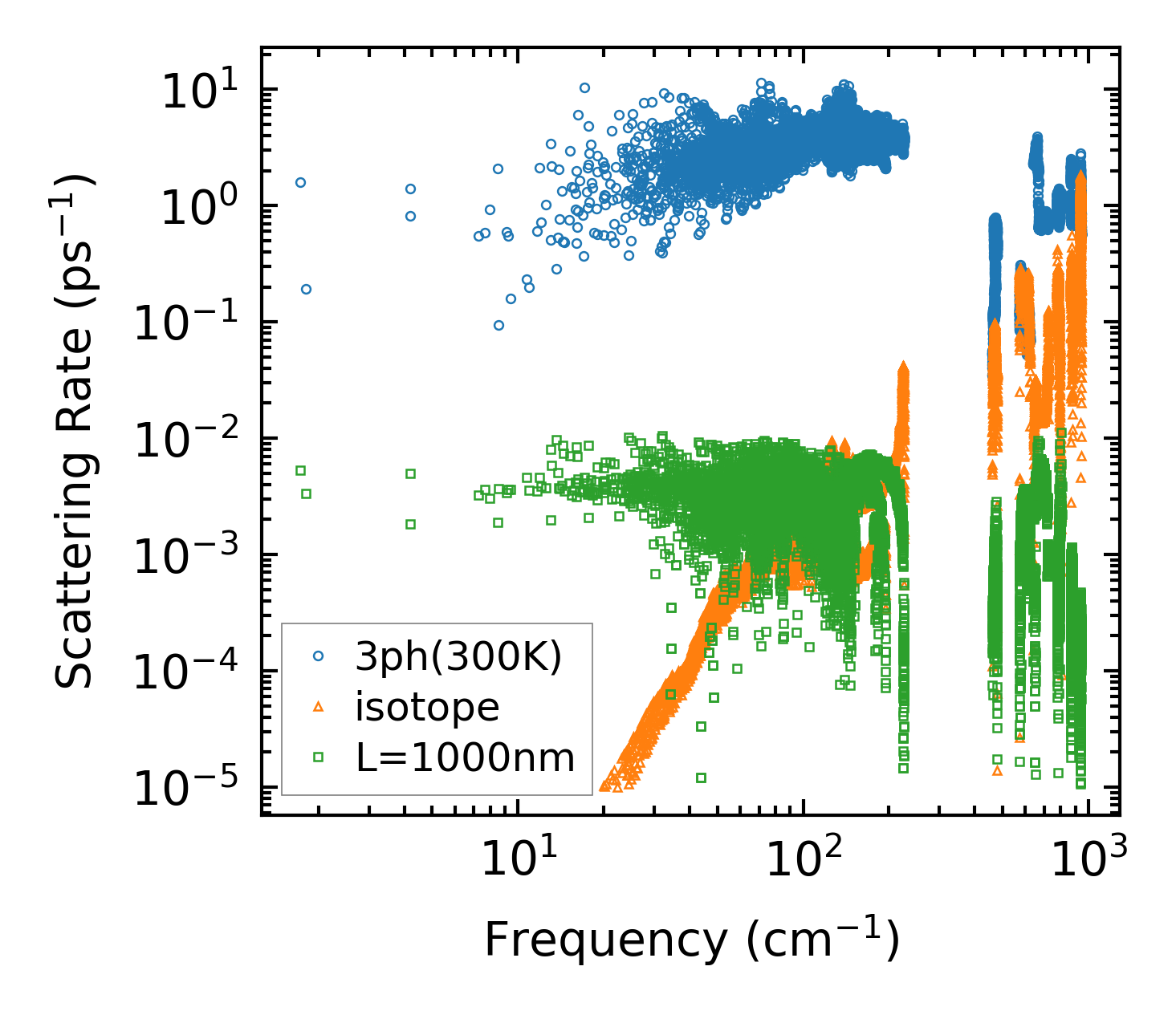

../../_images/fig_scat_rates234.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

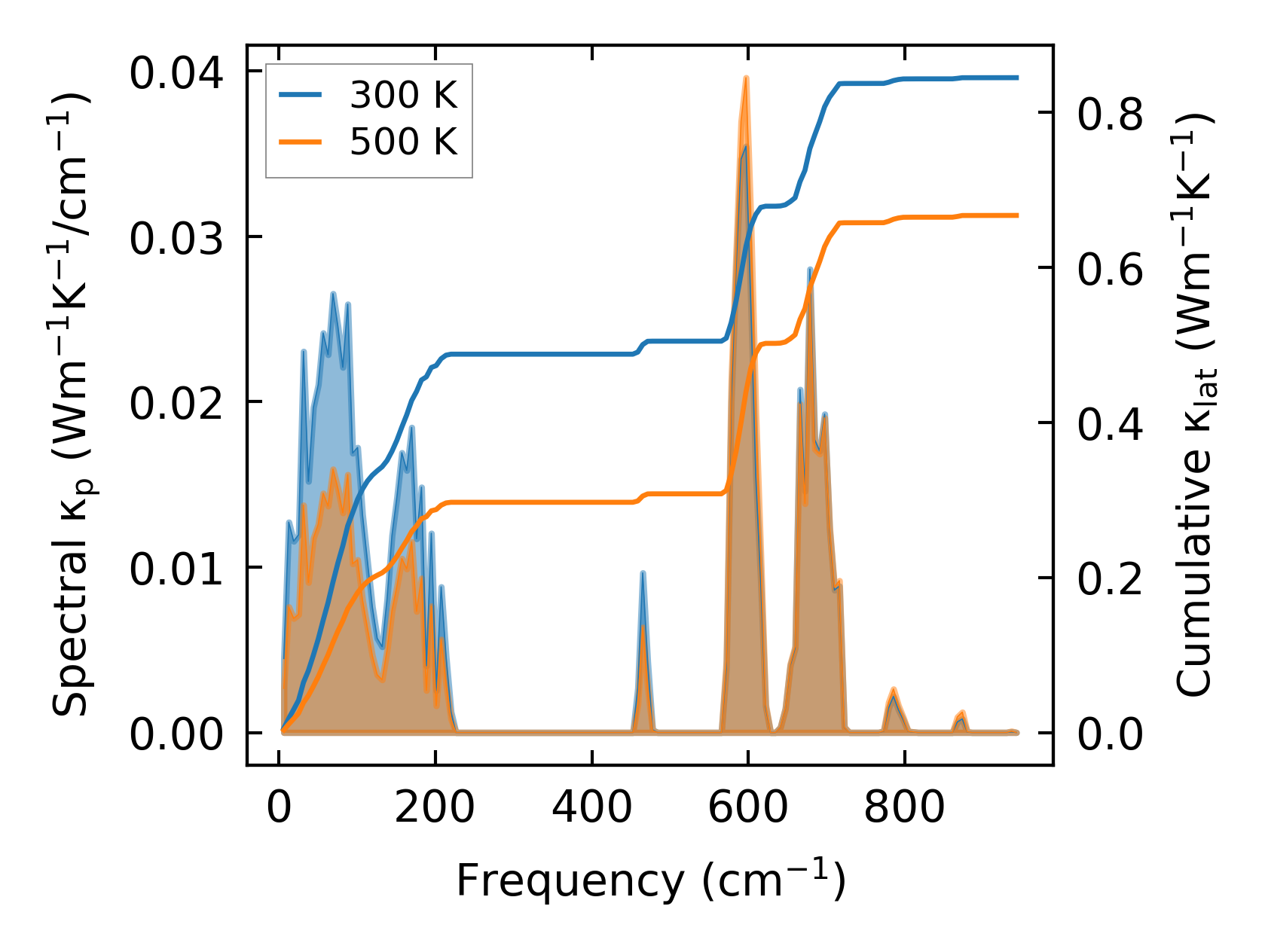

../../_images/fig_cumu_frequency235.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

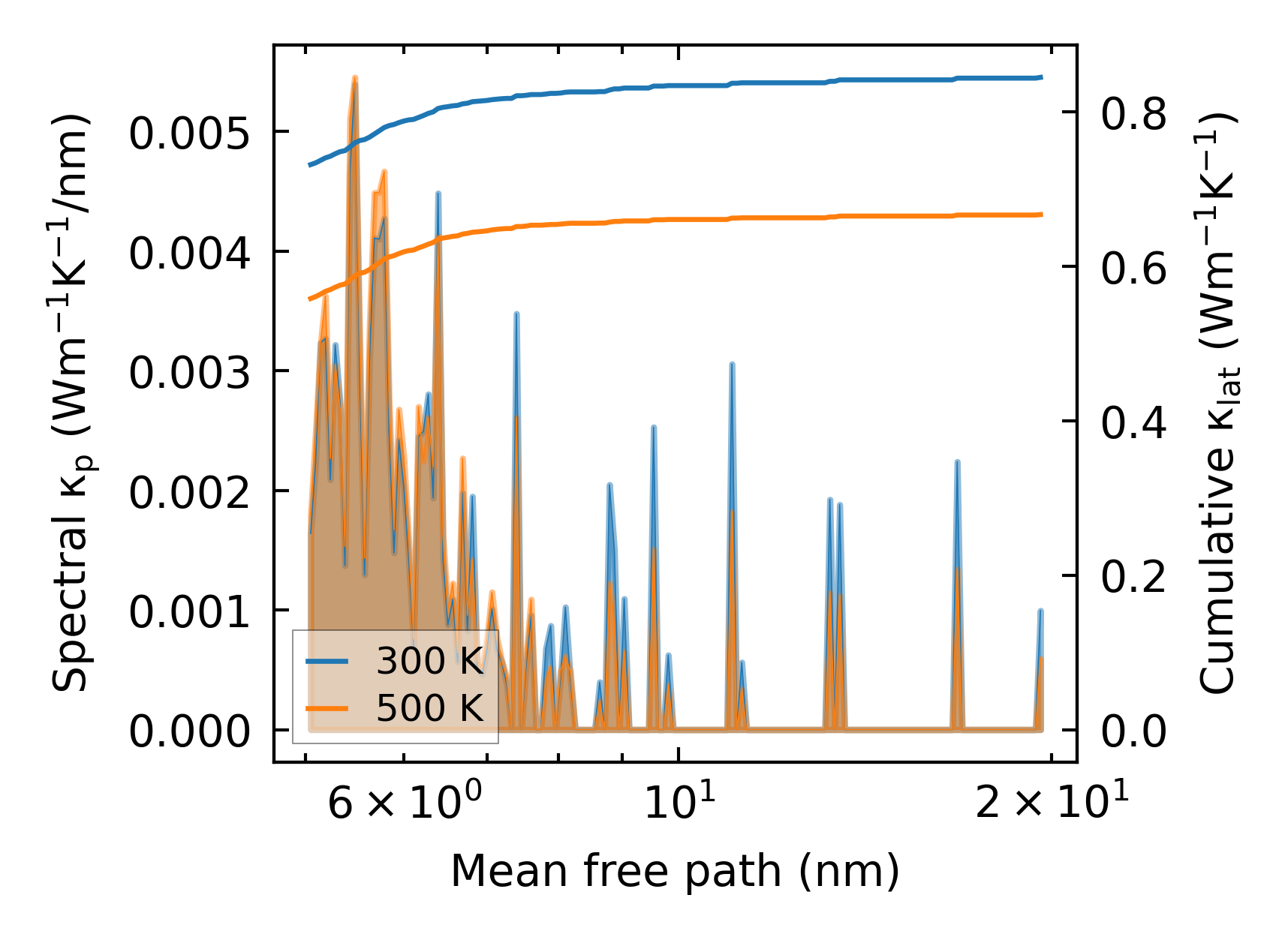

../../_images/fig_cumu_mfp235.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2287.png — (a) Force constants w.r.t atomic distance

Summary

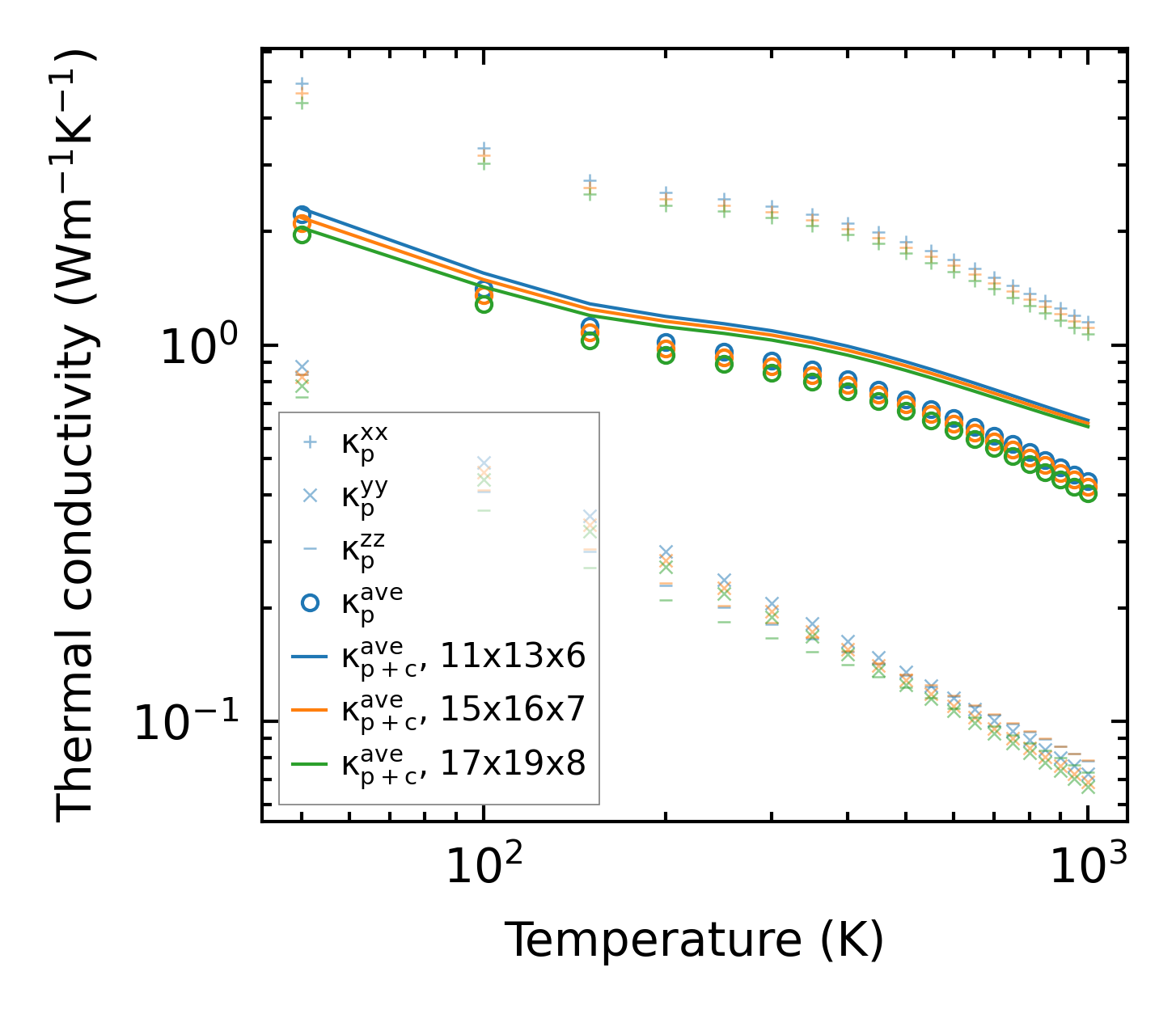

../../_images/fig_kappa465.png — (a) Temperature-dependent lattice thermal conductivity

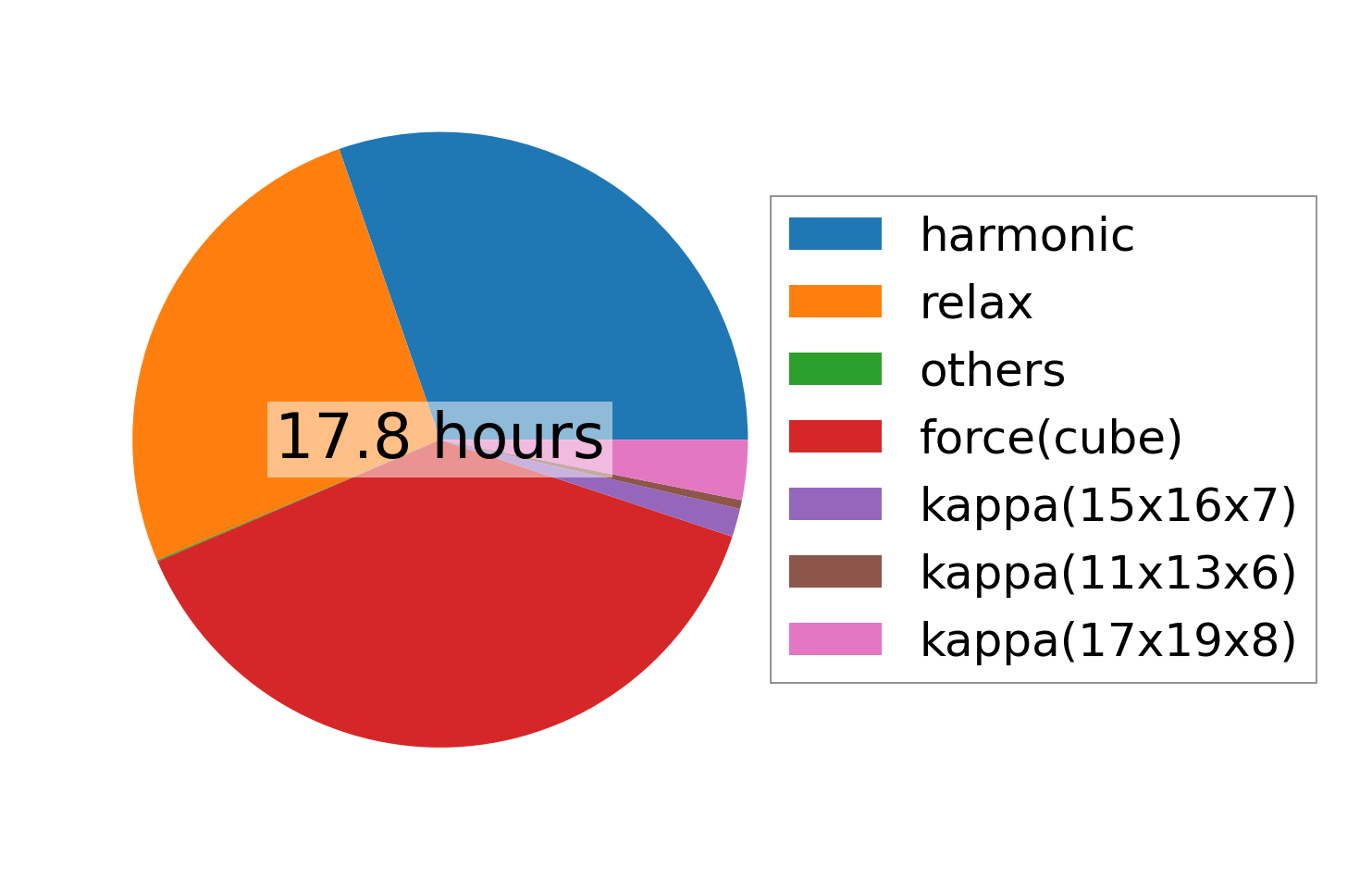

../../_images/fig_times551.png — (b) Computation time
