mp-66/C/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-66.tar.gz

Harmonic properties

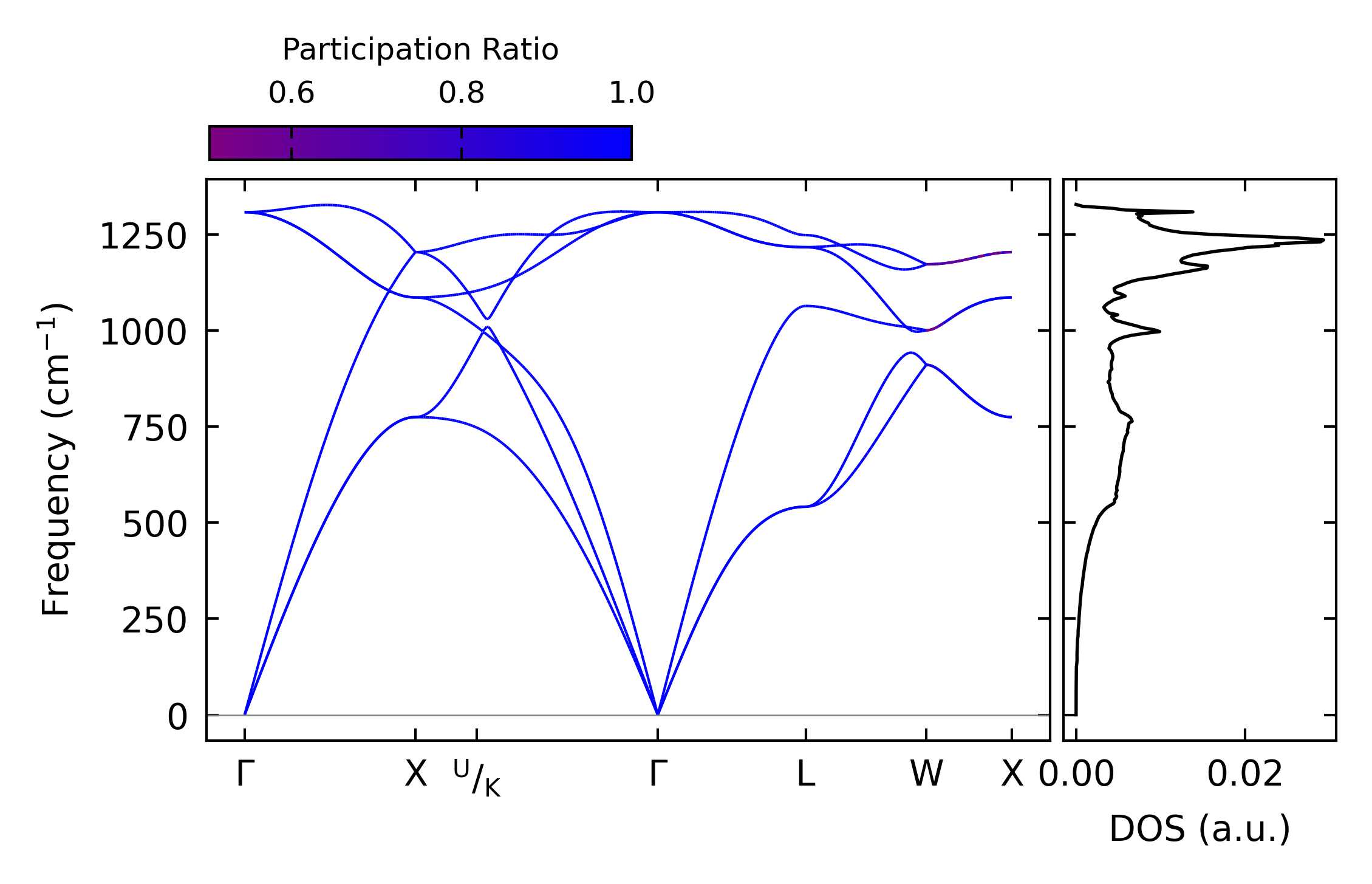

../../_images/fig_bandos_pr424.png — (a) Phonon dispersion with participation ratio and DOS

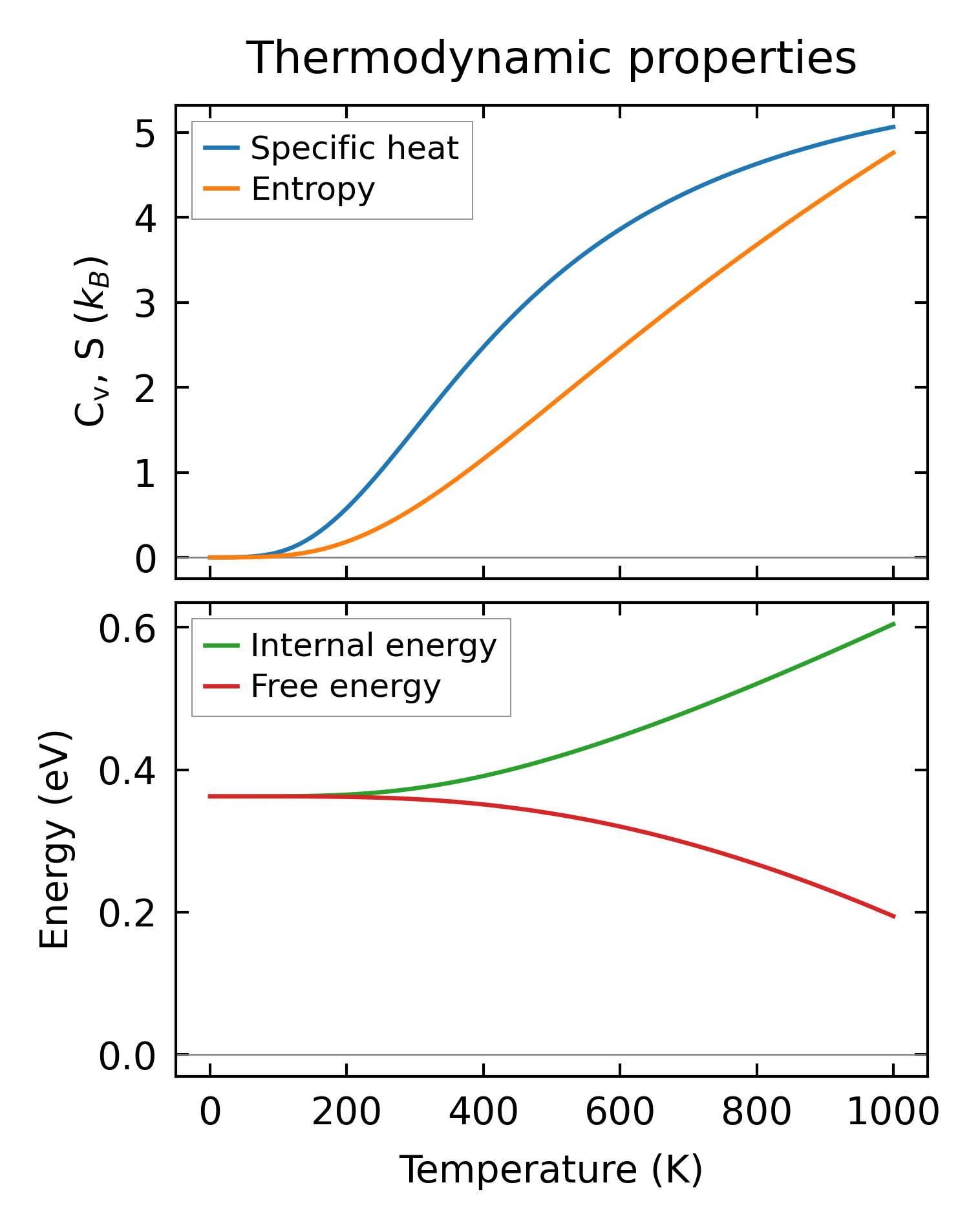

../../_images/fig_thermo424.png — (b) Thermodynamic properties

Grüneisen parameters

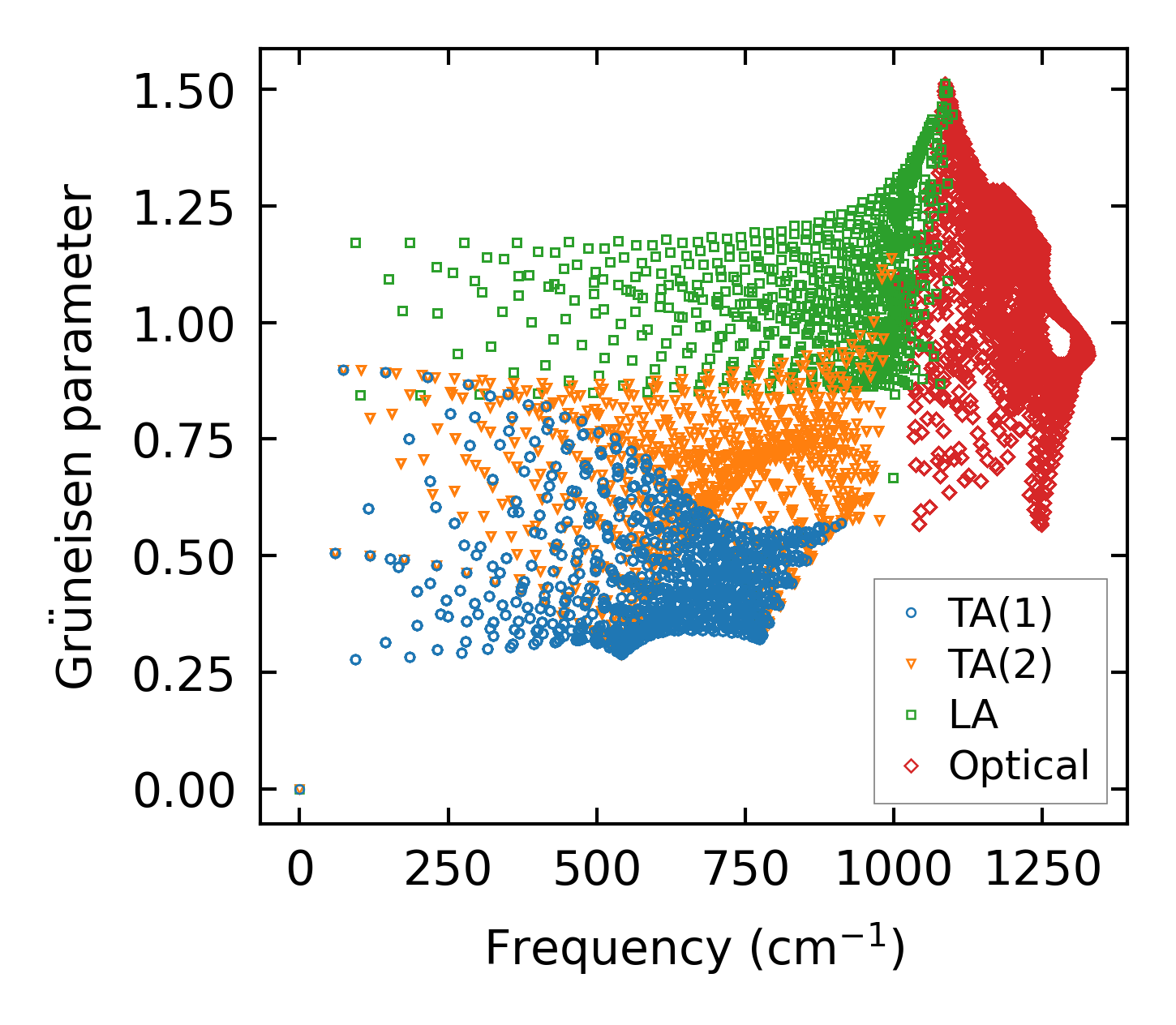

../../_images/fig_gru_all288.png — (a) Grüneisen parameters

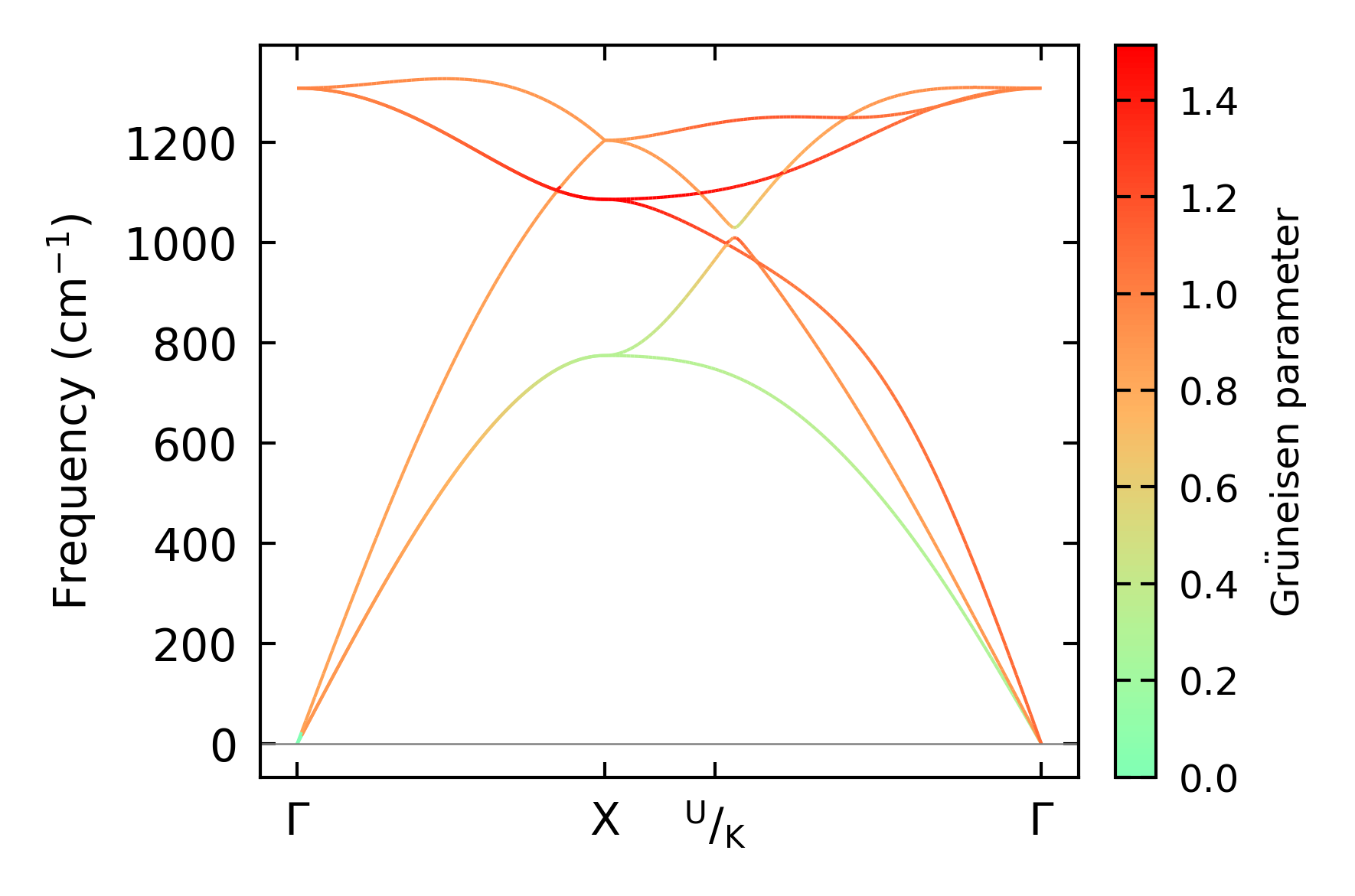

../../_images/fig_gruneisen288.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 32x32x32, supercell: 2x2x2

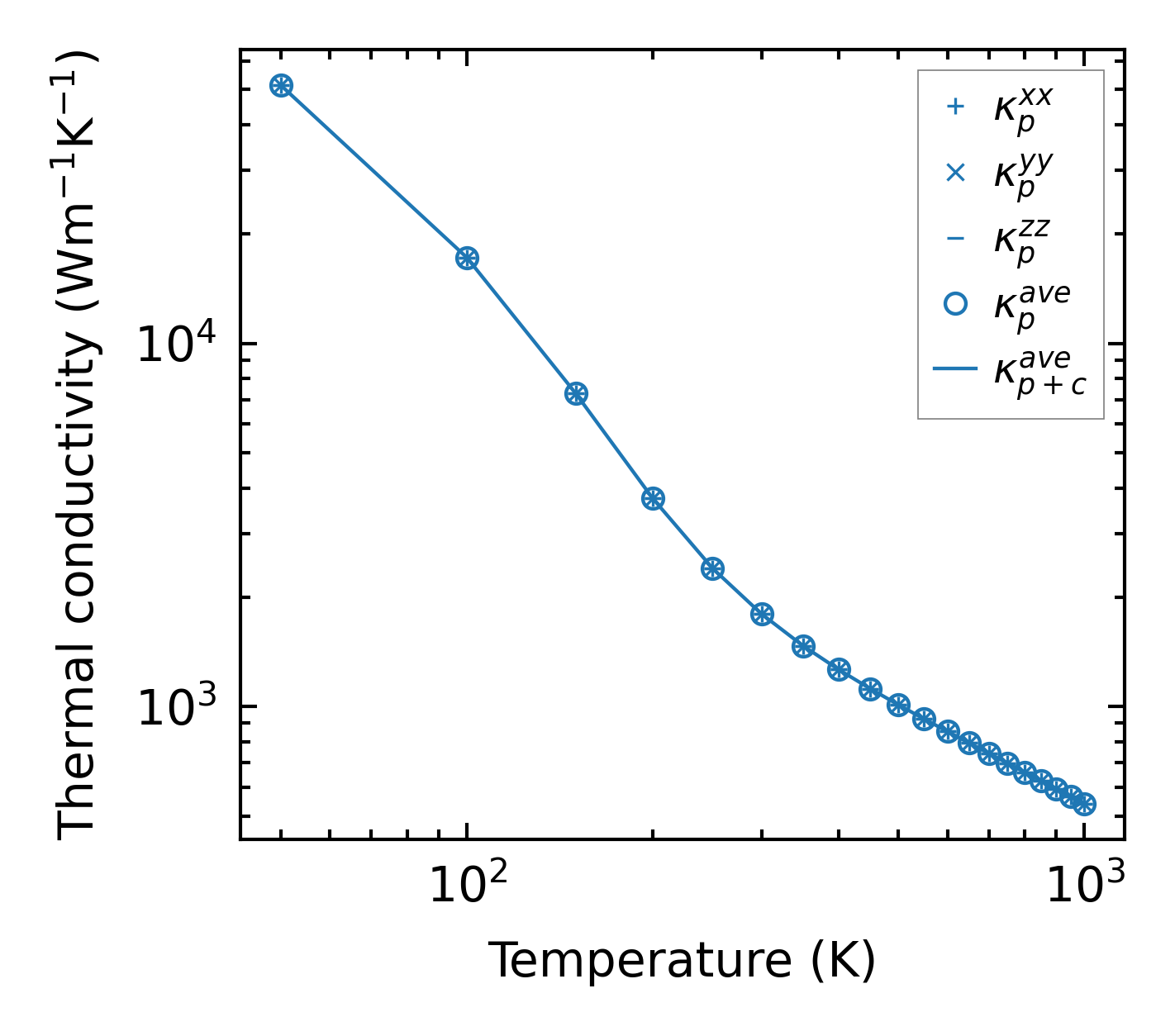

../../_images/fig_kappa562.png — (a) Temperature-dependent lattice thermal conductivity

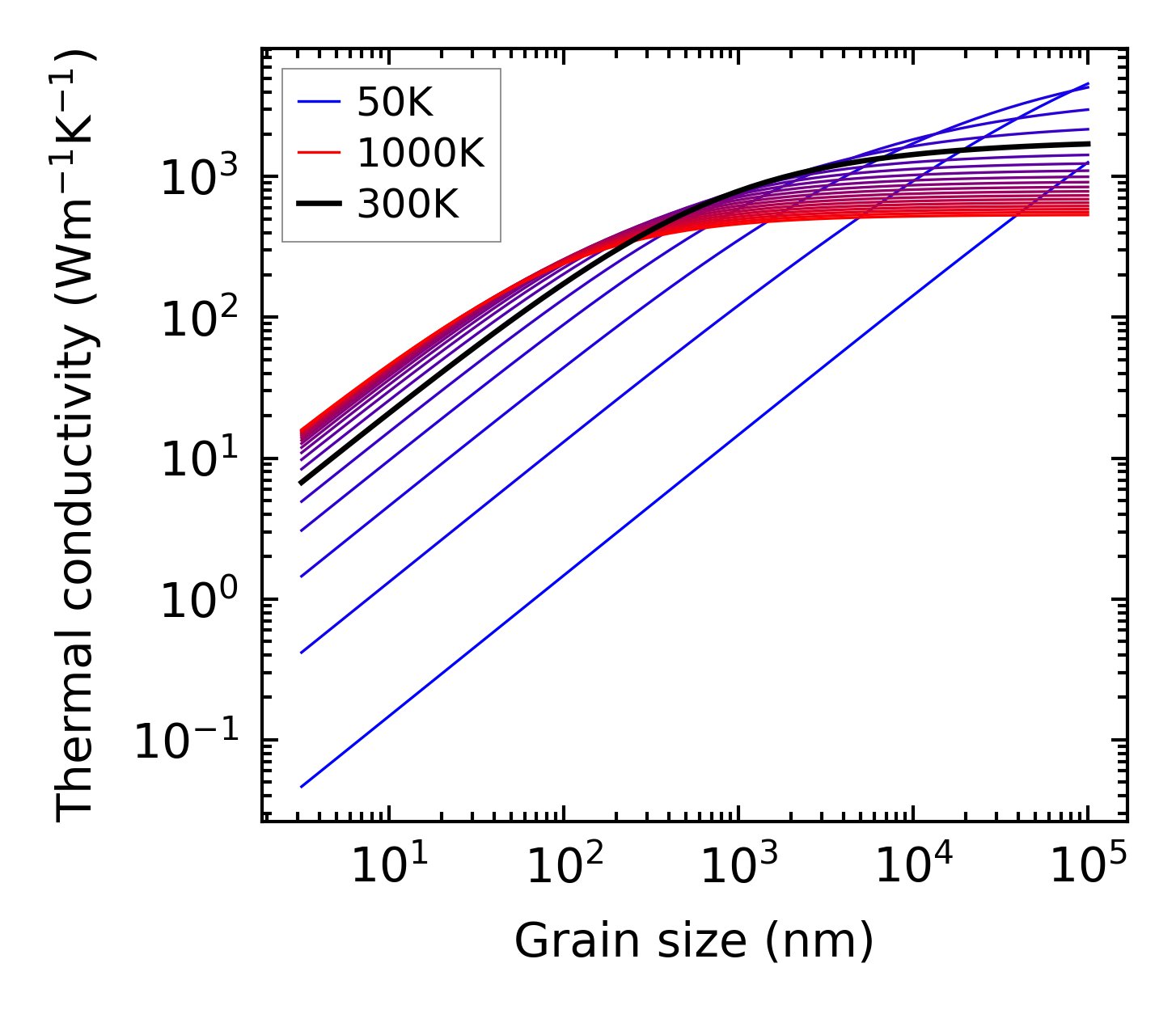

../../_images/fig_kappa_vs_grain_size291.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

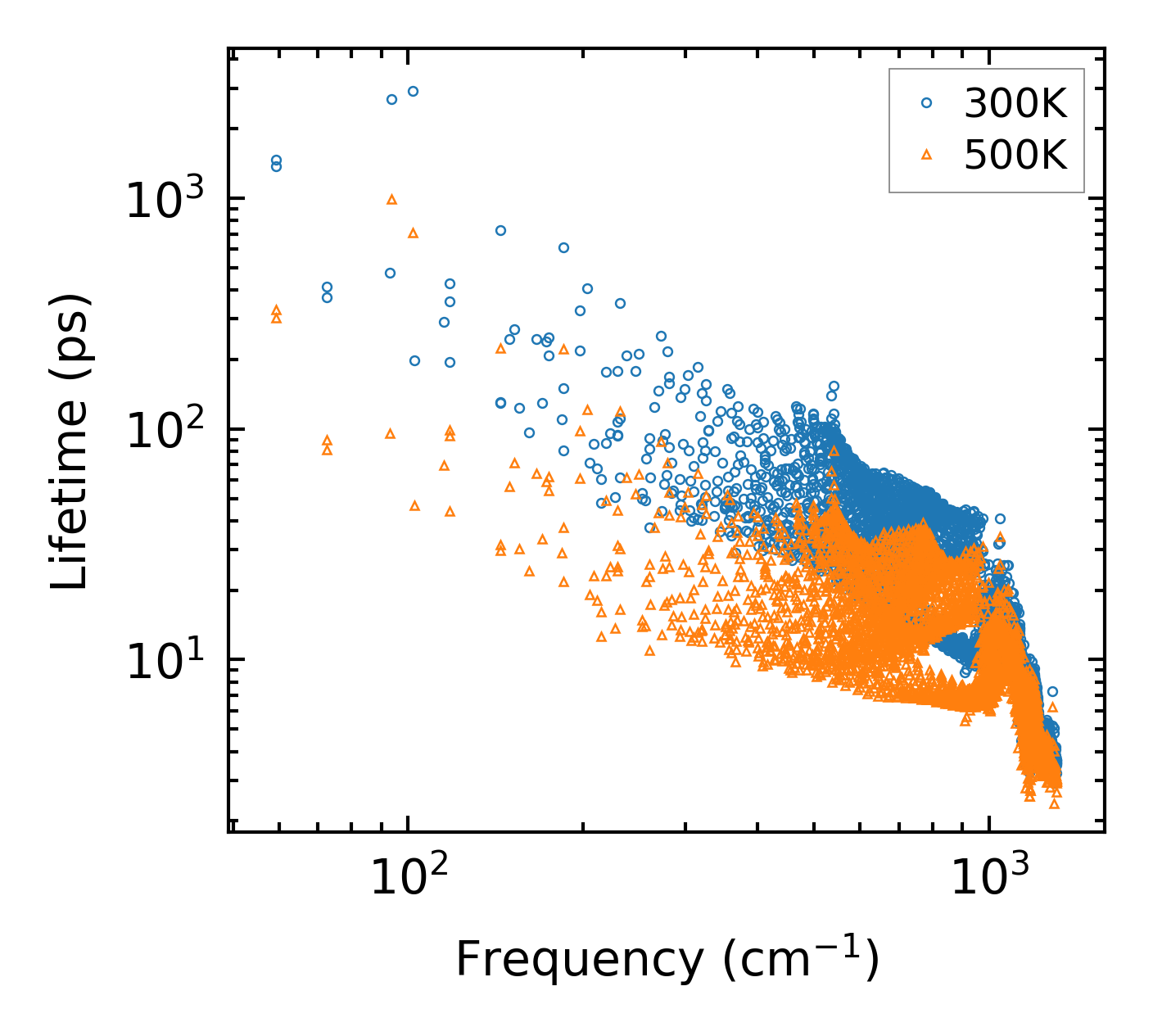

../../_images/fig_lifetime287.png — (a) Phonon lifetime due to phonon-phonon scattering

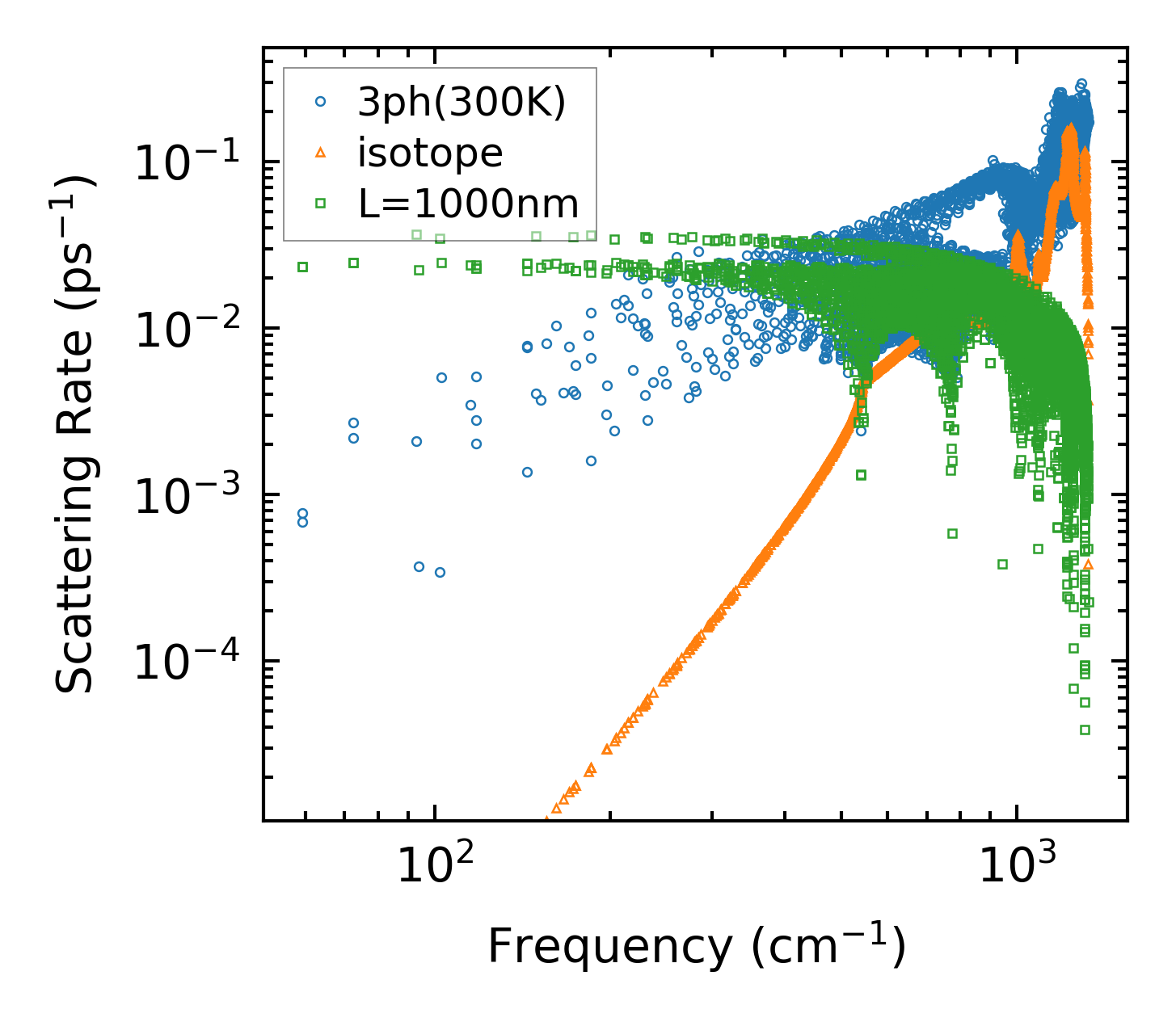

../../_images/fig_scat_rates286.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

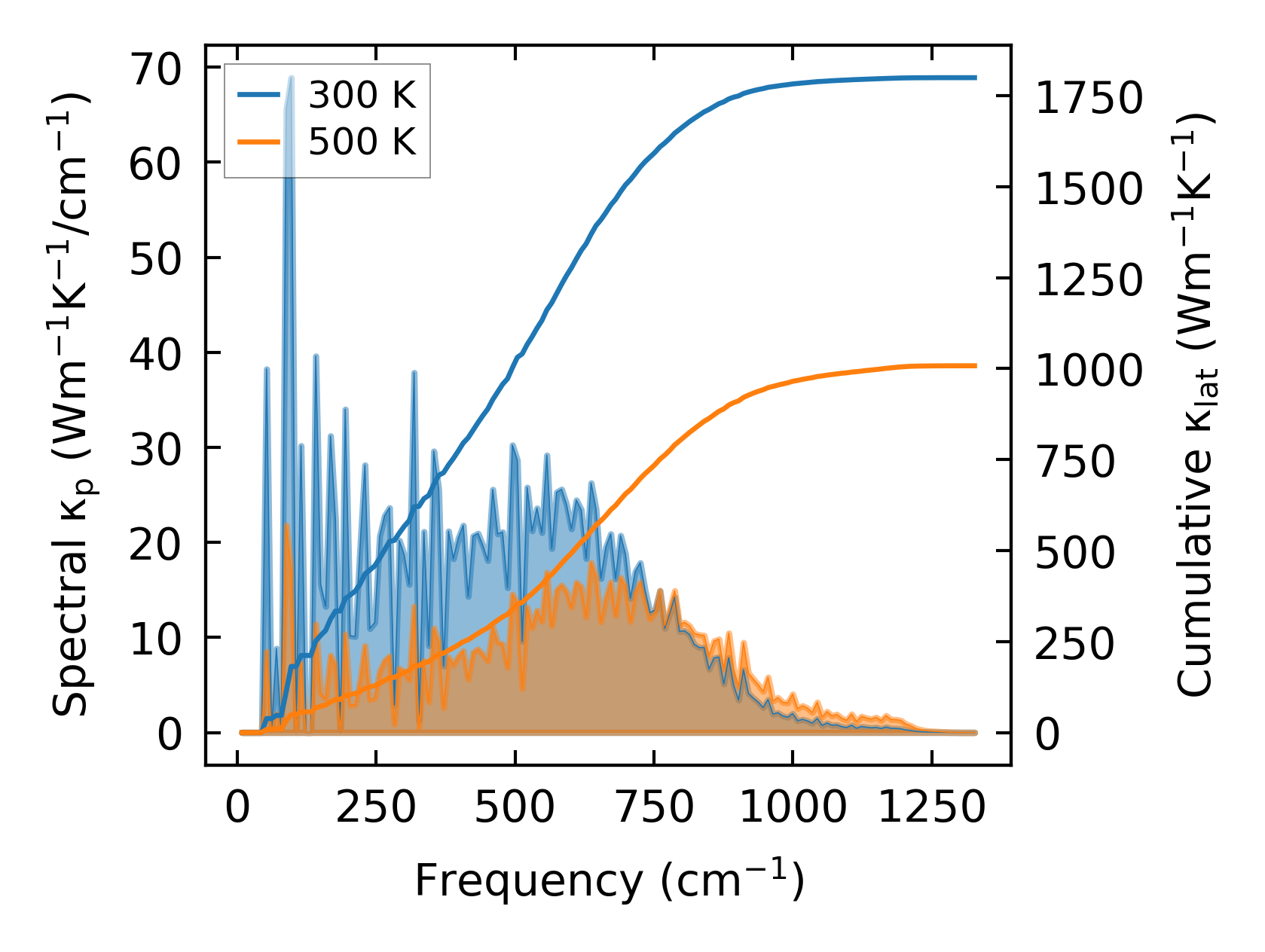

../../_images/fig_cumu_frequency287.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

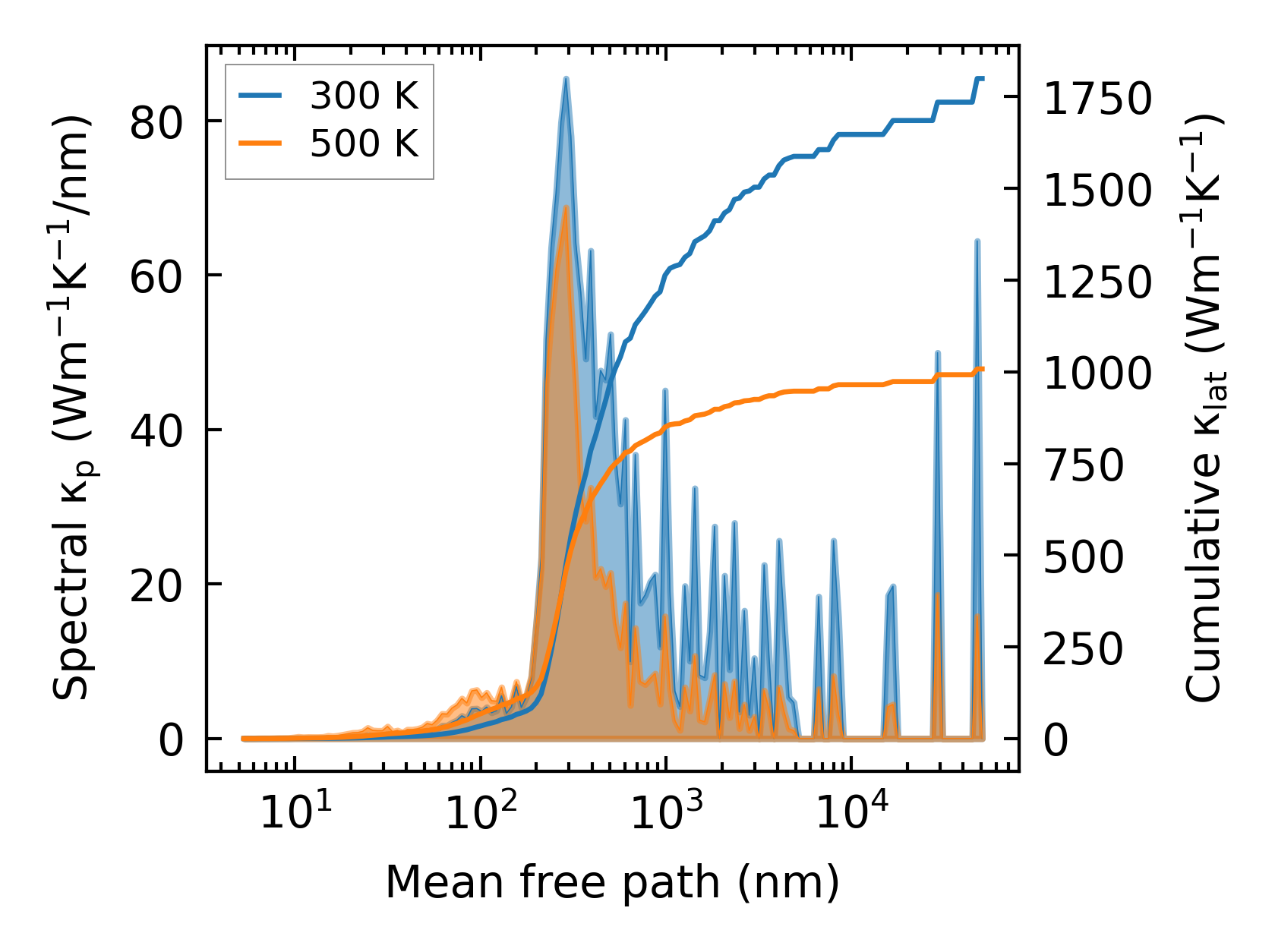

../../_images/fig_cumu_mfp287.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc372.png — (a) Force constants w.r.t atomic distance

Summary

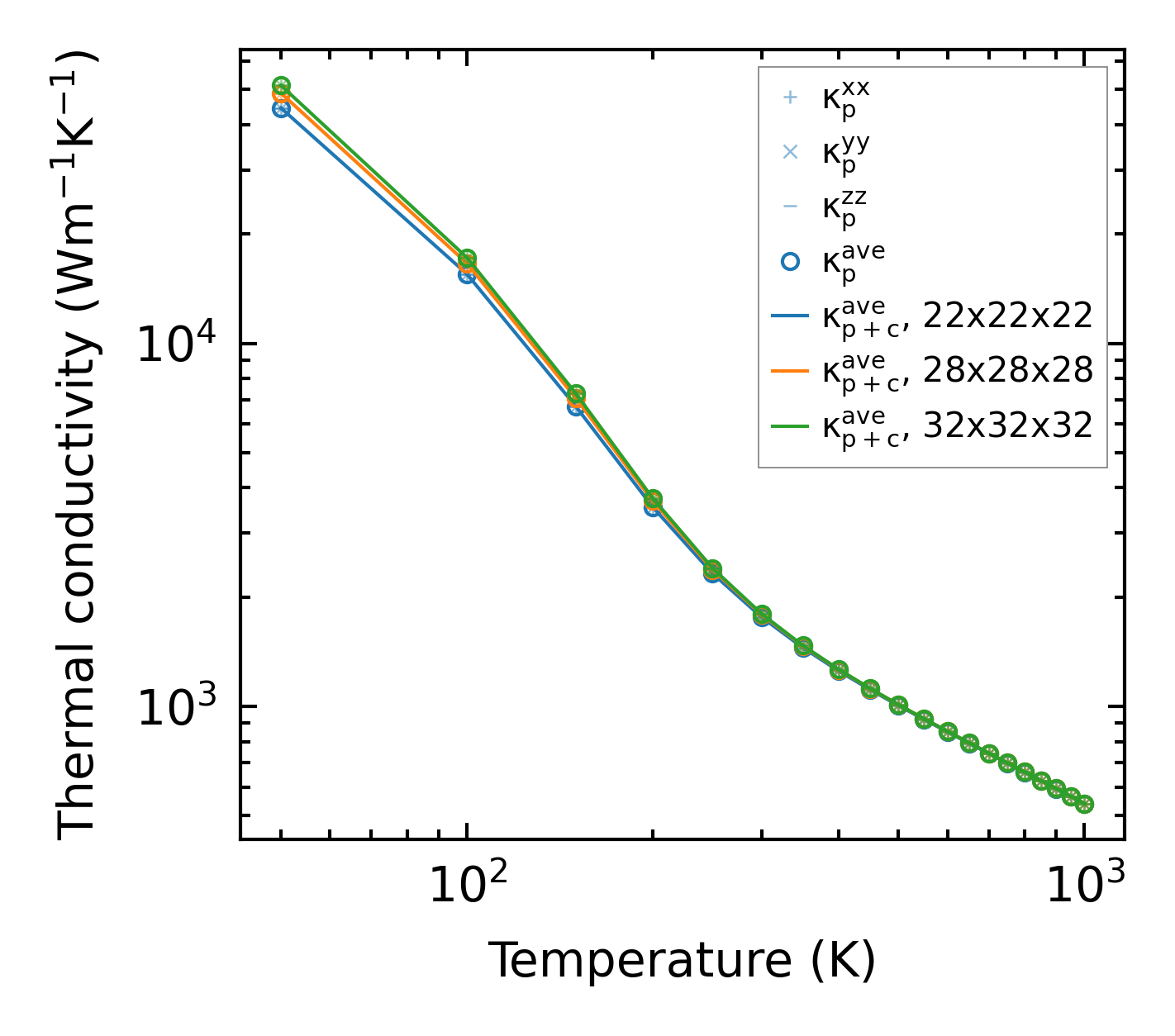

../../_images/fig_kappa563.png — (a) Temperature-dependent lattice thermal conductivity

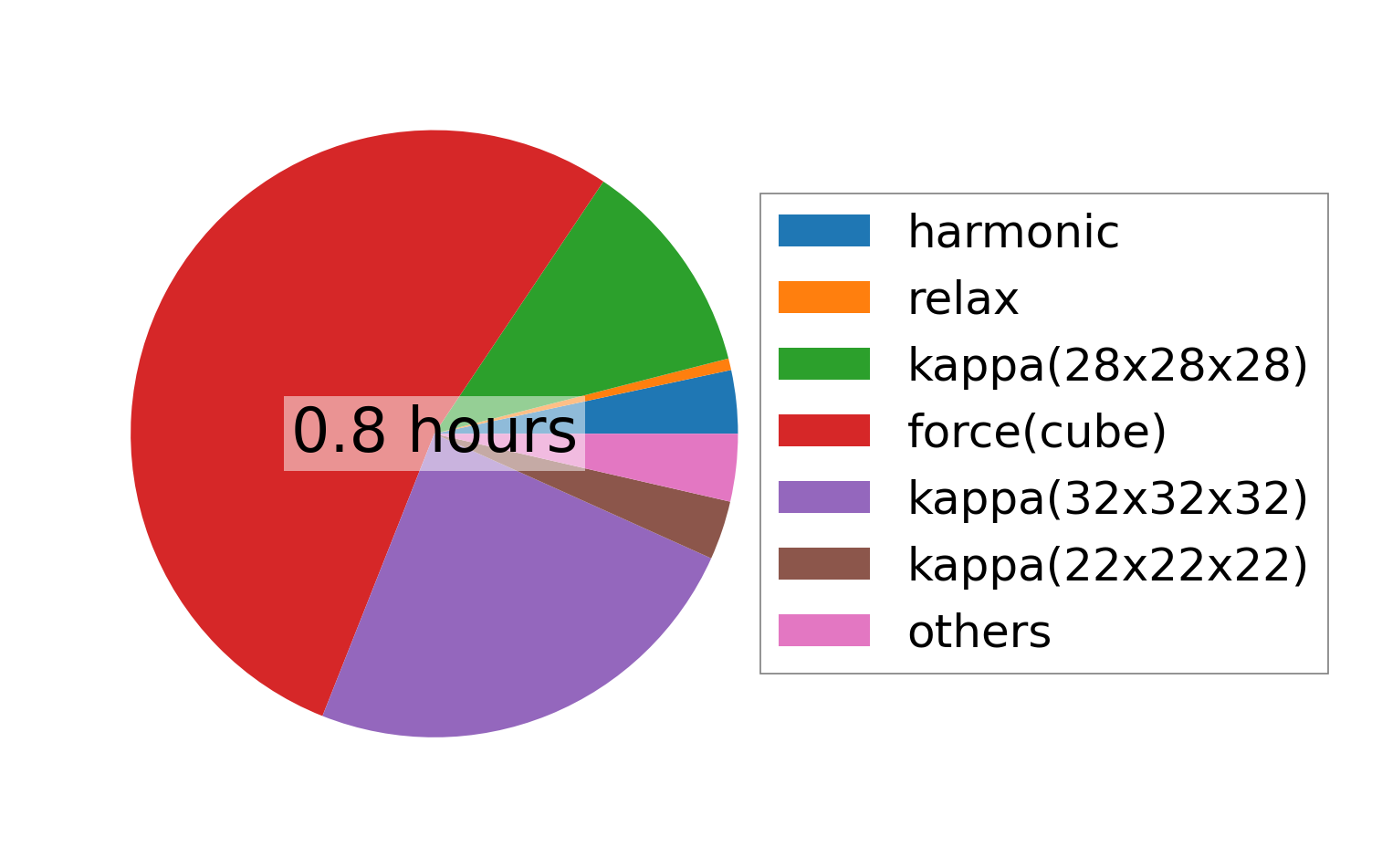

../../_images/fig_times658.png — (b) Computation time
