mp-486/NiP2/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-486.tar.gz

Harmonic properties

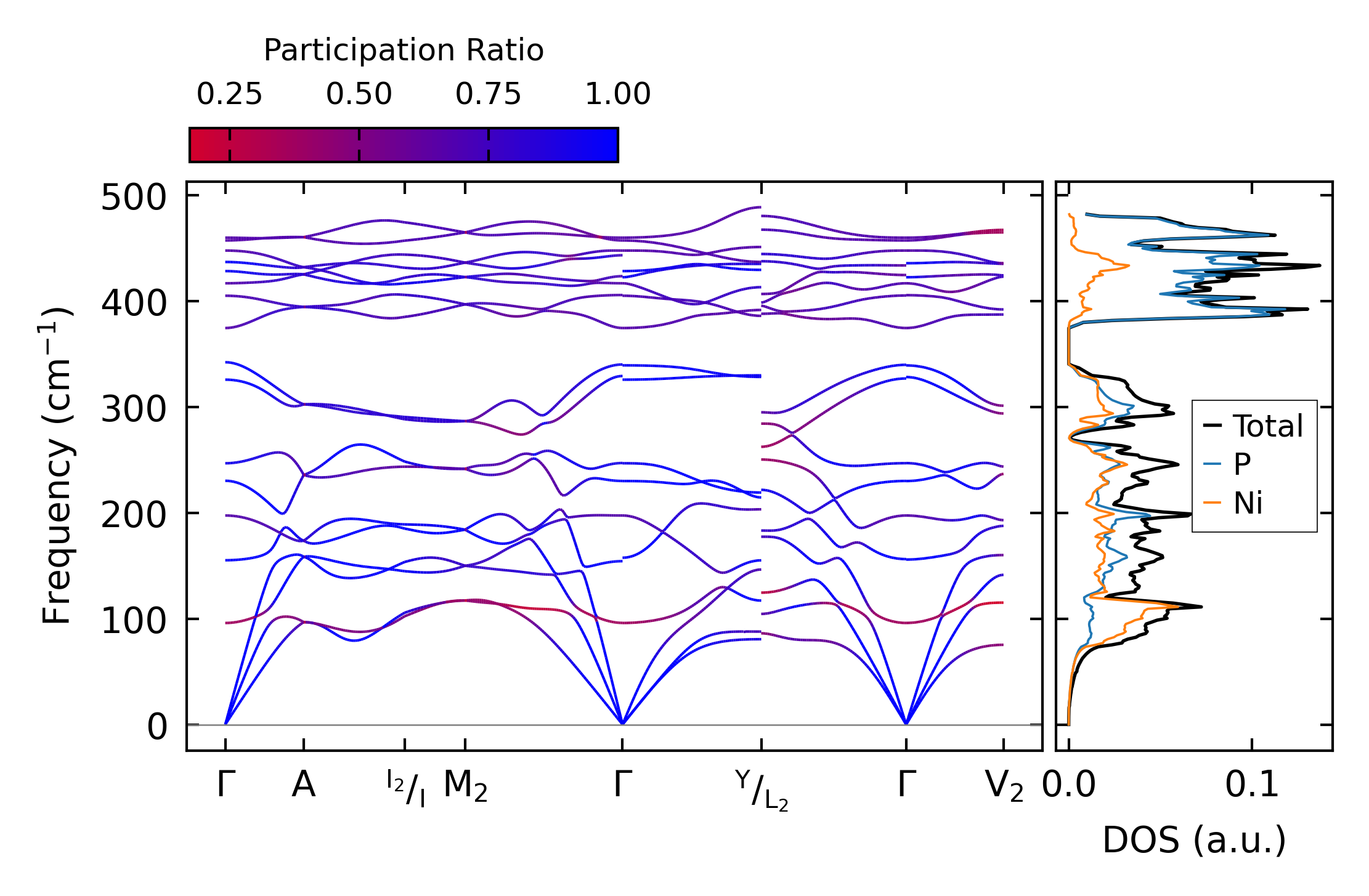

../../_images/fig_bandos_pr399.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo399.png — (b) Thermodynamic properties

Grüneisen parameters

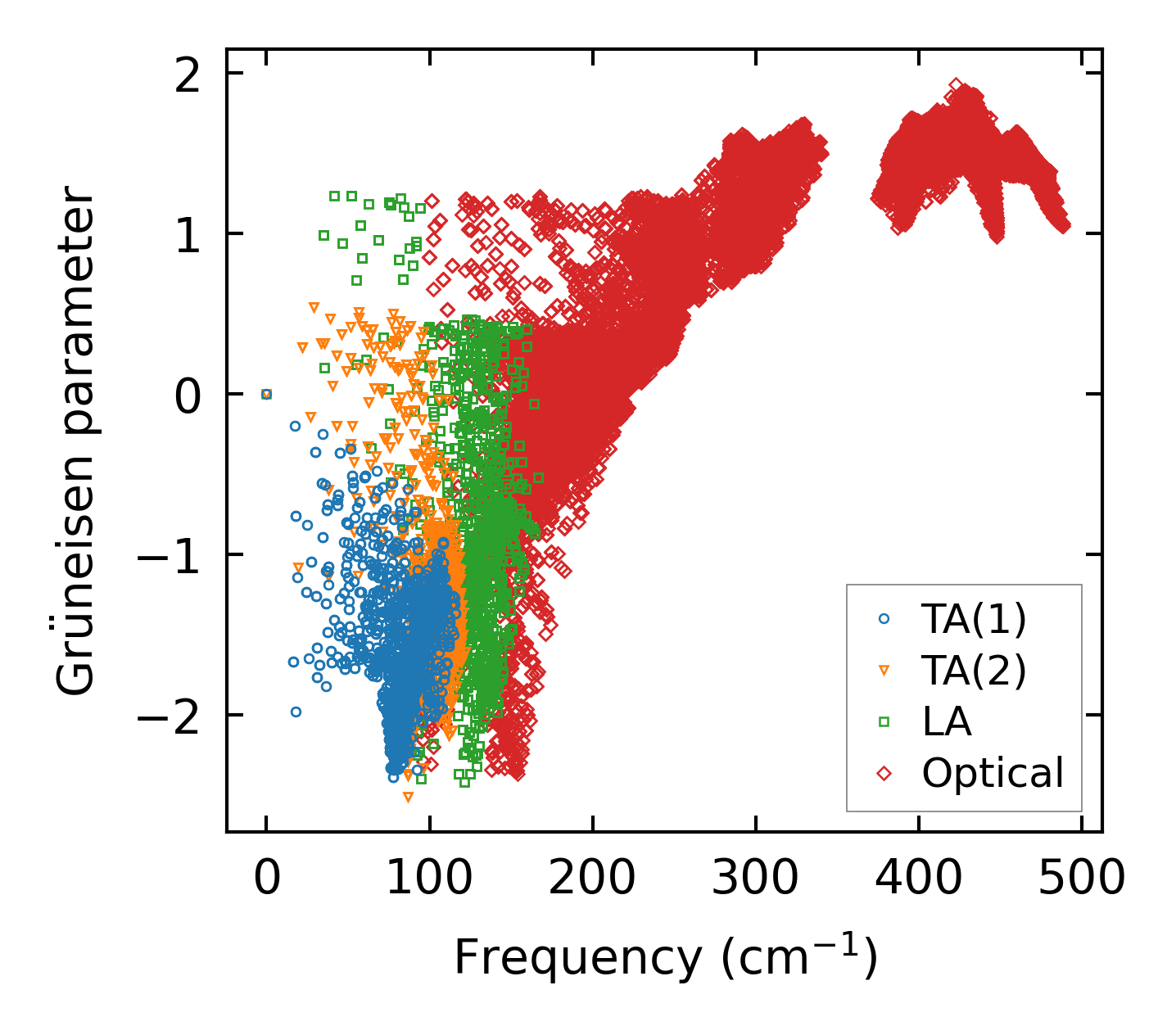

../../_images/fig_gru_all277.png — (a) Grüneisen parameters

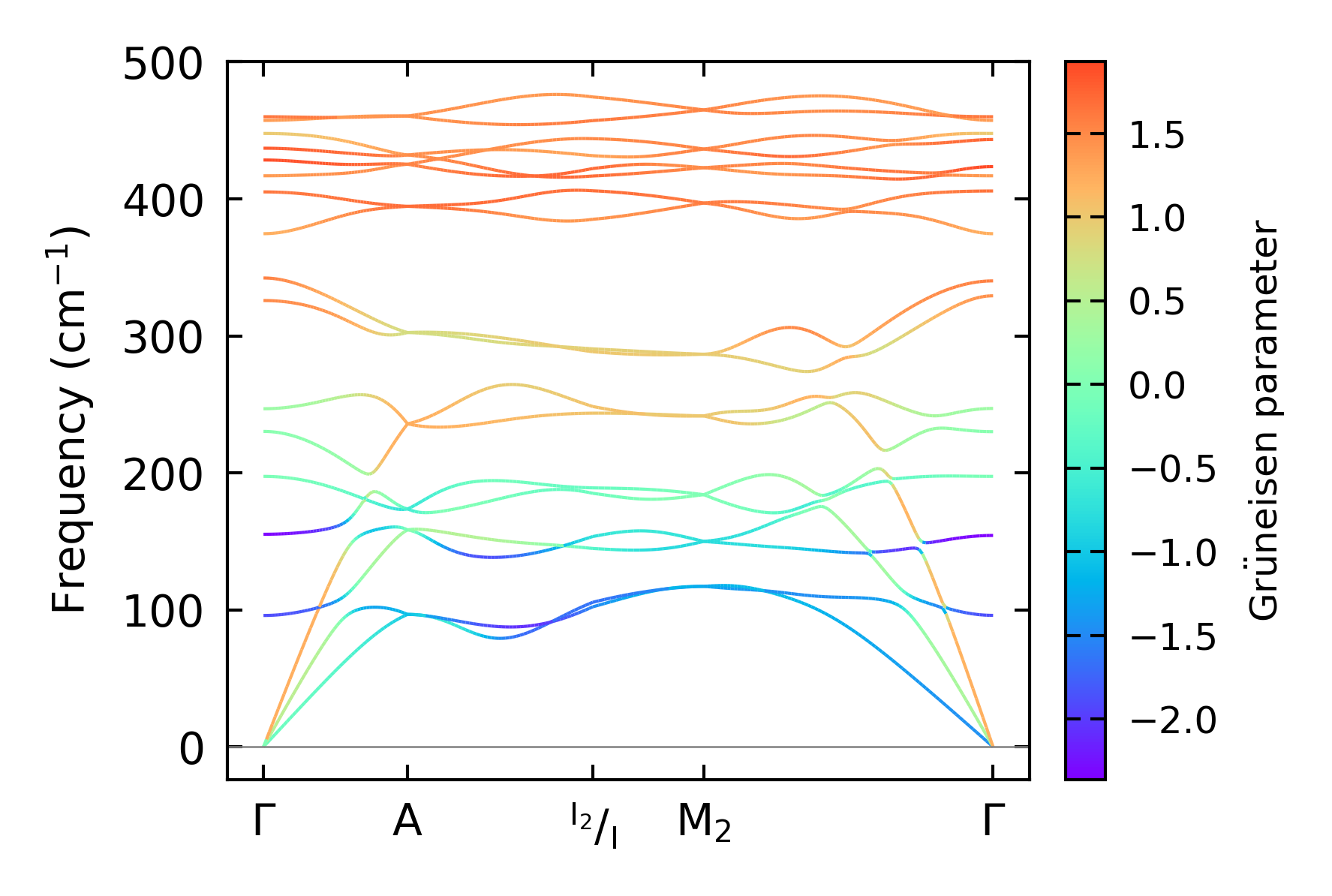

../../_images/fig_gruneisen277.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x13, supercell: 2x3x2

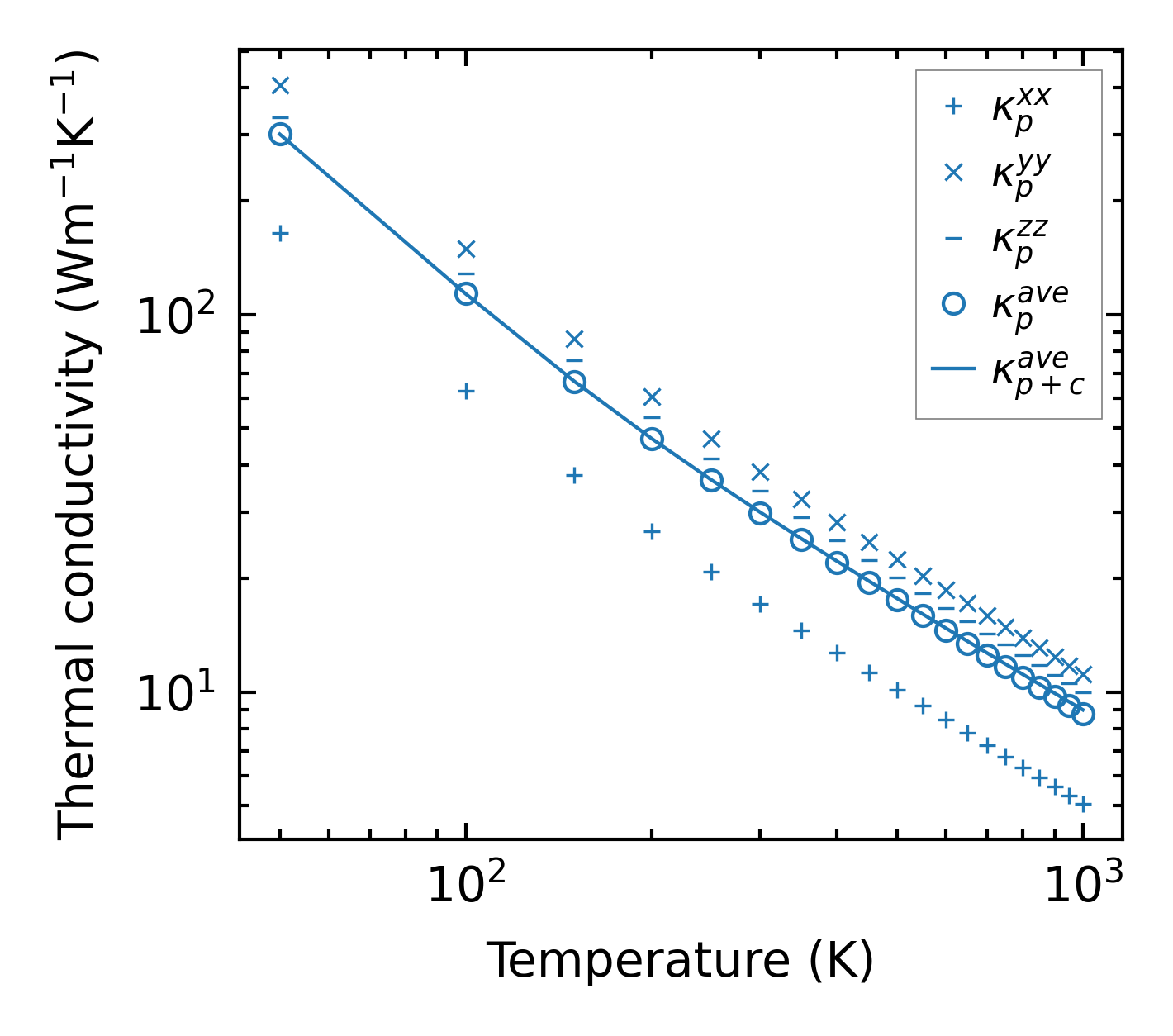

../../_images/fig_kappa542.png — (a) Temperature-dependent lattice thermal conductivity

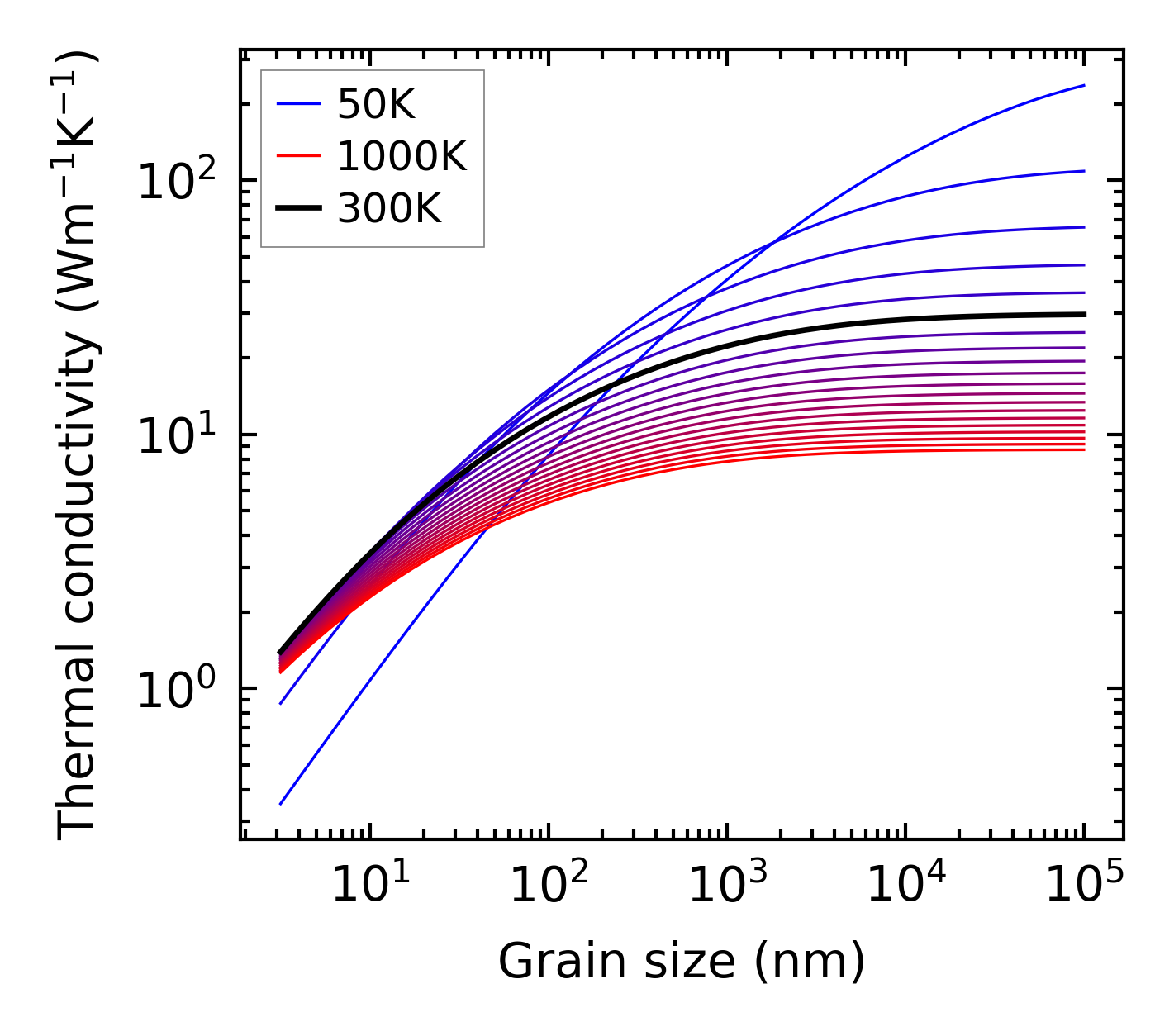

../../_images/fig_kappa_vs_grain_size280.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

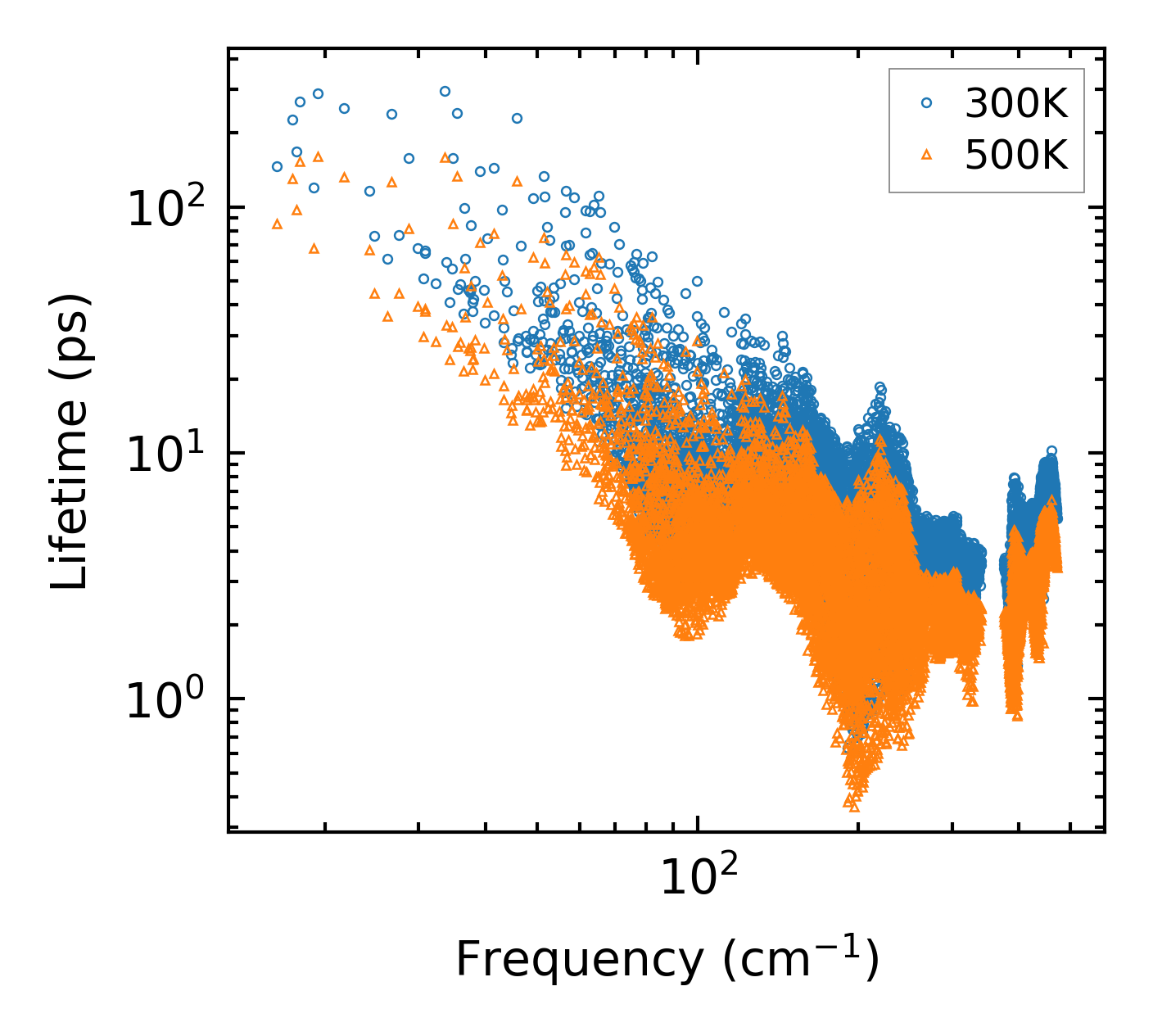

../../_images/fig_lifetime276.png — (a) Phonon lifetime due to phonon-phonon scattering

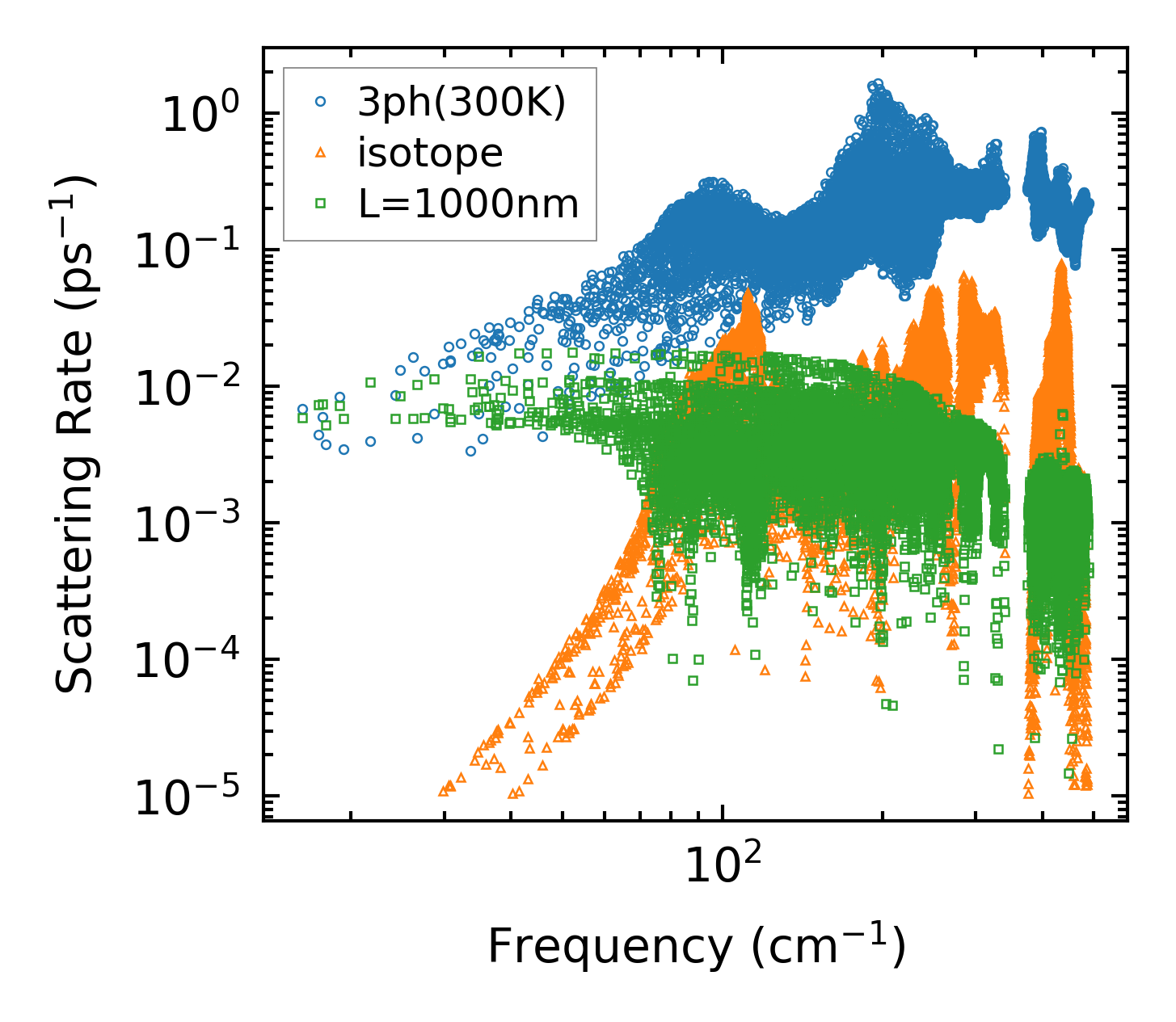

../../_images/fig_scat_rates275.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

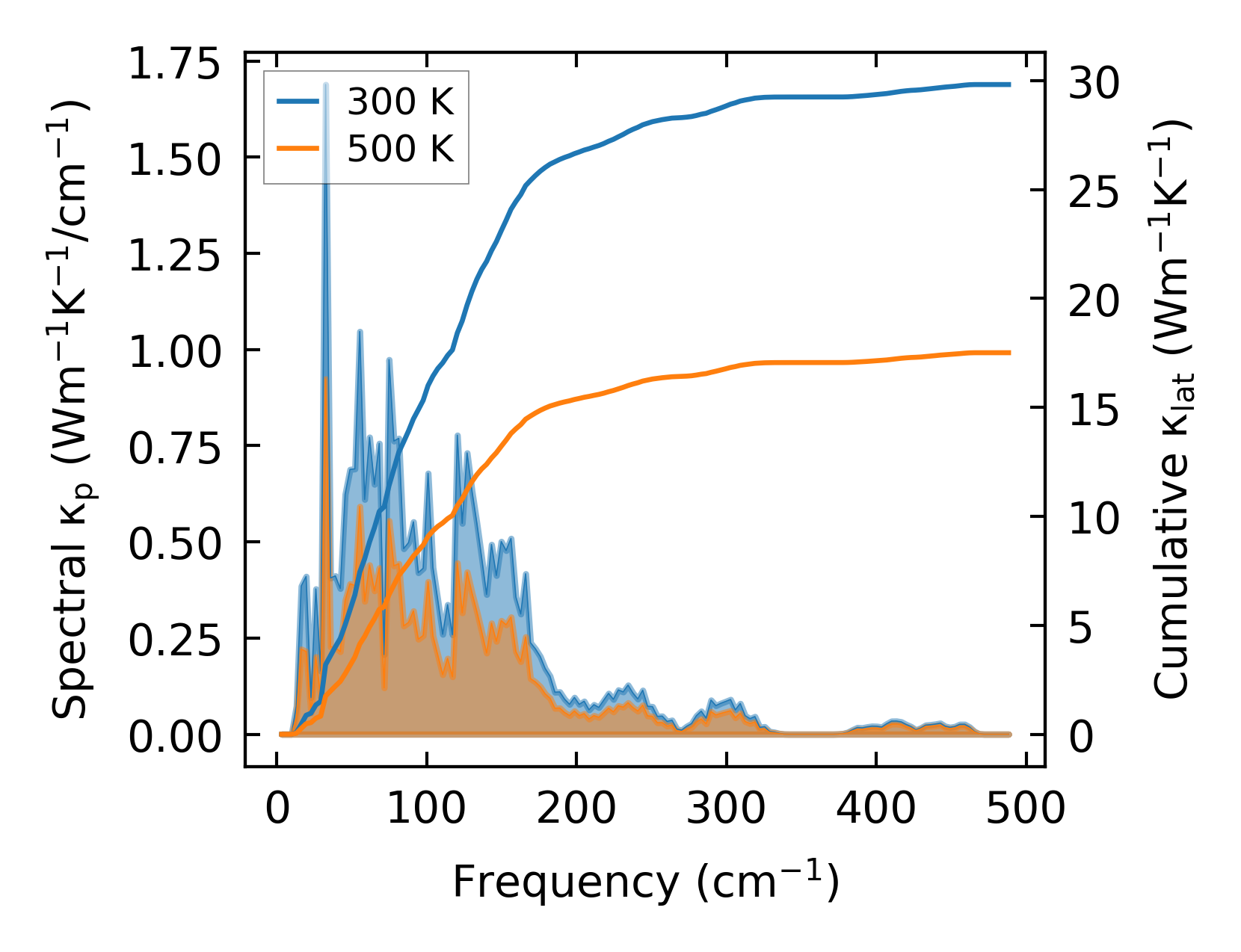

../../_images/fig_cumu_frequency276.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

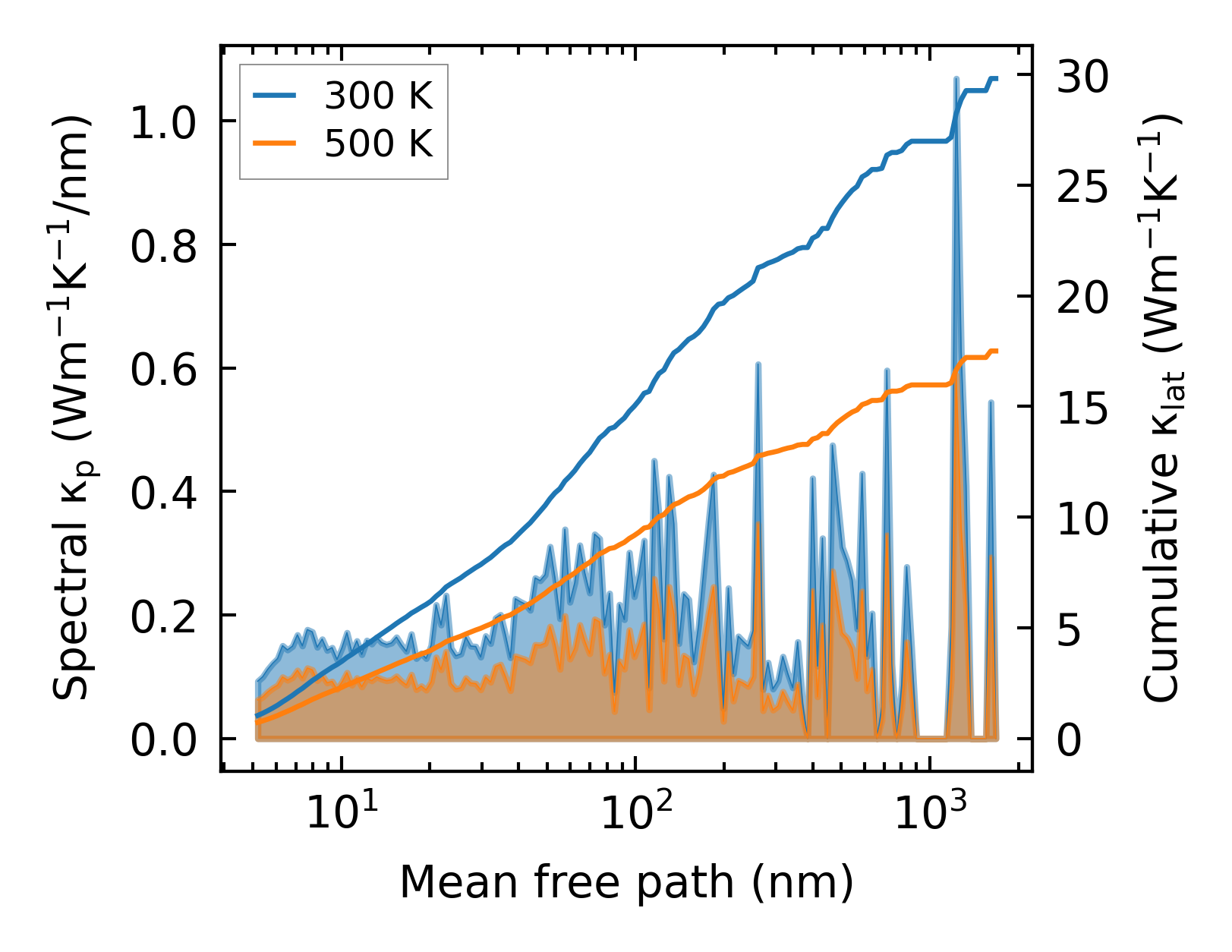

../../_images/fig_cumu_mfp276.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

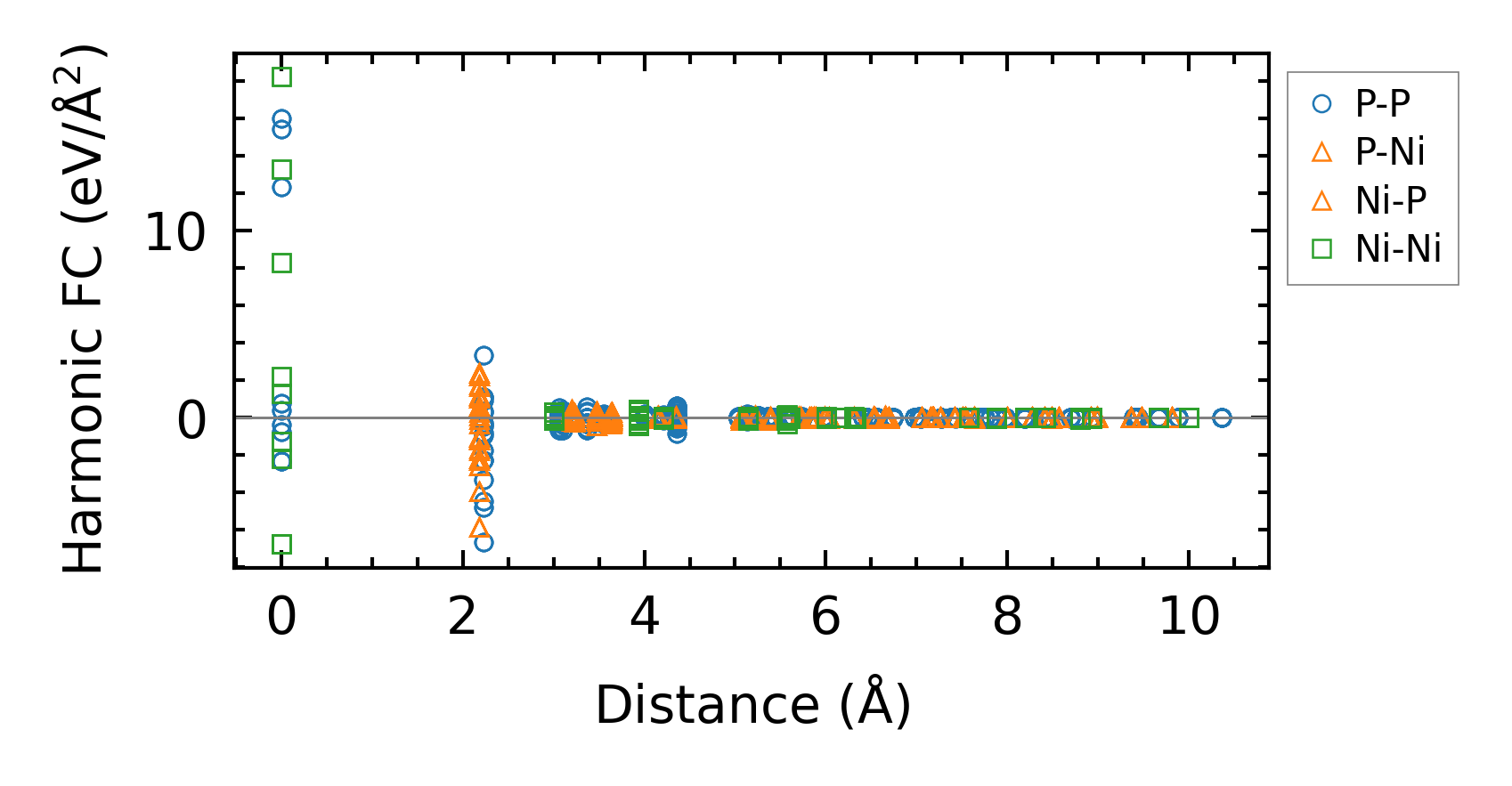

../../_images/fig_fc2330.png — (a) Force constants w.r.t atomic distance

Summary

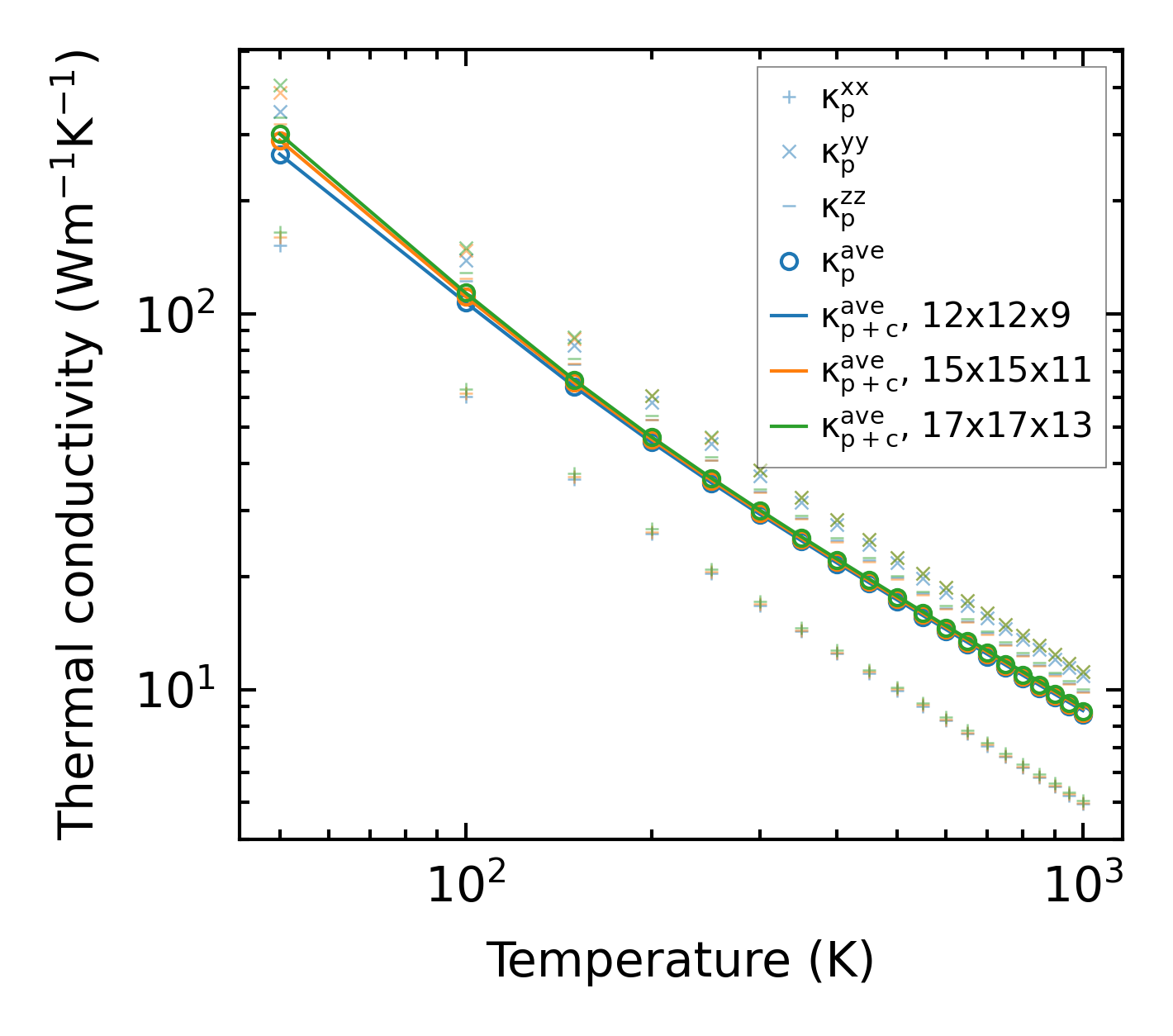

../../_images/fig_kappa543.png — (a) Temperature-dependent lattice thermal conductivity

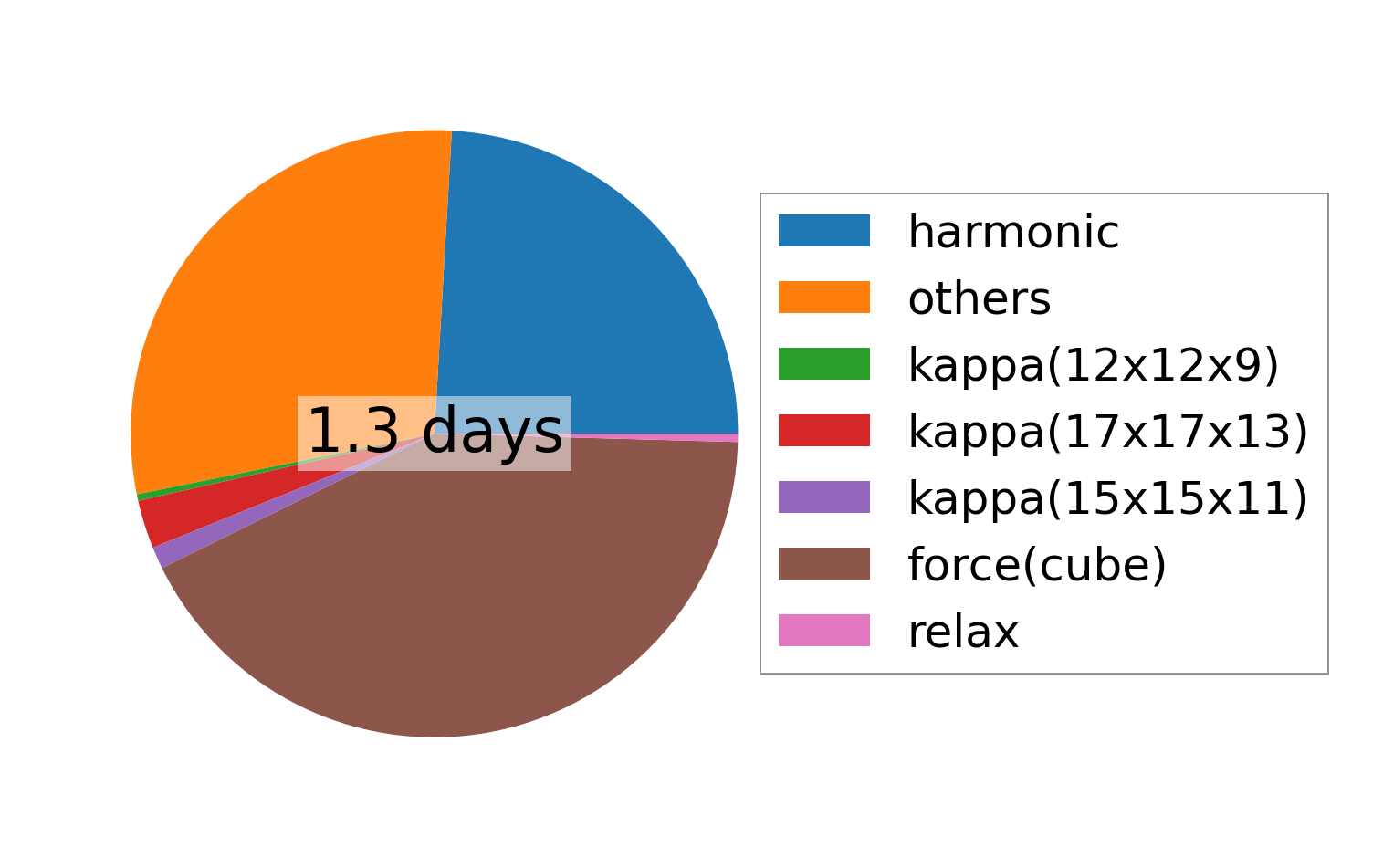

../../_images/fig_times629.png — (b) Computation time
