mp-691/SnSe/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-691.tar.gz

Harmonic properties

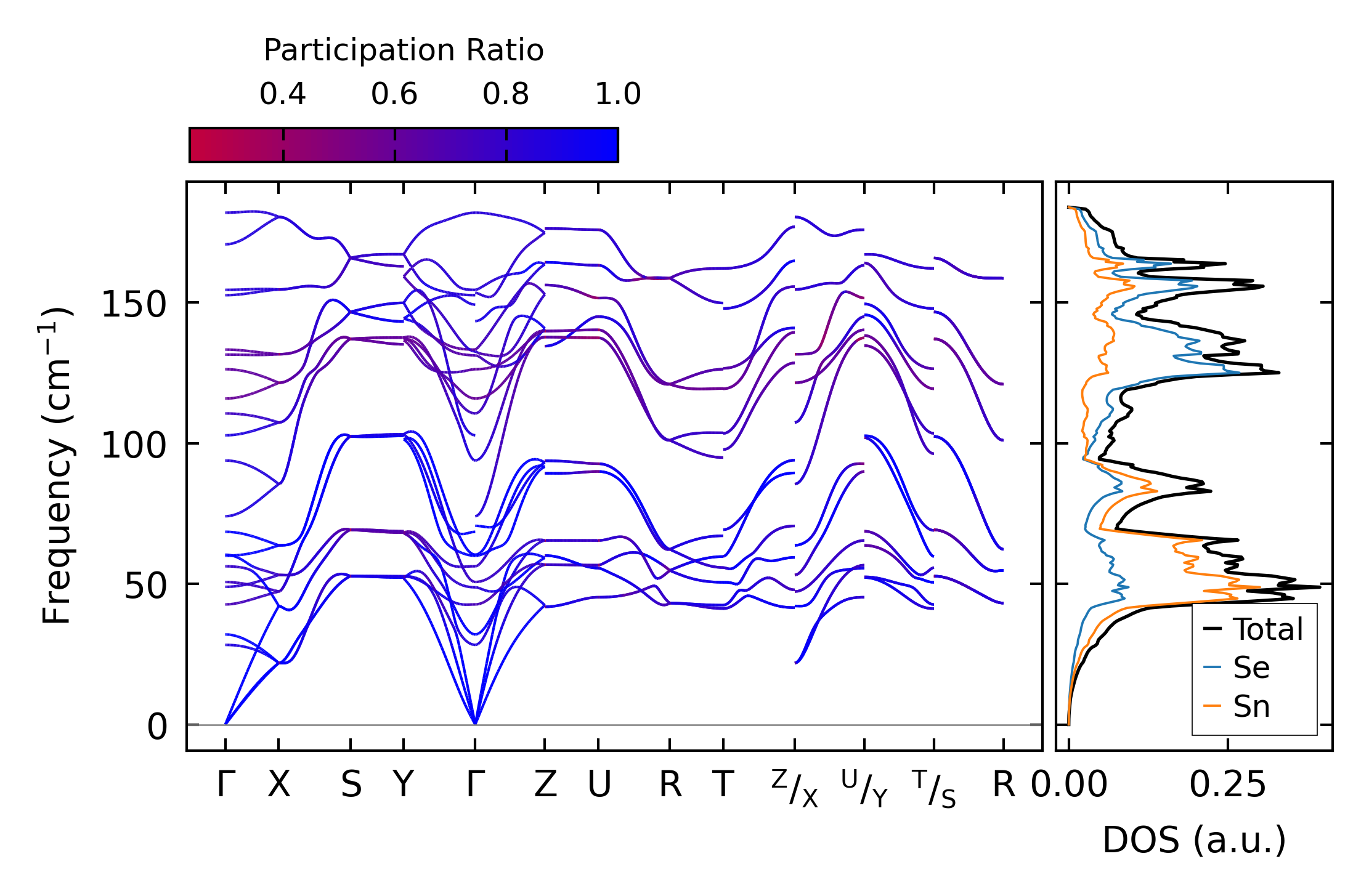

../../_images/fig_bandos_pr435.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo435.png — (b) Thermodynamic properties

Grüneisen parameters

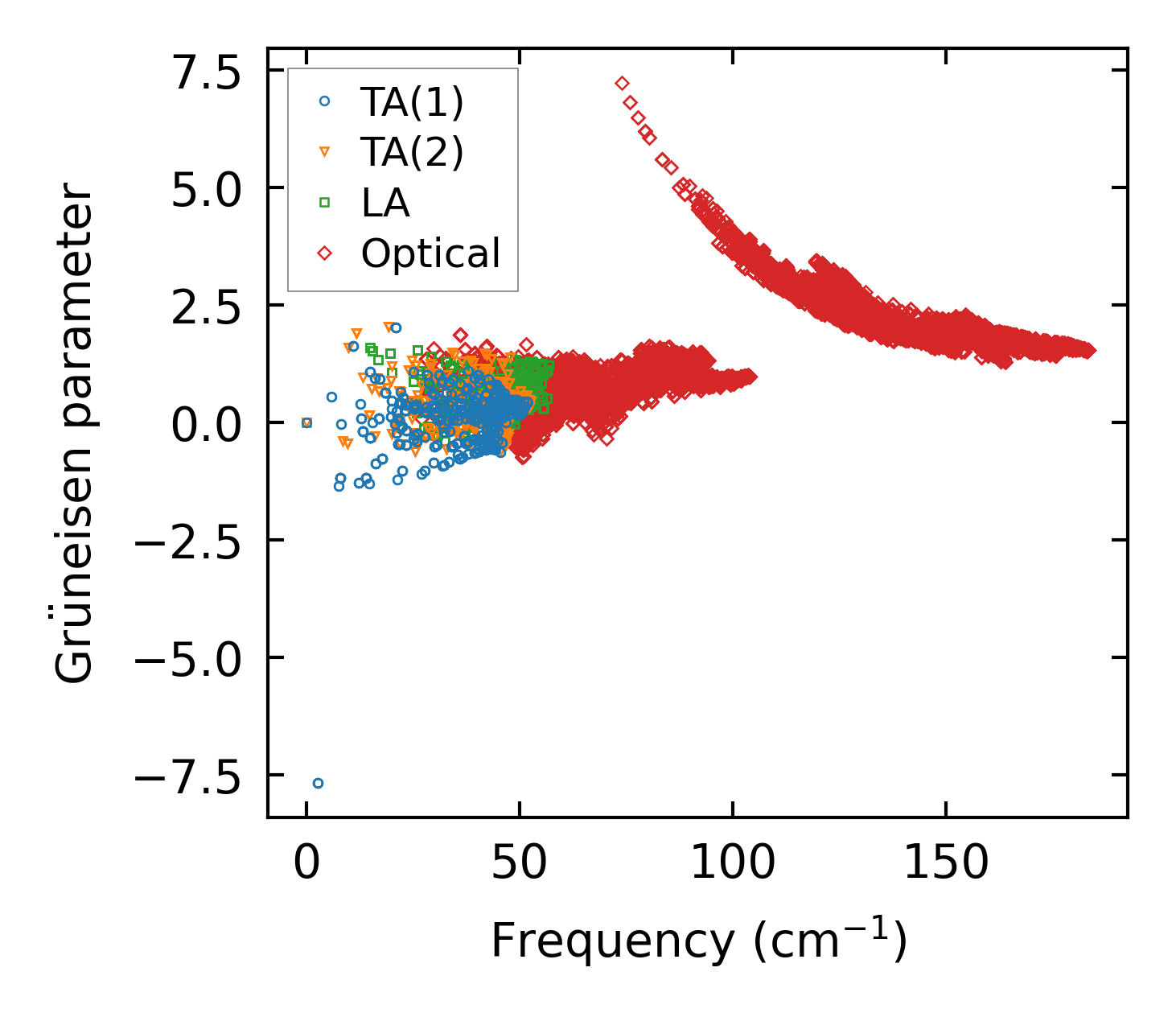

../../_images/fig_gru_all294.png — (a) Grüneisen parameters

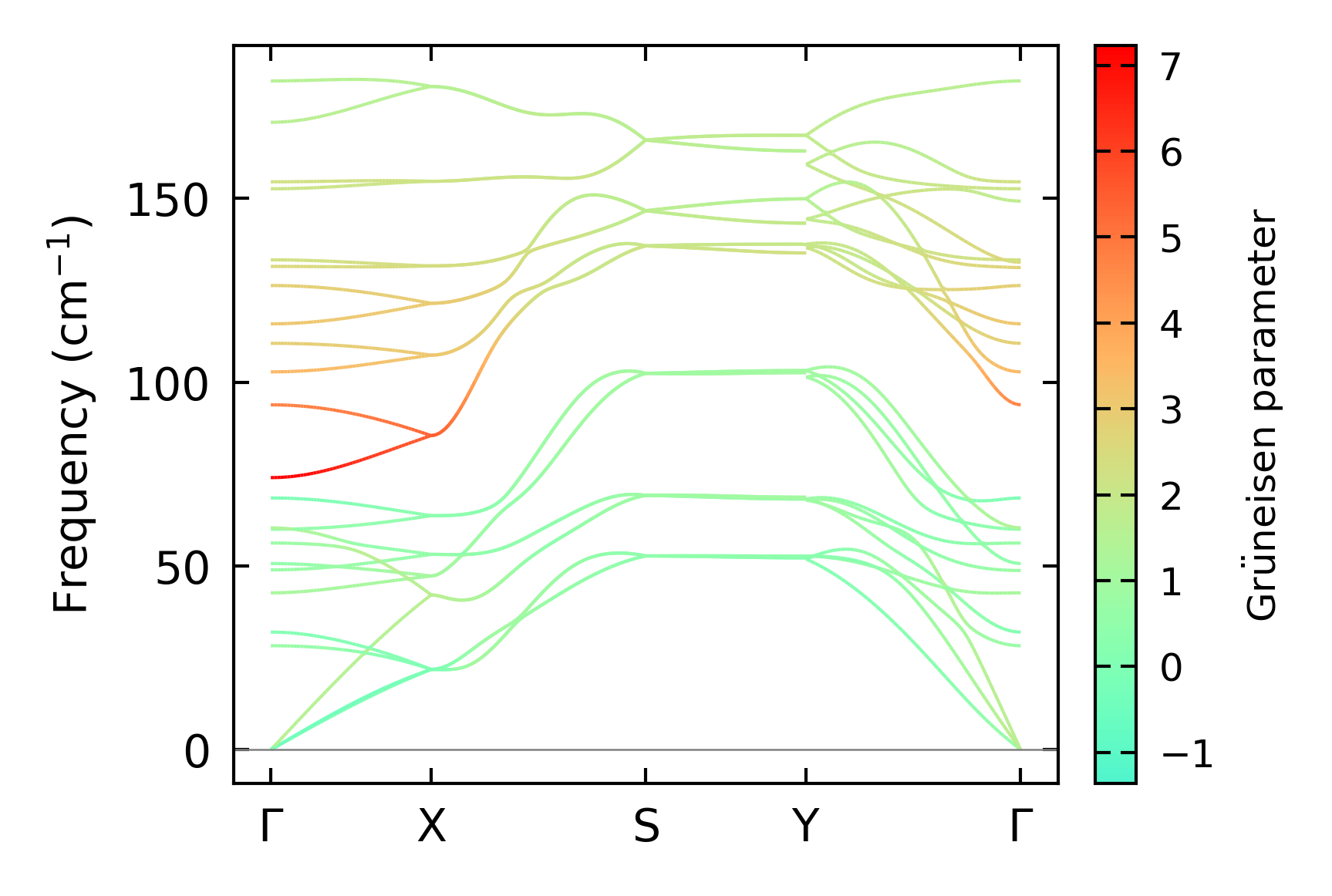

../../_images/fig_gruneisen294.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x17x16, supercell: 2x3x3

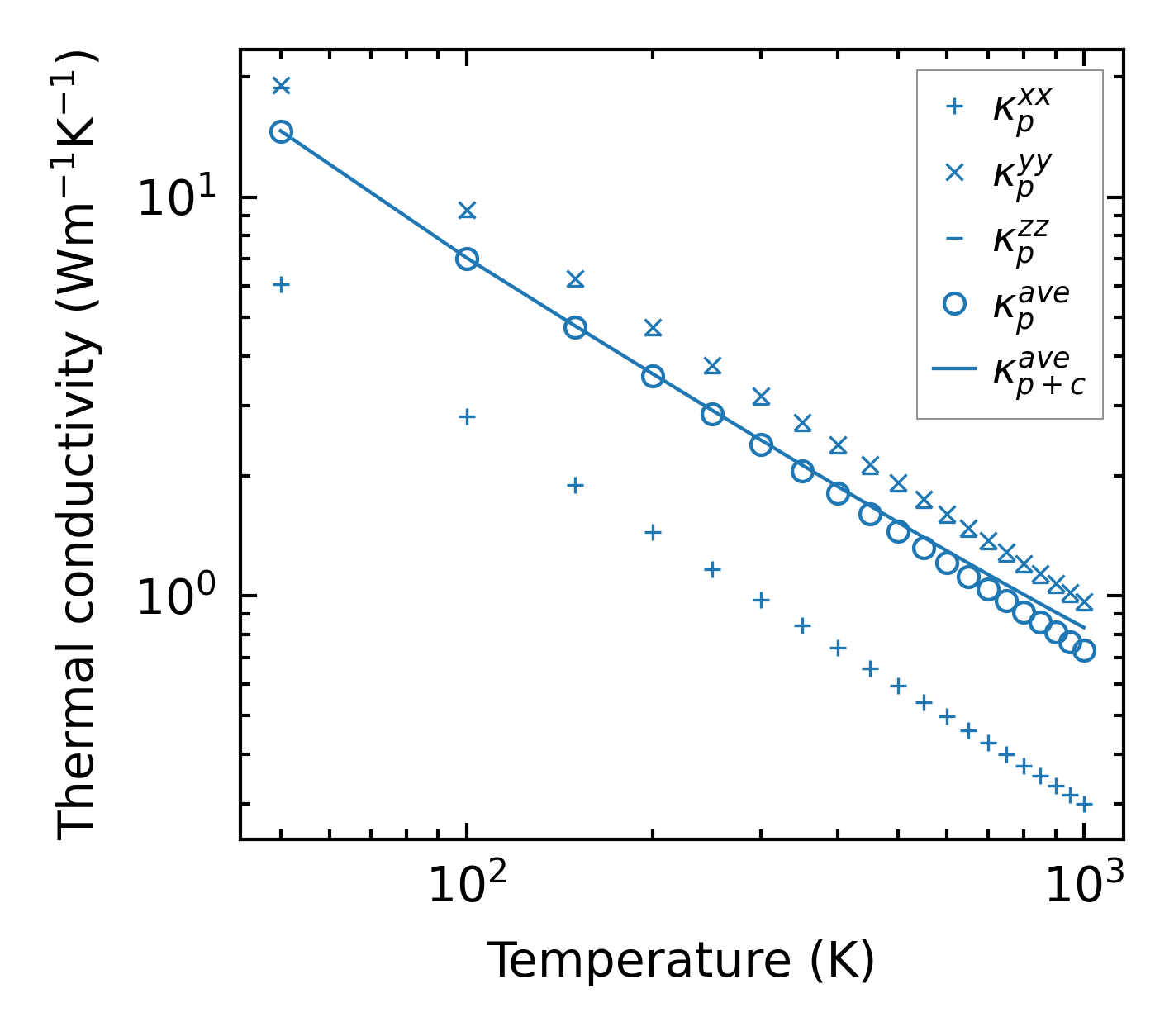

../../_images/fig_kappa573.png — (a) Temperature-dependent lattice thermal conductivity

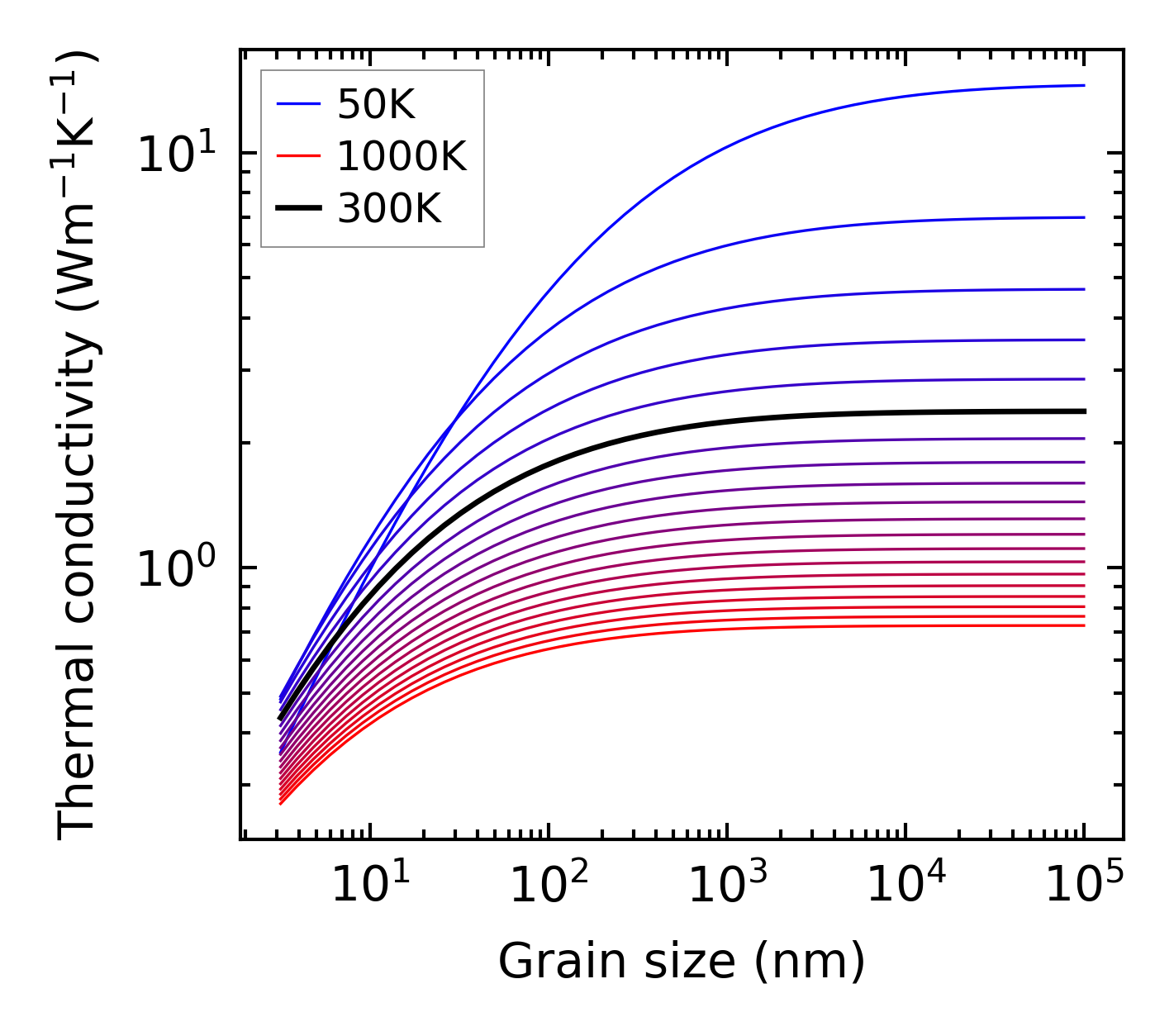

../../_images/fig_kappa_vs_grain_size297.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

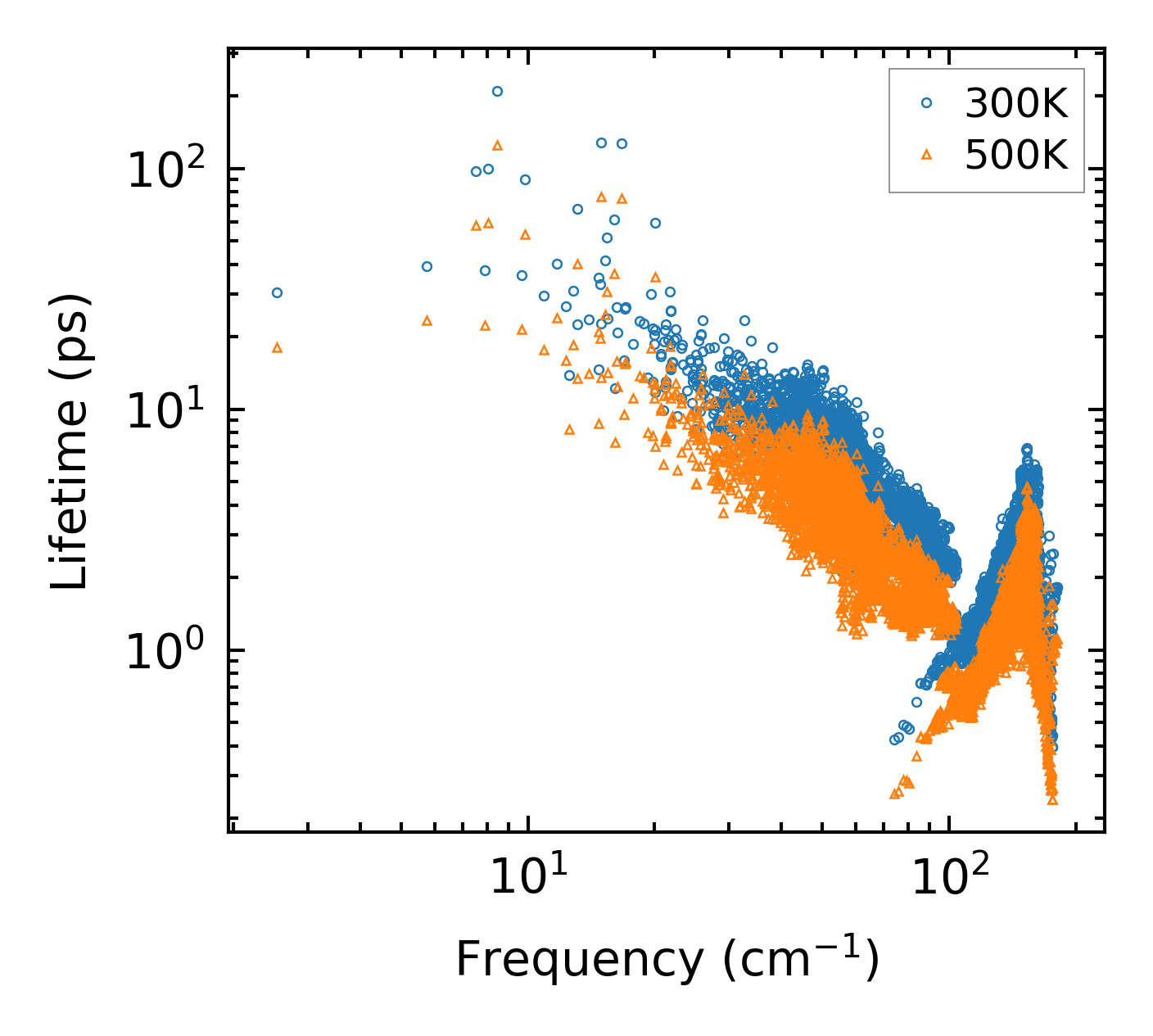

../../_images/fig_lifetime293.png — (a) Phonon lifetime due to phonon-phonon scattering

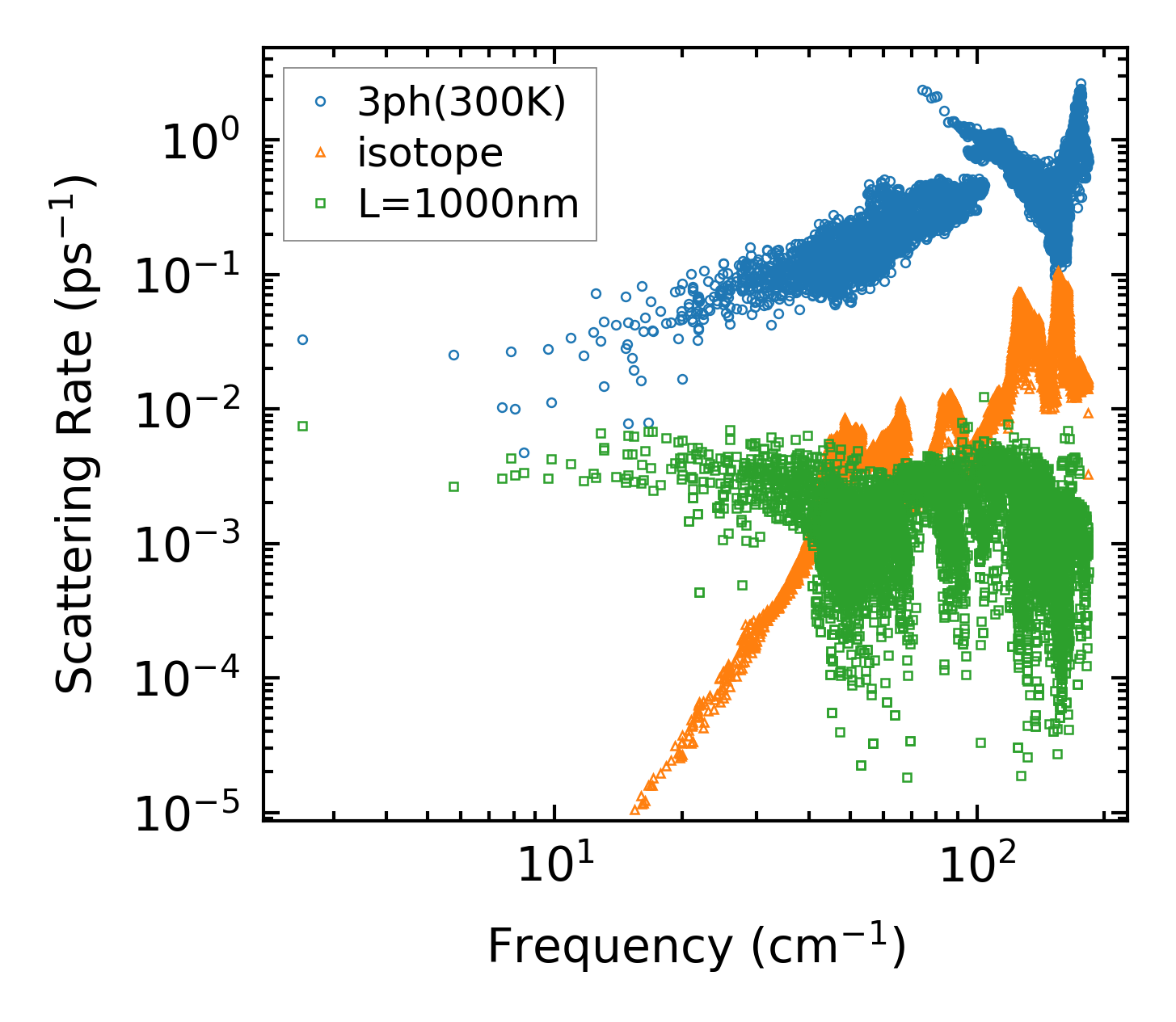

../../_images/fig_scat_rates292.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

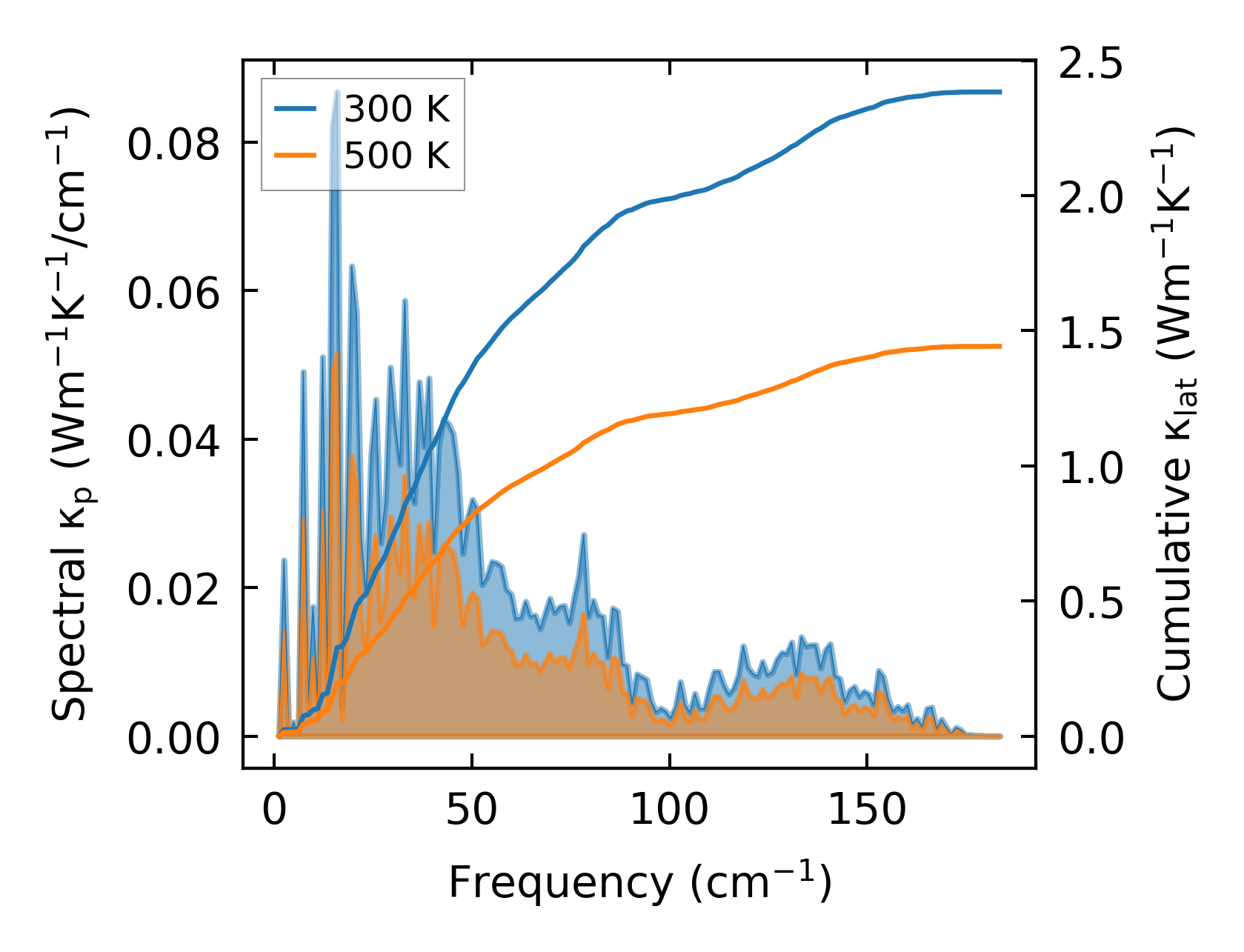

../../_images/fig_cumu_frequency293.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

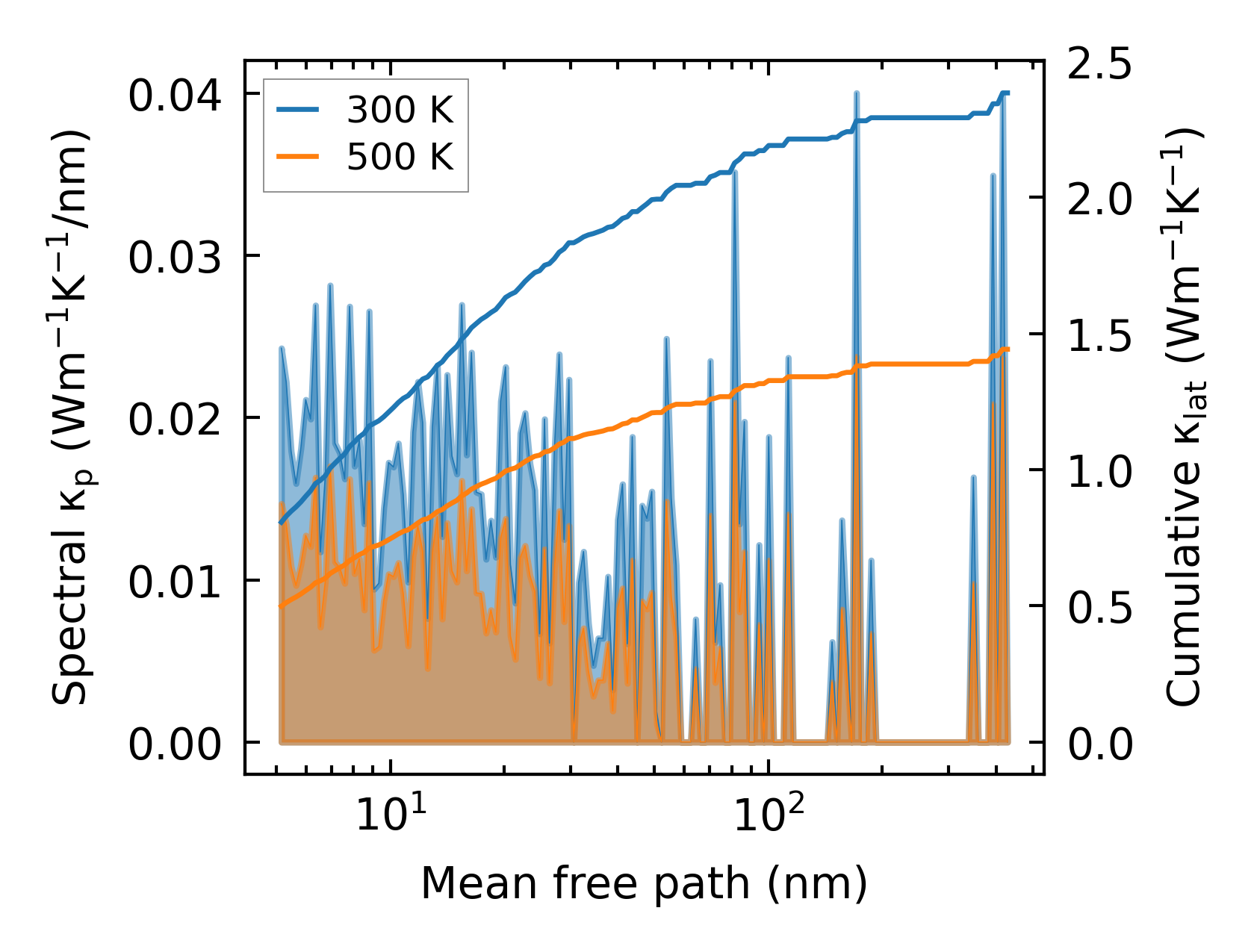

../../_images/fig_cumu_mfp293.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2361.png — (a) Force constants w.r.t atomic distance

Summary

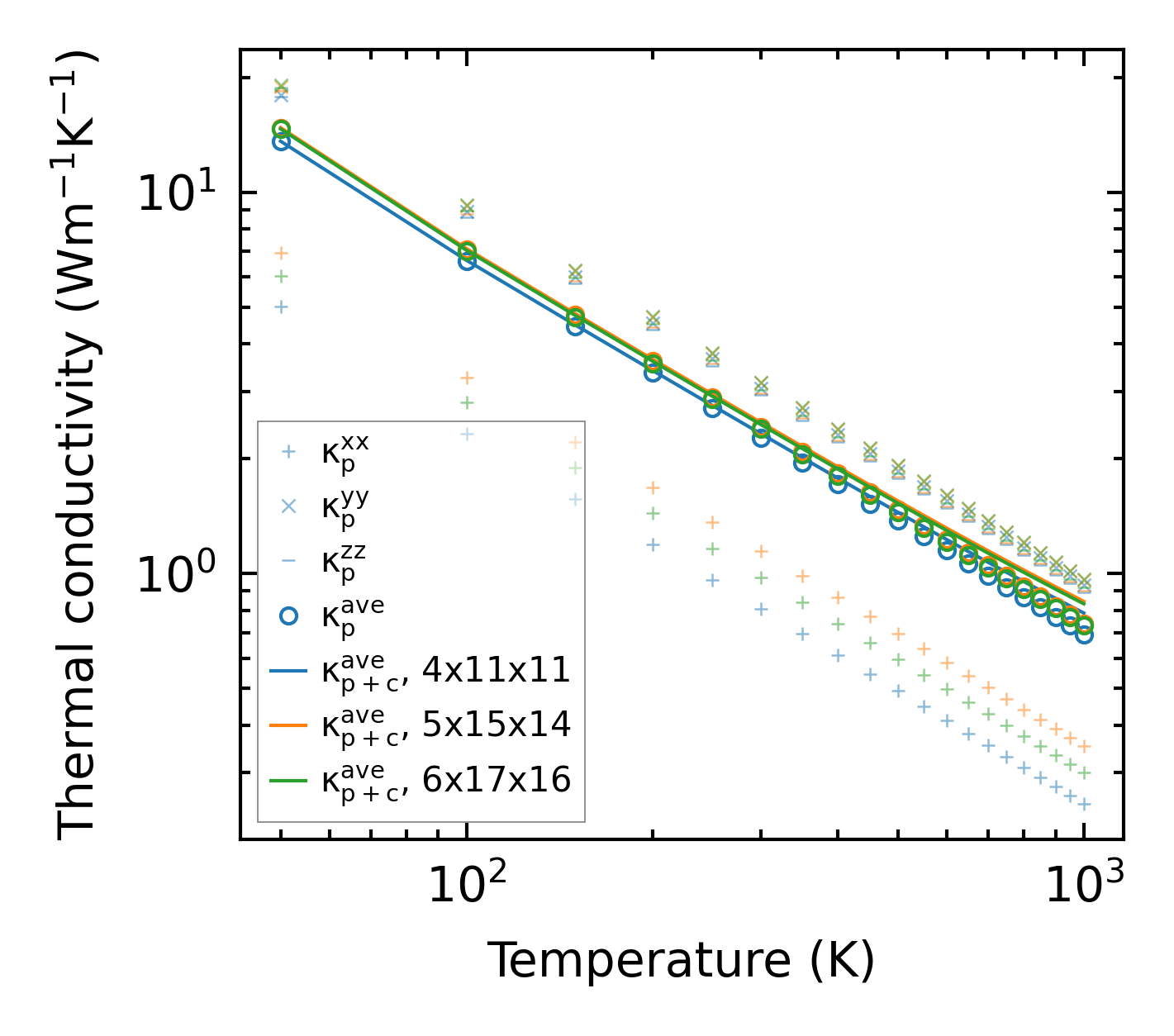

../../_images/fig_kappa574.png — (a) Temperature-dependent lattice thermal conductivity

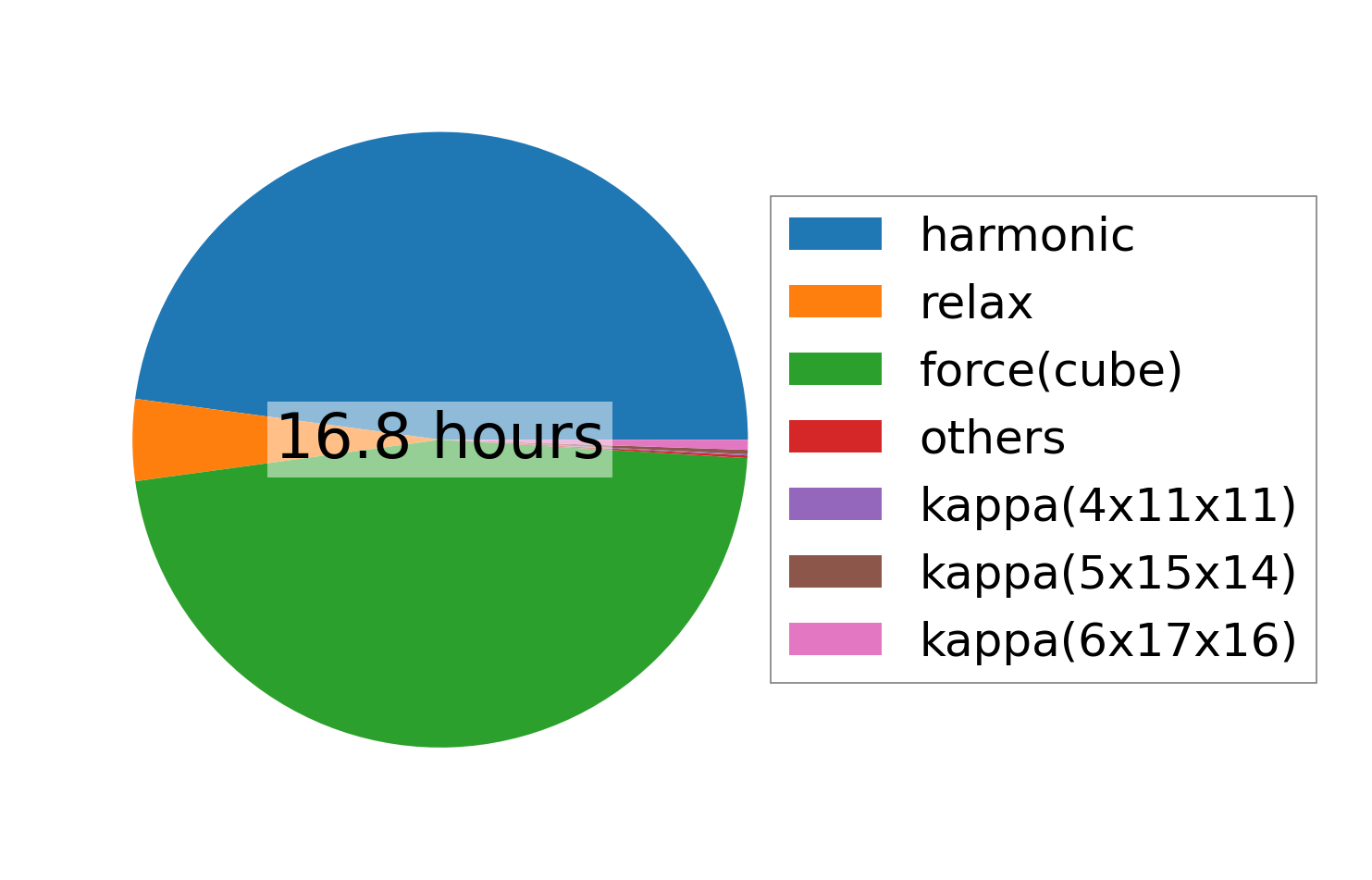

../../_images/fig_times671.png — (b) Computation time
