mp-438/Nd2S3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-438.tar.gz

Harmonic properties

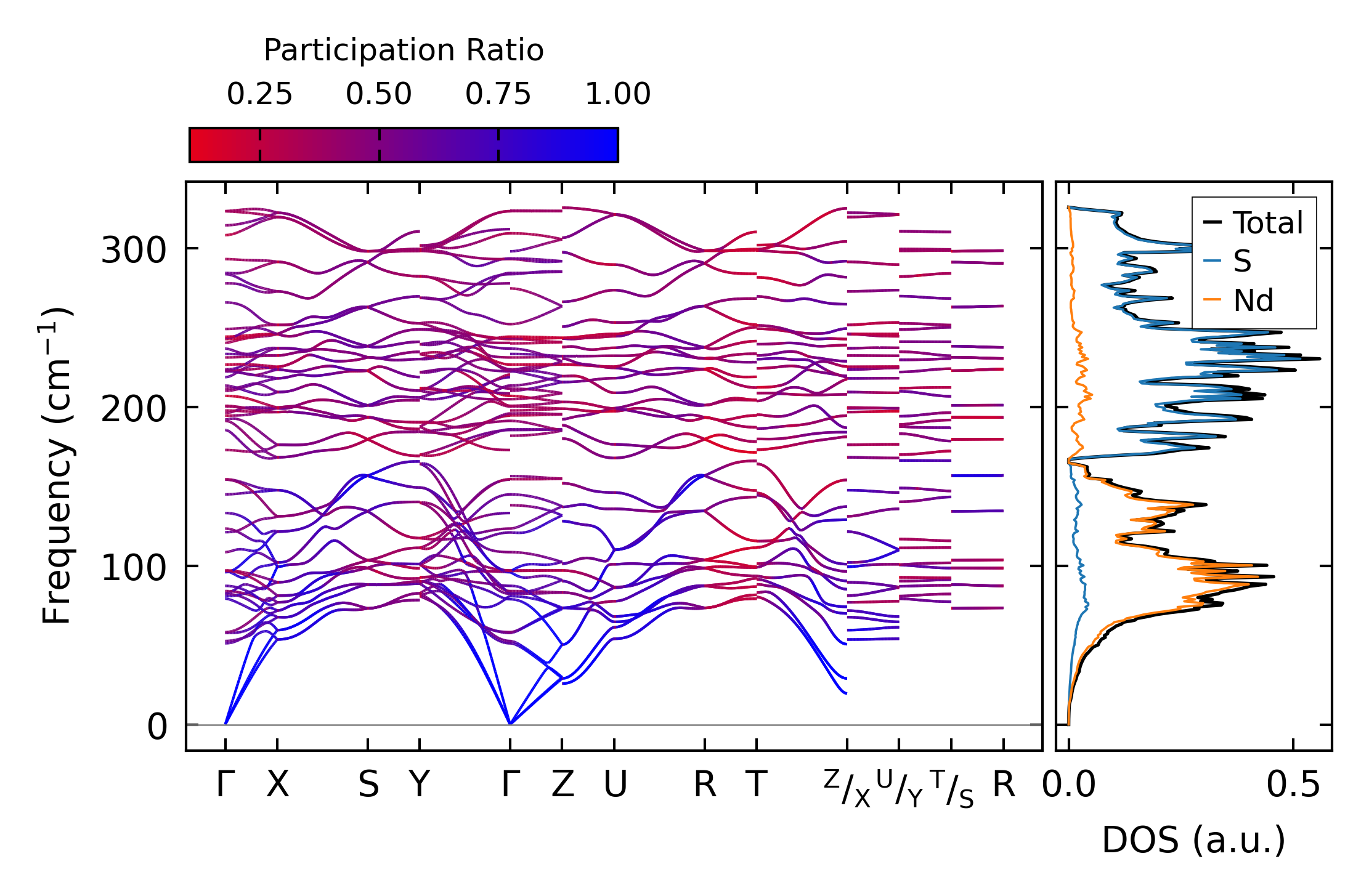

../../_images/fig_bandos_pr385.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo385.png — (b) Thermodynamic properties

Grüneisen parameters

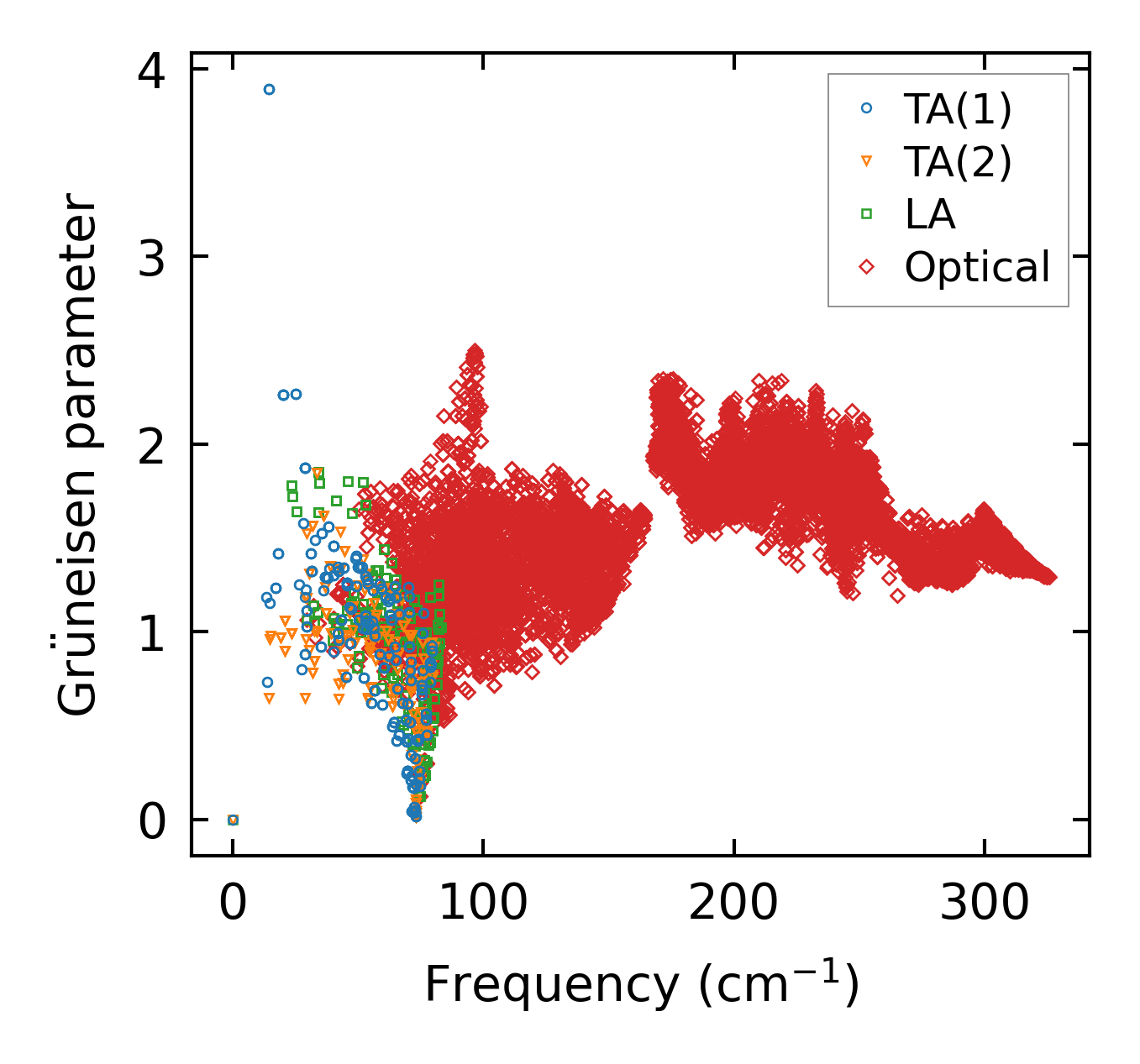

../../_images/fig_gru_all264.png — (a) Grüneisen parameters

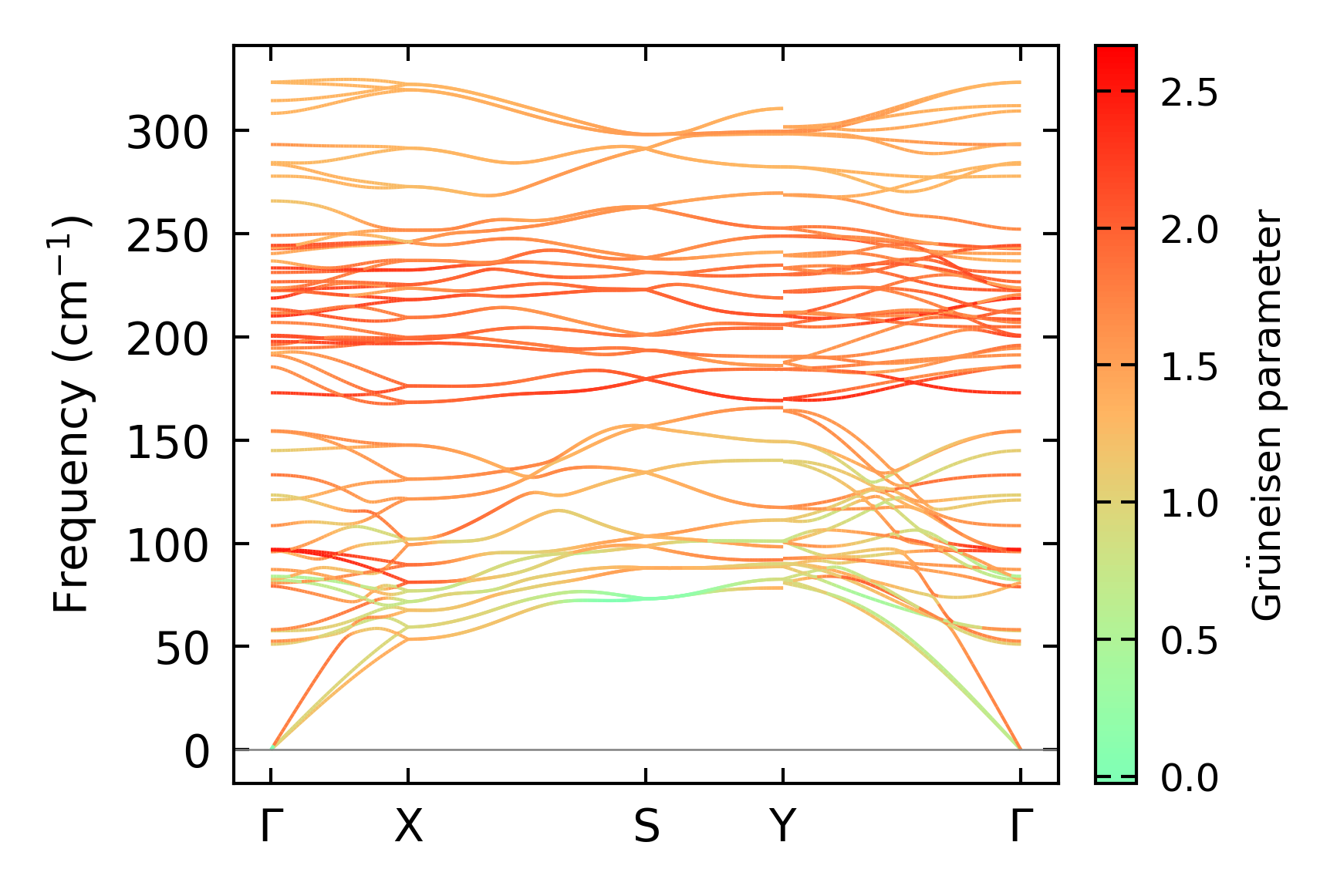

../../_images/fig_gruneisen264.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x17x4, supercell: 2x3x1

../../_images/fig_kappa519.png — (a) Temperature-dependent lattice thermal conductivity

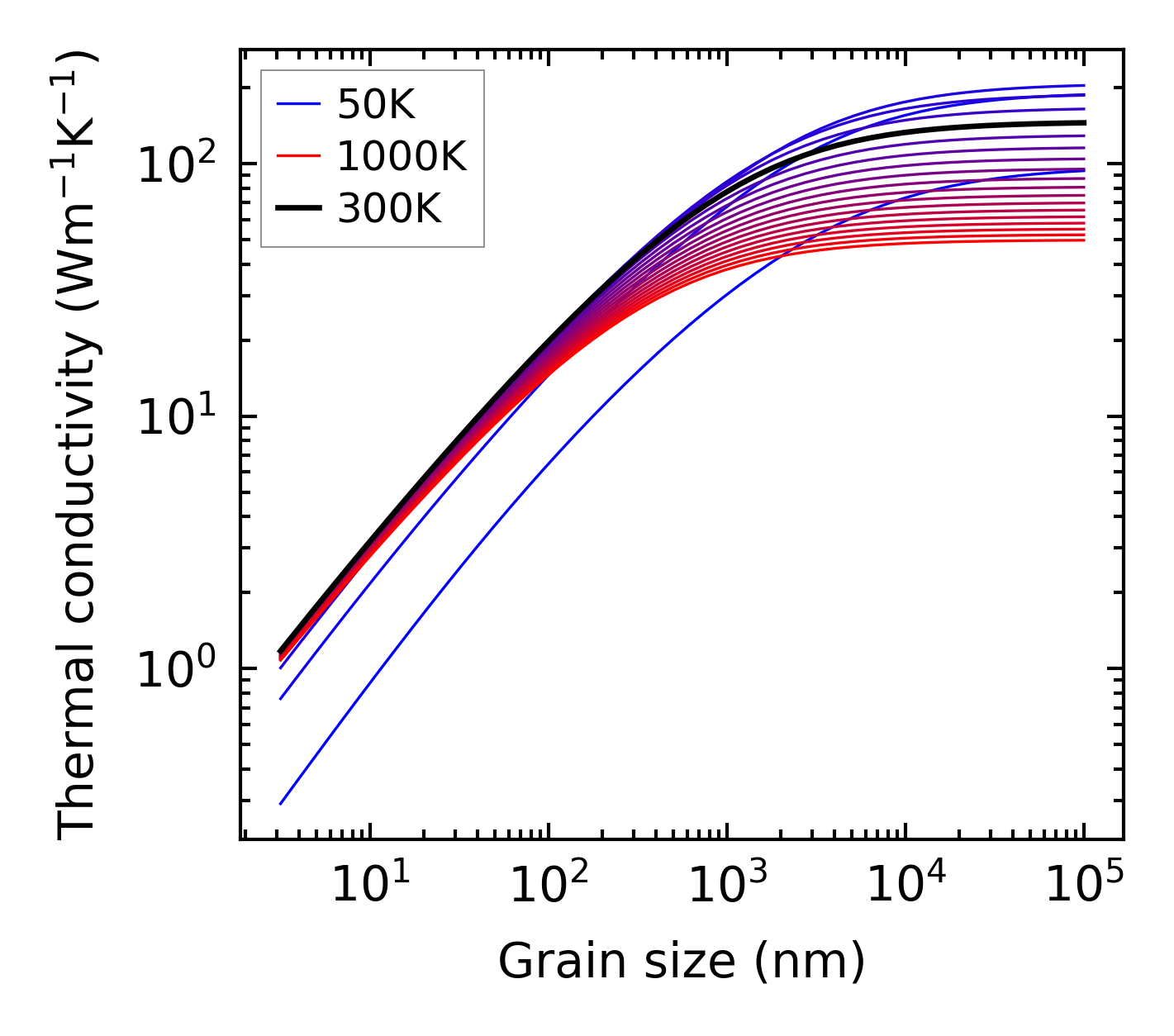

../../_images/fig_kappa_vs_grain_size267.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

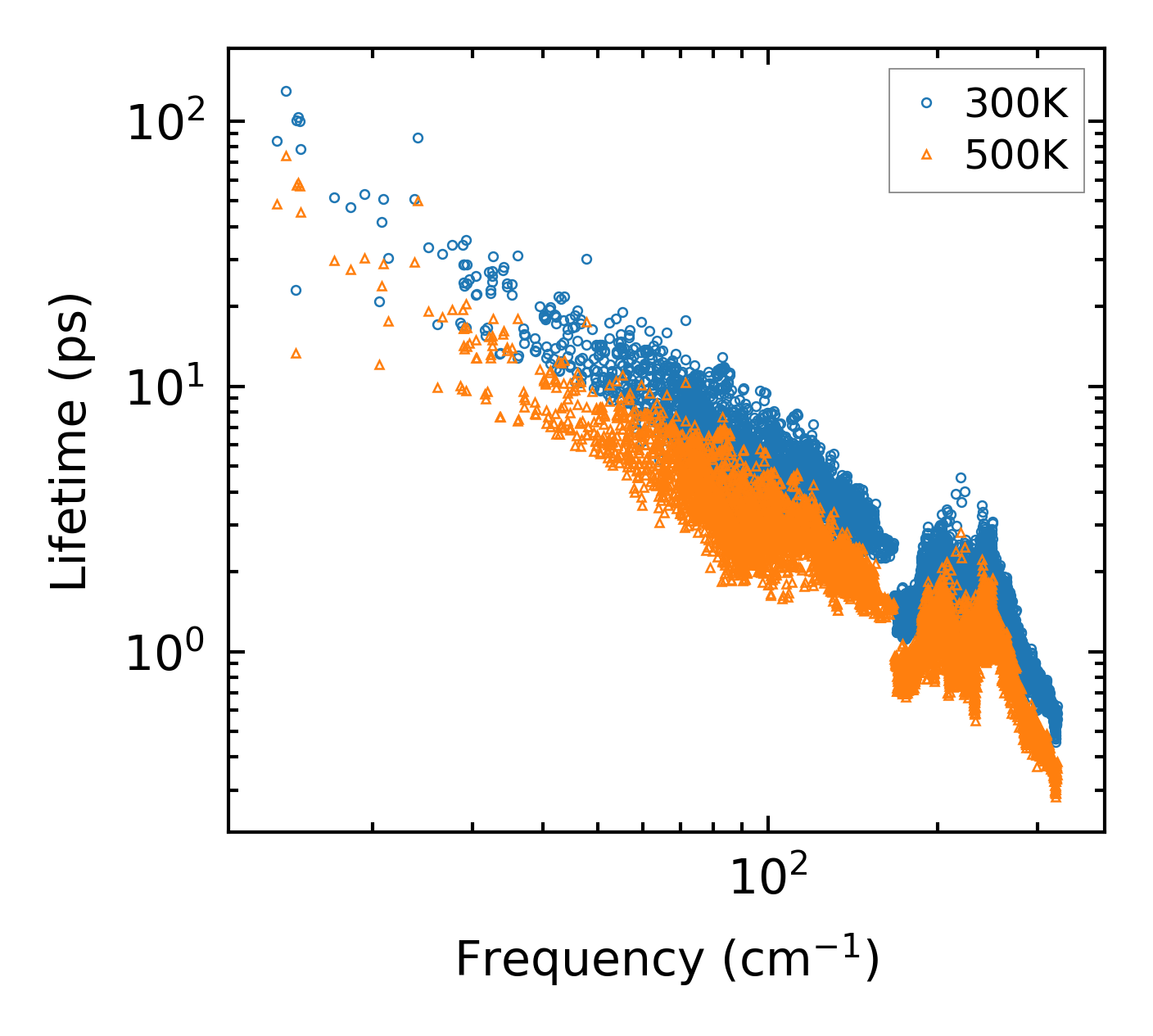

../../_images/fig_lifetime263.png — (a) Phonon lifetime due to phonon-phonon scattering

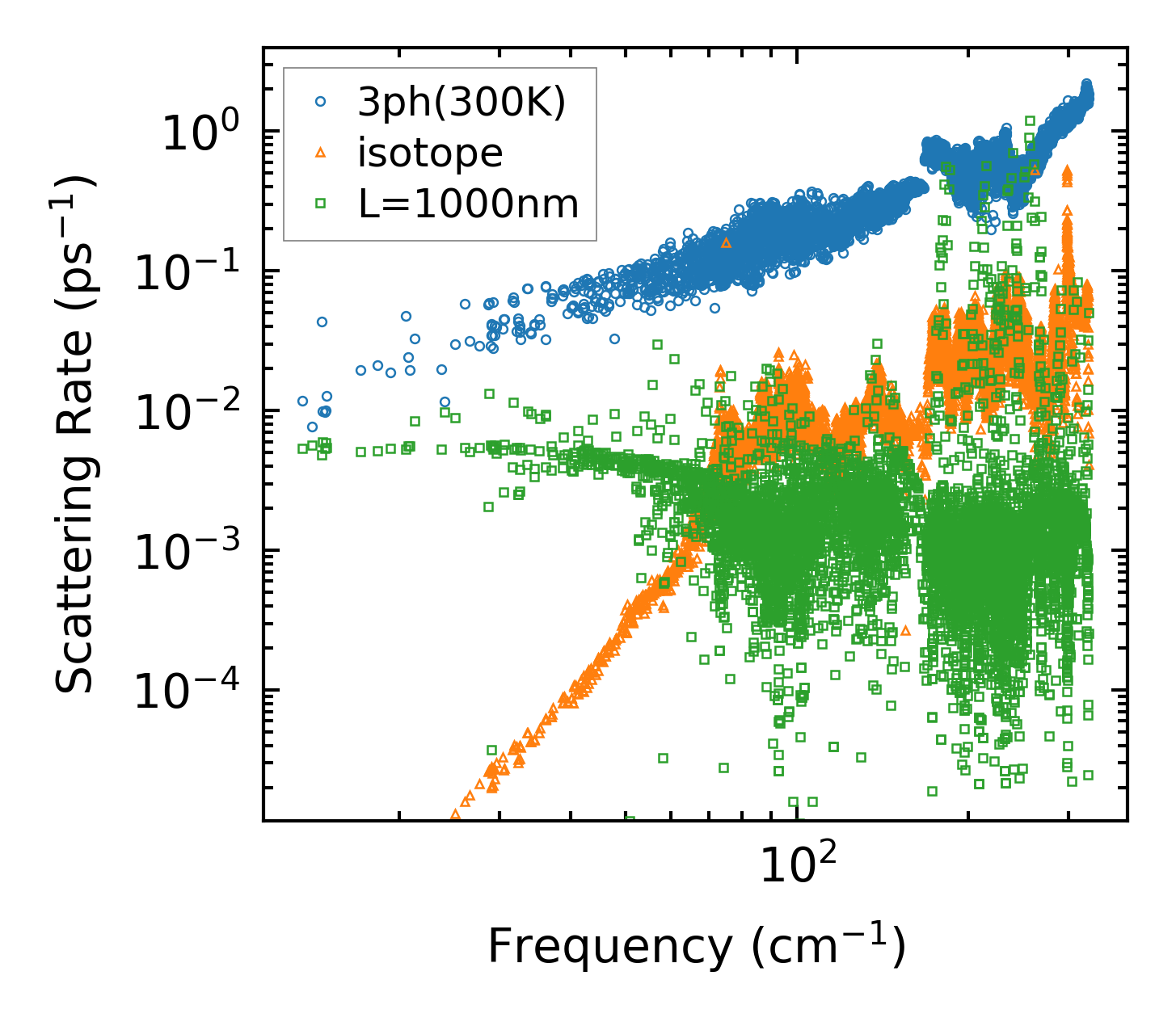

../../_images/fig_scat_rates262.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency263.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

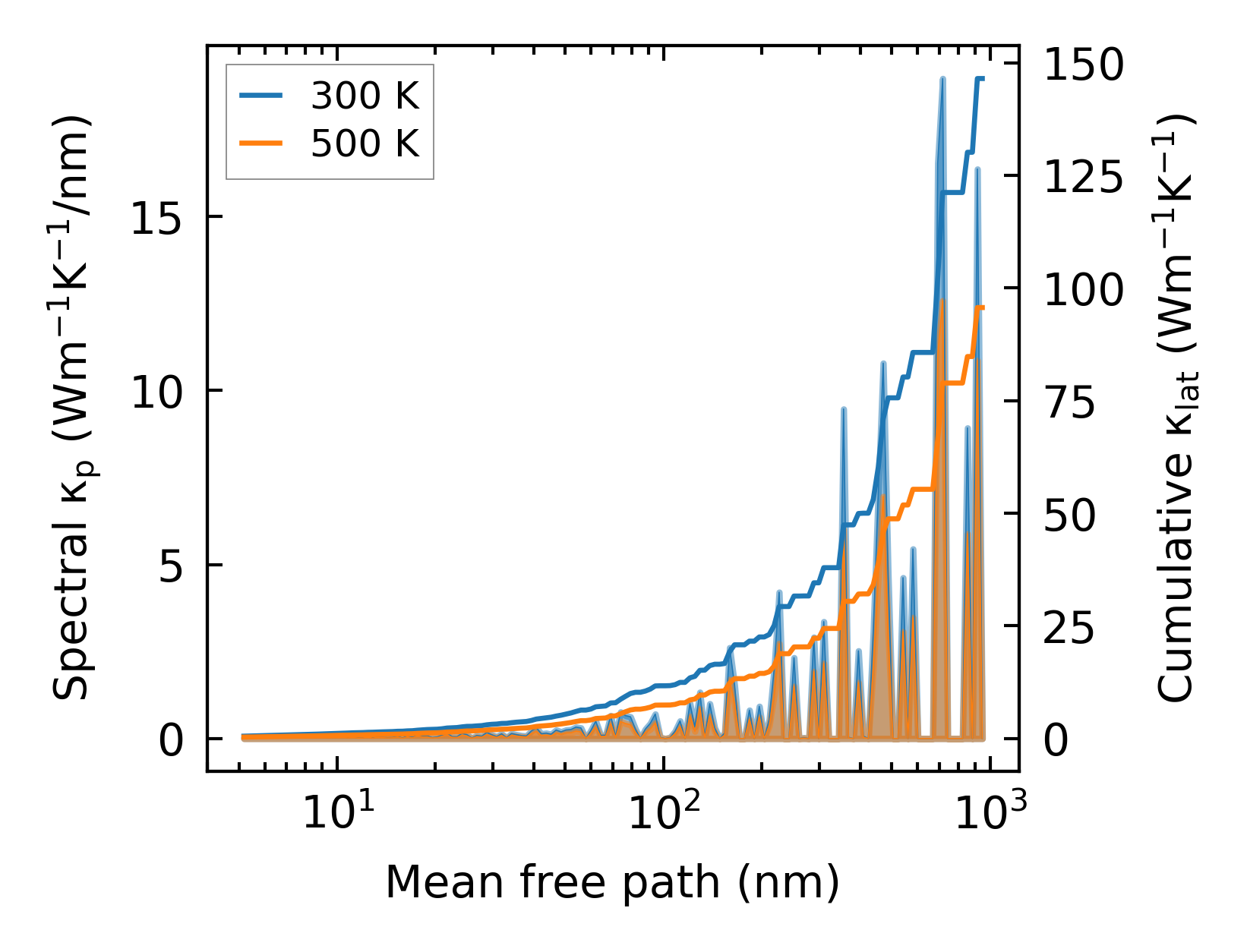

../../_images/fig_cumu_mfp263.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2318.png — (a) Force constants w.r.t atomic distance

Summary

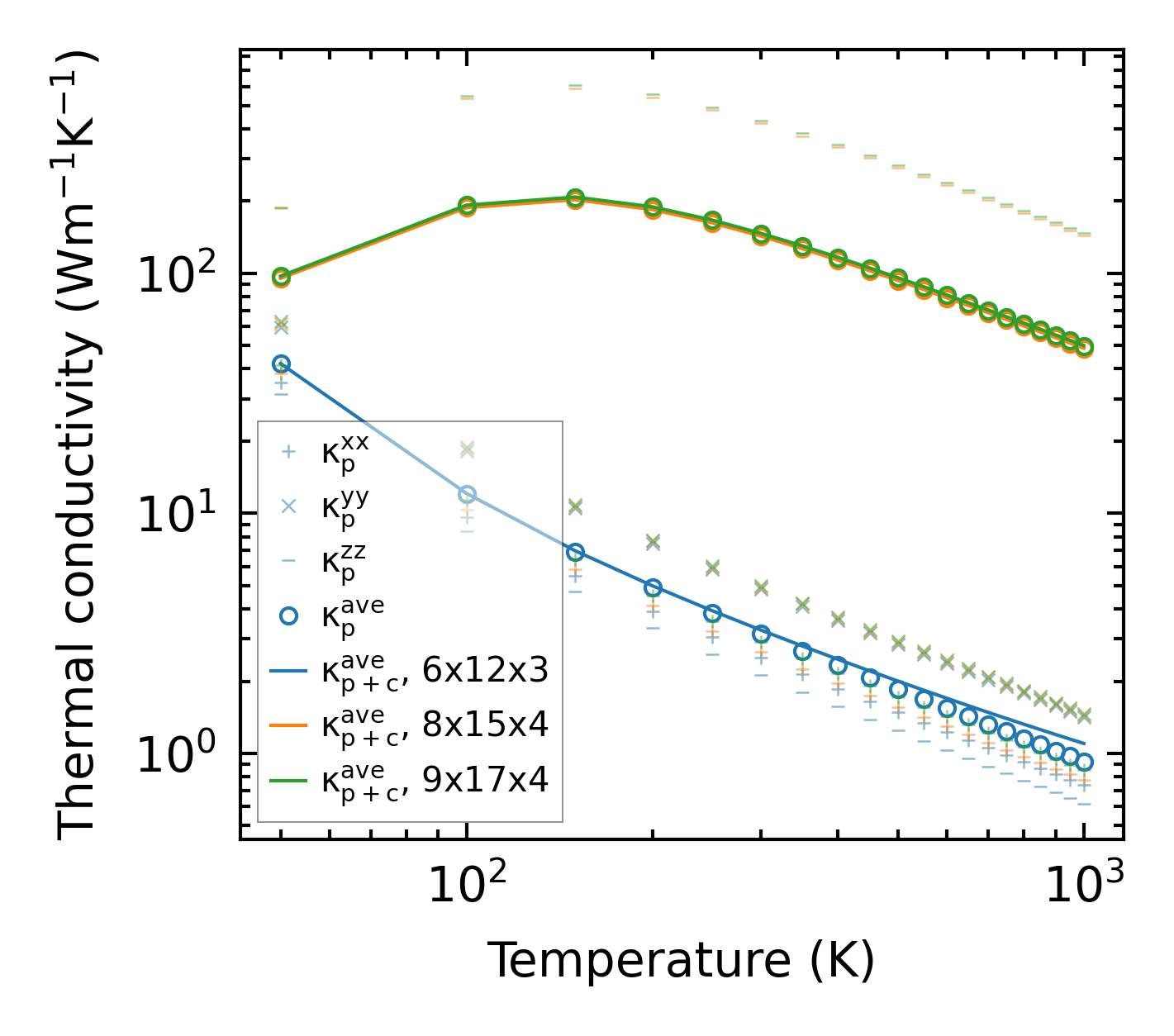

../../_images/fig_kappa520.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times610.png — (b) Computation time
