mp-463/KF/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-463.tar.gz

Harmonic properties

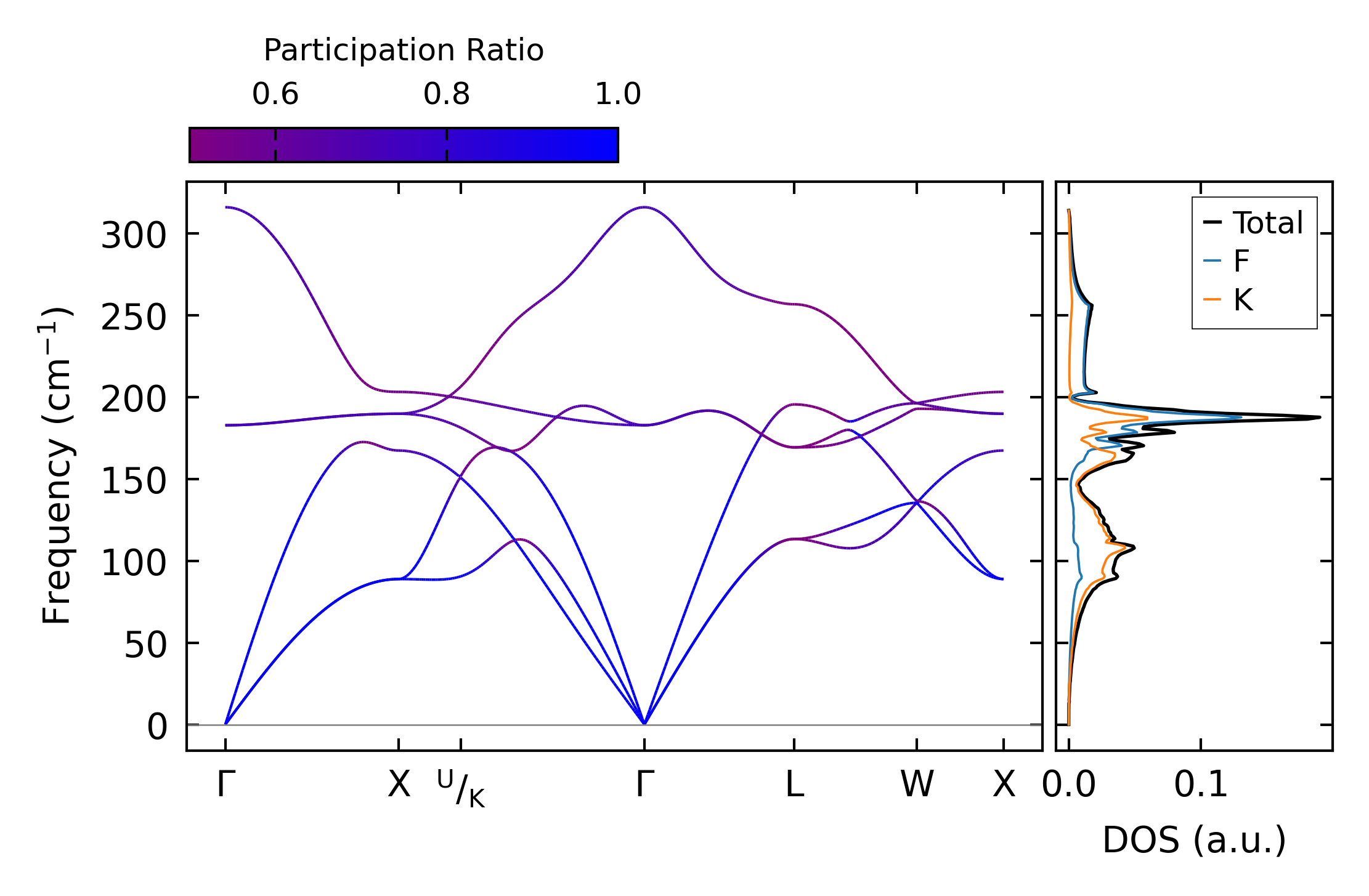

../../_images/fig_bandos_pr388.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo388.png — (b) Thermodynamic properties

Grüneisen parameters

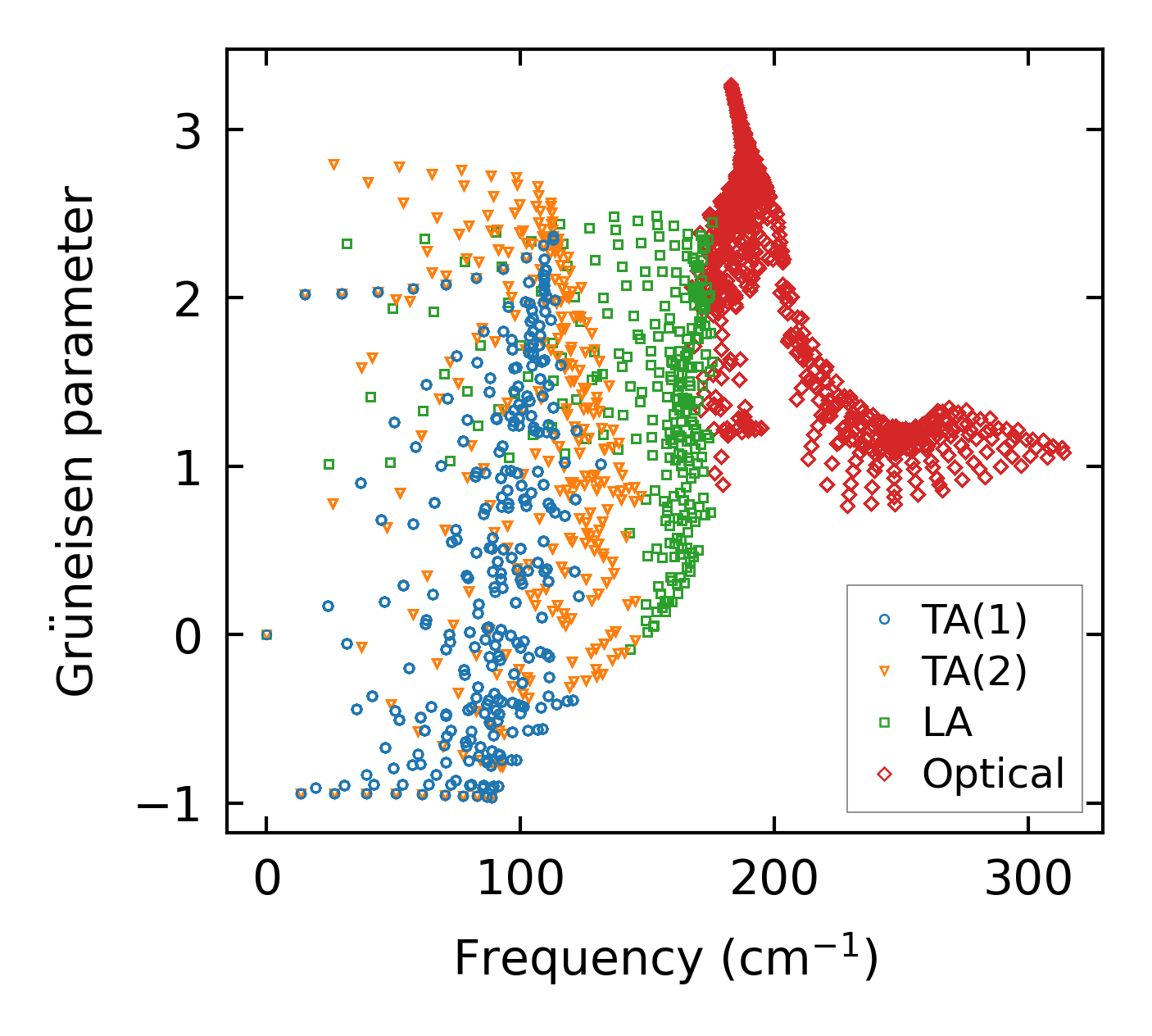

../../_images/fig_gru_all267.png — (a) Grüneisen parameters

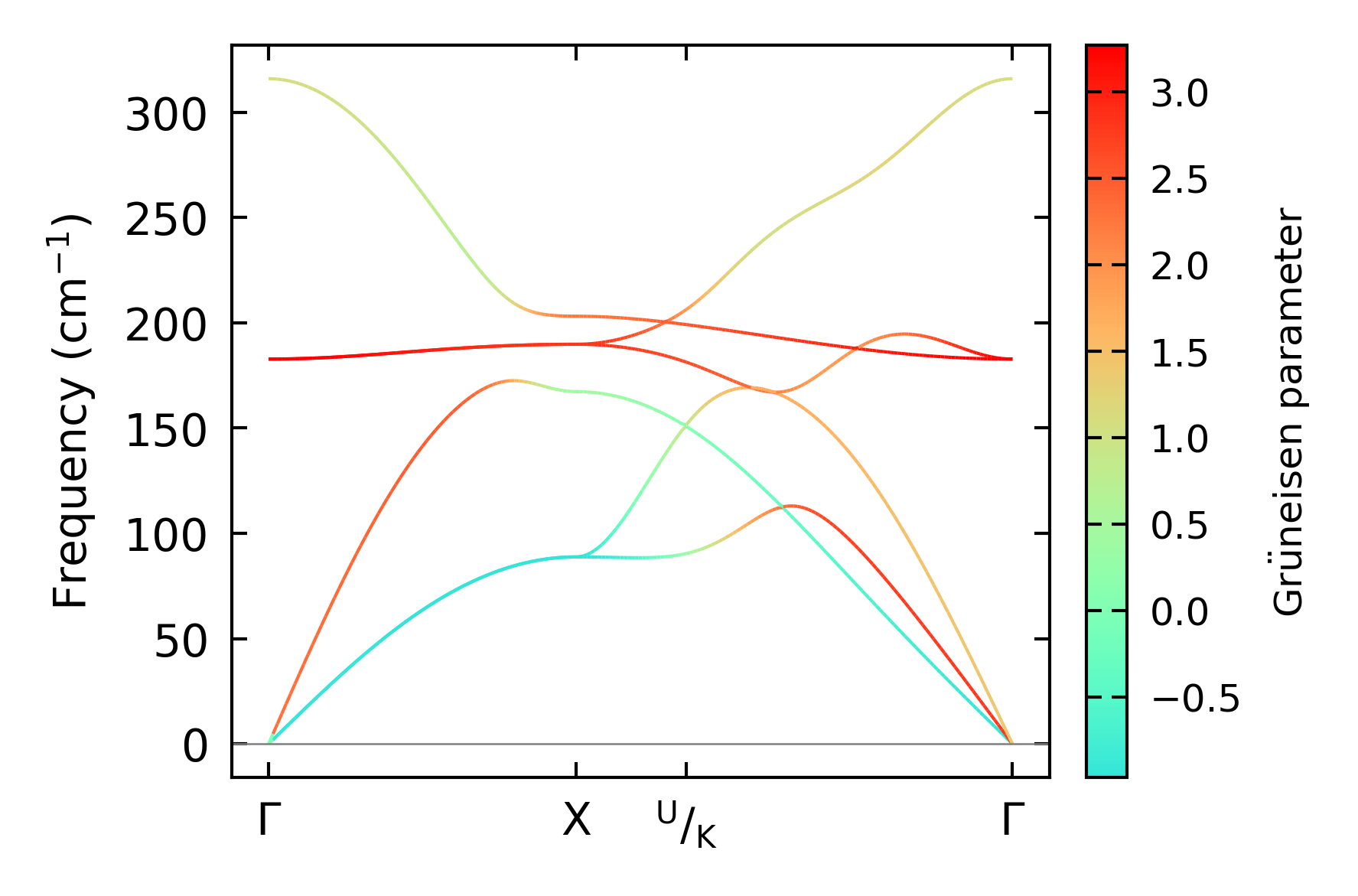

../../_images/fig_gruneisen267.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 21x21x21, supercell: 2x2x2

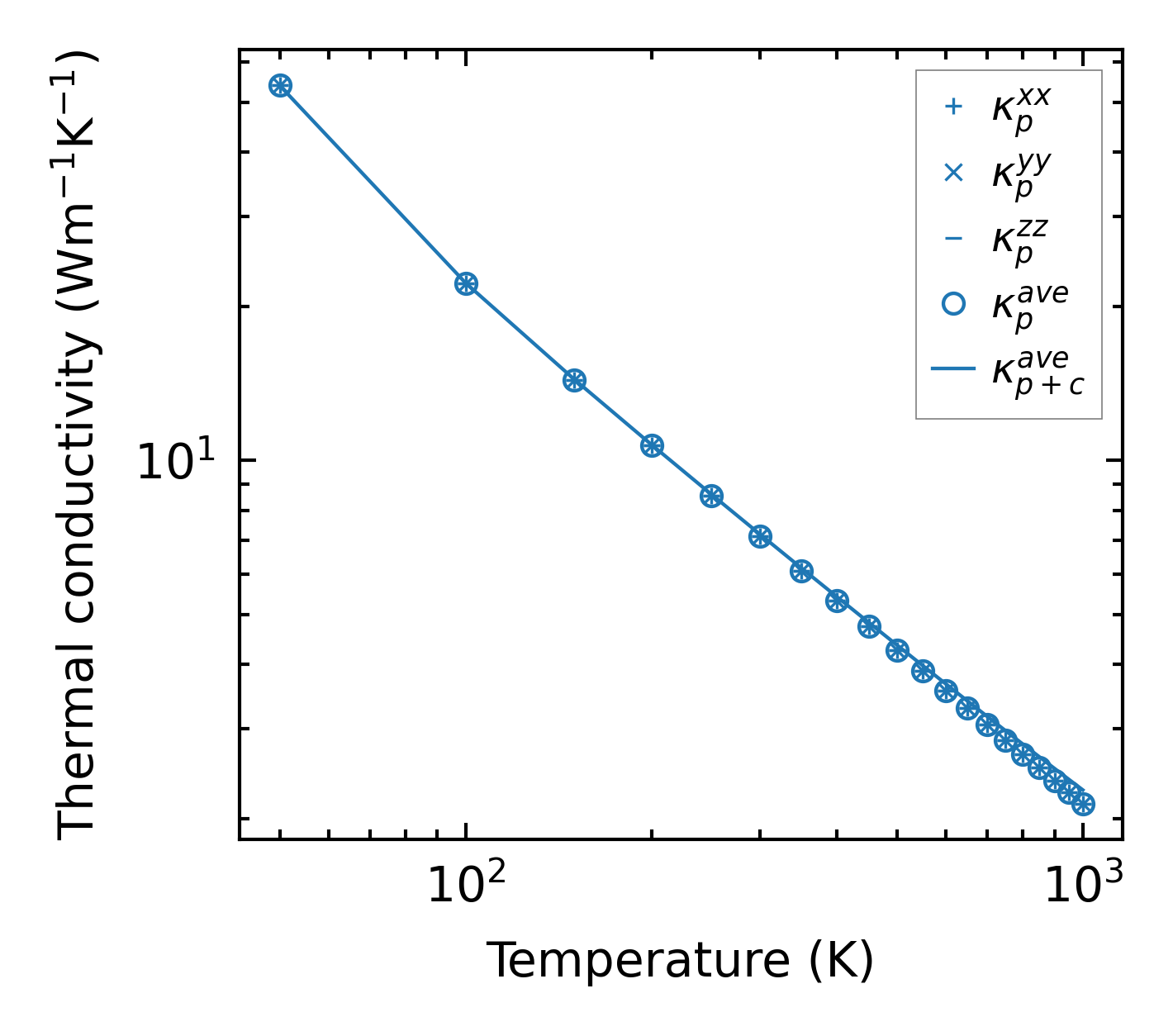

../../_images/fig_kappa525.png — (a) Temperature-dependent lattice thermal conductivity

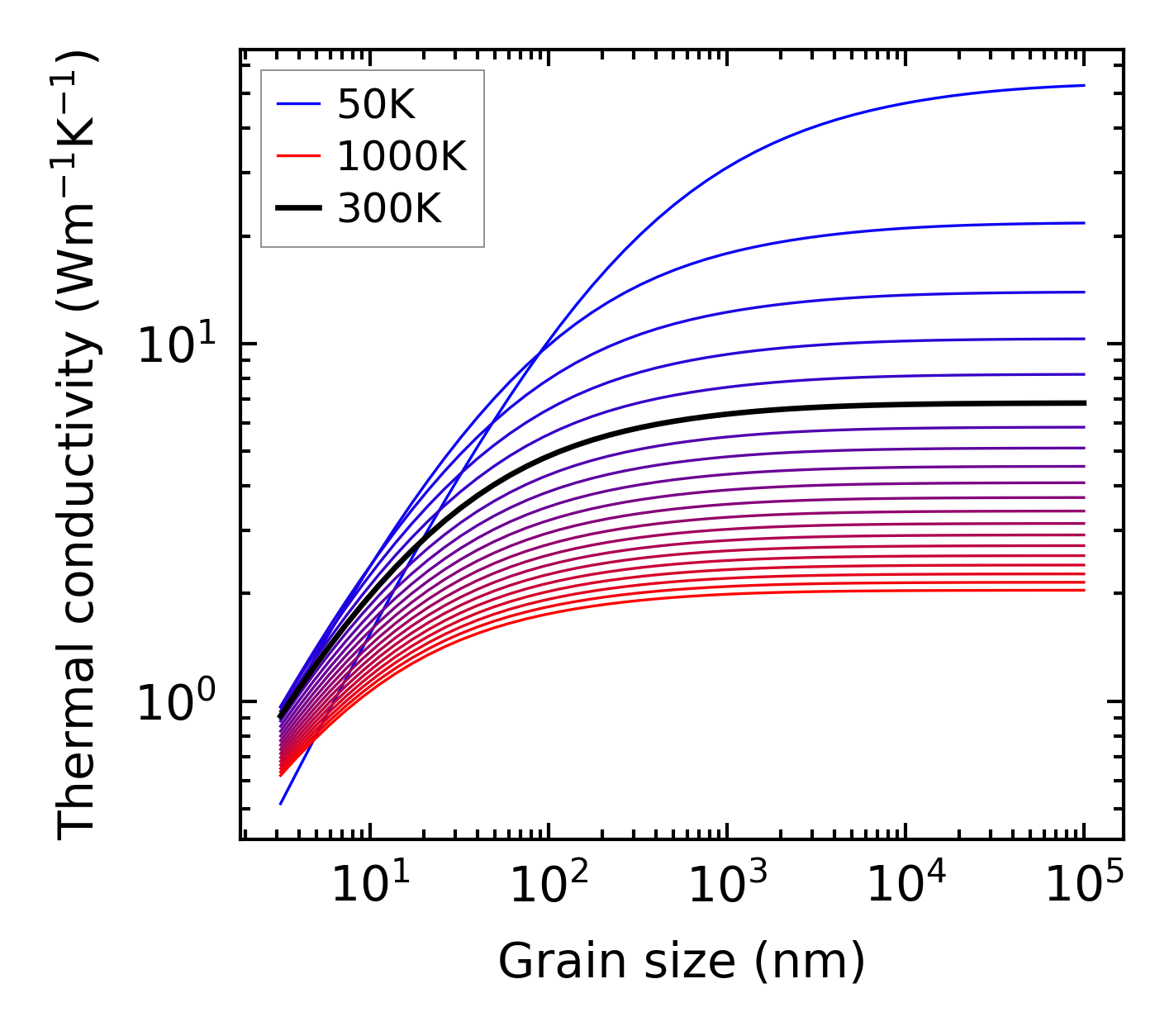

../../_images/fig_kappa_vs_grain_size270.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime266.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates265.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

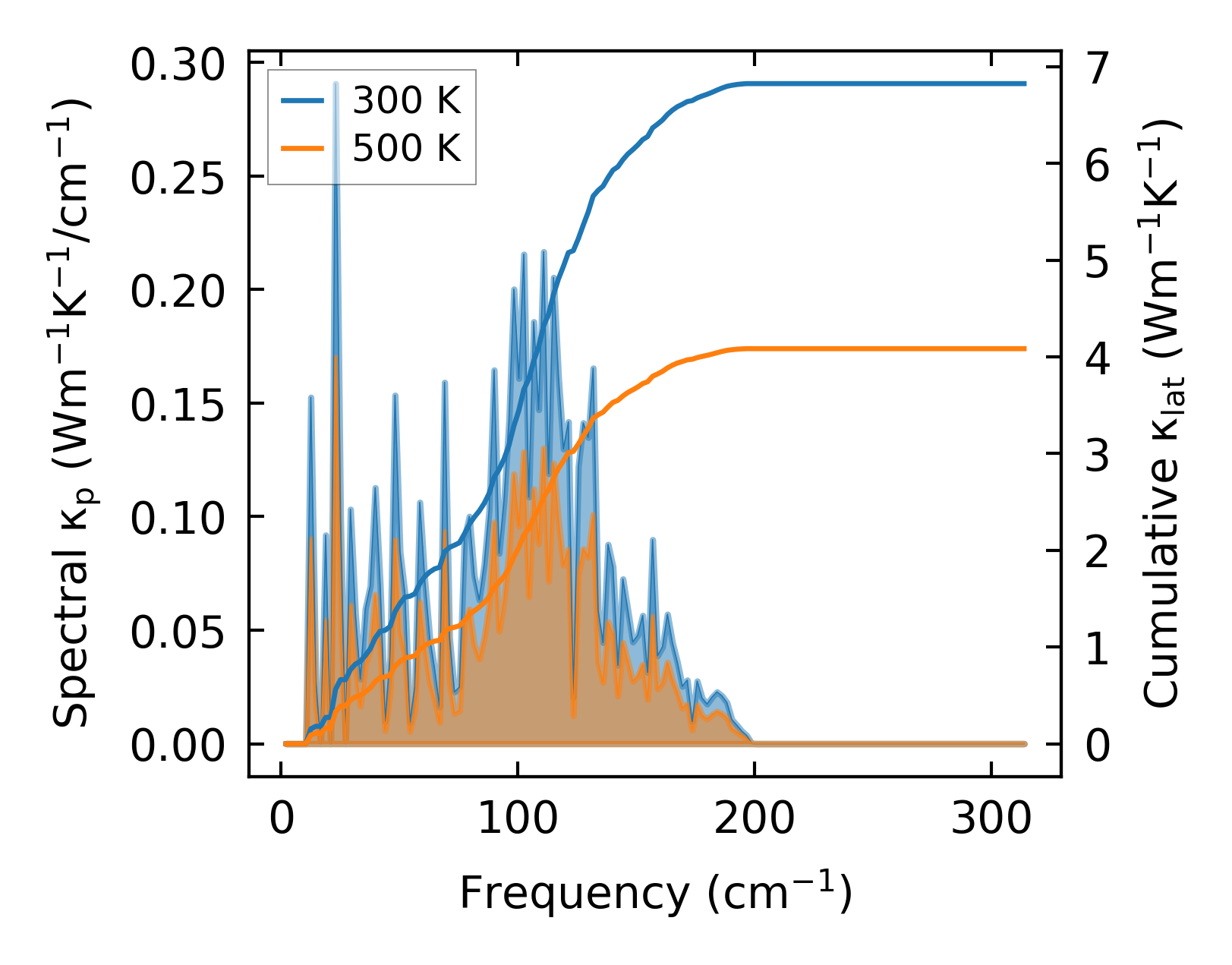

../../_images/fig_cumu_frequency266.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp266.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc368.png — (a) Force constants w.r.t atomic distance

Summary

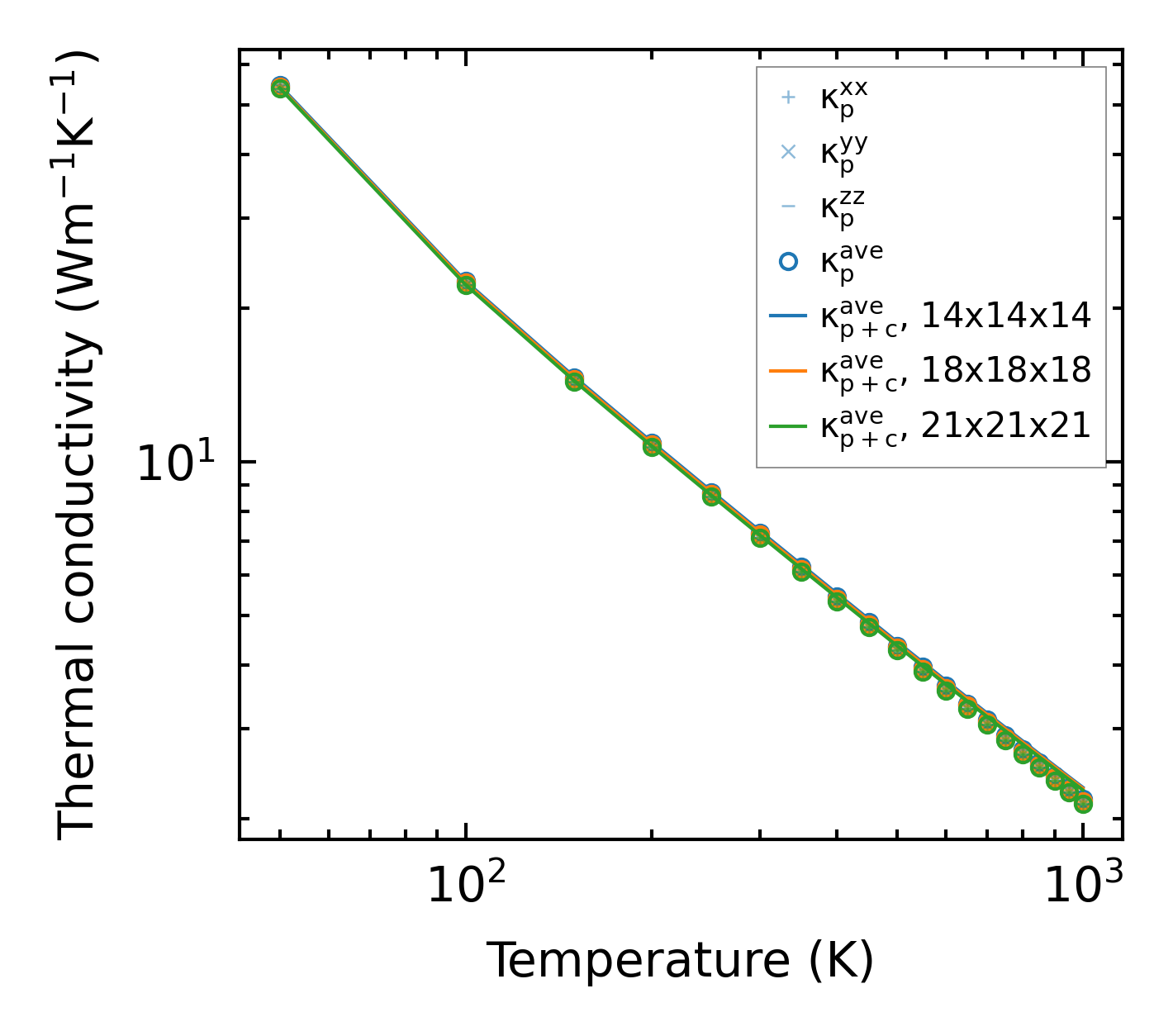

../../_images/fig_kappa526.png — (a) Temperature-dependent lattice thermal conductivity

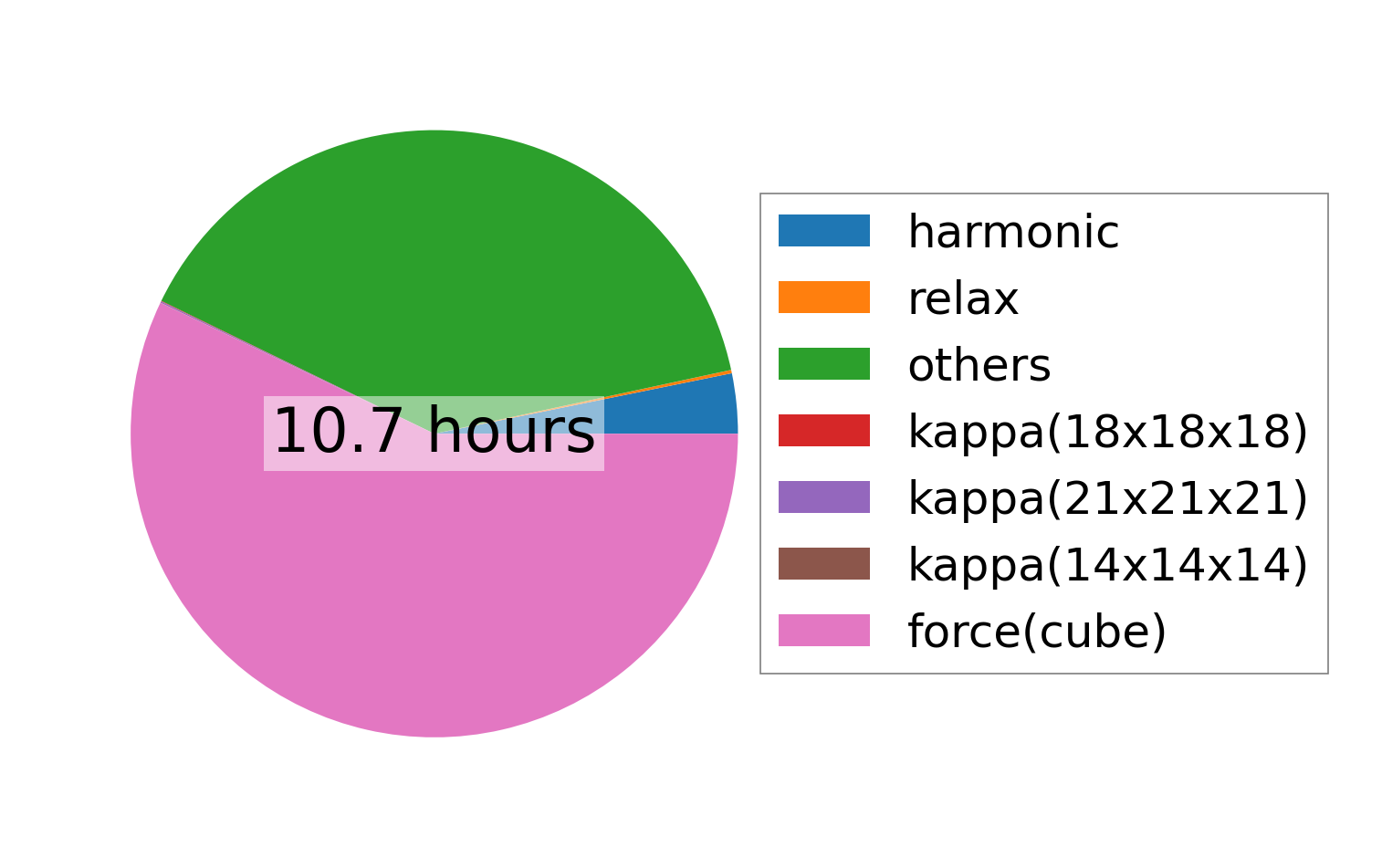

../../_images/fig_times613.png — (b) Computation time
