mp-557844/KMg4P3O12/anharm

Space group: Pnnm (58)
Link: Materials Project
Download: mp-557844.tar.gz

Harmonic properties

../../_images/fig_bandos_pr8201.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8201.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3362.png — (a) Grüneisen parameters

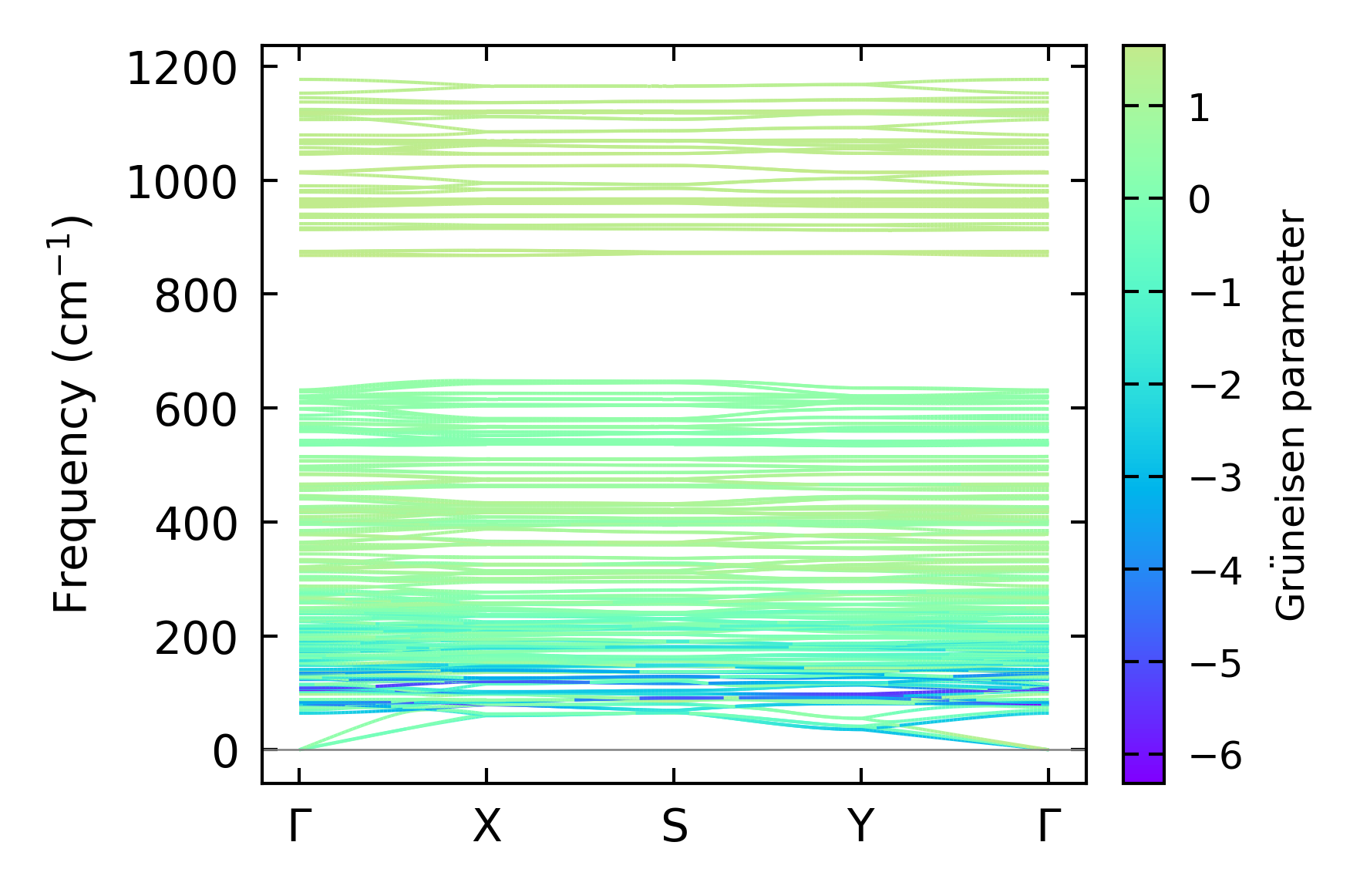

../../_images/fig_gruneisen3362.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x4x11, supercell: 1x1x1

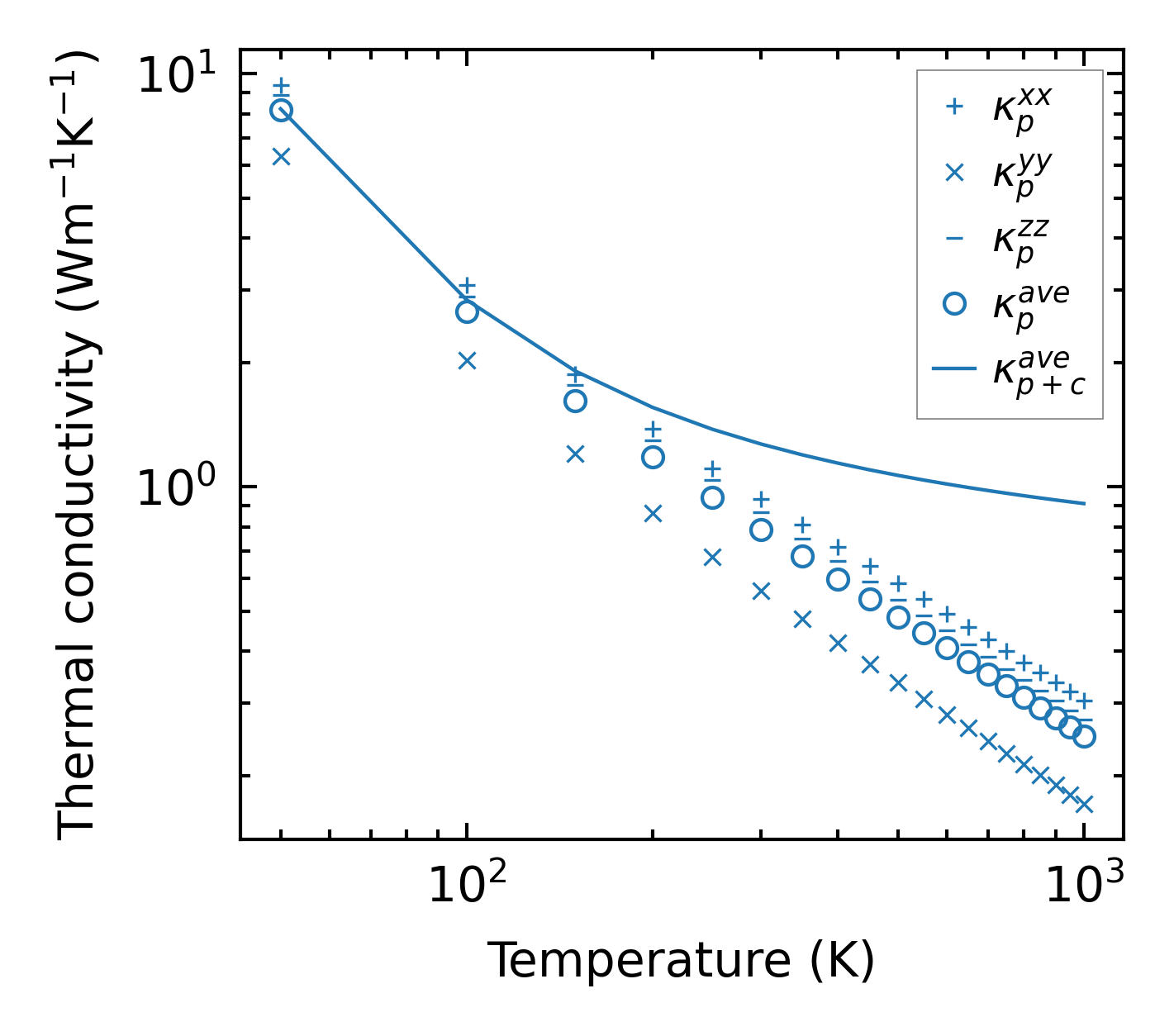

../../_images/fig_kappa6364.png — (a) Temperature-dependent lattice thermal conductivity

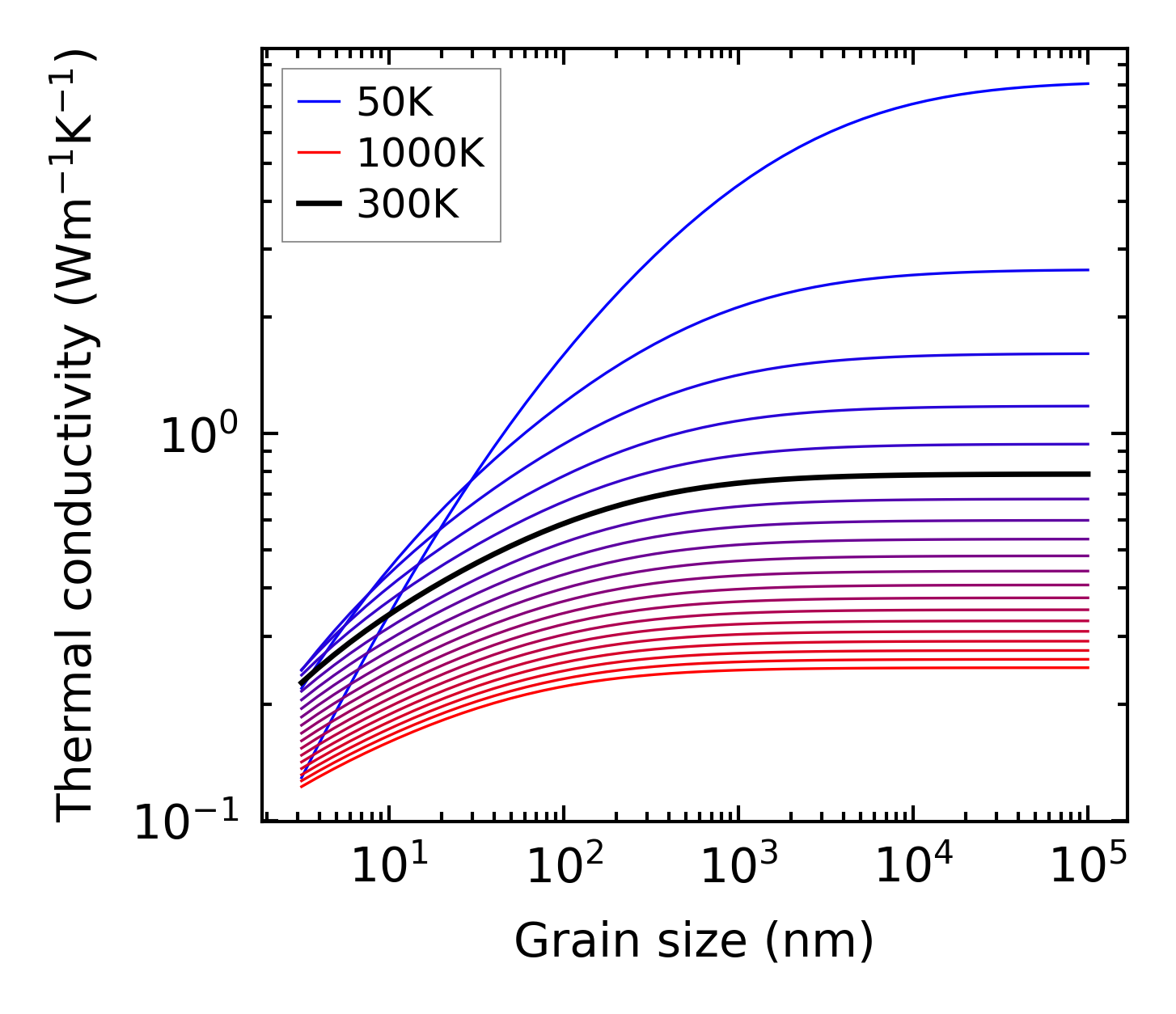

../../_images/fig_kappa_vs_grain_size3406.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

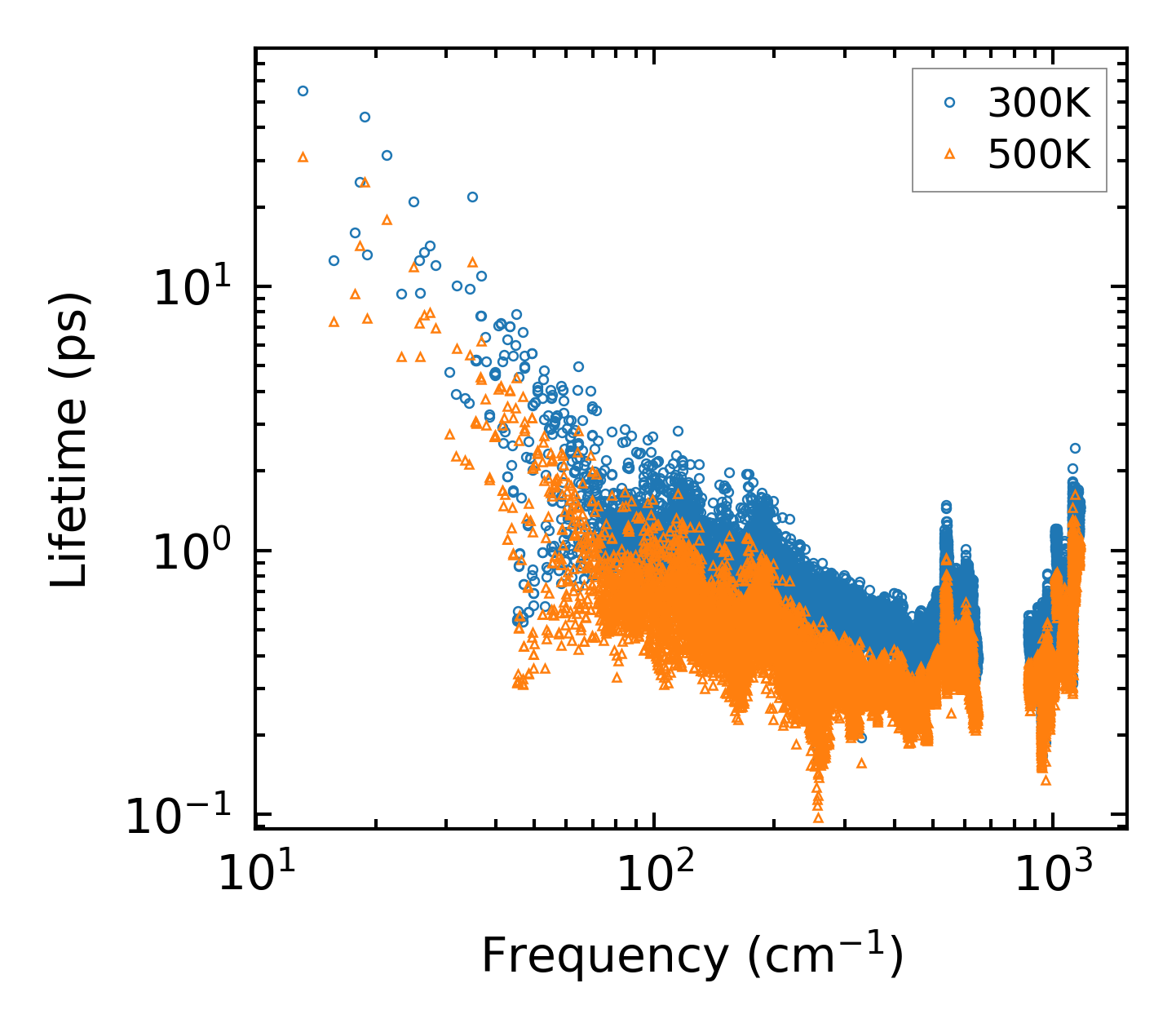

../../_images/fig_lifetime3332.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3331.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

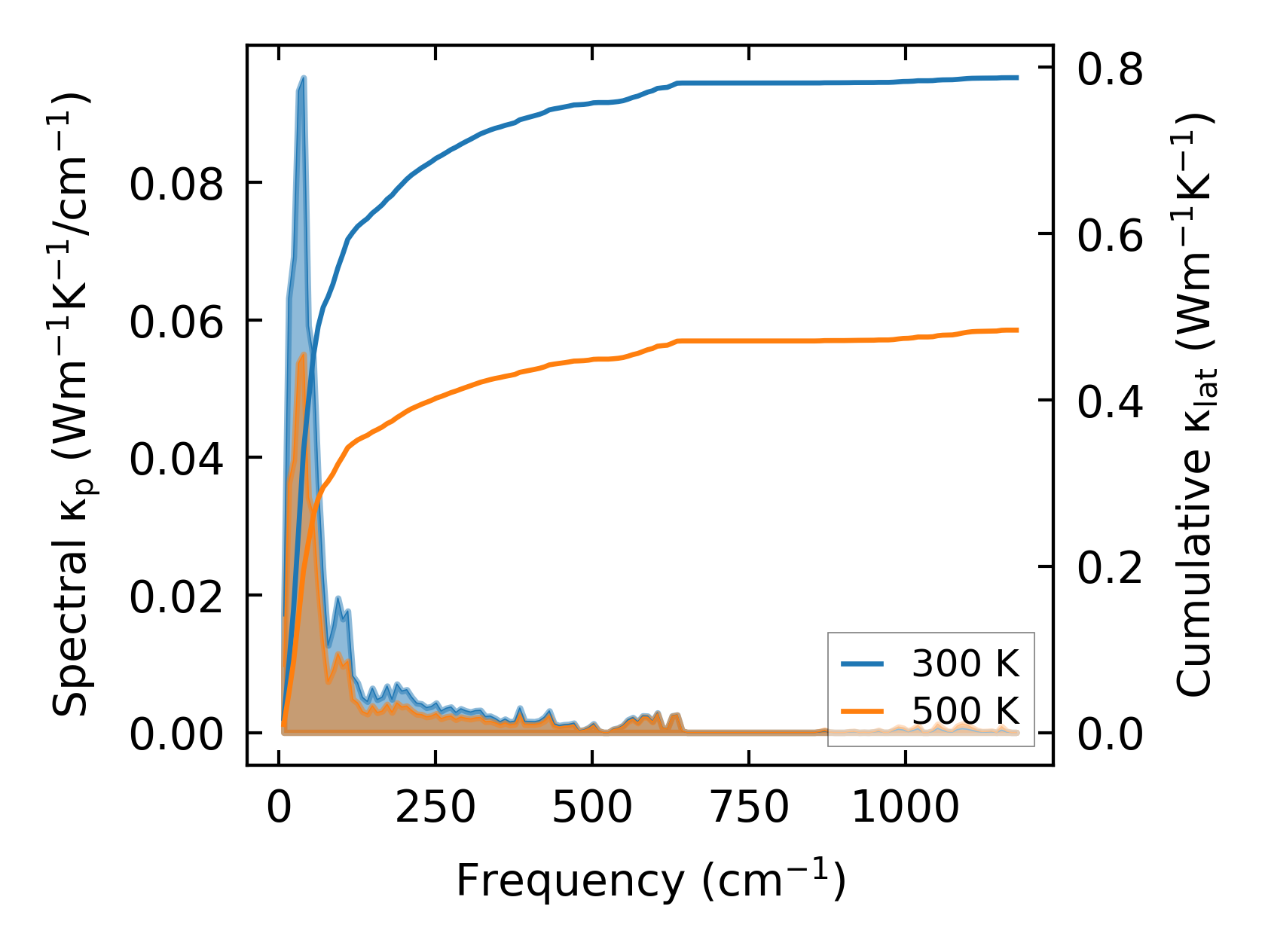

../../_images/fig_cumu_frequency3332.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

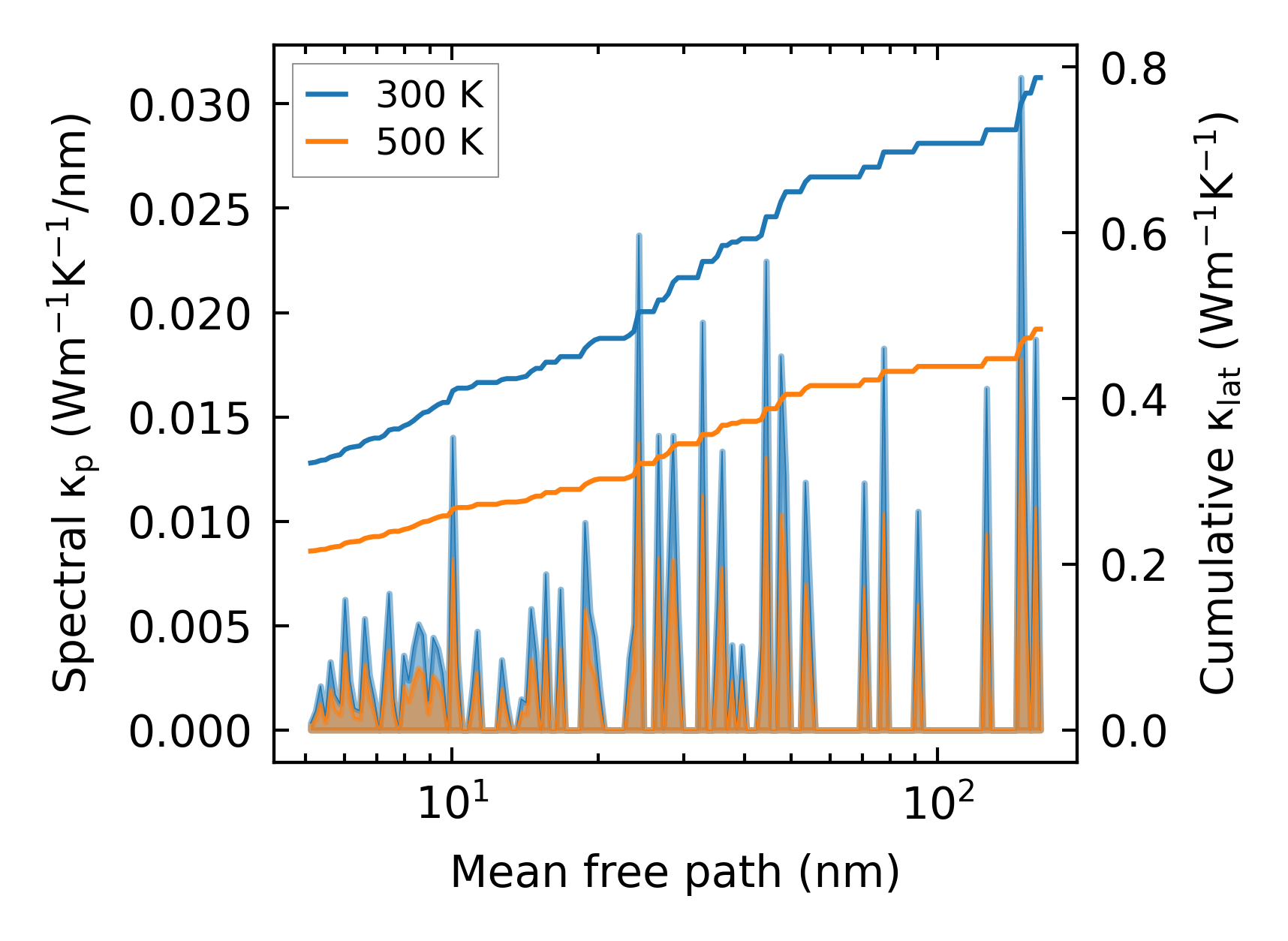

../../_images/fig_cumu_mfp3331.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27963.png — (a) Force constants w.r.t atomic distance

Summary

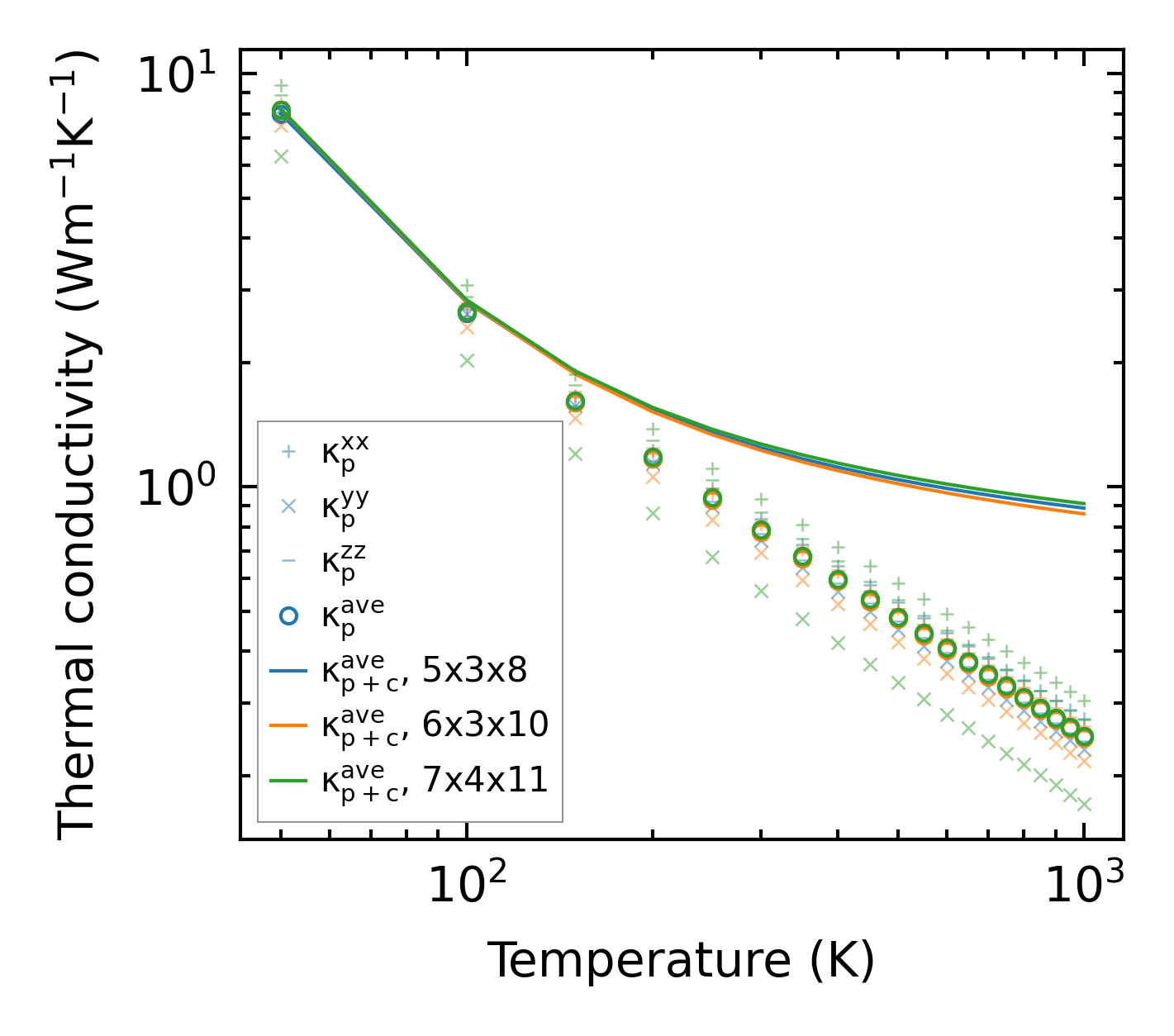

../../_images/fig_kappa6365.png — (a) Temperature-dependent lattice thermal conductivity

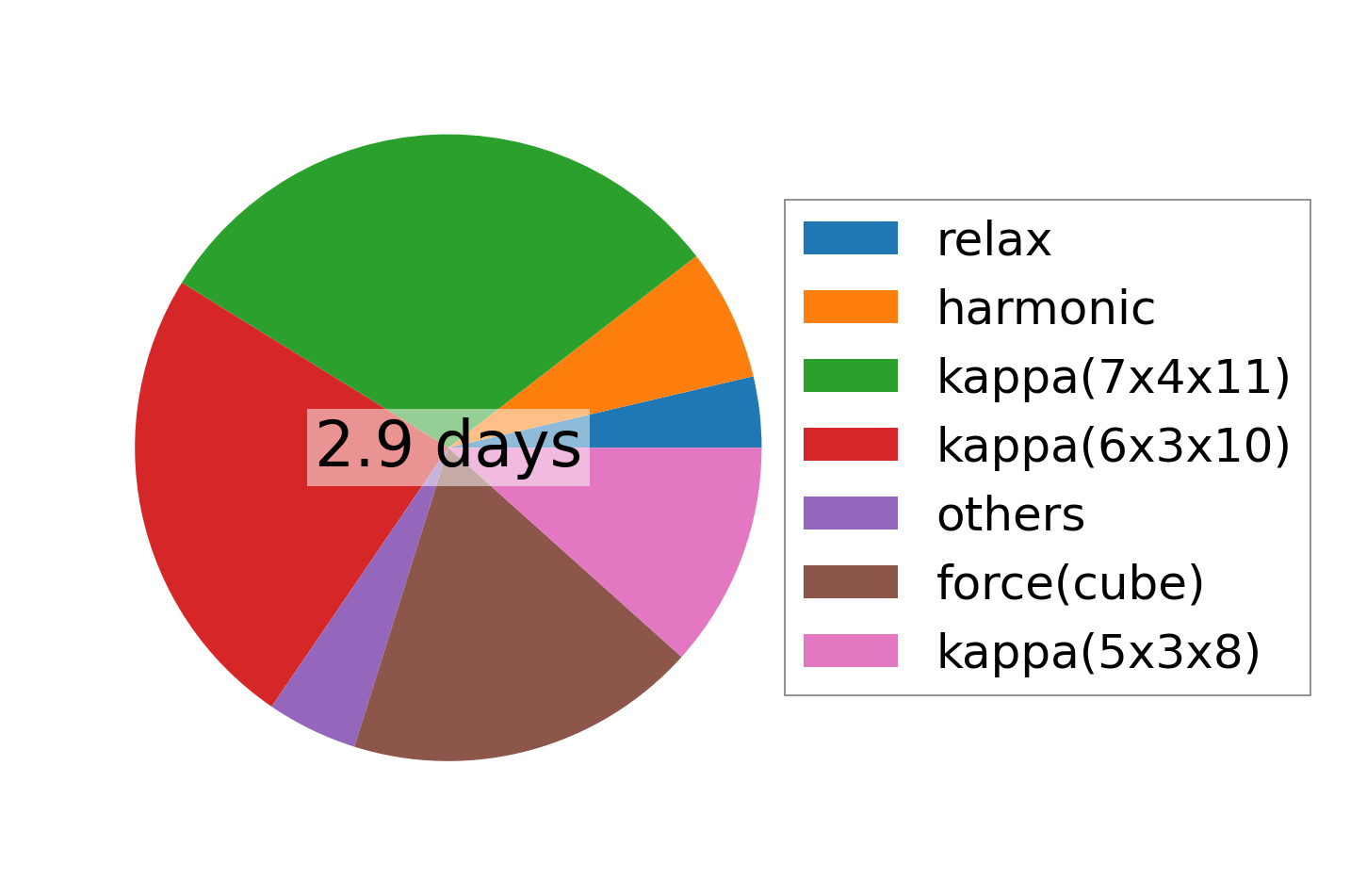

../../_images/fig_times14433.png — (b) Computation time
