mp-557183-2/KNaZnO2/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-557183-2.tar.gz

Equation of state

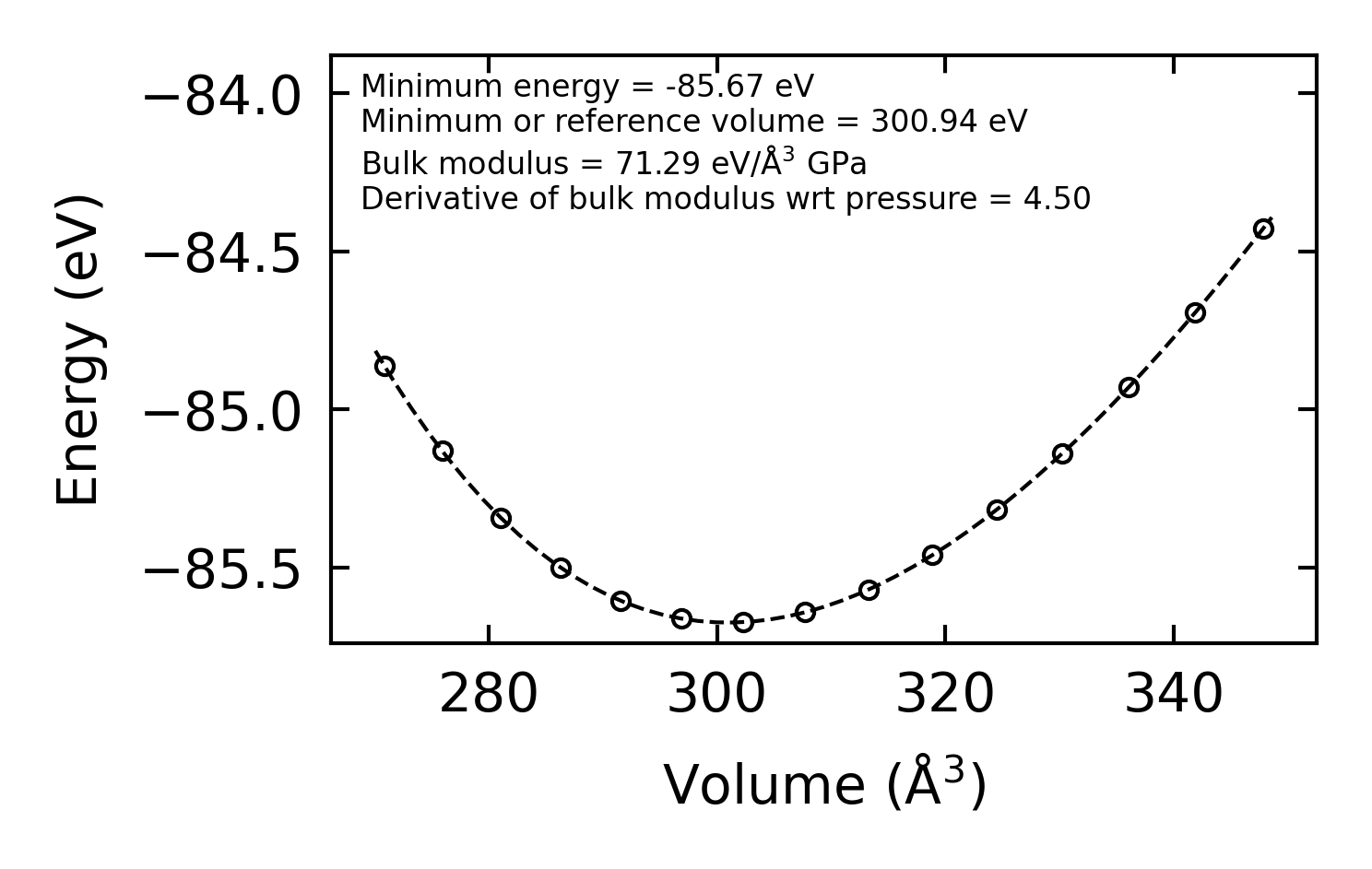

../../_images/fig_bm4264.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr8387.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos11787.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo8387.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3419.png — (a) Grüneisen parameters

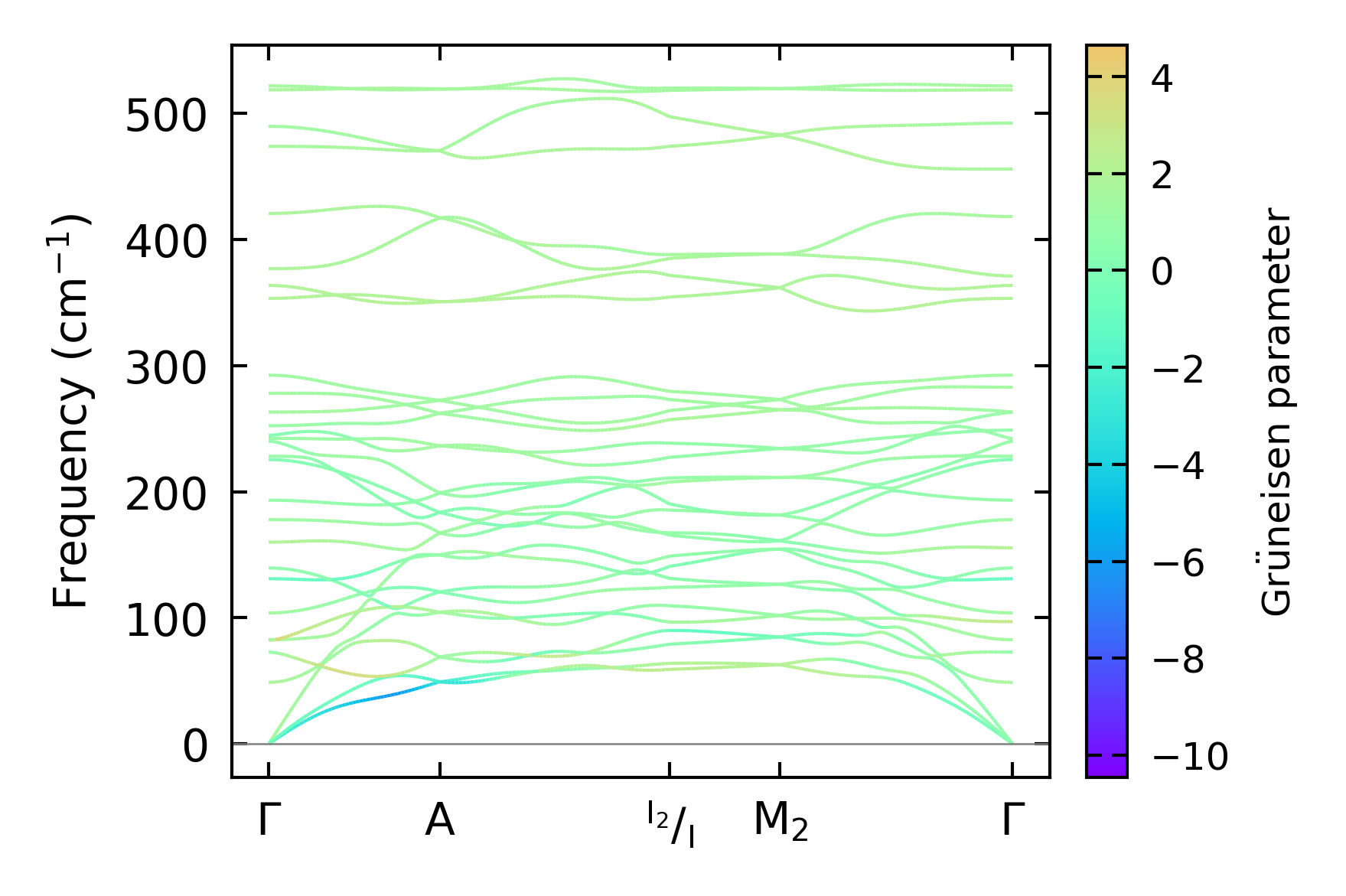

../../_images/fig_gruneisen3419.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x14, supercell: 2x1x2

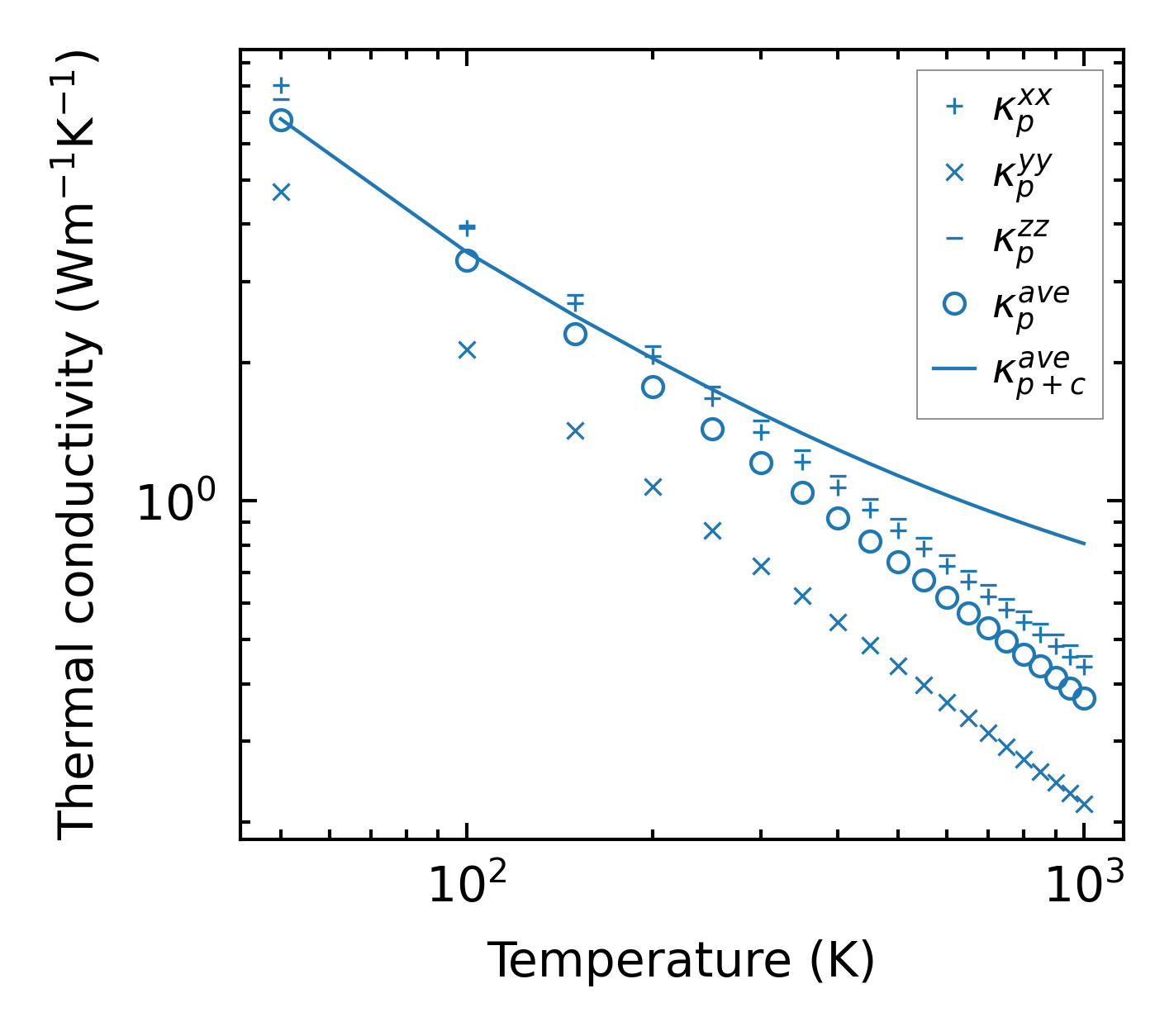

../../_images/fig_kappa6466.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3462.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

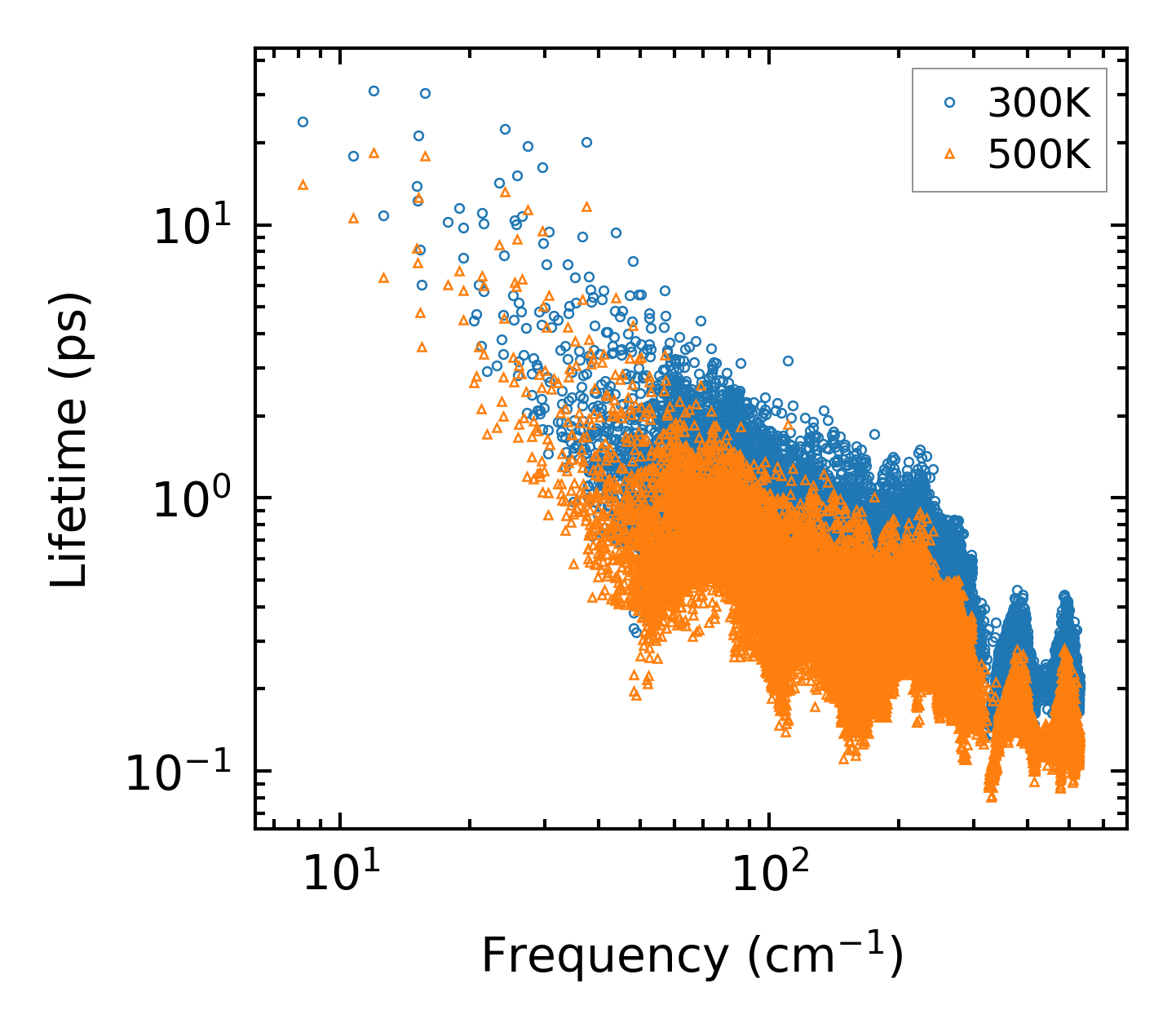

../../_images/fig_lifetime3387.png — (a) Phonon lifetime due to phonon-phonon scattering

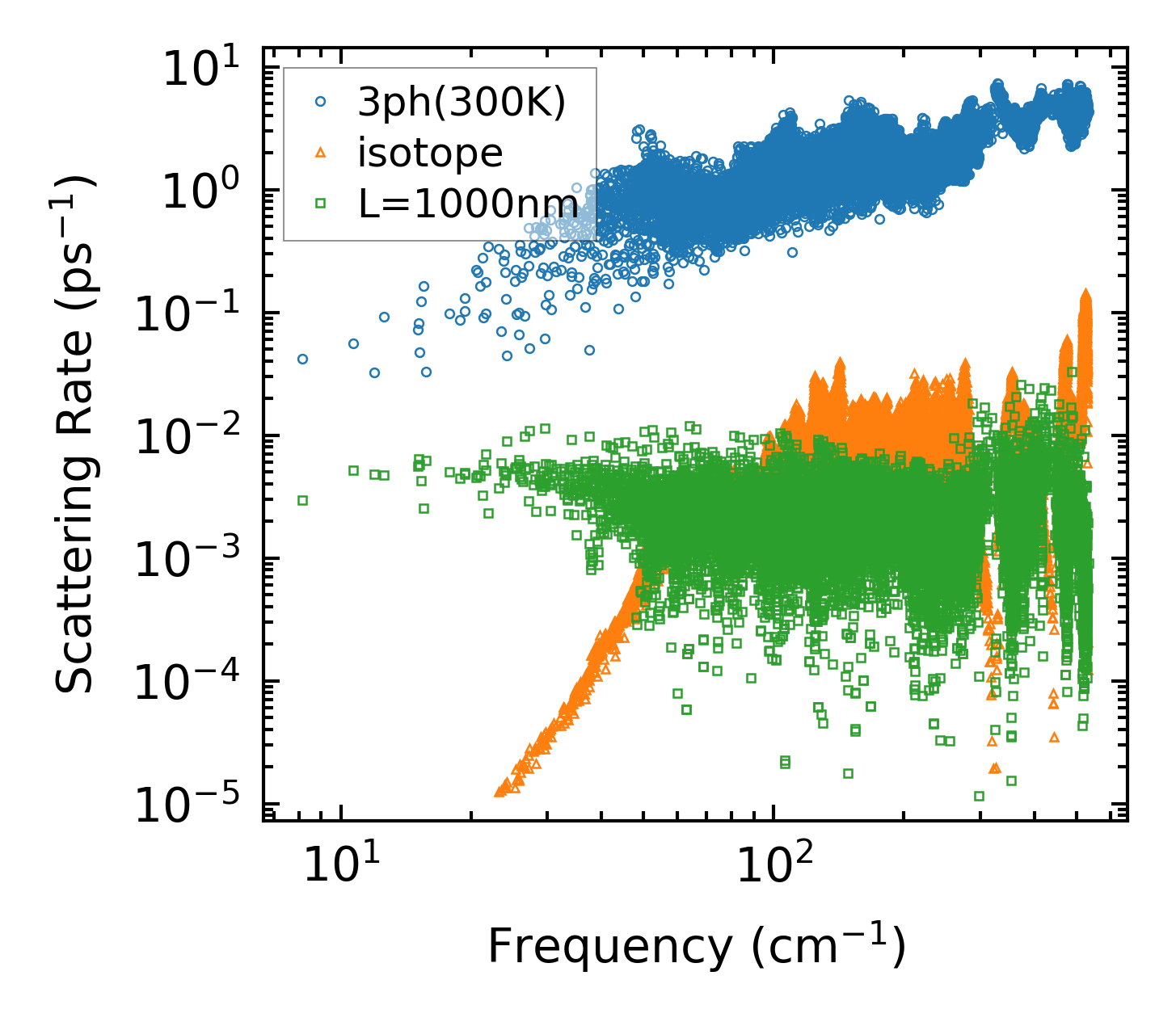

../../_images/fig_scat_rates3386.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

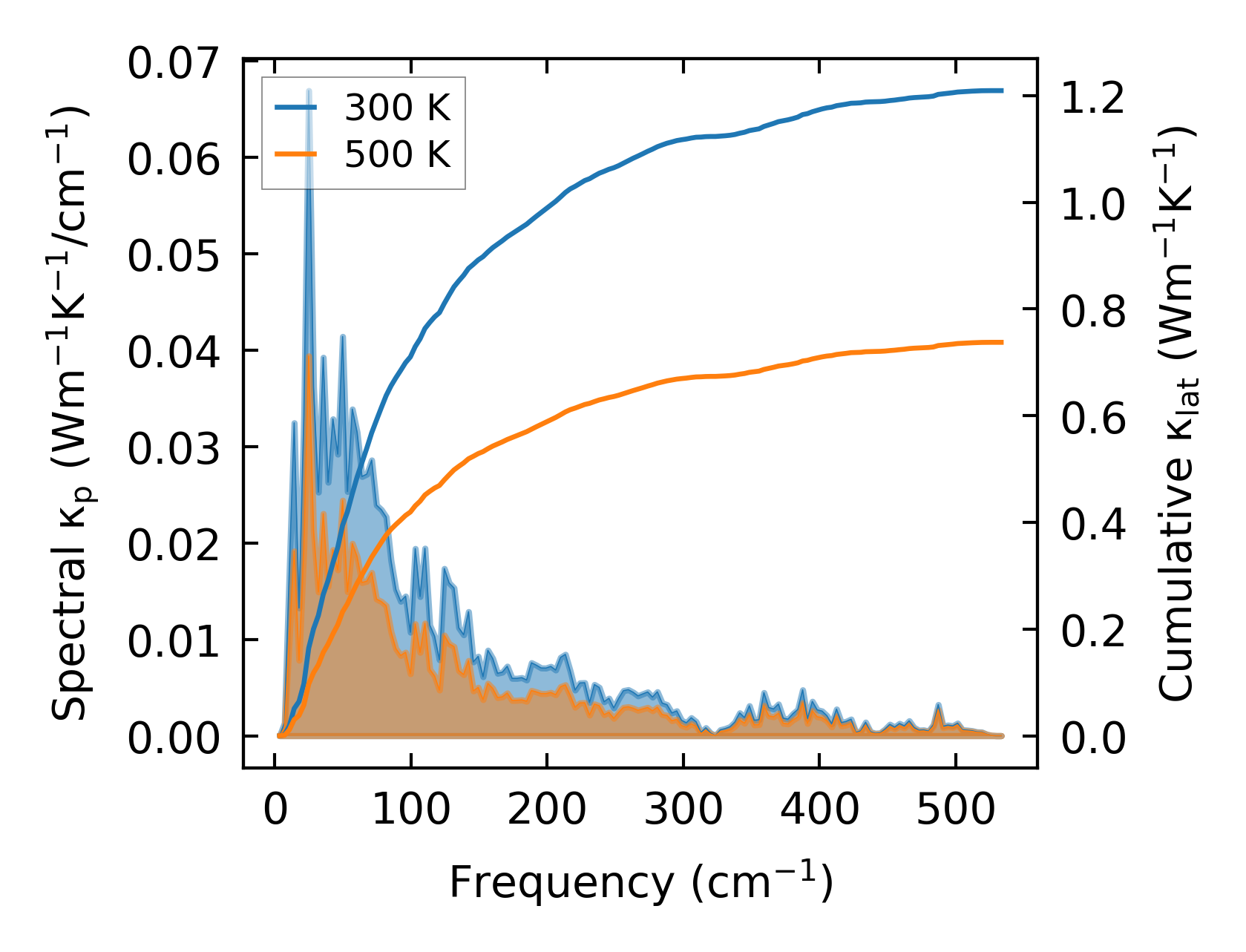

../../_images/fig_cumu_frequency3387.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3386.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

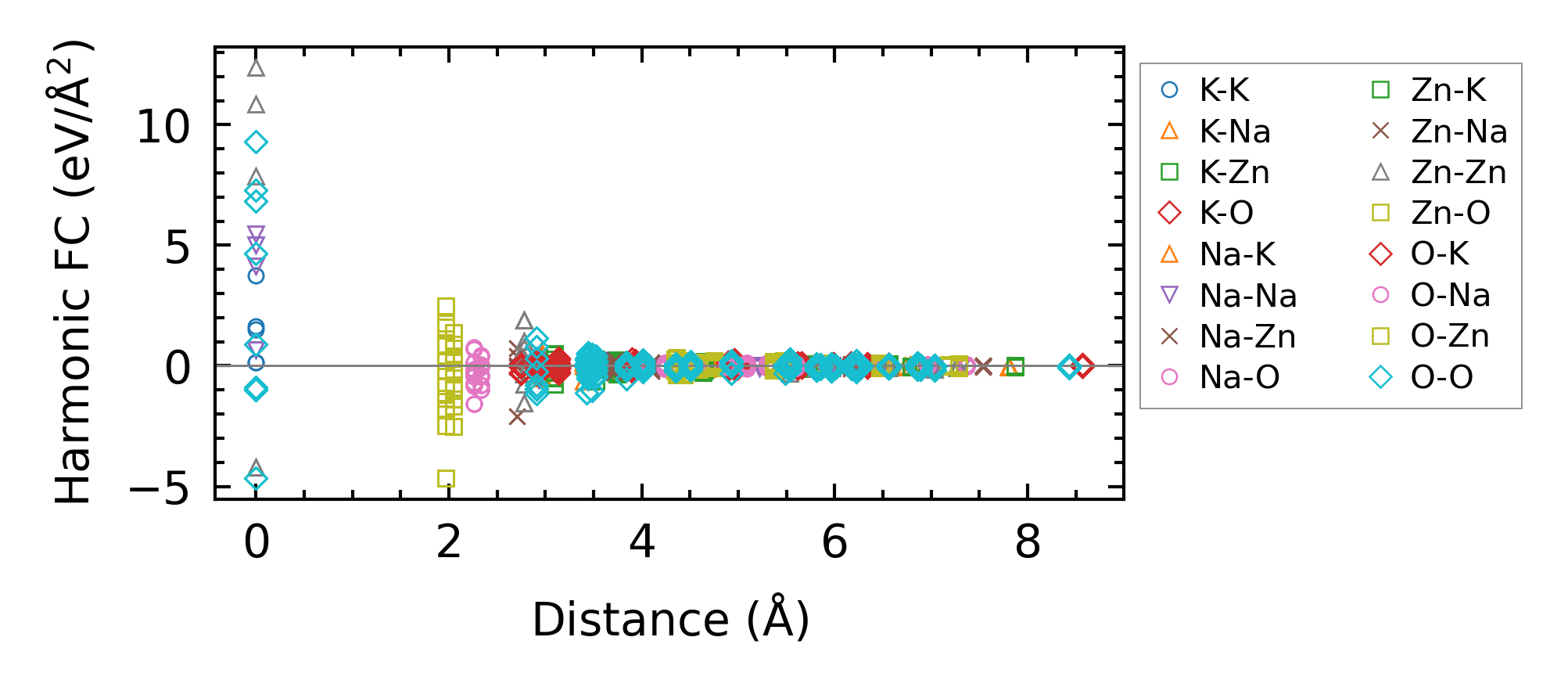

../../_images/fig_fc28149.png — (a) Force constants w.r.t atomic distance

Summary

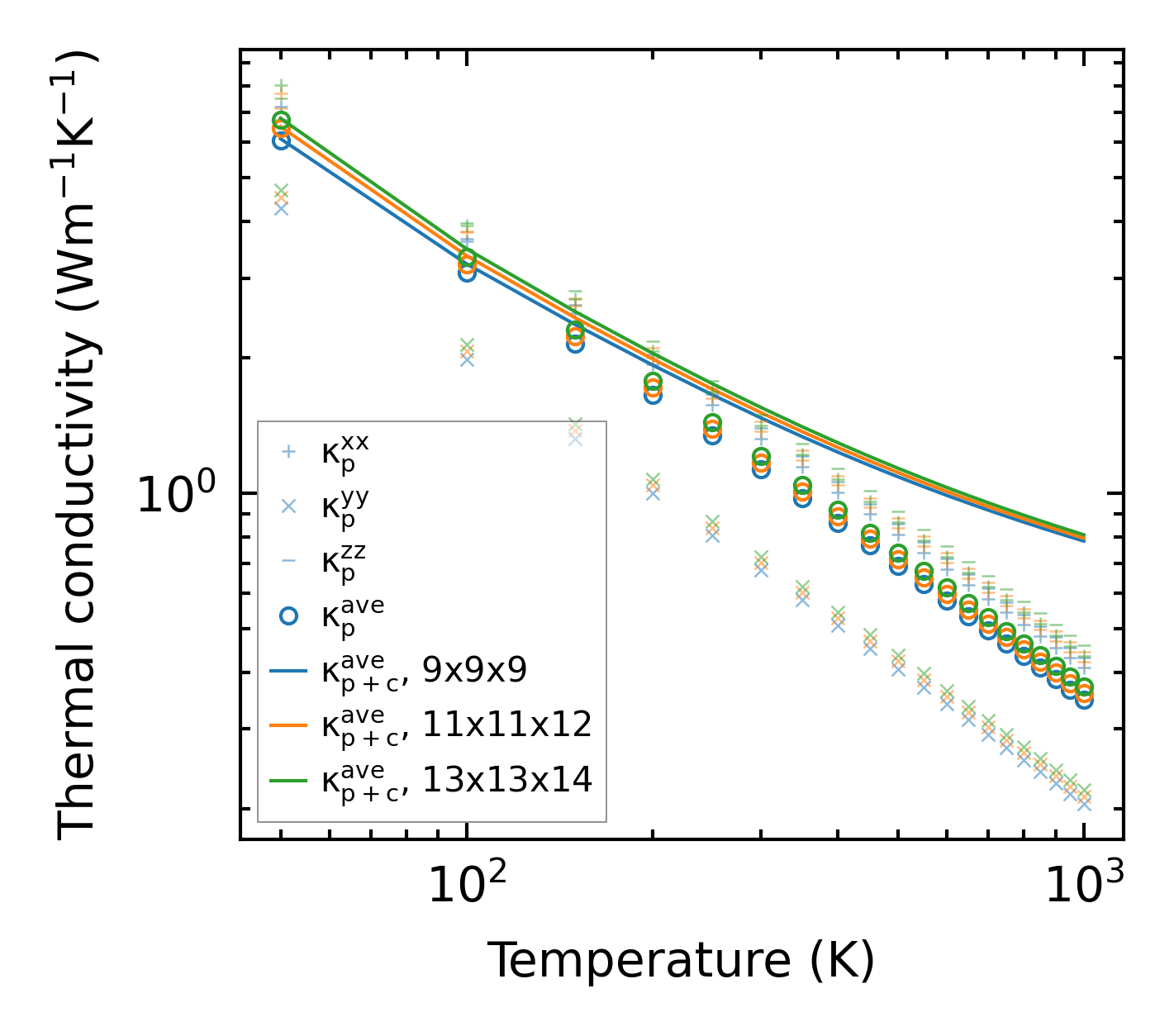

../../_images/fig_kappa6467.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times14726.png — (b) Computation time
