mp-557650-2/Sr3P6N8O6/anharm

Space group: P-3 (147)
Link: Materials Project
Download: mp-557650-2.tar.gz

Equation of state

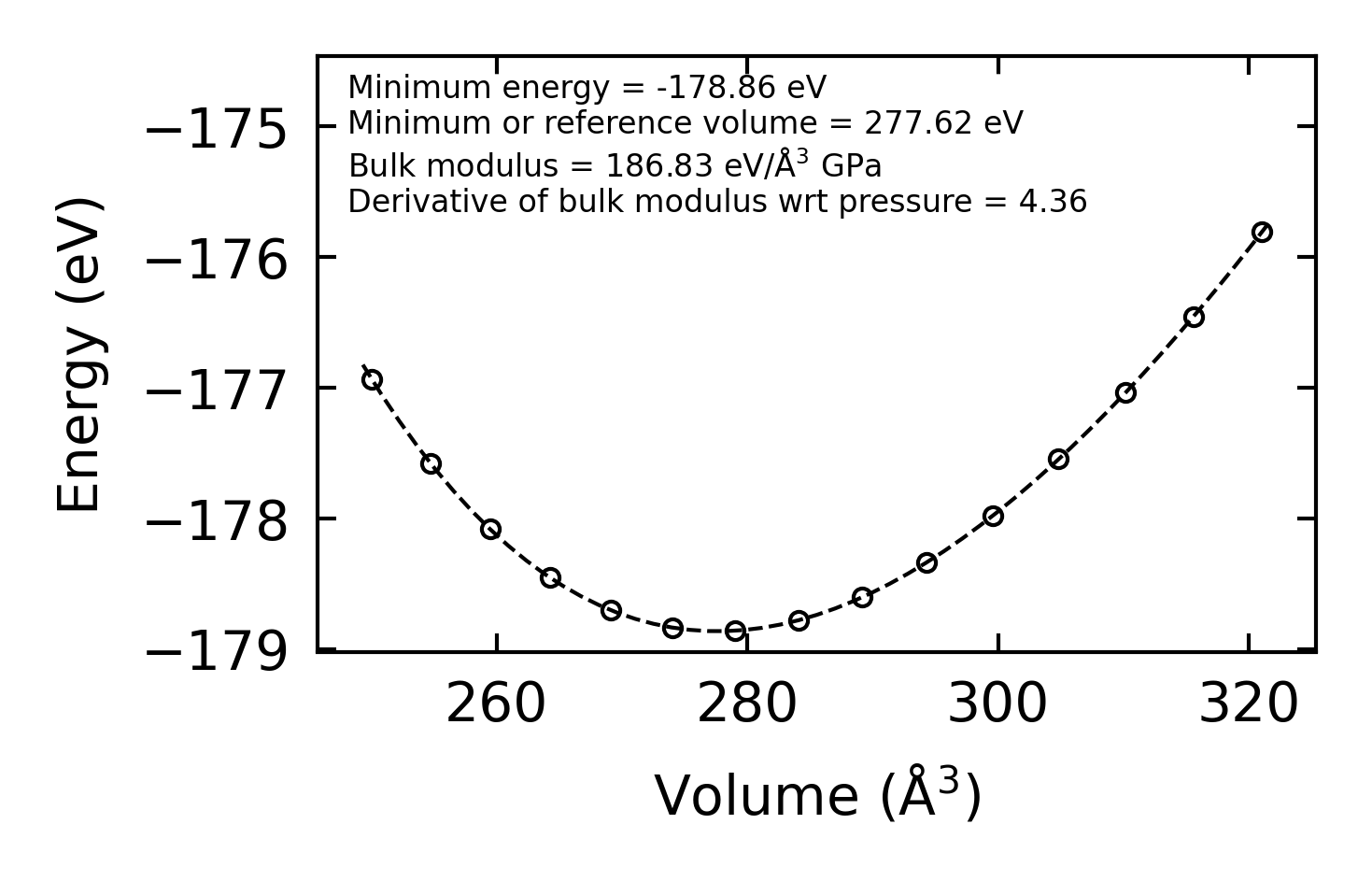

../../_images/fig_bm4172.png — (a) Equation of state

Harmonic properties

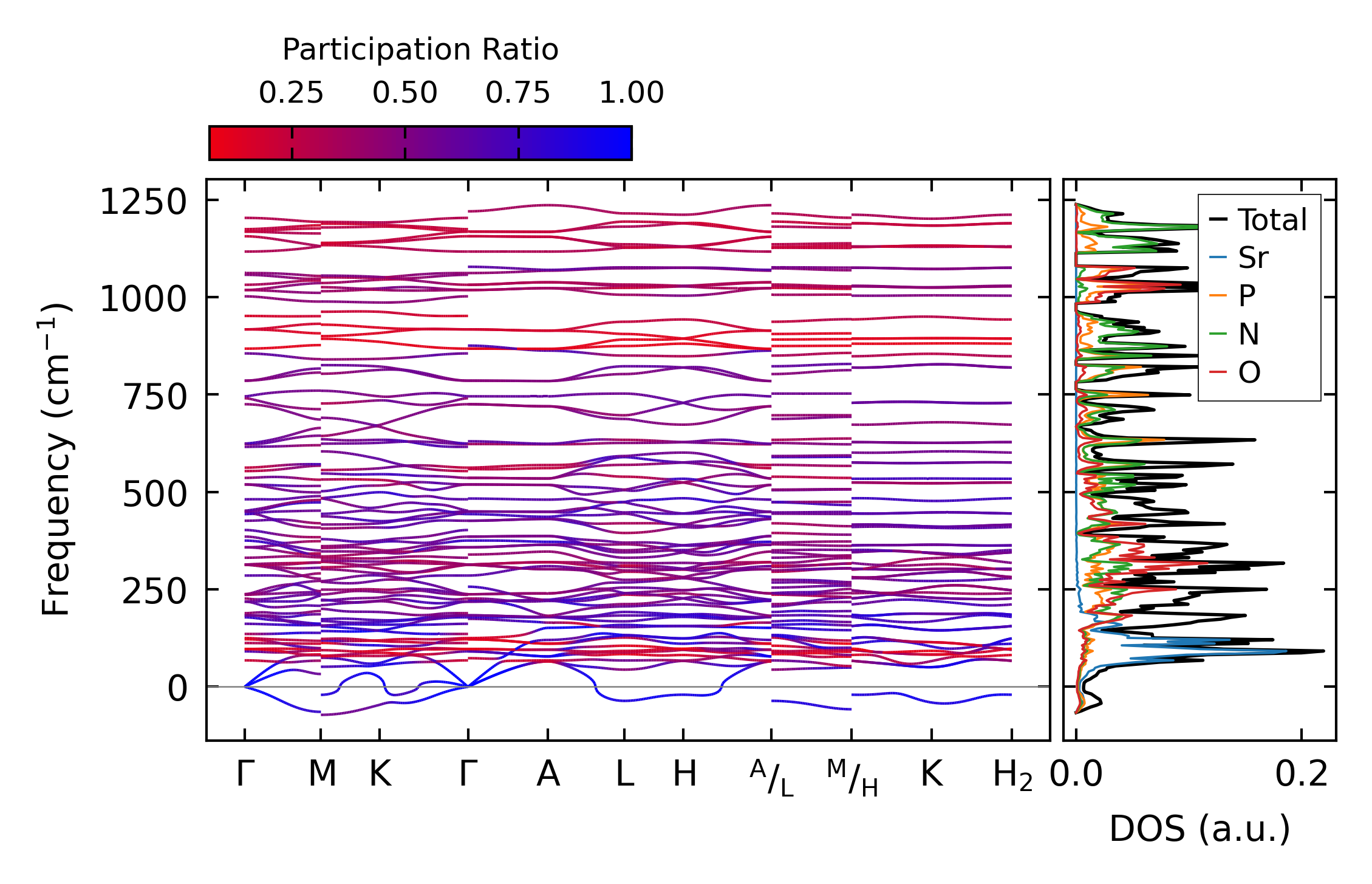

../../_images/fig_bandos_pr8149.png — (a) Phonon dispersion with participation ratio and DOS

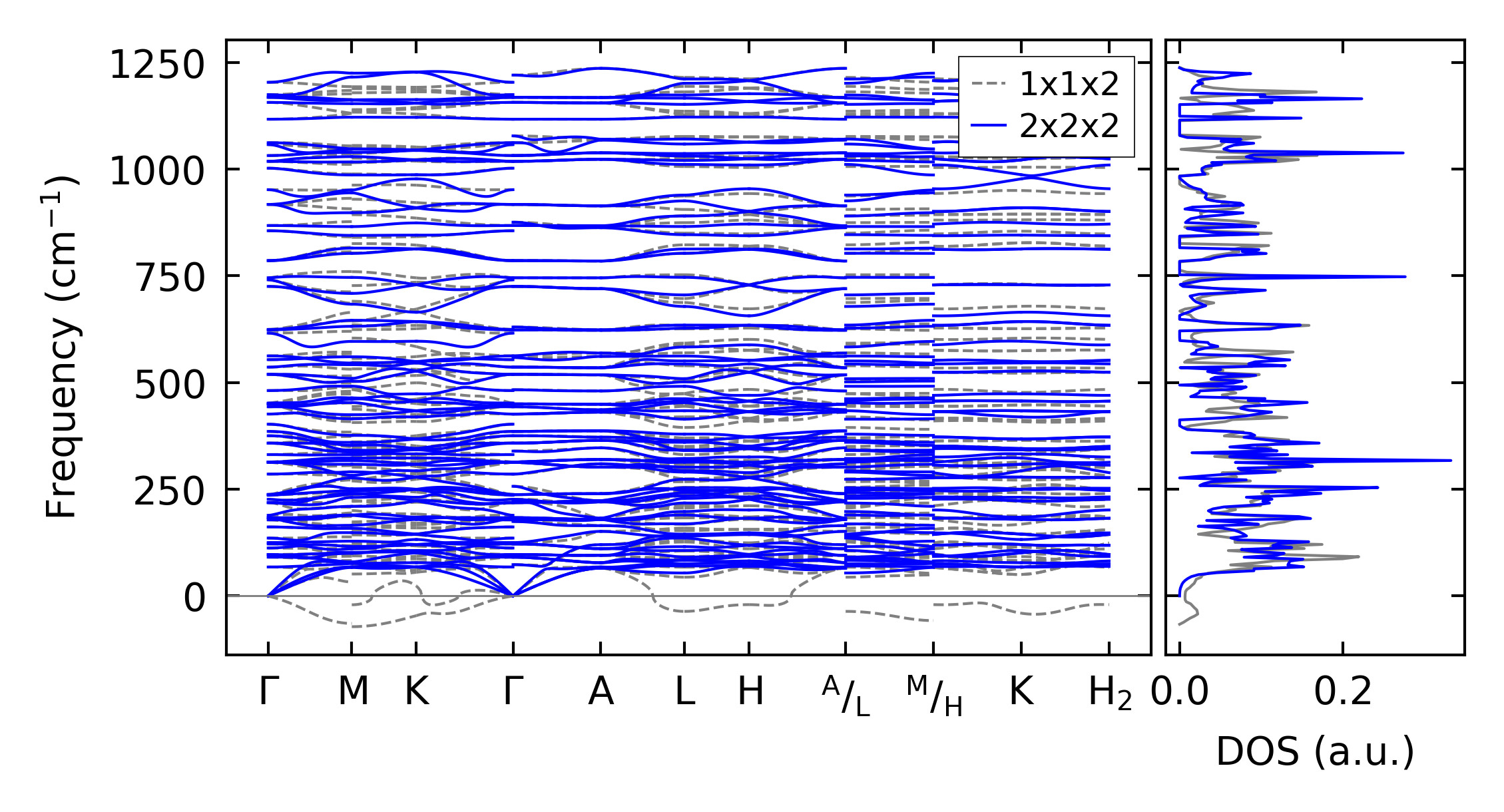

../../_images/fig_bandos11457.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo8149.png — (c) Thermodynamic properties

Grüneisen parameters

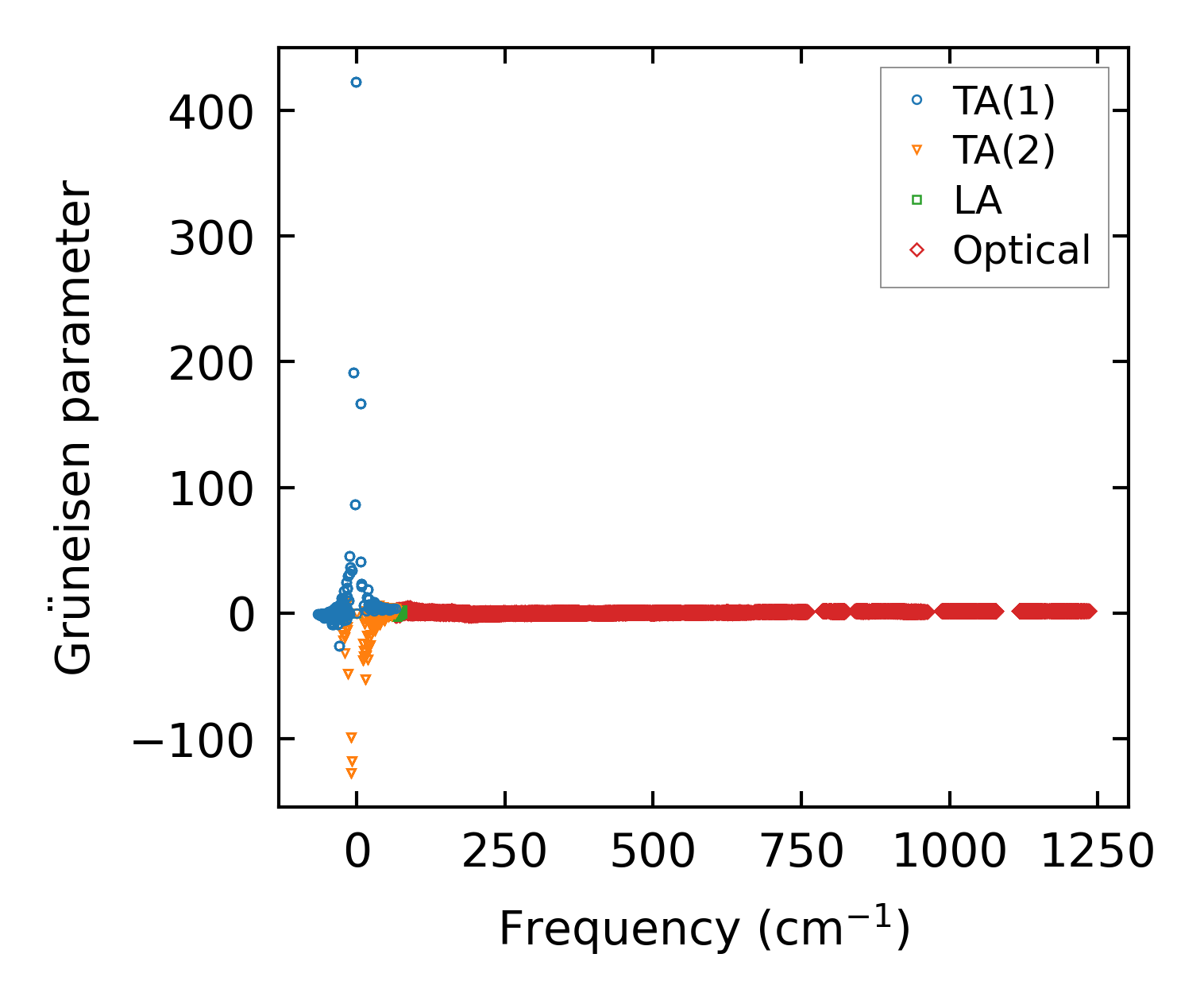

../../_images/fig_gru_all3351.png — (a) Grüneisen parameters

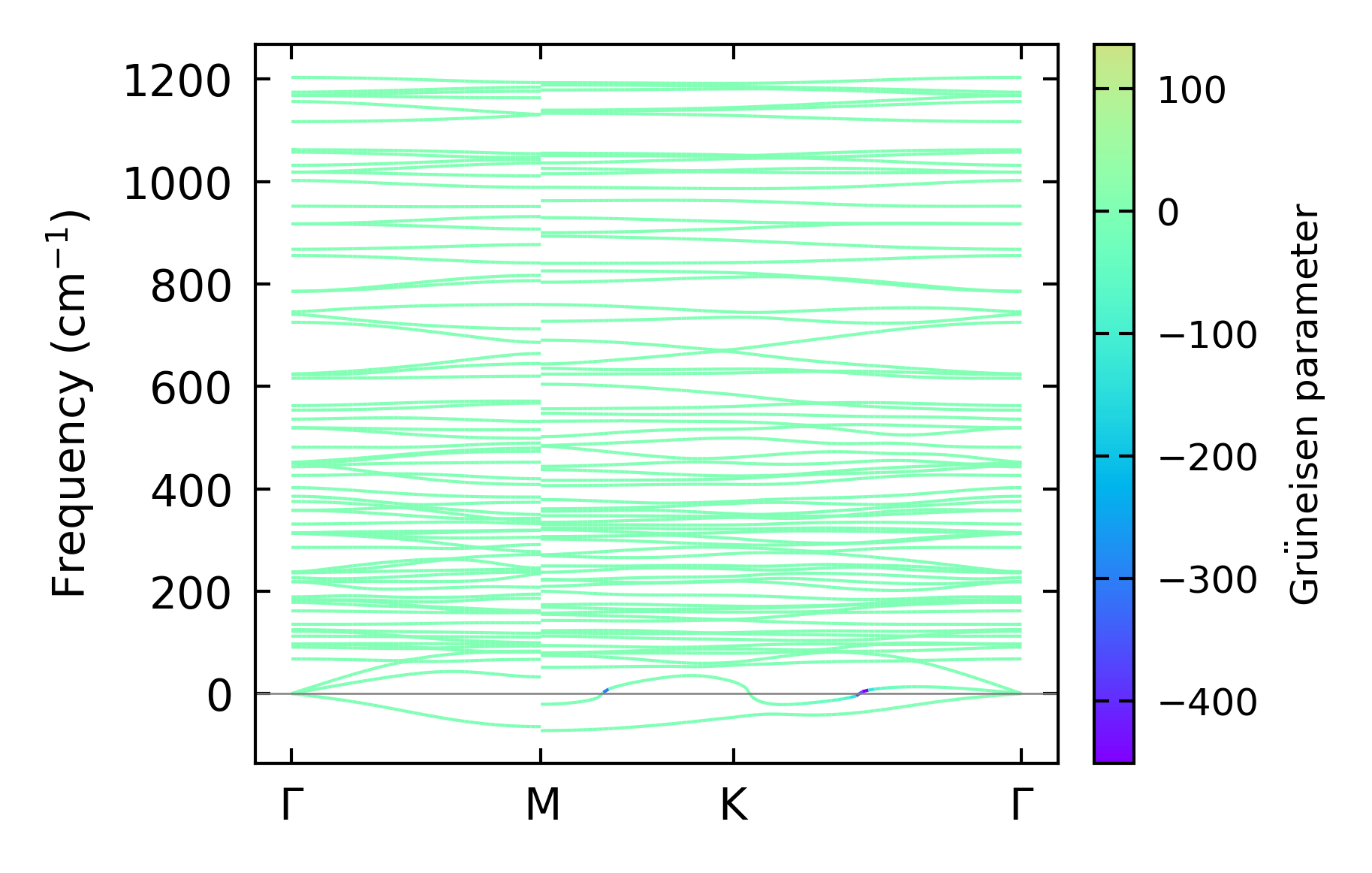

../../_images/fig_gruneisen3351.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 10x10x12, supercell: 2x2x2

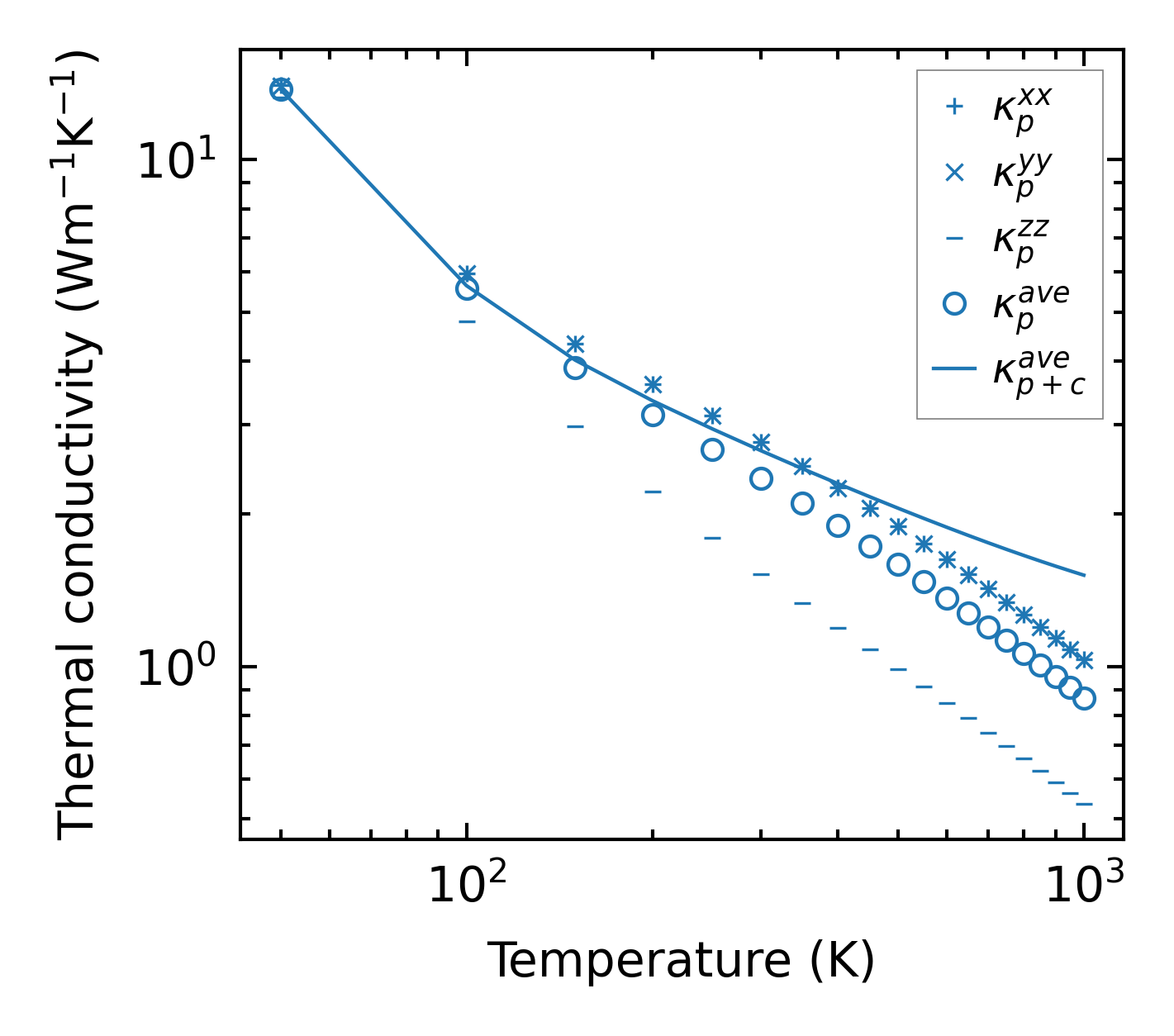

../../_images/fig_kappa6342.png — (a) Temperature-dependent lattice thermal conductivity

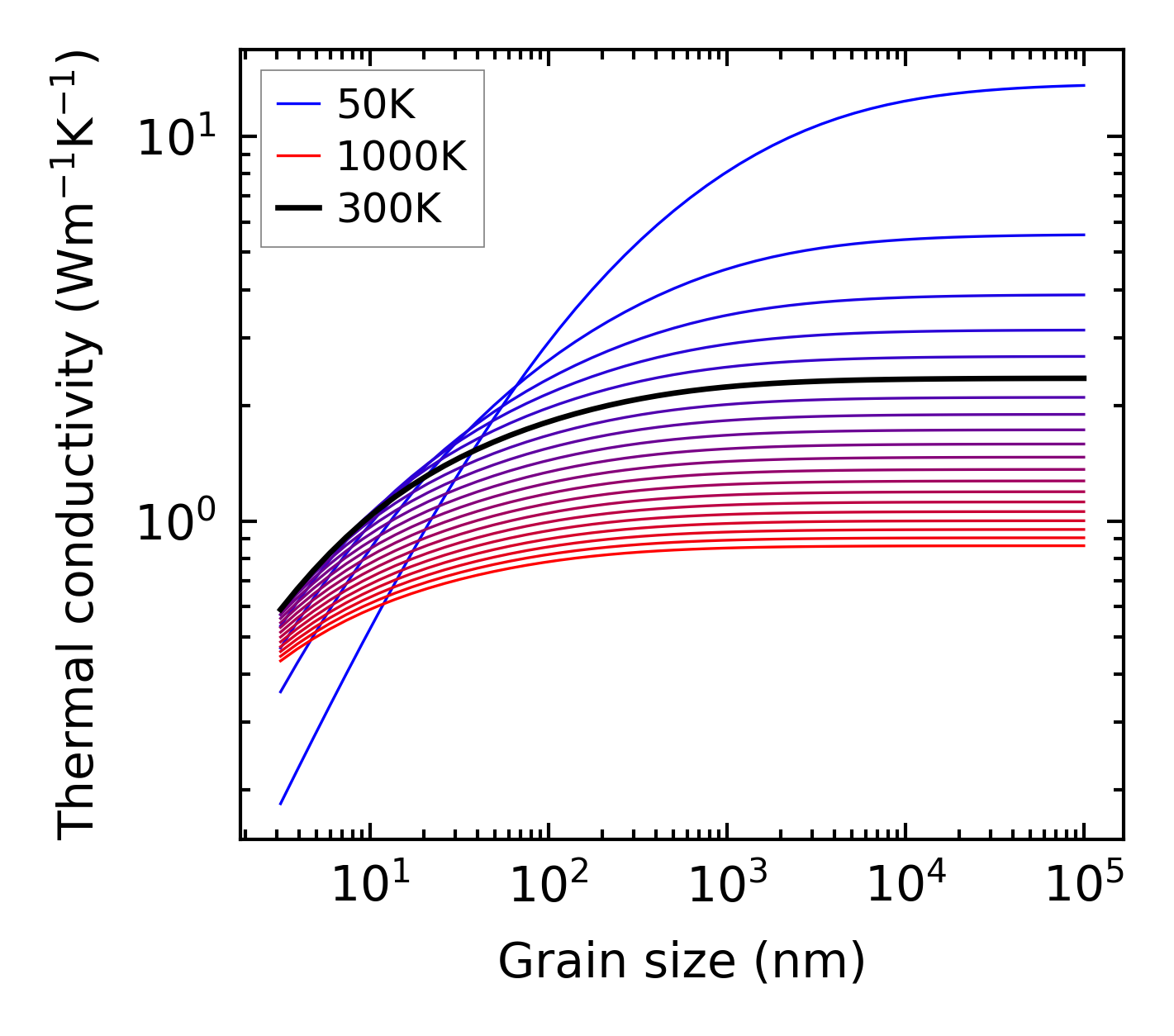

../../_images/fig_kappa_vs_grain_size3394.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

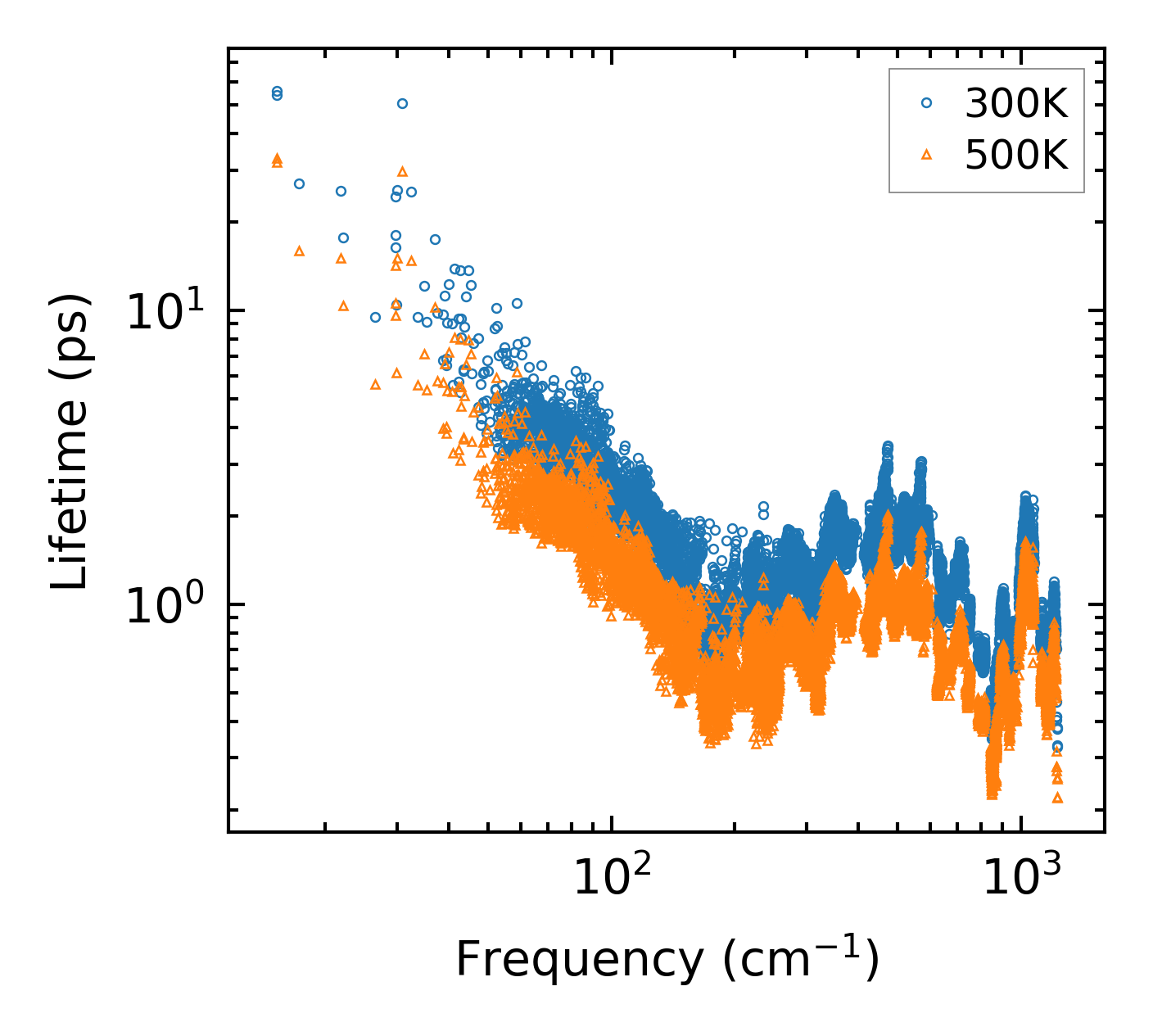

../../_images/fig_lifetime3321.png — (a) Phonon lifetime due to phonon-phonon scattering

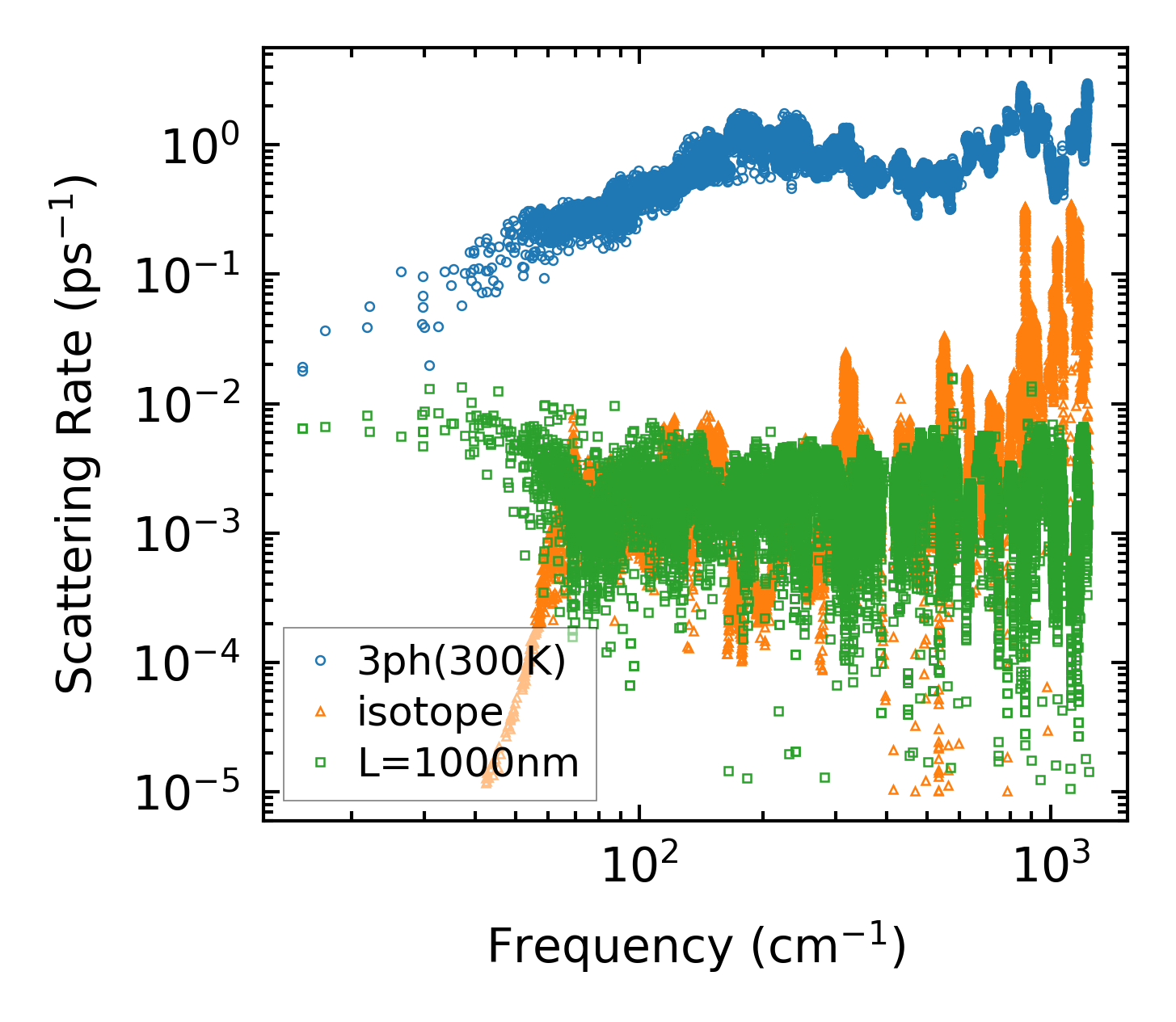

../../_images/fig_scat_rates3320.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

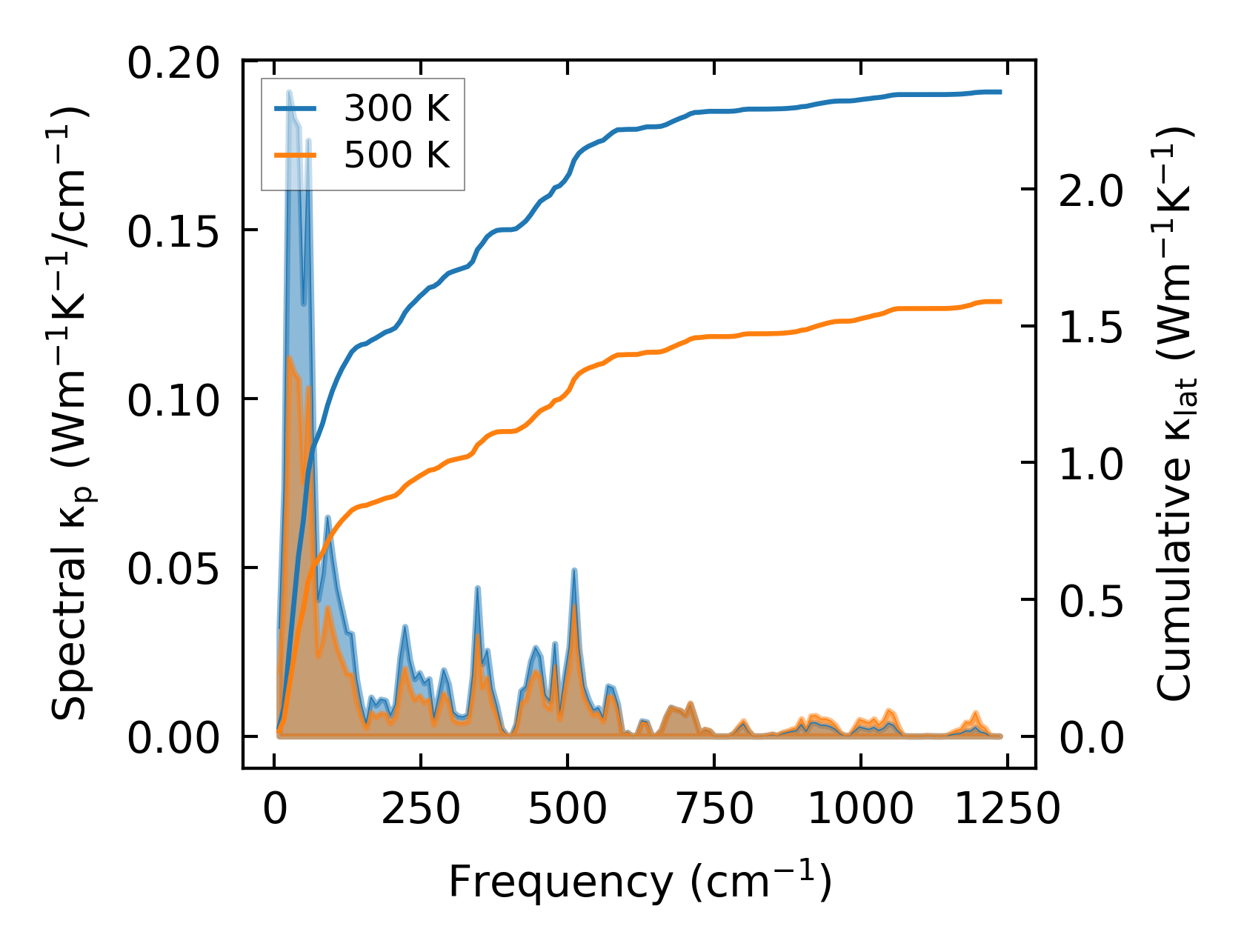

../../_images/fig_cumu_frequency3321.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

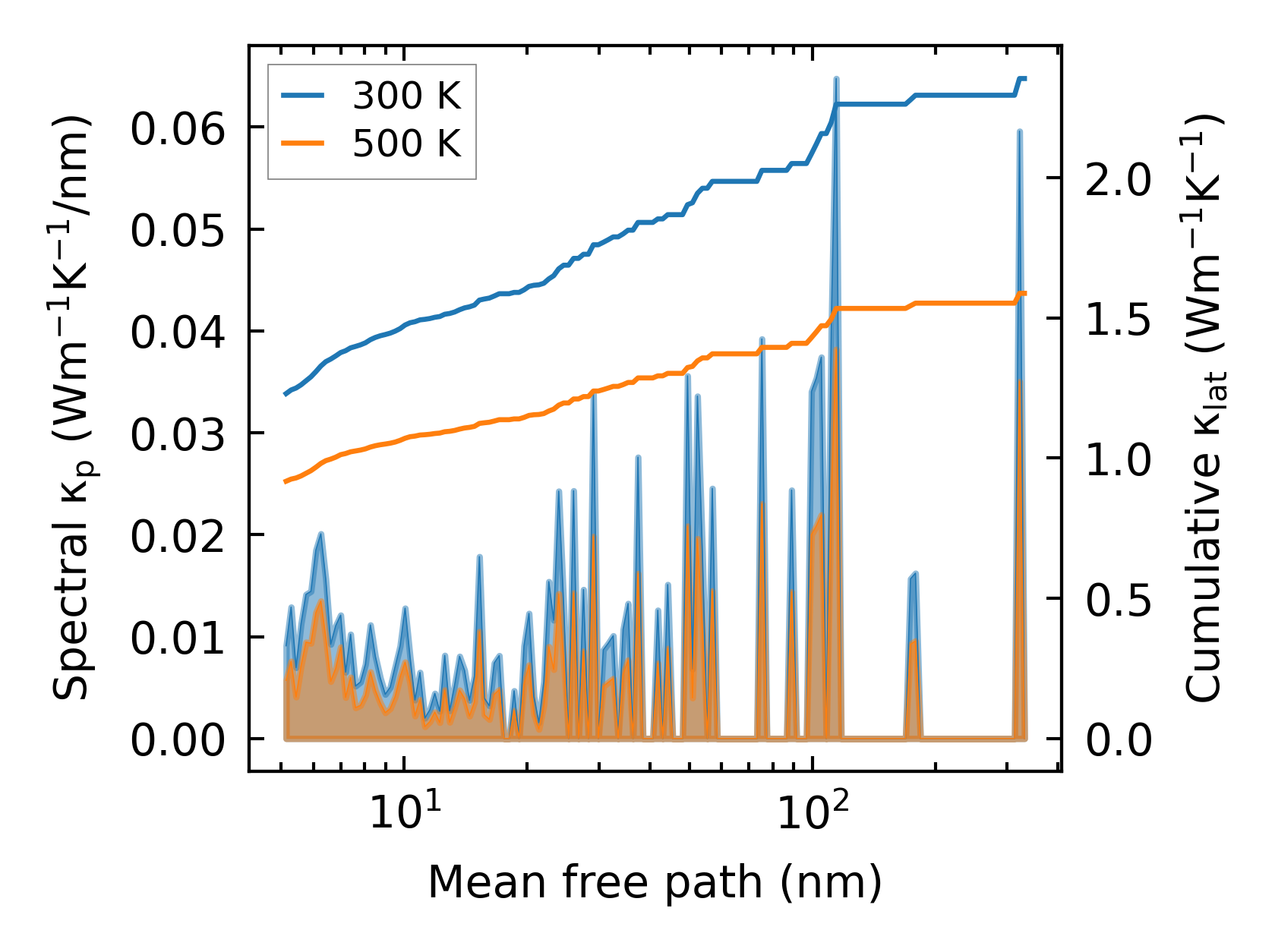

../../_images/fig_cumu_mfp3320.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

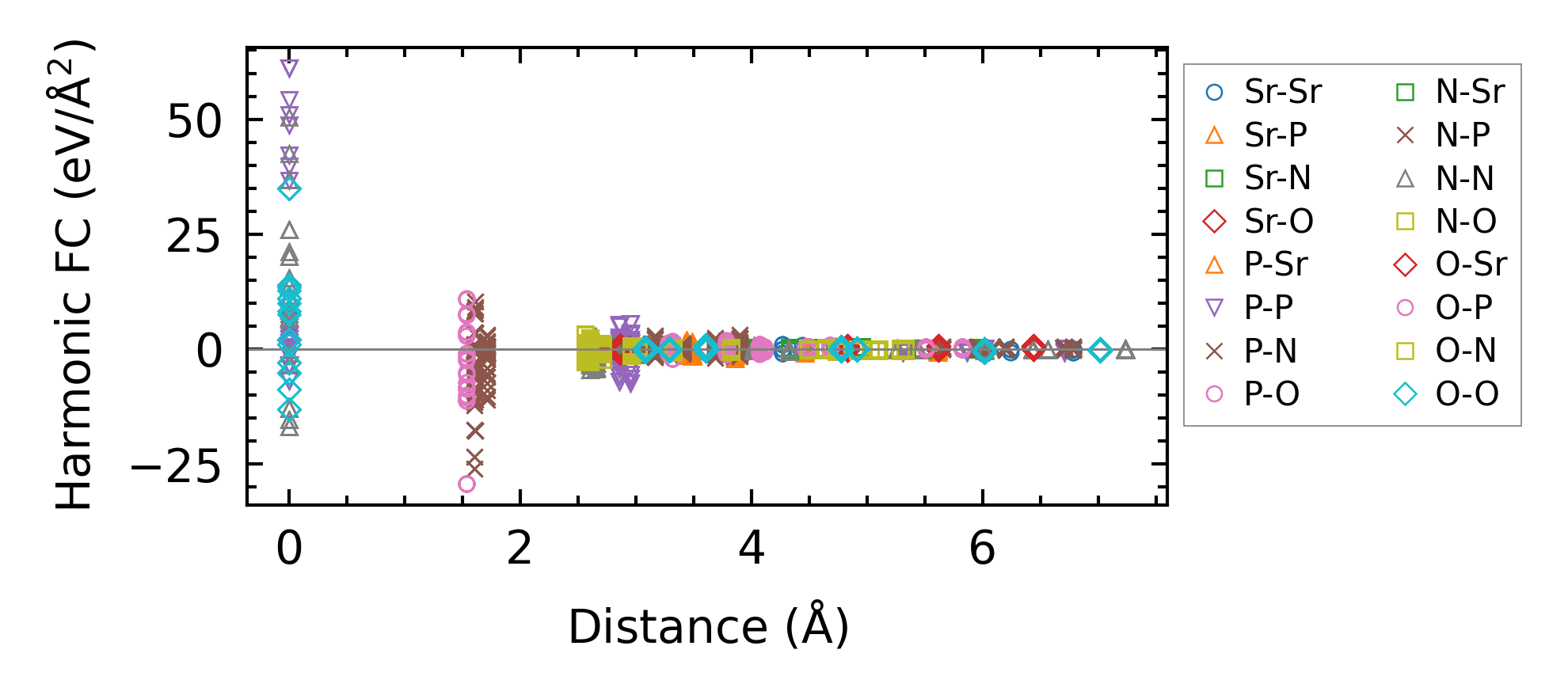

../../_images/fig_fc27911.png — (a) Force constants w.r.t atomic distance

Summary

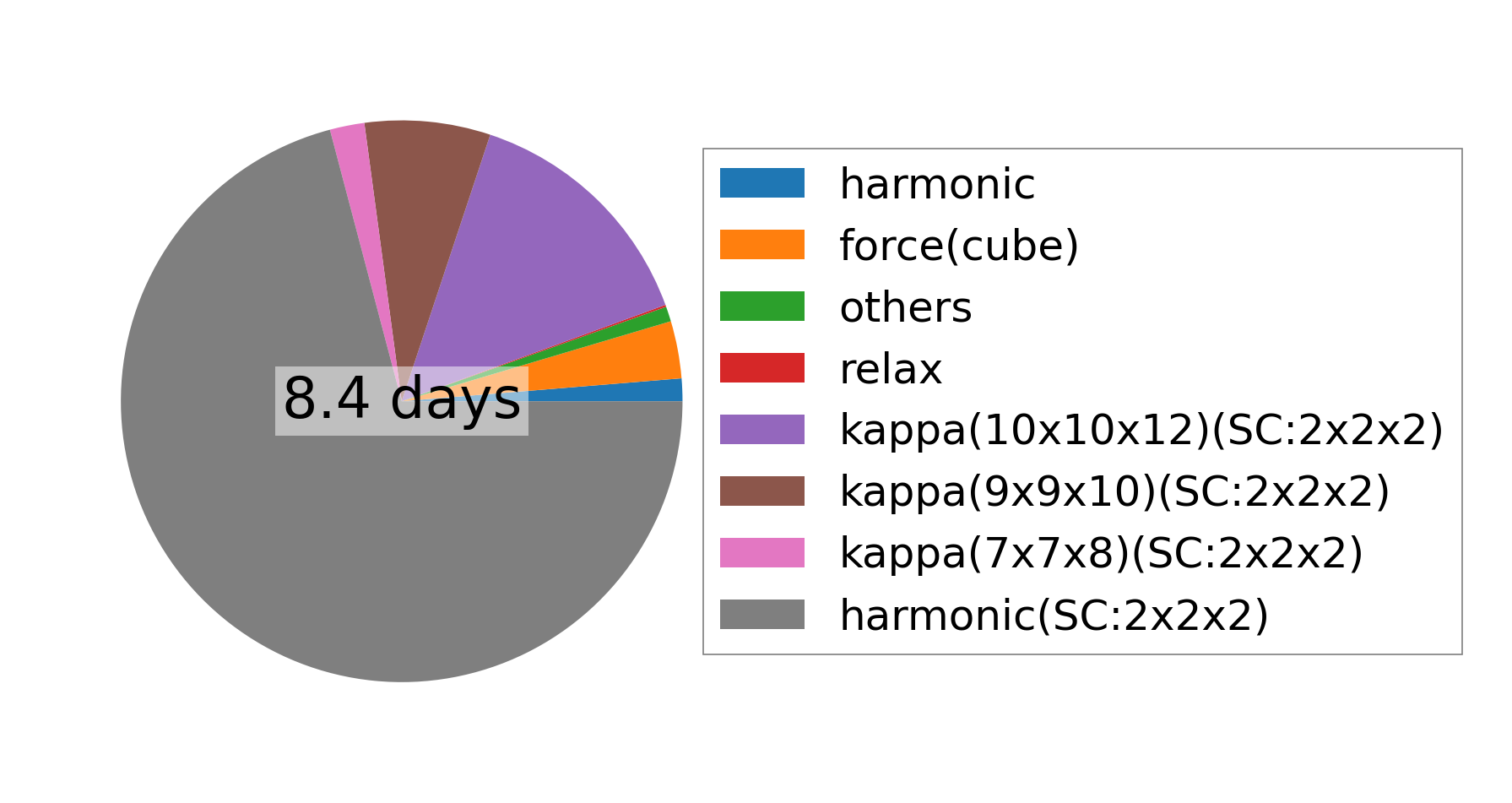

../../_images/fig_times14345.png — (a) Computation time
