mp-557304/Sr2SiCl2O3/anharm

Space group: I4/m (87)
Link: Materials Project
Download: mp-557304.tar.gz

Harmonic properties

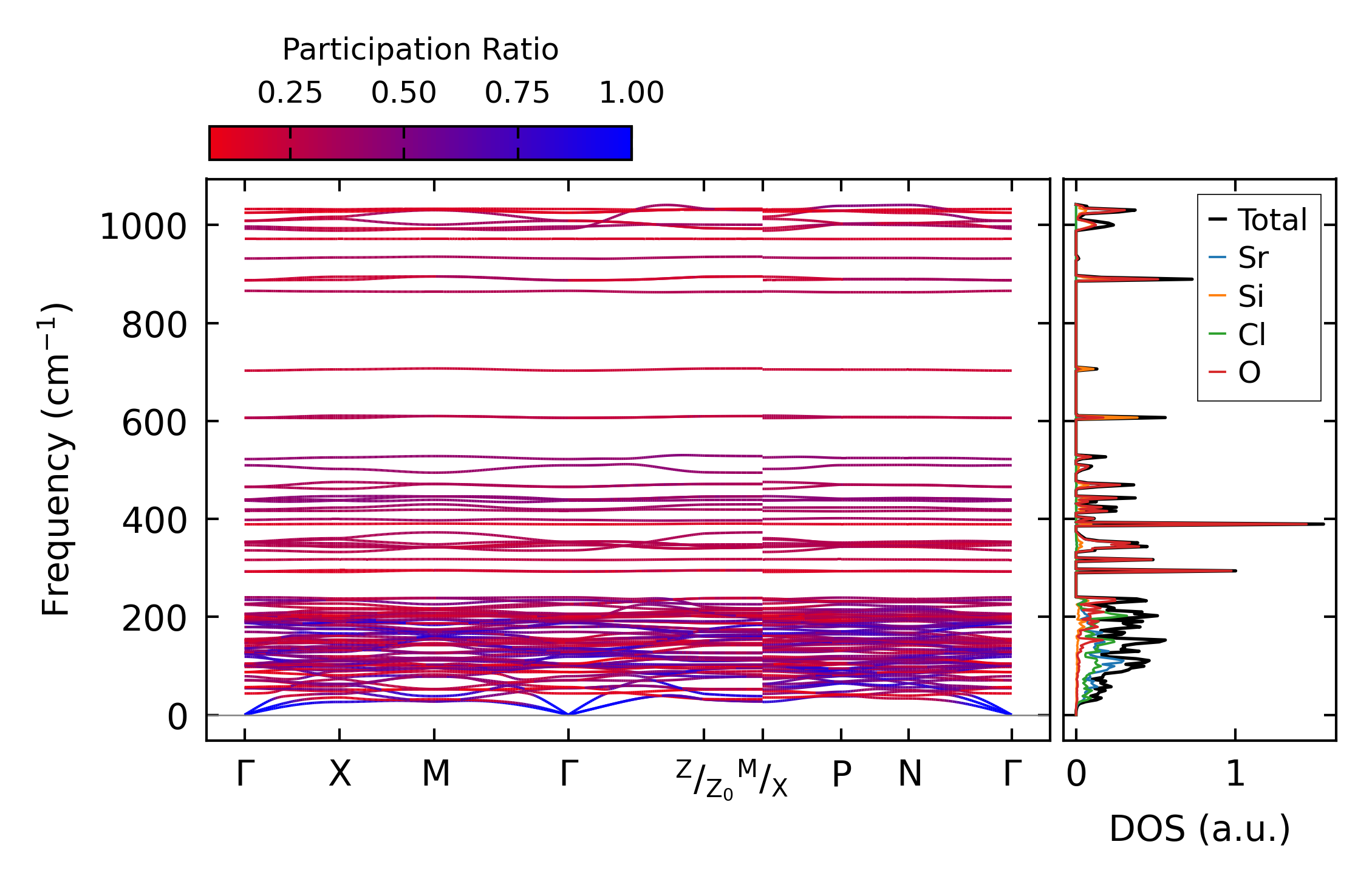

../../_images/fig_bandos_pr8407.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8407.png — (b) Thermodynamic properties

Grüneisen parameters

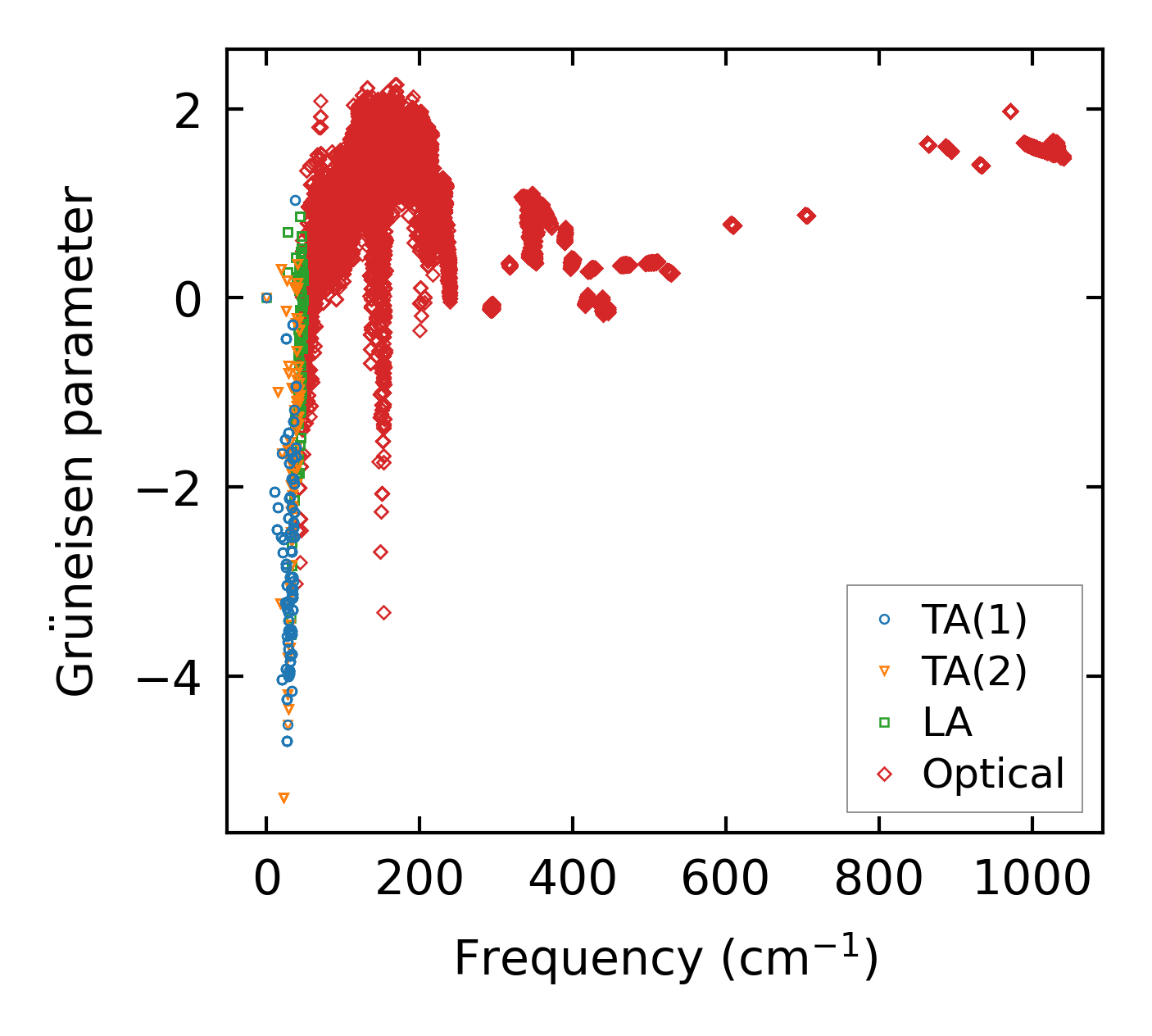

../../_images/fig_gru_all3427.png — (a) Grüneisen parameters

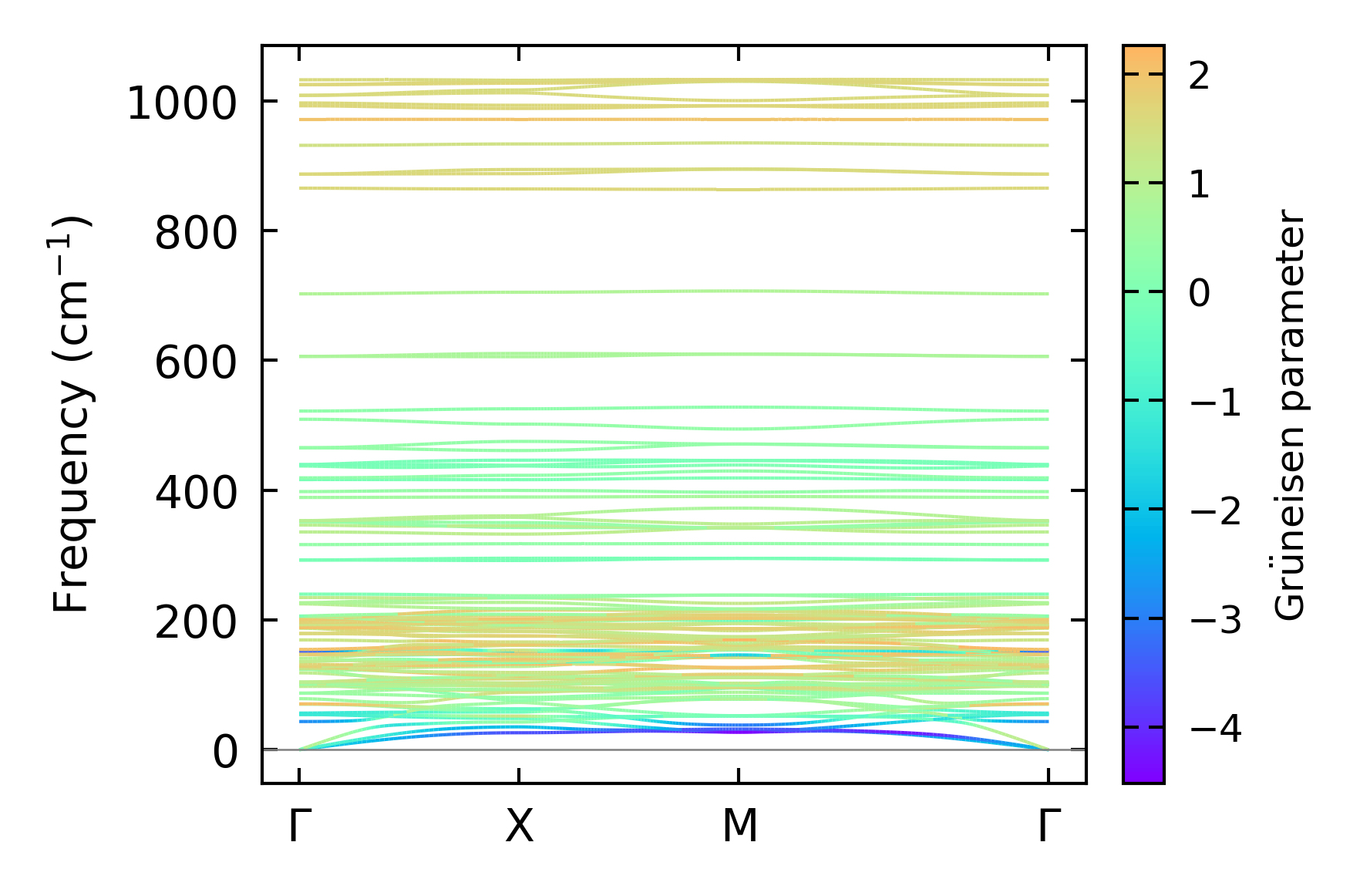

../../_images/fig_gruneisen3427.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x2

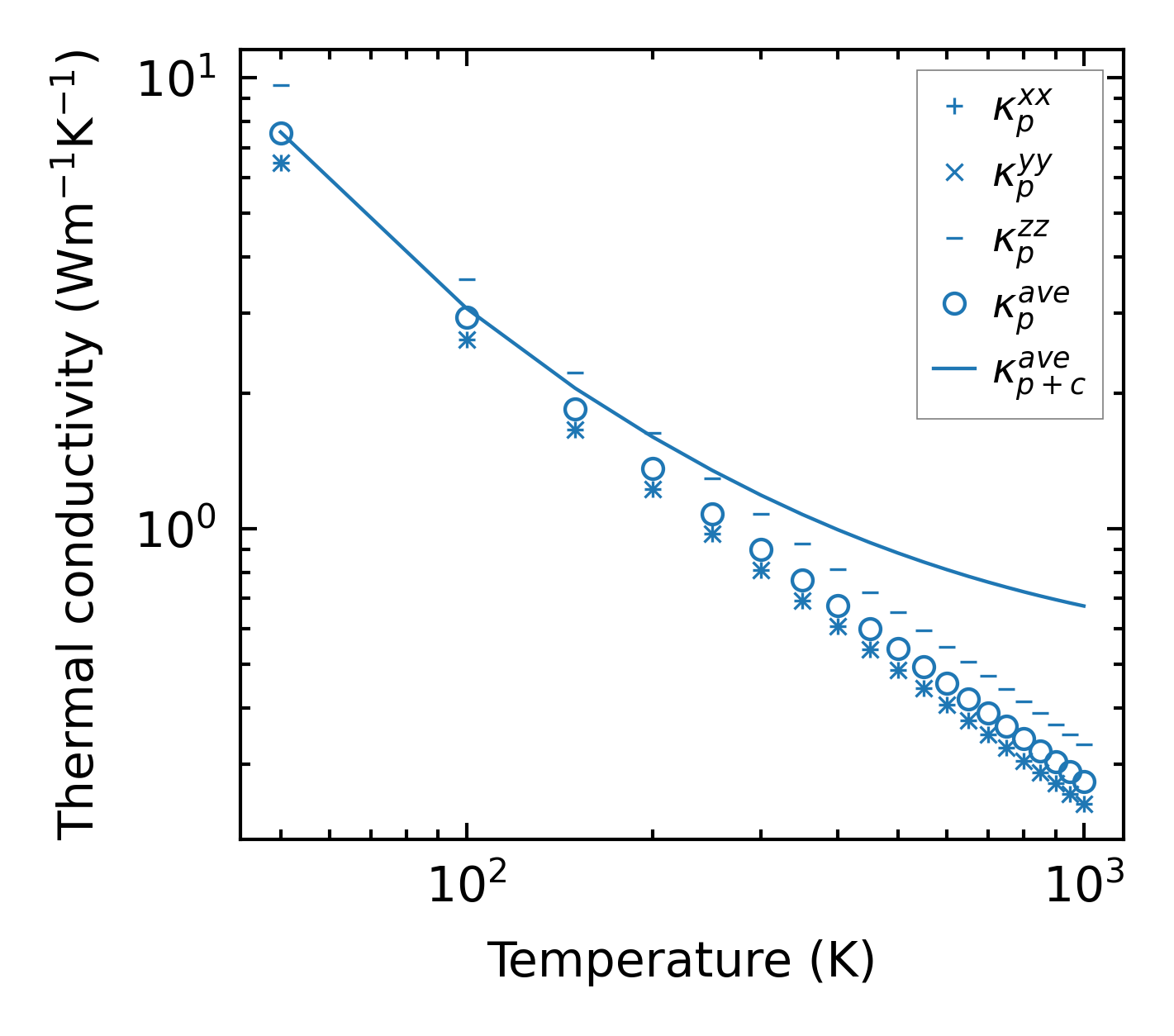

../../_images/fig_kappa6482.png — (a) Temperature-dependent lattice thermal conductivity

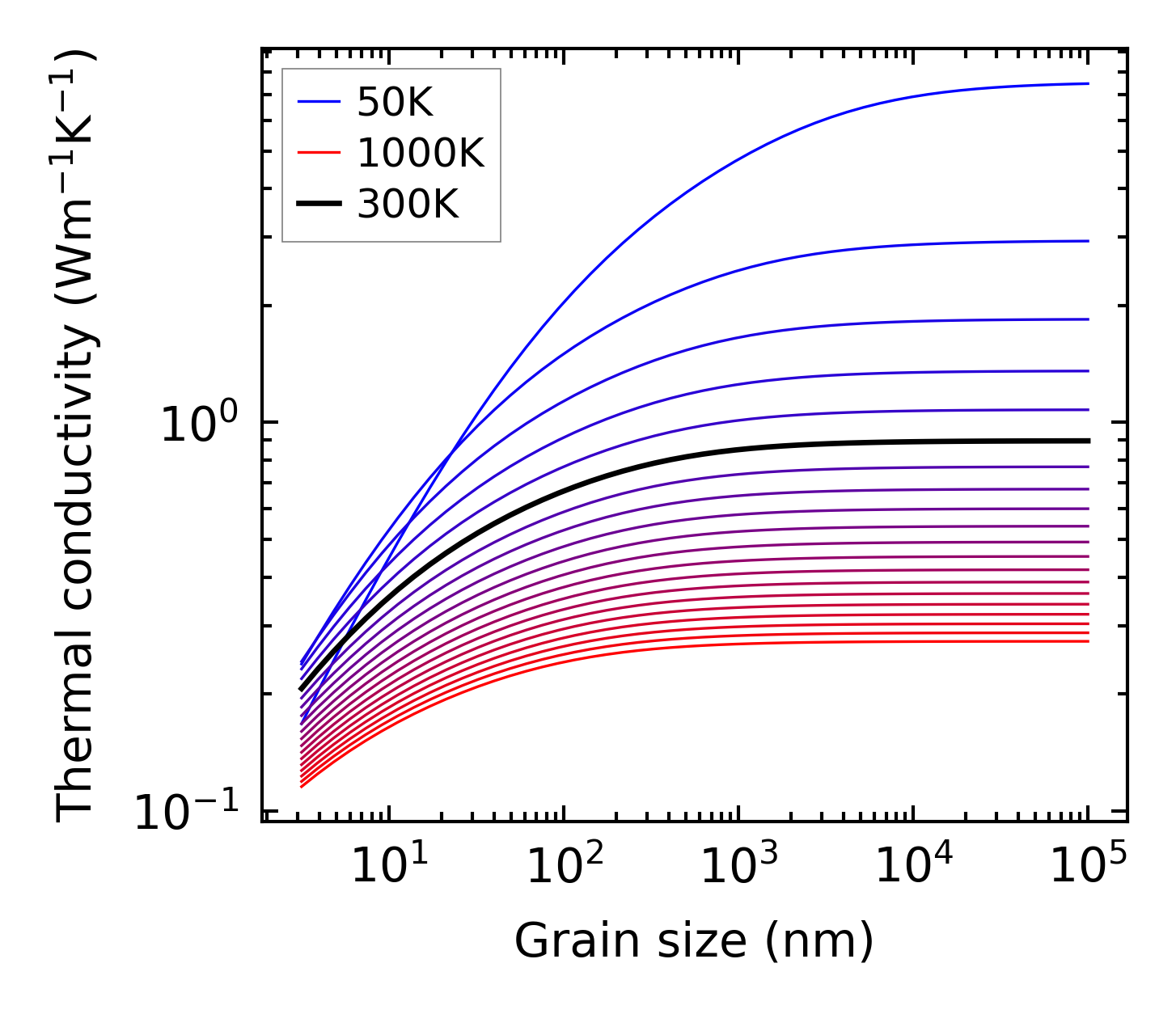

../../_images/fig_kappa_vs_grain_size3470.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

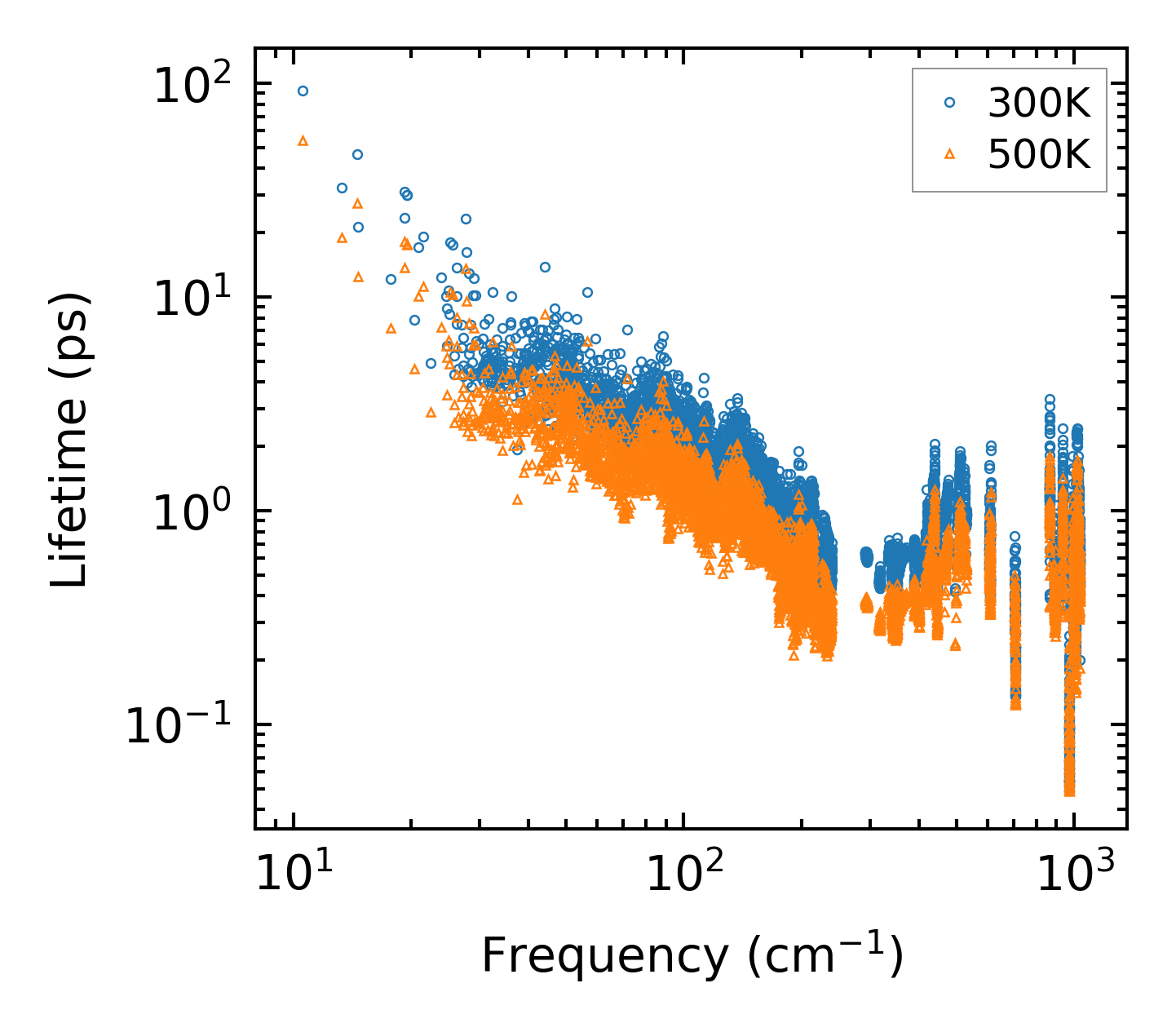

../../_images/fig_lifetime3395.png — (a) Phonon lifetime due to phonon-phonon scattering

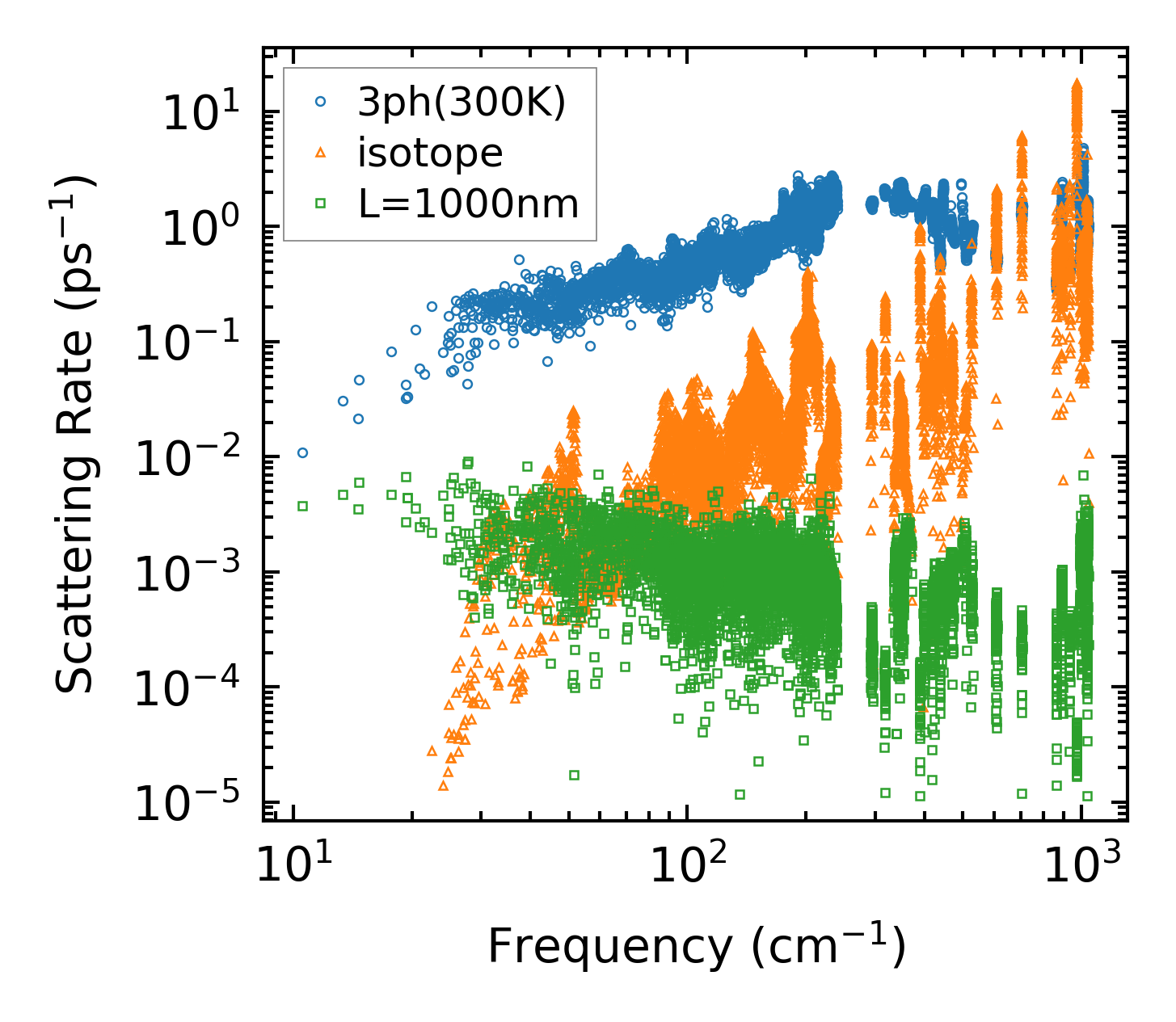

../../_images/fig_scat_rates3394.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

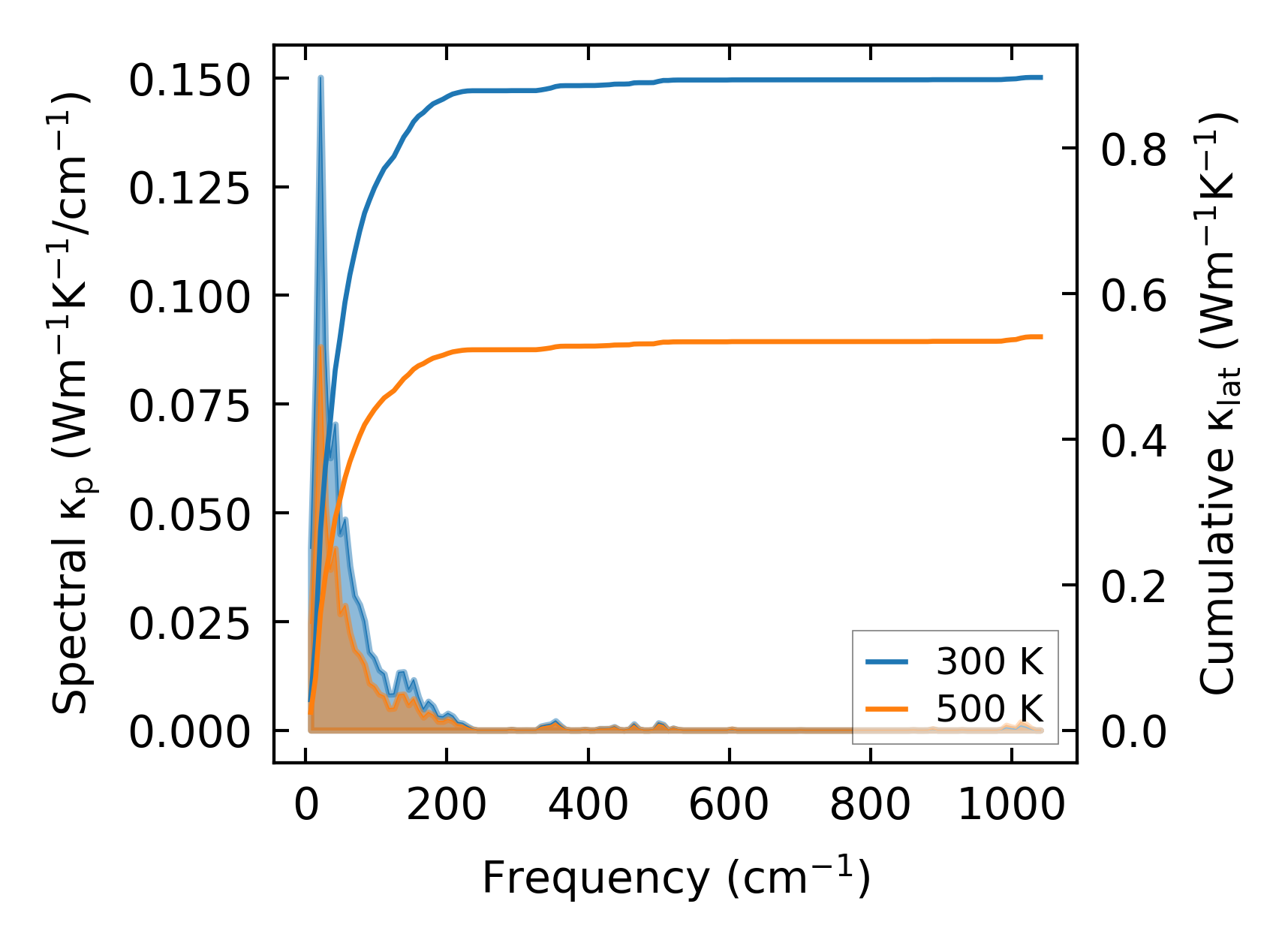

../../_images/fig_cumu_frequency3395.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

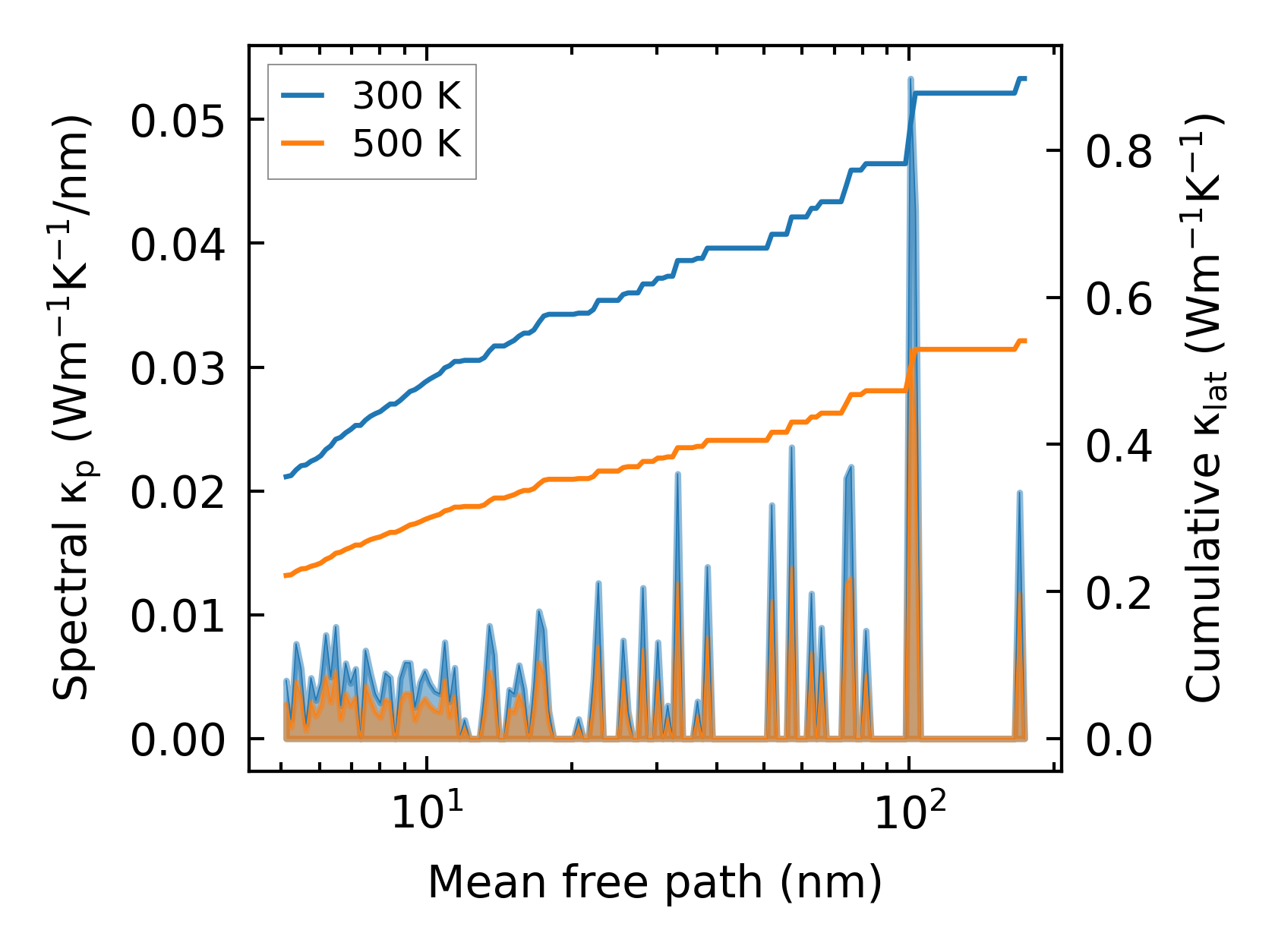

../../_images/fig_cumu_mfp3394.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

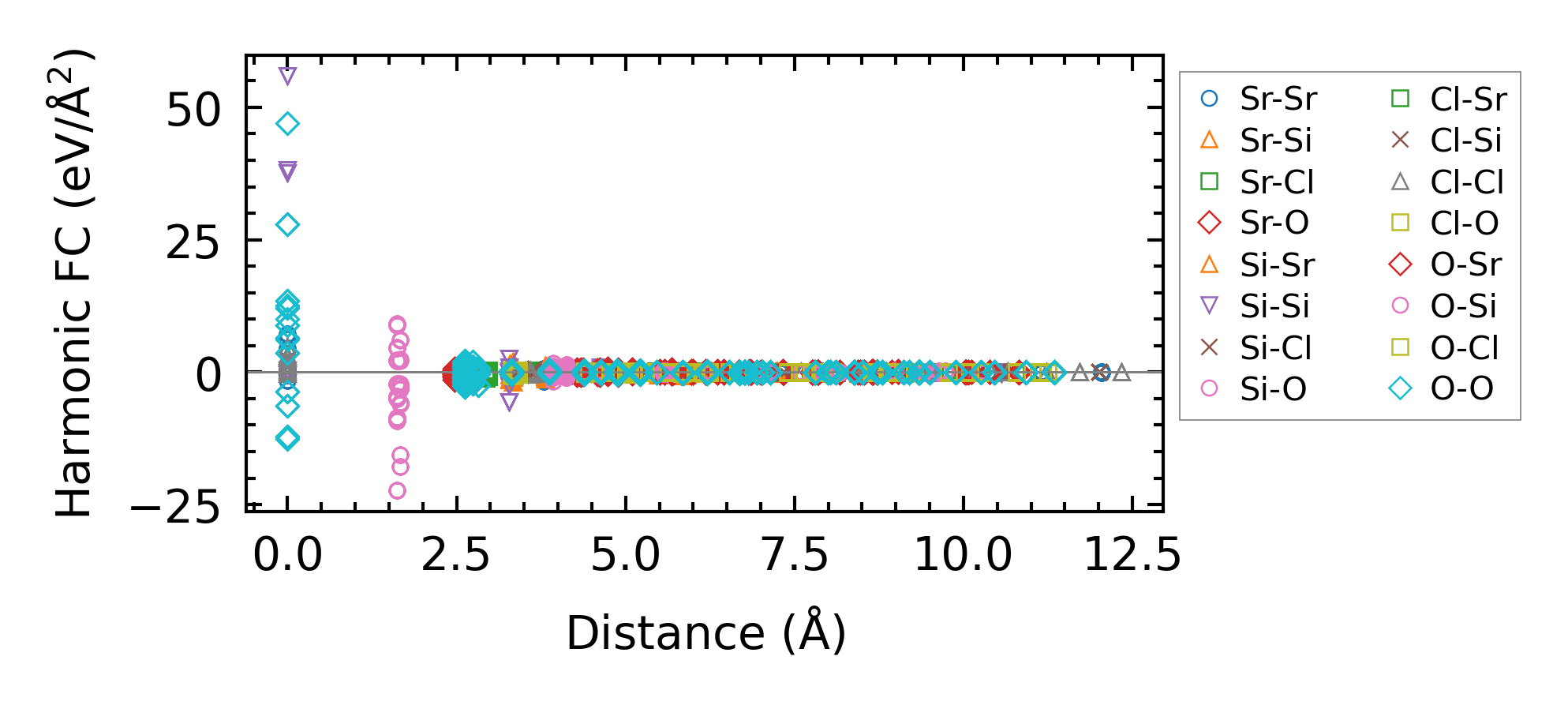

../../_images/fig_fc28169.png — (a) Force constants w.r.t atomic distance

Summary

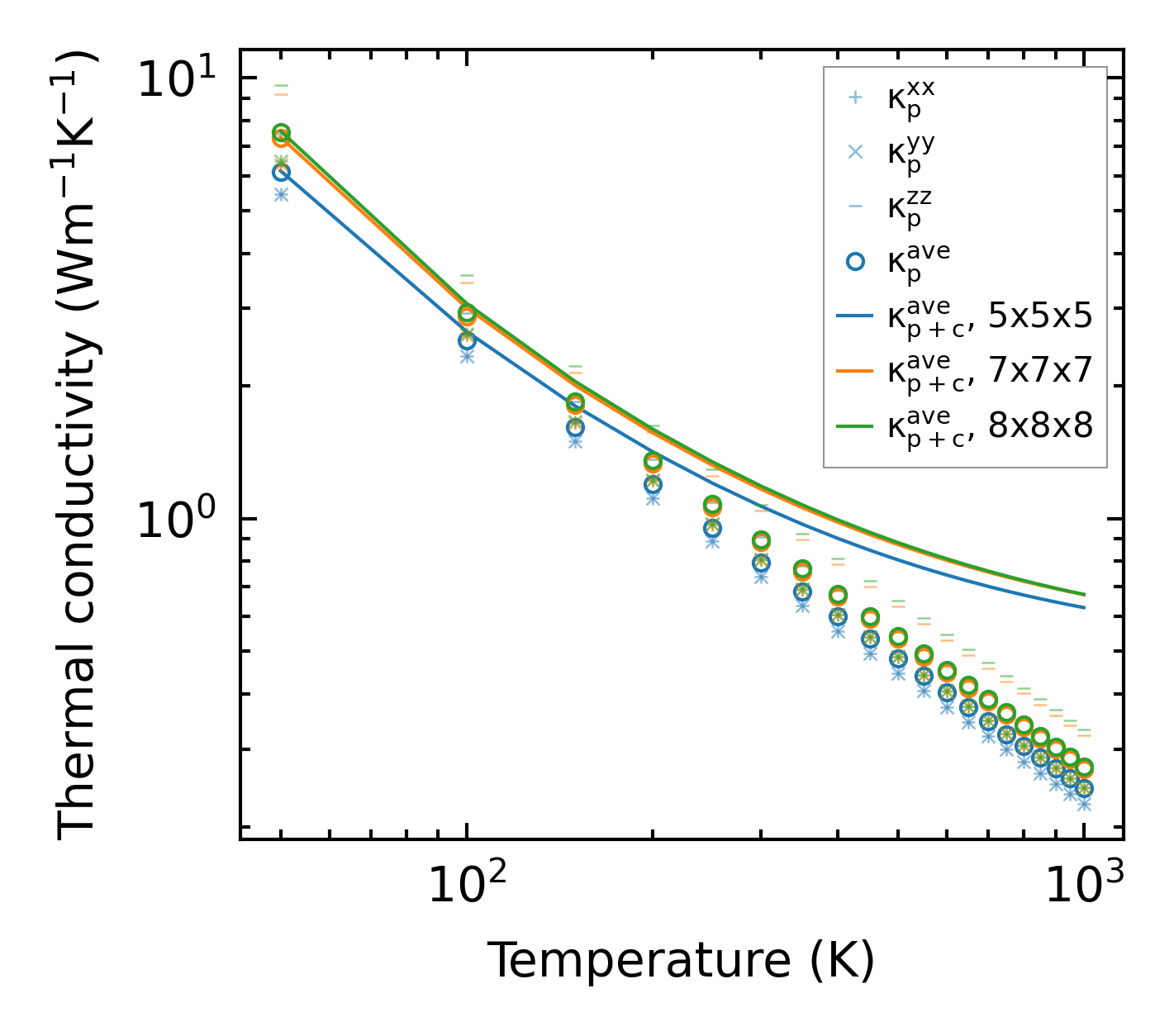

../../_images/fig_kappa6483.png — (a) Temperature-dependent lattice thermal conductivity

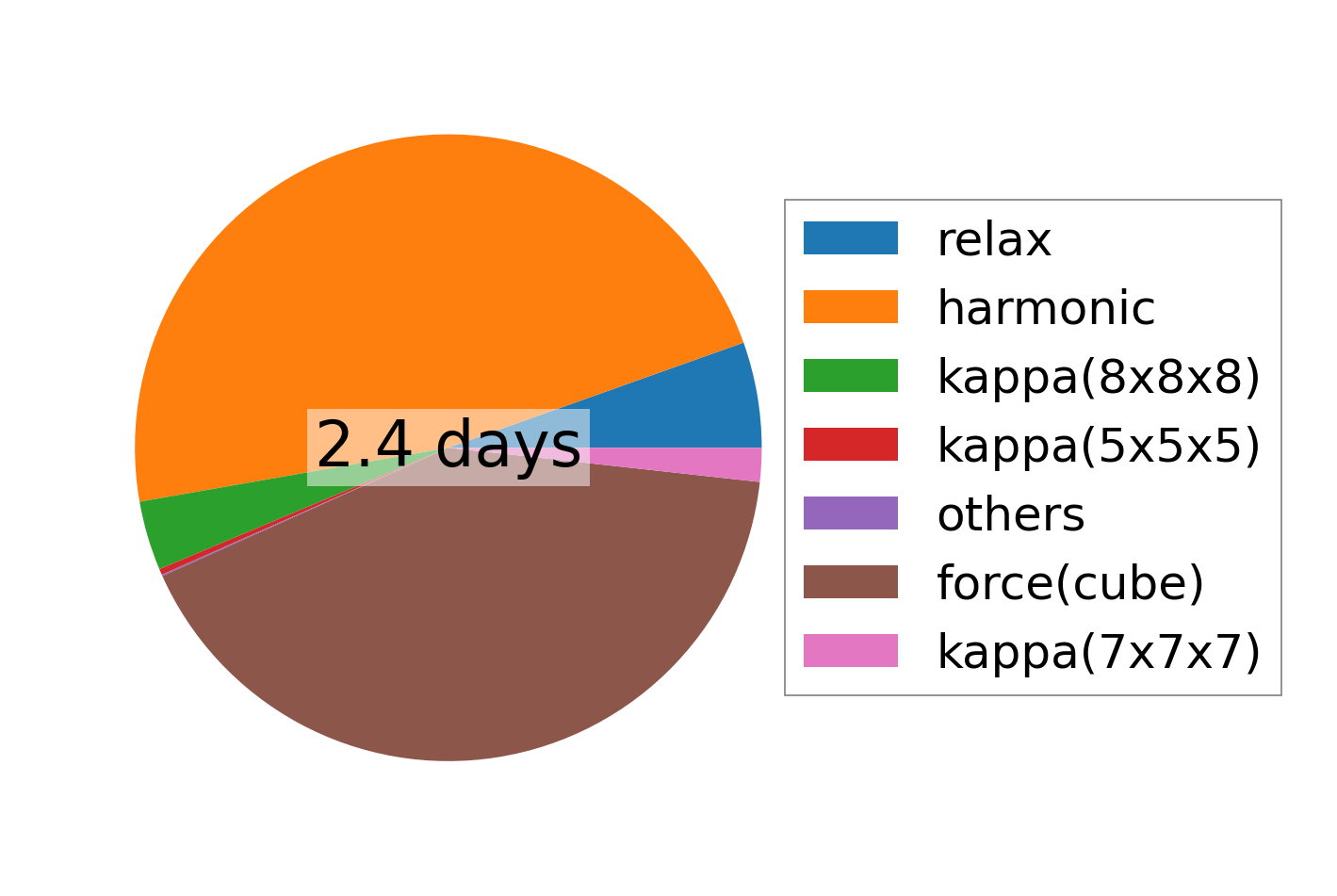

../../_images/fig_times14761.png — (b) Computation time
