mp-557631-2/AgAsXe2F10/anharm

Space group: I4/mcm (140)
Link: Materials Project
Download: mp-557631-2.tar.gz

Equation of state

../../_images/fig_bm4169.png — (a) Equation of state

Harmonic properties

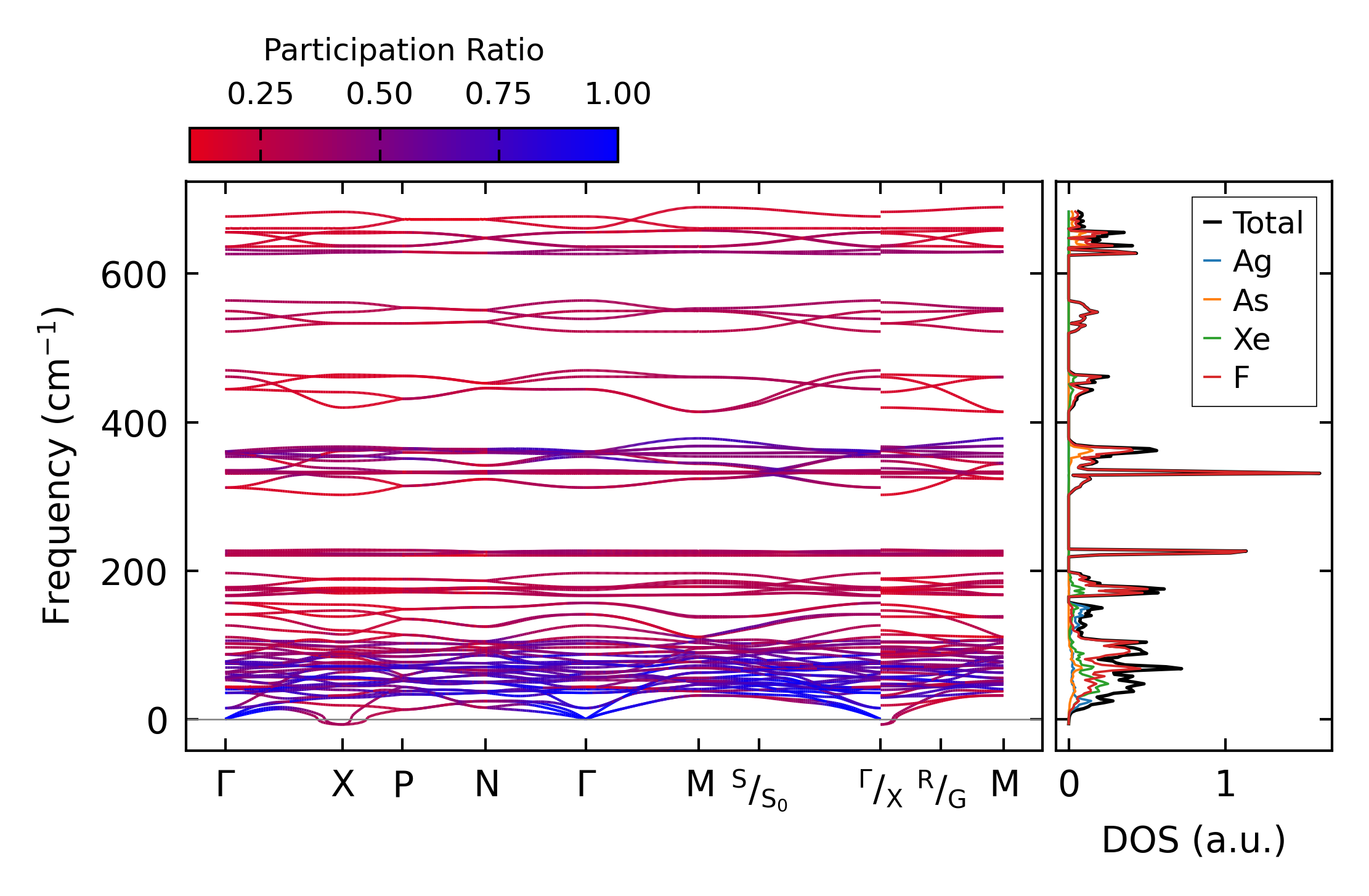

../../_images/fig_bandos_pr8142.png — (a) Phonon dispersion with participation ratio and DOS

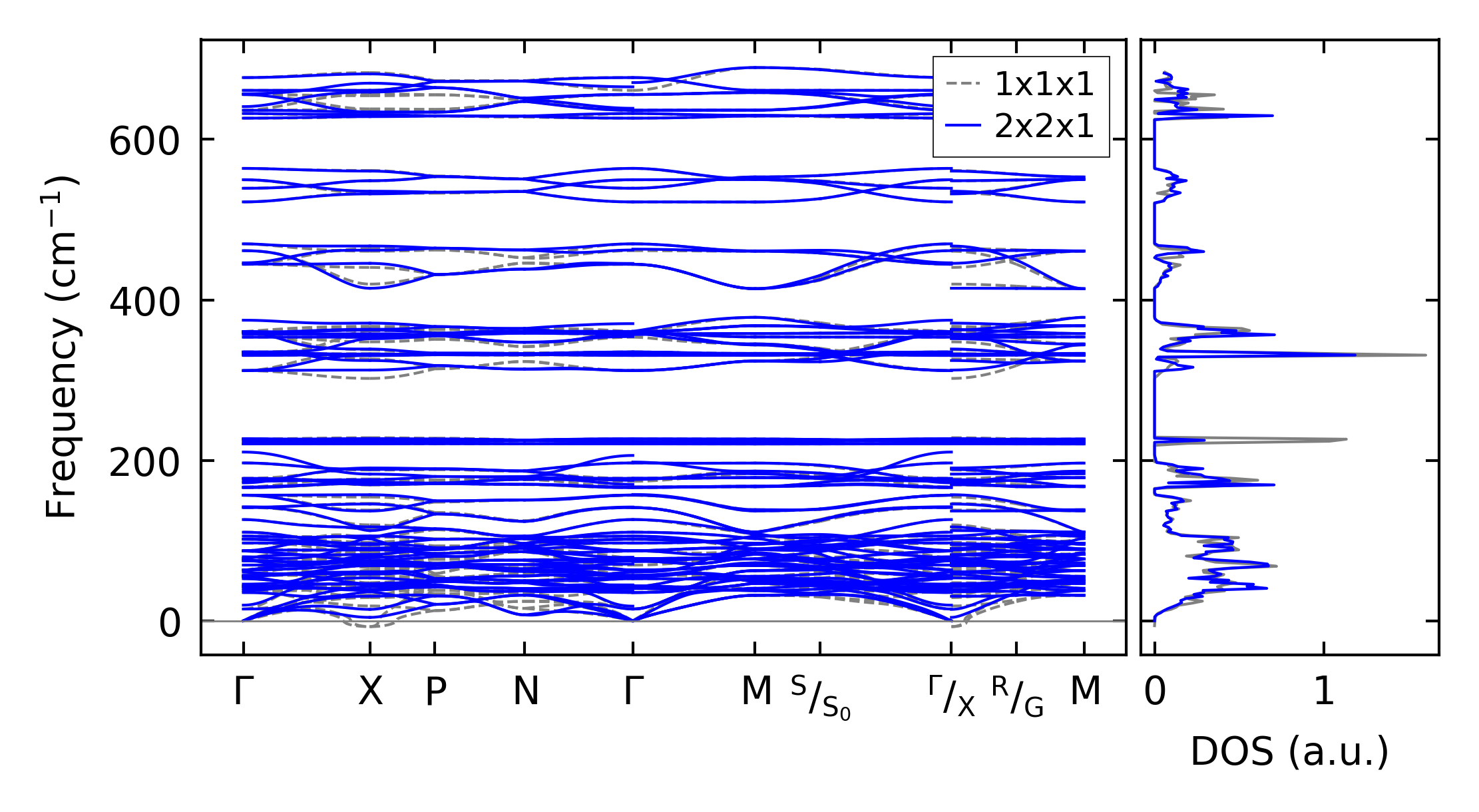

../../_images/fig_bandos11449.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo8142.png — (c) Thermodynamic properties

Grüneisen parameters

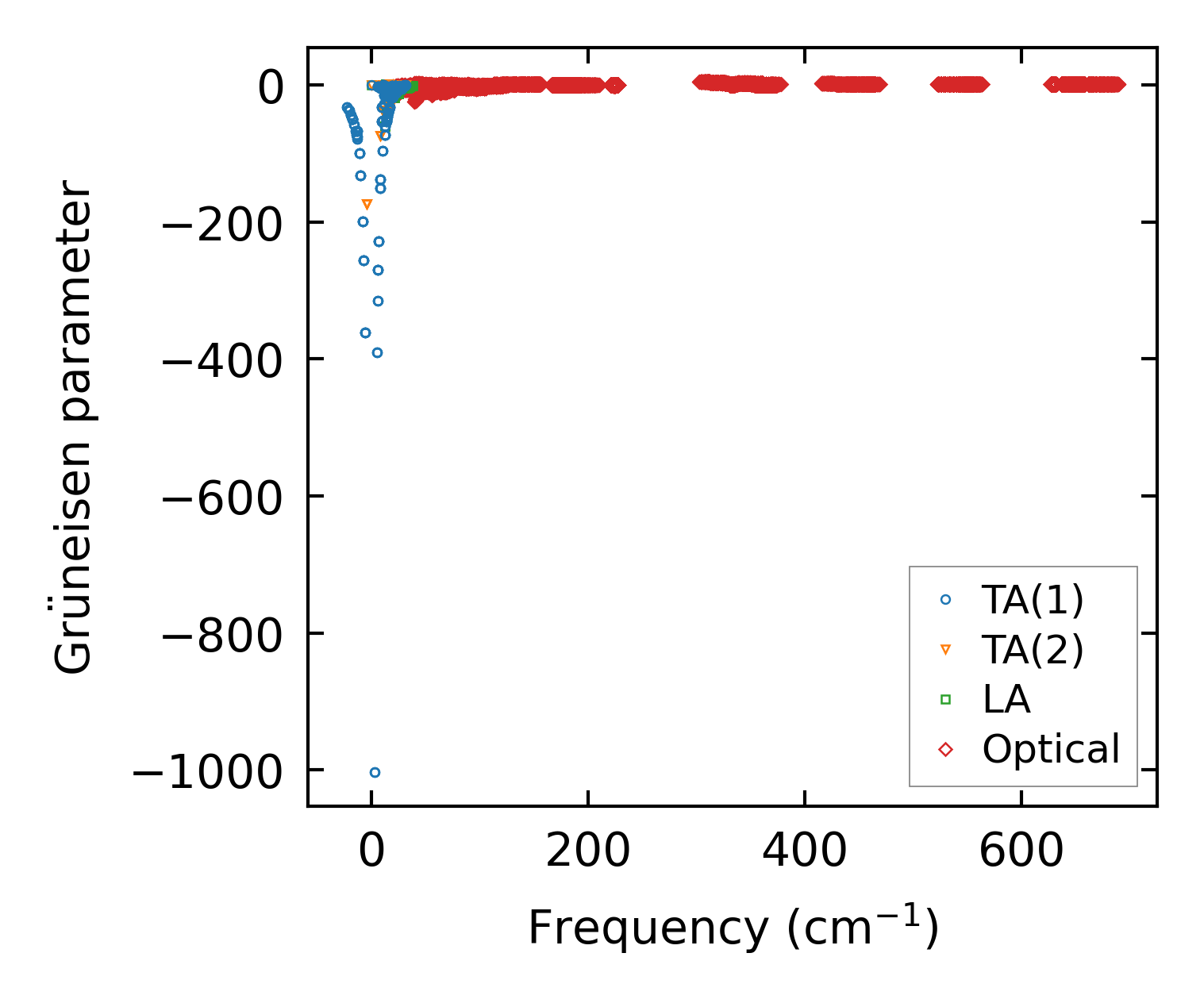

../../_images/fig_gru_all3350.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3350.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 9x9x9, supercell: 2x2x1

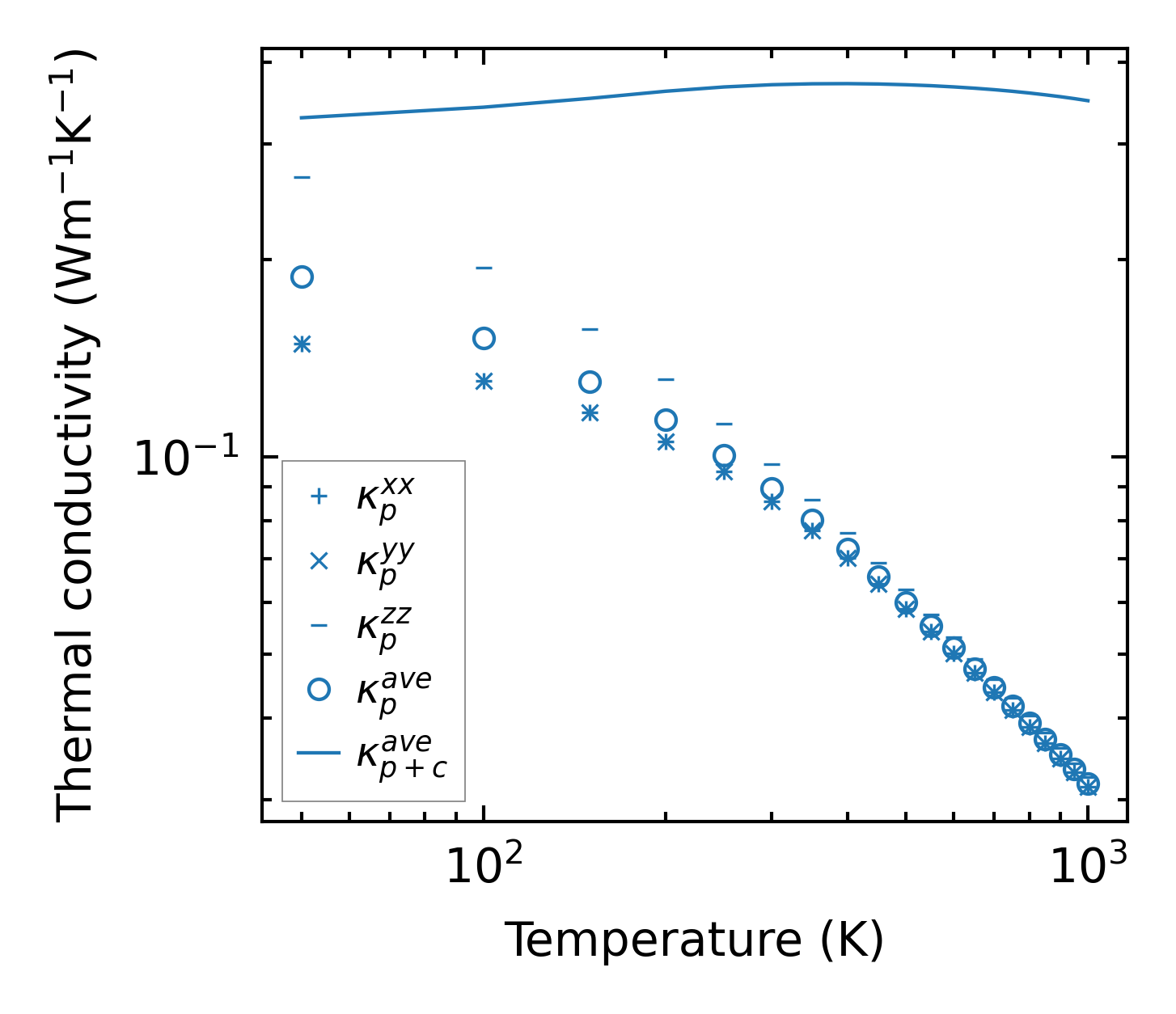

../../_images/fig_kappa6341.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3393.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3320.png — (a) Phonon lifetime due to phonon-phonon scattering

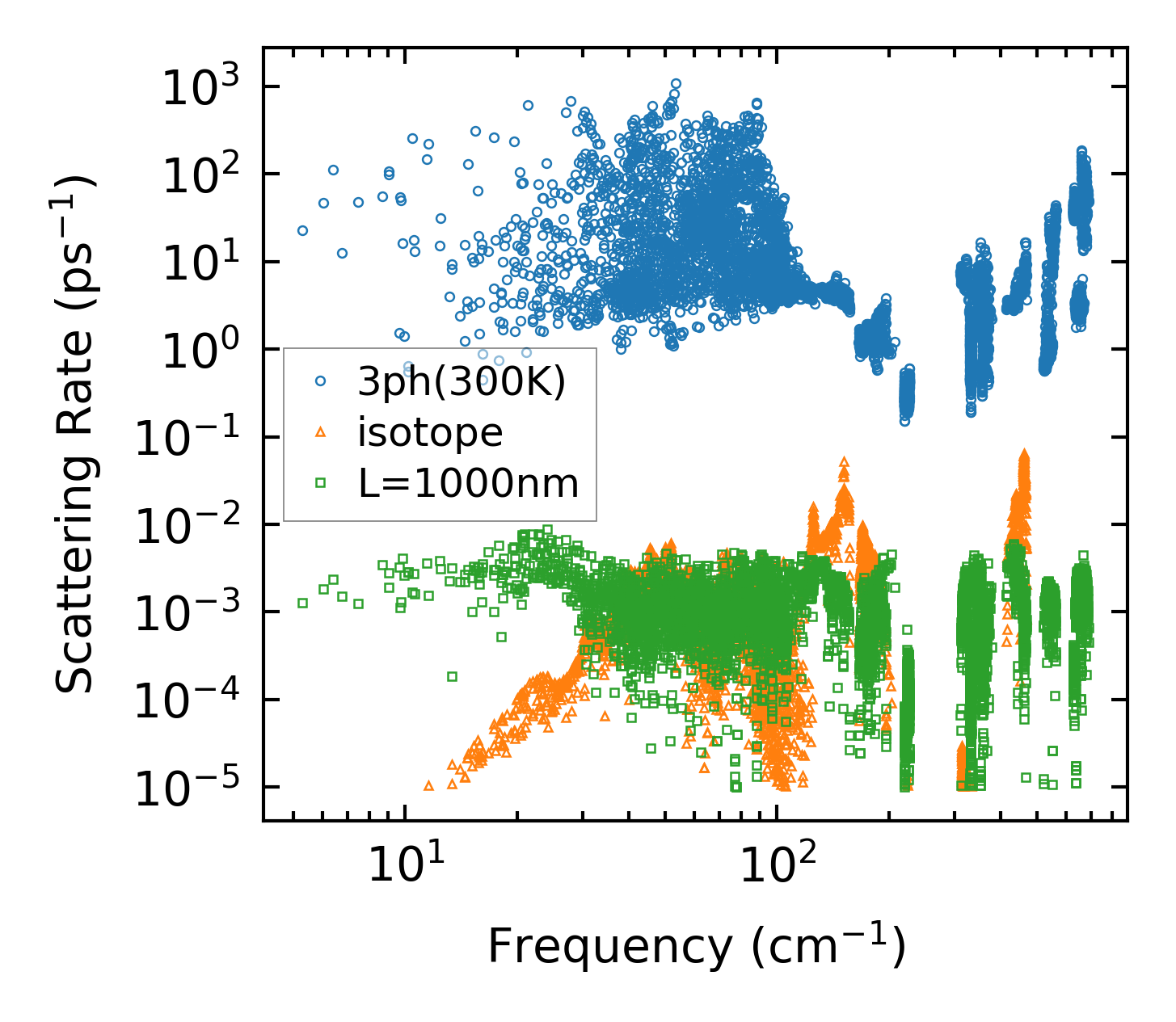

../../_images/fig_scat_rates3319.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3320.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

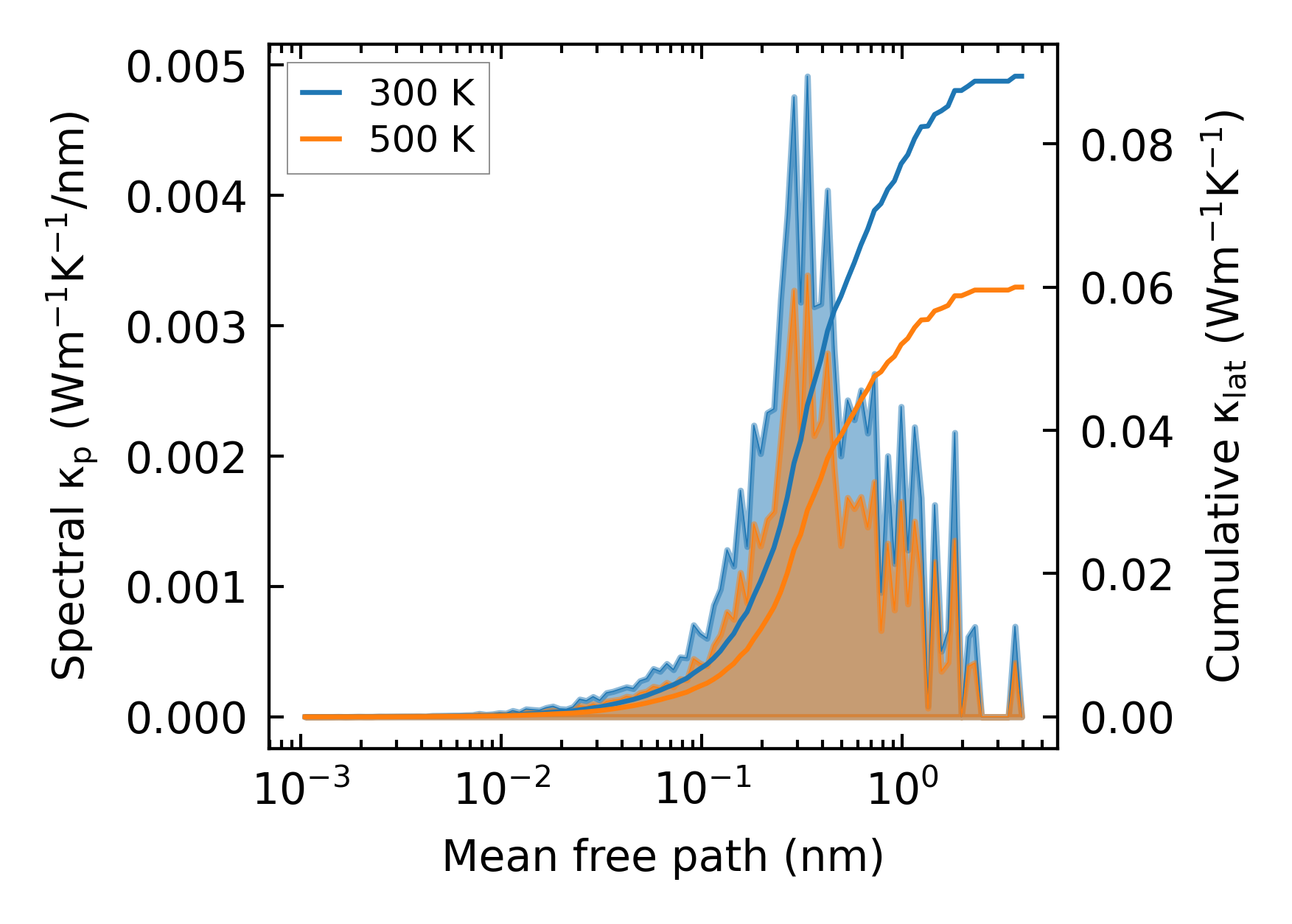

../../_images/fig_cumu_mfp3319.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

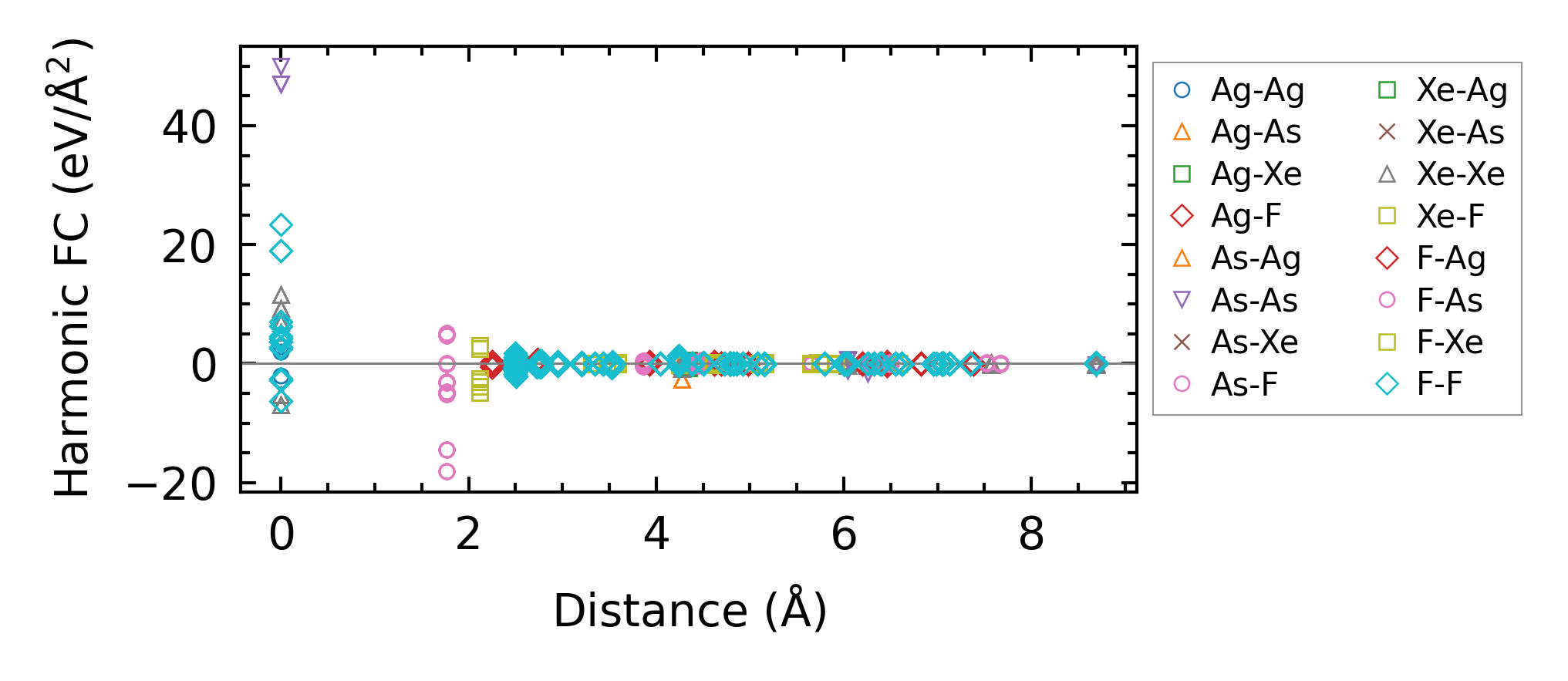

../../_images/fig_fc27904.png — (a) Force constants w.r.t atomic distance

Summary

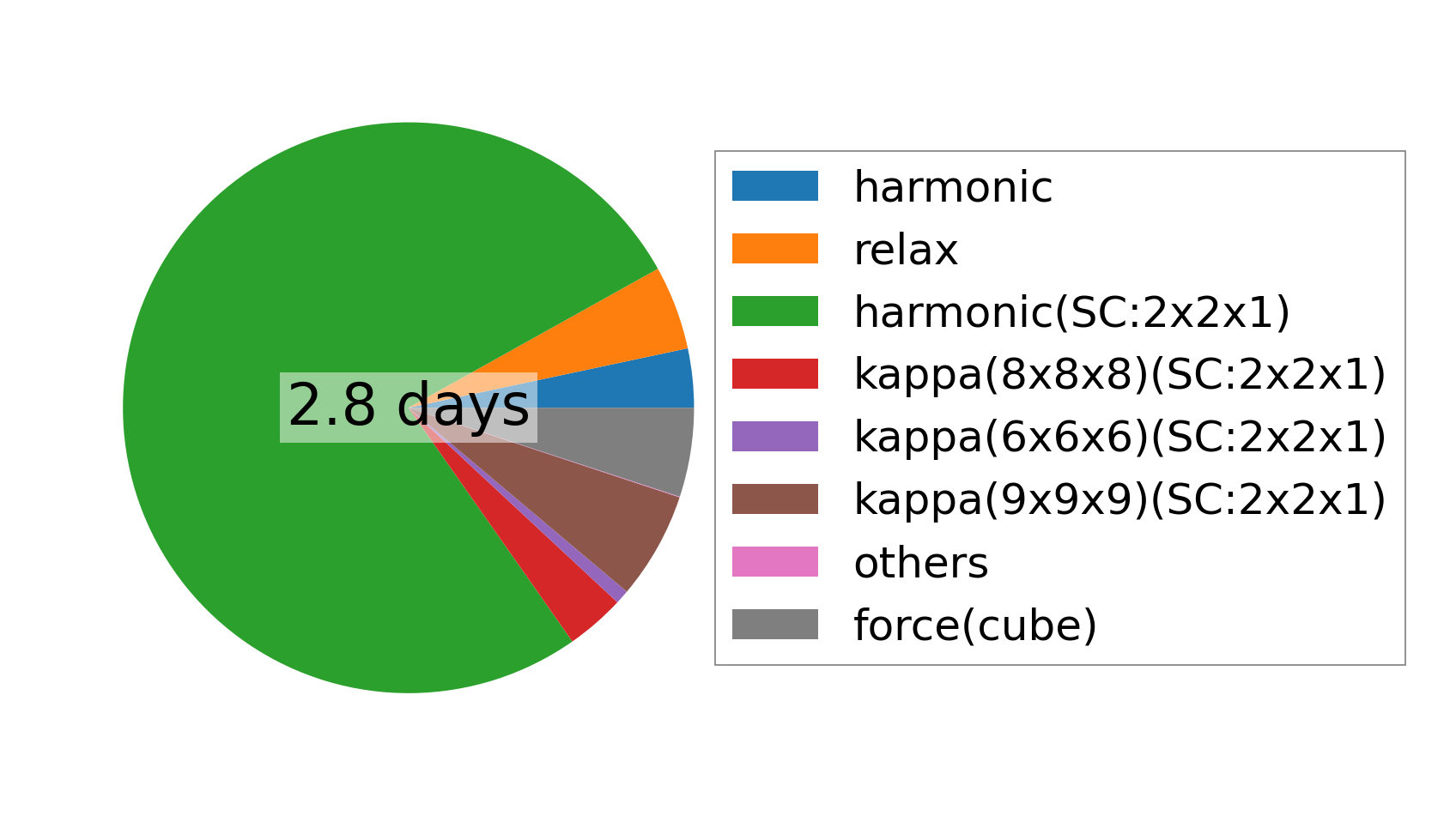

../../_images/fig_times14337.png — (a) Computation time
