mp-557154/NaGaO2/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-557154.tar.gz

Harmonic properties

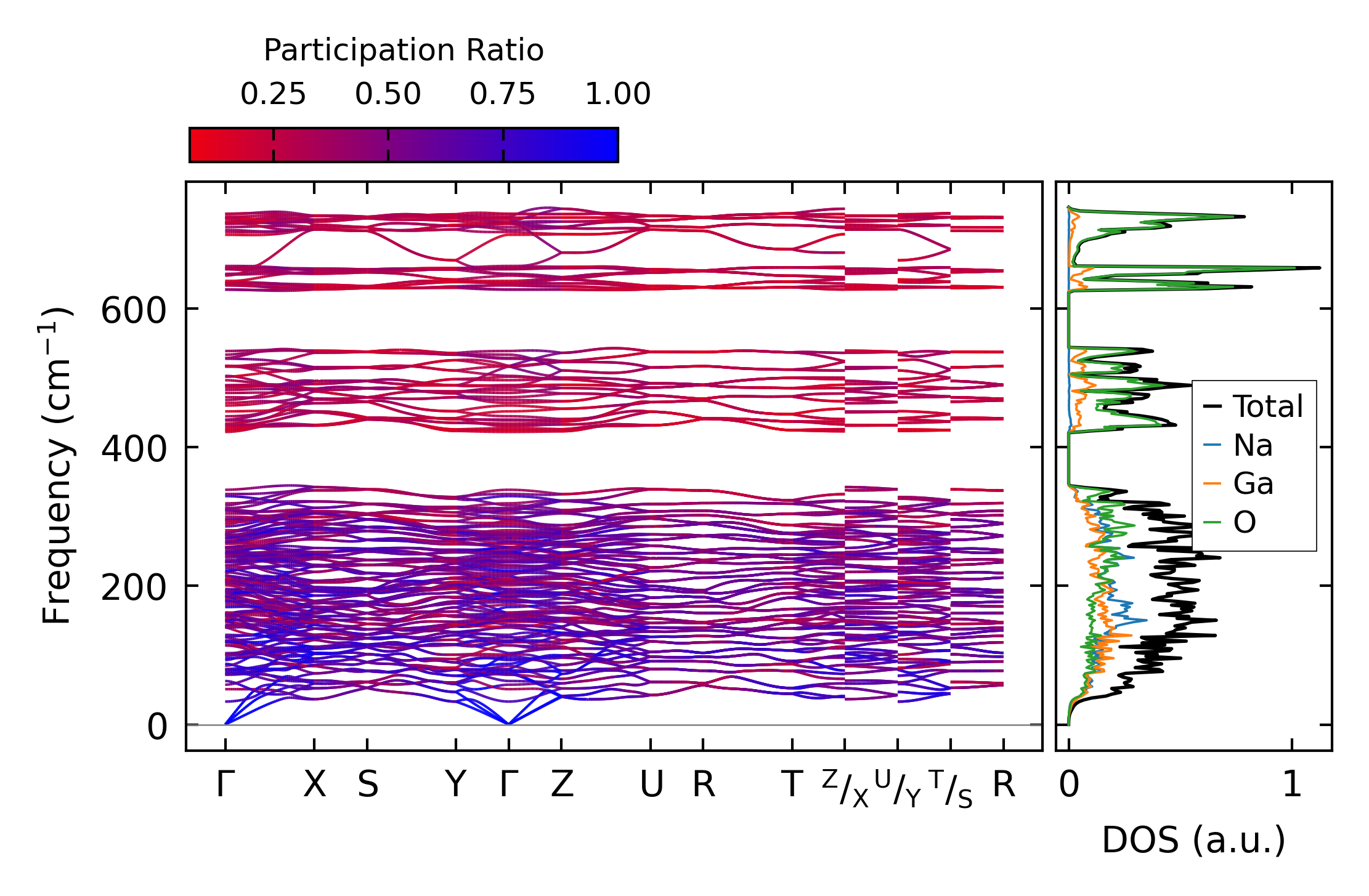

../../_images/fig_bandos_pr8381.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8381.png — (b) Thermodynamic properties

Grüneisen parameters

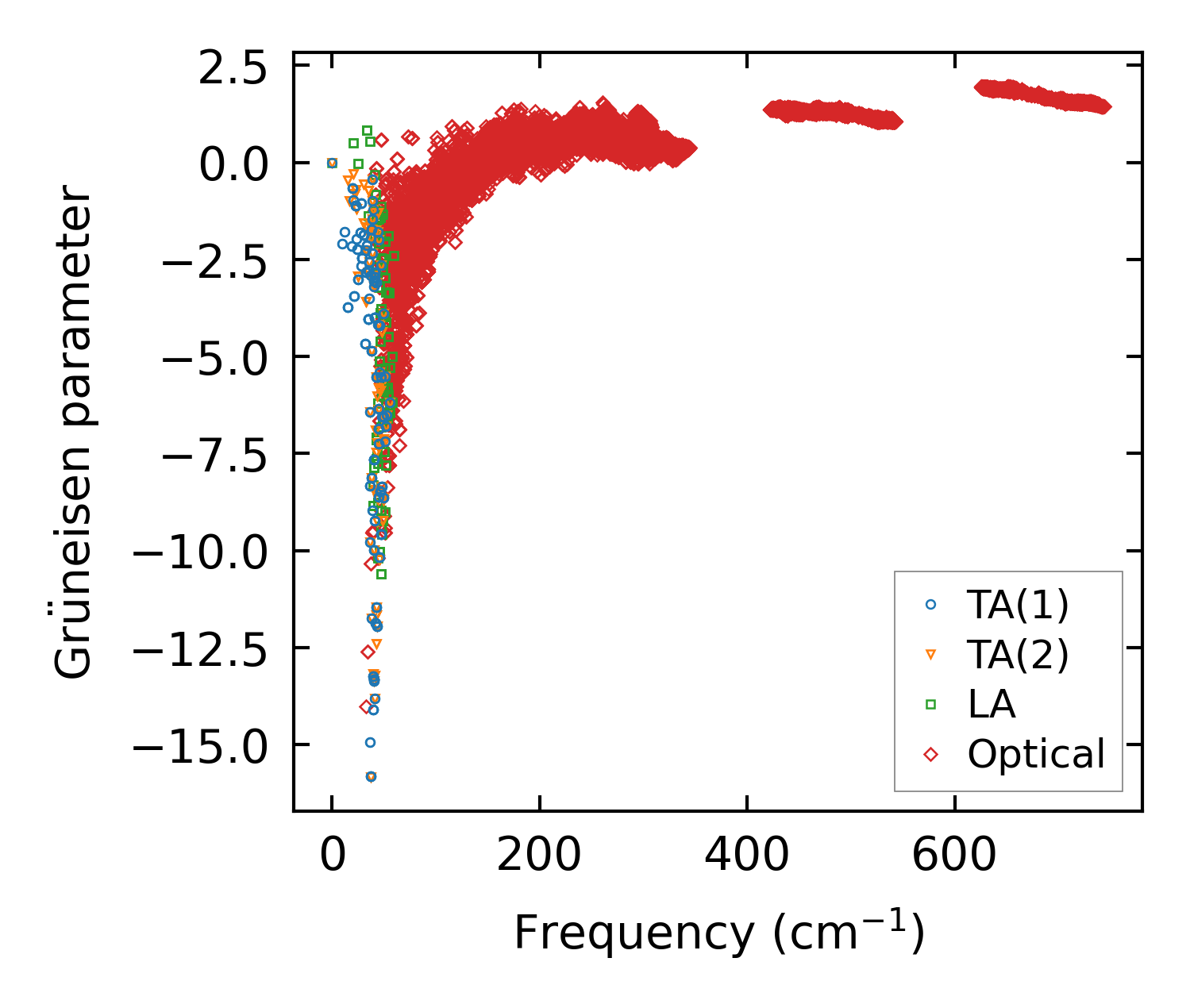

../../_images/fig_gru_all3417.png — (a) Grüneisen parameters

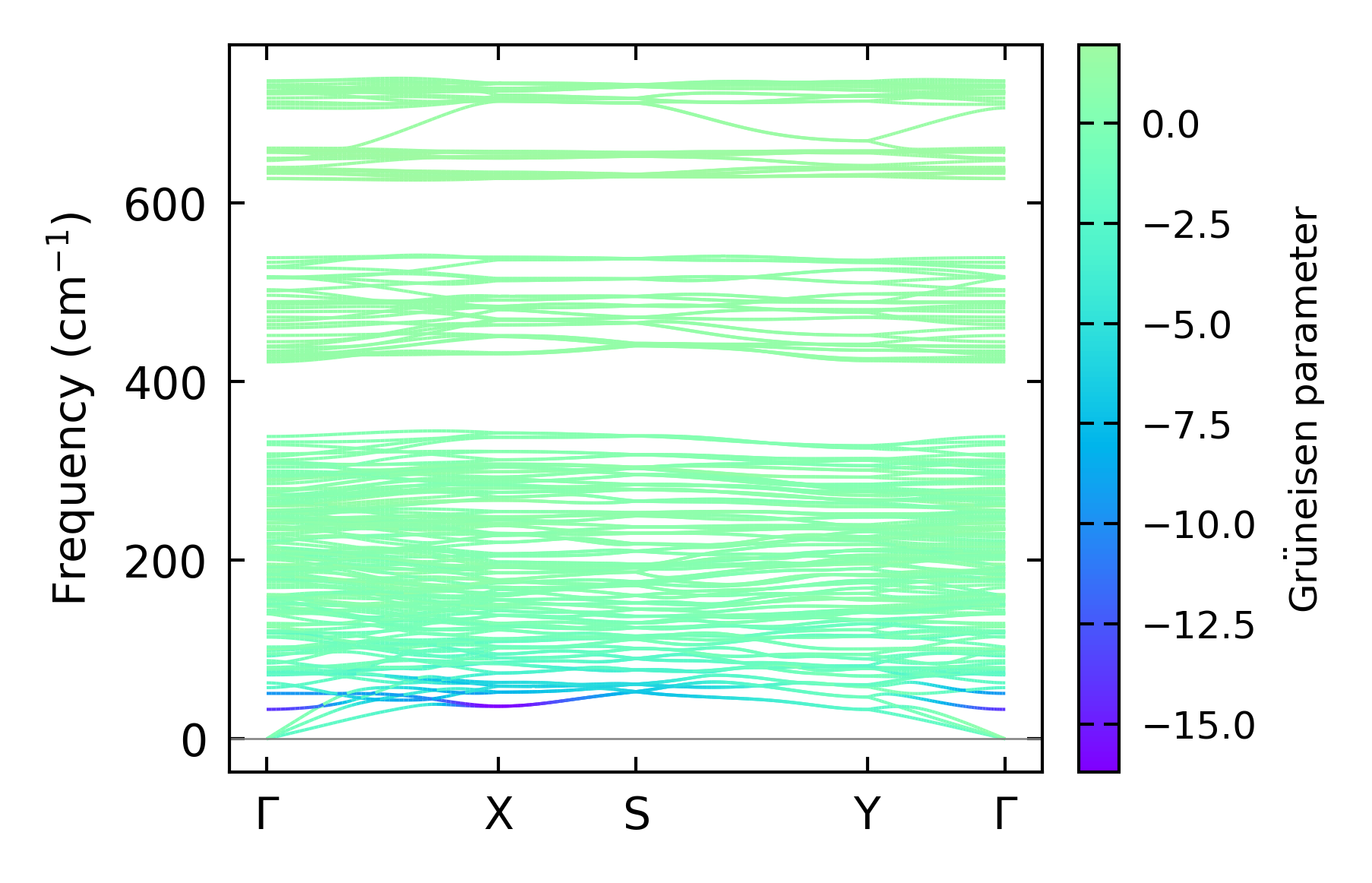

../../_images/fig_gruneisen3417.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x6x4, supercell: 2x1x1

../../_images/fig_kappa6462.png — (a) Temperature-dependent lattice thermal conductivity

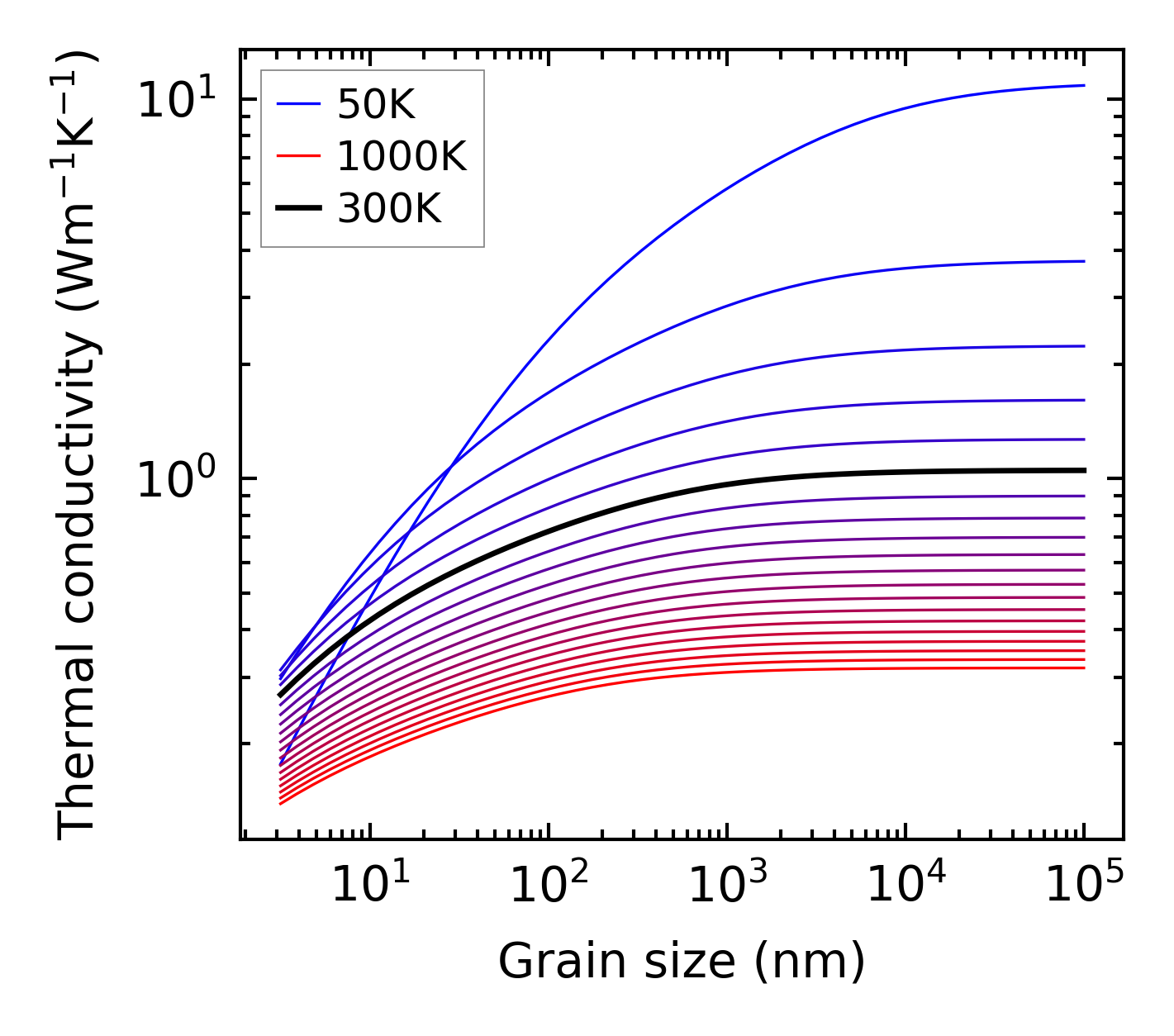

../../_images/fig_kappa_vs_grain_size3460.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

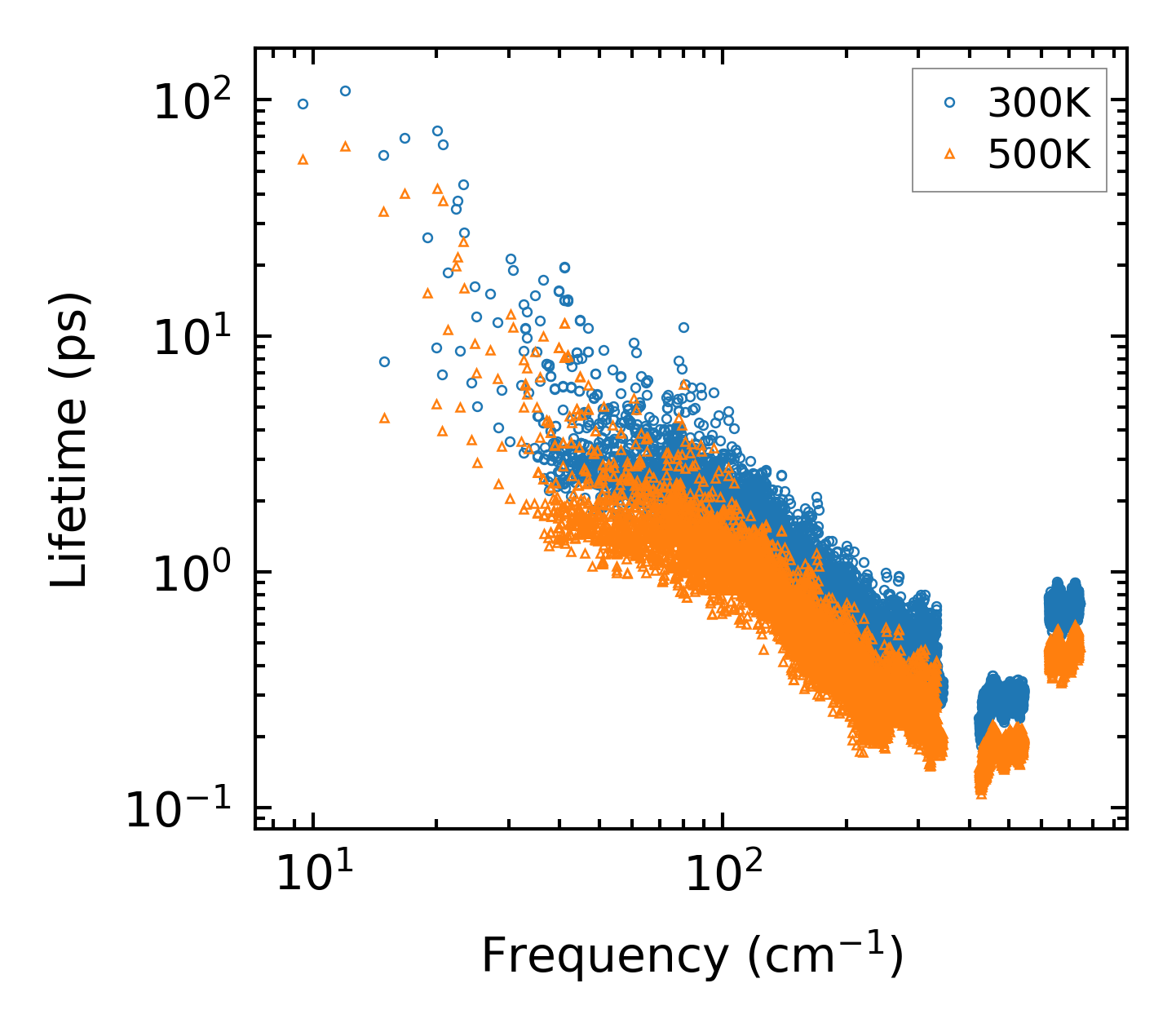

../../_images/fig_lifetime3385.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3384.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3385.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3384.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc28143.png — (a) Force constants w.r.t atomic distance

Summary

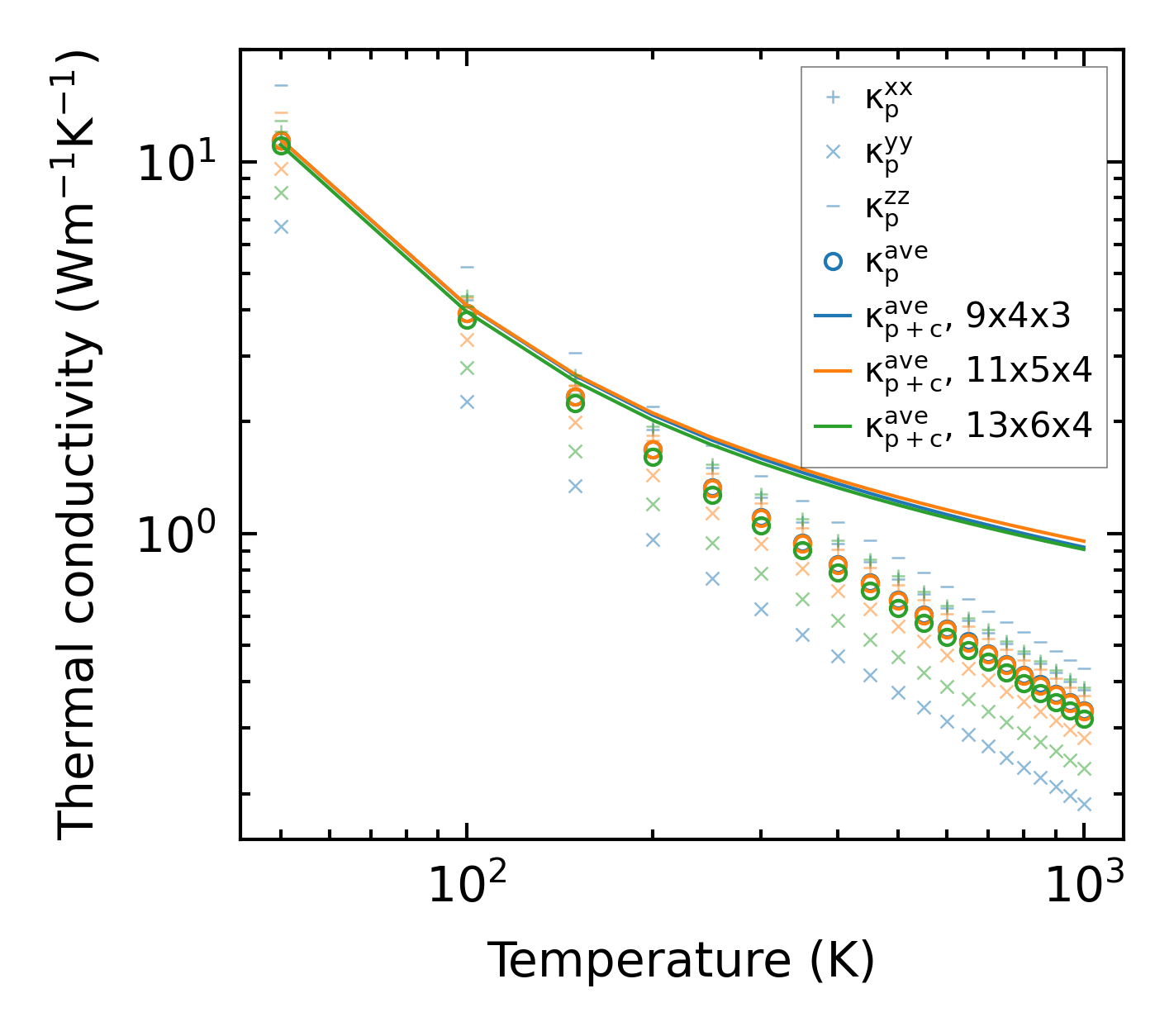

../../_images/fig_kappa6463.png — (a) Temperature-dependent lattice thermal conductivity

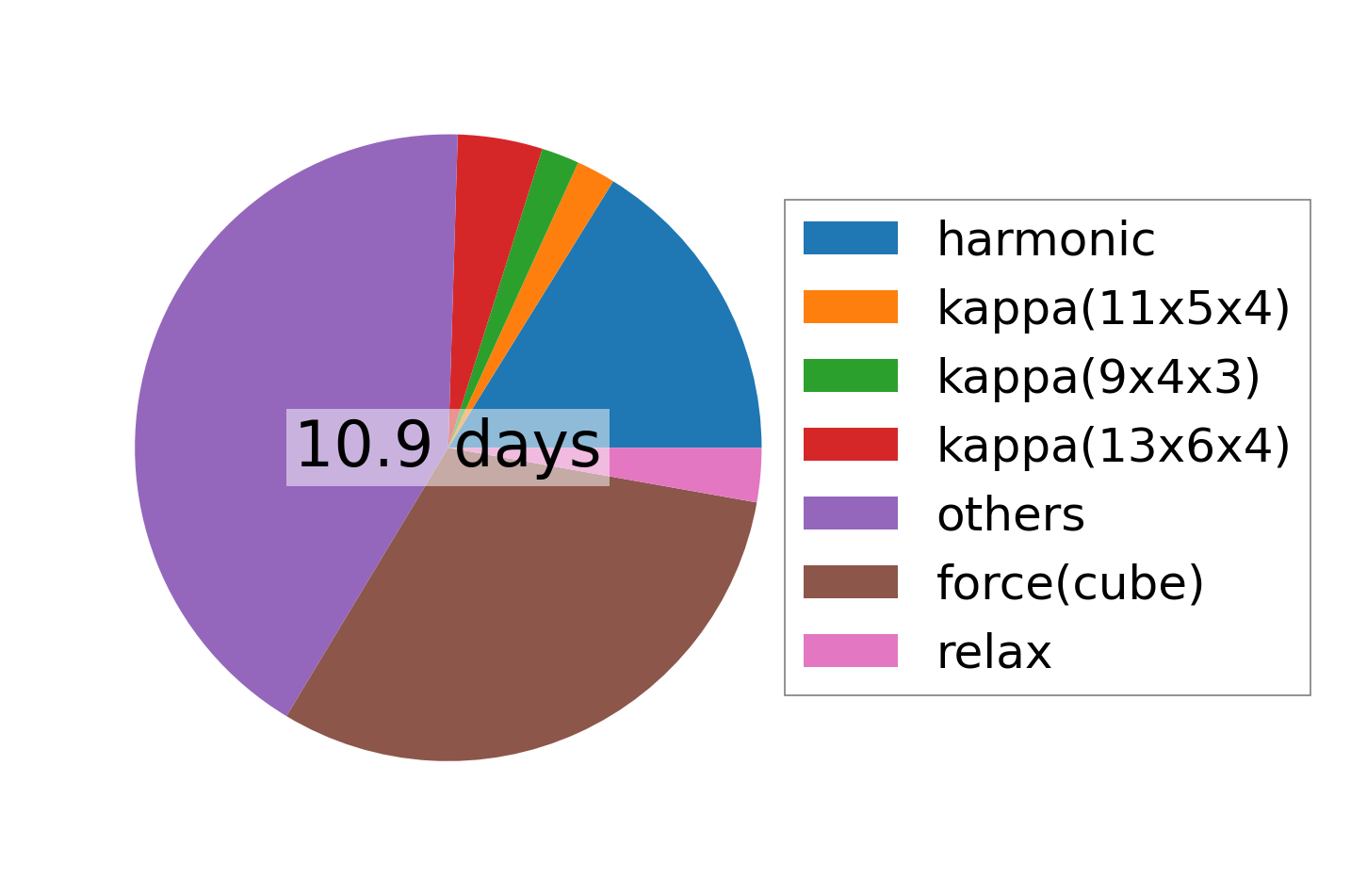

../../_images/fig_times14715.png — (b) Computation time
