mp-557798/K5Li2NdF10/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-557798.tar.gz

Harmonic properties

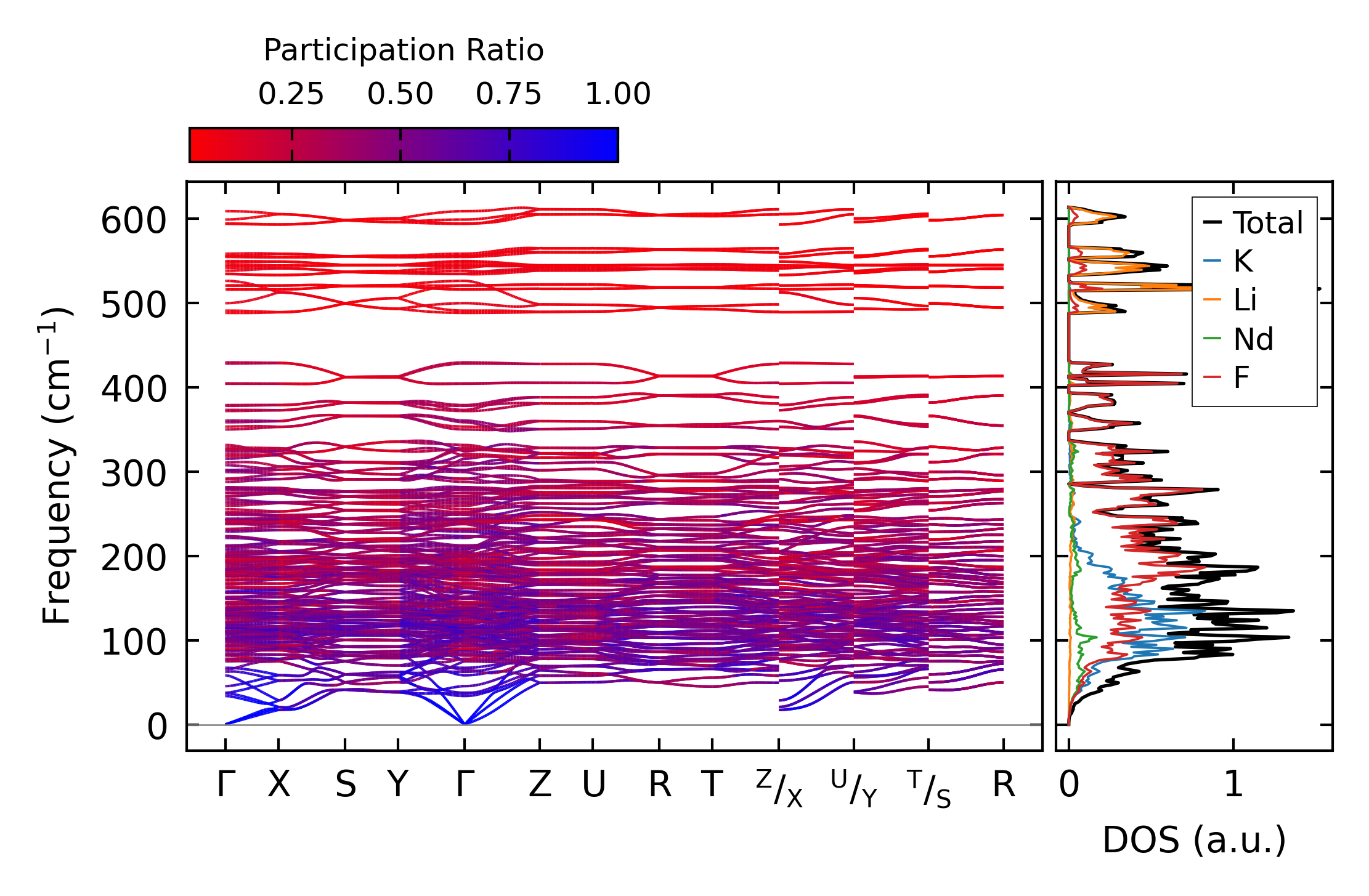

../../_images/fig_bandos_pr8184.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8184.png — (b) Thermodynamic properties

Grüneisen parameters

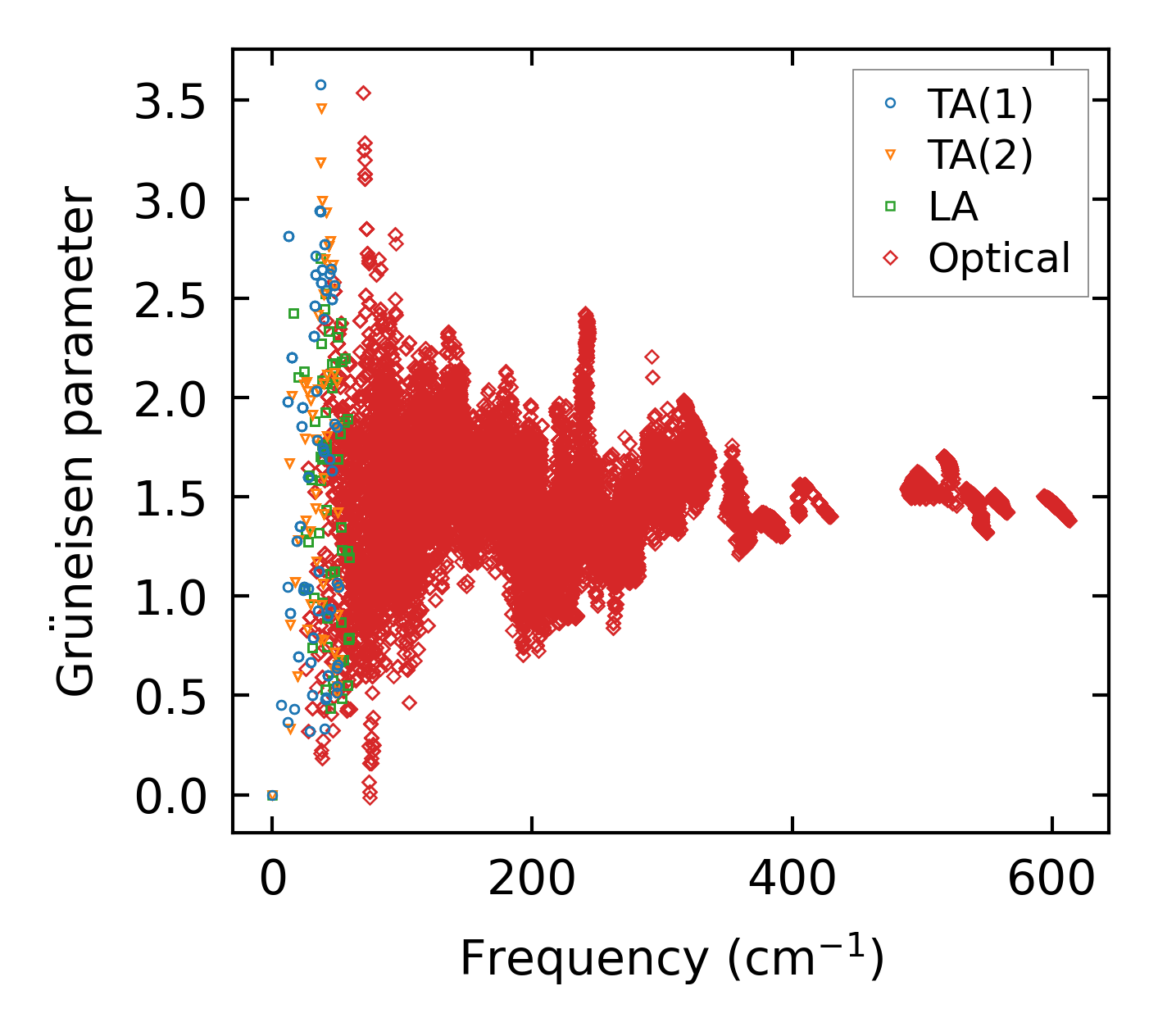

../../_images/fig_gru_all3359.png — (a) Grüneisen parameters

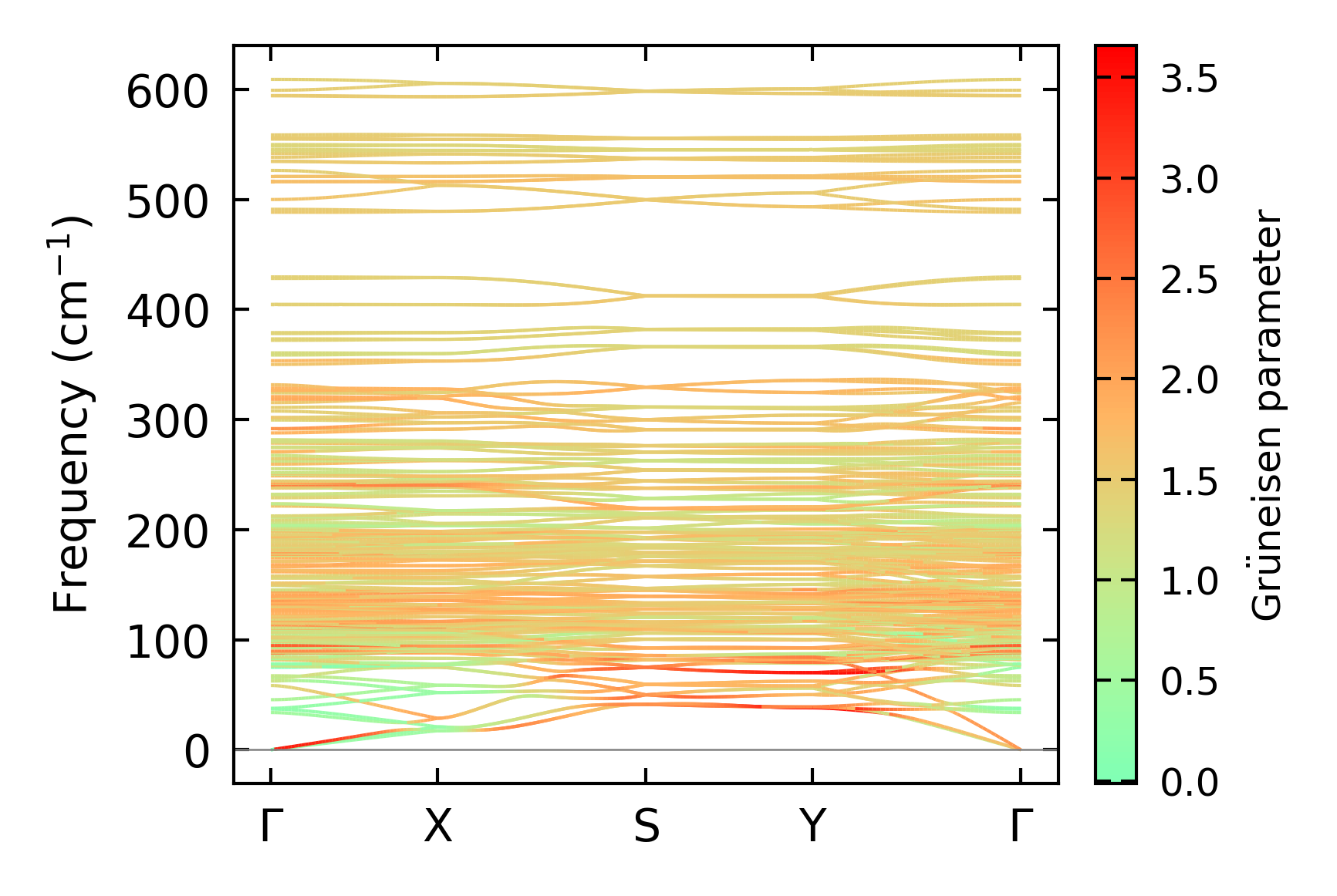

../../_images/fig_gruneisen3359.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 3x9x10, supercell: 1x1x2

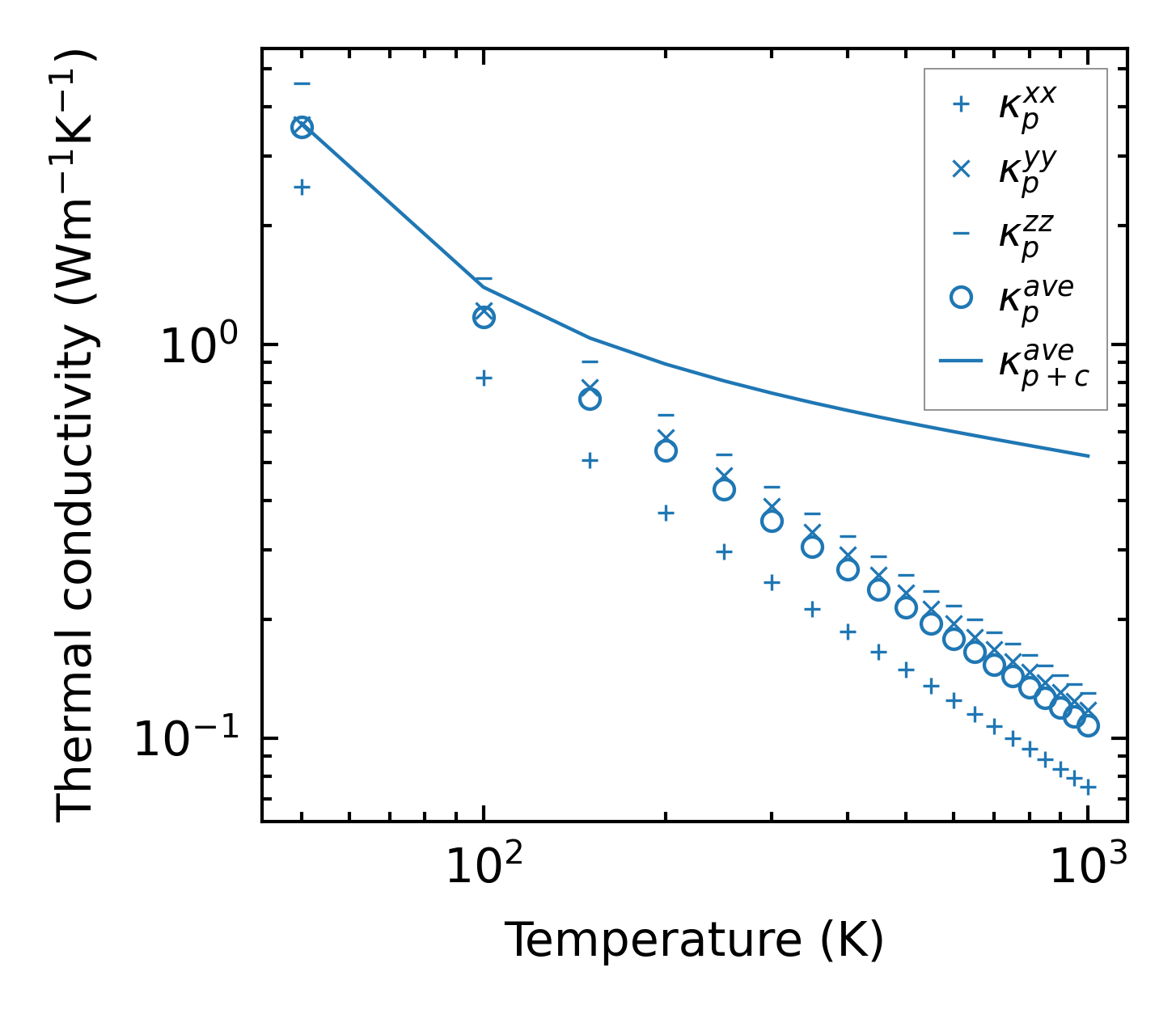

../../_images/fig_kappa6358.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3403.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime3329.png — (a) Phonon lifetime due to phonon-phonon scattering

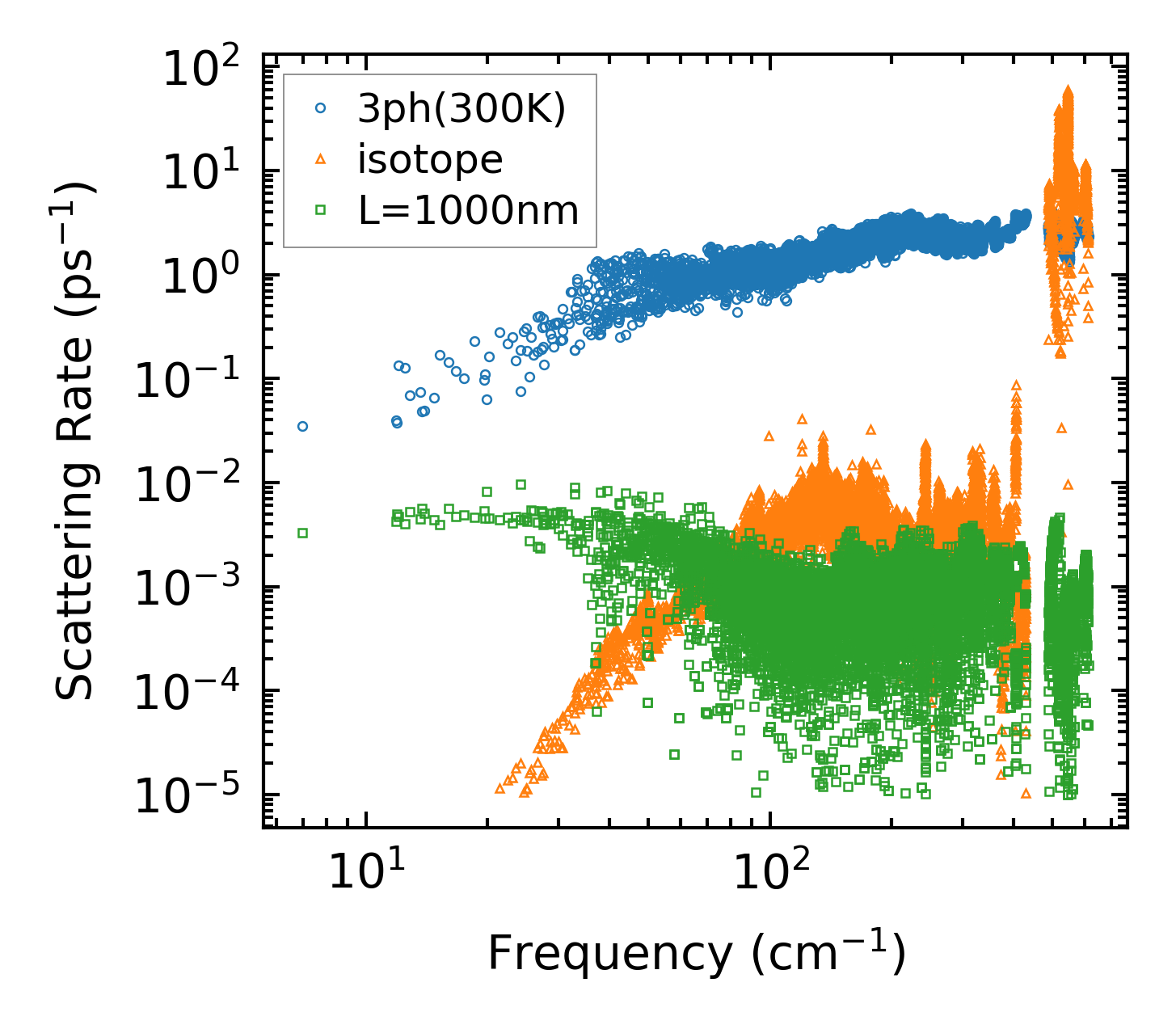

../../_images/fig_scat_rates3328.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

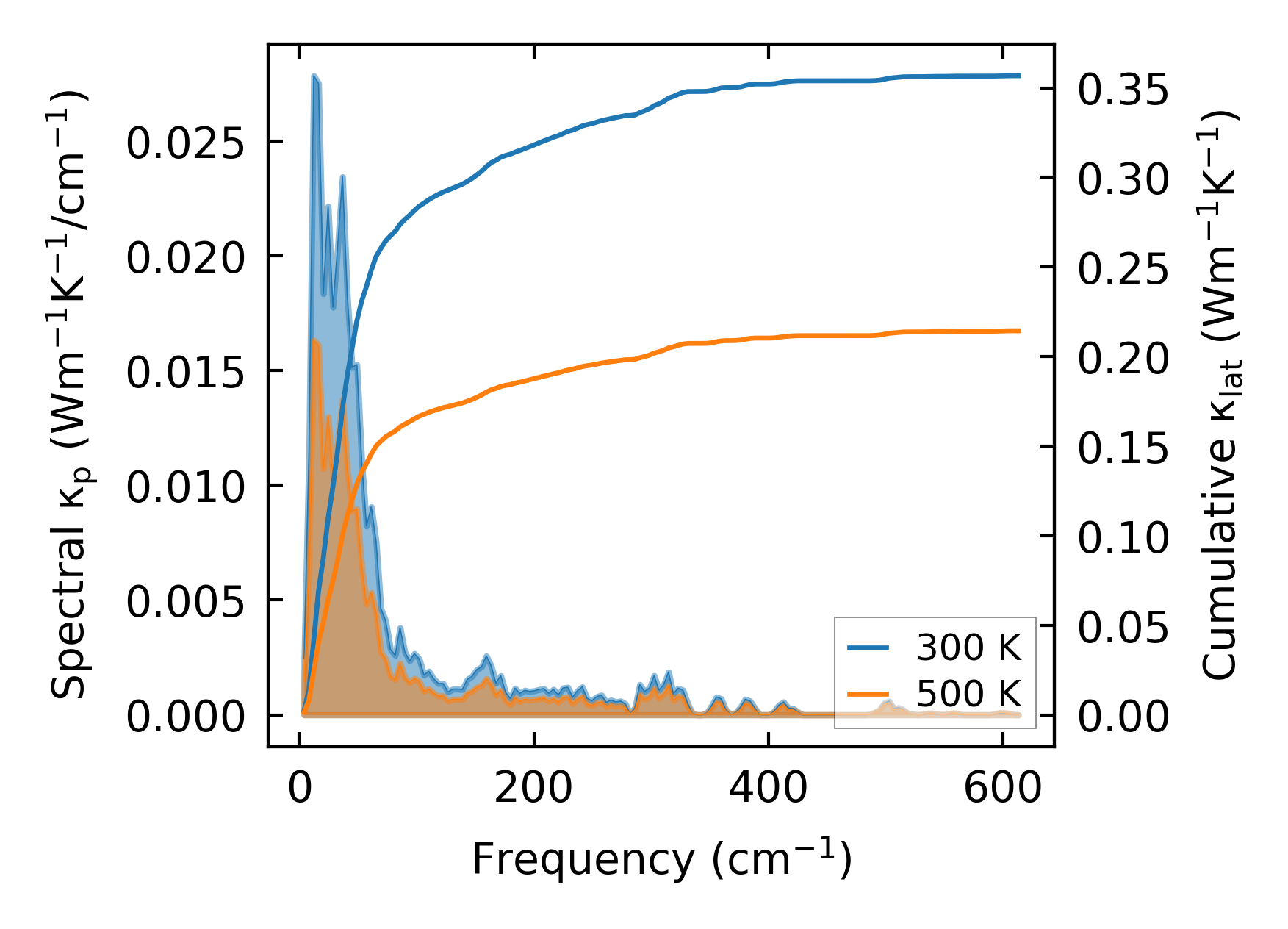

../../_images/fig_cumu_frequency3329.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

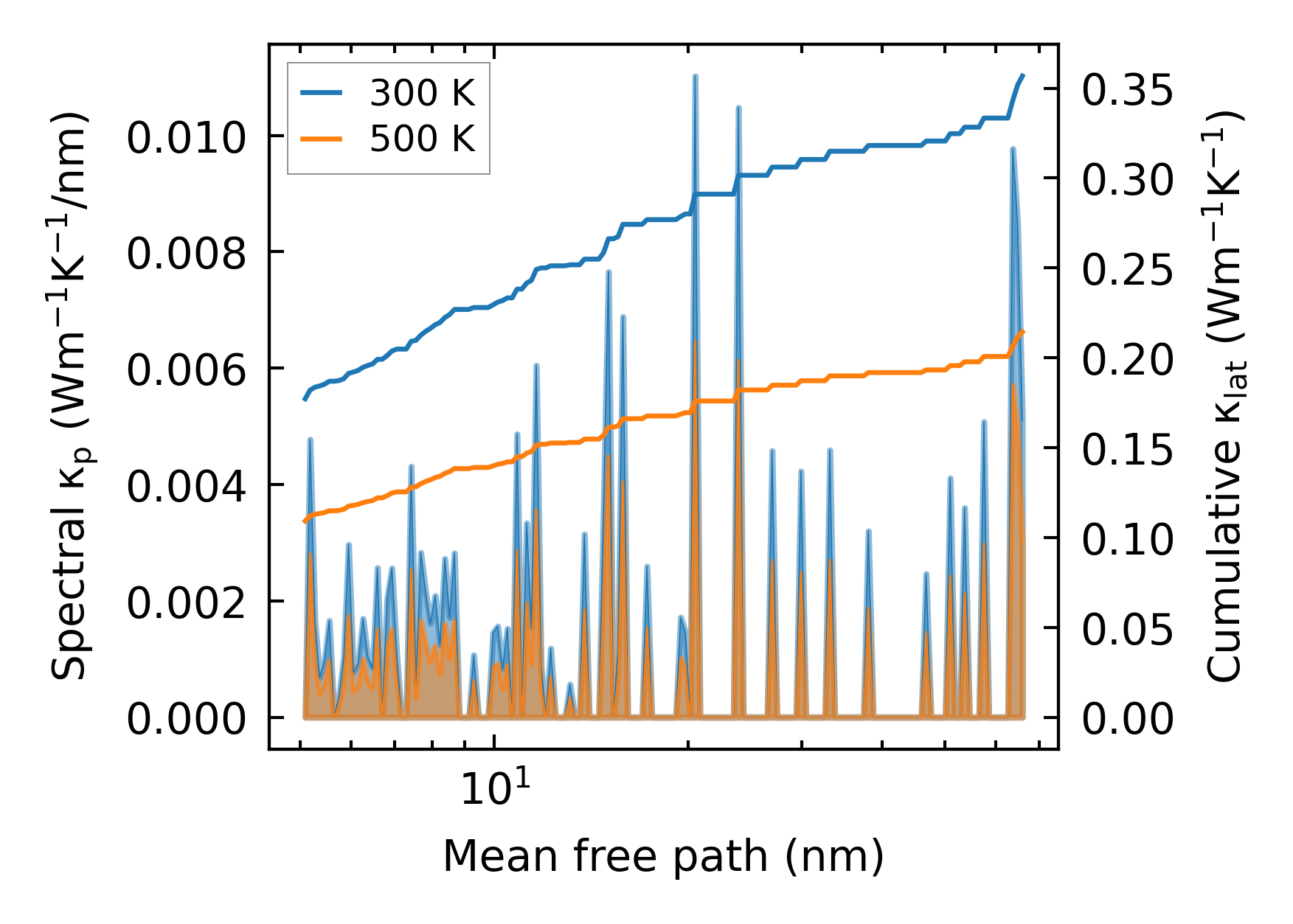

../../_images/fig_cumu_mfp3328.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc27946.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6359.png — (a) Temperature-dependent lattice thermal conductivity

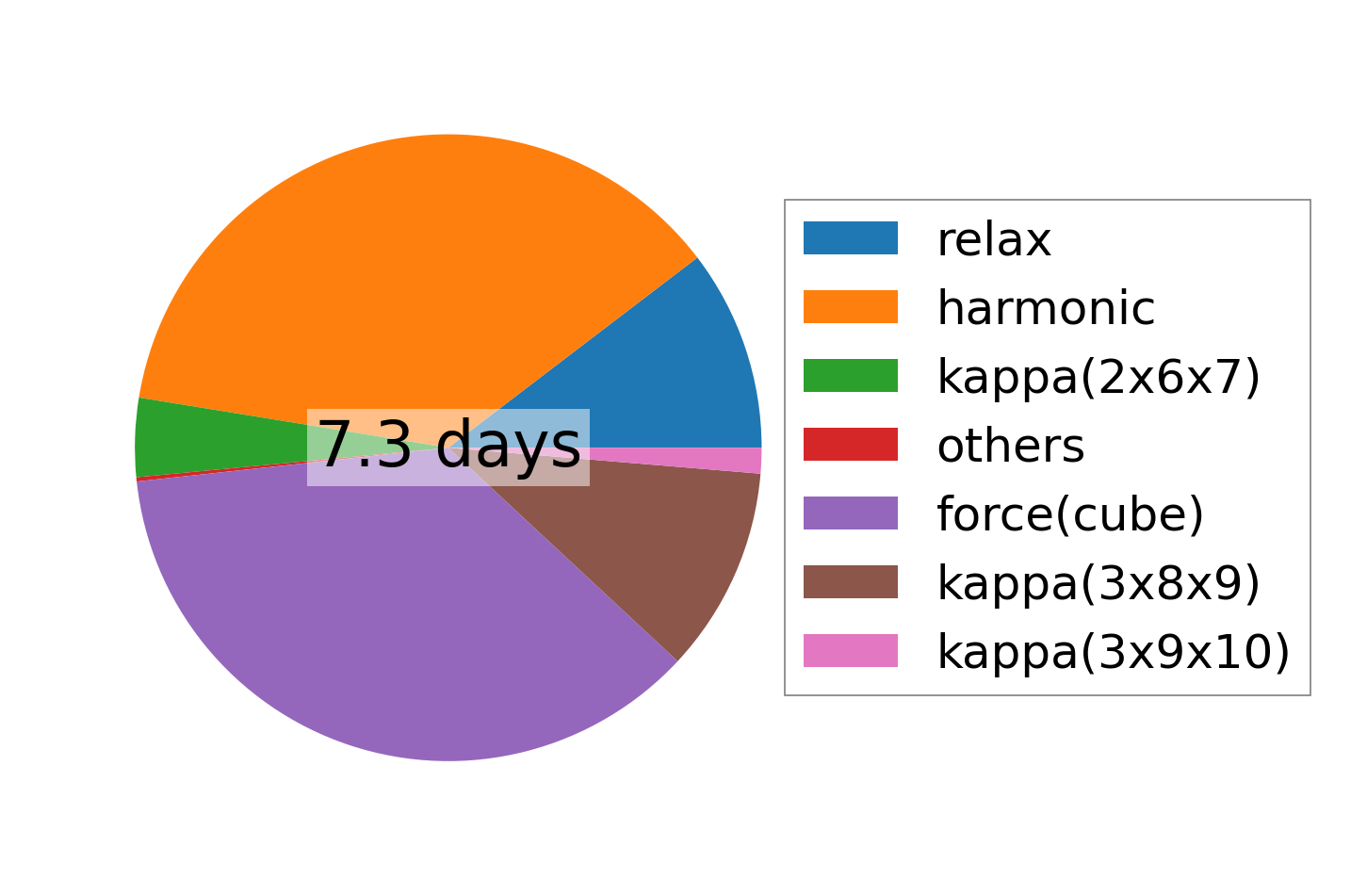

../../_images/fig_times14406.png — (b) Computation time
