mp-557482/Ca5As3O12F/anharm

Space group: P-1 (2)
Link: Materials Project
Download: mp-557482.tar.gz

Harmonic properties

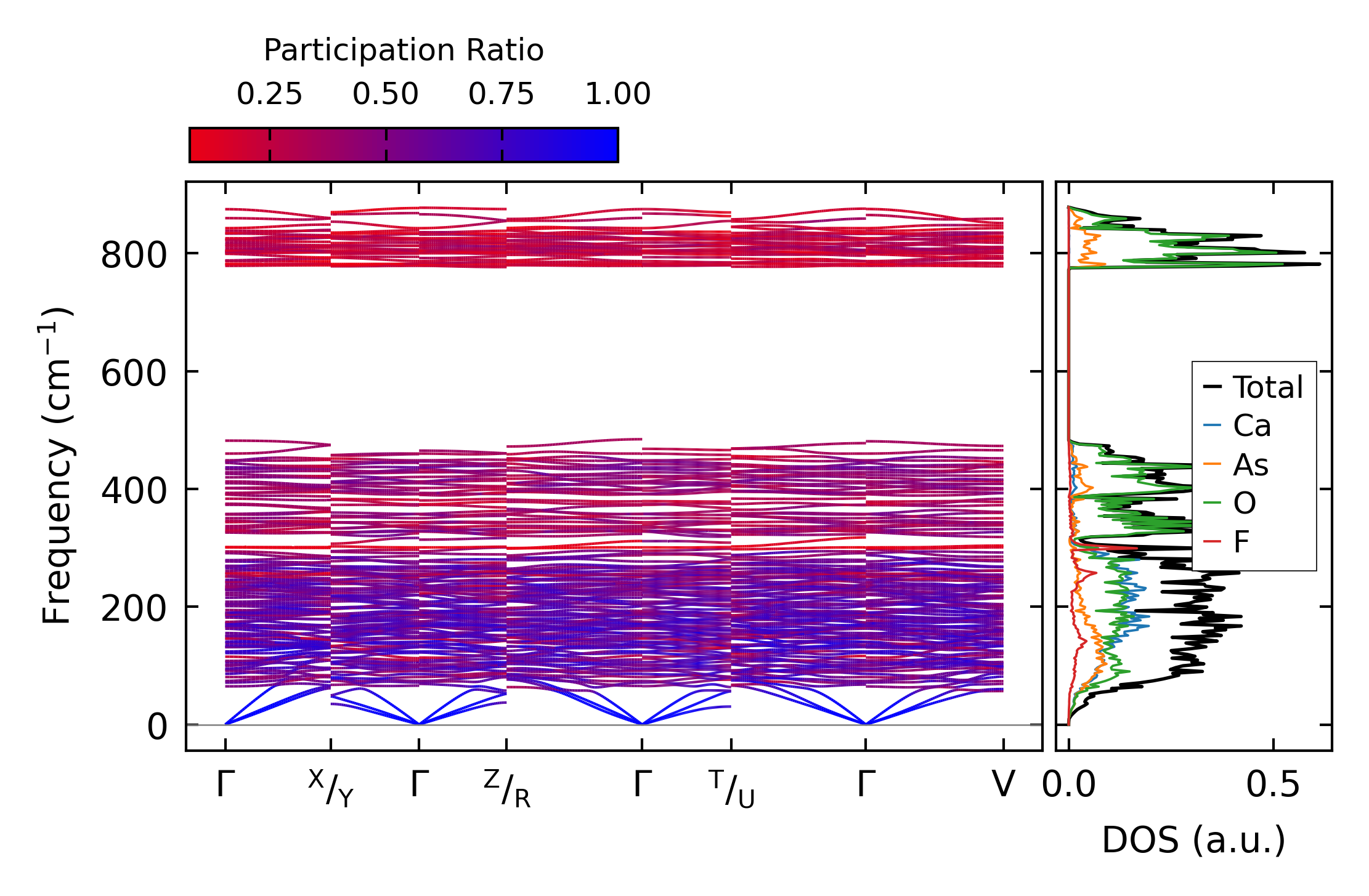

../../_images/fig_bandos_pr8452.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8452.png — (b) Thermodynamic properties

Grüneisen parameters

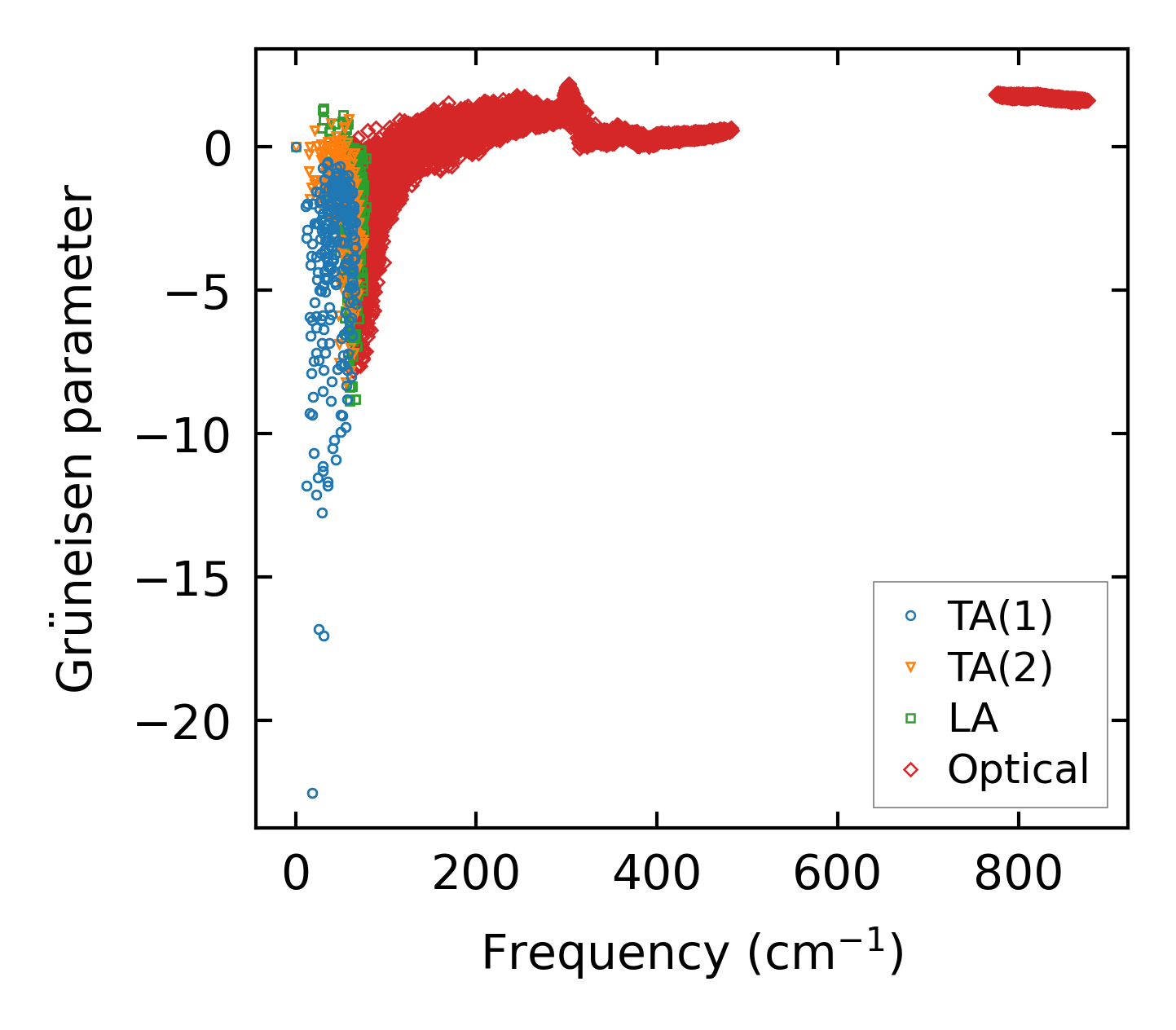

../../_images/fig_gru_all3444.png — (a) Grüneisen parameters

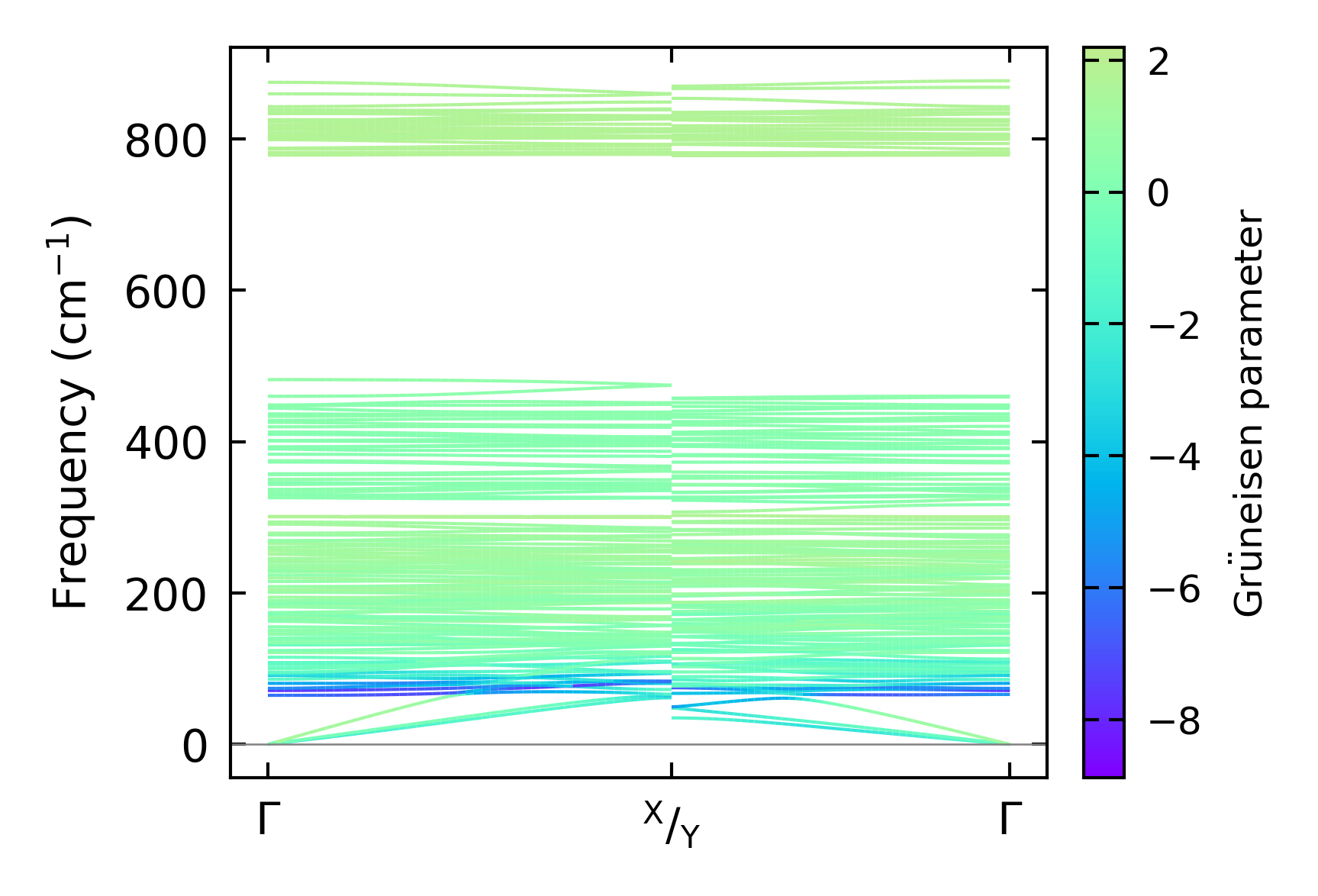

../../_images/fig_gruneisen3444.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x7x7, supercell: 2x1x1

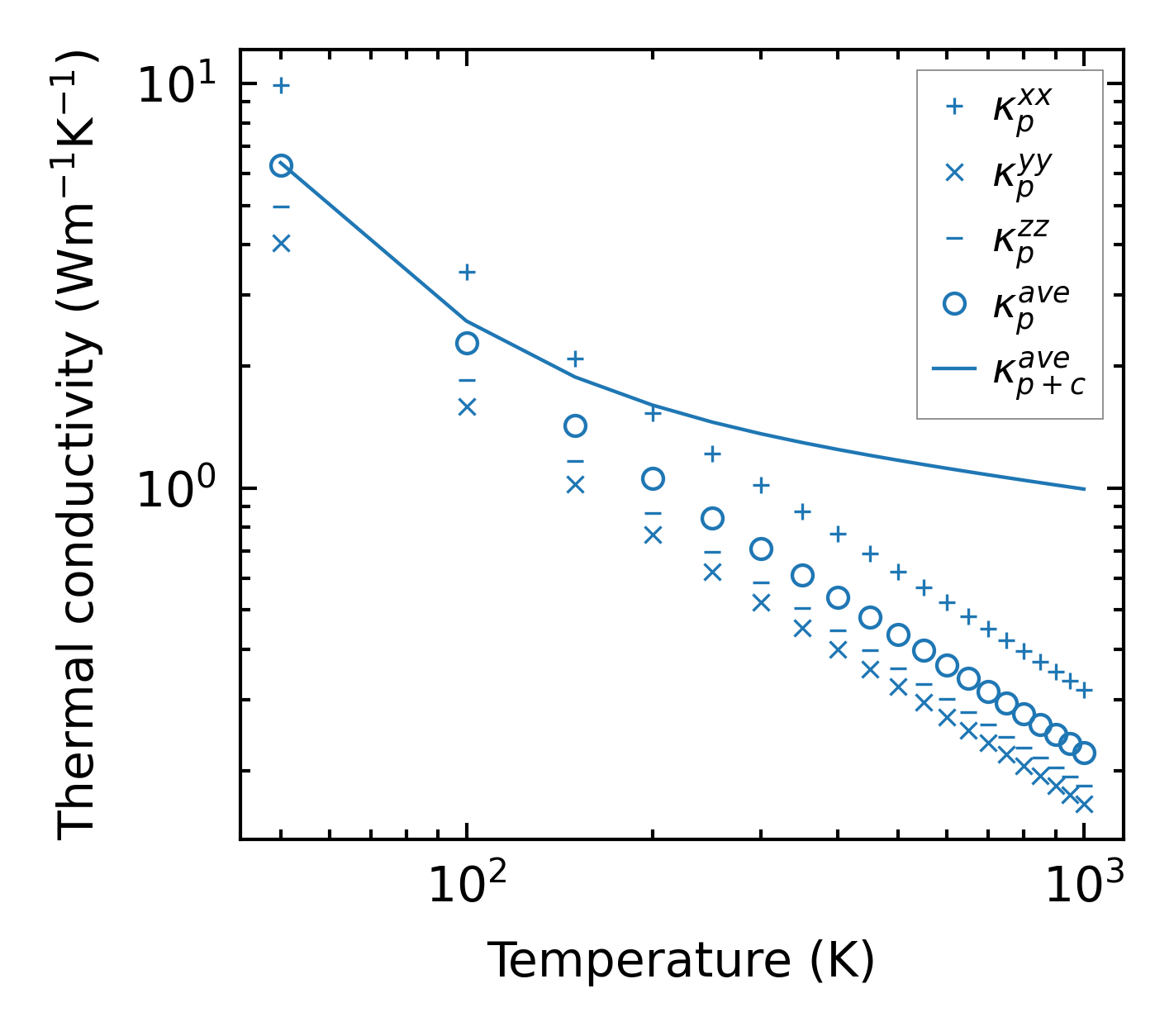

../../_images/fig_kappa6515.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3487.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

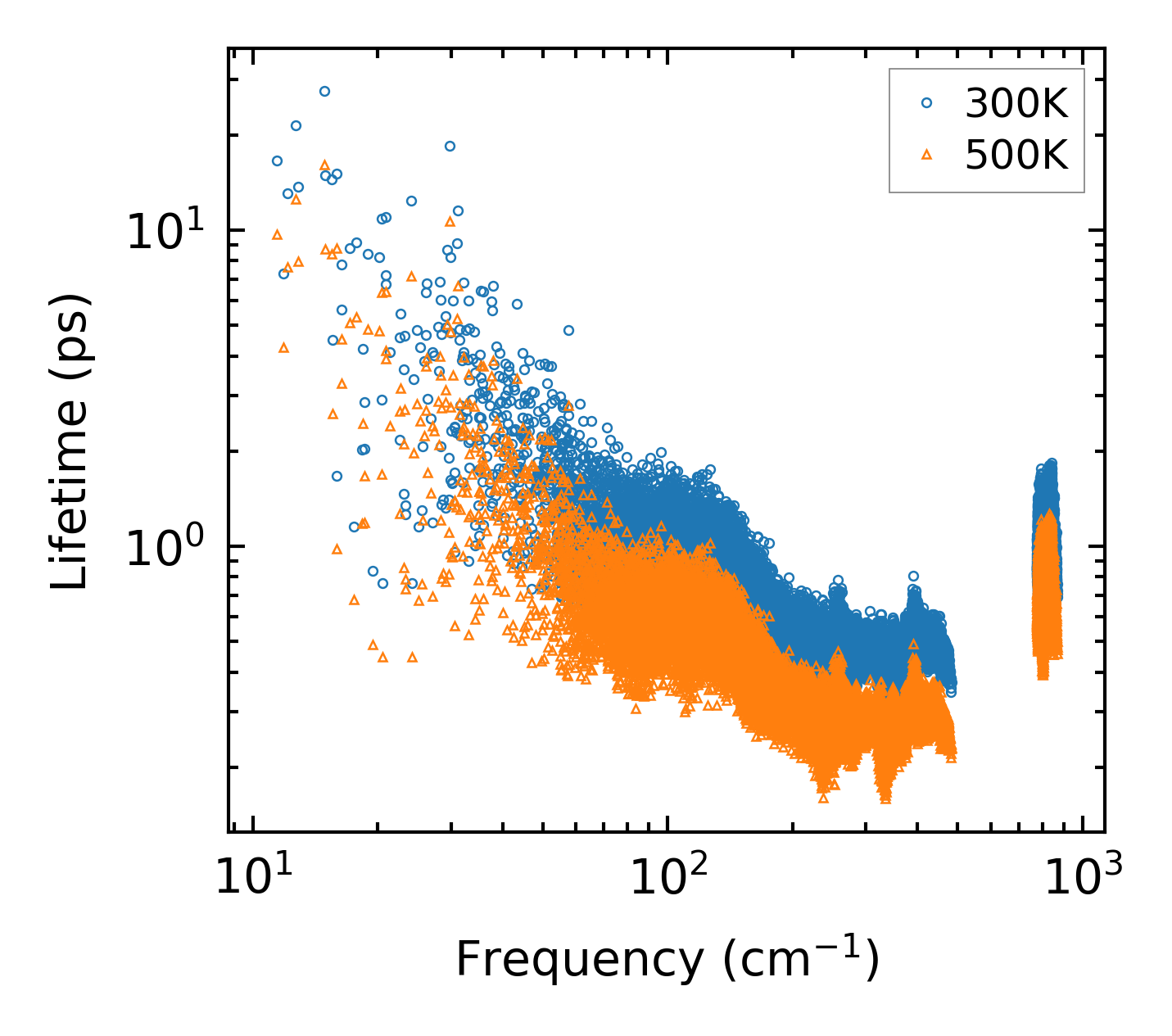

../../_images/fig_lifetime3412.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3411.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

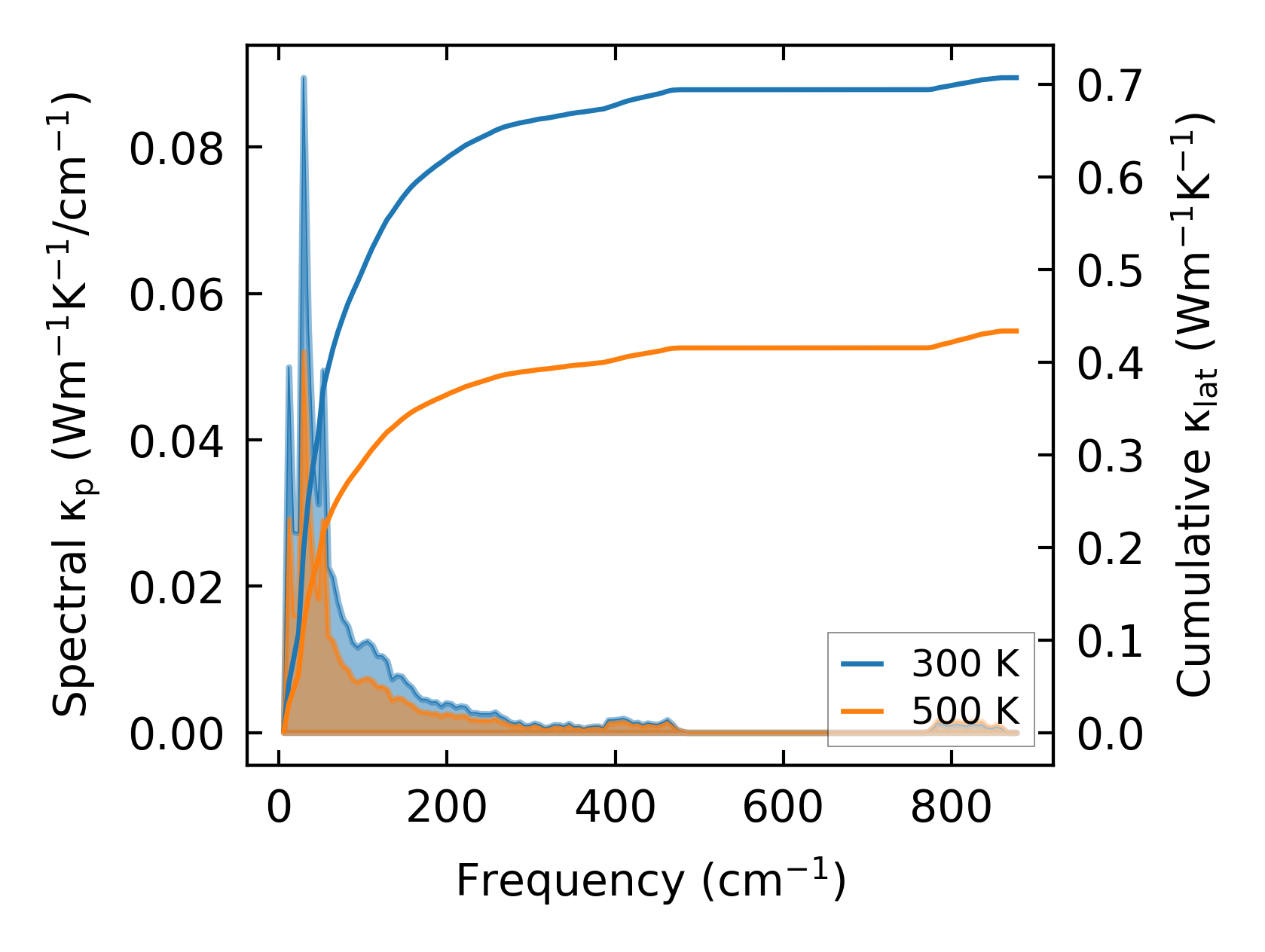

../../_images/fig_cumu_frequency3412.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3411.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

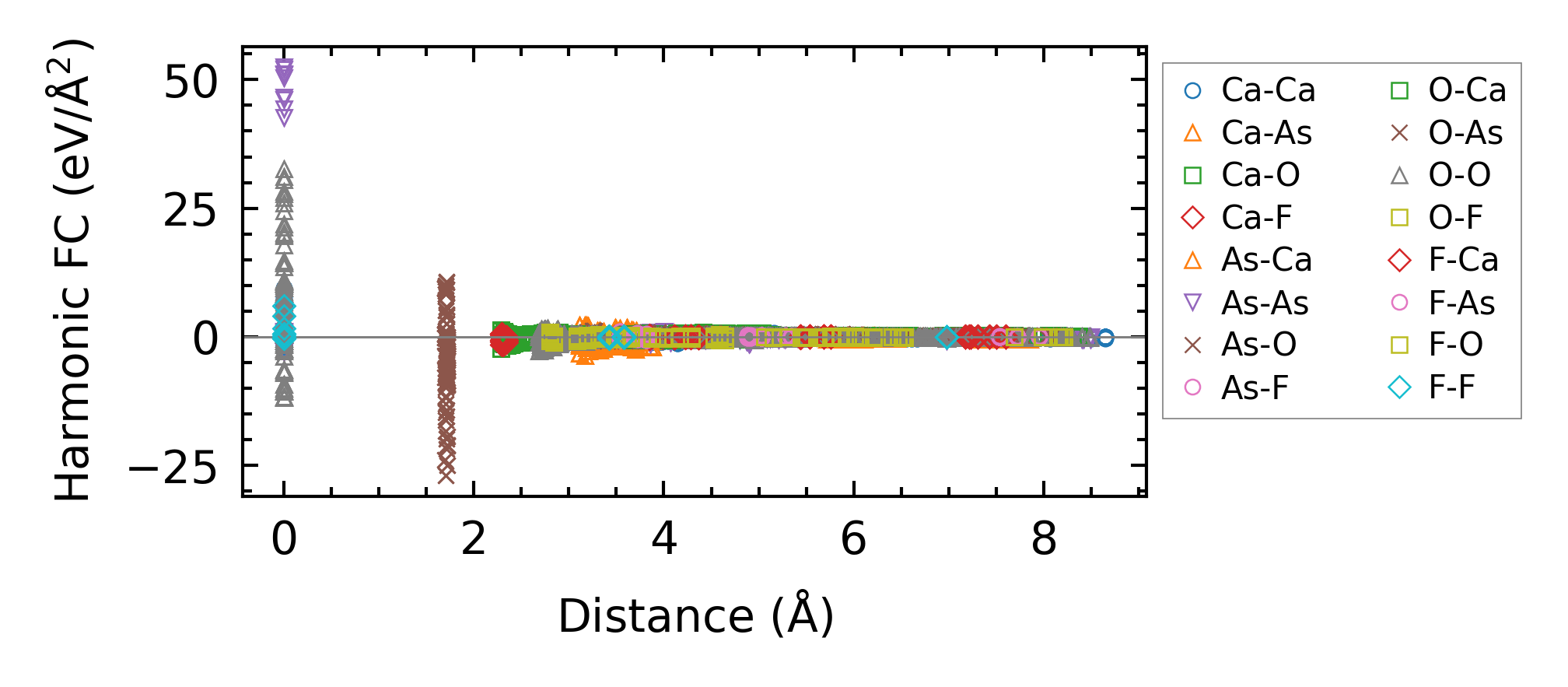

../../_images/fig_fc28214.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa6516.png — (a) Temperature-dependent lattice thermal conductivity

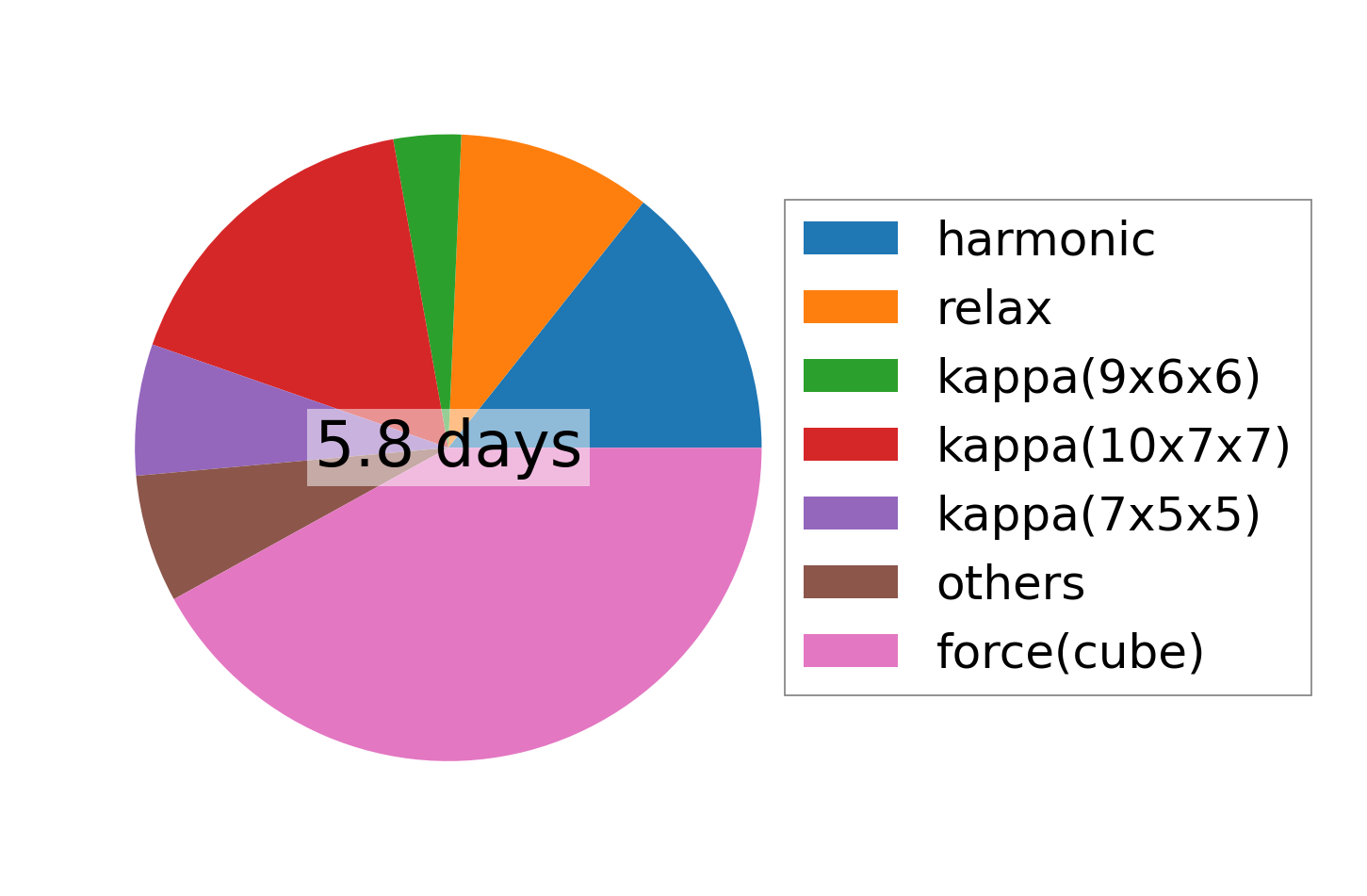

../../_images/fig_times14825.png — (b) Computation time
