mp-557266/HgO2/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-557266.tar.gz

Harmonic properties

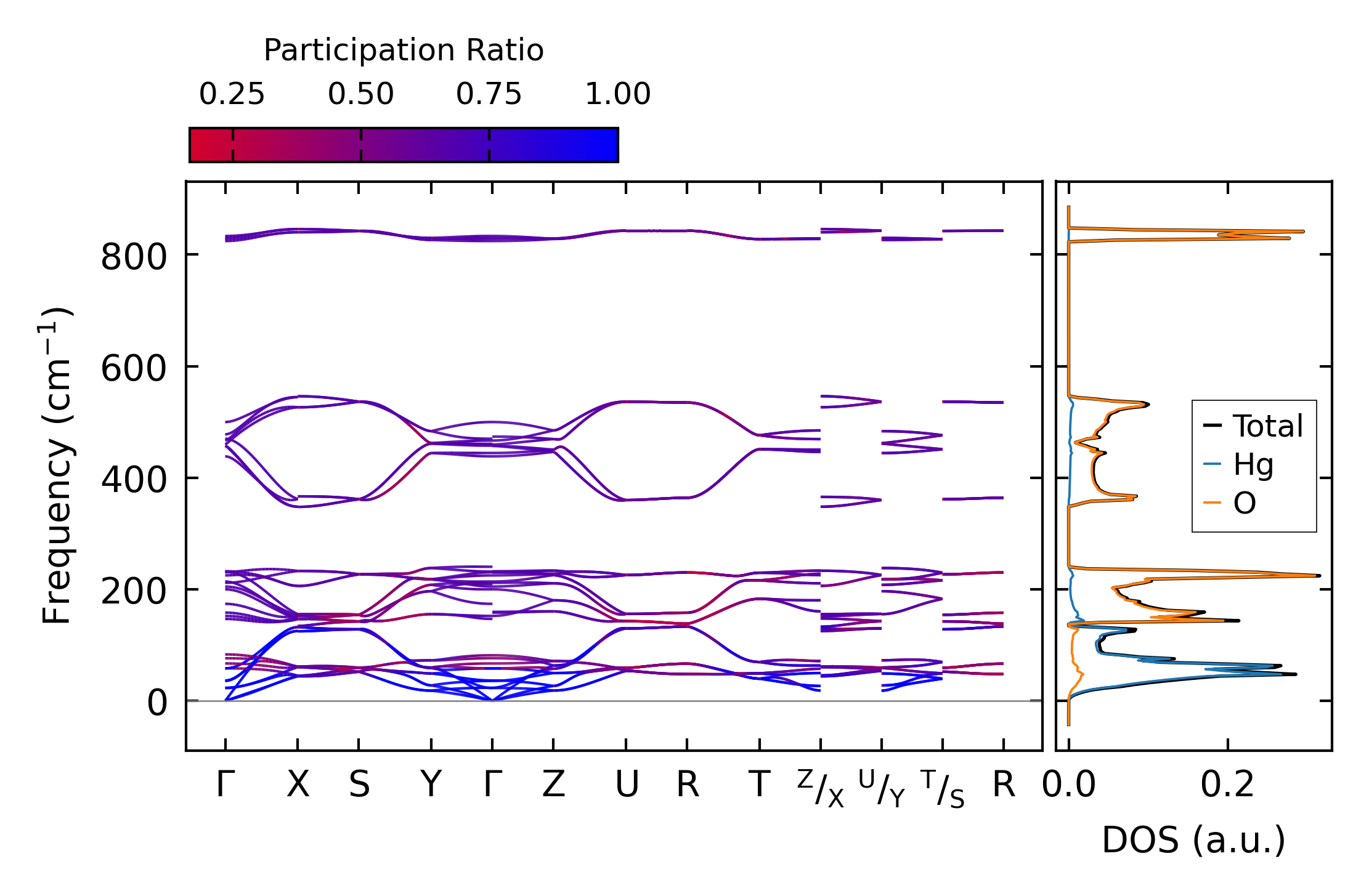

../../_images/fig_bandos_pr8401.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo8401.png — (b) Thermodynamic properties

Grüneisen parameters

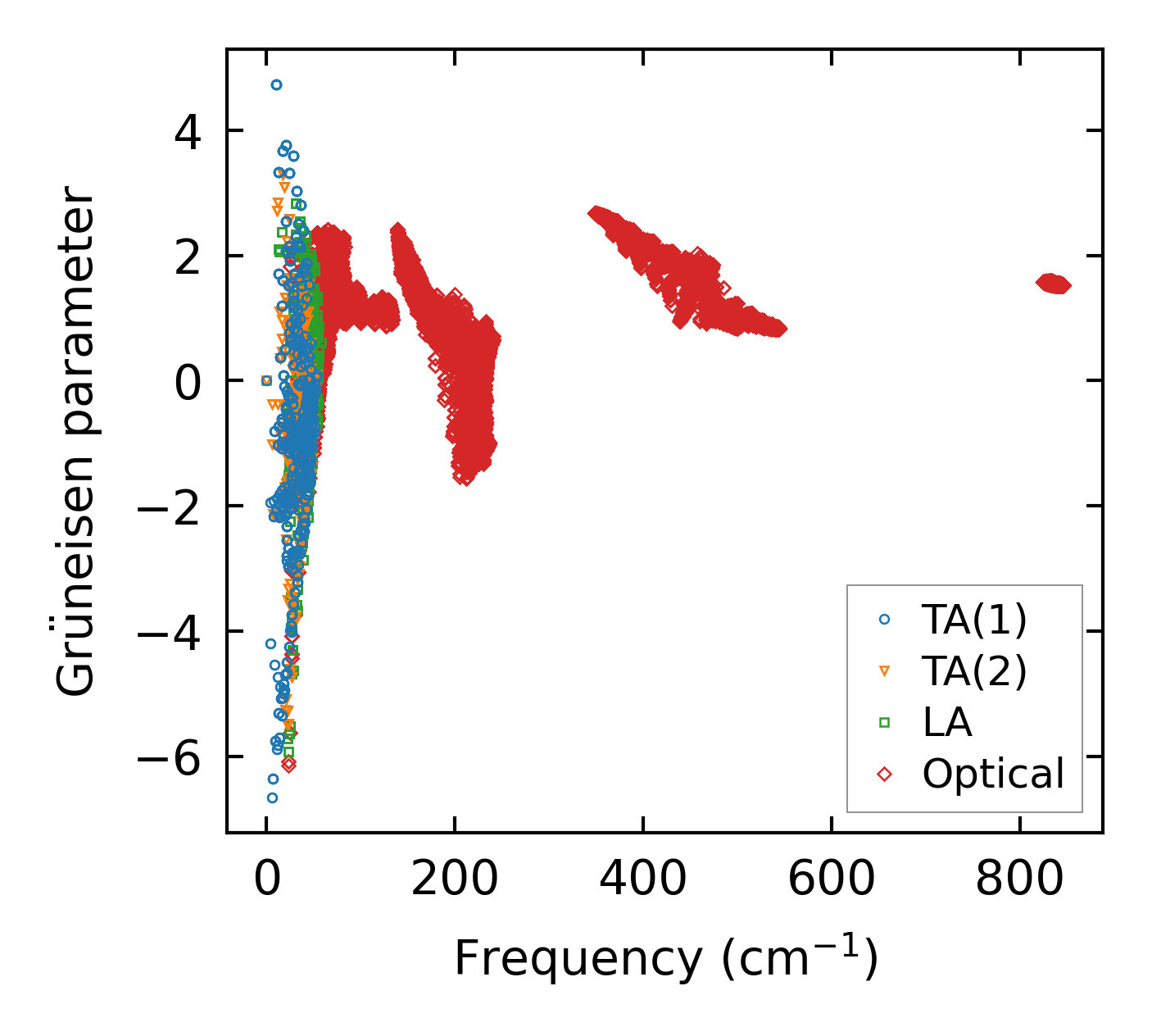

../../_images/fig_gru_all3423.png — (a) Grüneisen parameters

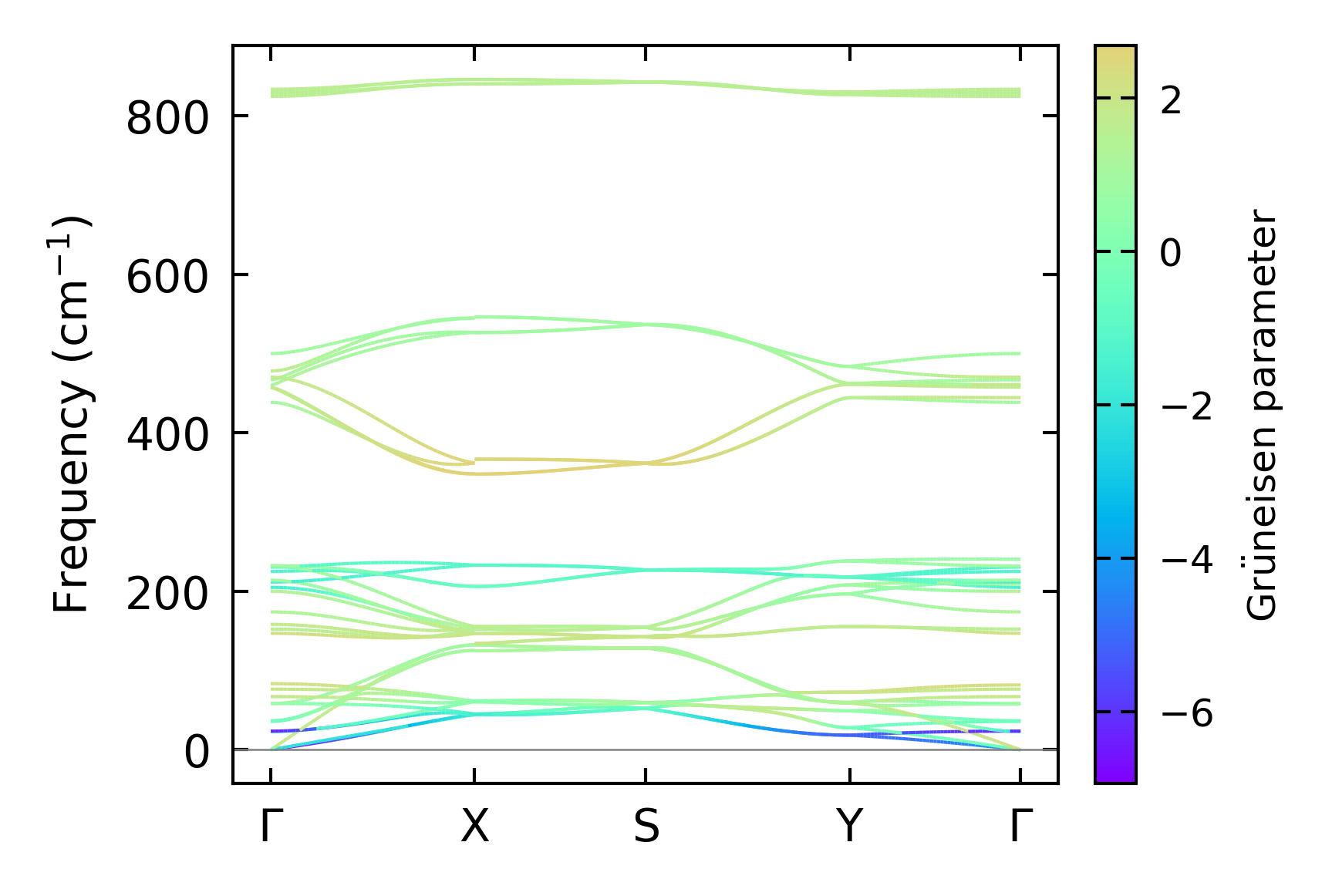

../../_images/fig_gruneisen3423.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x11x12, supercell: 3x2x2

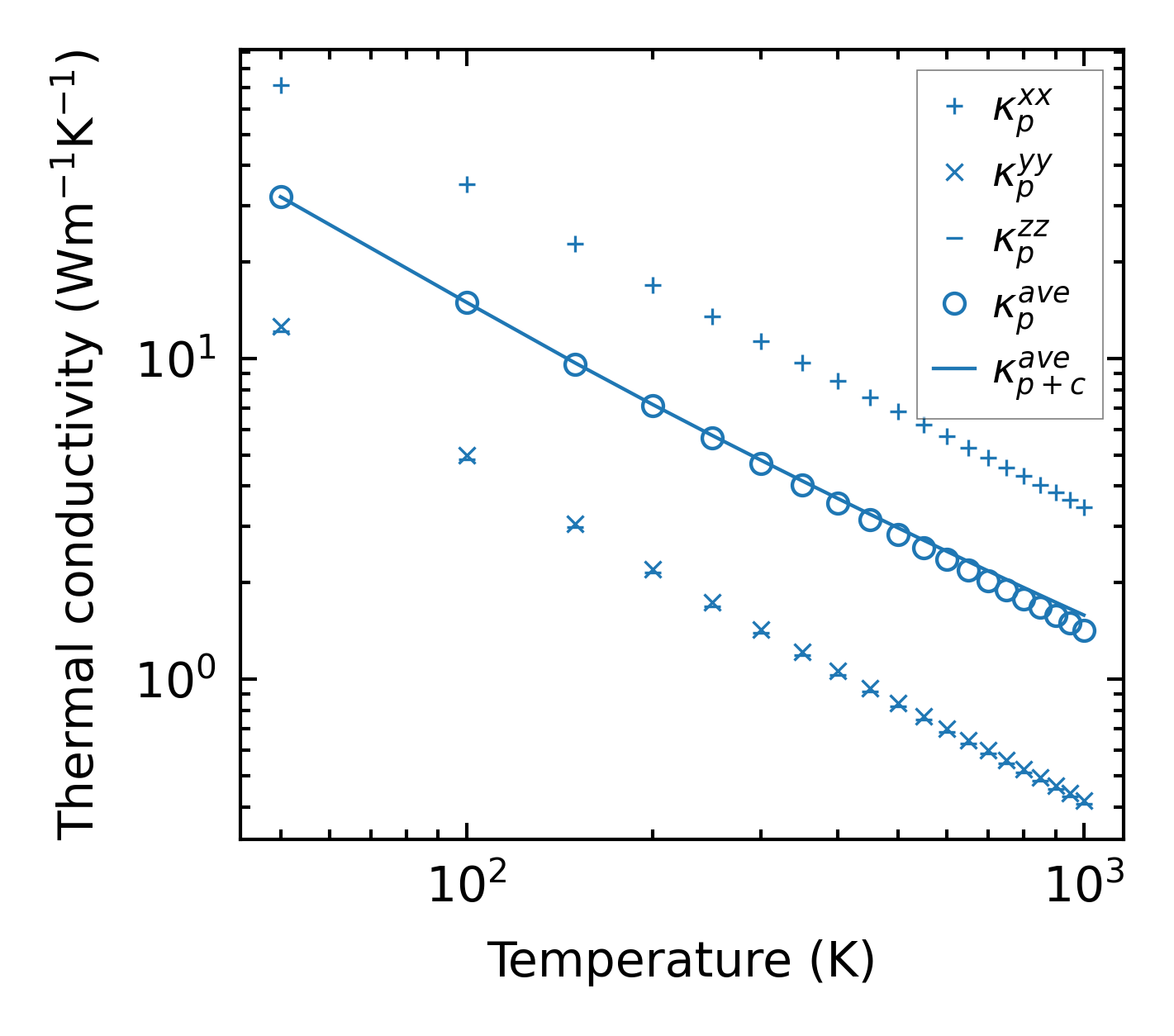

../../_images/fig_kappa6474.png — (a) Temperature-dependent lattice thermal conductivity

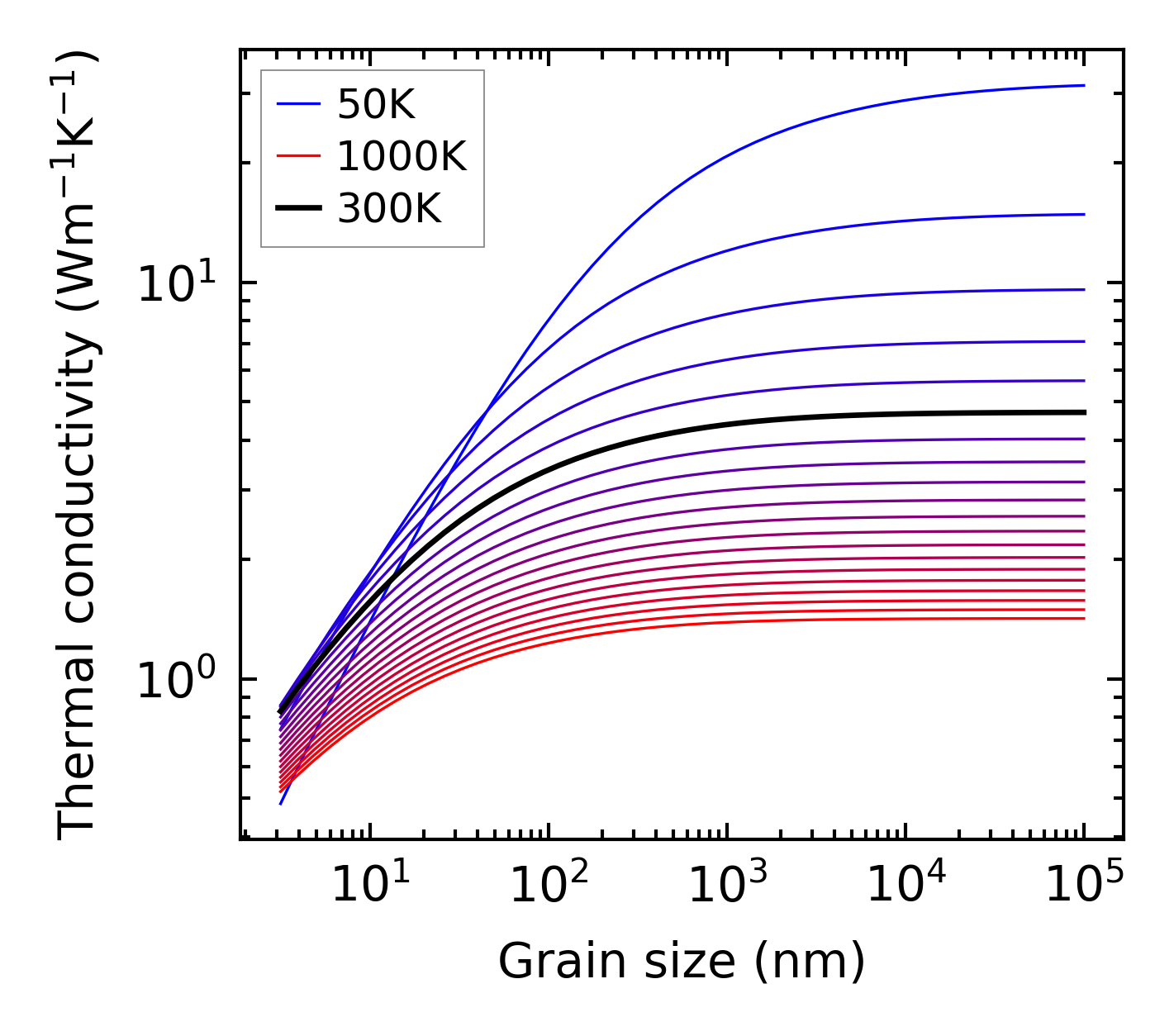

../../_images/fig_kappa_vs_grain_size3466.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

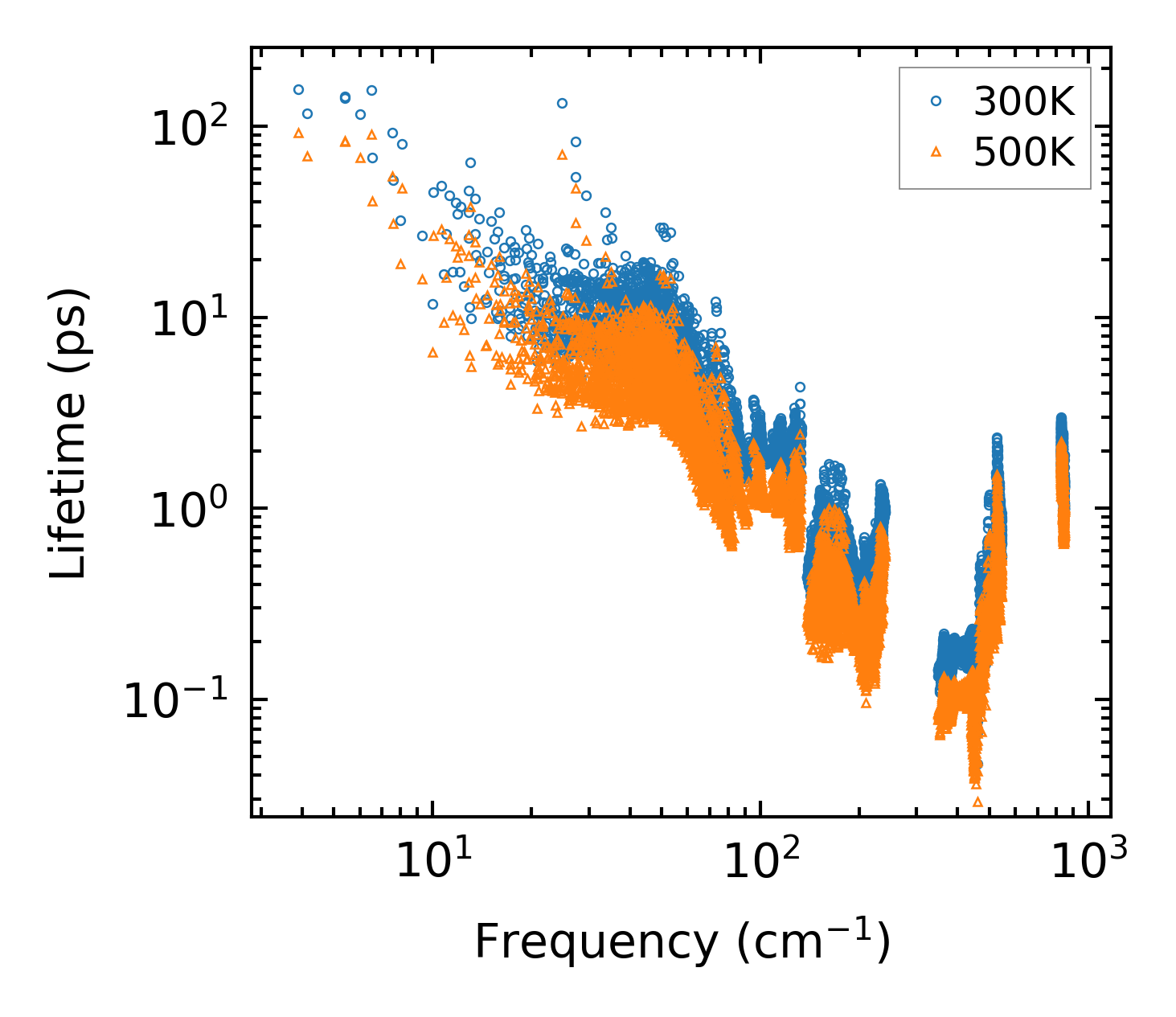

../../_images/fig_lifetime3391.png — (a) Phonon lifetime due to phonon-phonon scattering

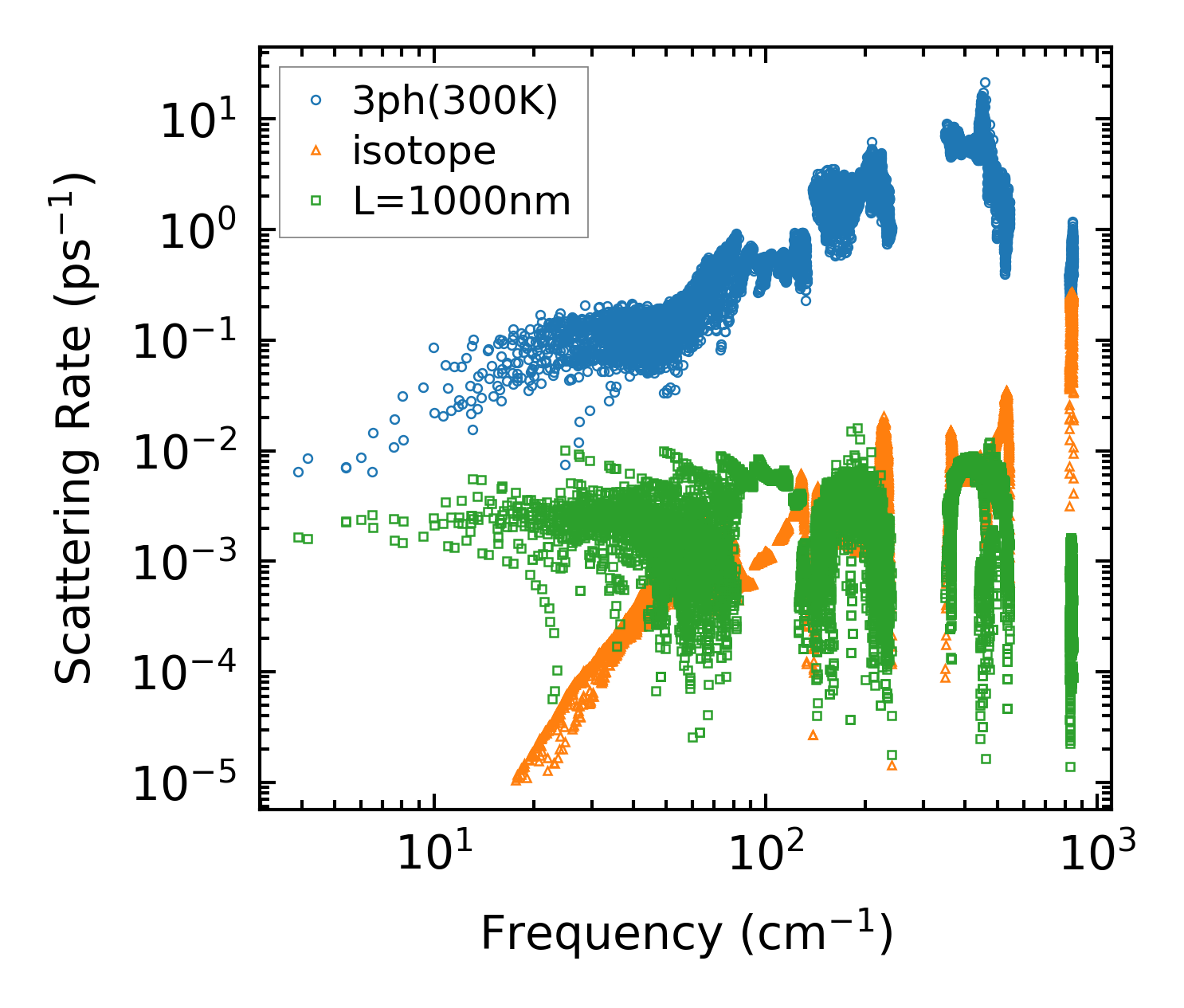

../../_images/fig_scat_rates3390.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

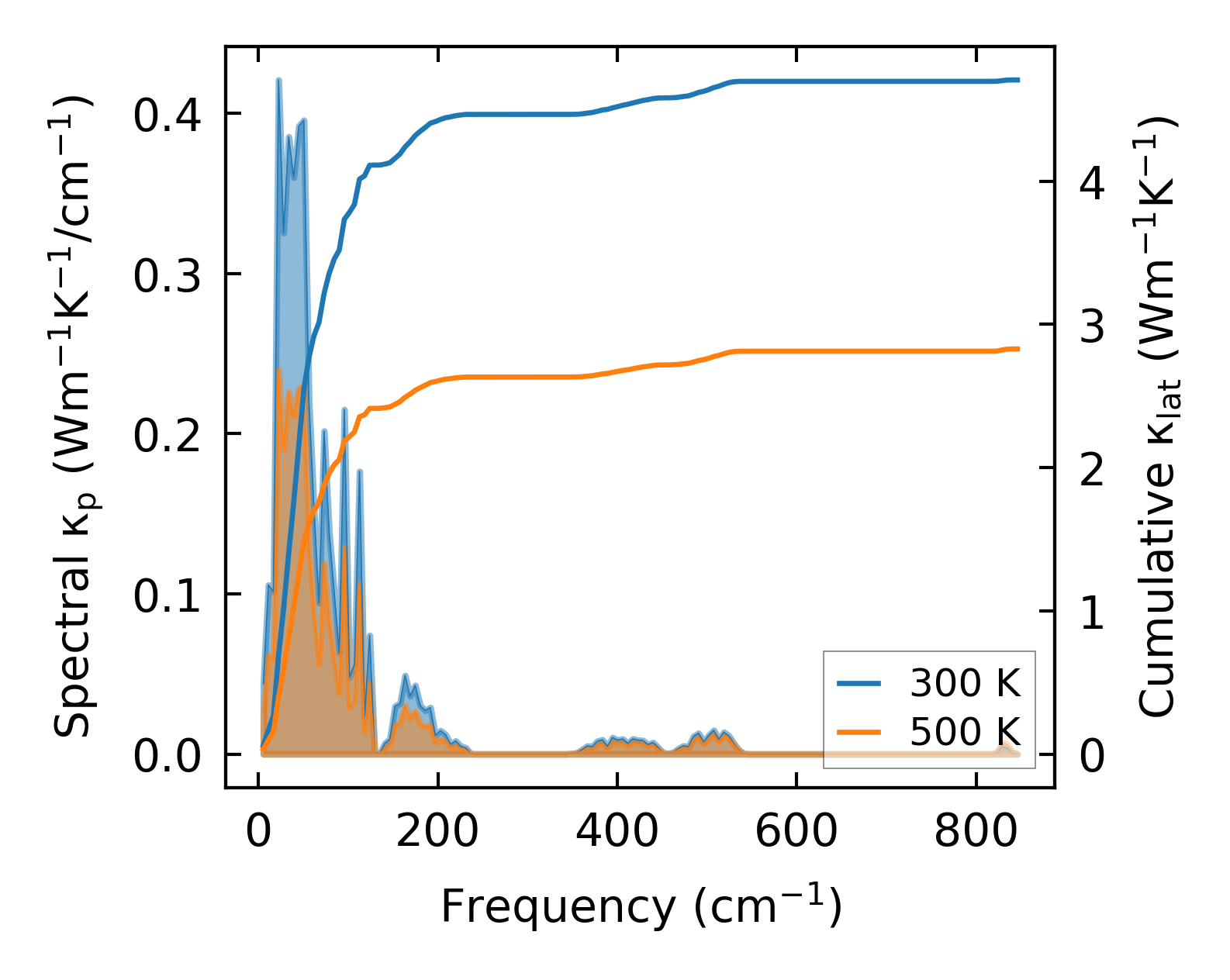

../../_images/fig_cumu_frequency3391.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3390.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

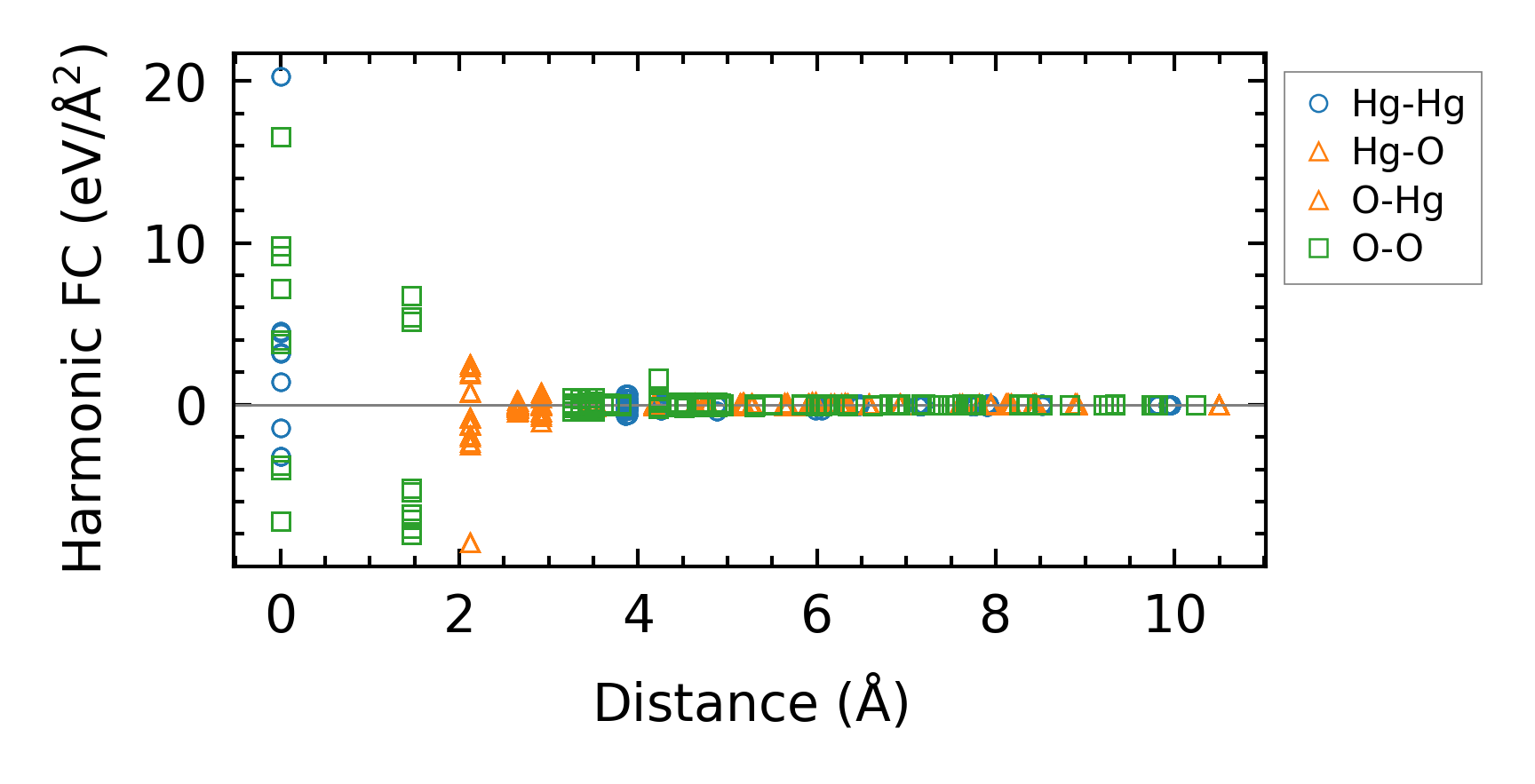

../../_images/fig_fc28163.png — (a) Force constants w.r.t atomic distance

Summary

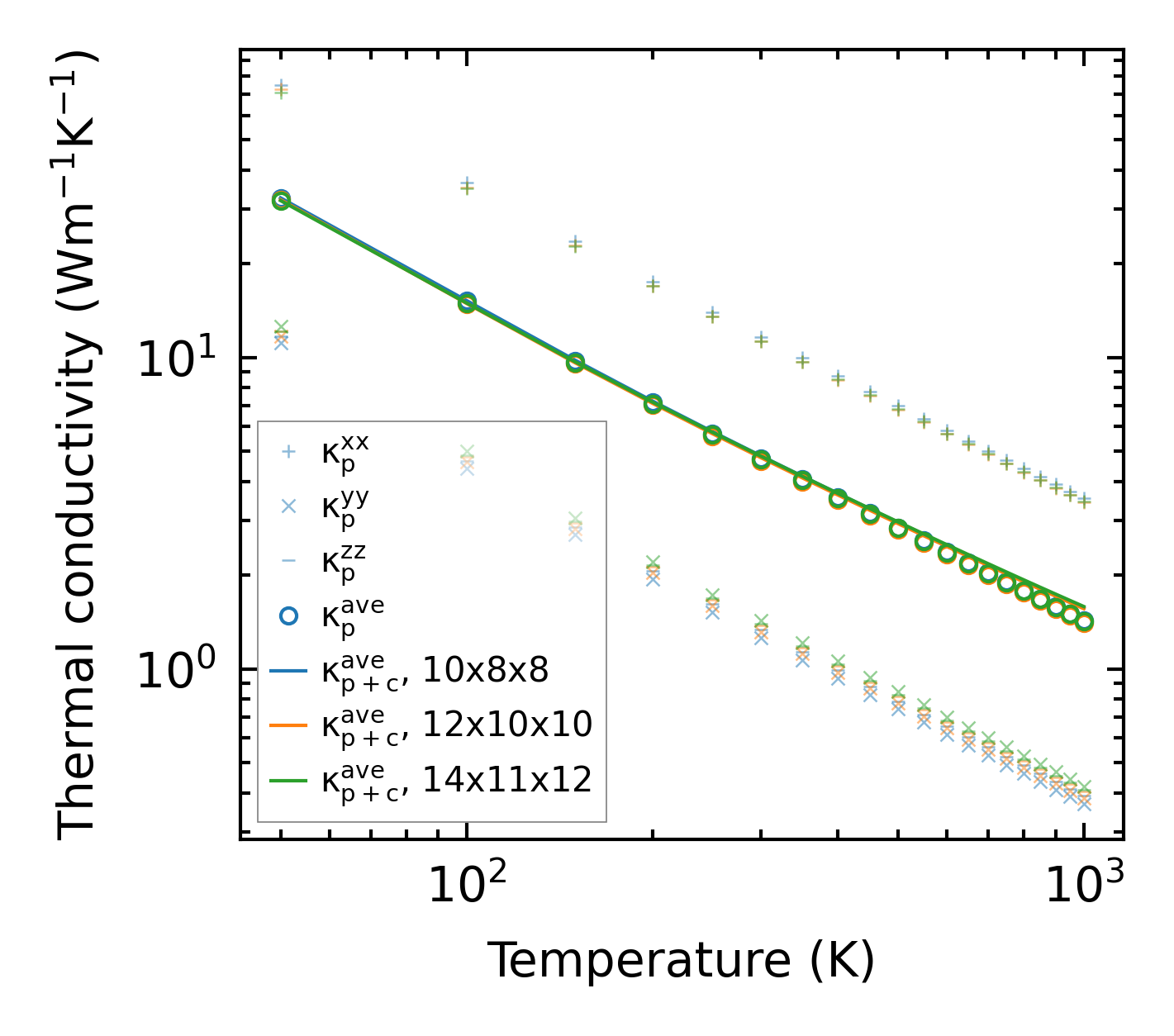

../../_images/fig_kappa6475.png — (a) Temperature-dependent lattice thermal conductivity

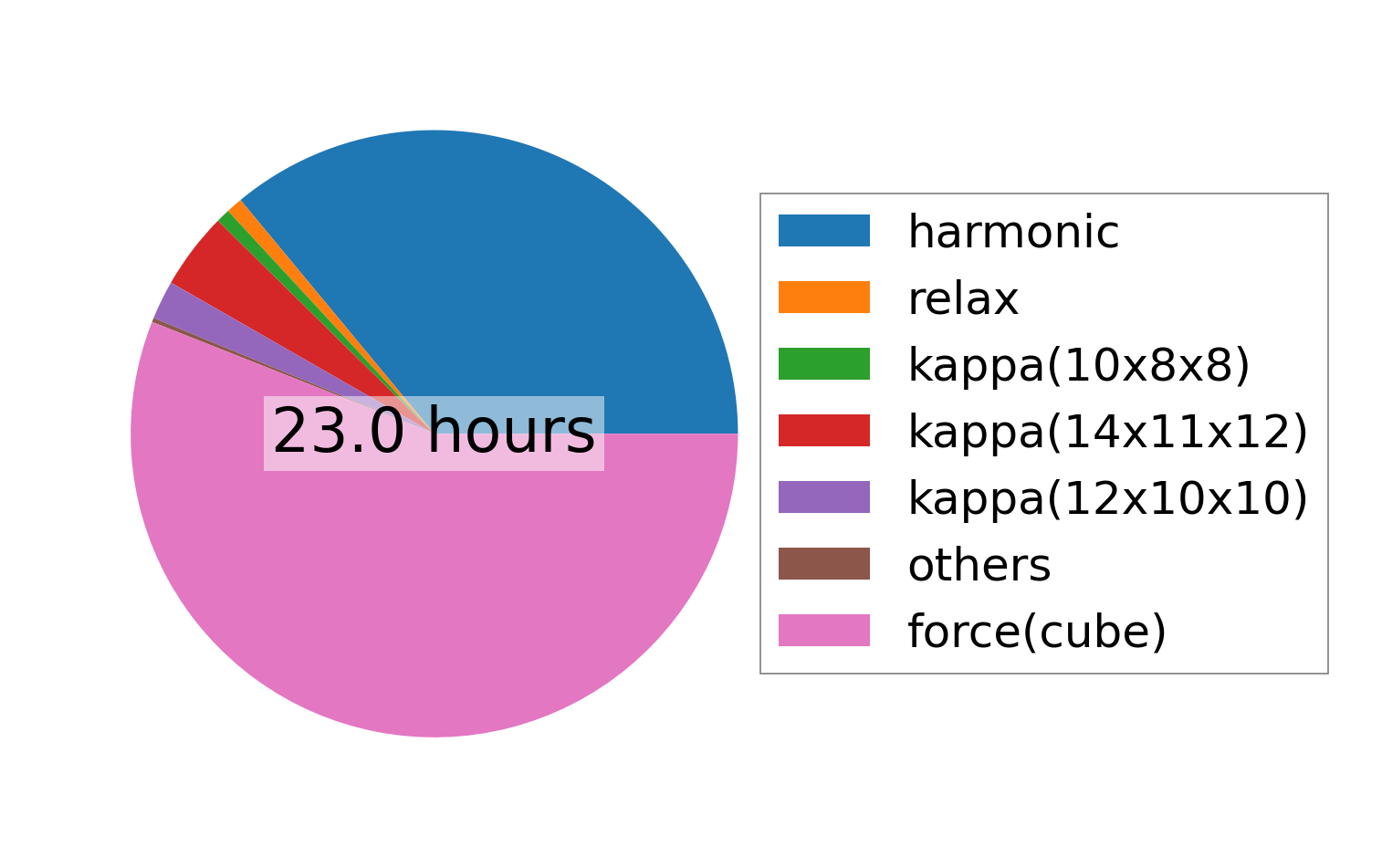

../../_images/fig_times14752.png — (b) Computation time
