mp-11902/Ba2GeSe4/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-11902.tar.gz

Equation of state

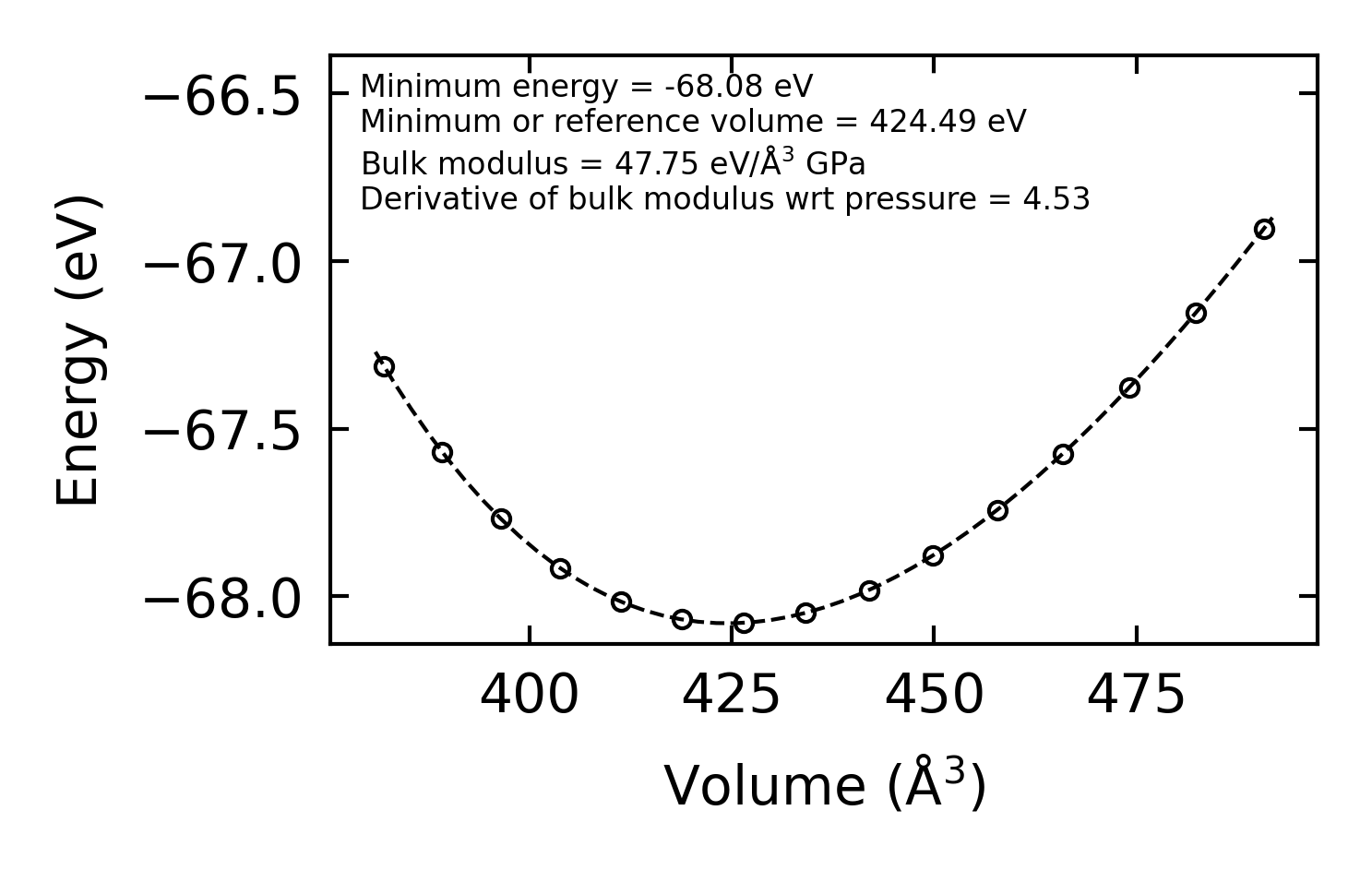

../../_images/fig_bm7727.png — (a) Equation of state

Harmonic properties

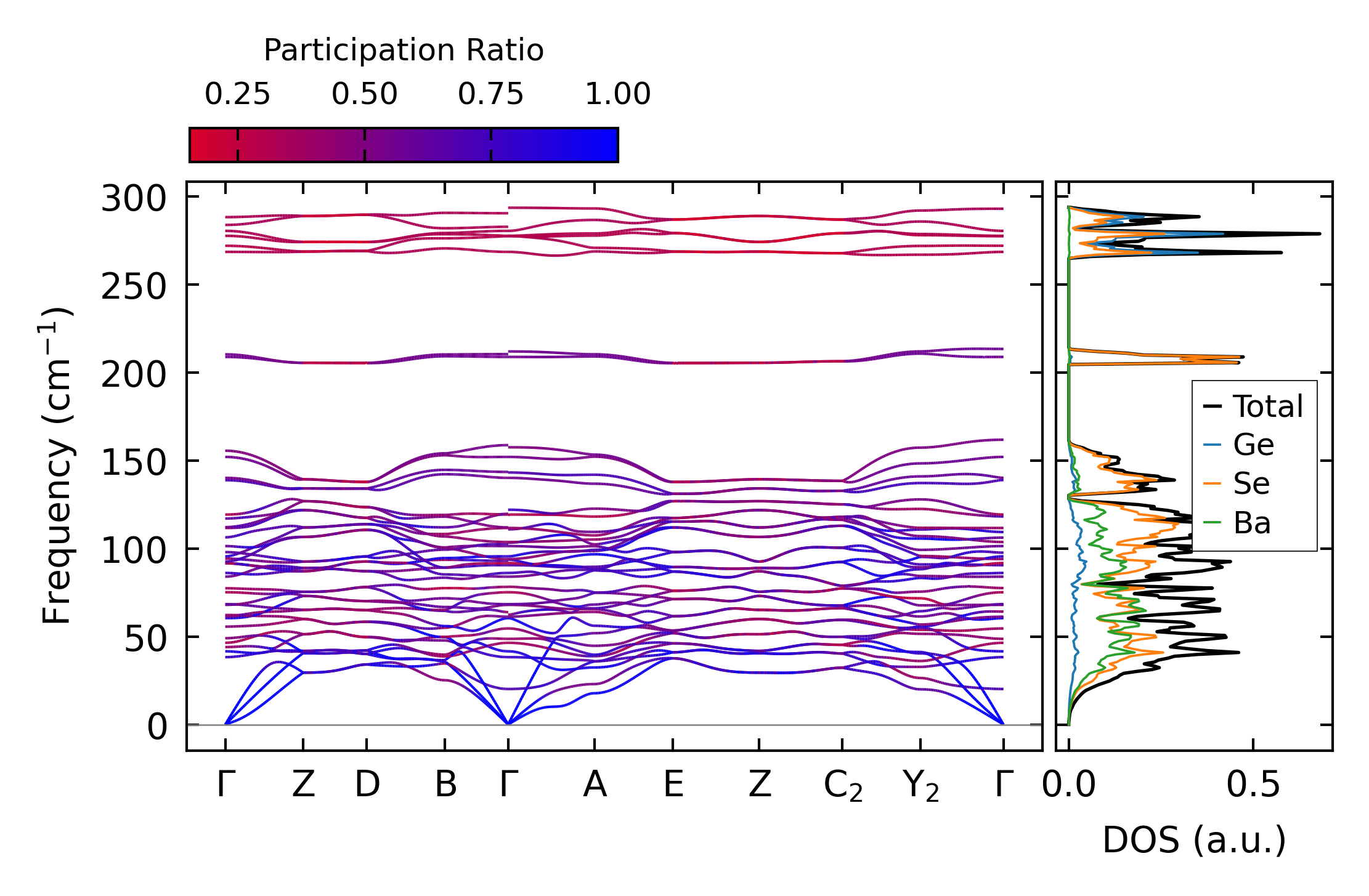

../../_images/fig_bandos_pr16484.png — (a) Phonon dispersion with participation ratio and DOS

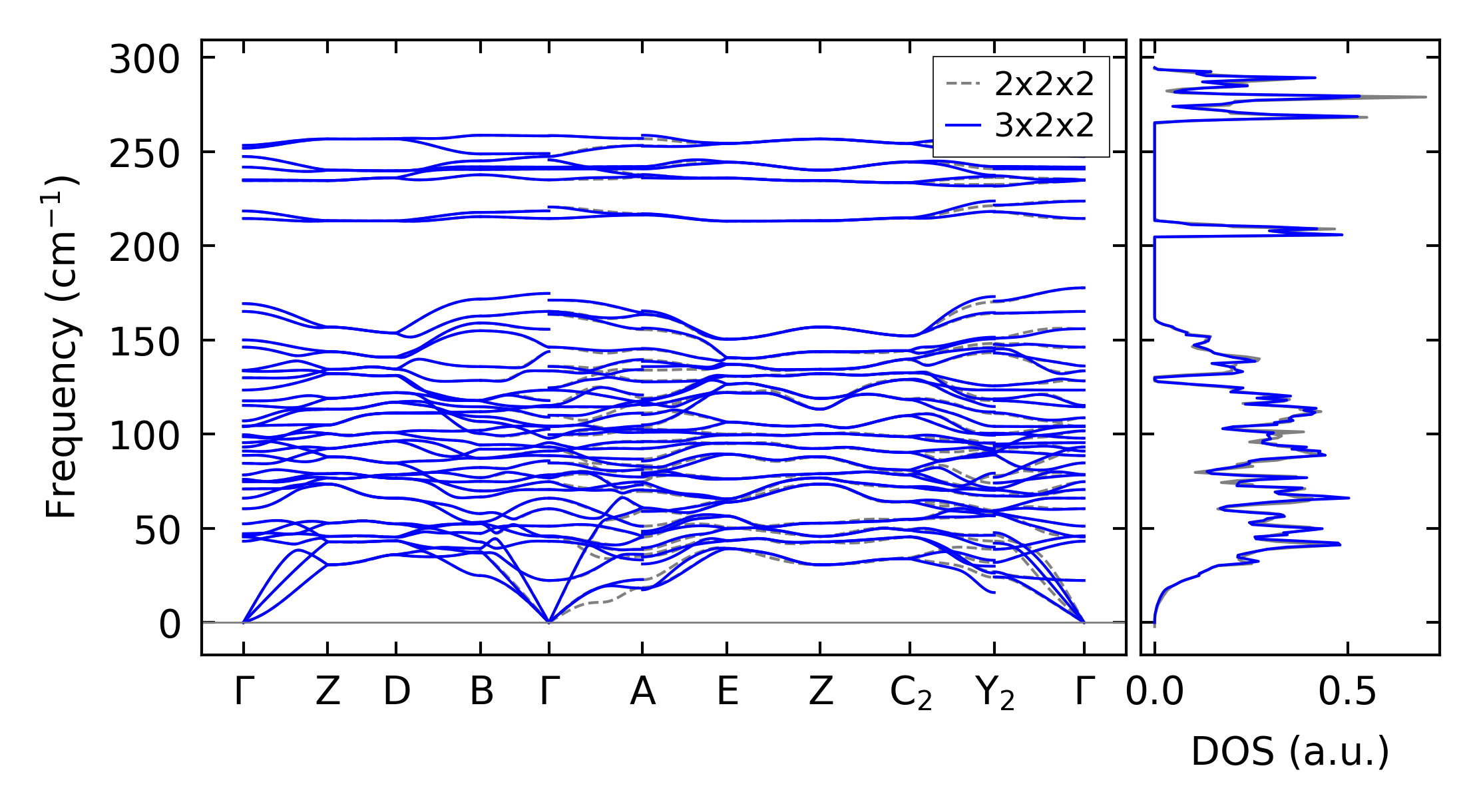

../../_images/fig_bandos20879.png — (b) Phonon dispersion and DOS

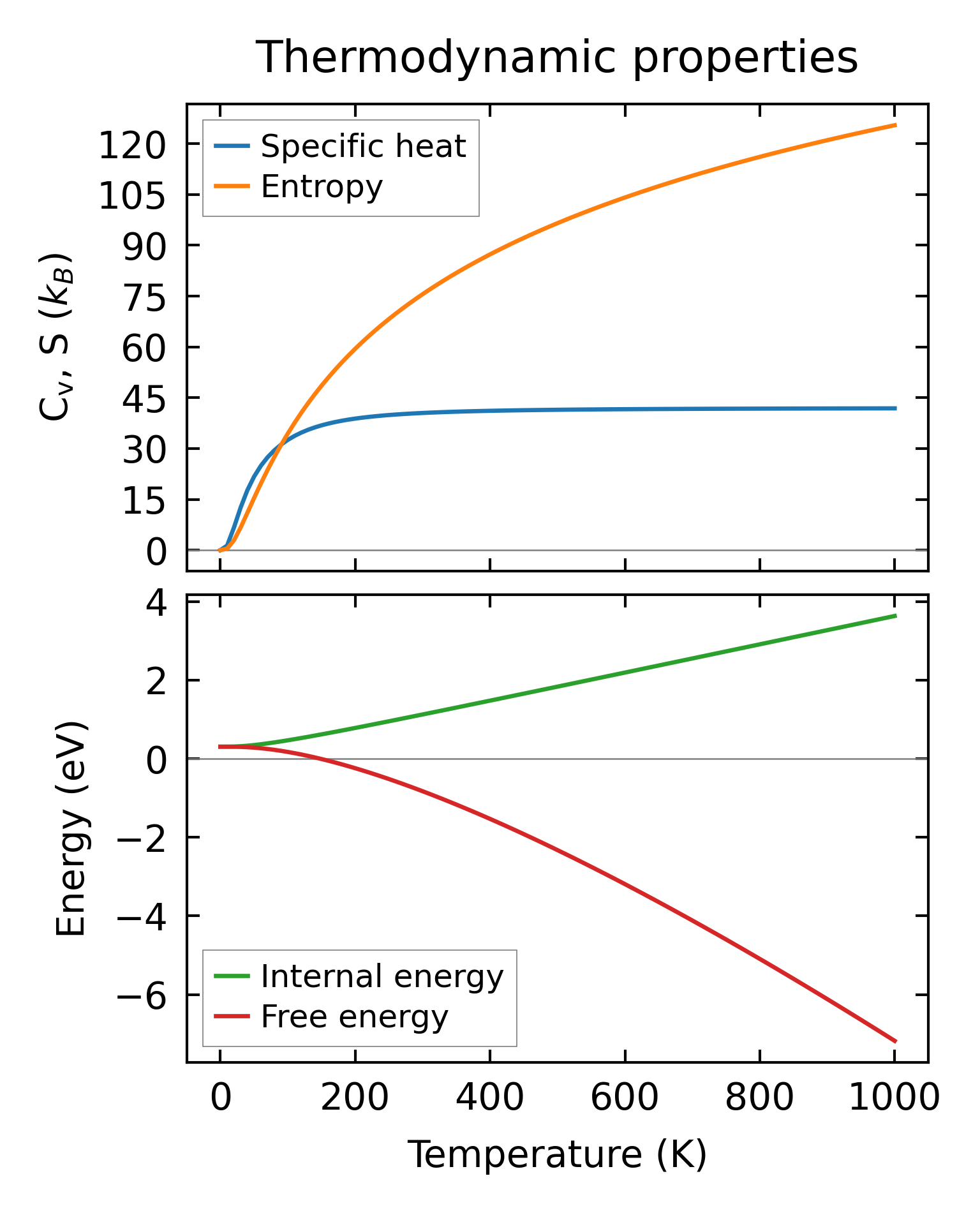

../../_images/fig_thermo16483.png — (c) Thermodynamic properties

Grüneisen parameters

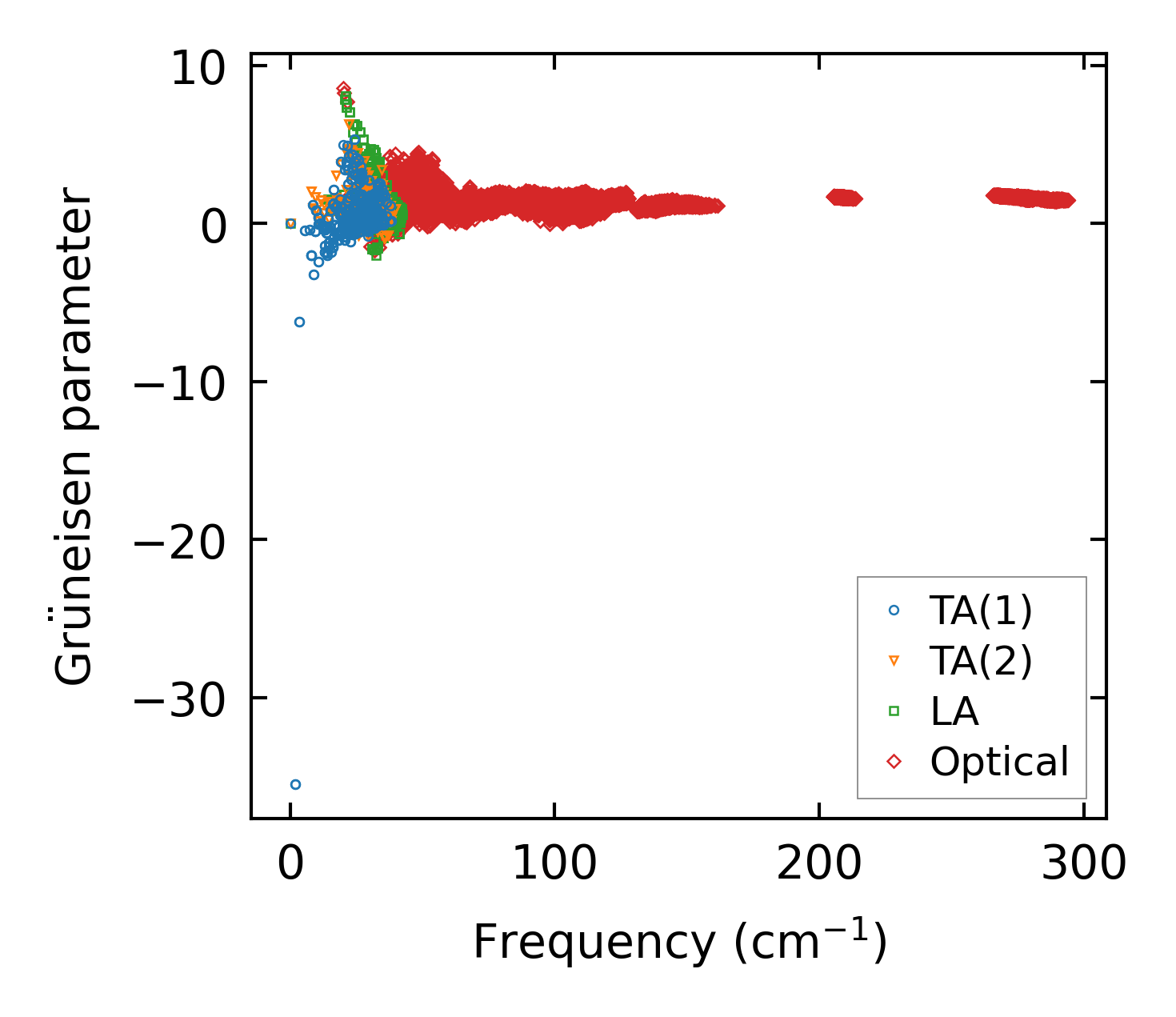

../../_images/fig_gru_all7132.png — (a) Grüneisen parameters

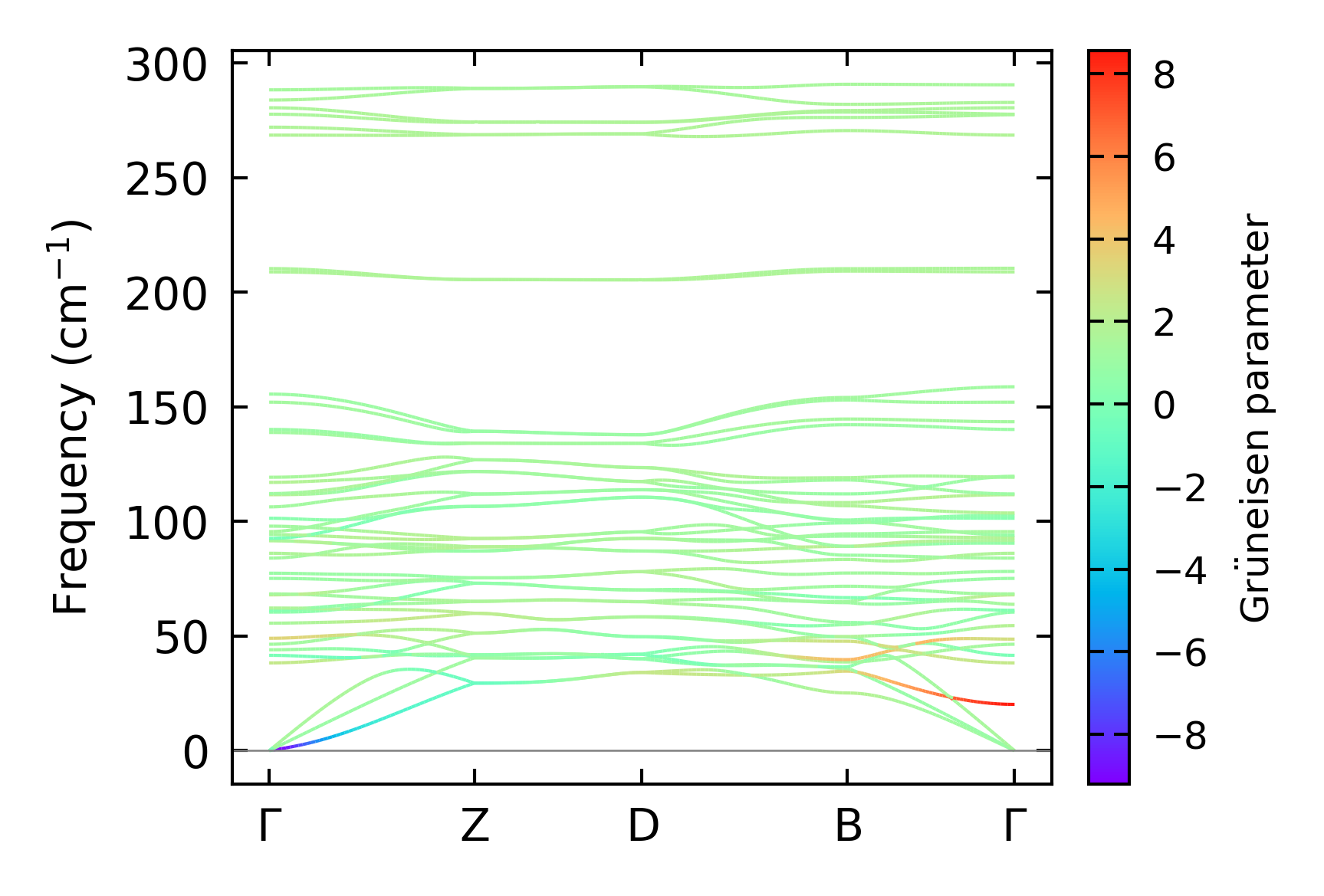

../../_images/fig_gruneisen7132.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x8, supercell: 2x2x2

../../_images/fig_kappa13445.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7217.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 3x2x2 — q-mesh: 10x10x8, supercell: 3x2x2

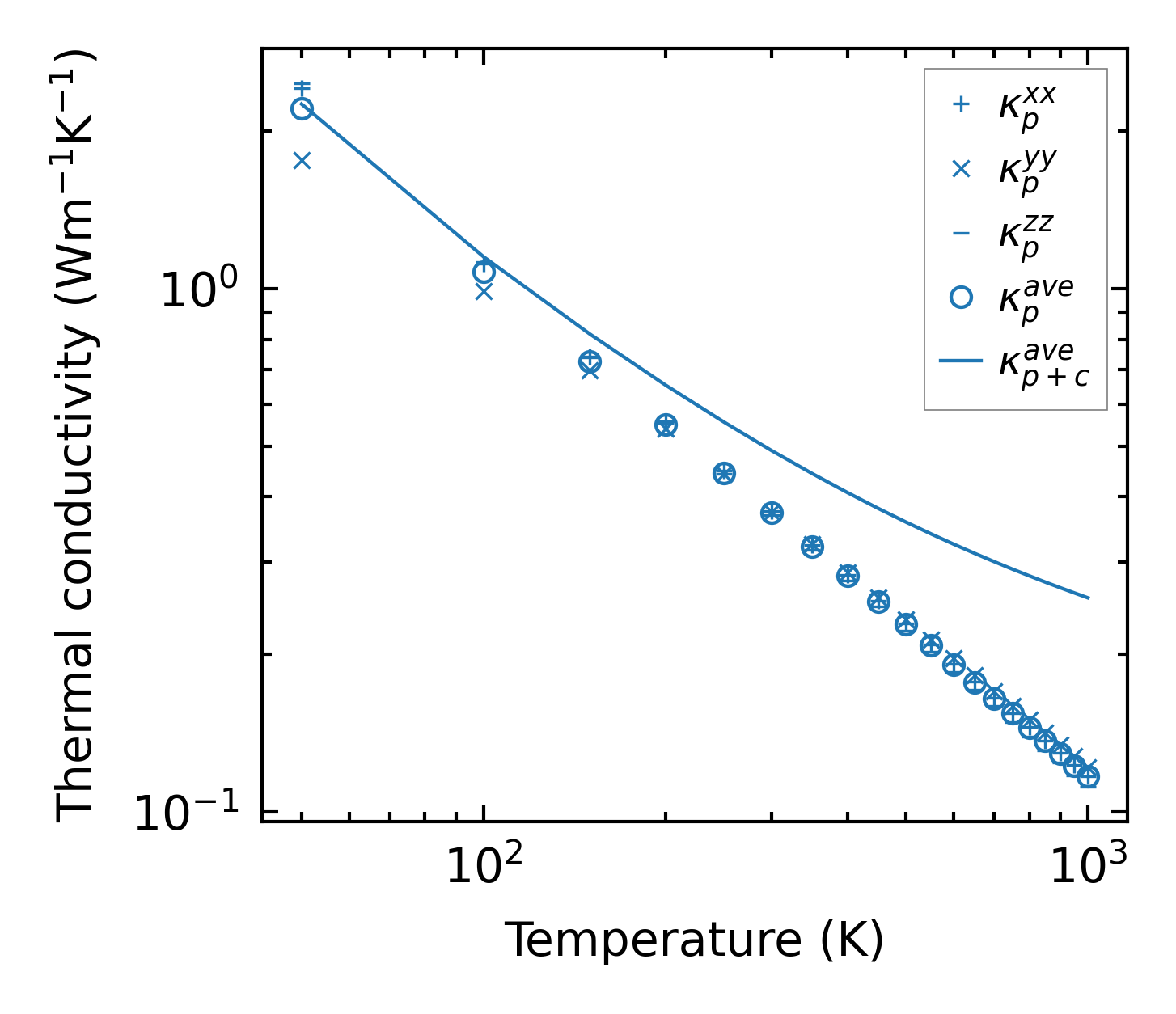

../../_images/fig_kappa13446.png — (a) Temperature-dependent lattice thermal conductivity

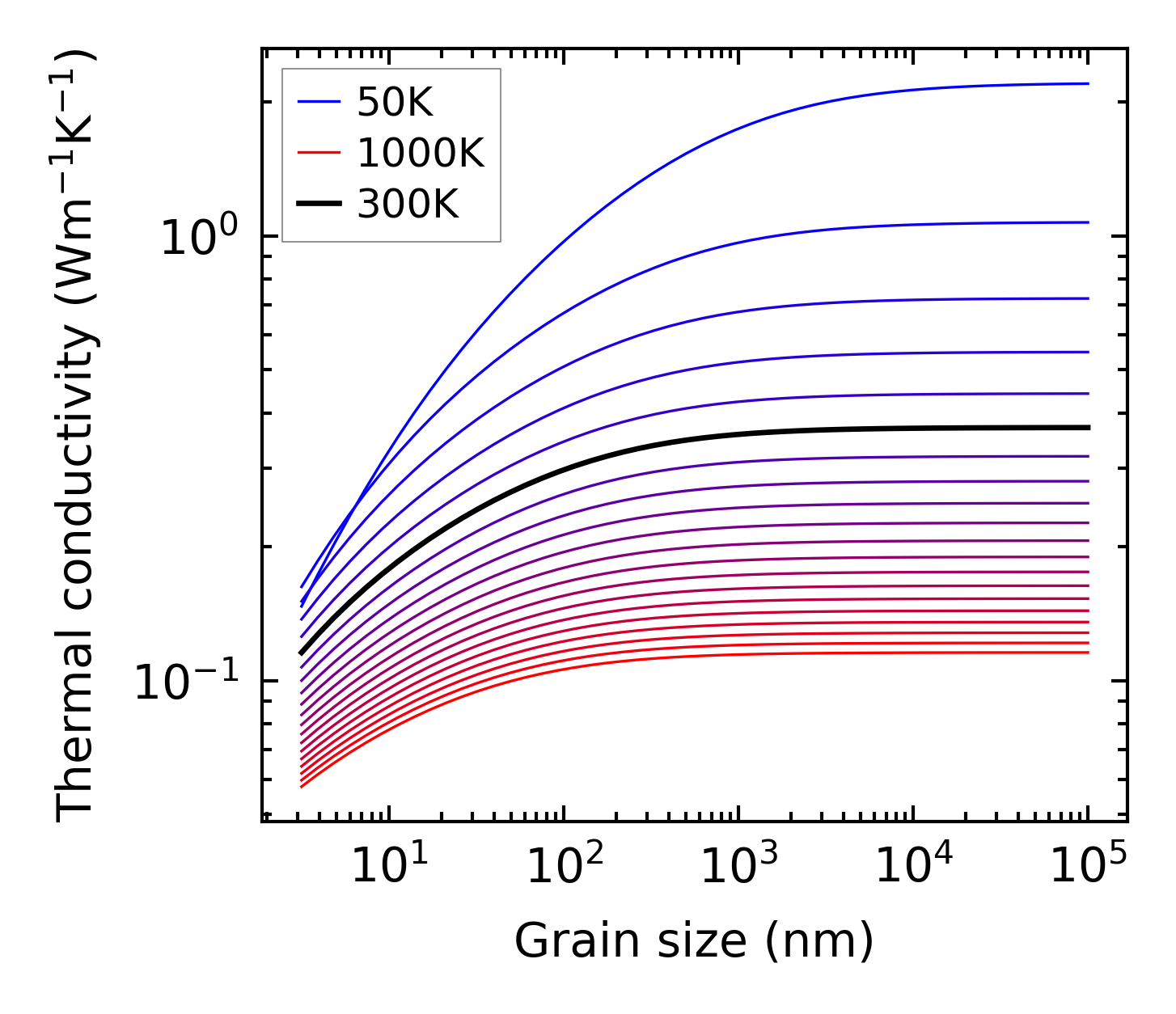

../../_images/fig_kappa_vs_grain_size7218.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

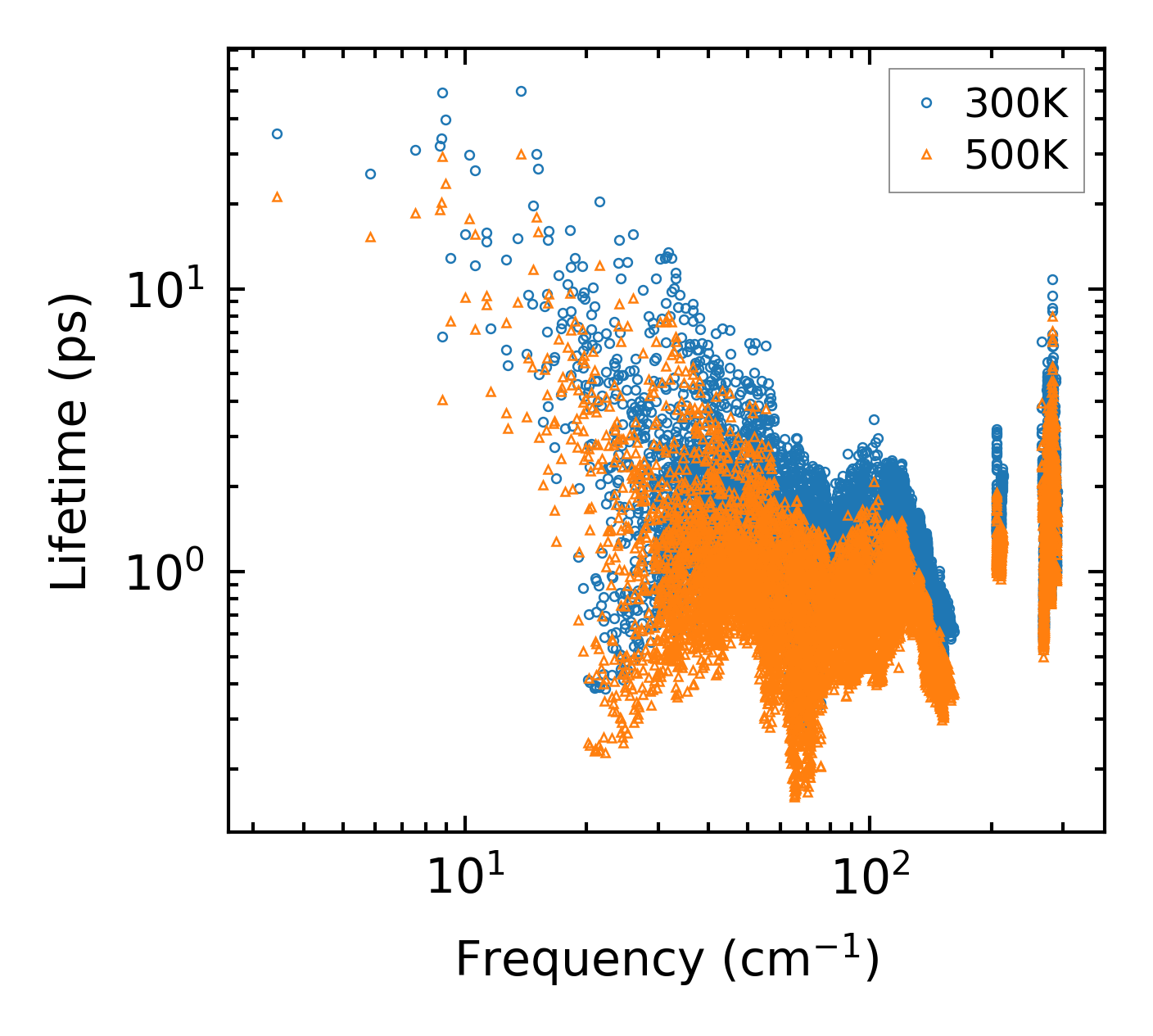

../../_images/fig_lifetime7066.png — (a) Phonon lifetime due to phonon-phonon scattering

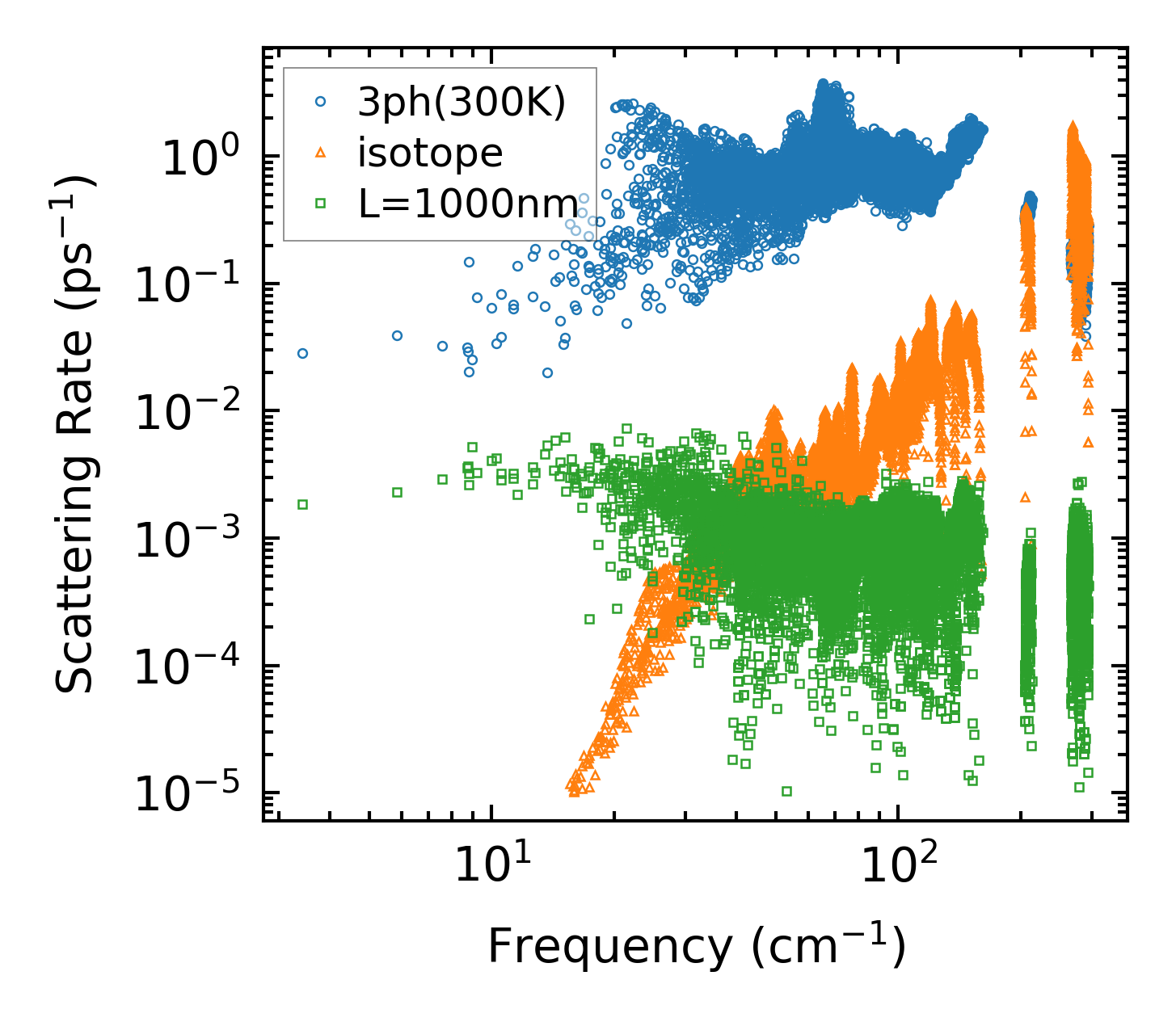

../../_images/fig_scat_rates7065.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

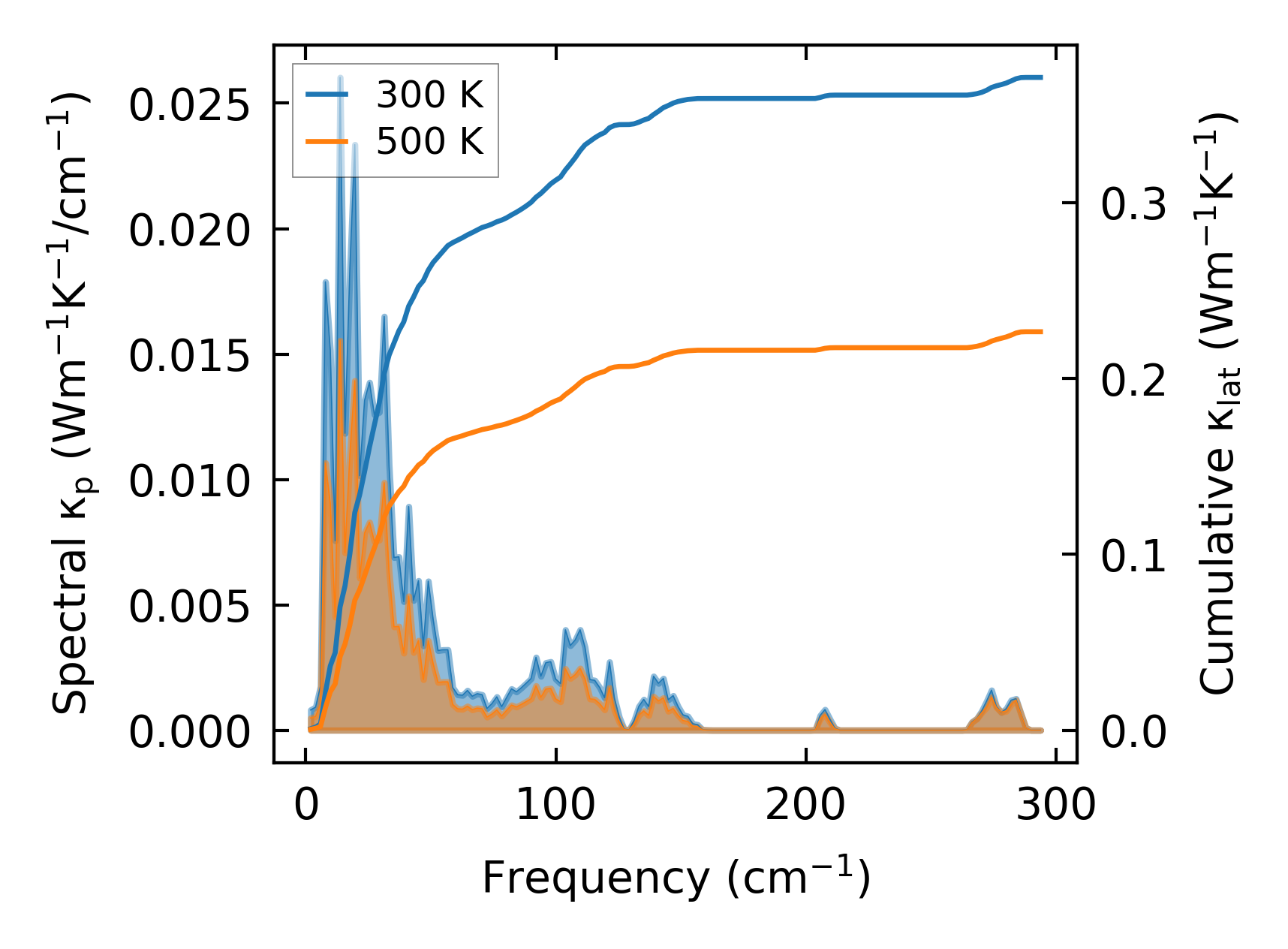

../../_images/fig_cumu_frequency7066.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

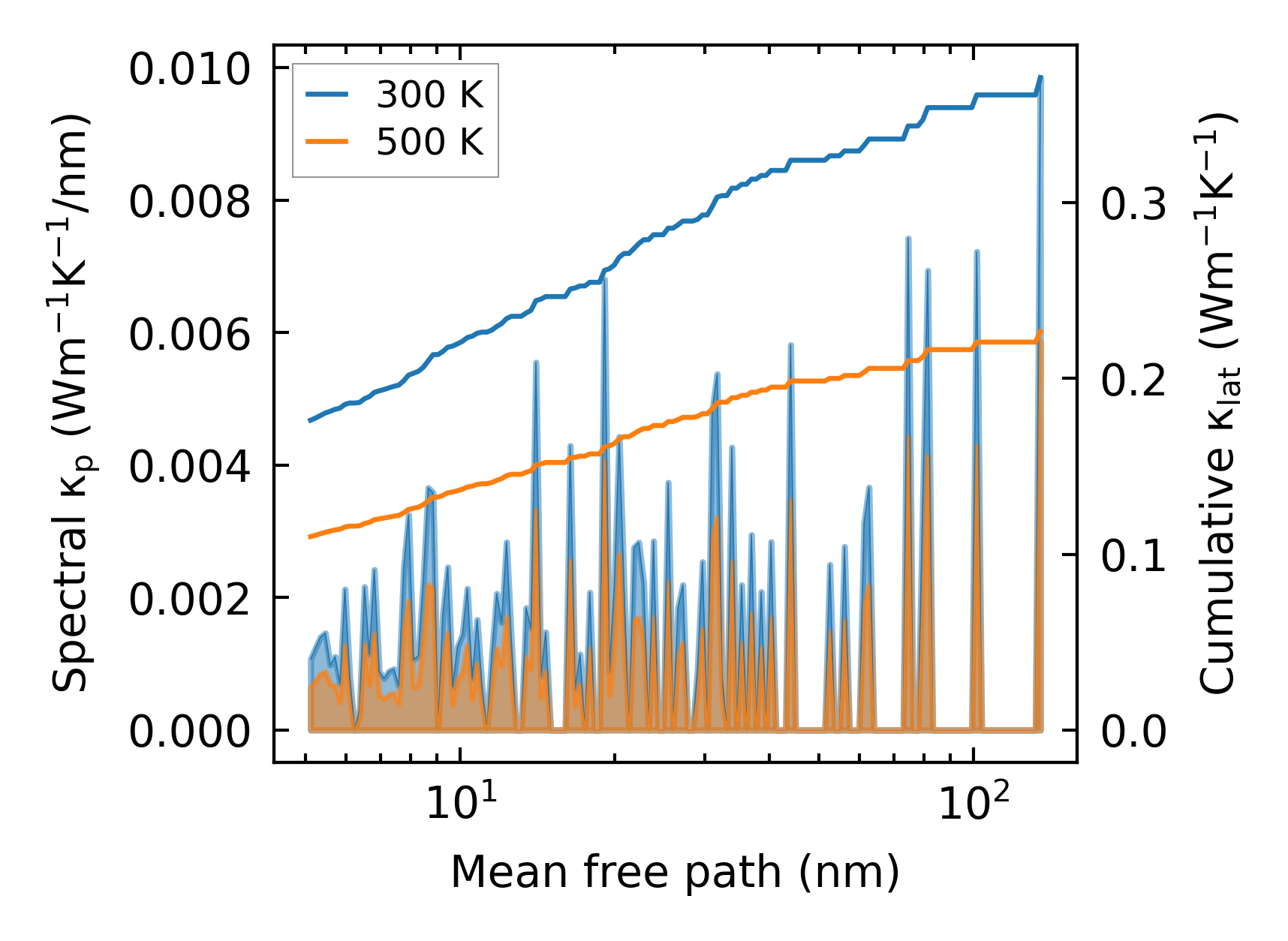

../../_images/fig_cumu_mfp7065.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

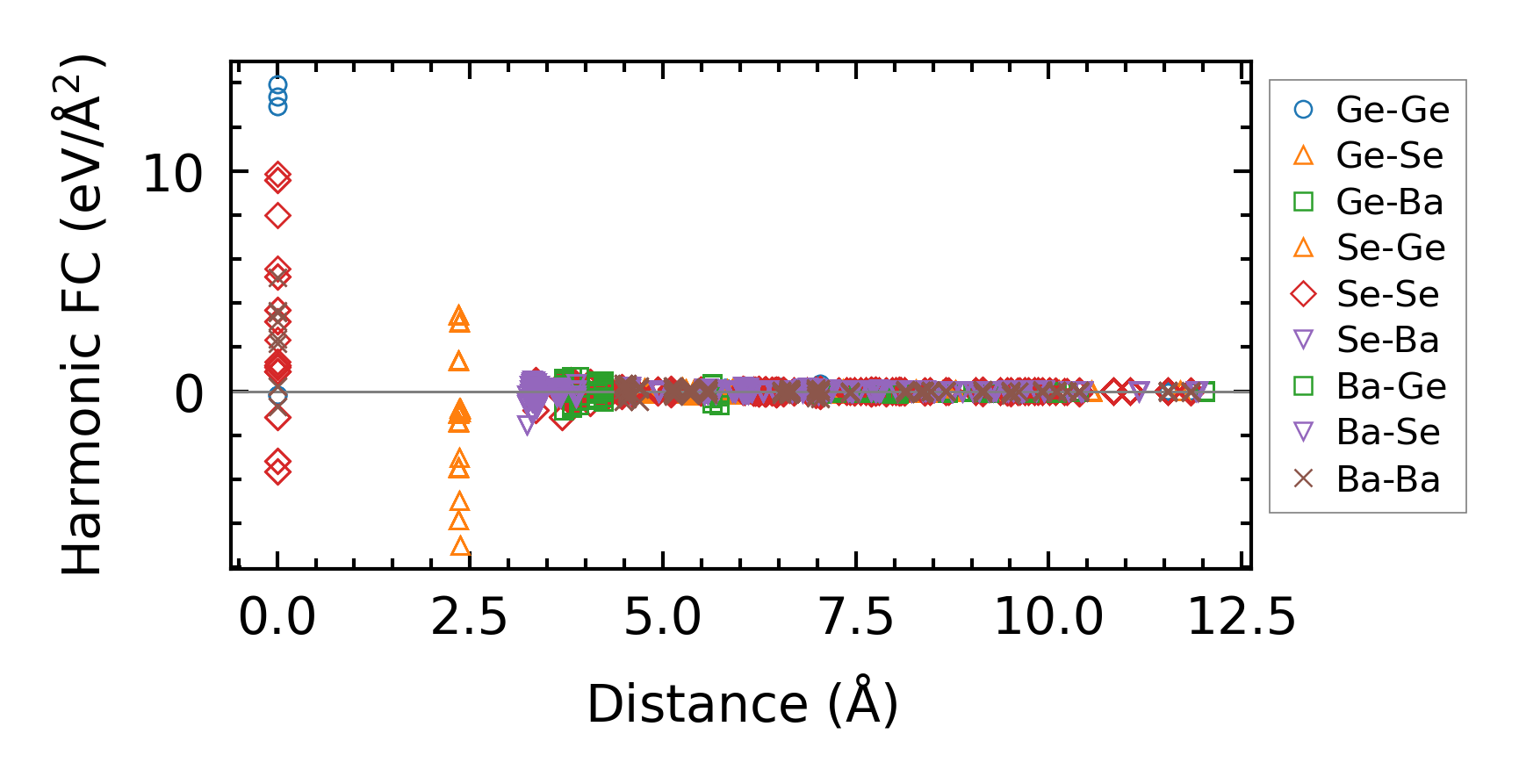

../../_images/fig_fc216059.png — (a) Force constants w.r.t atomic distance

Summary

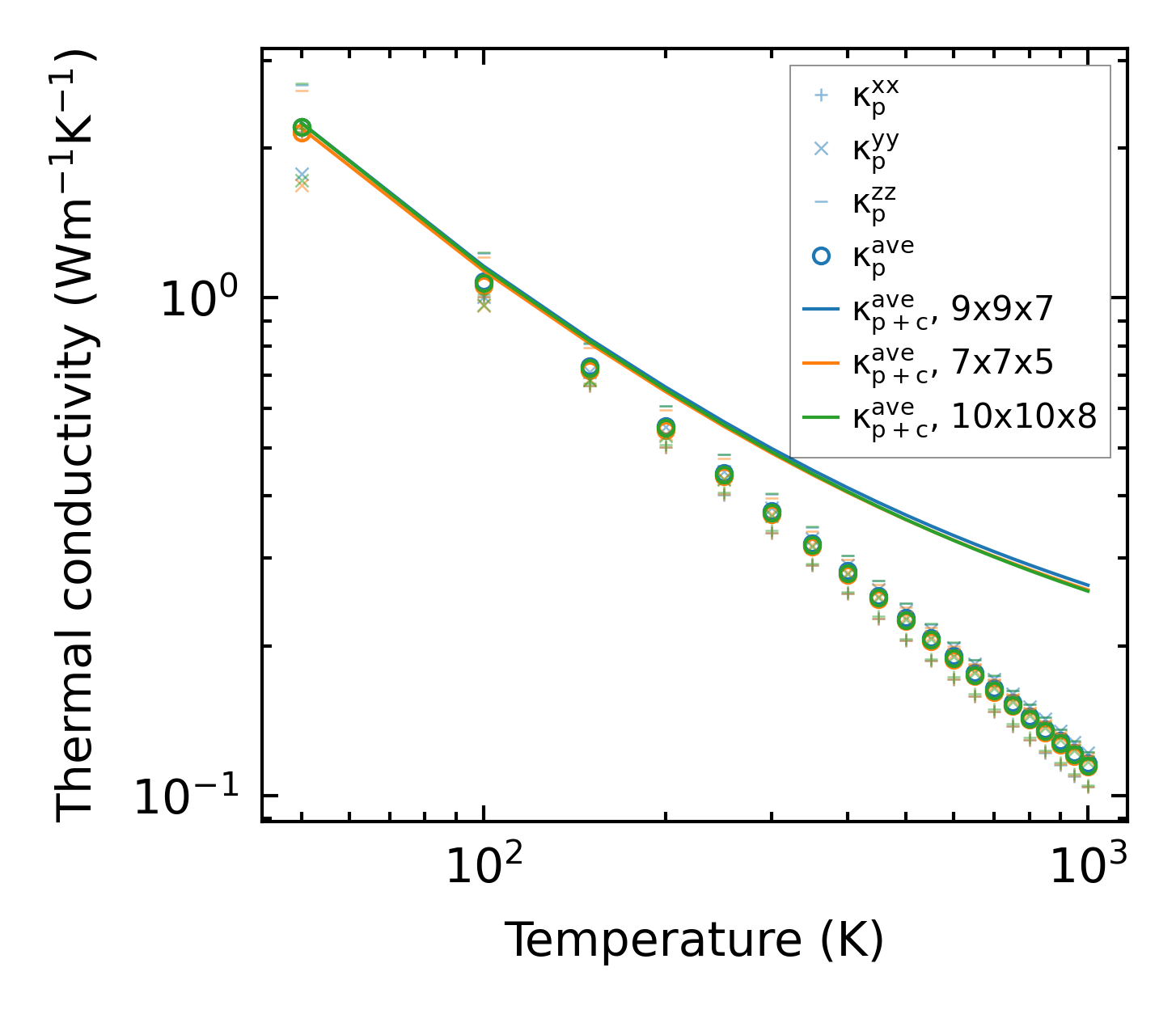

../../_images/fig_kappa13447.png — (a) Temperature-dependent lattice thermal conductivity

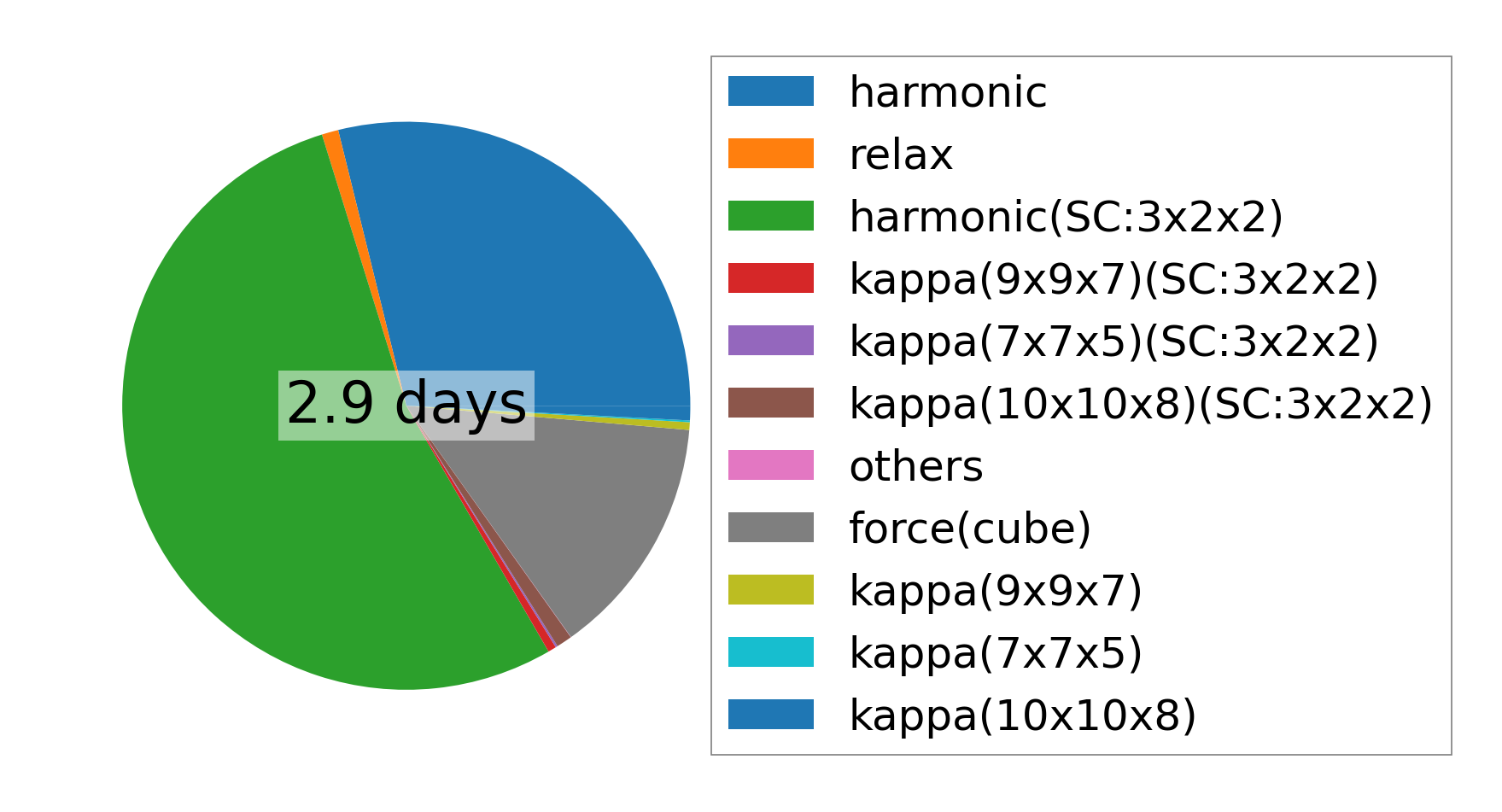

../../_images/fig_times26988.png — (b) Computation time
