mp-11602/KY2CuS4/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-11602.tar.gz

Harmonic properties

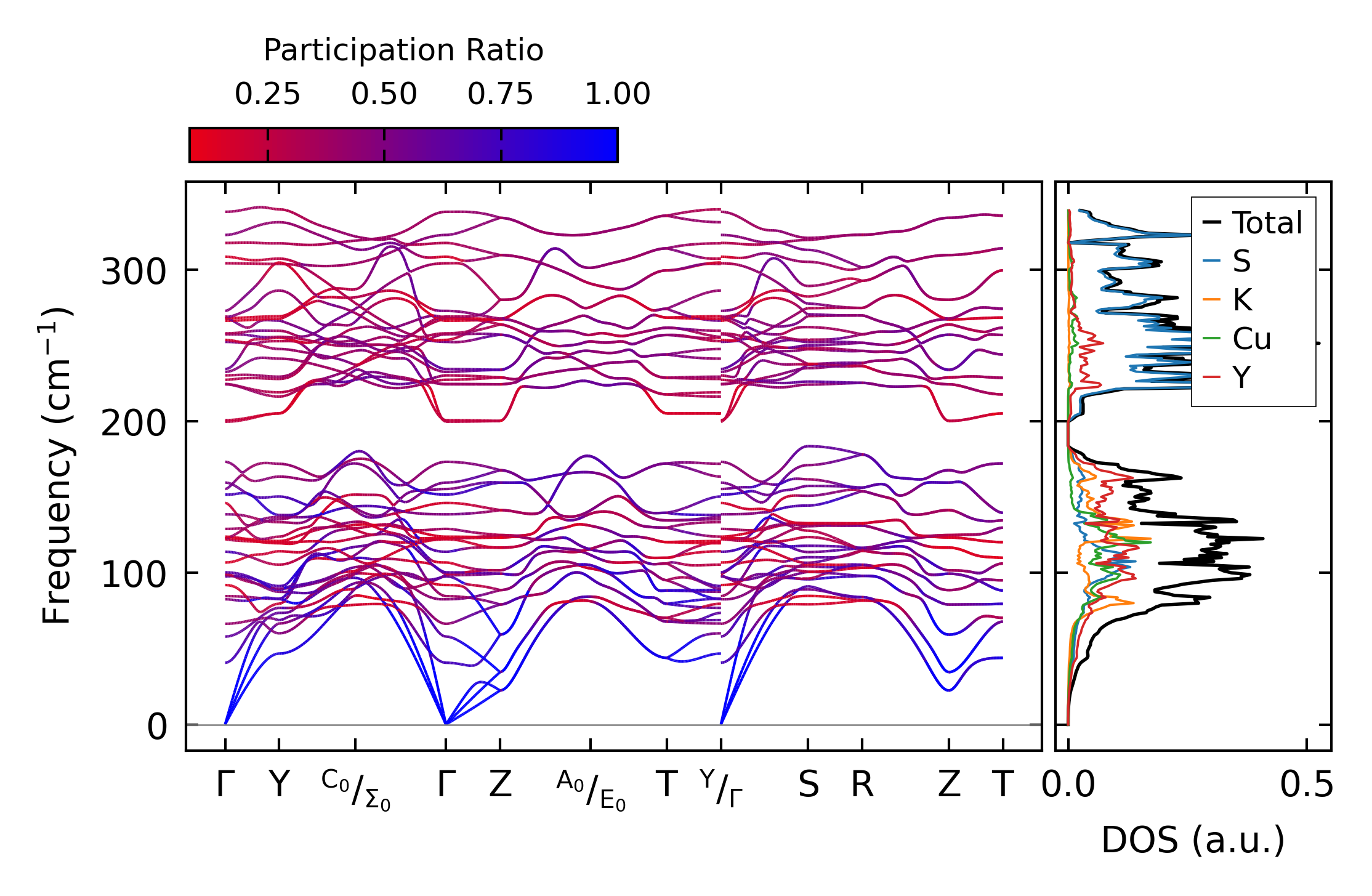

../../_images/fig_bandos_pr16809.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16808.png — (b) Thermodynamic properties

Grüneisen parameters

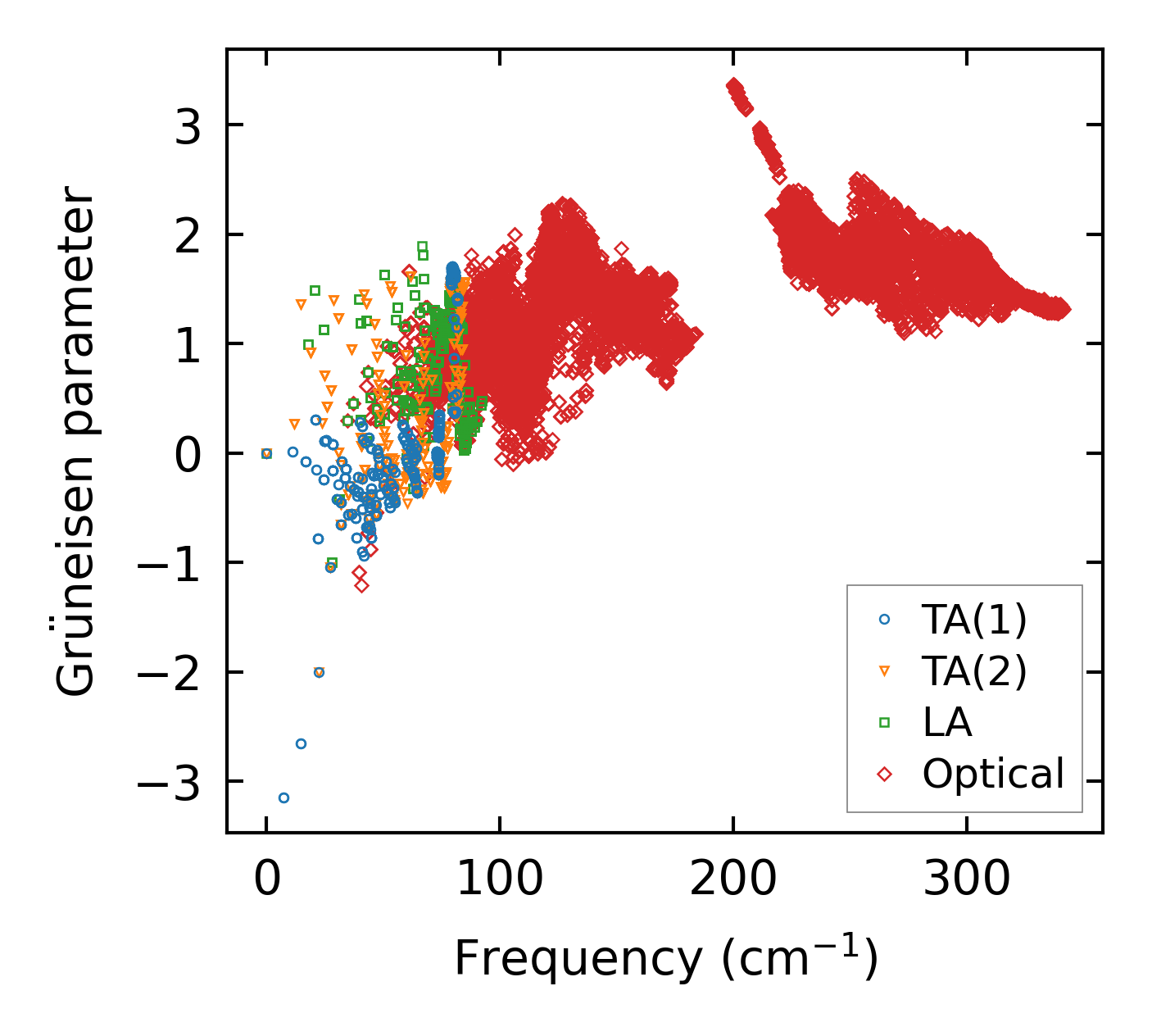

../../_images/fig_gru_all7344.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7344.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x6, supercell: 4x1x1

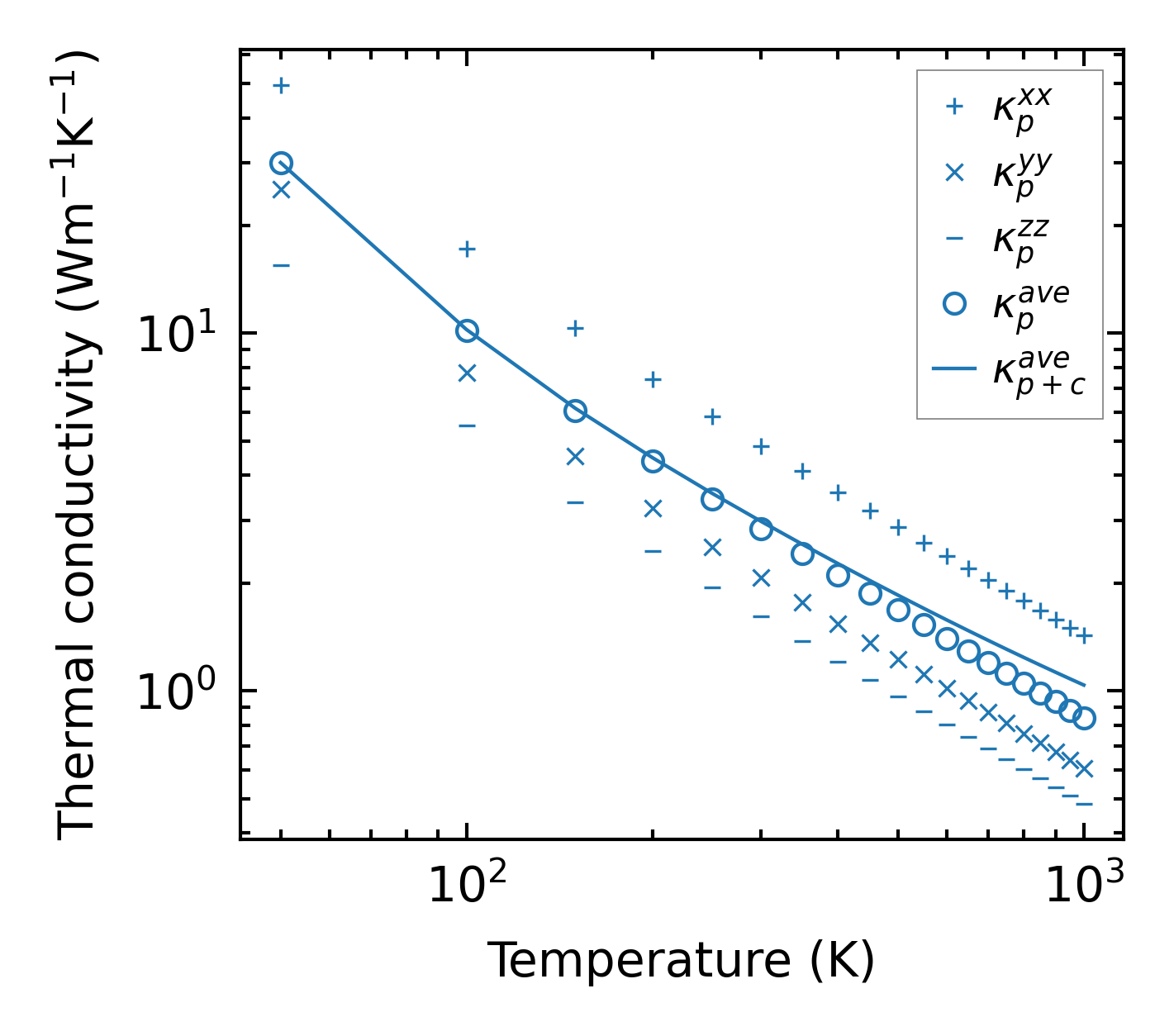

../../_images/fig_kappa13852.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7431.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

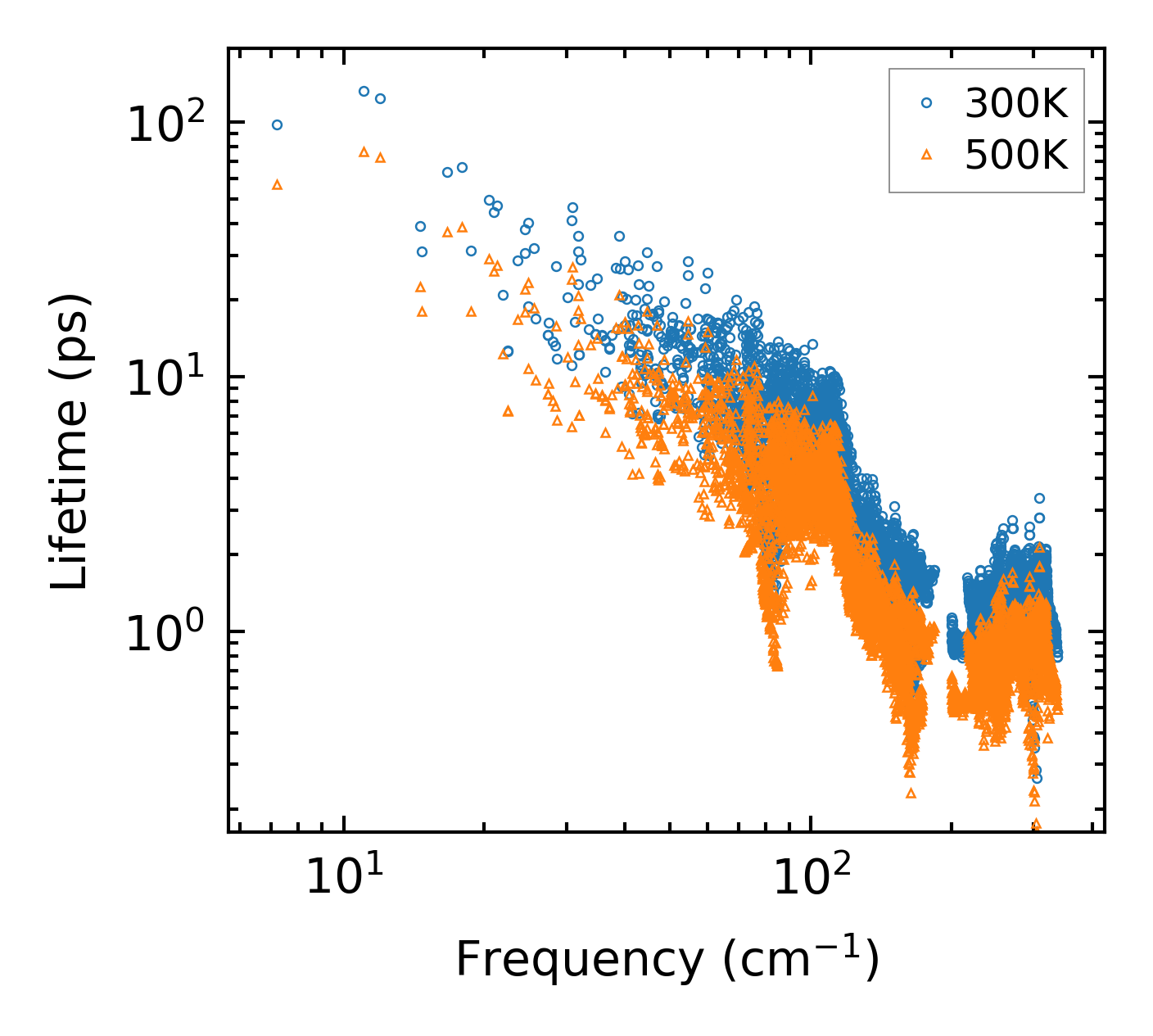

../../_images/fig_lifetime7278.png — (a) Phonon lifetime due to phonon-phonon scattering

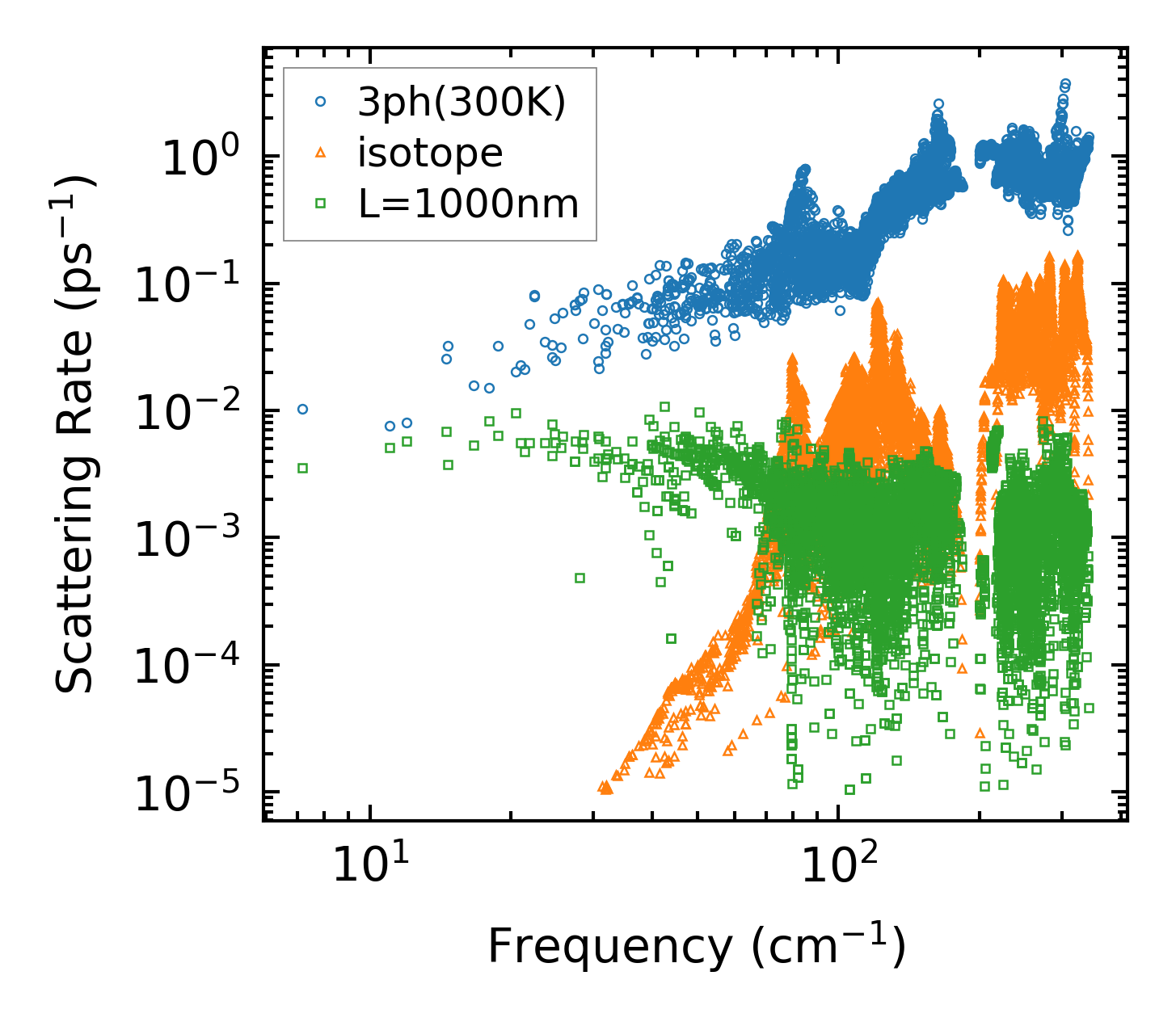

../../_images/fig_scat_rates7277.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

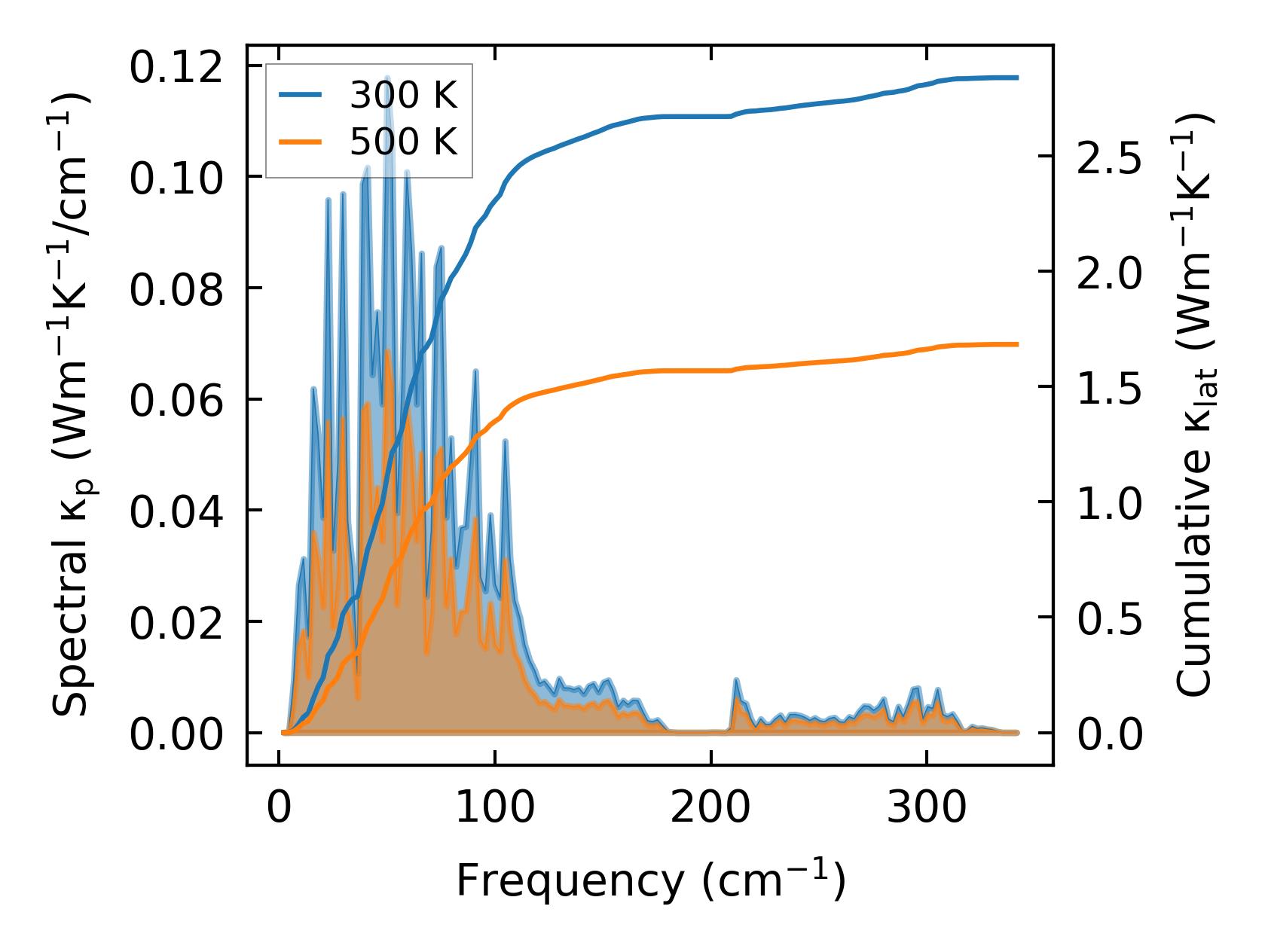

../../_images/fig_cumu_frequency7278.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

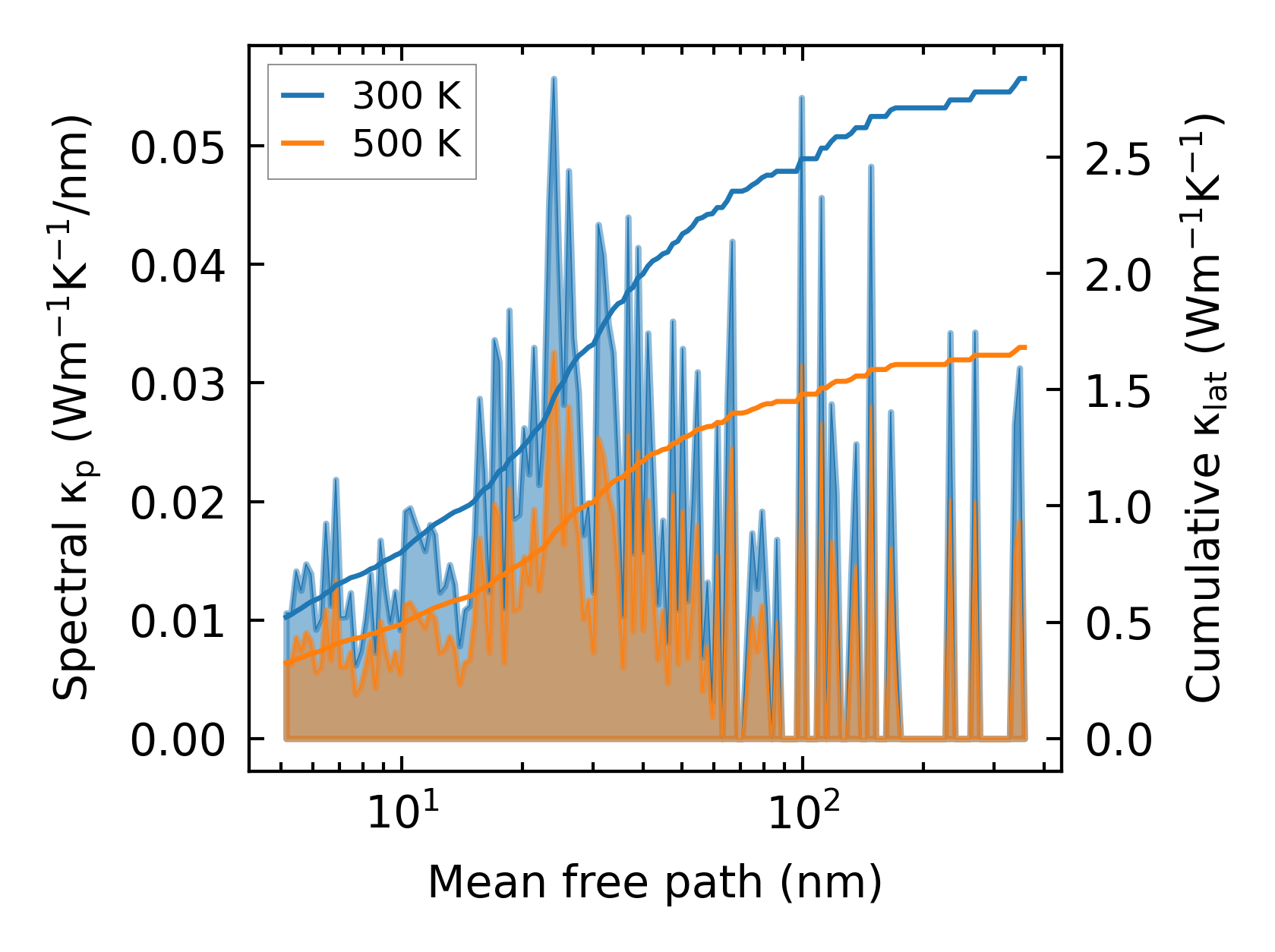

../../_images/fig_cumu_mfp7277.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

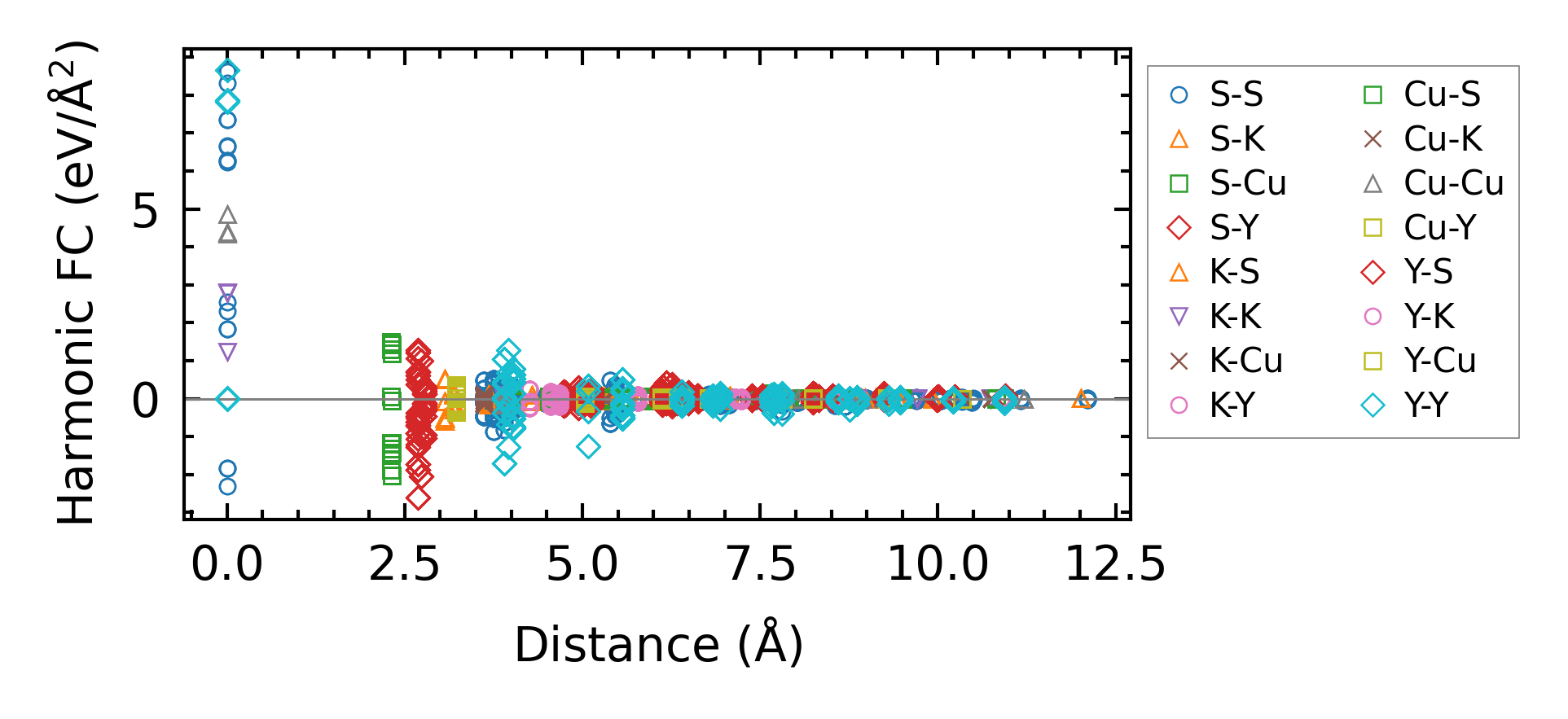

../../_images/fig_fc216364.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13853.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27432.png — (b) Computation time
