mp-11022-2/ScAgO2/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-11022-2.tar.gz

Harmonic properties

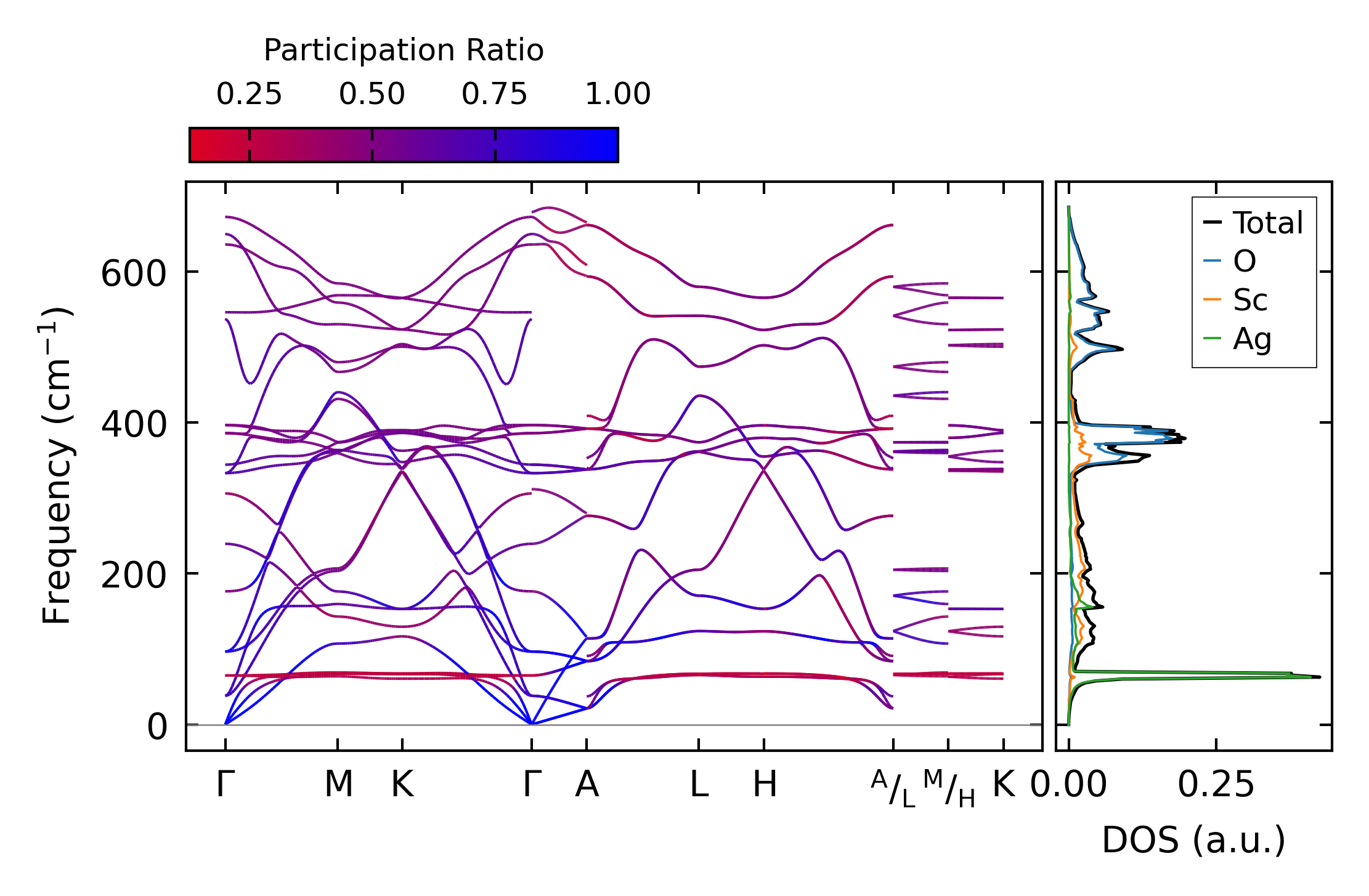

../../_images/fig_bandos_pr16757.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16756.png — (b) Thermodynamic properties

Grüneisen parameters

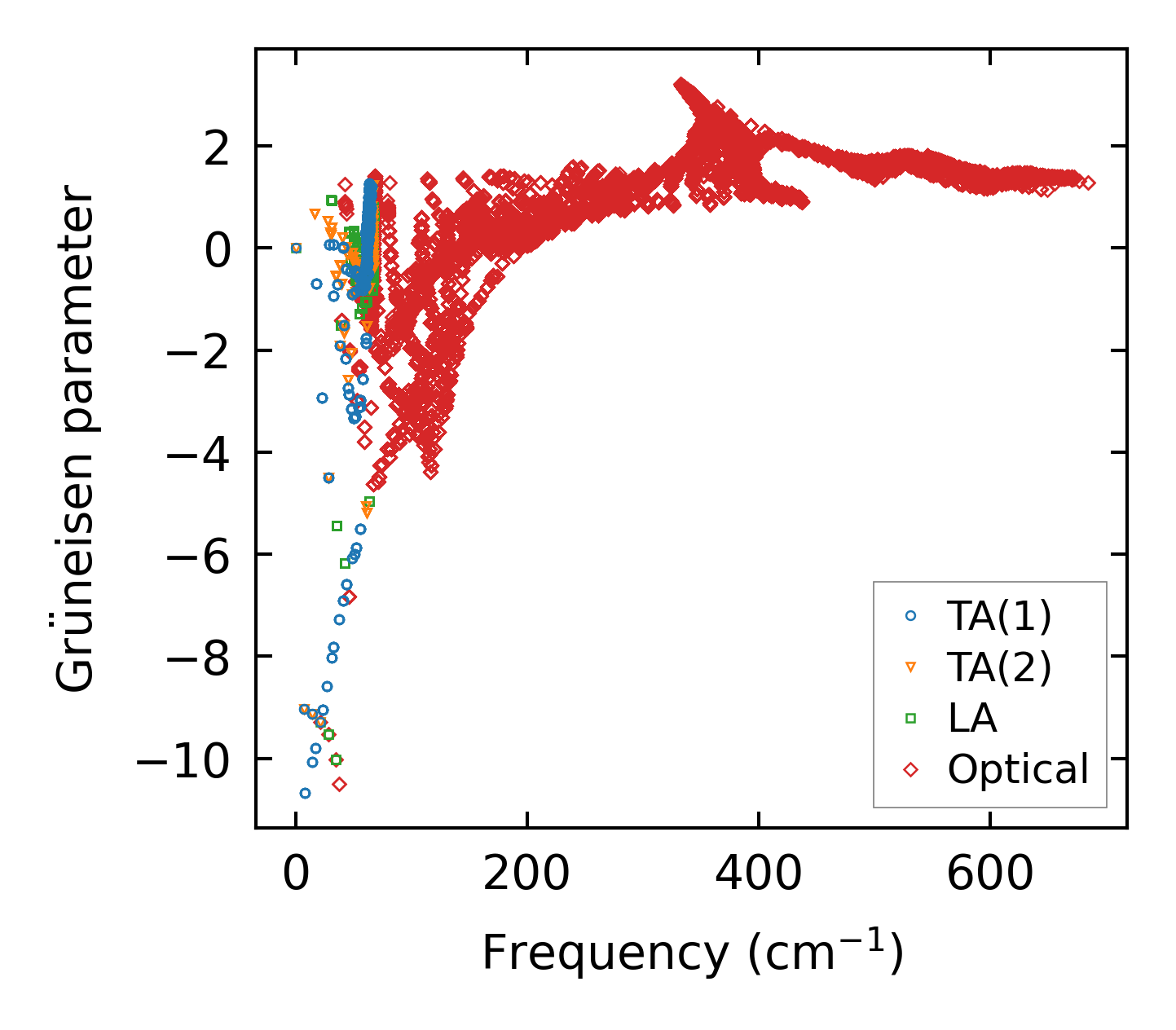

../../_images/fig_gru_all7309.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7309.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 23x23x6, supercell: 4x4x1

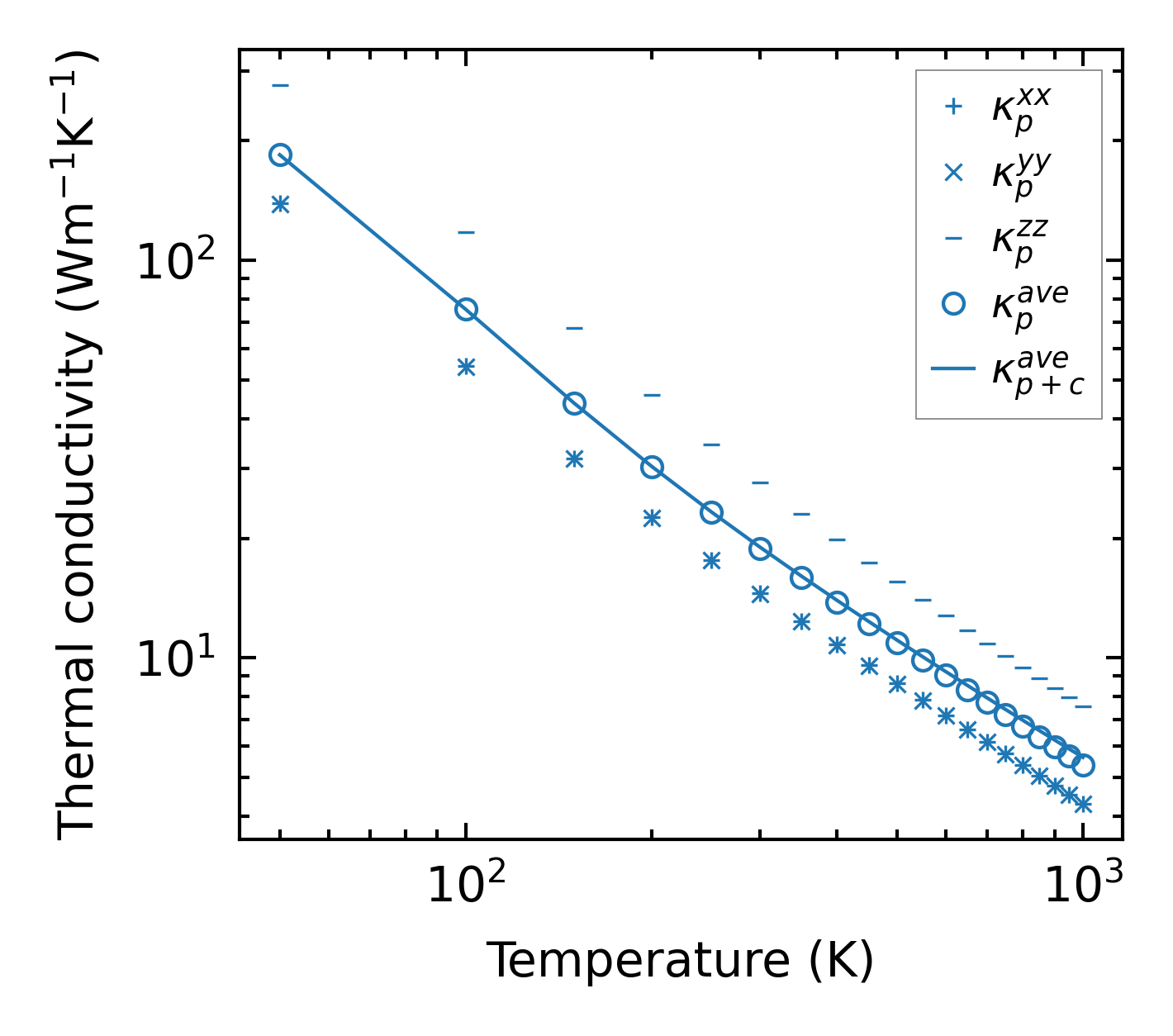

../../_images/fig_kappa13783.png — (a) Temperature-dependent lattice thermal conductivity

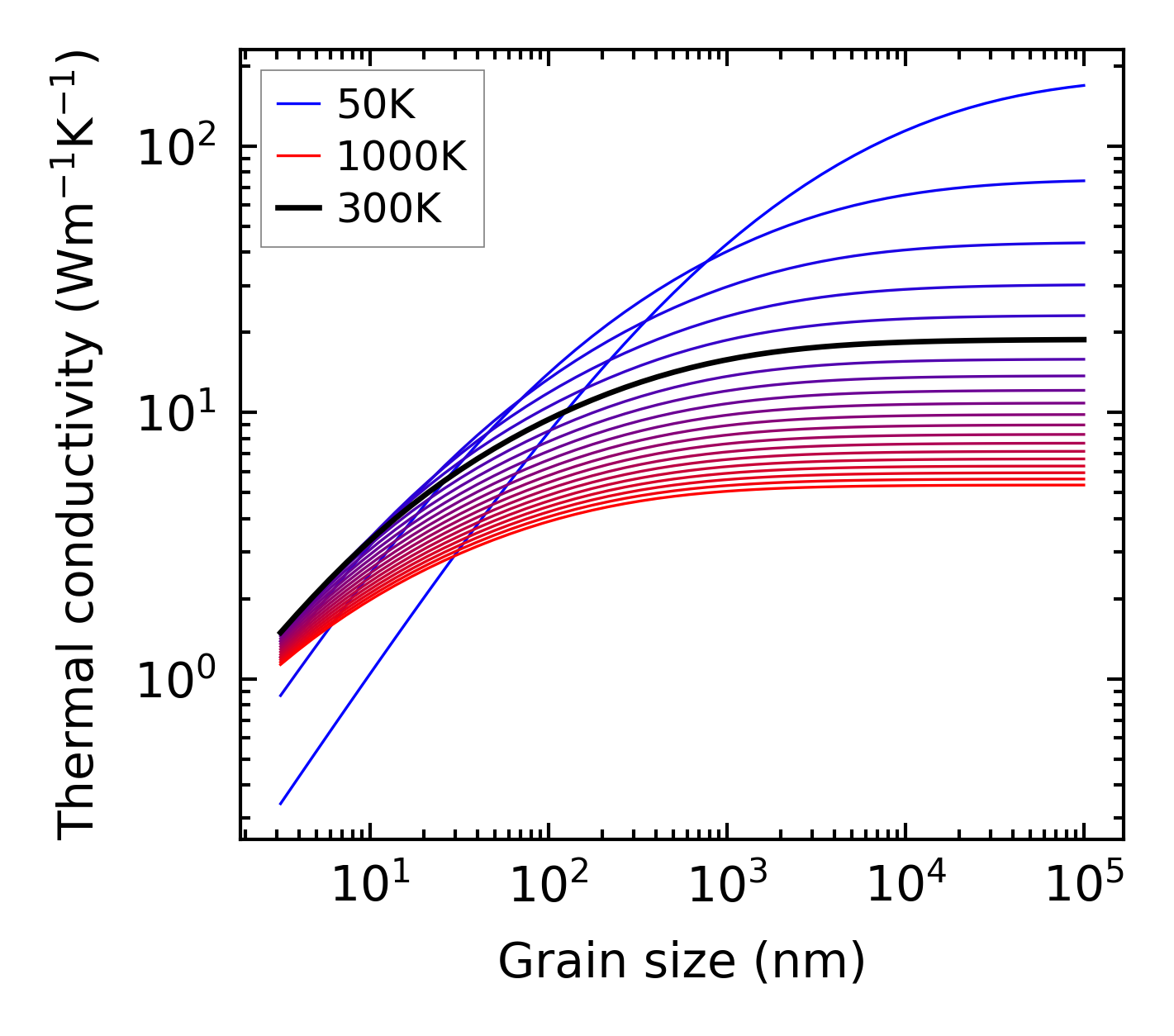

../../_images/fig_kappa_vs_grain_size7395.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

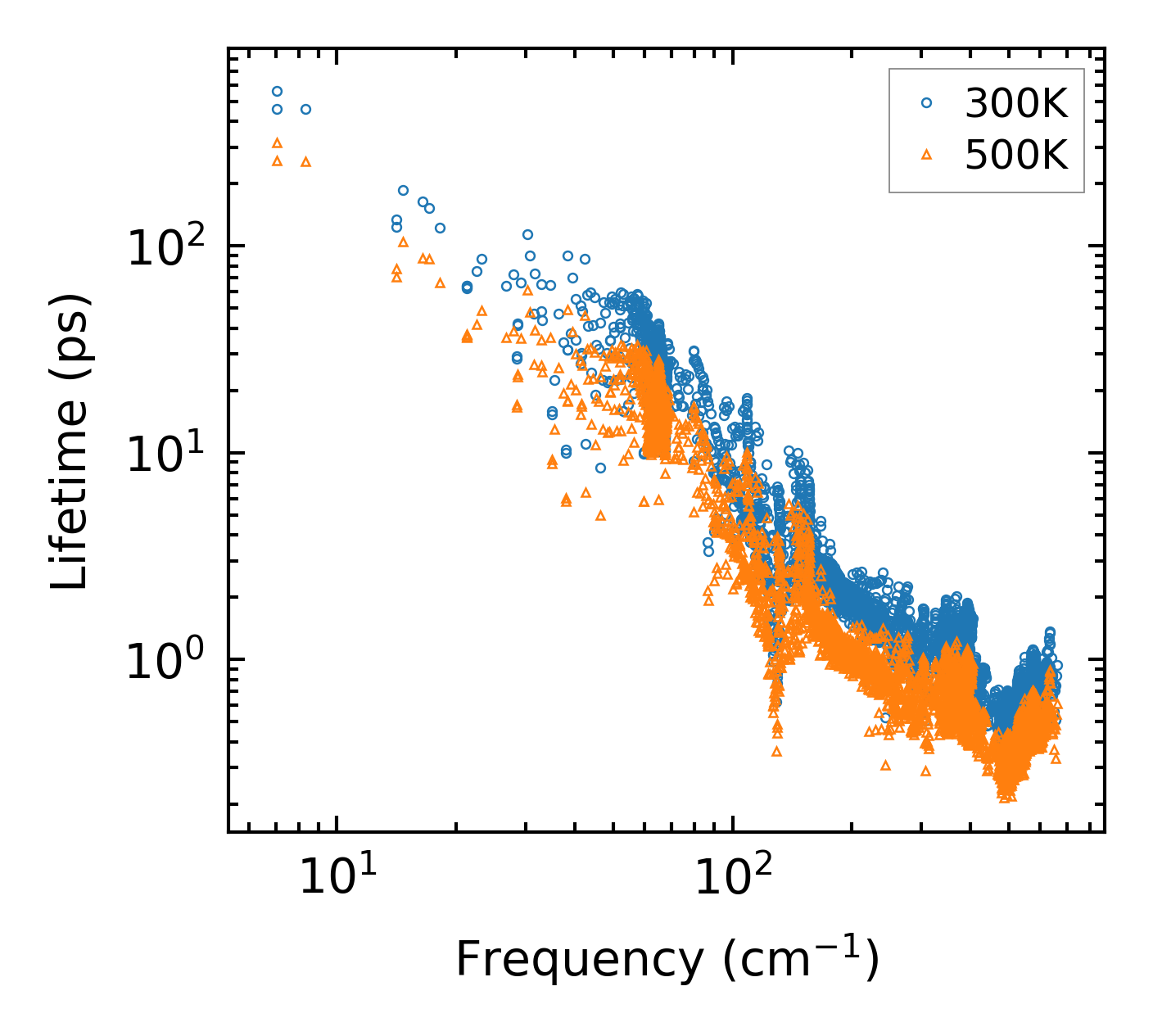

../../_images/fig_lifetime7243.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7242.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7243.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

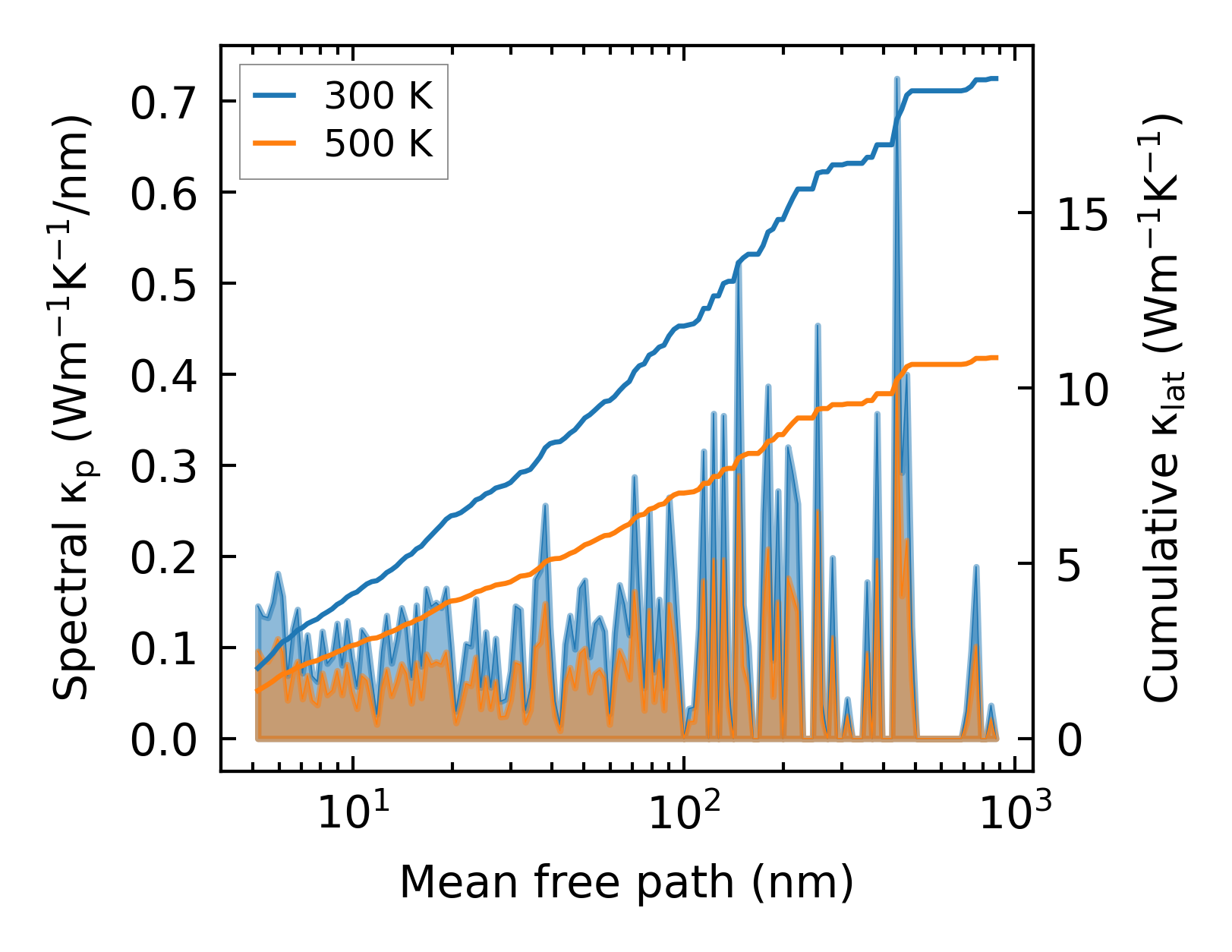

../../_images/fig_cumu_mfp7242.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

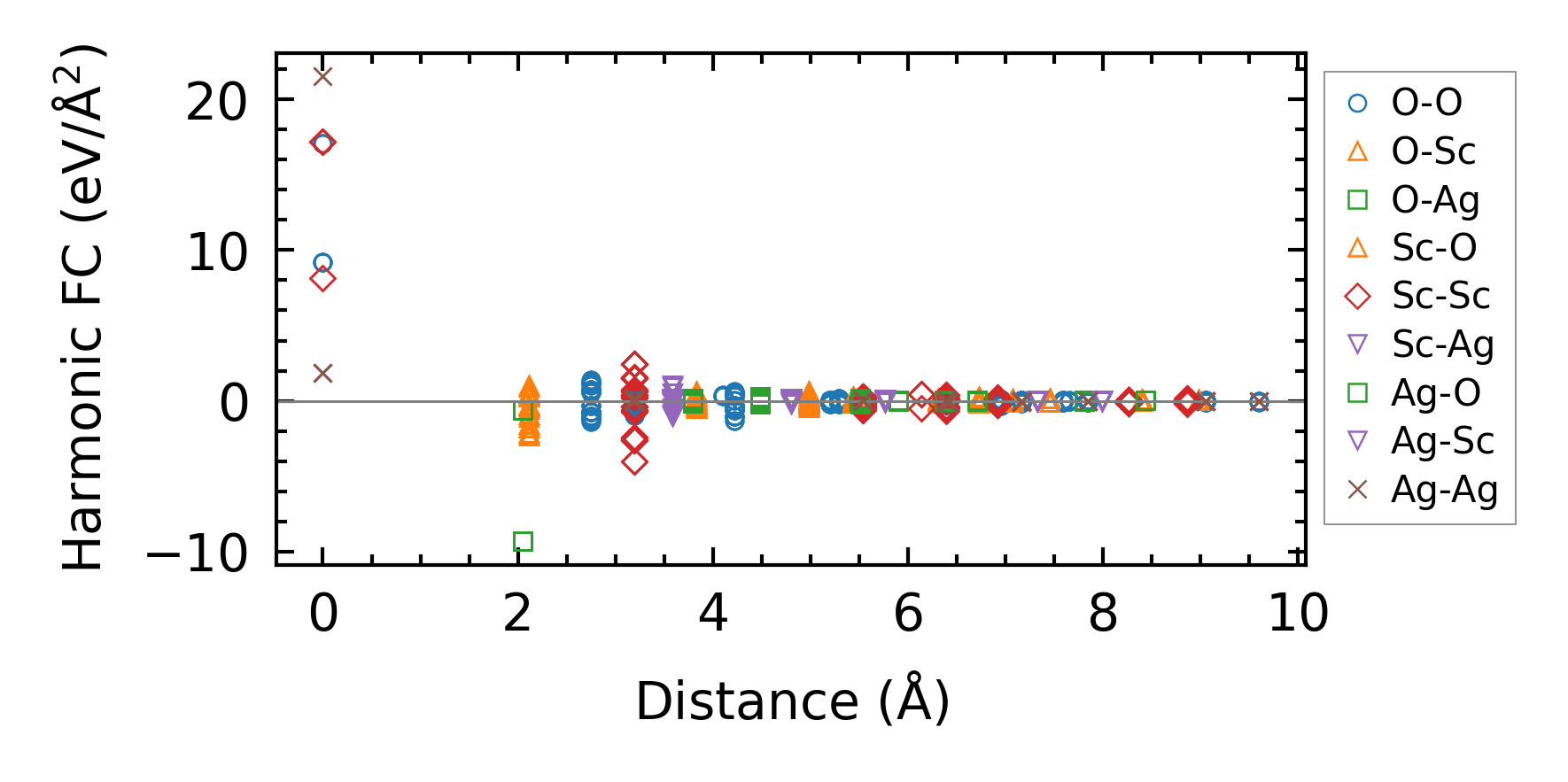

../../_images/fig_fc216315.png — (a) Force constants w.r.t atomic distance

Summary

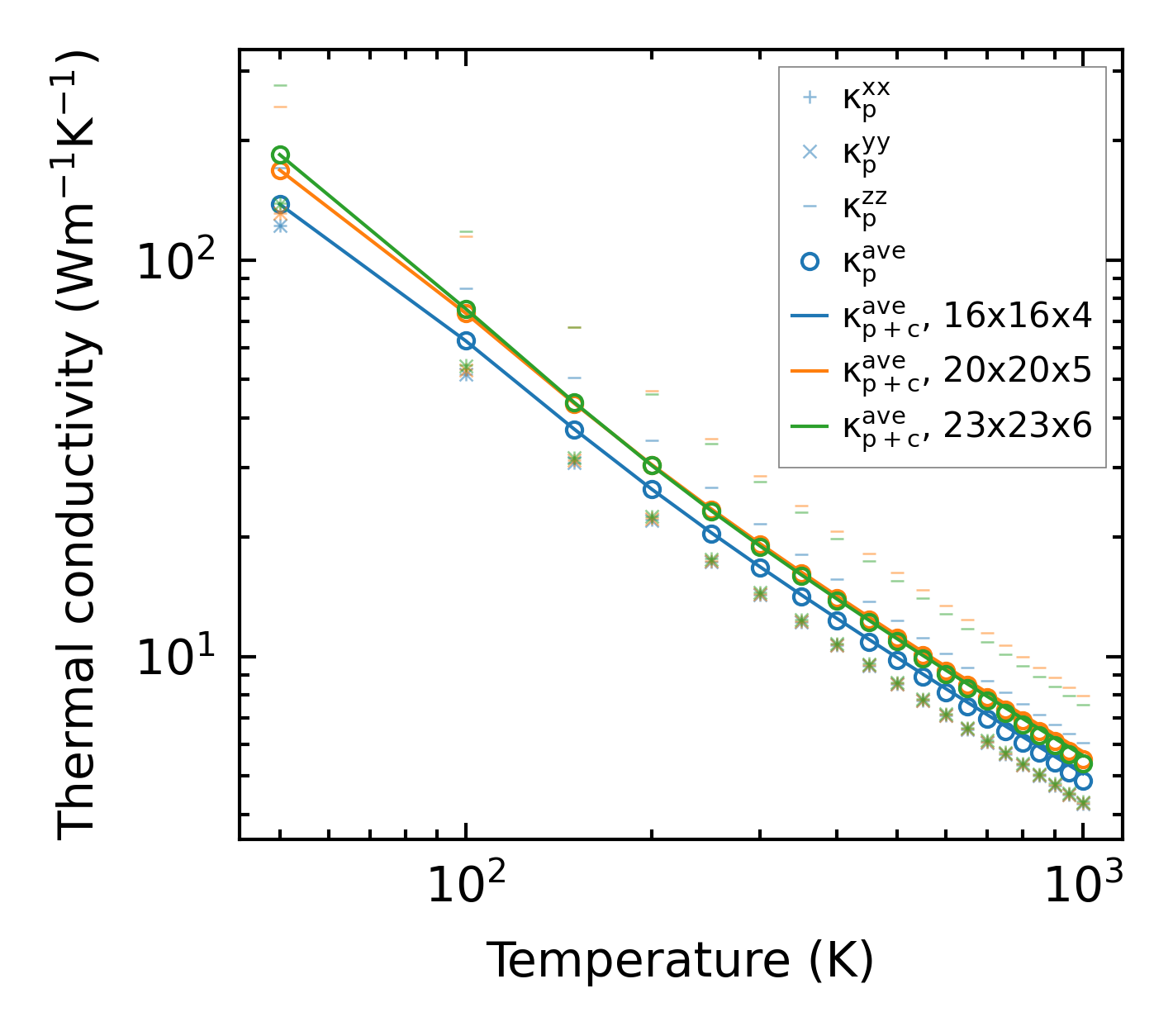

../../_images/fig_kappa13784.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27374.png — (b) Computation time
