mp-11714/SiC/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-11714.tar.gz

Equation of state

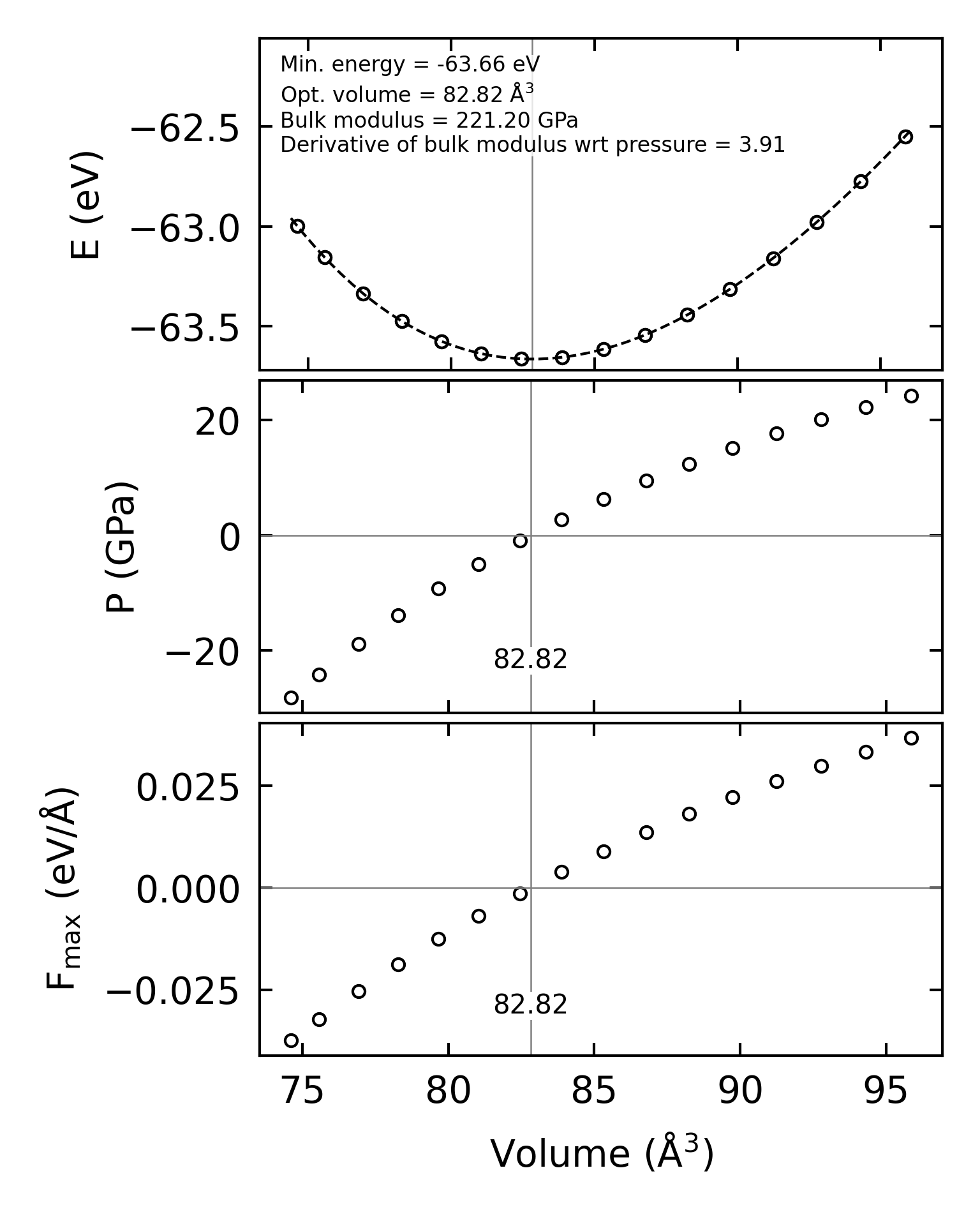

../../_images/fig_bm7718.png — (a) Equation of state

Harmonic properties

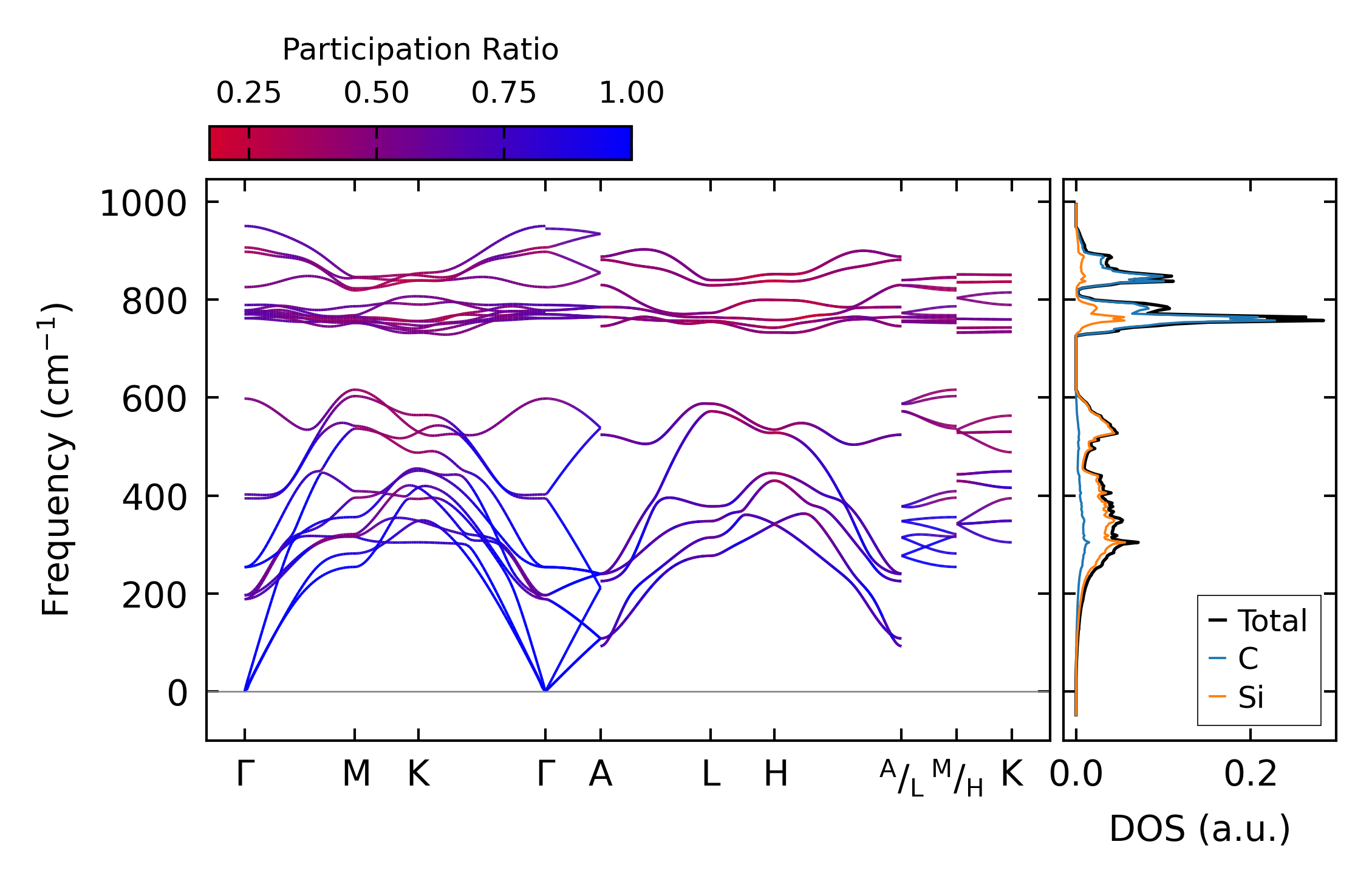

../../_images/fig_bandos_pr16457.png — (a) Phonon dispersion with participation ratio and DOS

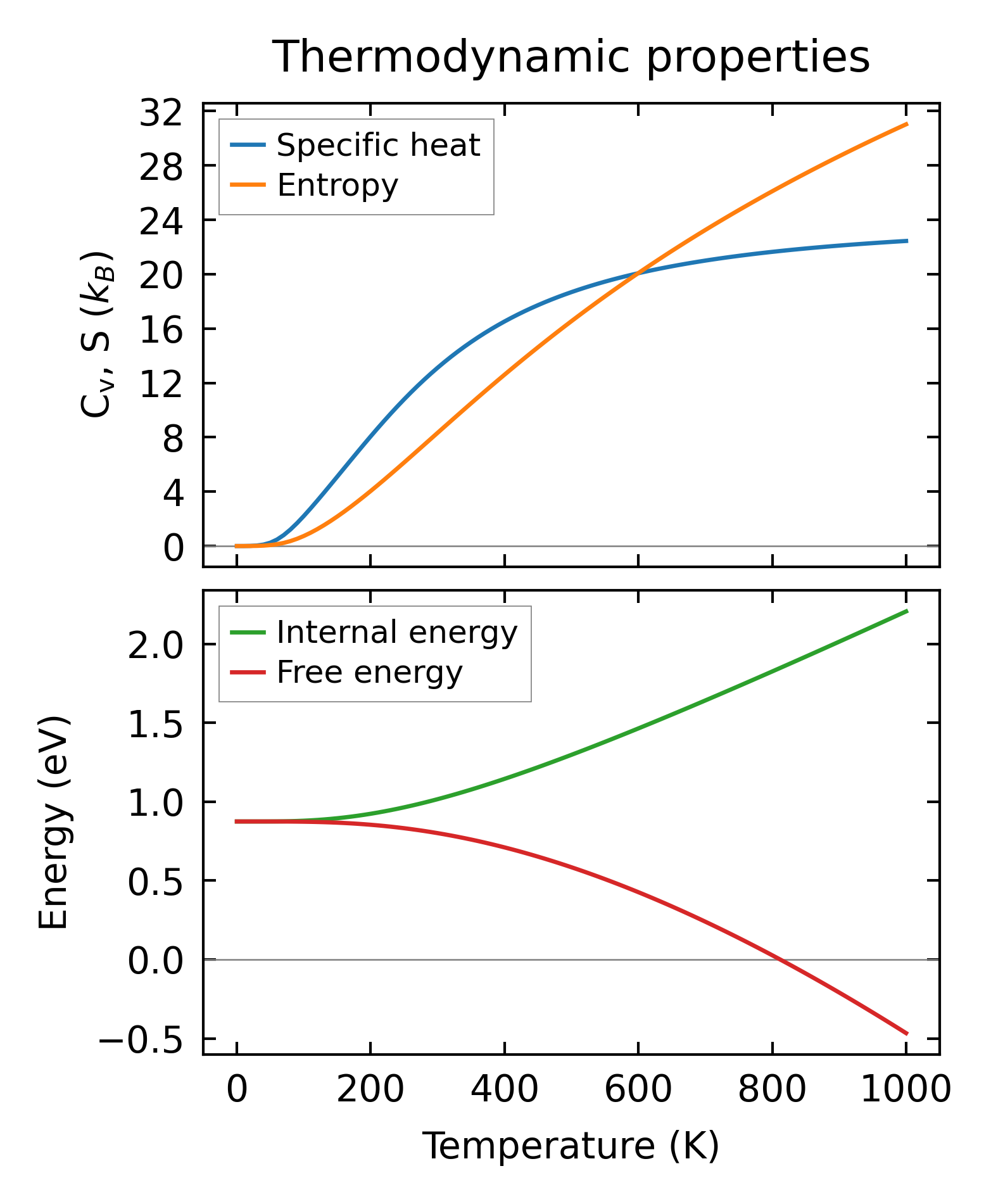

../../_images/fig_thermo16456.png — (b) Thermodynamic properties

Grüneisen parameters

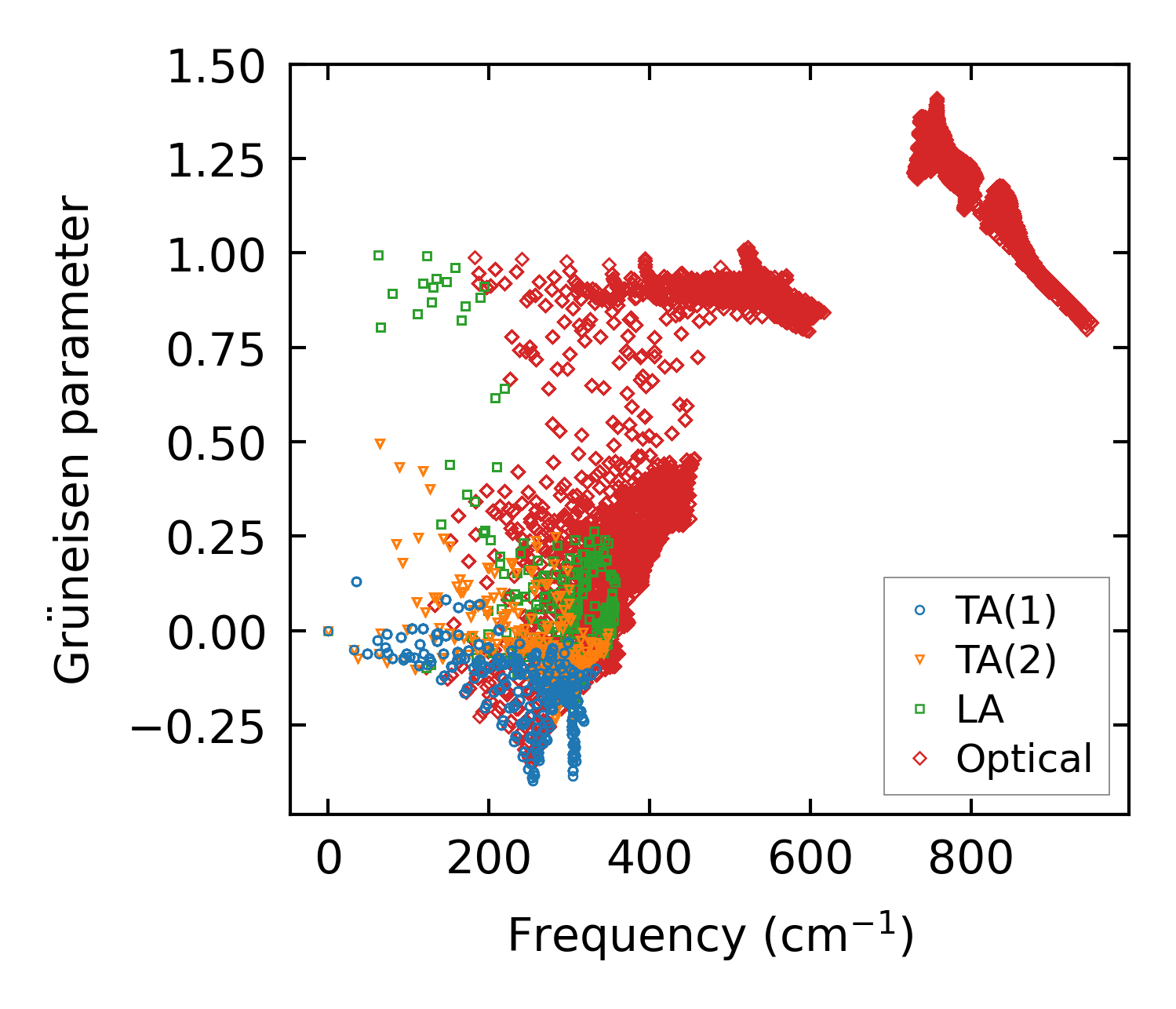

../../_images/fig_gru_all7113.png — (a) Grüneisen parameters

../../_images/fig_gruneisen7113.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 24x24x7, supercell: 4x4x1

../../_images/fig_kappa13405.png — (a) Temperature-dependent lattice thermal conductivity

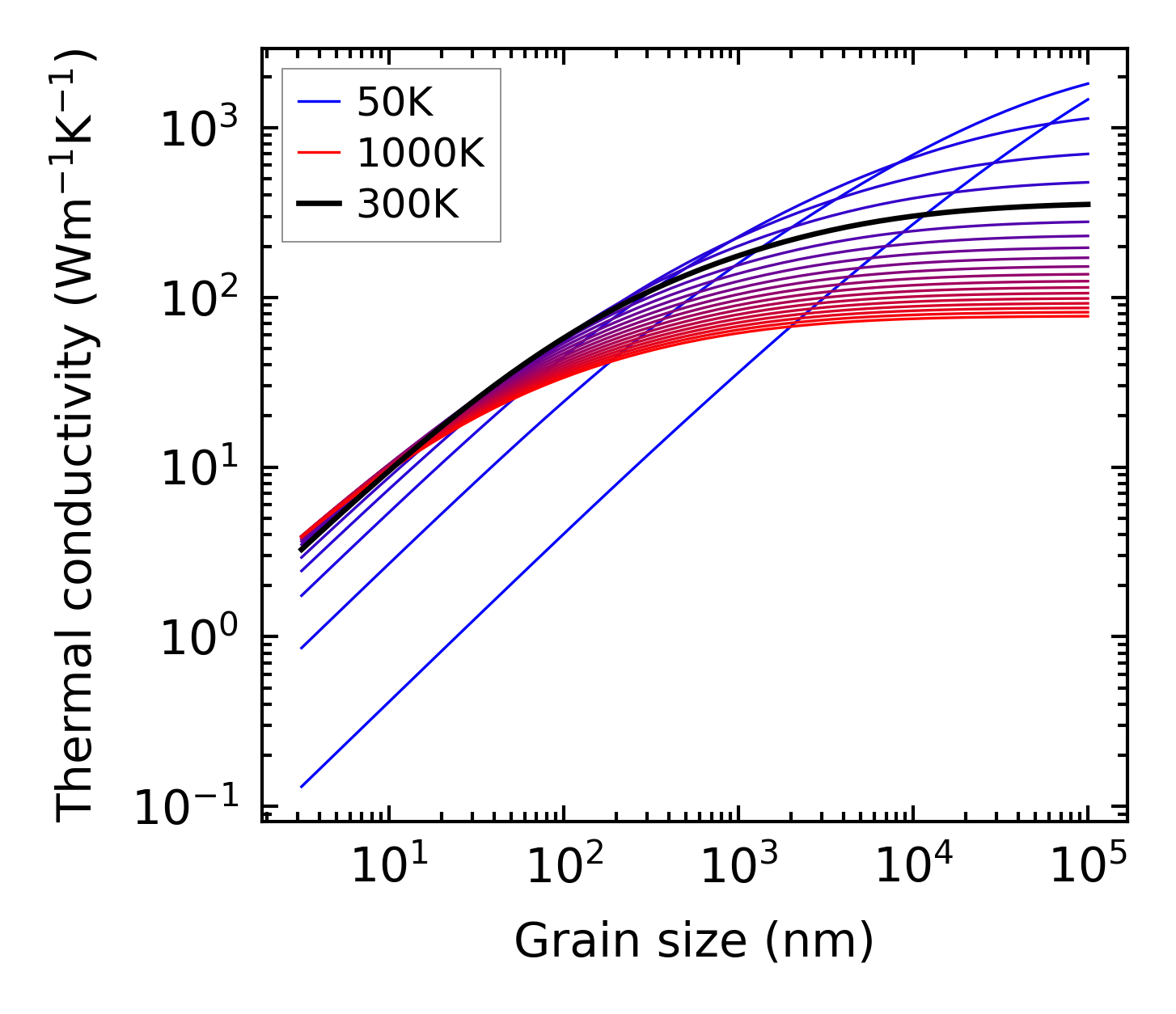

../../_images/fig_kappa_vs_grain_size7196.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

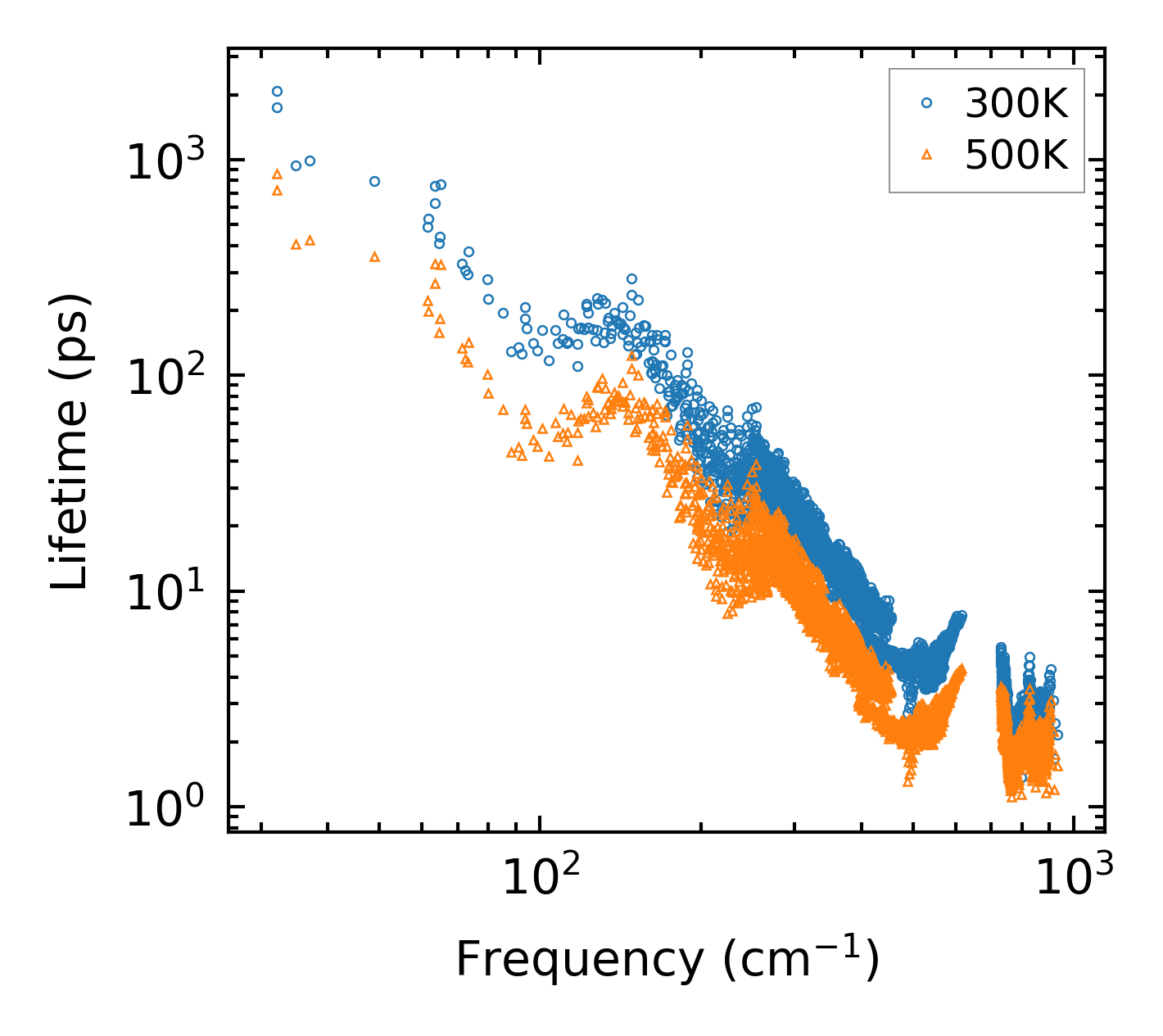

../../_images/fig_lifetime7047.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7046.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

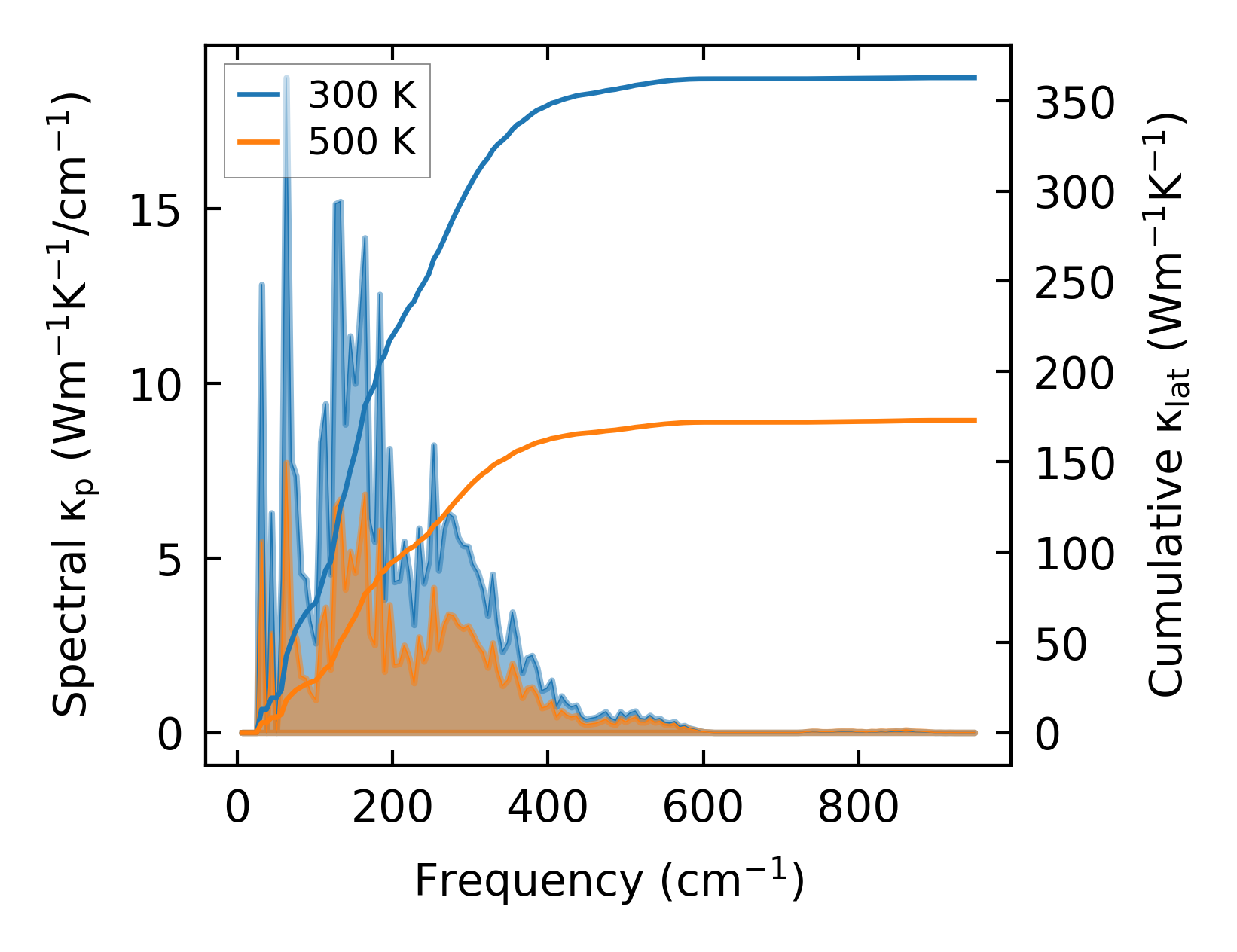

../../_images/fig_cumu_frequency7047.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7046.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc216037.png — (a) Force constants w.r.t atomic distance

Summary

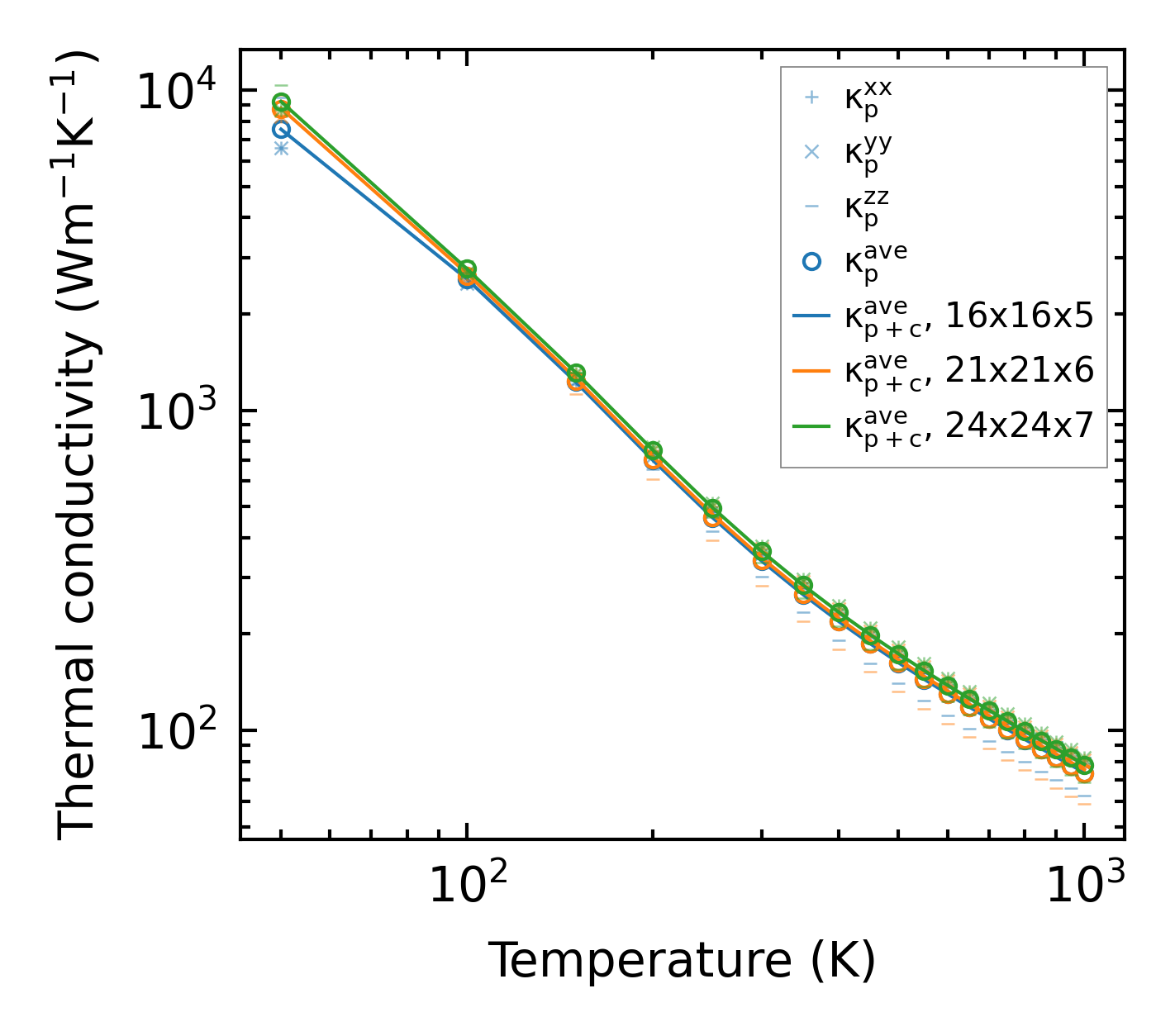

../../_images/fig_kappa13406.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times26959.png — (b) Computation time
