mp-11006-2/BaPS3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-11006-2.tar.gz

Harmonic properties

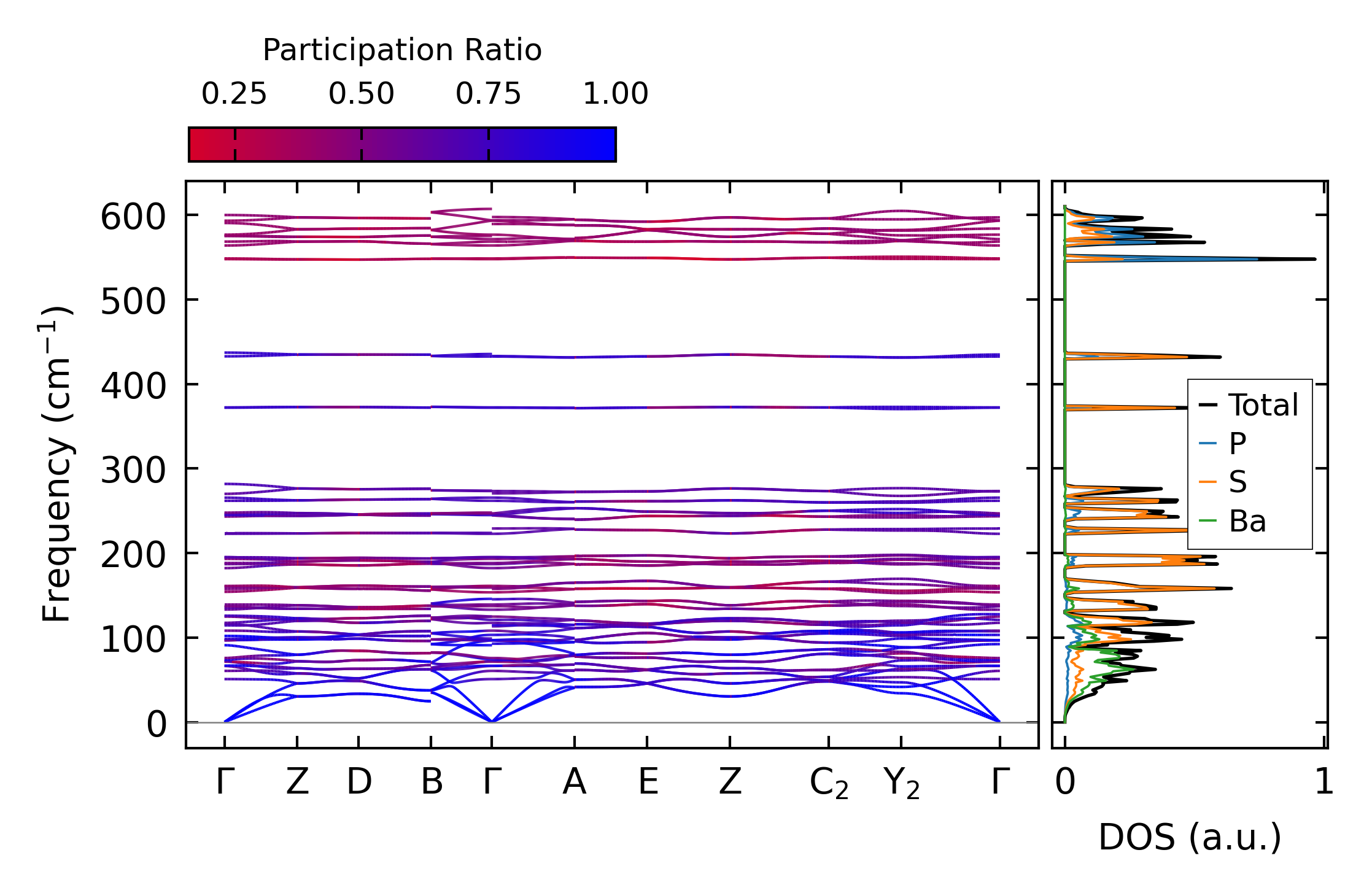

../../_images/fig_bandos_pr16737.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16736.png — (b) Thermodynamic properties

Grüneisen parameters

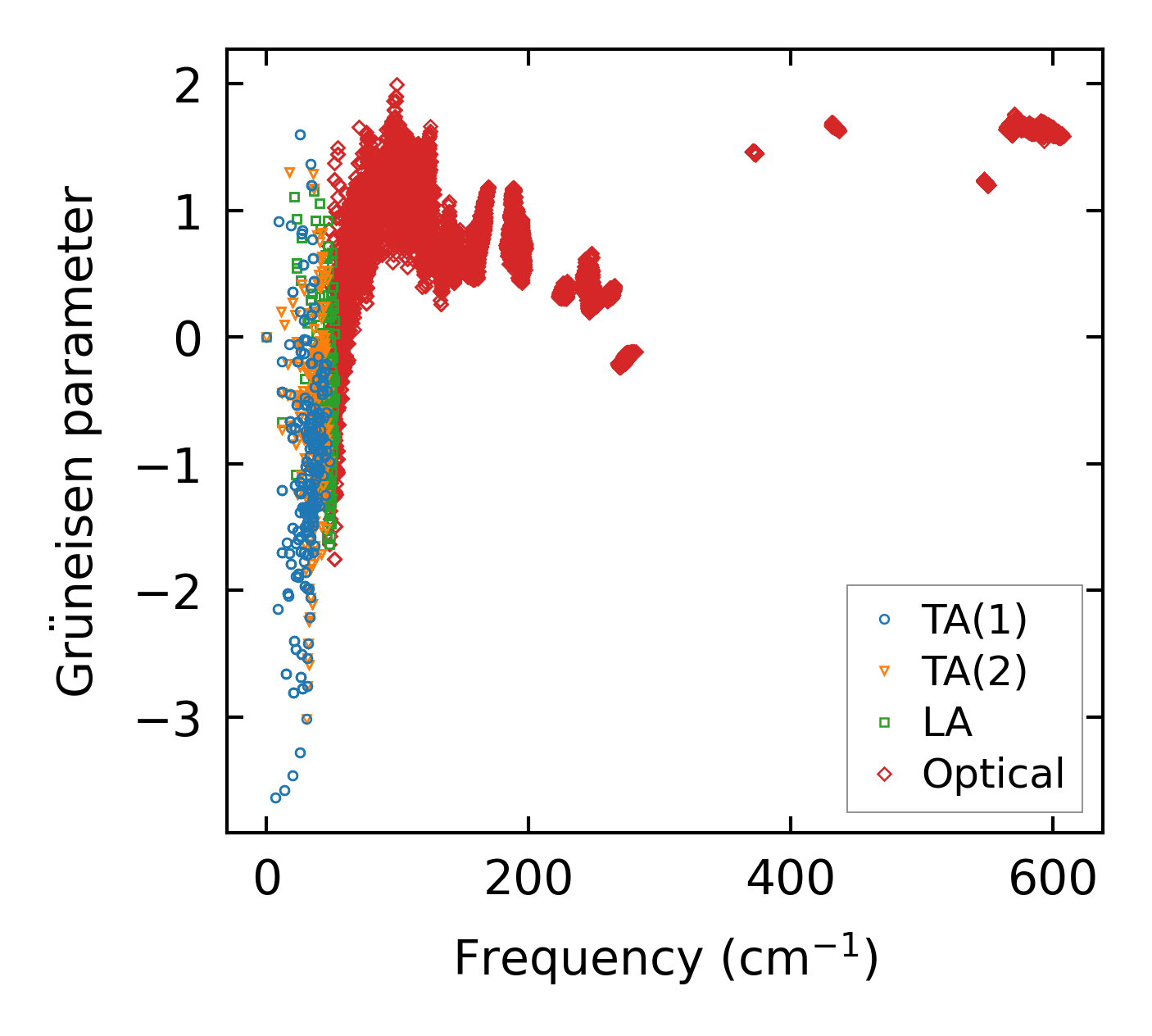

../../_images/fig_gru_all7298.png — (a) Grüneisen parameters

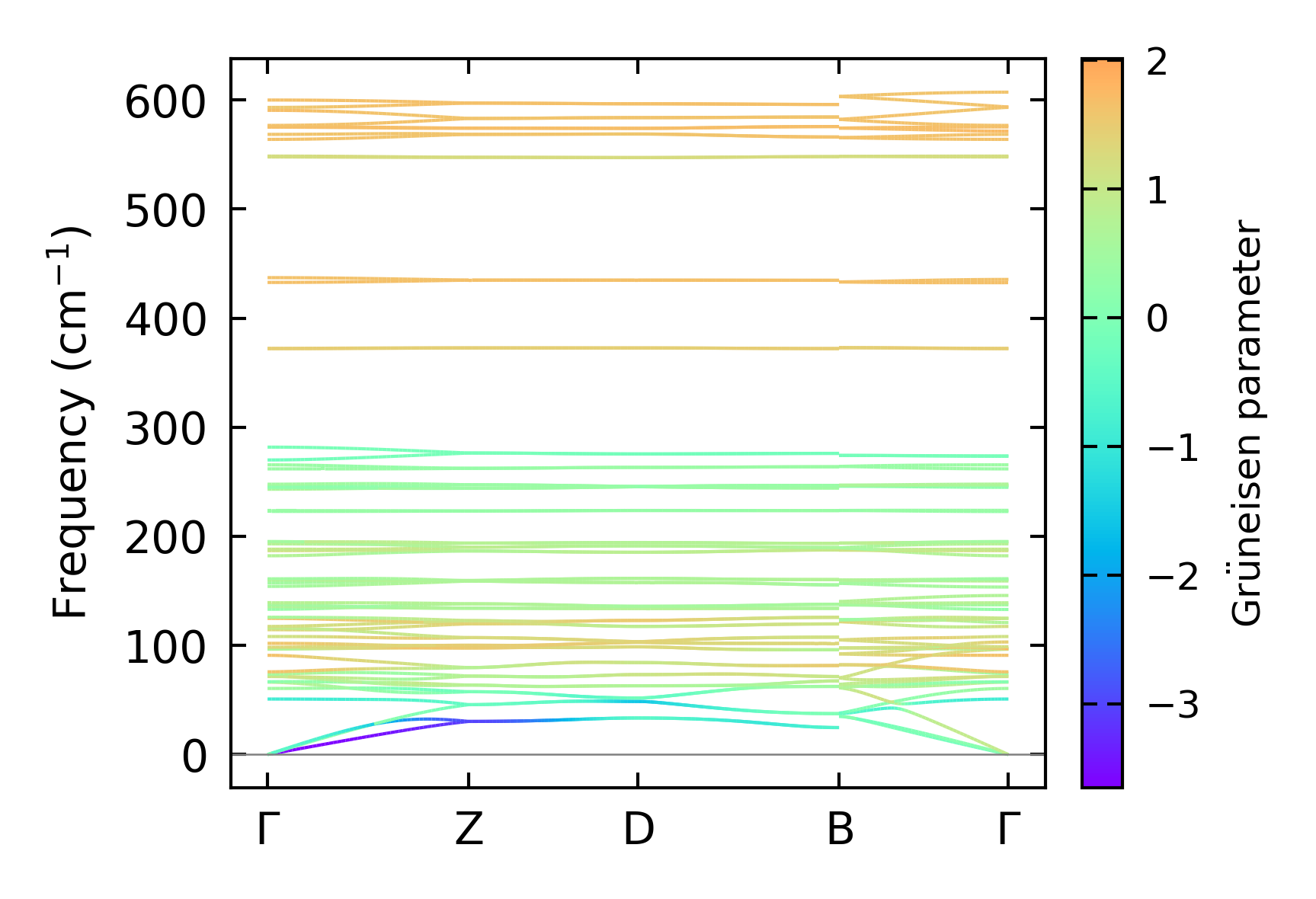

../../_images/fig_gruneisen7298.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x10x6, supercell: 2x2x1

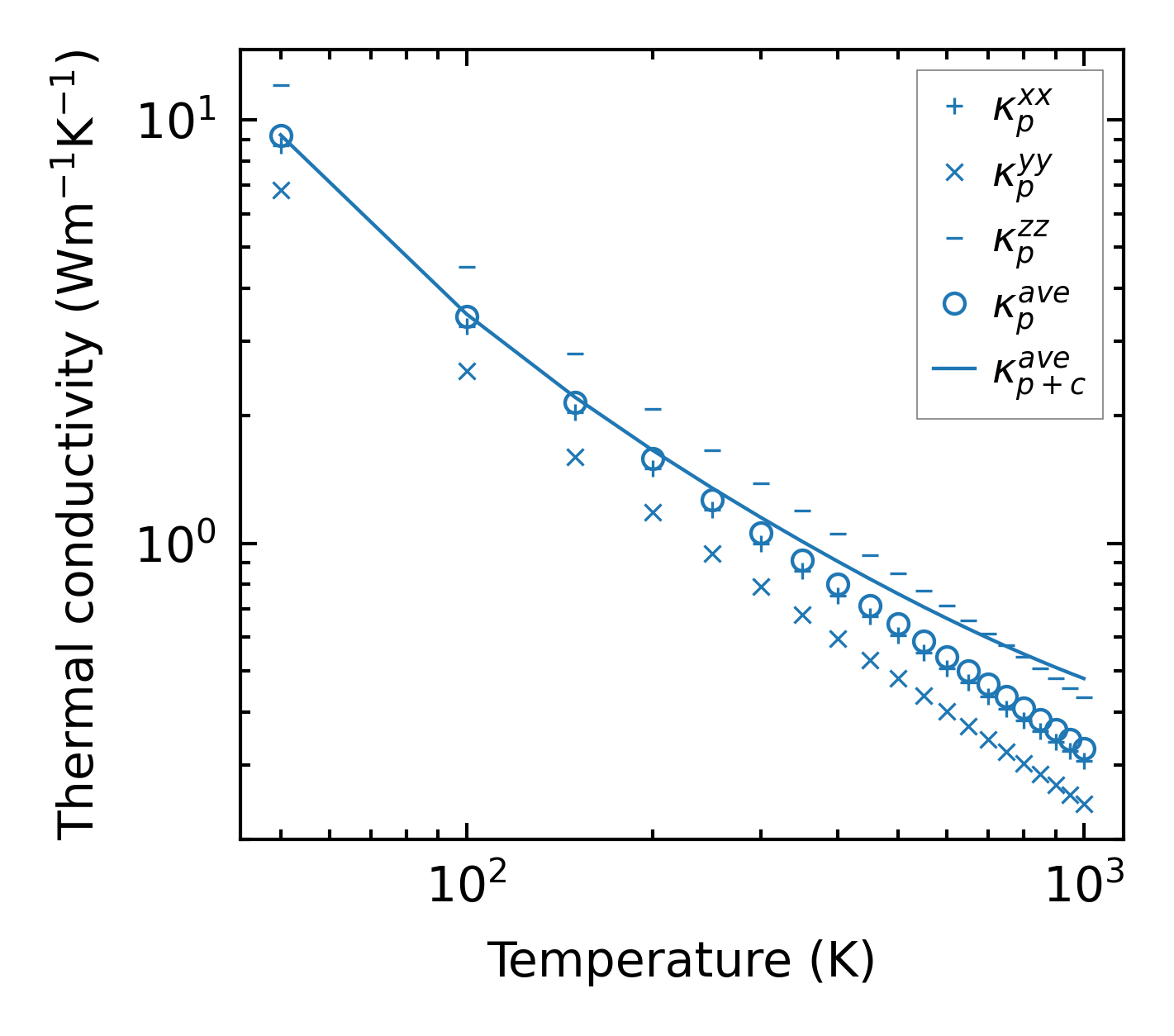

../../_images/fig_kappa13762.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7384.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

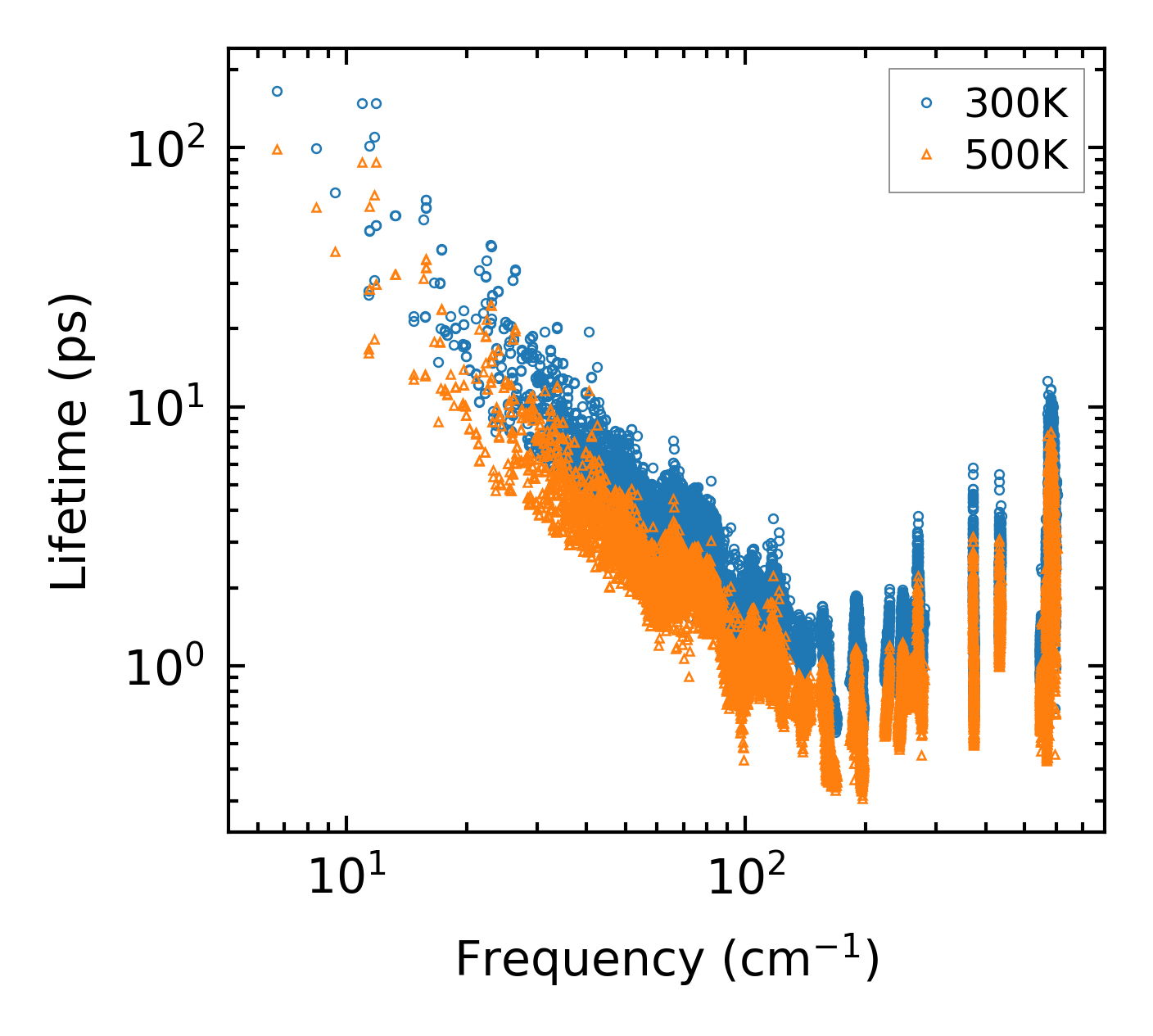

../../_images/fig_lifetime7232.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates7231.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

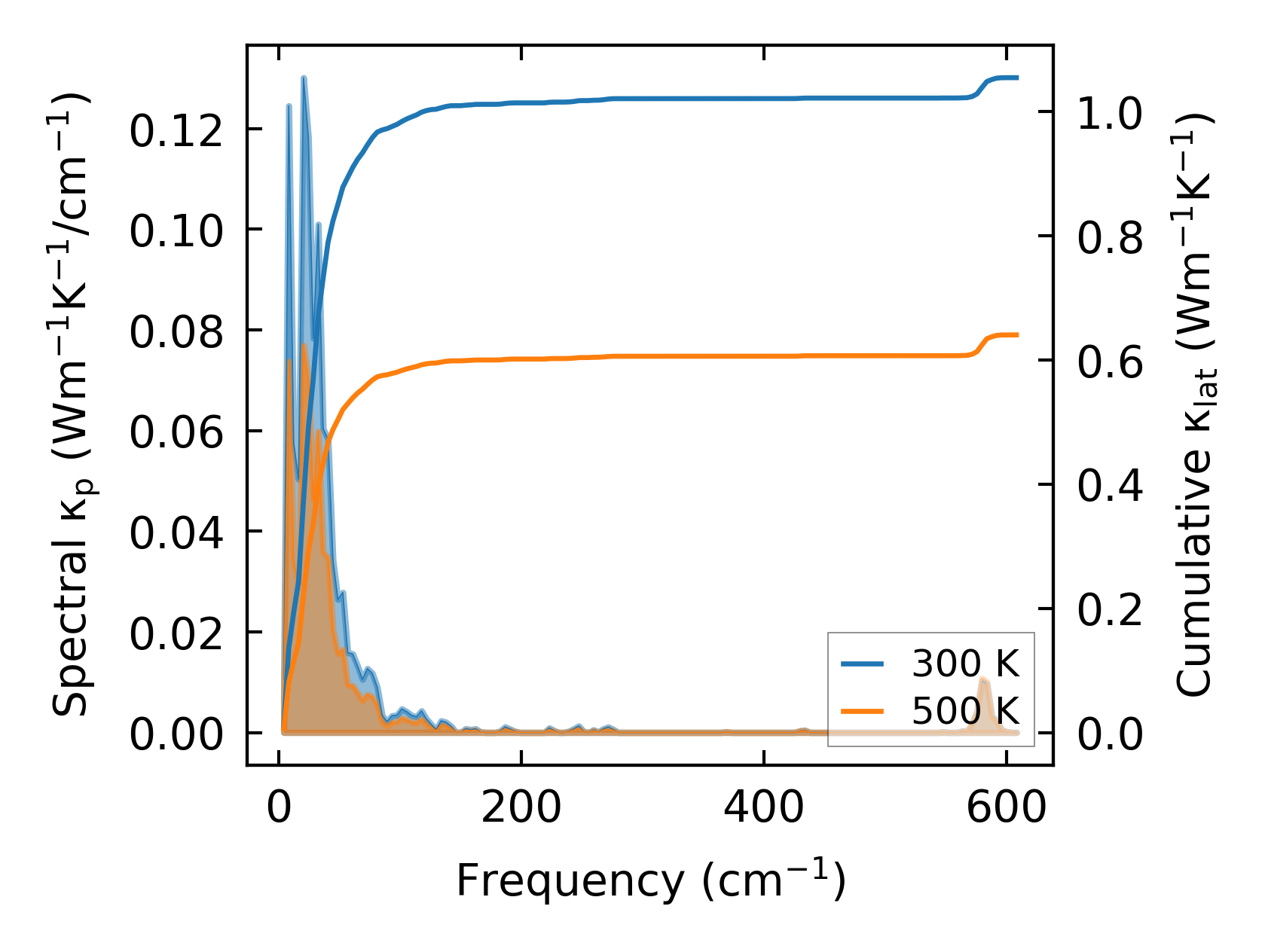

../../_images/fig_cumu_frequency7232.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

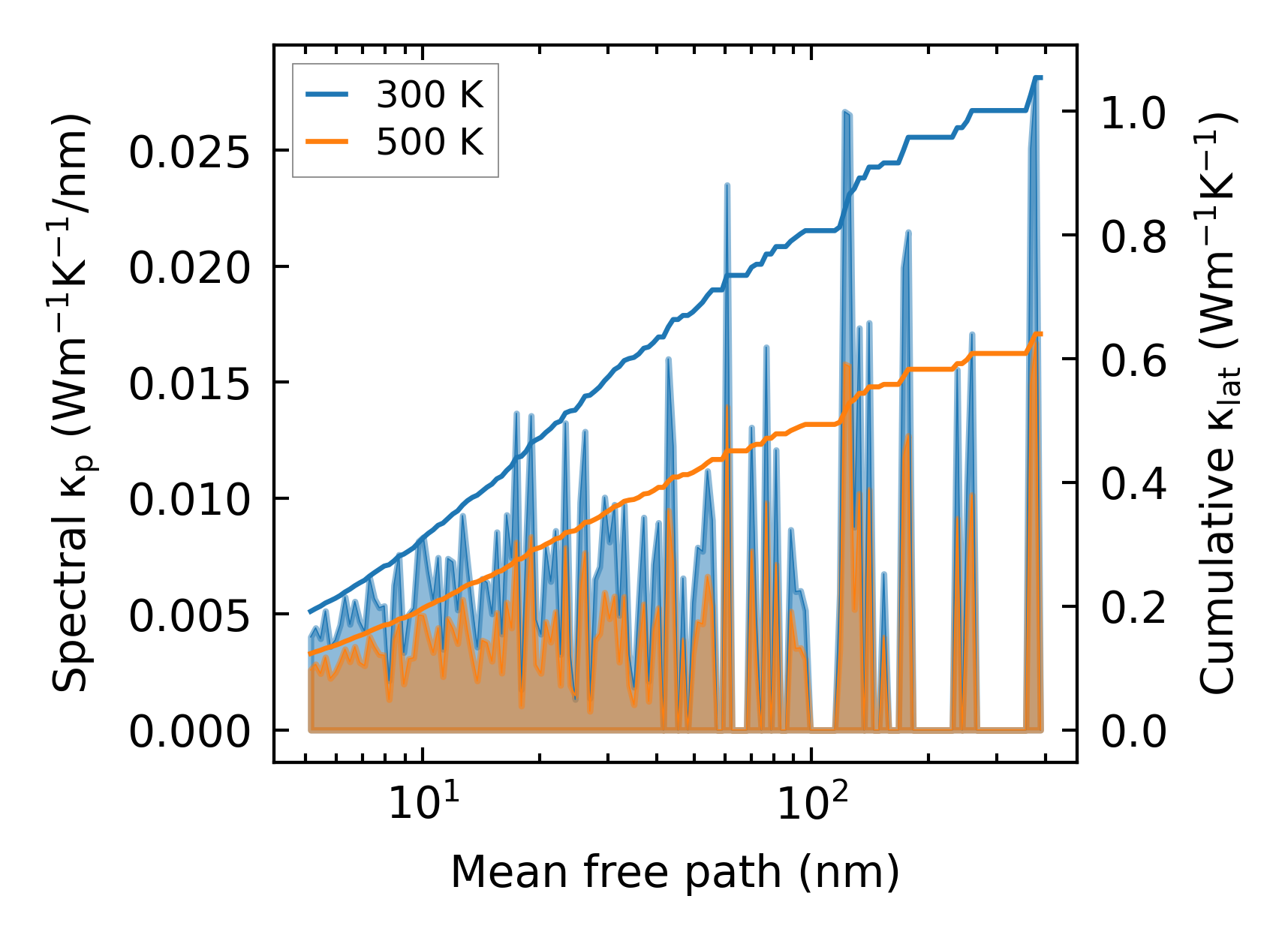

../../_images/fig_cumu_mfp7231.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

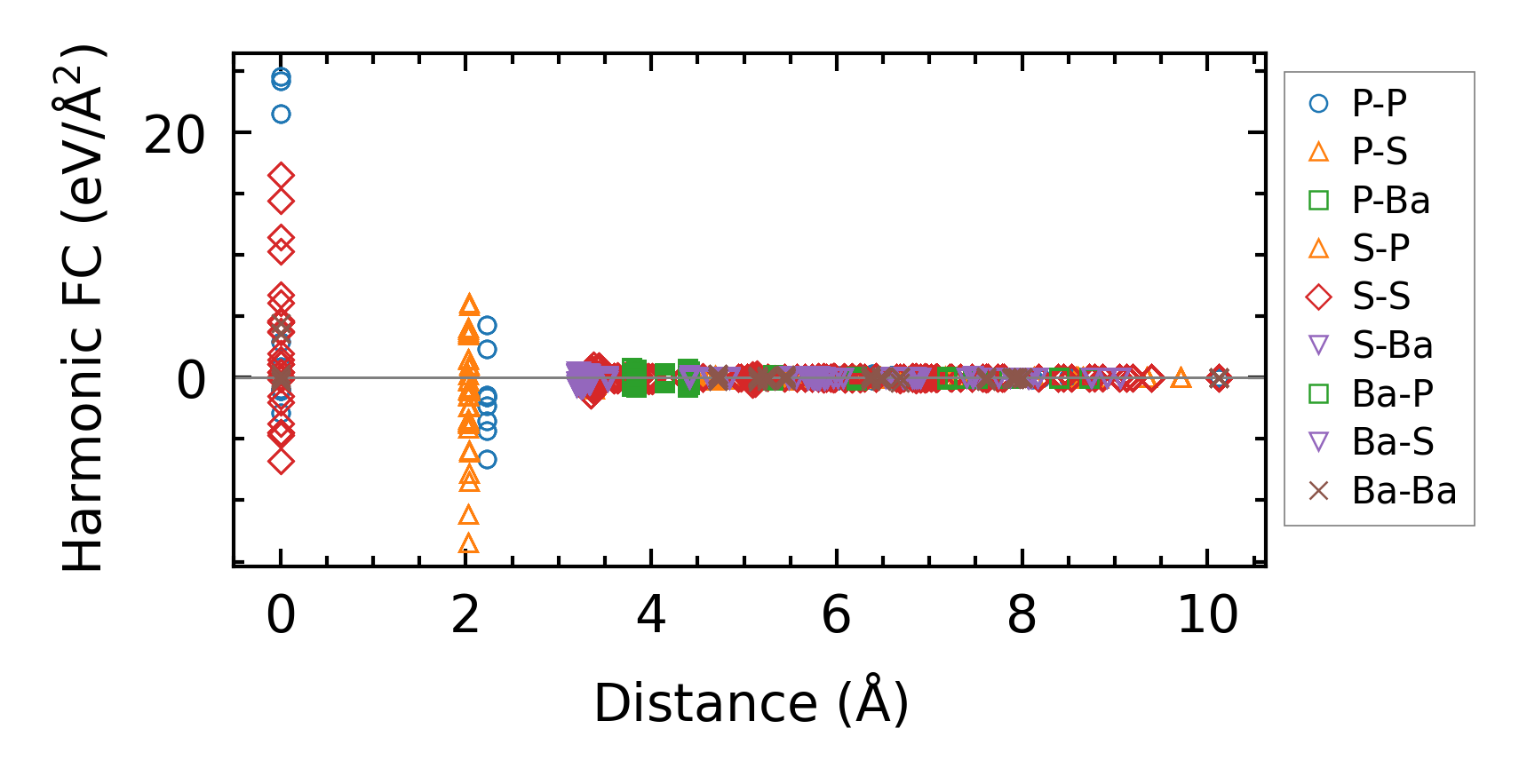

../../_images/fig_fc216295.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13763.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27350.png — (b) Computation time
