mp-11677/Sr3Si2As4/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-11677.tar.gz

Harmonic properties

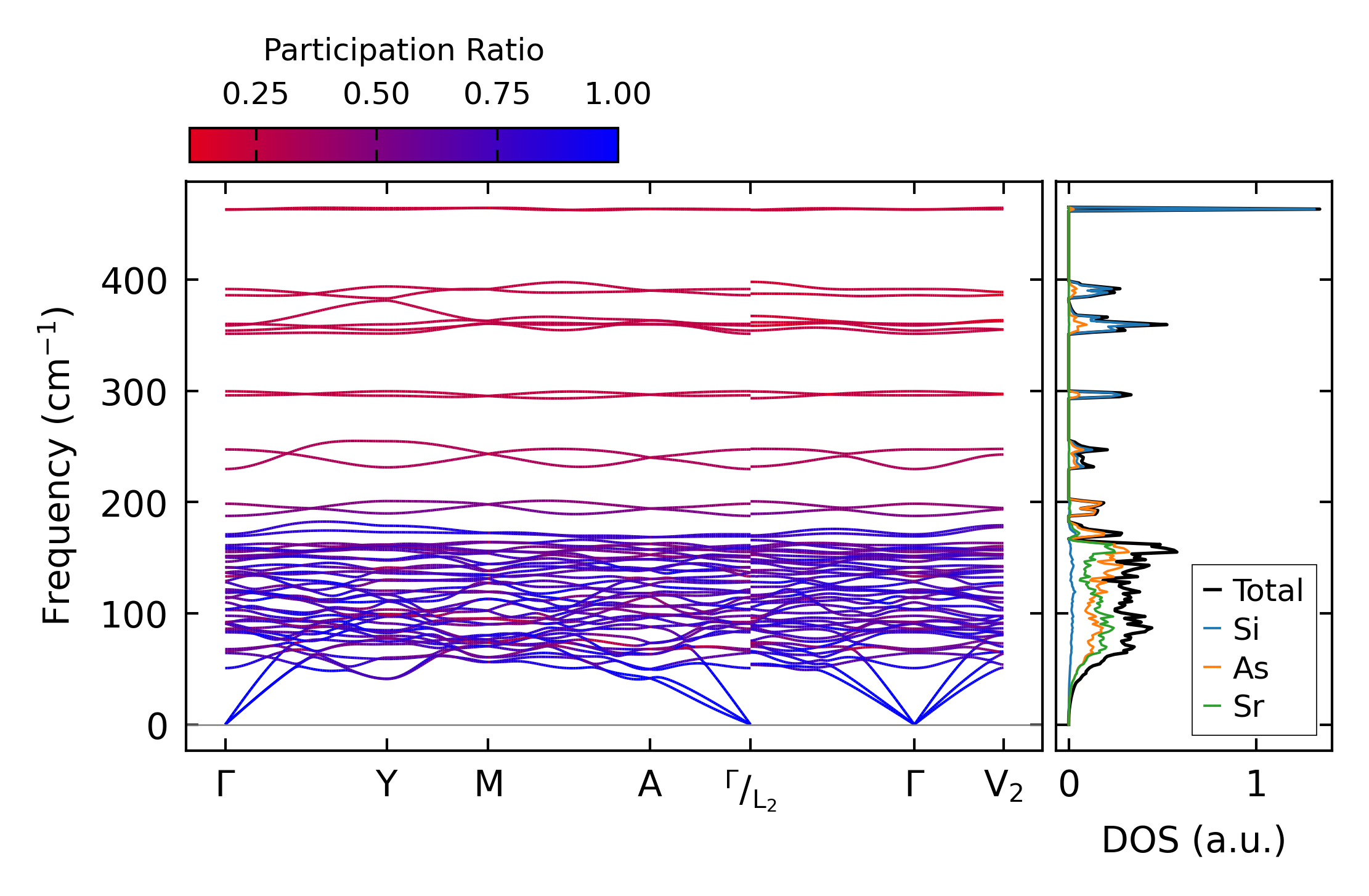

../../_images/fig_bandos_pr16444.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16443.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all7107.png — (a) Grüneisen parameters

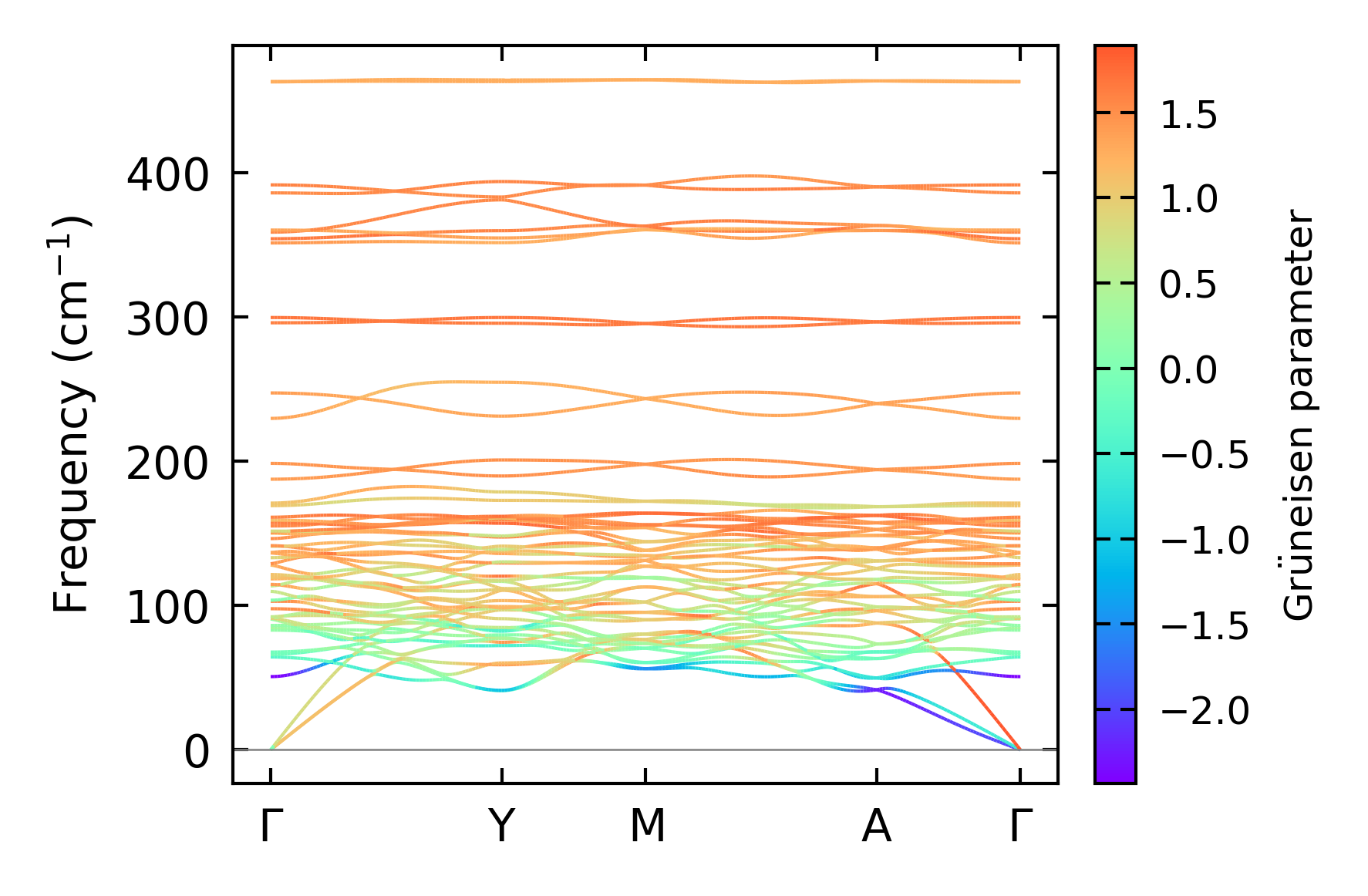

../../_images/fig_gruneisen7107.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x11, supercell: 2x1x2

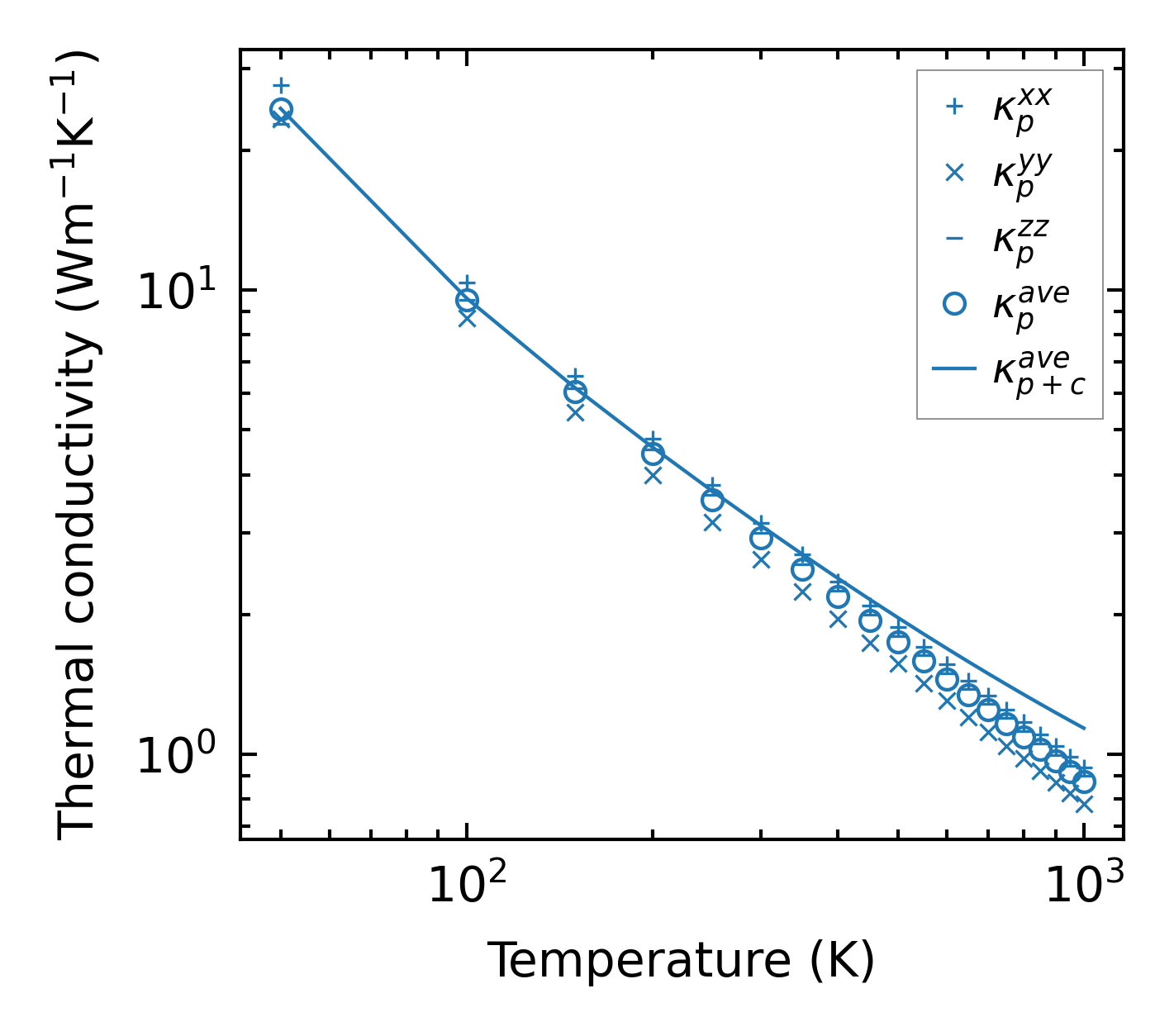

../../_images/fig_kappa13394.png — (a) Temperature-dependent lattice thermal conductivity

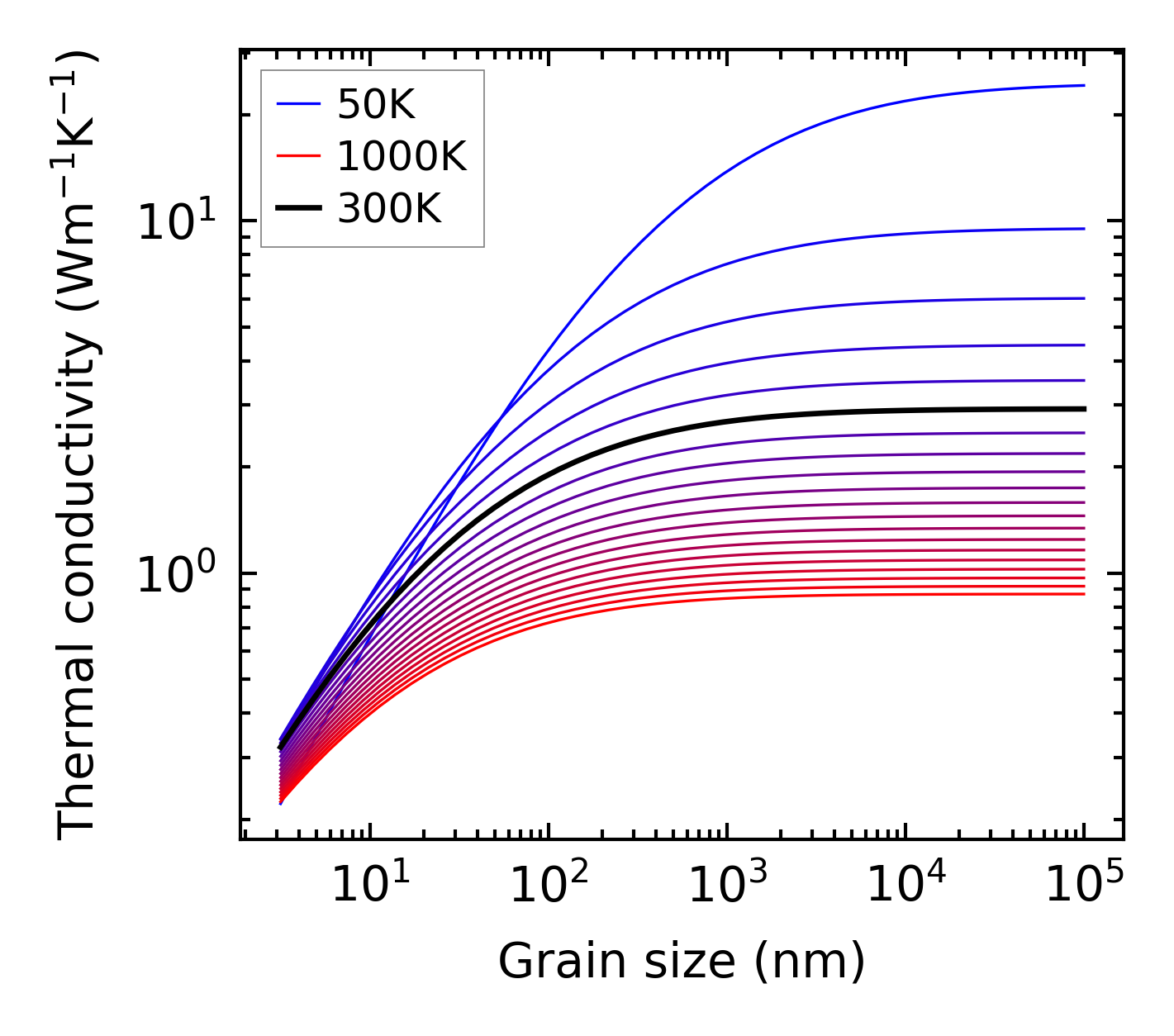

../../_images/fig_kappa_vs_grain_size7189.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

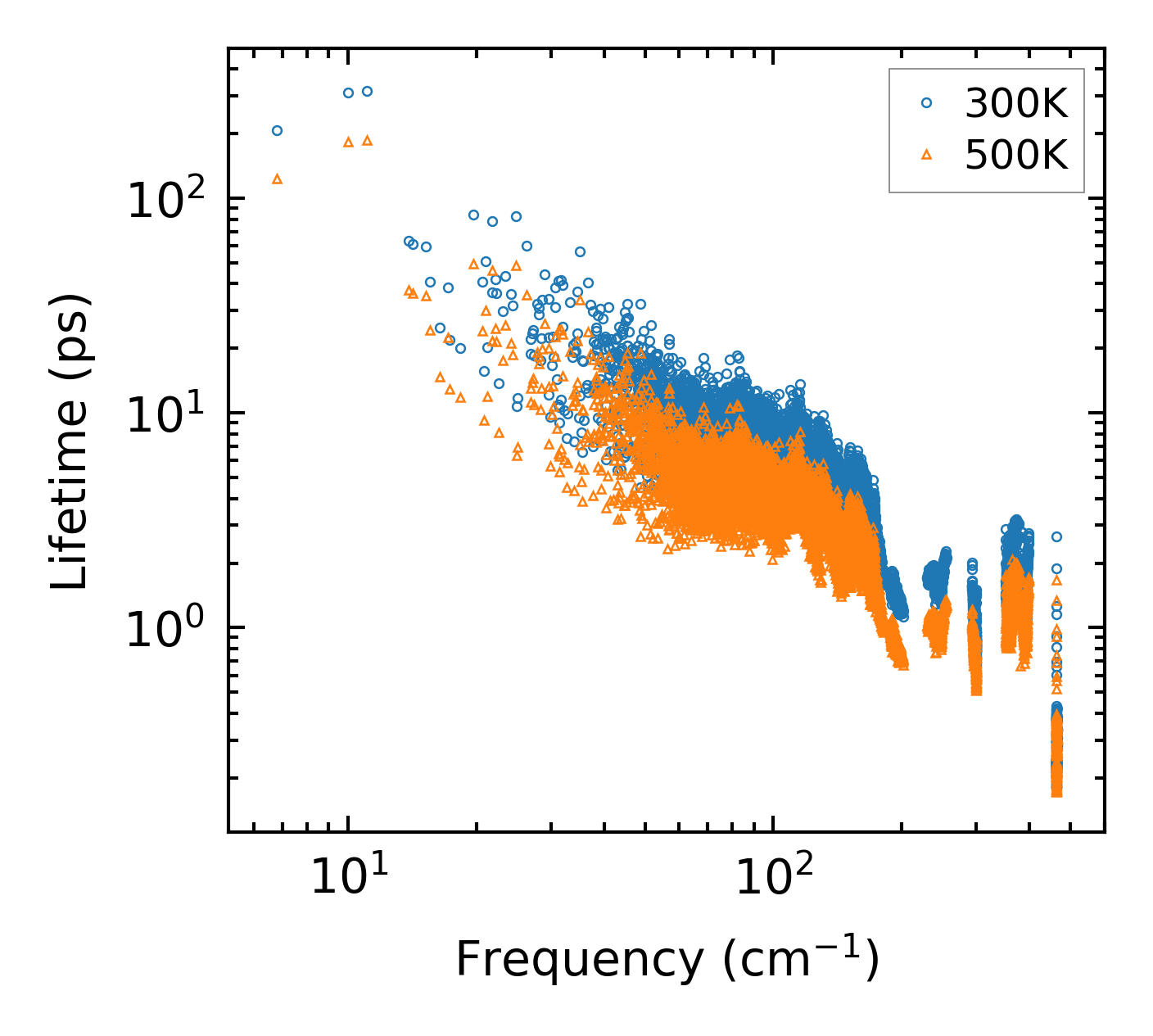

../../_images/fig_lifetime7041.png — (a) Phonon lifetime due to phonon-phonon scattering

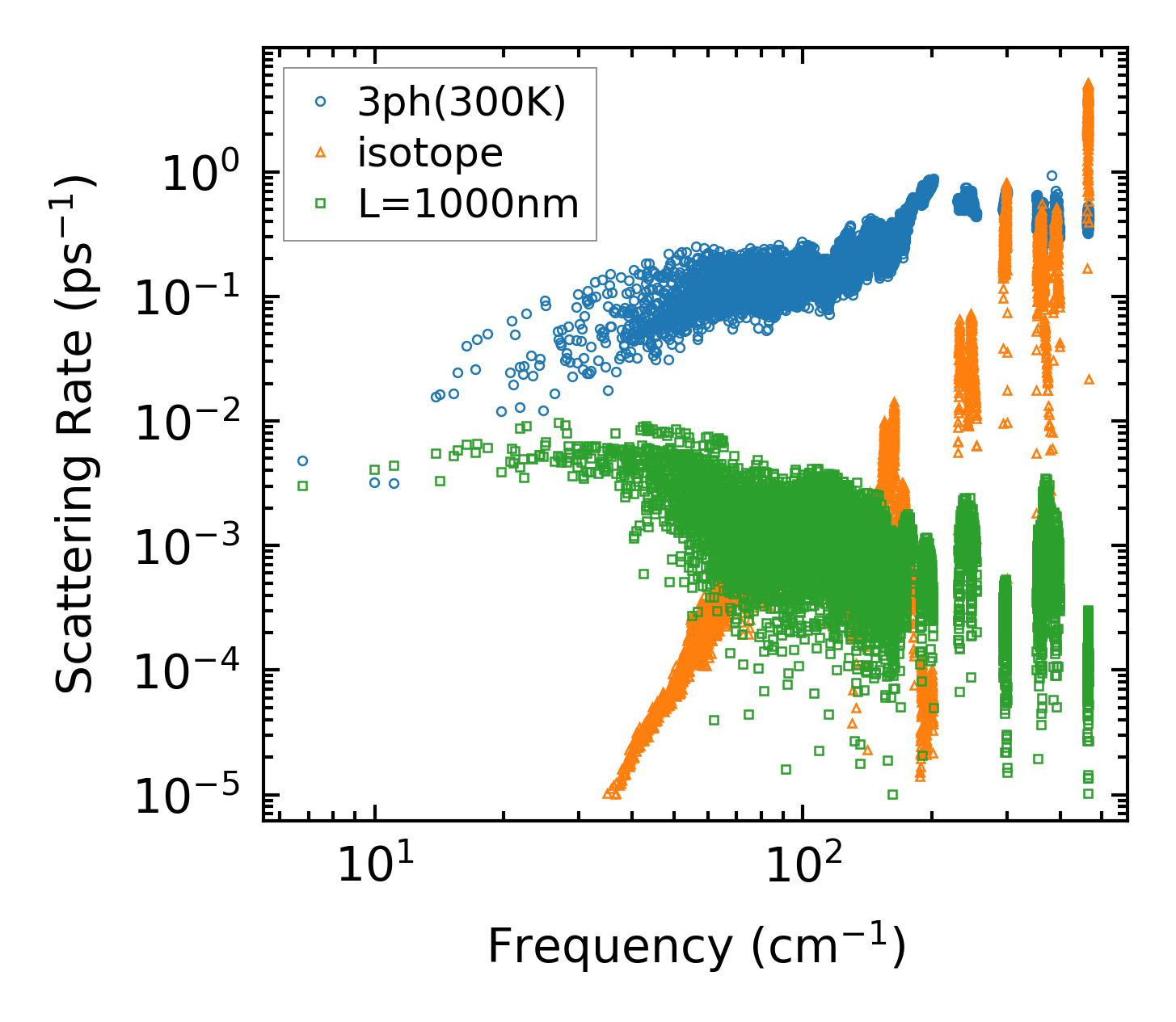

../../_images/fig_scat_rates7040.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

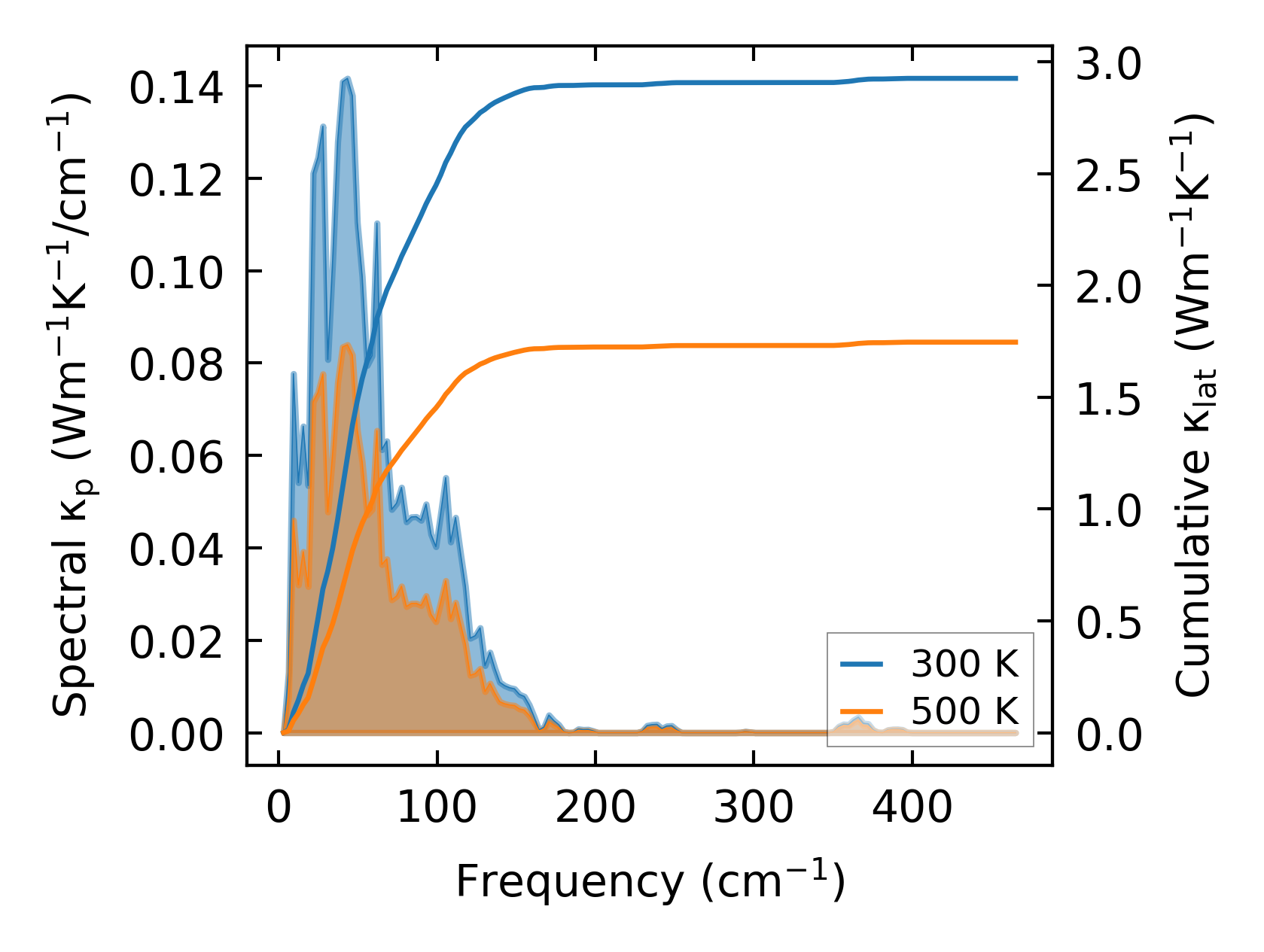

../../_images/fig_cumu_frequency7041.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

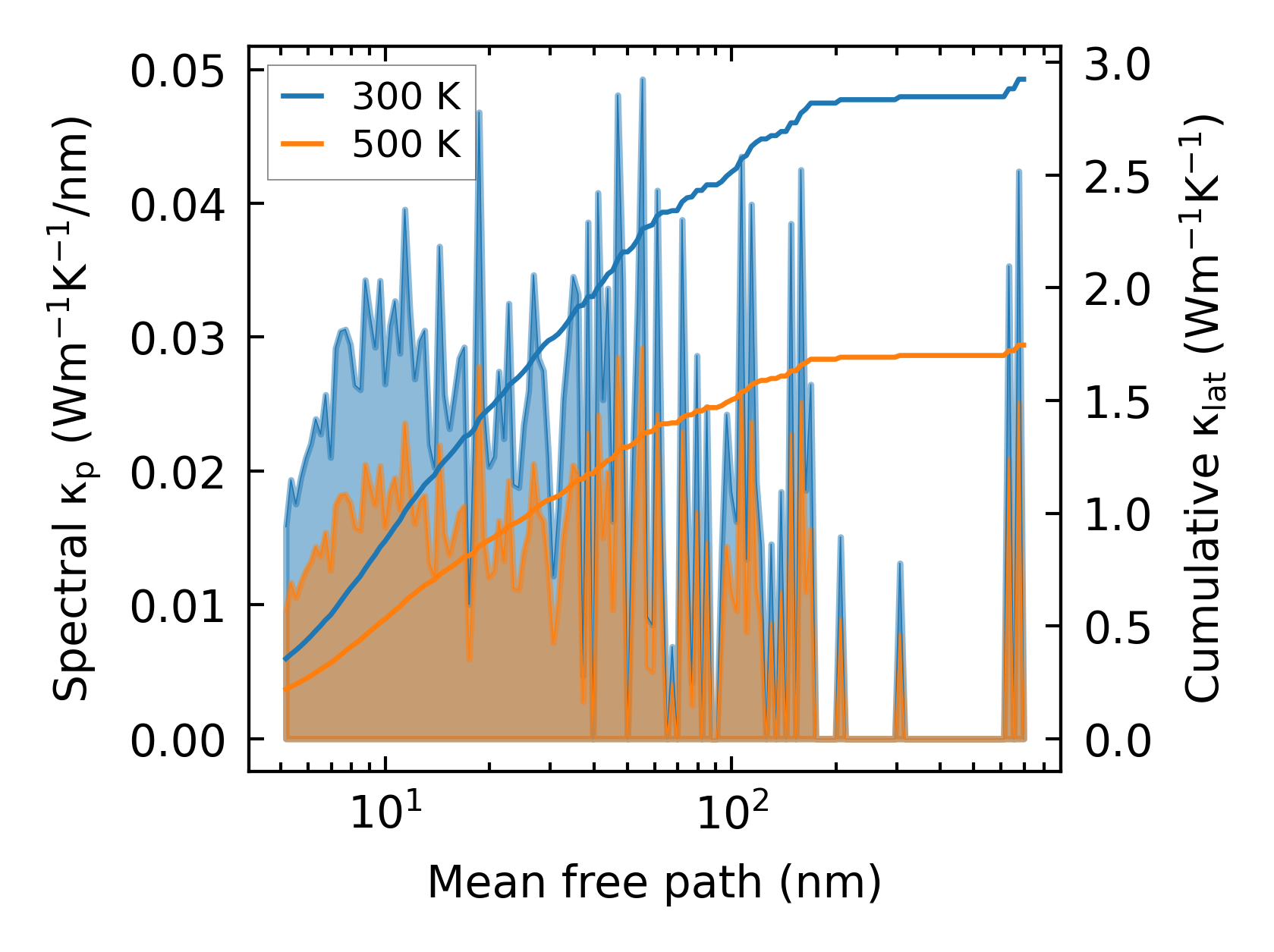

../../_images/fig_cumu_mfp7040.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

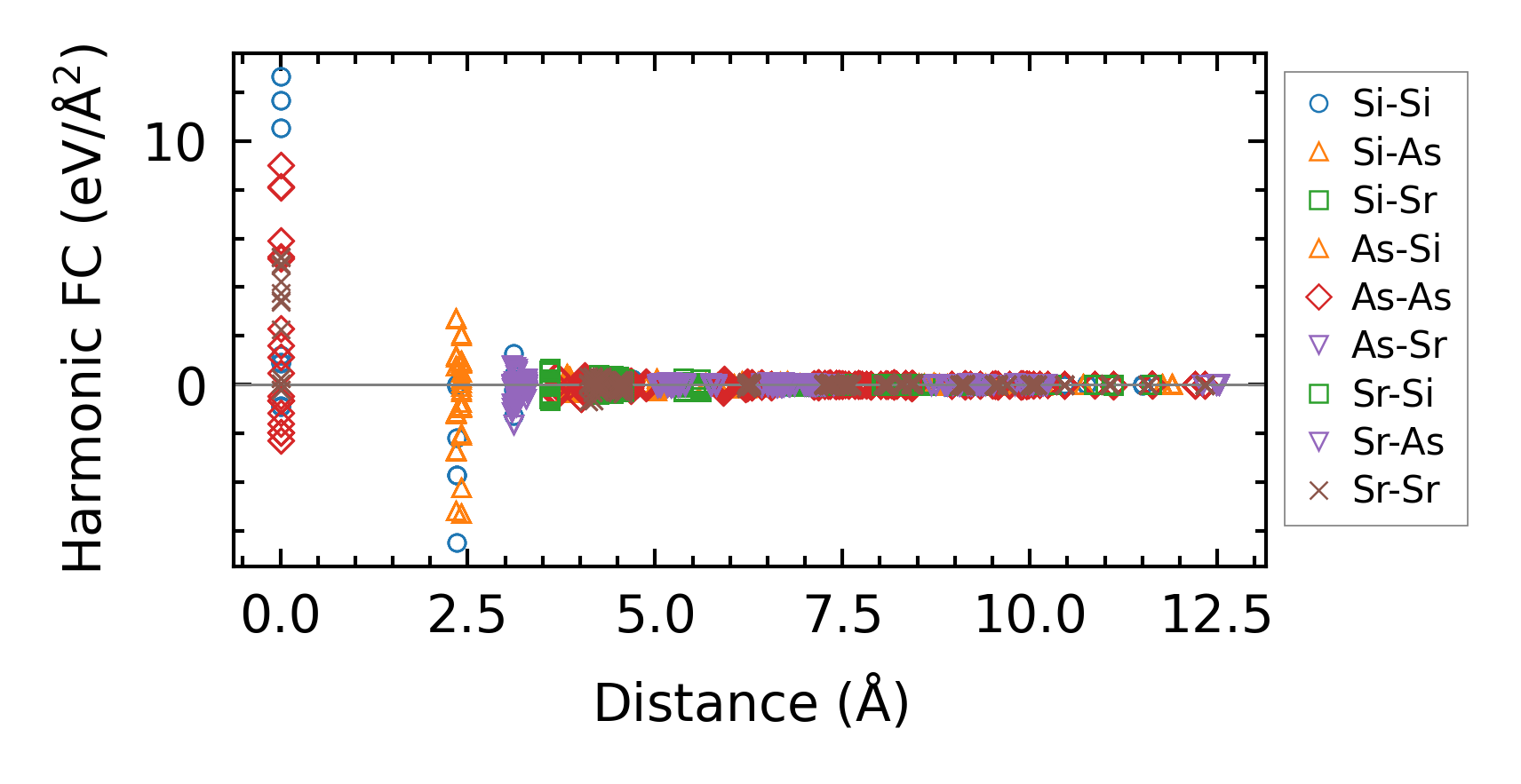

../../_images/fig_fc216024.png — (a) Force constants w.r.t atomic distance

Summary

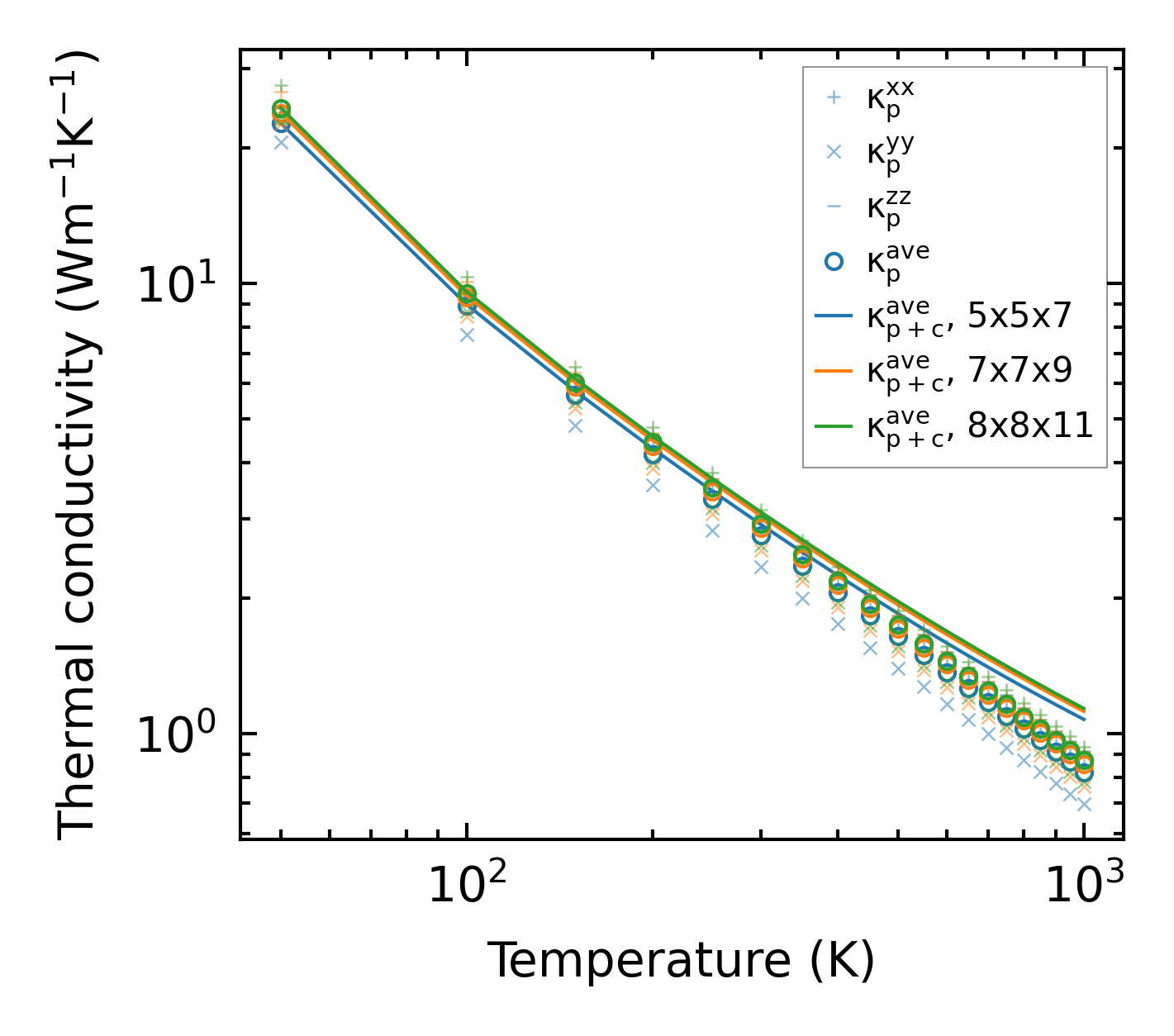

../../_images/fig_kappa13395.png — (a) Temperature-dependent lattice thermal conductivity

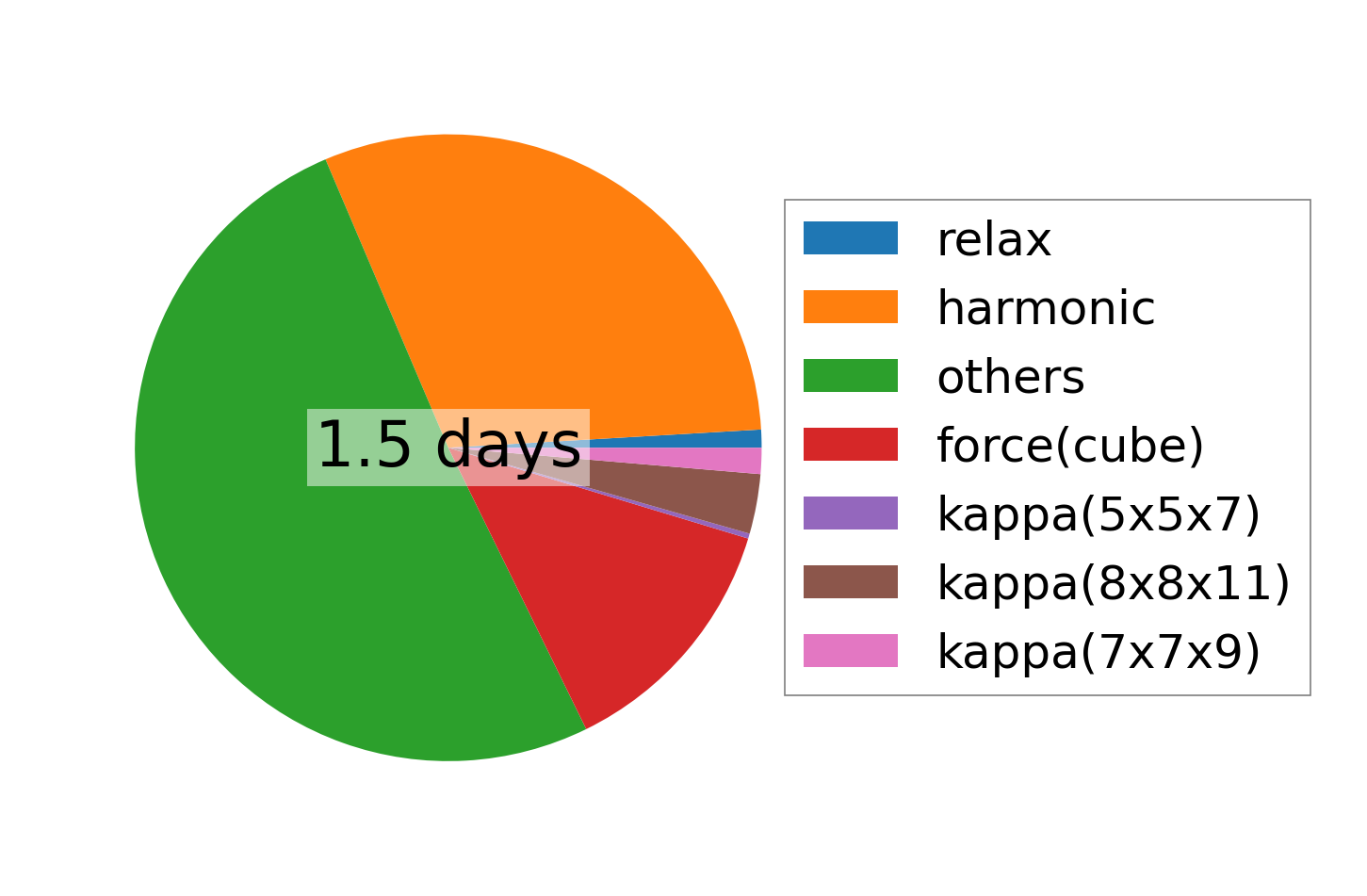

../../_images/fig_times26945.png — (b) Computation time
