mp-11166/BaZnCO3F2/anharm

Space group: P6_3/m (176)
Link: Materials Project
Download: mp-11166.tar.gz

Harmonic properties

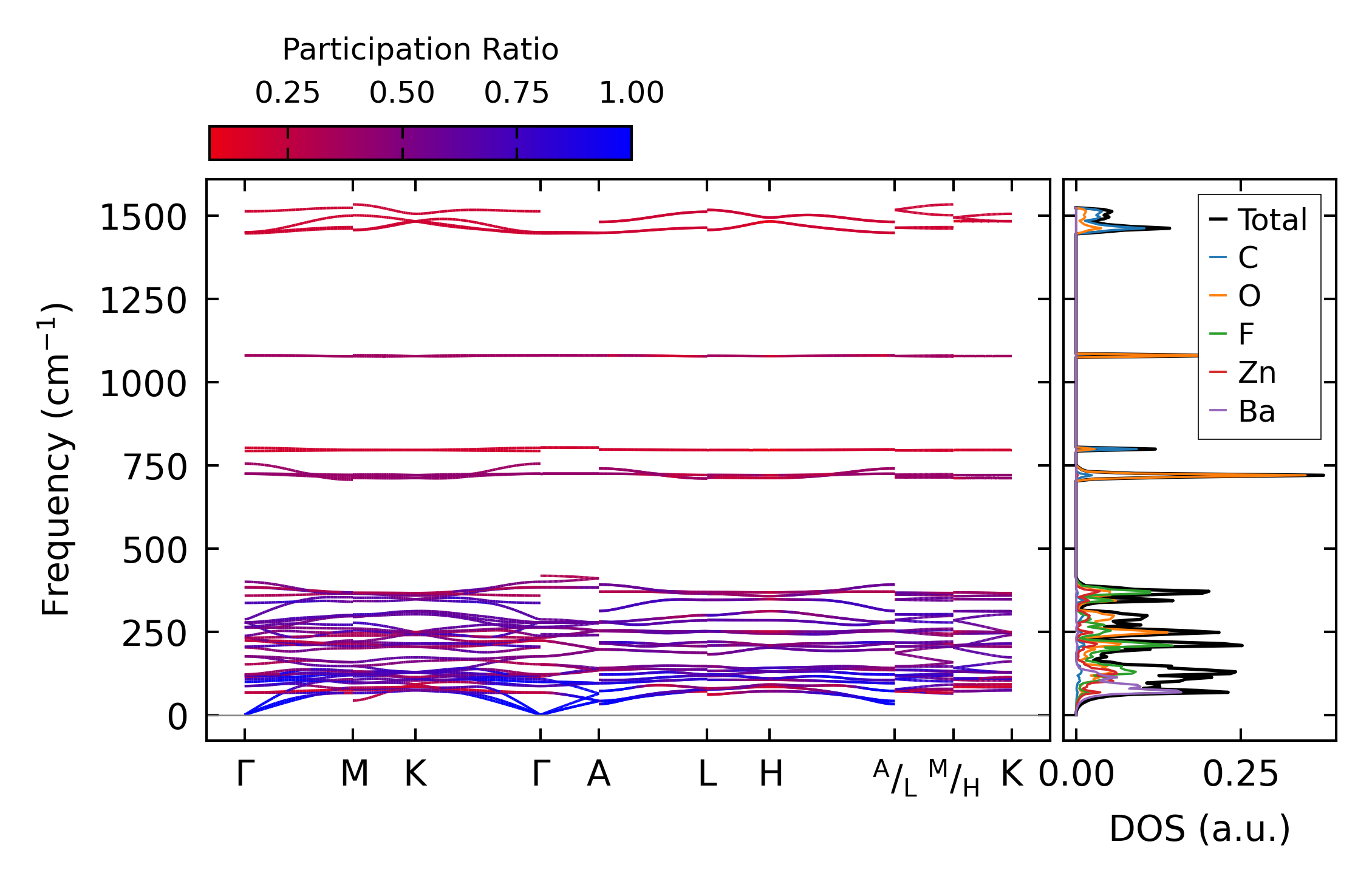

../../_images/fig_bandos_pr16784.png — (a) Phonon dispersion with participation ratio and DOS

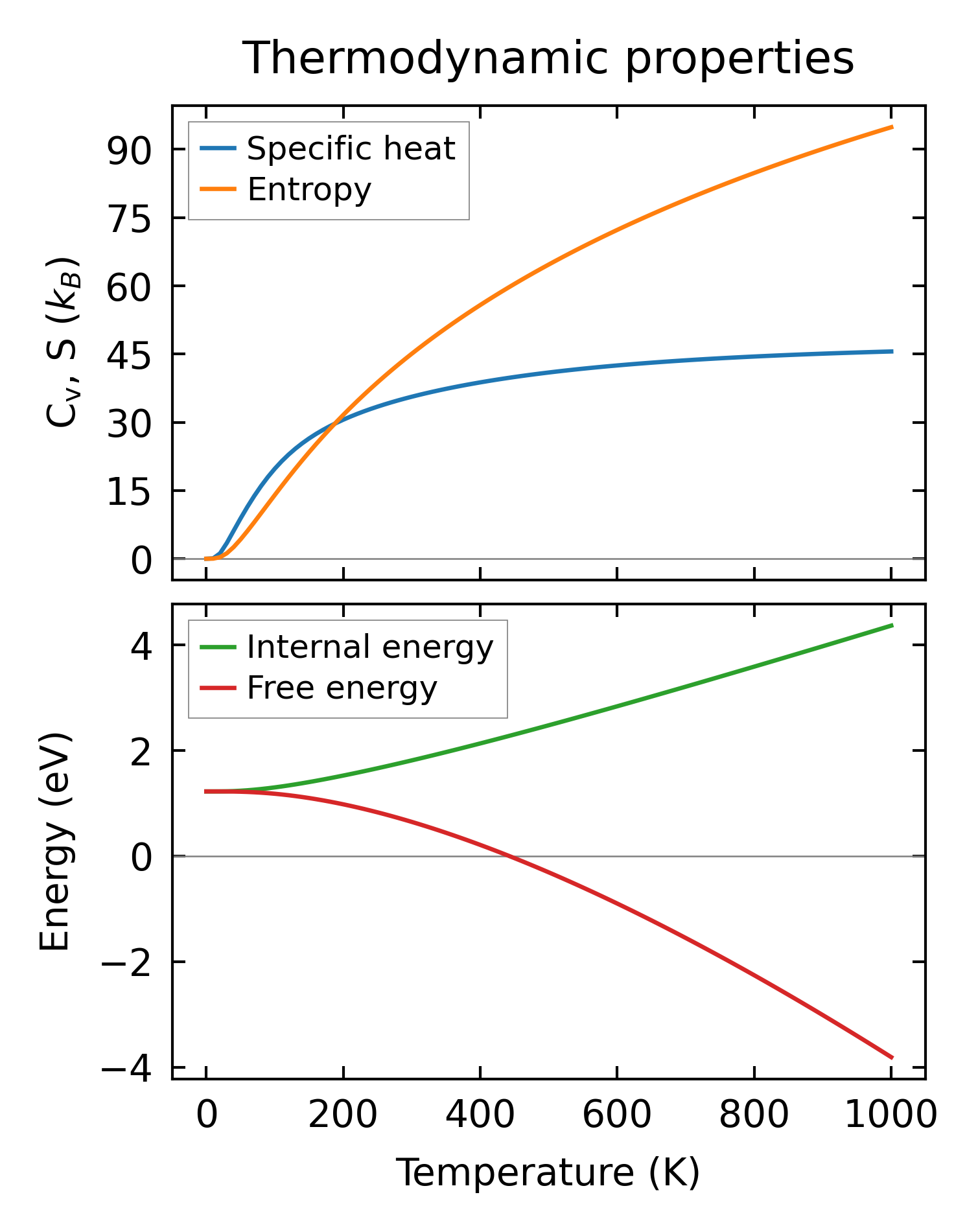

../../_images/fig_thermo16783.png — (b) Thermodynamic properties

Grüneisen parameters

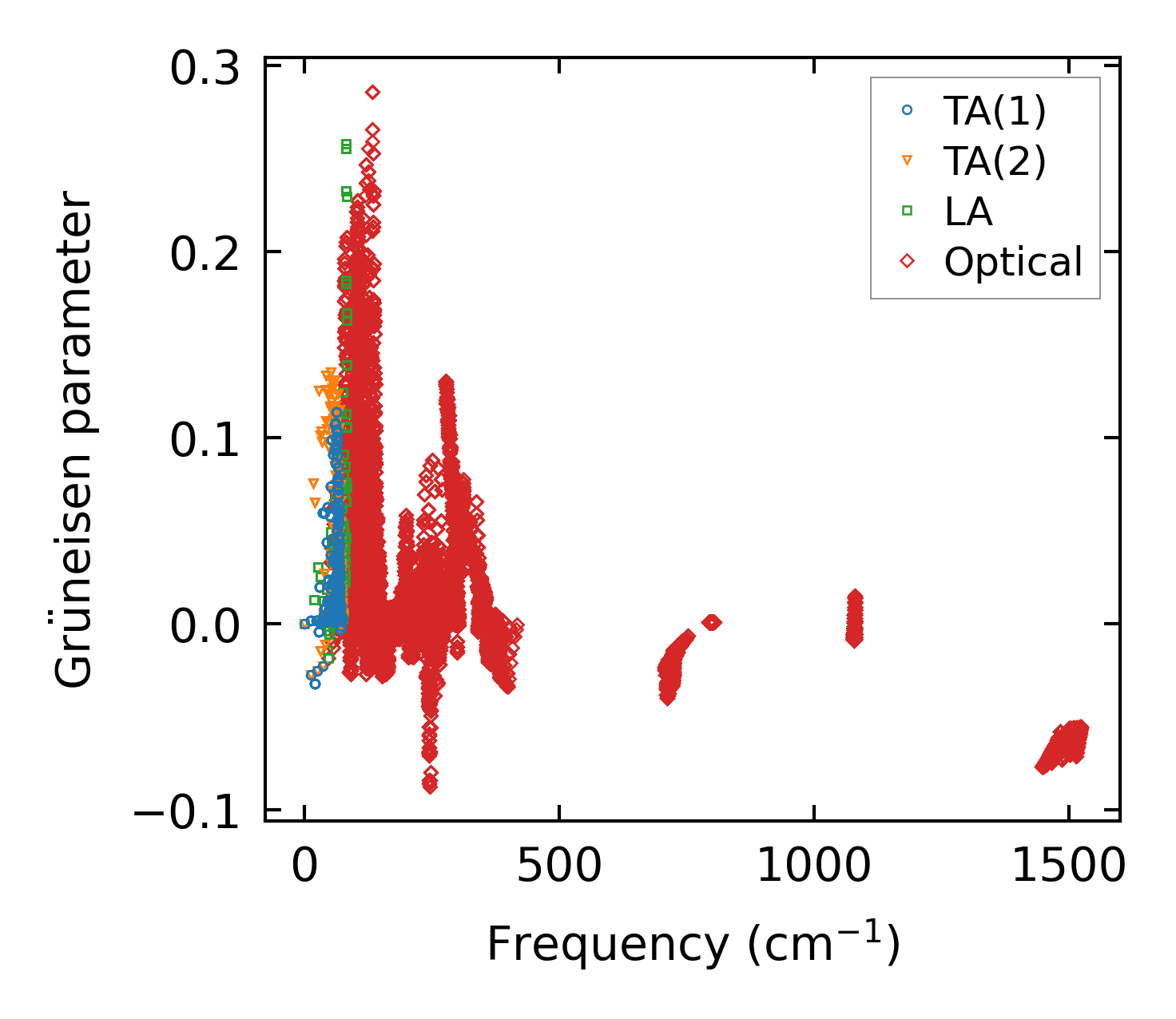

../../_images/fig_gru_all7331.png — (a) Grüneisen parameters

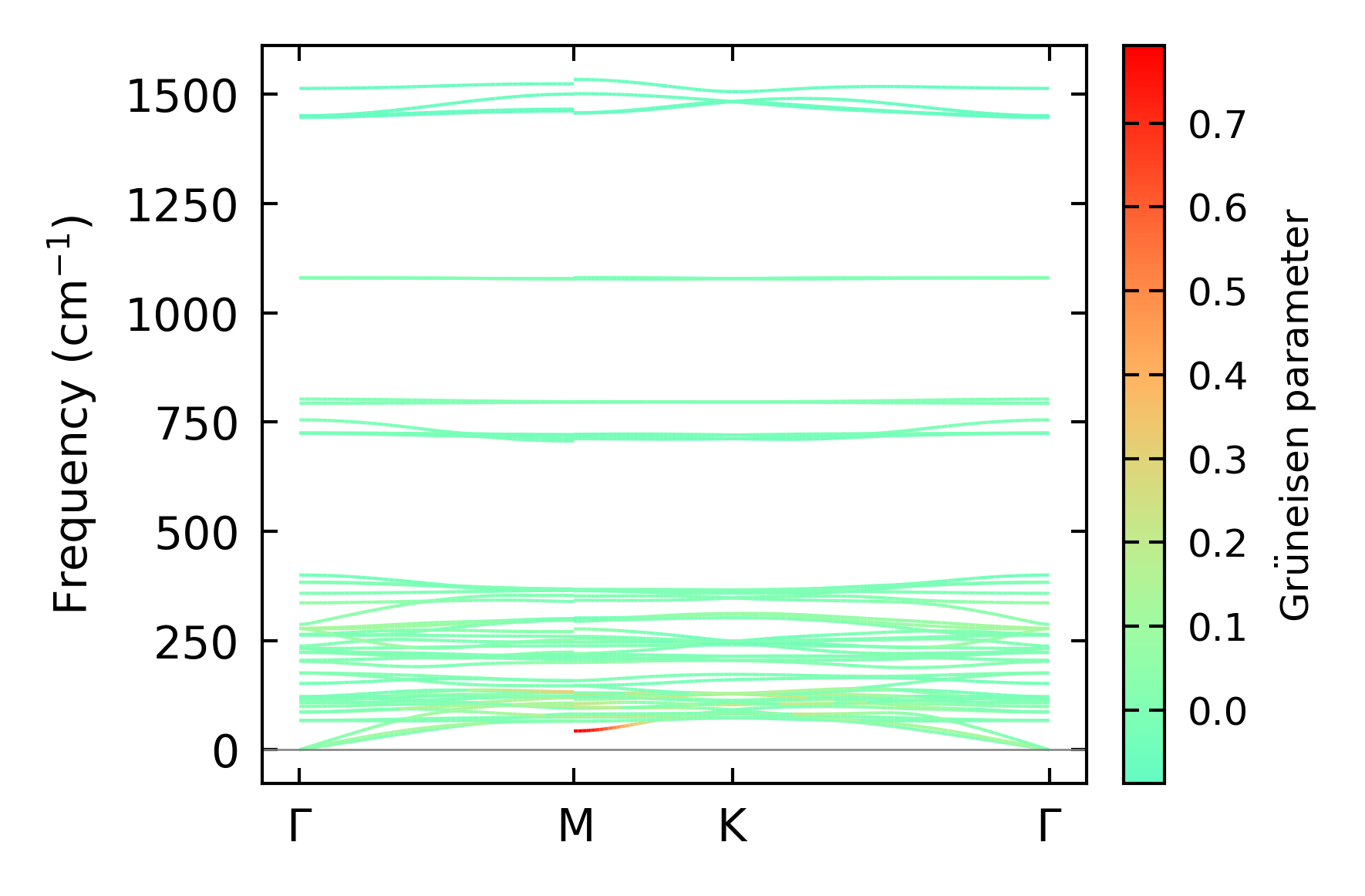

../../_images/fig_gruneisen7331.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x7, supercell: 3x3x1

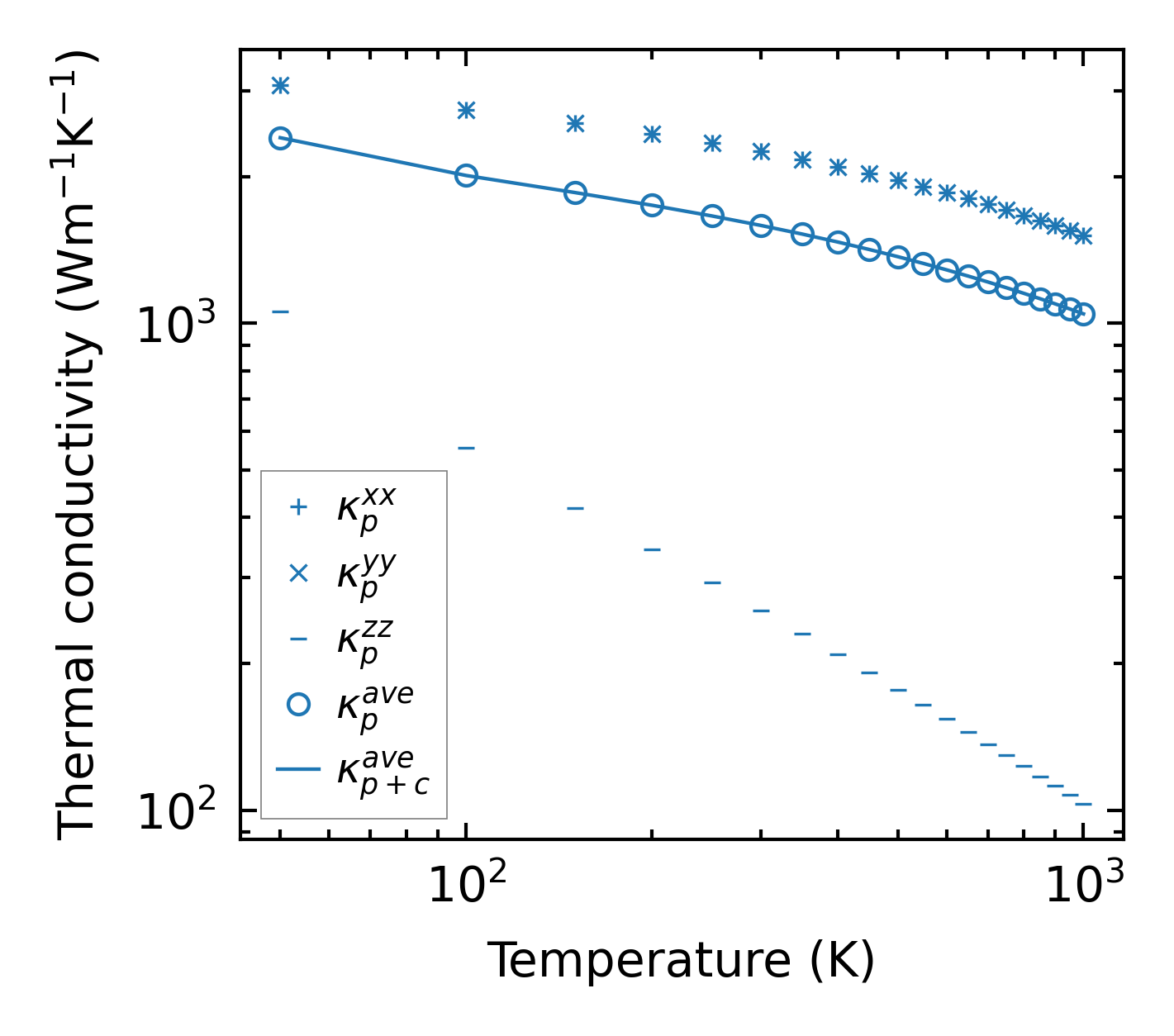

../../_images/fig_kappa13828.png — (a) Temperature-dependent lattice thermal conductivity

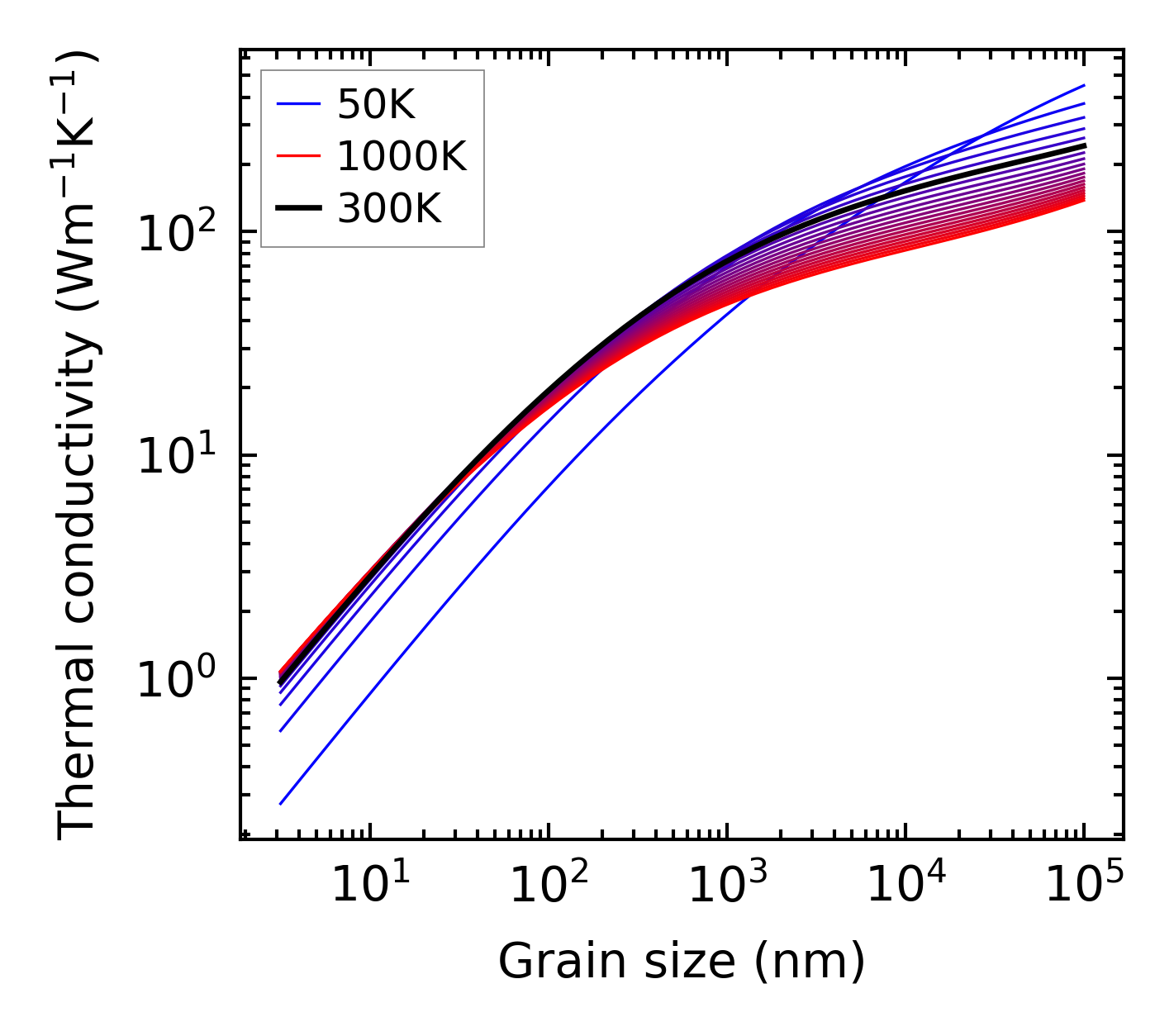

../../_images/fig_kappa_vs_grain_size7418.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

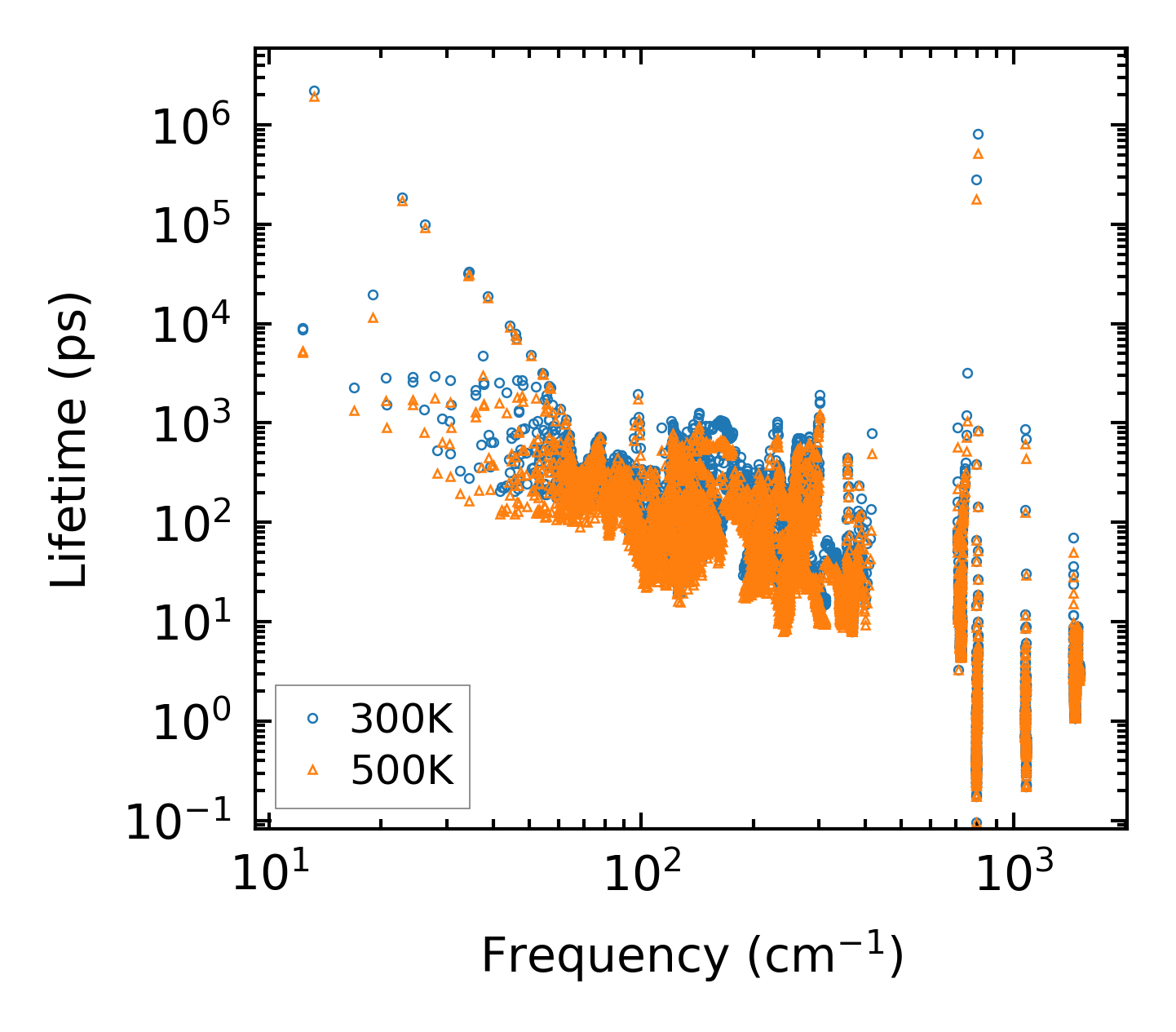

../../_images/fig_lifetime7265.png — (a) Phonon lifetime due to phonon-phonon scattering

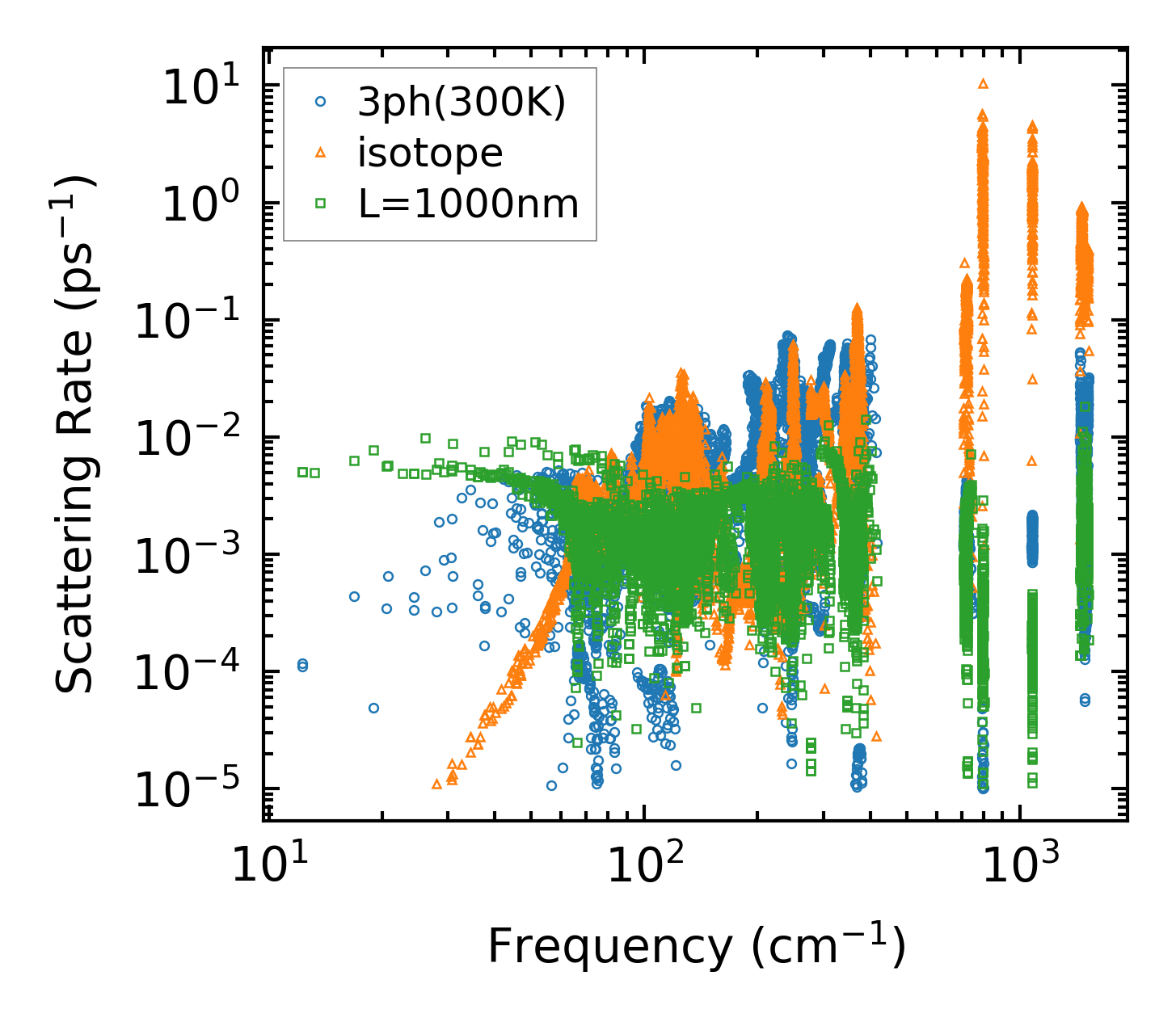

../../_images/fig_scat_rates7264.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

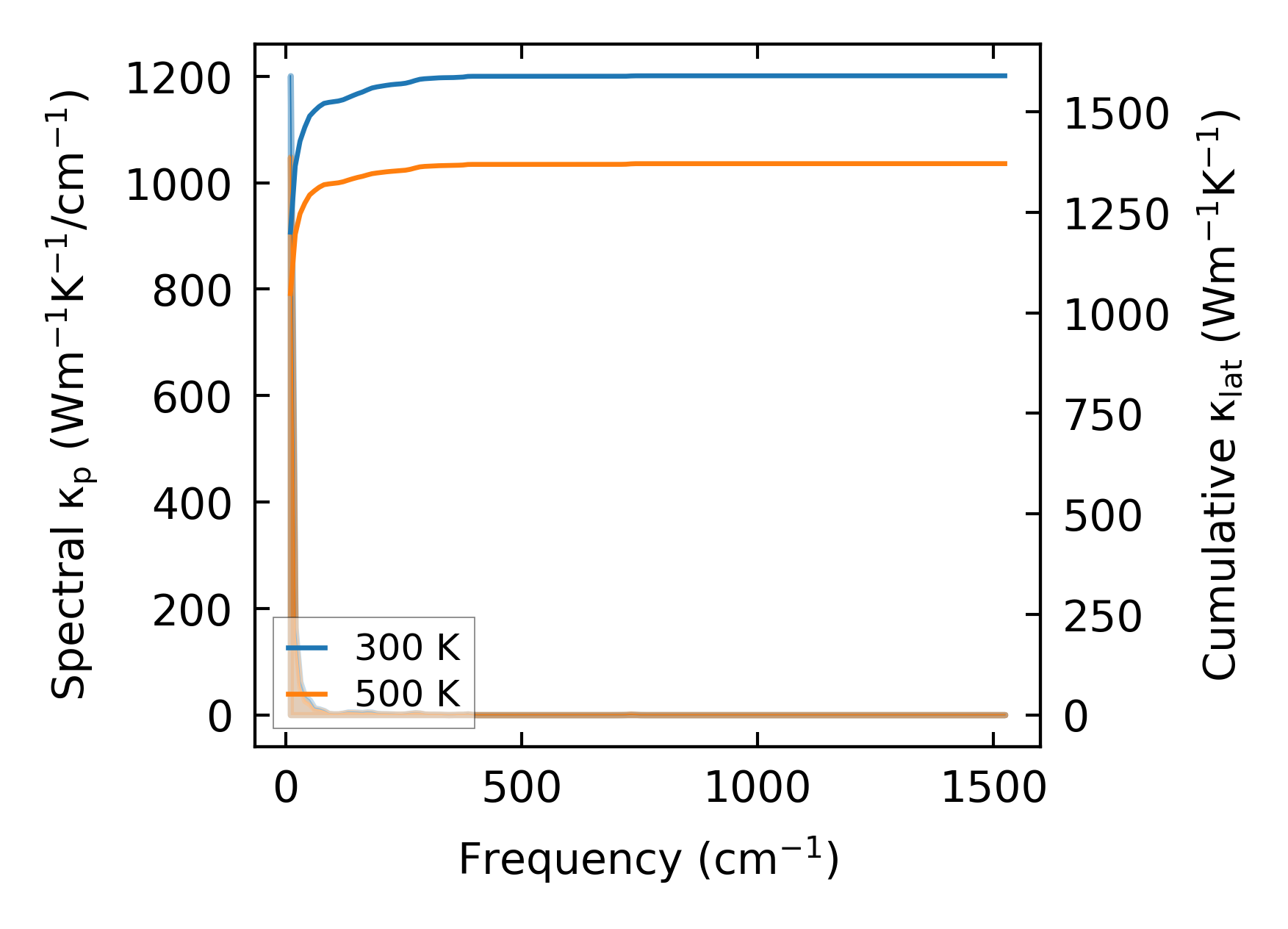

../../_images/fig_cumu_frequency7265.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

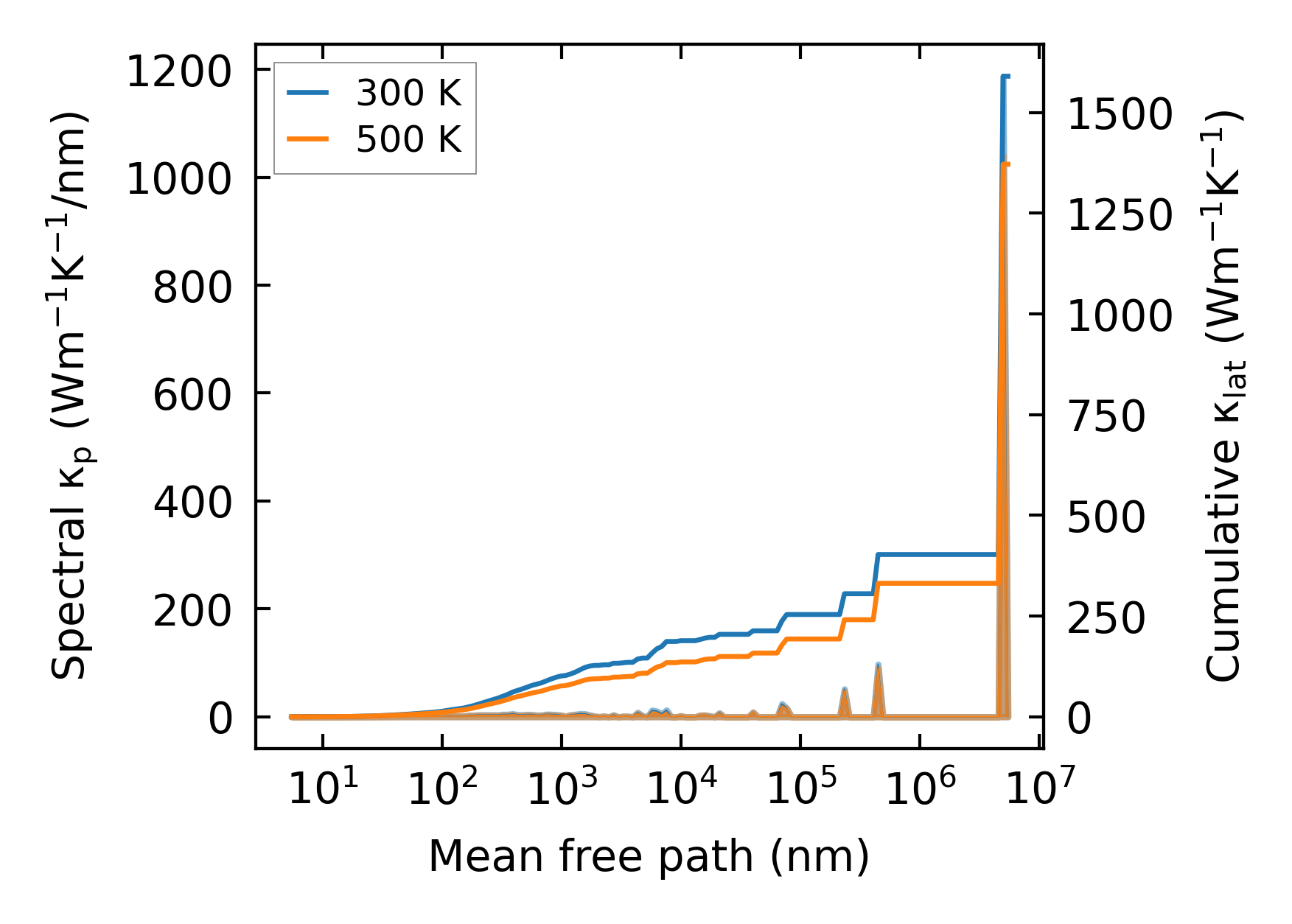

../../_images/fig_cumu_mfp7264.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

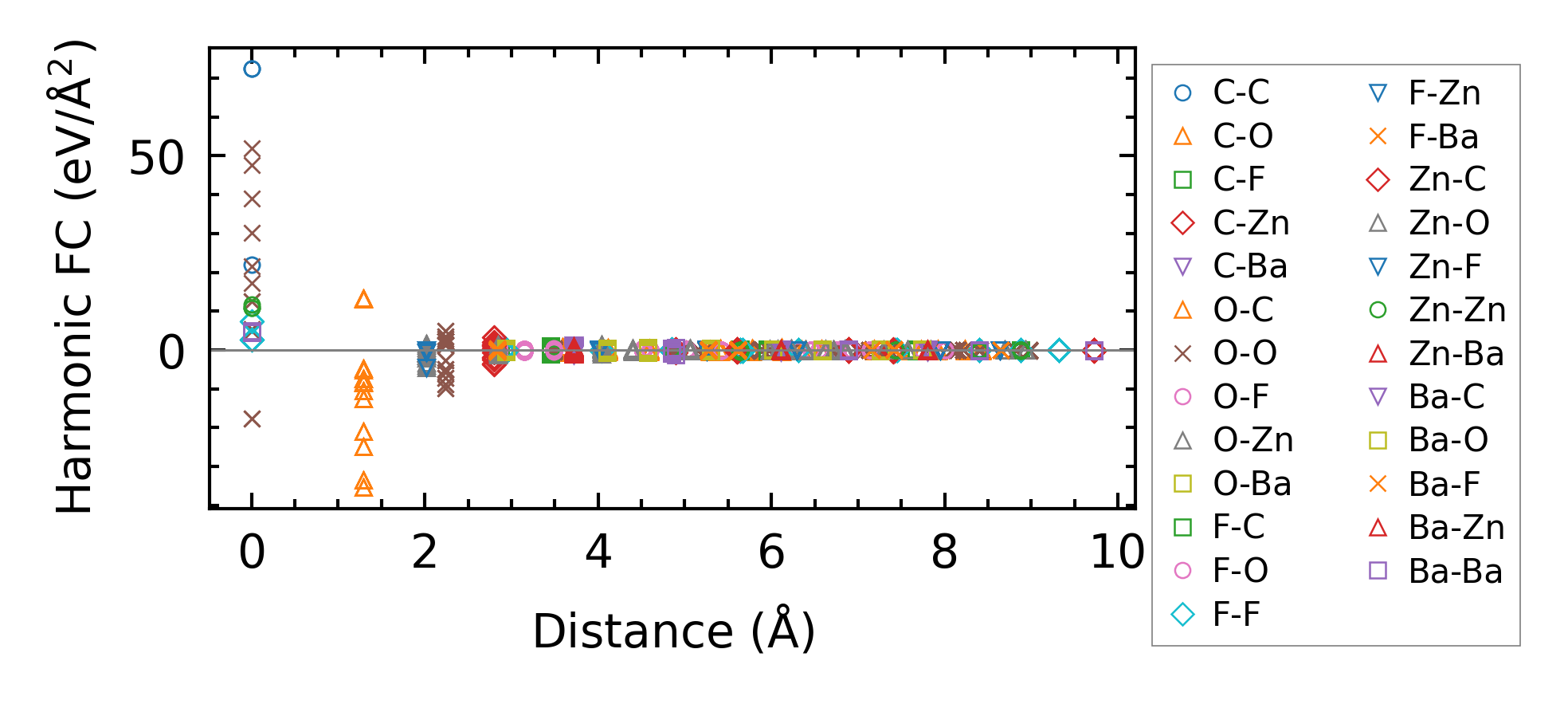

../../_images/fig_fc216342.png — (a) Force constants w.r.t atomic distance

Summary

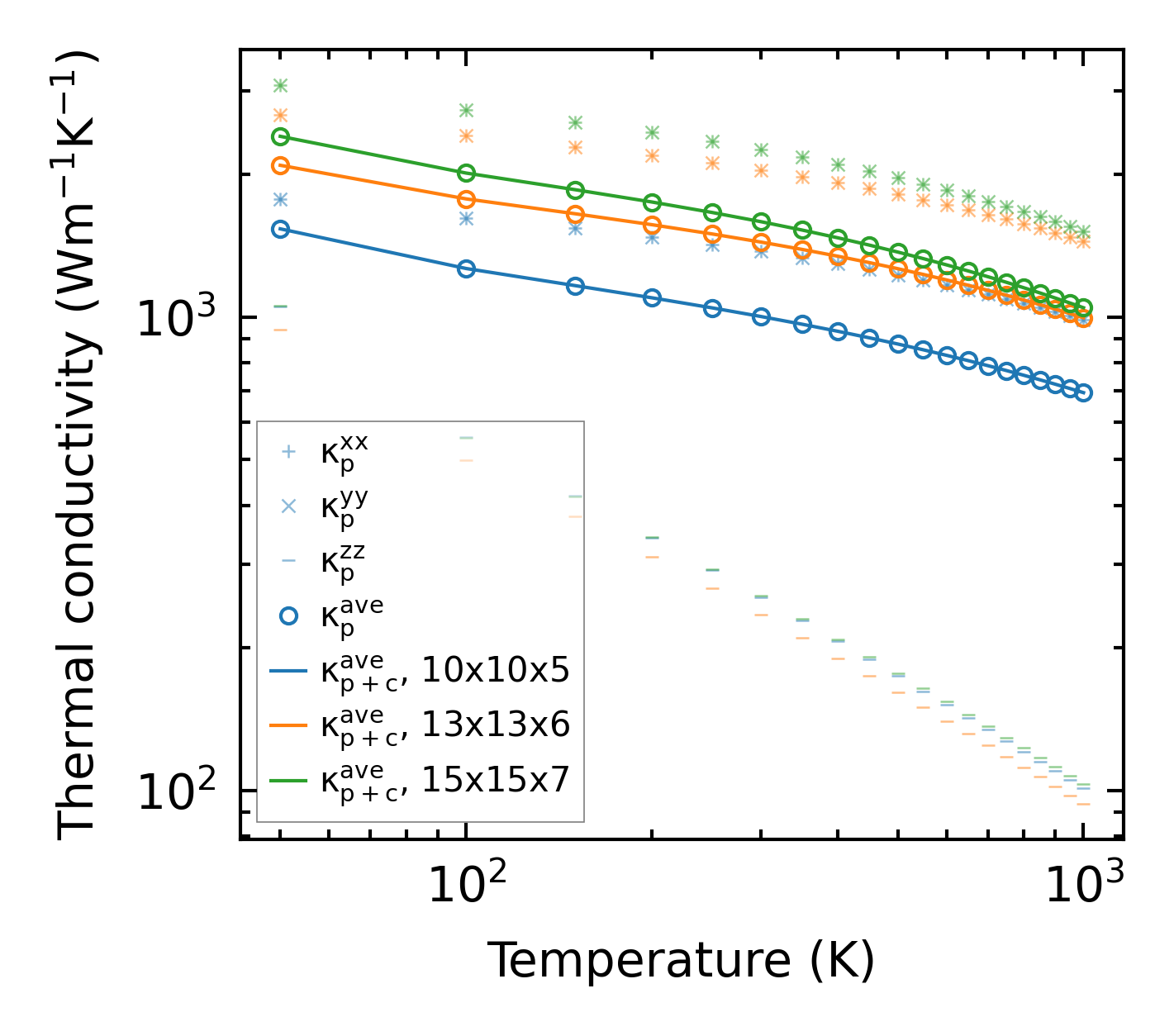

../../_images/fig_kappa13829.png — (a) Temperature-dependent lattice thermal conductivity

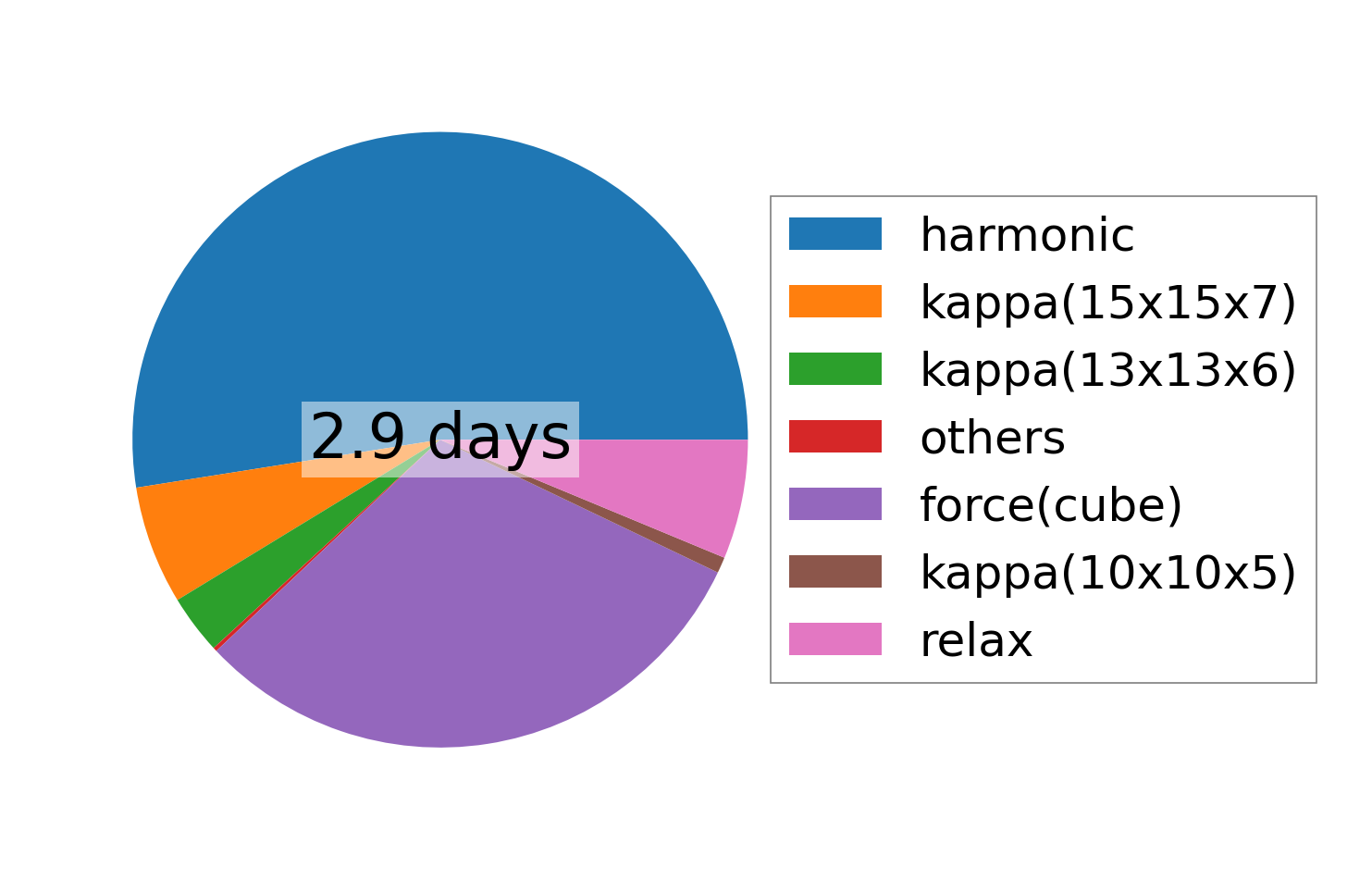

../../_images/fig_times27404.png — (b) Computation time
