mp-11006/BaPS3/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-11006.tar.gz

Equation of state

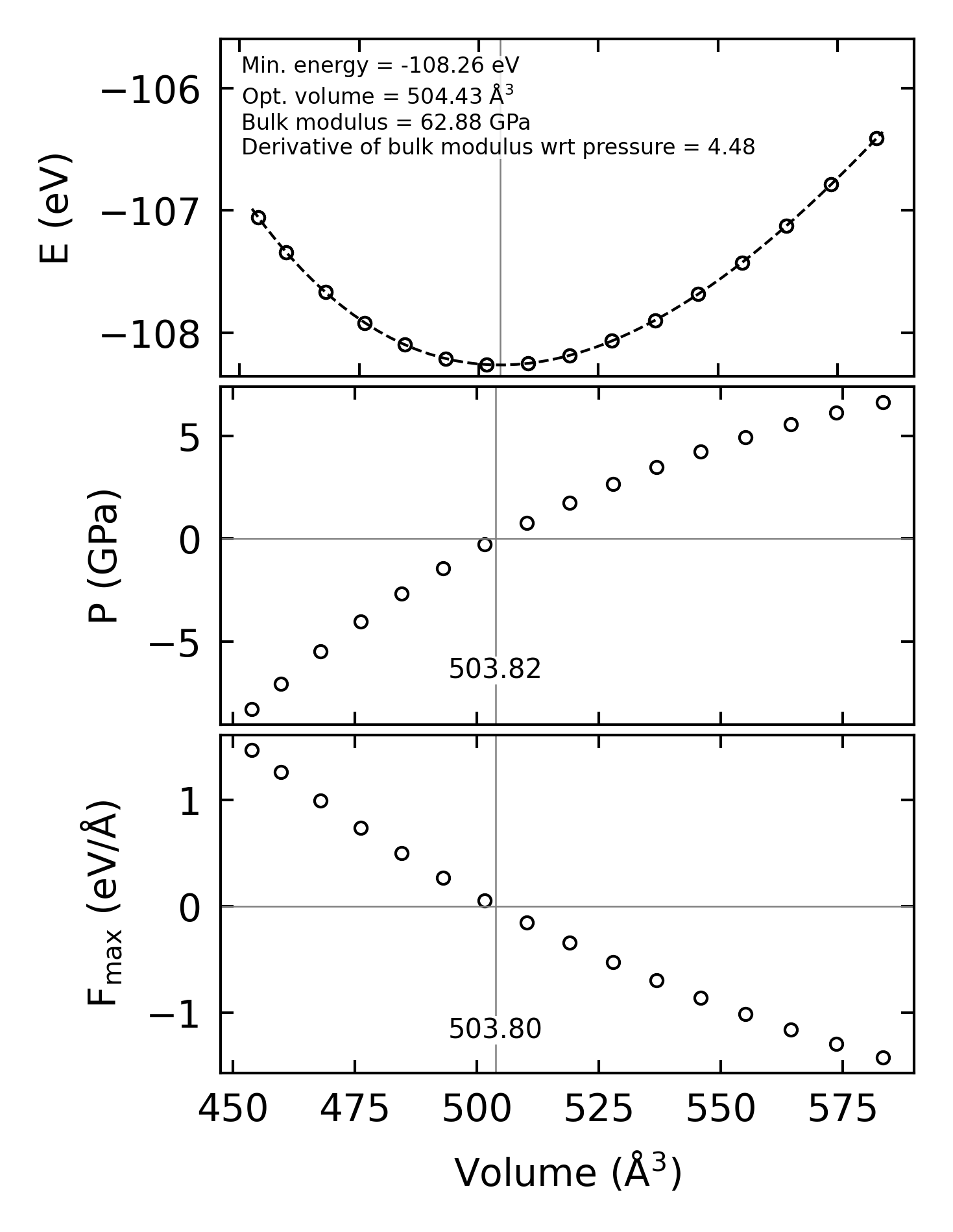

../../_images/fig_bm7750.png — (a) Equation of state

Harmonic properties

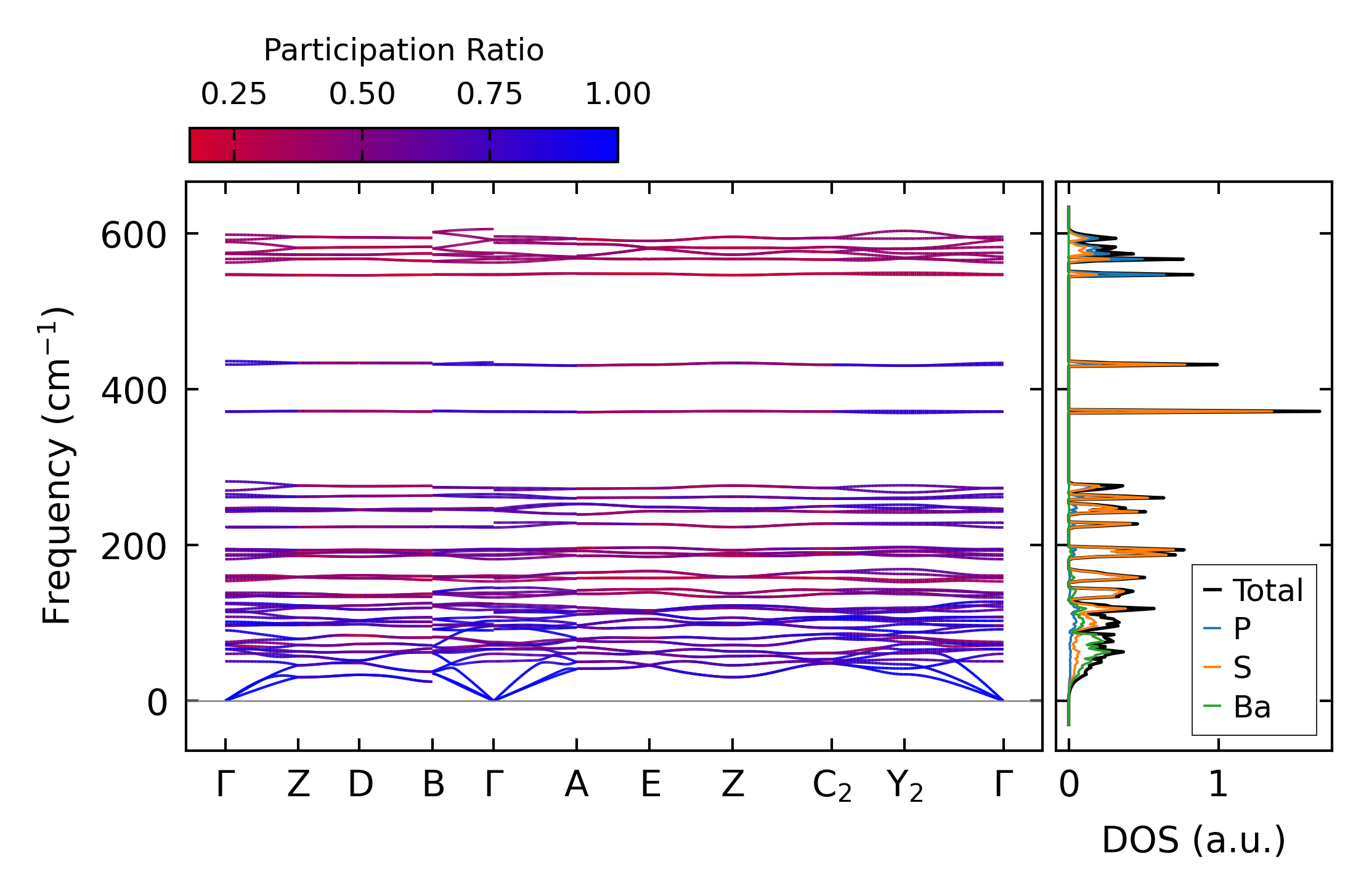

../../_images/fig_bandos_pr16736.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo16735.png — (b) Thermodynamic properties

Grüneisen parameters

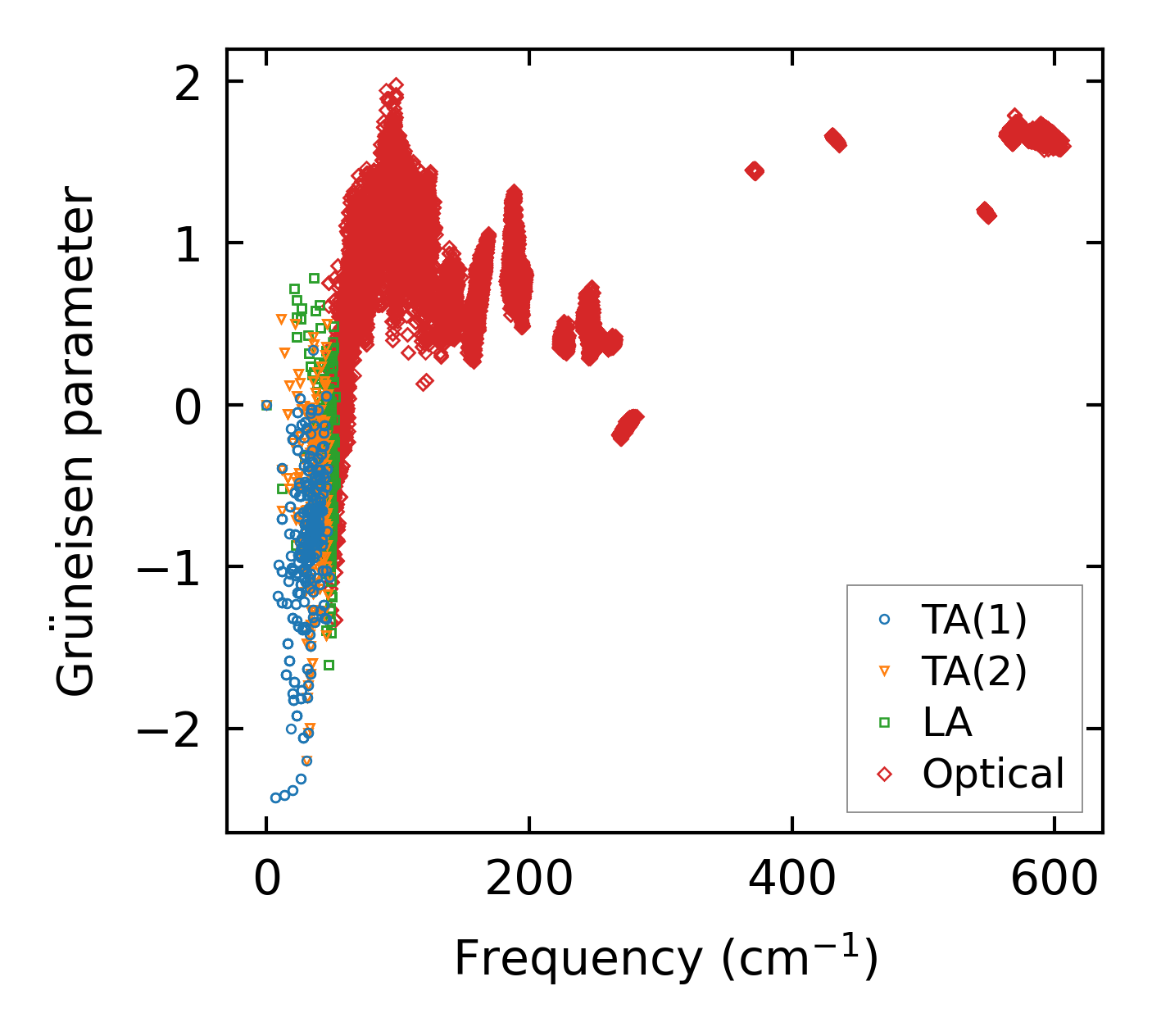

../../_images/fig_gru_all7297.png — (a) Grüneisen parameters

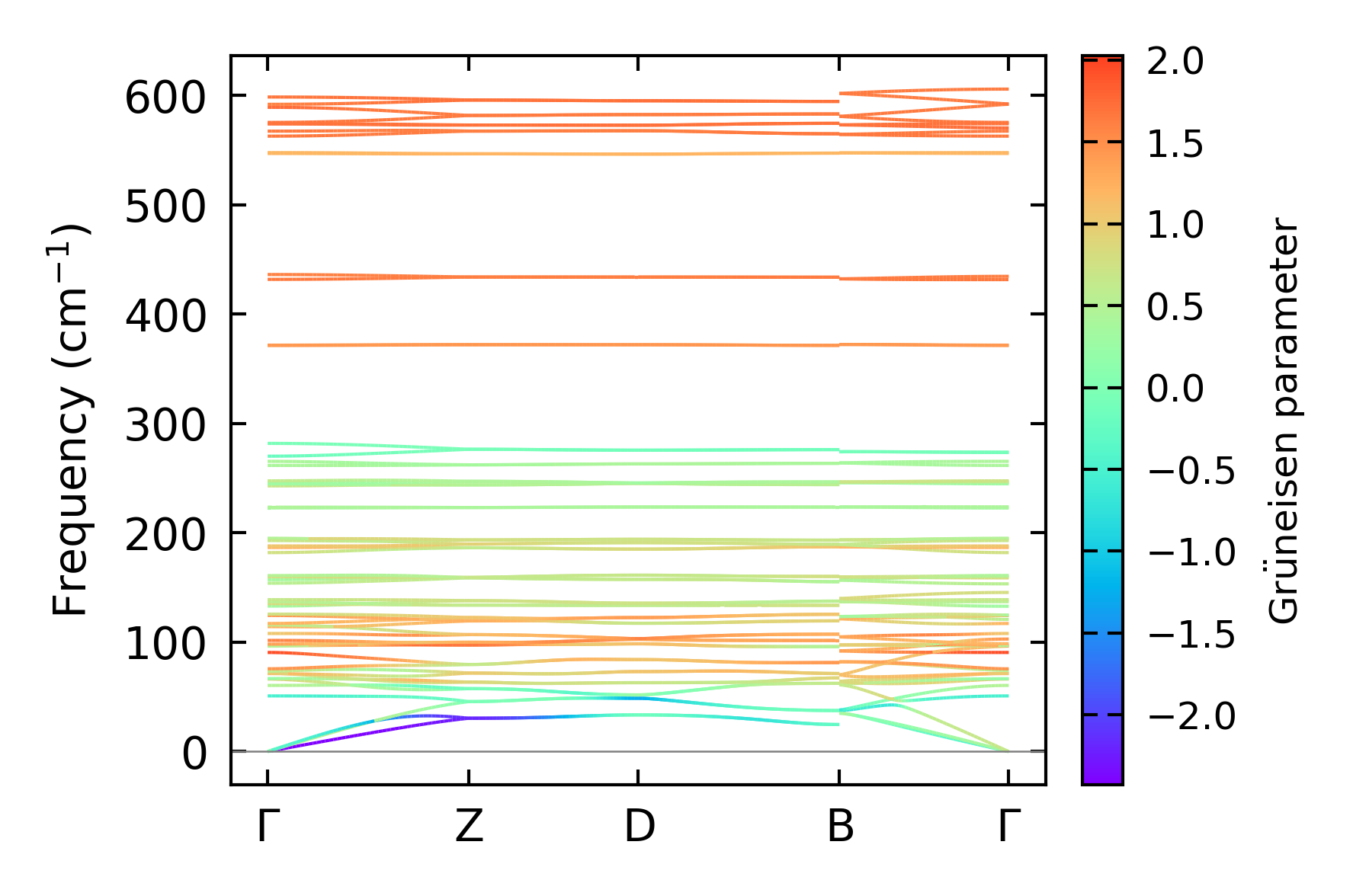

../../_images/fig_gruneisen7297.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x10x6, supercell: 2x2x1

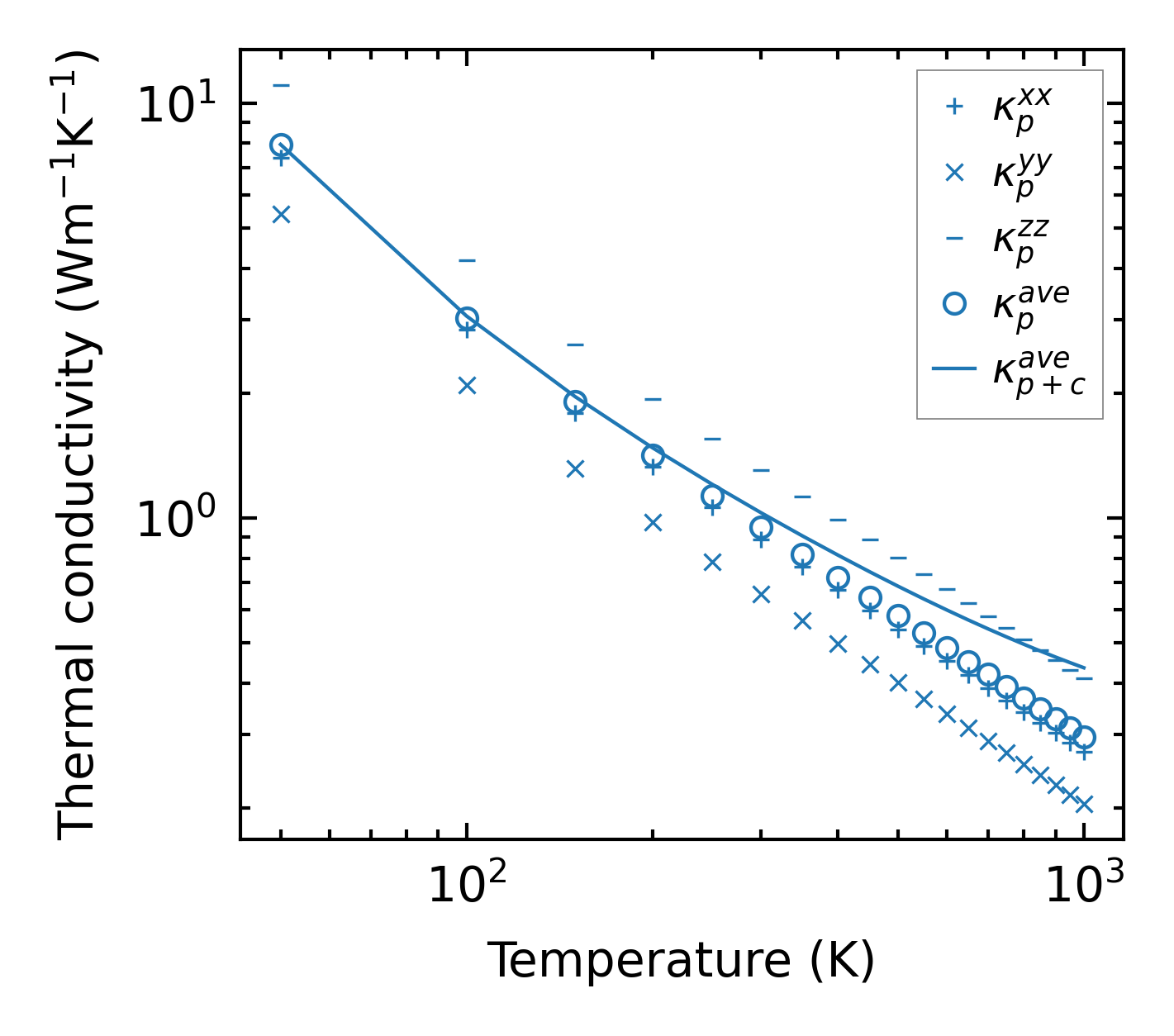

../../_images/fig_kappa13760.png — (a) Temperature-dependent lattice thermal conductivity

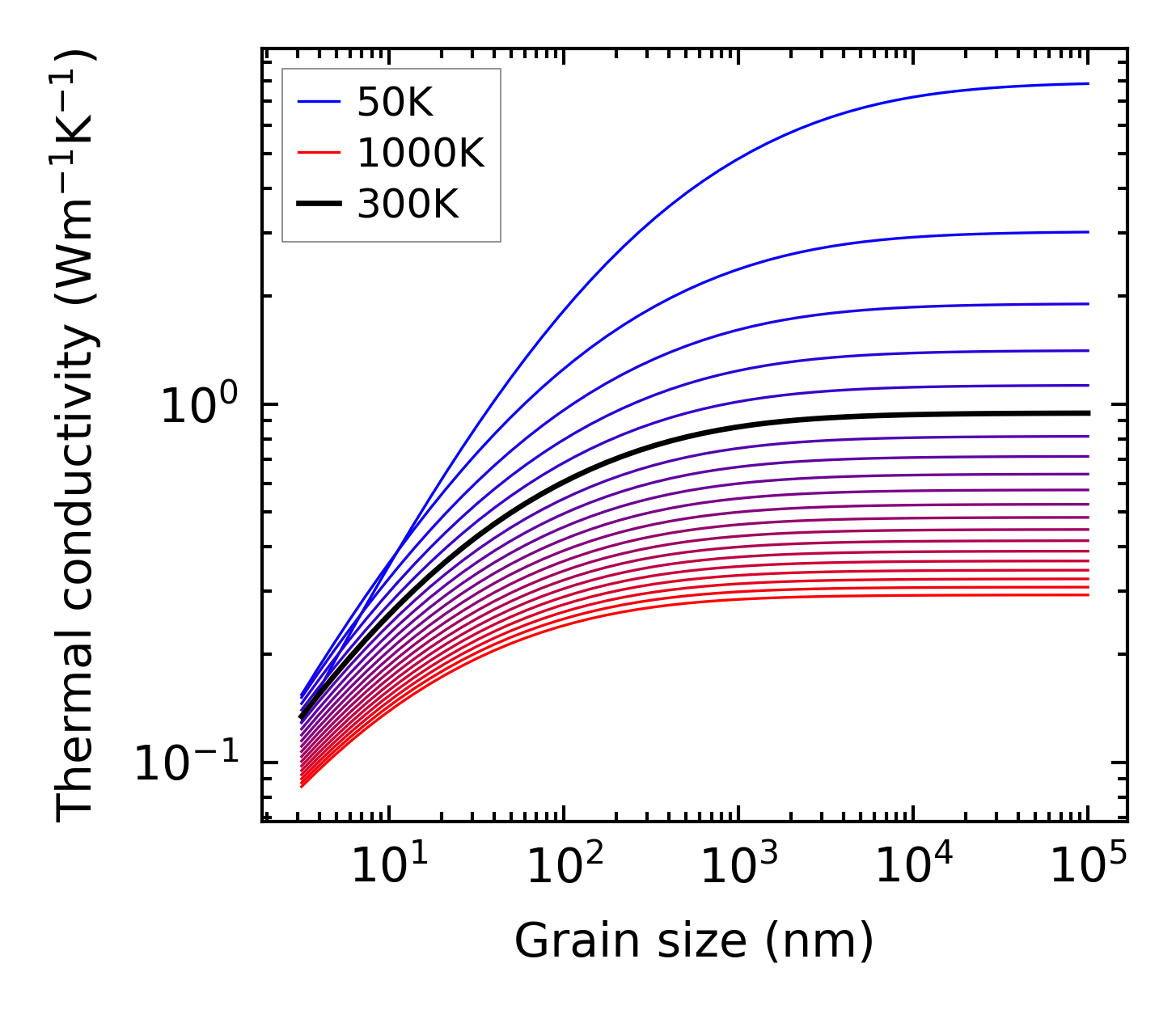

../../_images/fig_kappa_vs_grain_size7383.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime7231.png — (a) Phonon lifetime due to phonon-phonon scattering

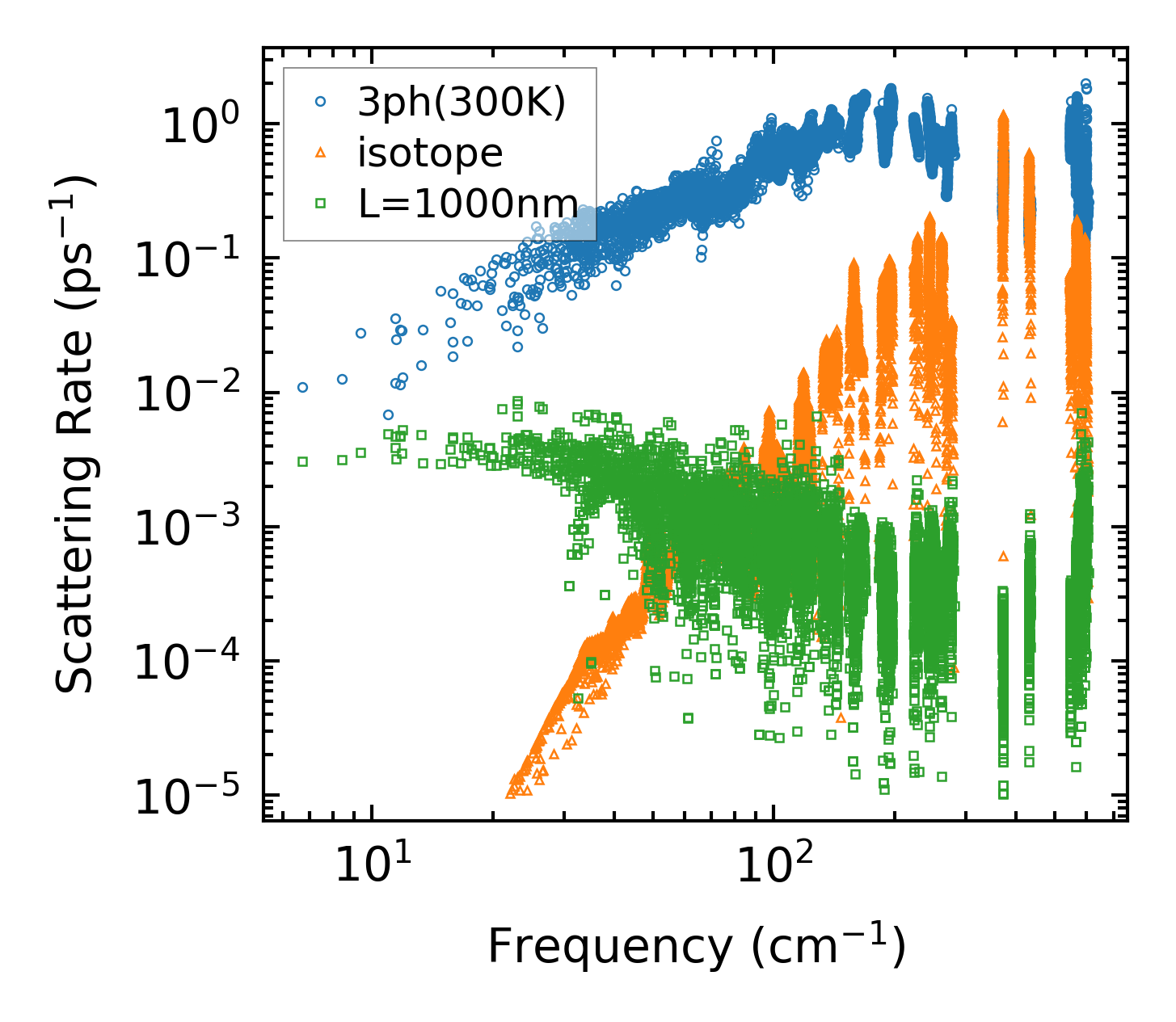

../../_images/fig_scat_rates7230.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency7231.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp7230.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

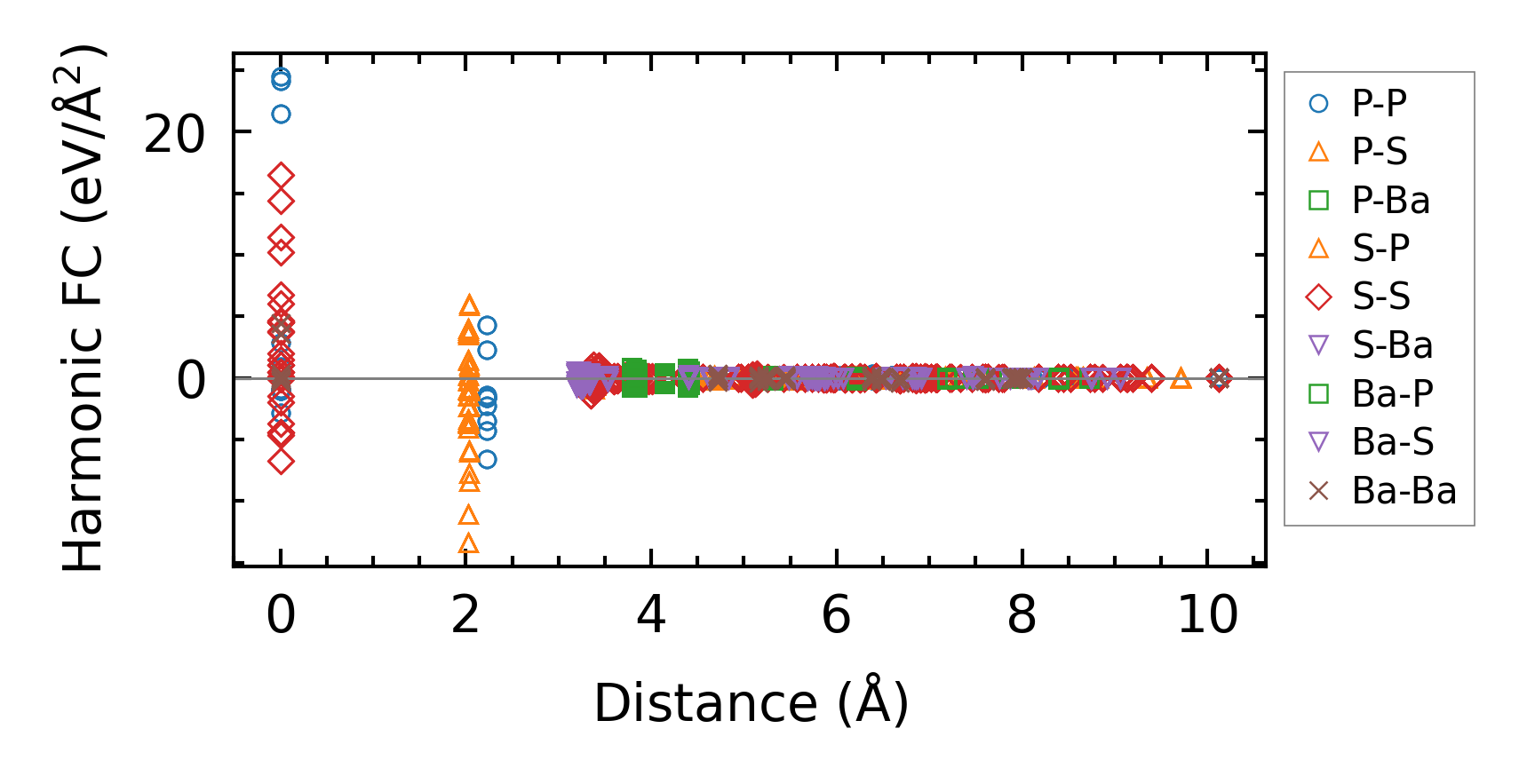

../../_images/fig_fc216294.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13761.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times27349.png — (b) Computation time
